Whether the skid loader in your yard is a Gehl 4610, SL4610 or SL4510, publication 906014 fits it: a 92-page parts catalog PDF running from the chassis and axles through the lift arms and hydrolock mechanism. Hydraulics fill a large share of the book: exploded views of the tandem hydrostatic pump, drive motors, main and auxiliary control valves and the lift and tilt cylinders tag every seal and fitting with its part number. A numerical index lets you run a number off a worn component back to its assembly, and the options section identifies kits from auxiliary front hydraulics to backhoe adapting packages. Before ordering, check your unit model and serial number against the introduction and use the right and left determination notes, so a lift arm or brake caliper arrives for the correct side. A dead loader, a closed parts counter, nobody to ask. Bookmarked and text-searchable, this catalog gets the right part ordered and the machine lifting again.
What's Inside This Gehl 4610, SL4610, SL4510 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | |
| Decal Locations | 4-7 | General Information, New Decal Application, Decal Set Number, Agricultural Loader Paint Notice, Safety Decals |

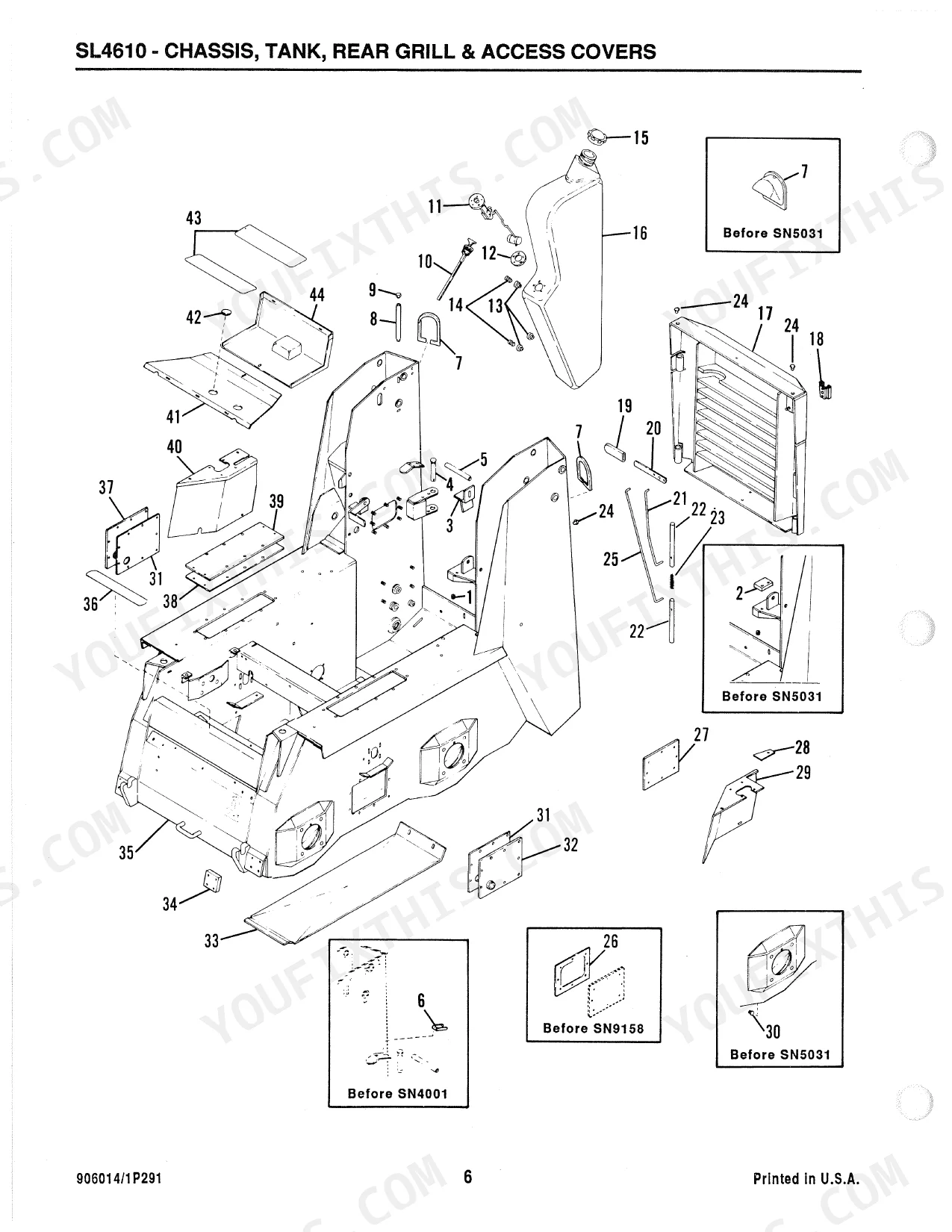

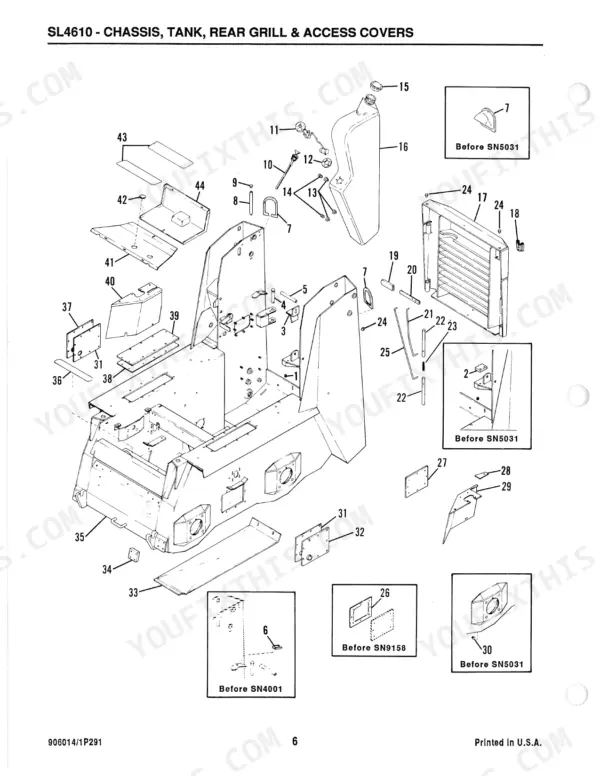

| Chassis, Fuel Tank, Grill & Access Covers | 8-9 | Plug, Pad, Bracket, Pin, Tube, Dipstick, Sender, Bushing |

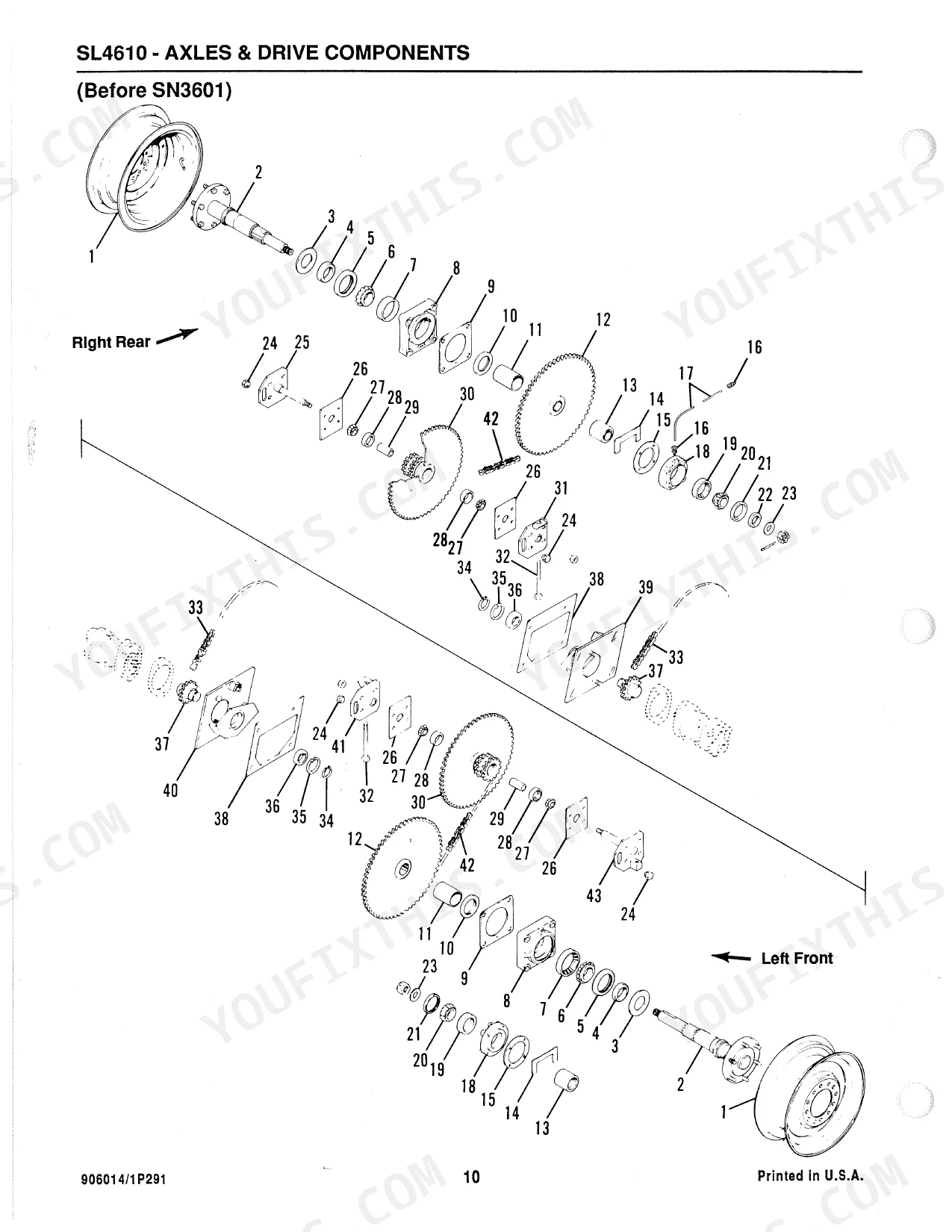

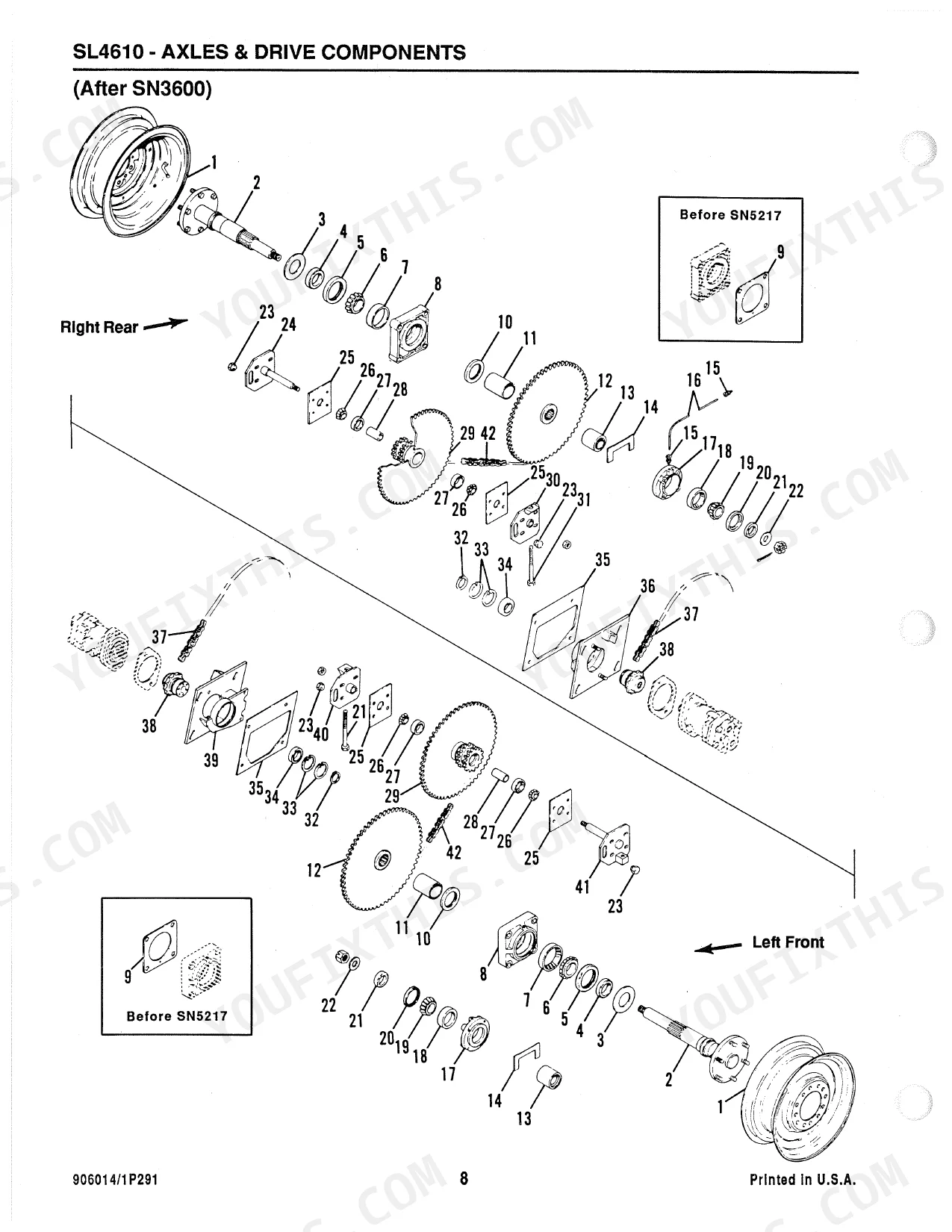

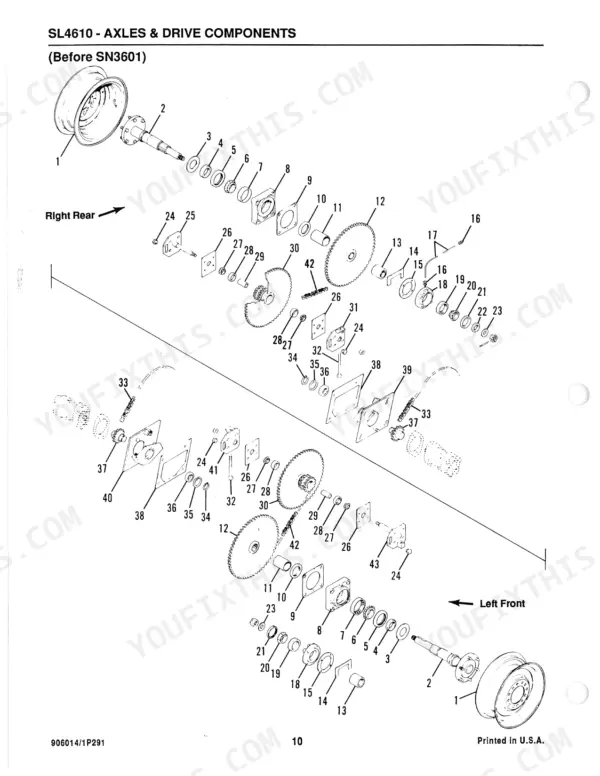

| Axles & Drive Components | 10-13 | Wheel, Axle, Pin, Nut, Washer, Spacer, Seal, Cone |
| Overhead Guard, Seat & Engine Access Cover | 14-17 | Ring, Washer, Bushing, Bracket, Switch, Shaft, Bearing, Spring |
| Instrument Panel, Wiring & Battery | 18-21 | Keys, Holder, Fuse, Bulb, Indicator, Switch, Gauge, Panel |
| Lift/Tilt T-Bar, Throttle & Linkage | 22-23 | Handle, Boot, Pin, Pivot, Clevis, Link, Lever, Grip |
| Propulsion Control T-Bar & Linkage | 24-27 | Handle, Boot, Bracket, Ring, Washer, Bearing, Trunnion, Support |
| Hand Brake & Calipers | 28-29 | Disc Brake, Brake Caliper, Brake Actuator, Brake Mounting Bracket, Brake Lever, Brake Cable |
| Hydraulic System | 30-33 | Hydraulic Filter, Oil Cooler, Relief Valve, Hydraulic Pump, Solenoid Valve, Lift Arm Tube |
| Hydrostatics System | 34-37 | Hydrostatic Drive Motor, Tandem Hydrostatic Pump, Drain Tube, Pump Mounting Bracket, Charge Tube, Pump Support |
| Engine & Related Components | 38-41 | Diesel Engine, Starter Motor, Fuel Supply Hose, Fuel Return Hose, Engine Mount, Flywheel Housing |
| Air Cleaner, Alternator, Muffler & Radiator | 42-45 | Air Cleaner, Exhaust Muffler, Radiator, Alternator, Fan Shroud, Radiator Hose |
| Lift Arms & Hydrolock Mechanism | 46-49 | Lift Arm, Load Arm, Leveling Link, Lift Cylinder Pin, Safety Step, Rapid Tach |
| Lift & Tilt Cylinders & Hydraulics | 50 | Tilt Roll-Back Tube, Lift Cylinder Tube, Tube Isolator, Hydraulic Hose |
| Pumps, Motors, Valves & Cylinders | 51-63 | Drive Pump, Main Control Valve, Auxiliary Control Valve, Hydrostatic Drive Motor, Tilt Cylinder, Lift Cylinder, Relief Valve, Gear Pump |
| Options & Accessories | 64-80 | Auxiliary Front Hydraulics, Work and Warning Light Kits, Horn Kit, Hydraulic Oil Heater Kit, Backhoe Adapting Packages, Rigid All-Weather Enclosures |
| Hardware Torque Specifications | 91-92 | Grade 2 Hardware, Grade 5 Hardware, Grade 8 Hardware, Attaching Hardware |
Gehl 4610, SL4610, SL4510 Common Problems This Manual Covers
Gehl SL4610 skid loader hydraulic filter, oil cooler and relief valve part numbers needed before ordering

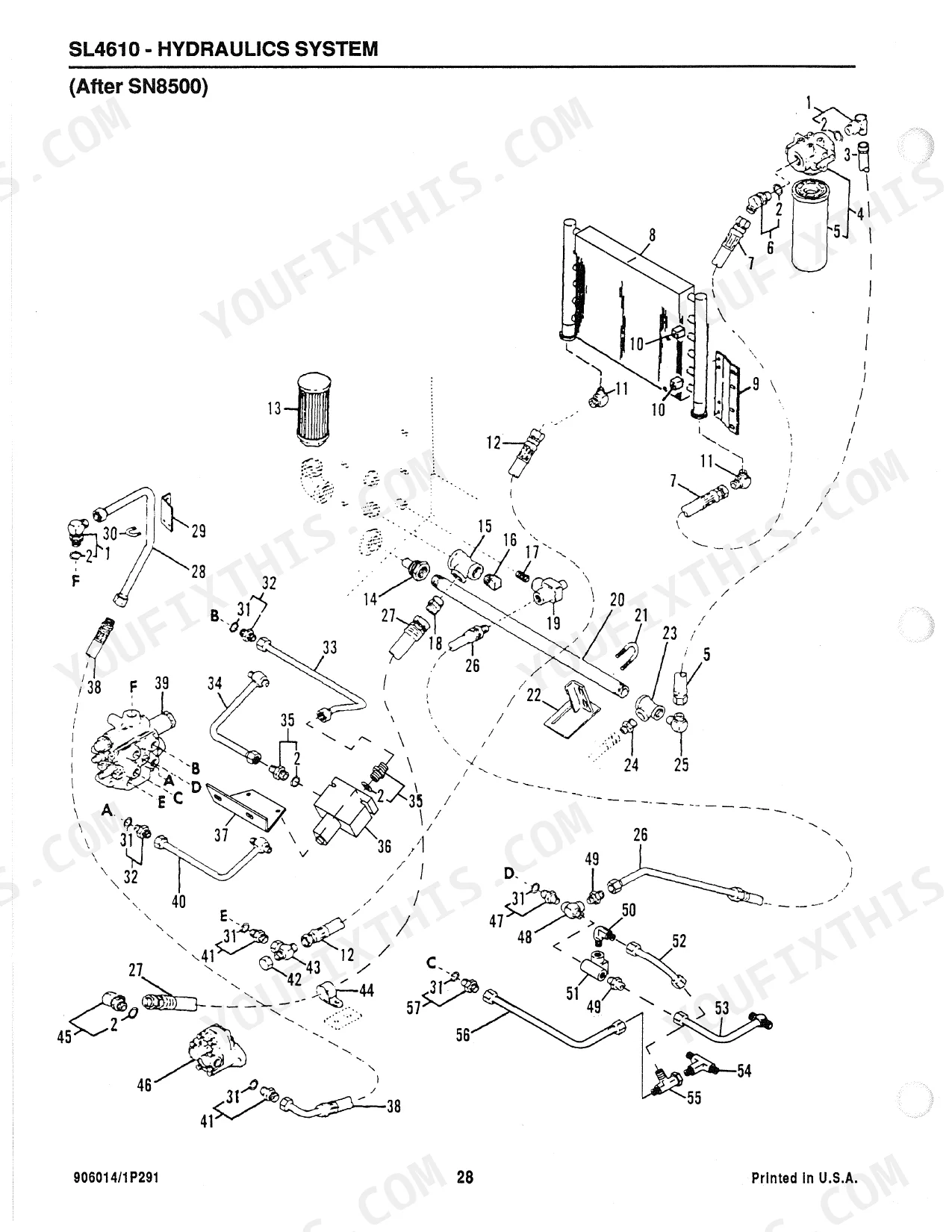

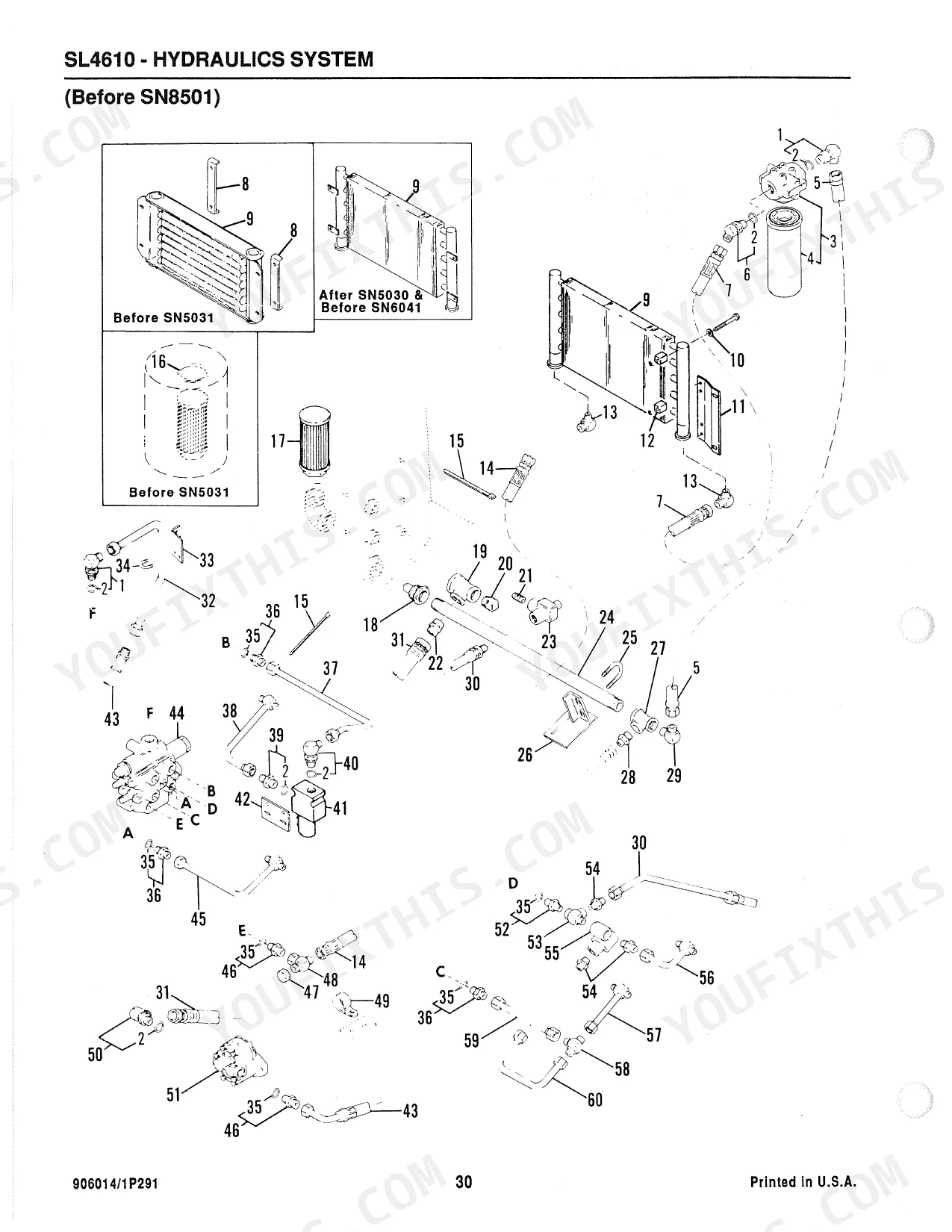

Check the Hydraulic System exploded views starting on page 30 and match the hydraulic filter, oil cooler, relief valve and solenoid valve to their callout numbers. Read each part number from the matching parts list, then confirm your unit's model and serial number using the ordering instructions on page 2 before ordering.
Manual Section: Hydraulic System p. 30Tandem hydrostatic pump, drive motor and charge tube part numbers hard to locate in the parts book
Check the Hydrostatics System pages starting at page 34 for the tandem hydrostatic pump, hydrostatic drive motor, charge tube, drain tube and pump mounting bracket. For drive pump and hydrostatic drive motor breakdowns, turn to the Pumps, Motors, Valves & Cylinders section starting on page 51. Verify your serial number against page 2 before ordering.
Manual Section: Hydrostatics System p. 34Hand brake disc, brake caliper or brake cable part number needed and unsure which side fits
Check the Hand Brake & Calipers breakdown on page 28 for the disc brake, brake caliper, brake actuator, brake lever, brake cable and mounting bracket. Verify the side using the Right and Left Determination guidance in the Introduction on page 2 so the caliper you order matches the side of the machine you are working on.
Manual Section: Hand Brake & Calipers p. 28Lift and tilt cylinder repair parts plus hose and tube numbers hard to separate between two sections
Check page 50 for the lift cylinder, tilt cylinder, lift cylinder tube, tilt roll-back tube, tube isolator pads, tilt cylinder hoses and hose clamps. For cylinder repair breakdowns, turn to the Pumps, Motors, Valves & Cylinders section starting on page 51. Match each callout to its parts list entry before ordering.
Manual Section: Lift & Tilt Cylinders & Hydraulics p. 50Instrument panel gauge, indicator, bulb, fuse or switch part numbers needed for electrical repairs
Check the Instrument Panel, Wiring & Battery breakdown starting on page 18 for the gauges, indicators, bulbs, fuses, switches, keys and holder, plus the battery mounting hardware. Match the callout on the panel diagram to its parts list entry, then verify your model and serial number using page 2 before ordering.
Manual Section: Instrument Panel, Wiring & Battery p. 18Alternator, radiator hose, fan shroud or air cleaner part numbers needed for cooling and intake service
Check the Air Cleaner, Alternator, Muffler & Radiator breakdown starting on page 42 for the air cleaner, alternator, radiator, radiator hoses, fan shroud and exhaust muffler. When reinstalling attaching hardware, verify torque against the Grade 2, Grade 5 or Grade 8 charts on page 91 that match your bolt grade.
Manual Section: Air Cleaner, Alternator, Muffler & Radiator p. 42Frequently Asked Questions
What are the torque specifications for standard machine hardware on the Gehl 4610?
Torque specifications for standard machine hardware are provided in a table on the inside back cover. For example, a 1/2-13 bolt (Grade 5) requires 75 ft-lb when dry and 55 ft-lb when lubricated. A 1/2-13 bolt (Grade 8) requires 110 ft-lb dry and 80 ft-lb lubricated. p. 91
What is the replacement part number for the hydraulic filter element on a Gehl 4610, SL4610, SL4510 skid loader?

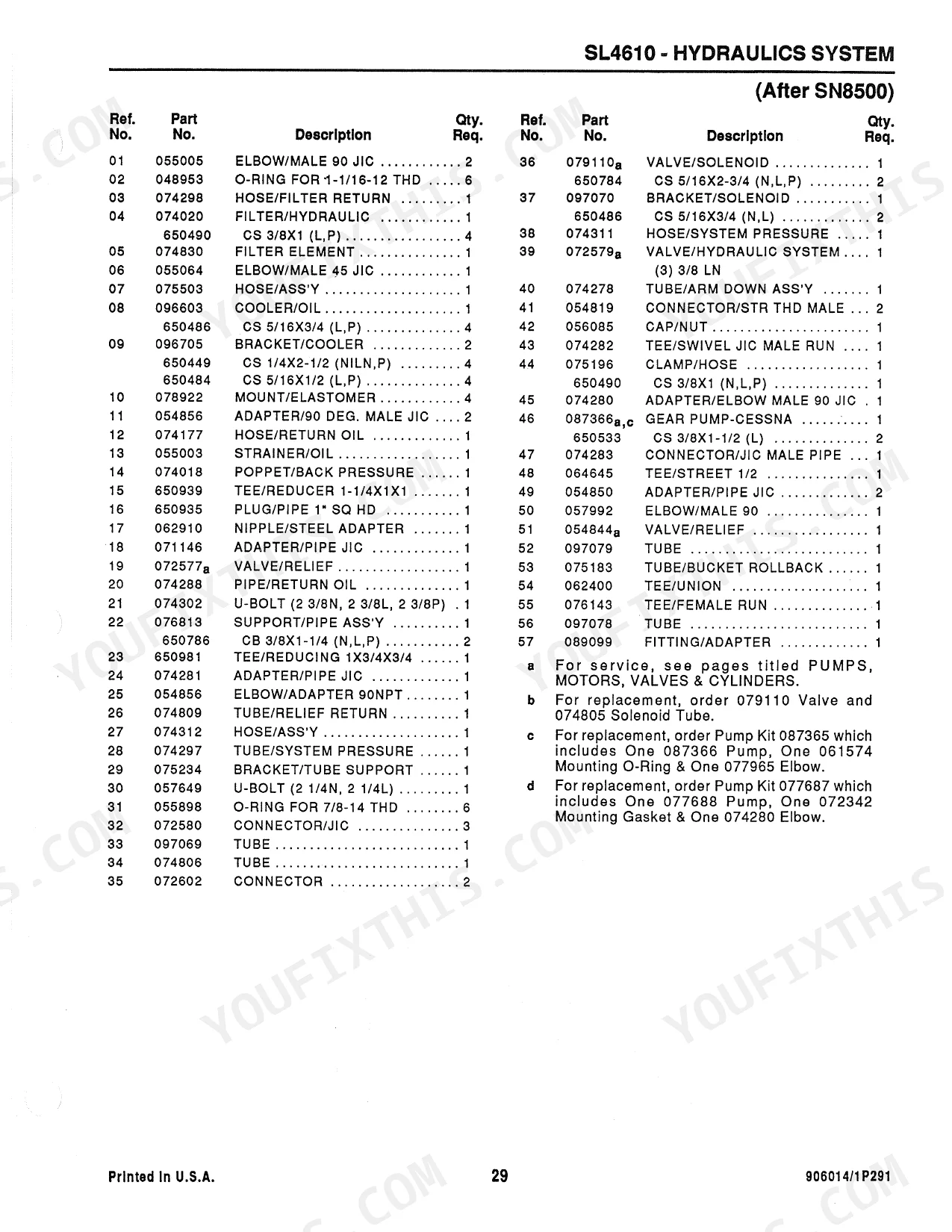

The replacement part number for the hydraulic filter element is 074830. p. 31
What is the correct replacement battery specification for the Gehl 4610?
The manual specifies using a Group 27 battery with a minimum of 575 Cold Cranking Amps (CCA). p. 19
What is the engine oil dipstick part number for Gehl 4610, SL4610, SL4510 units after serial number 3200?

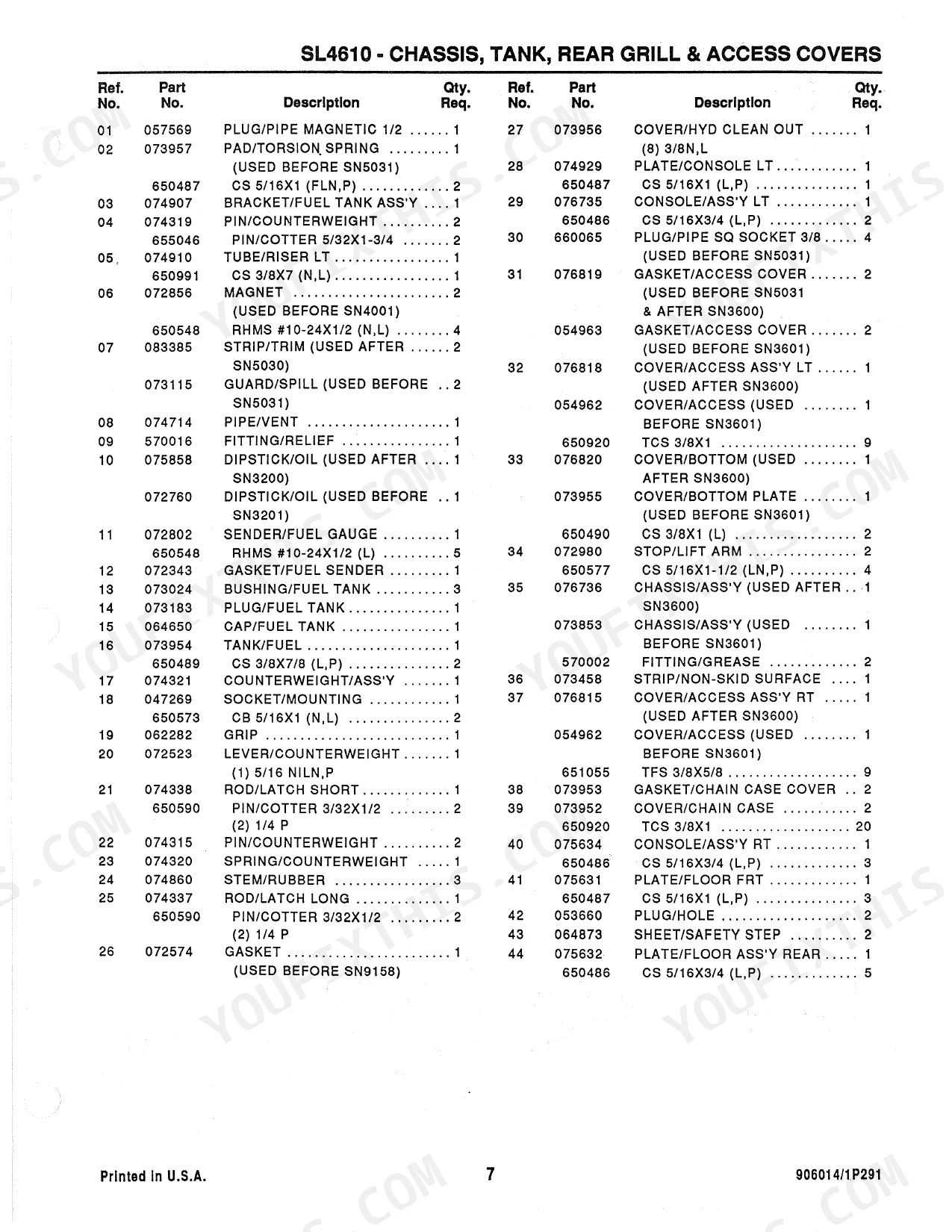

For units after serial number 3200, the engine oil dipstick part number is 075858. p. 9
What is the part number for the fuel tank cap on a Gehl 4610, SL4610, SL4510 skid loader?
The part number for the fuel tank cap is 064650. p. 9
Is this Gehl 4610 Parts Catalog a digital download?
This is a 92-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I free to print this Gehl 4610 Parts Catalog?
Yes. Print the sections you need to take out to the shop for your own use. Standard letter or A4 paper works.
