Gehl parts catalog 903517 strips the 65MX Mix-All Feedmaker down to its last hammer and U-bolt across 58 pages, putting a part number on everything from the drawbar hitch to the molasses pump spray nozzle. Exploded views in this Gehl 65MX parts catalog PDF work through the frame, tank and hopper, transmission, mill cylinder, crusher, conveyor drives and the #200 DF and DFA traveling feeders, with universal drives and accessories at the back. A numerical index closes it out, so you can work backward from a stamped part number to the assembly it belongs in. Check your serial plate before ordering: mill drive parts split at serial #82828 and feeder trough parts at #15000, and each era is shown on its own pages. A wrong sheave clutch costs you freight twice. The file is bookmarked and text-searchable, and it goes on your laptop or phone to wherever the feedmaker is parked.
What's Inside This Gehl 65MX Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | |

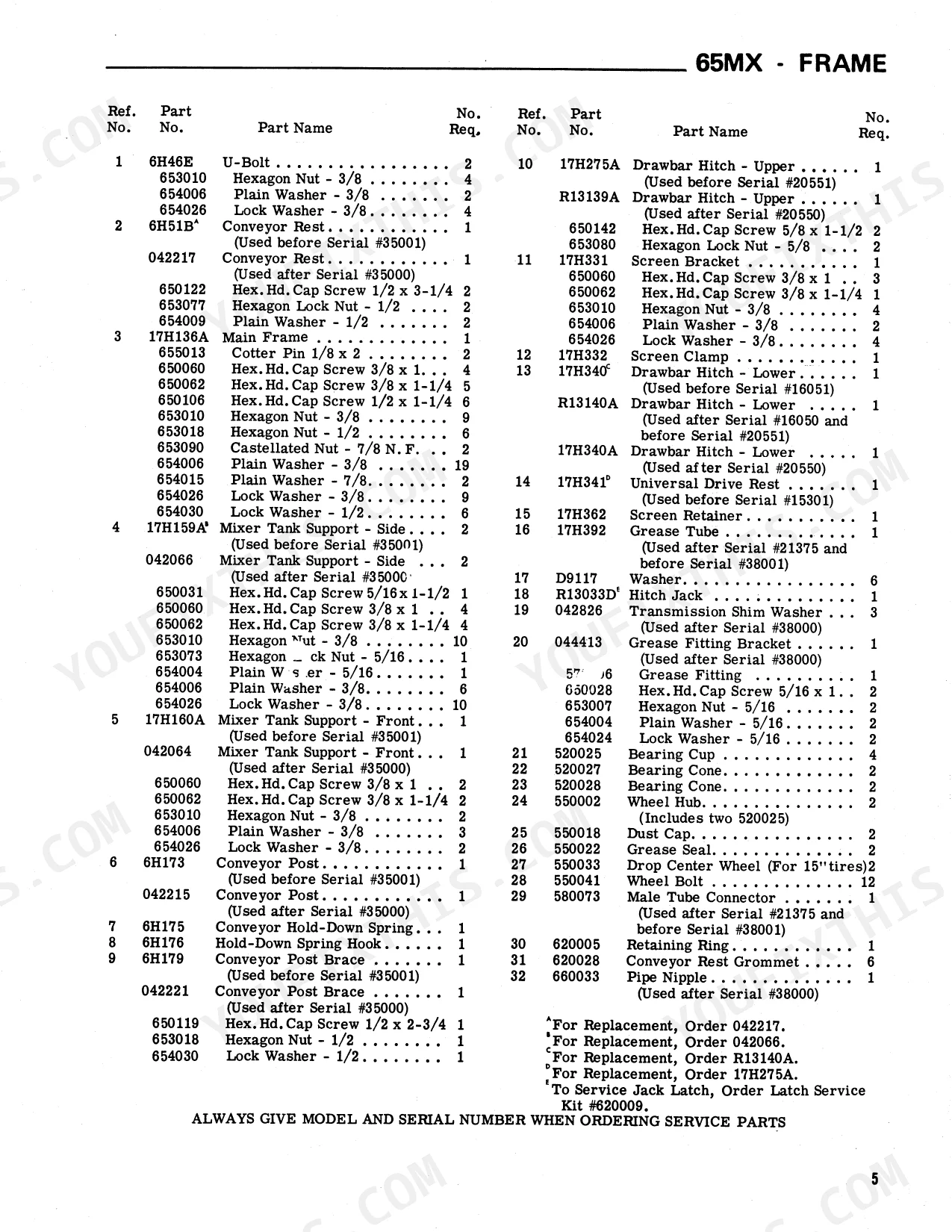

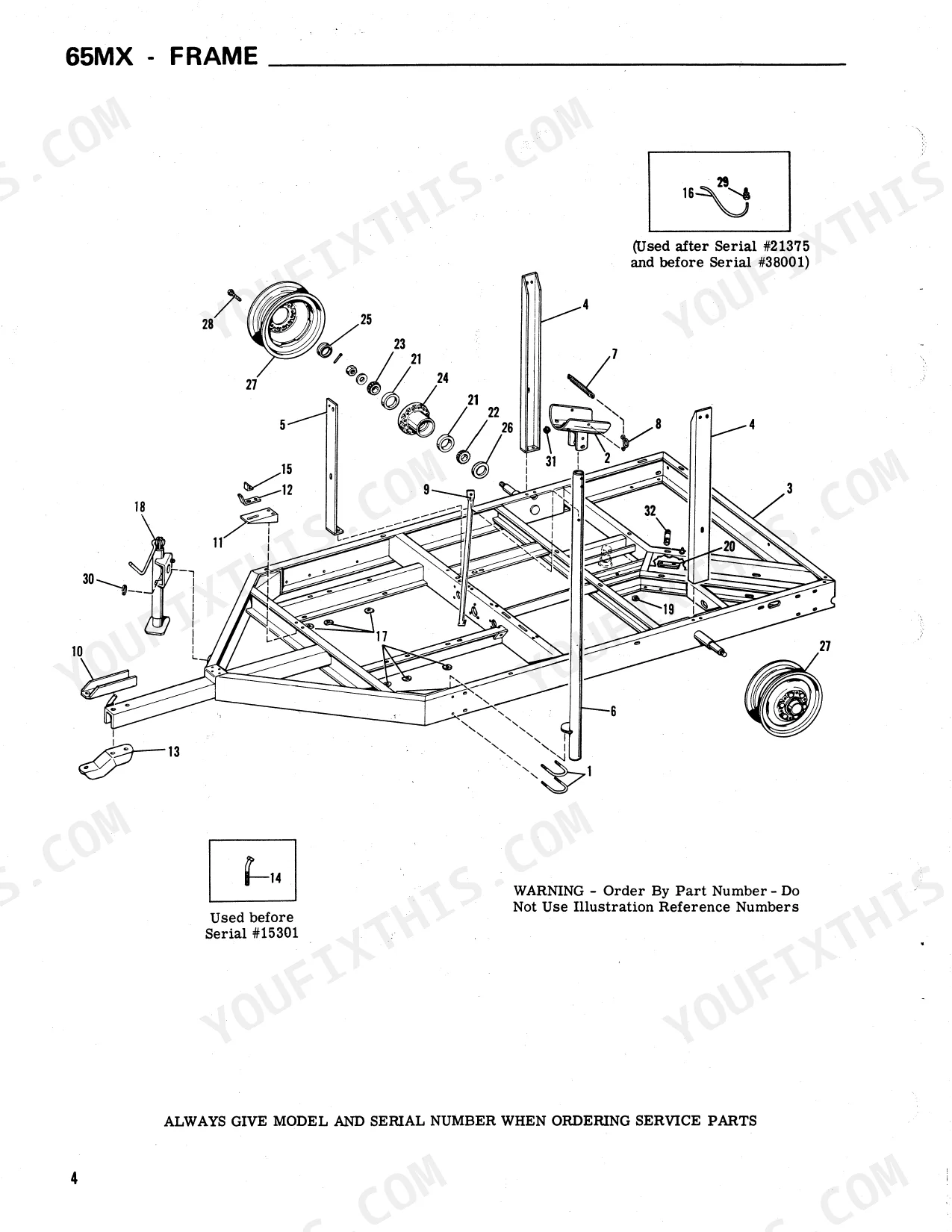

| Frame | 4-5 | U-Bolt, Conveyor Rest, Main Frame, Mixer Tank Support, Conveyor Post, Drawbar Hitch |

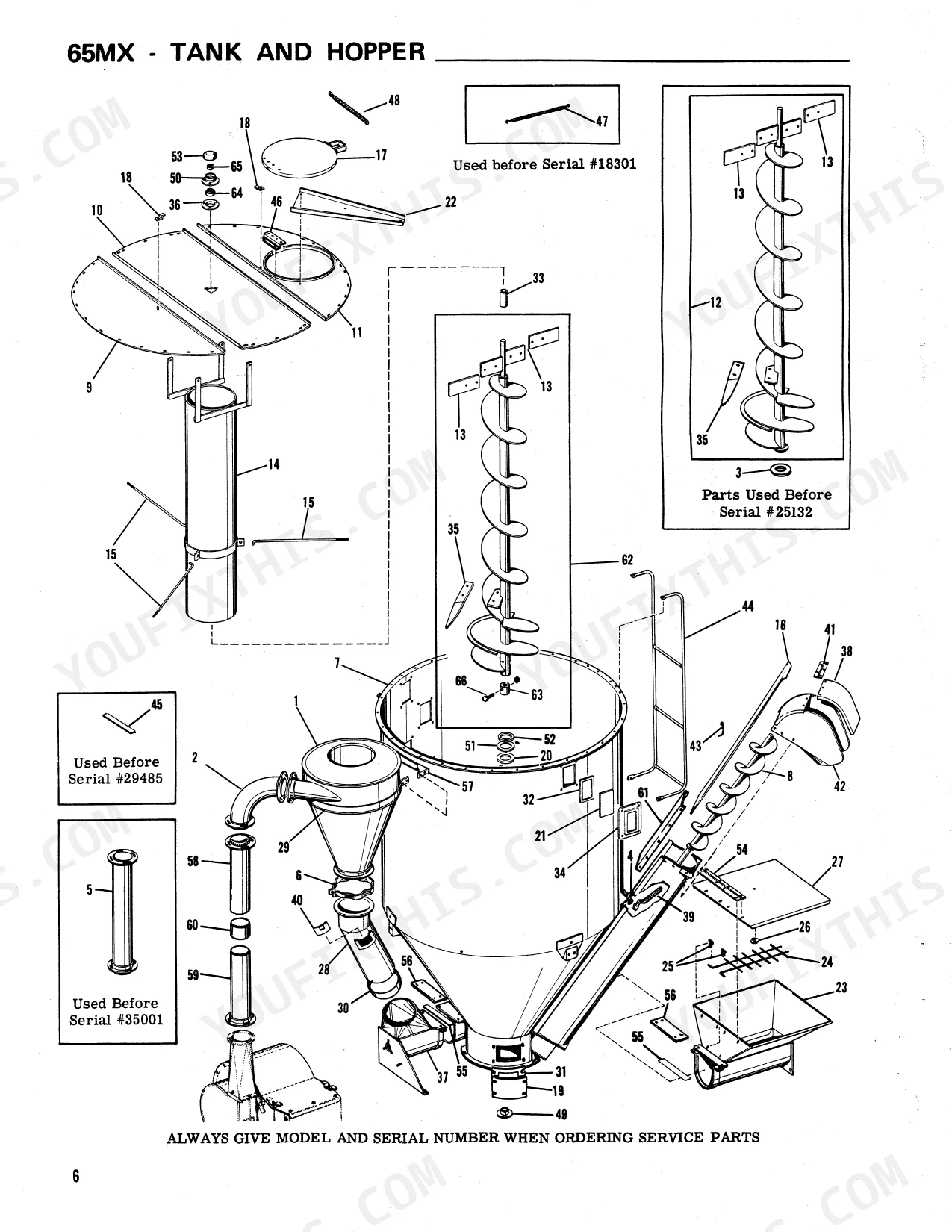

| Tank and Hopper | 6-8 | Dust Collector, Mixer Auger, Mixer Paddle, Mixer Tube, Shut-Off Slide, Concentrate Hopper |

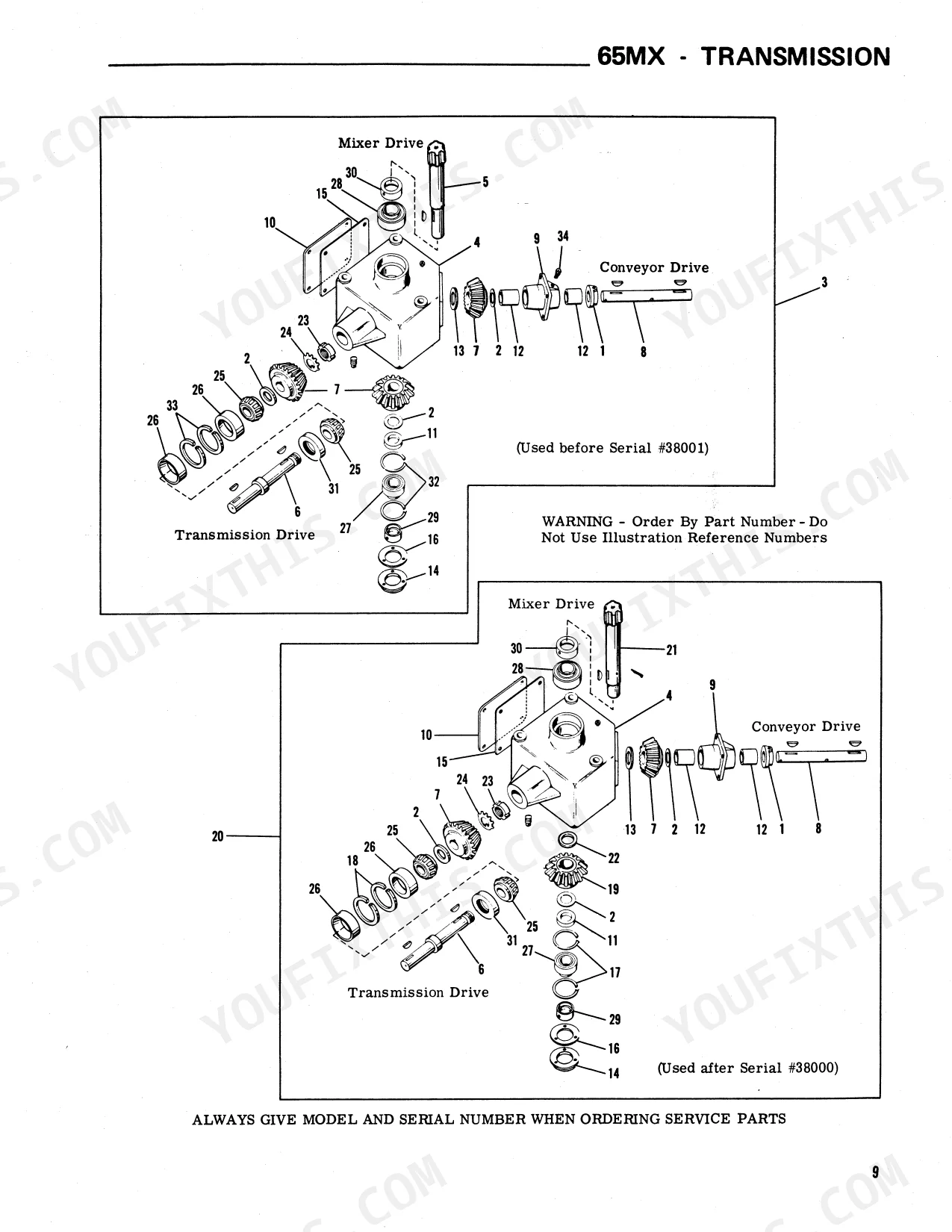

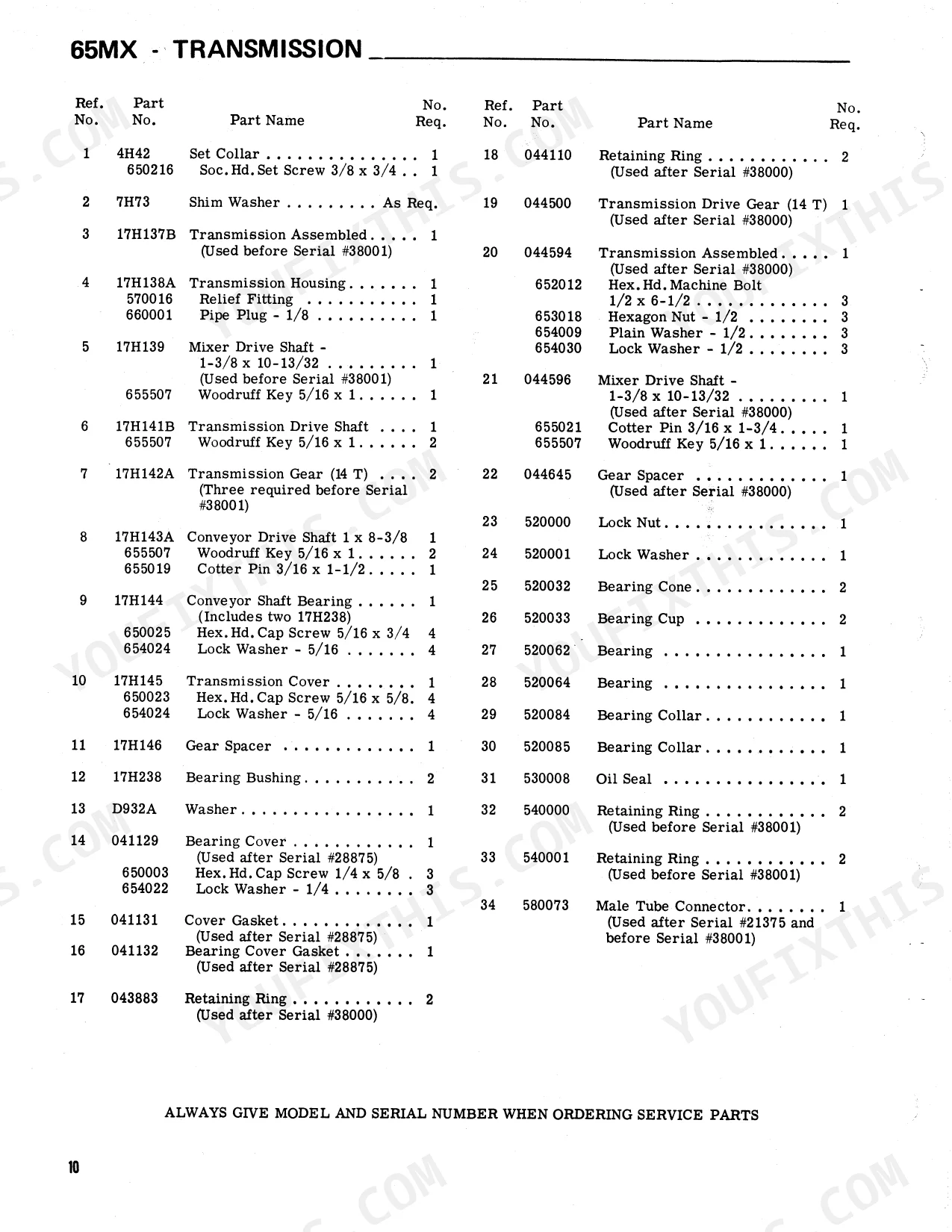

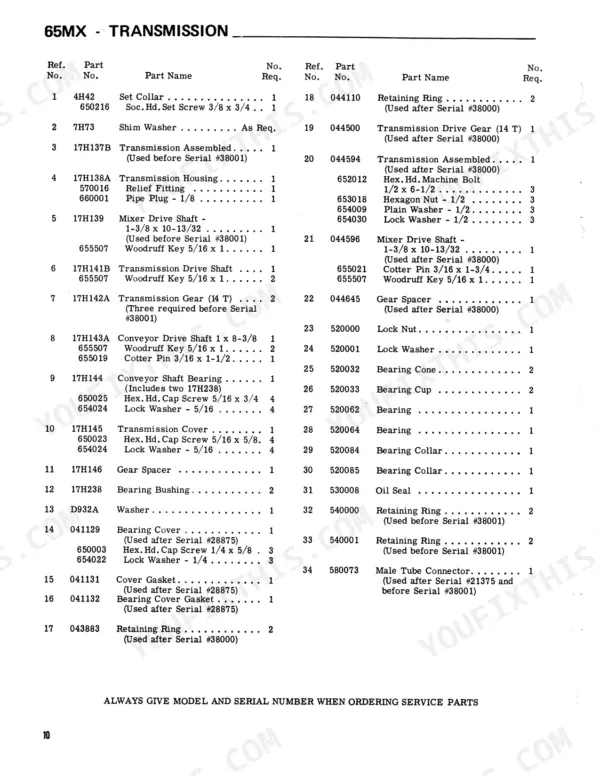

| Transmission | 9-10 | Housing, Mixer Drive Shaft, Drive Shaft, Gear, Conveyor Drive Shaft, Bearing Cover |
| Mixer Drive | 11-12 | Concentrate Hopper Conveyor, Shaft, Bearing Bracket, Conveyor Drive Sprocket, Mixer Driven Sprocket, Universal Joint |
| Unloading Conveyor | 13 | Conveyor Collar, Conveyor Housing, Conveyor Bearing |
| Conveyor Drive | 14-16 | Conveyor Support, Shaft, Conveyor Pivot, Transfer Gear, Discharge Conveyor Gear, Shifter Bracket |
| Mill Drive (Used After Serial #82828) | 17-18 | Bearing Support, PTO Drive Shaft, Mill Driven Sheave, Guard, Drive Sheave Clutch, Clutch Spacer |
| Mill Drive (Used Before Serial #82829) | 19 | Bearing Support, PTO Drive Shaft, Sheave |
| Mill Frame | 20-21 | Screen Hook, Conveyor Spout, Throat Plate, Cylinder Inspection Cover, Screen Cover, Cover Lock Bolt |
| Mill Conveyor and Blower | 22-23 | Blower Side, Blower Spider, Fan Plate, Blower Rim, Blower Outlet, Inspection Hole Cover |
| Mill Cylinder | 24 | Cylinder Plate, Cylinder Plate Spacer |
| Feeder Drive | 25-27 | Lock Pin Spring, Variable Sheave Key, Belt Tightener Pulley, Conveyor Drive Gear, Conveyor Driven Sheave, Conveyor Drive Belt |
| Feeder Trough (Used After Serial #15000) | 28-29 | Trough Lock Bushing, Drain Plug, Conveyor Trough, Conveyor Shaft, Drive Shaft Guard, Conveyor Trough End |
| Feeder Trough (Used Before Serial #15001) | 30-31 | Conveyor Trough, Conveyor Shaft, Conveyor Drive Sprocket, Conveyor Driven Sprocket, Conveyor Drive Guard, Pivot Shaft |
| Crusher | 32-33 | Roughage Roller Lift, Driven Gear, Drive Gear, Roller Shaft, Gear Guard, Roller Equalizer |
| Fiberglass Tank | 34-35 | Mixer Tank, Mixer Cover, Tank Cone Base, Discharge Conveyor Trough, Slide Adjustment, Mixer Tube Support |
| Support and Drive | 36-37 | Shim Washer, Standard Pipe, Sheller Support, Transmission Support, Main Drive Guard, Cob Thrower Adapter Pipe |
| Discharge Pipe | 38 | Degree Elbow, Long Sweep Elbow, Pipe Clamp Bracket |
| Molasses Pump | 39 | Pump Drive Belt, Strainer, Discharge Pipe Base |
| #200 DFA Traveling Feeder | 40-42 | Idler Pulley, Drive Belt, Conveyor Bottom, Conveyor Side, Conveyor Slide, Hopper Side |
| #200 DF Traveling Feeder | 43 | Pivot Bracket, Idler Arm, Conveyor Lift Handle |
| Hopper | 44 | Grain Shutter, Corn Shutter, Magnet Hole Cover |
| Mixer Direct Drive | 45 | p.t.o. Drive Shaft, Bearing Support, Joint Guard |
| Roller Mill Mounting (600) | 46 | Bearing Bracket, Drive Sprocket, Bearing Retainer |
| Roller Mill Mounting (F20S6) | 47 | Mill Support, Hopper Support, Conveyor Trough |
| Universal Drives | 48-50 | Center Cross Kit, Male Guard Tube, Female Guard Tube, Yoke and Shaft, Bearing Retainer, Center Yoke |
| Accessories | 51 | Hopper Magnet |
Gehl 65MX Common Problems This Manual Covers
Gehl 65MX mill drive sheave clutch parts don't match the old ones, unsure which serial number version applies
Check the machine serial number before ordering. Units after Serial #82828 use the mill drive exploded view on page 17, which lists the drive sheave clutch, clutch spacer and mill driven sheave. Machines before Serial #82829 use the earlier layout on page 19 with the clutch shifter. Order from the list that matches your tag.
Manual Section: Mill Drive (Used After Serial #82828) p. 17Can't identify replacement hammer and hammer shaft parts for the mill cylinder with worn hammers
Check the mill cylinder parts on page 24 before pulling the old hammers. It lists the hammer, hammer shaft, cylinder plate, cylinder plate spacer and cylinder bearing housing, and shows the hammer arrangement on the cylinder shaft. Note your hammer mill number from the introduction on page 3 so the order matches your mill.
Manual Section: Mill Cylinder p. 24Feeder trough conveyor shaft and sprockets don't match, unsure if trough is the early or late version
Verify the serial number first. Units after Serial #15000 use the feeder trough breakdown on page 28, covering the conveyor trough, conveyor shaft, trough lock bushing and drain plug. Units before Serial #15001 use page 30, which lists the conveyor drive sprocket, conveyor driven sprocket and pivot shaft.
Manual Section: Feeder Trough (Used After Serial #15000) p. 28Universal drive center cross kit or yoke needs replacing, can't find matching guard tube parts
Check the universal drives breakdown on page 48. Match your driveline parts to the center cross kit, center yoke, yoke and shaft, bearing retainer, and the male and female guard tubes listed there. Confirm which drive you are working on before ordering, since this section covers more than one universal drive.
Manual Section: Universal Drives p. 48Feeder drive conveyor drive belt or belt tightener pulley worn, need the right replacement part listing
Check the feeder drive breakdown on page 25 for the conveyor drive belt, belt tightener pulley and conveyor driven sheave. The variable sheave key and lock pin spring are listed in the same section, so order them together if they show wear. Match the part number and description exactly when you place the order.
Manual Section: Feeder Drive p. 25Mill blower spider, fan plate or blower rim damaged, can't locate the correct replacement parts
Check the mill conveyor and blower breakdown on page 22 for the blower spider, fan plate, blower rim and blower side. The inspection hole cover is on the same list if yours needs replacing. Include the part number, description, model and serial number when you order so the counter pulls the right piece.
Manual Section: Mill Conveyor and Blower p. 22Frequently Asked Questions
What screens are available for the Gehl 65XD hammer mill?
The manual lists a wide range of screen sizes for the 65XD hammer mill, ranging from 1/32 inch (part 1E95) up to 2 inches (part 1E95R). These screens are used to control the fineness of the ground material. p. 21
What is the correct replacement part for the 65MX conveyor rest?
For machines built before serial #35001, use part 6H51BA. For machines built after serial #35000, use part 042217. p. 5
What is the correct replacement part for the 65MX mixer tank?

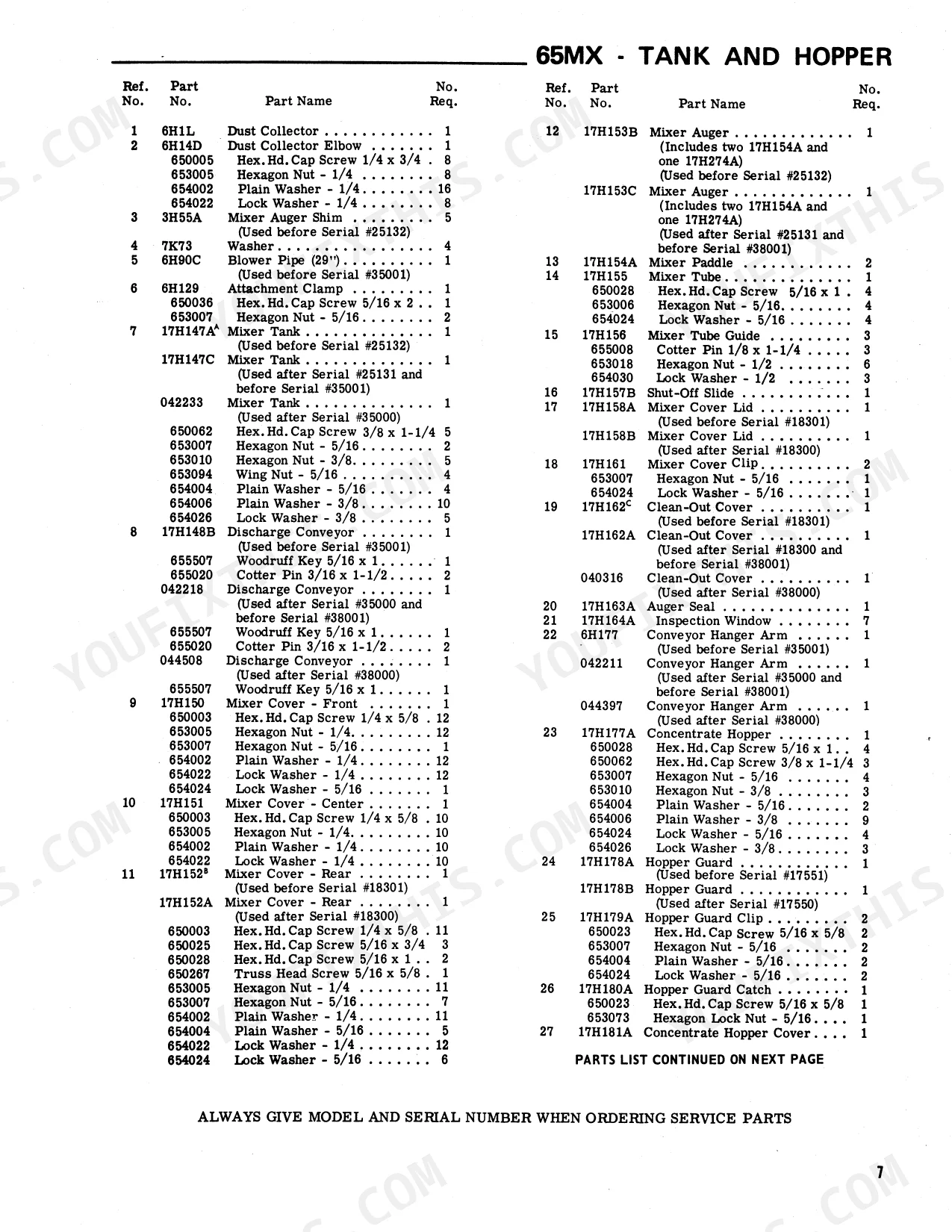

The mixer tank part number depends on the serial number: 17H147A for before serial #25132, 17H147C for serials #25132 through #35000, and 042233 for serials after #35000. p. 7
What is the correct replacement part for the 65MX discharge conveyor?
The discharge conveyor part number varies by serial number: 17H148B for before serial #35001, 042218 for serials #35001 through #38000, and 044508 for serials after #38000. p. 7
What is the correct replacement part for the 65MX clean-out cover?
The clean-out cover part number depends on the serial number: 17H162C for before serial #18301, 17H162A for serials #18301 through #38000, and 040316 for serials after #38000. p. 7
