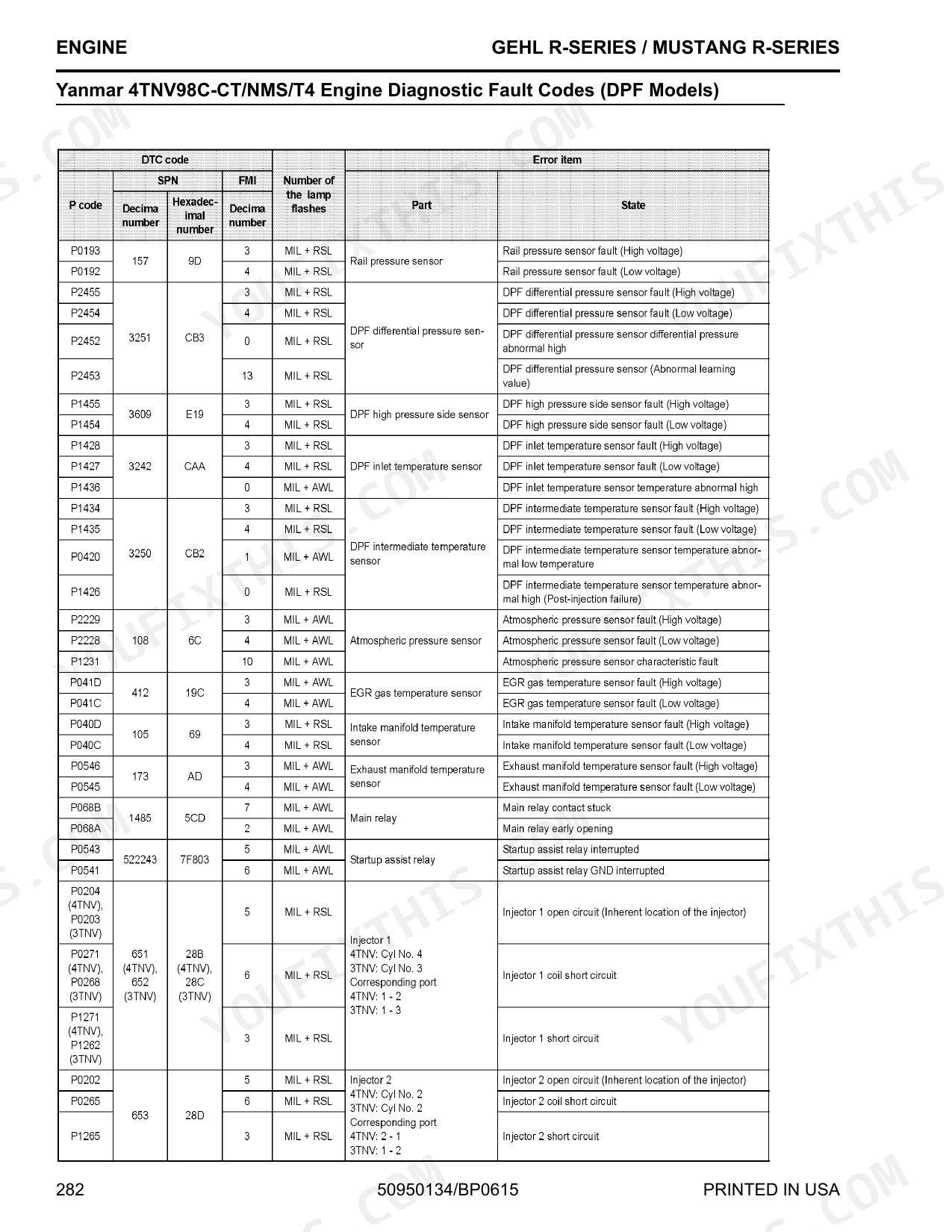

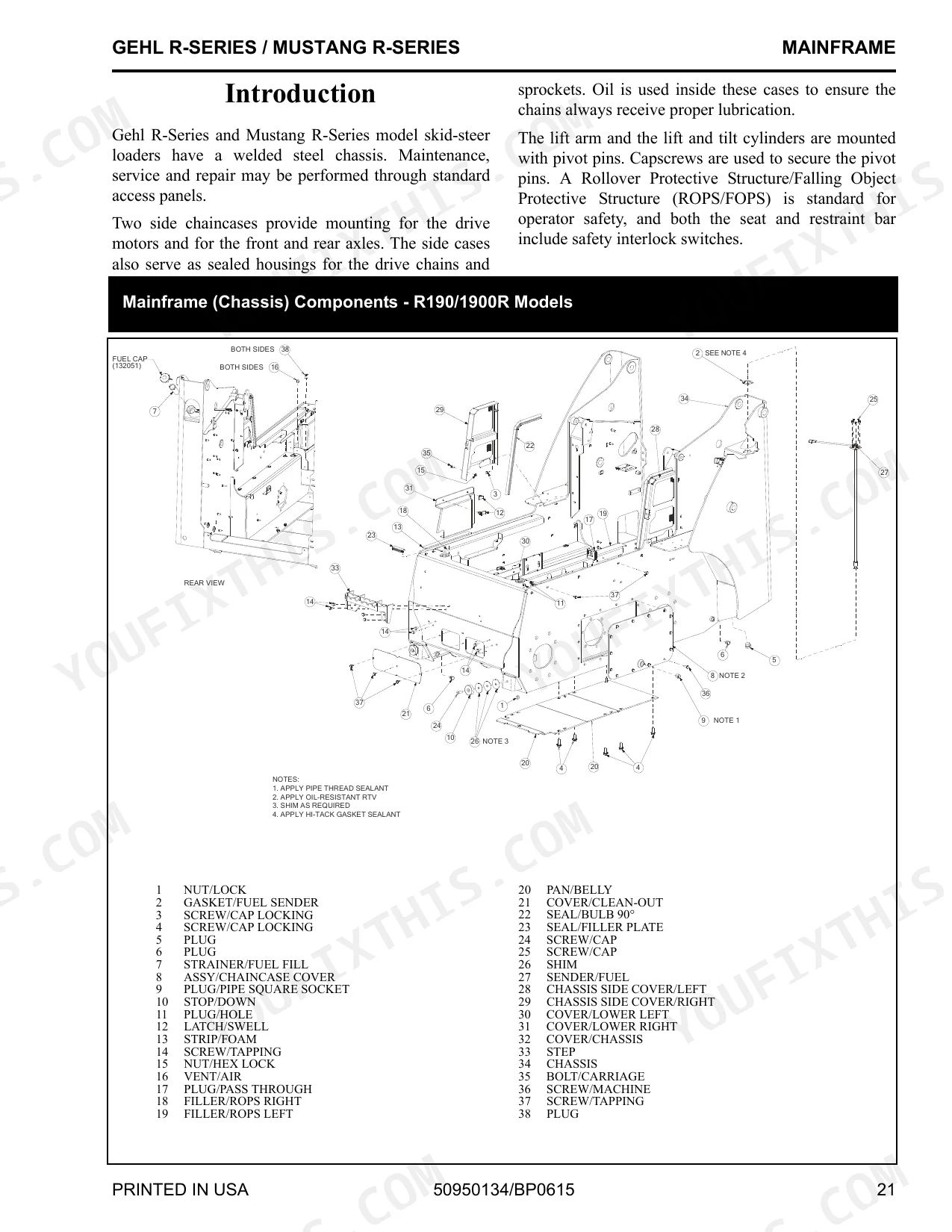

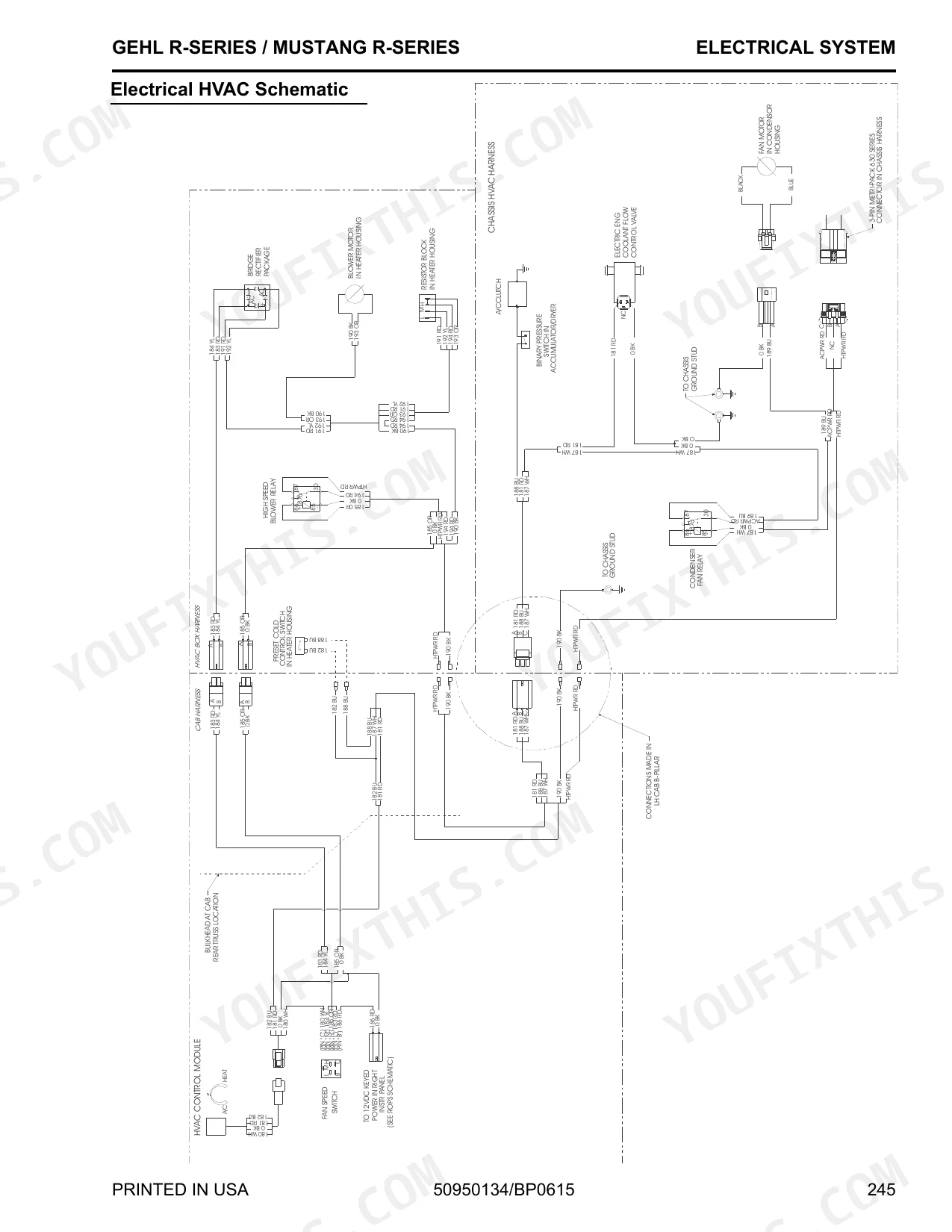

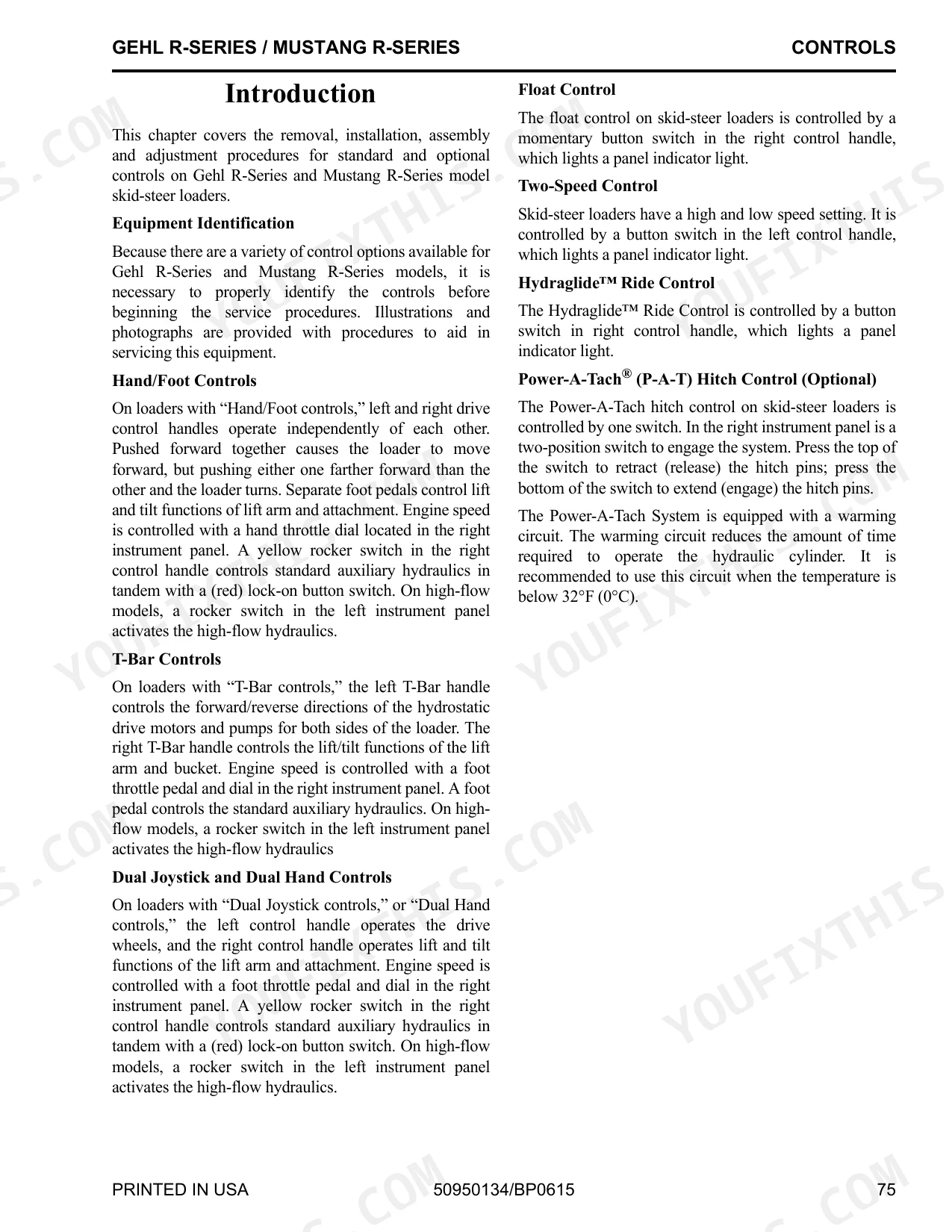

Wrenching on a Gehl R190, R220, R260 or Mustang 1900R, 2200R, 2600R skid-steer loader? This 306-page Gehl service manual PDF (OEM #50950134) covers all six machines built on the shared Manitou Americas platform. Inside: wiring schematics for chasing electrical gremlins, hydrostatic and hydraulic schematics for T-Bar, dual joystick and hand/foot control setups, a dedicated troubleshooting guide, and a full error code section for decoding warning lights. You also get exploded views plus page after page of step-by-step procedures, from chaincase service to cooling system drains. Before you crack a hydraulic fitting, relieve system pressure: key ON, engine off, restraint bar down, then cycle the lift, tilt and auxiliary controls. No more chasing wiring faults with a multimeter and a prayer. Bookmarked with a real text layer; jump straight to any section or find a spec by keyword.
What's Inside This Gehl R190/R220/R260 (Mustang 1900R/2200R/2600R) Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7 | - |
| Signal Words | 7 | Danger, Warning, Caution |
| Additional Safety Reminders | 7-8 | Doors, Guards and Shields, Damaged or Worn-Out Parts, Attachments, Battery Safety, Loader Stability, Hydraulic Fluid Leaks |

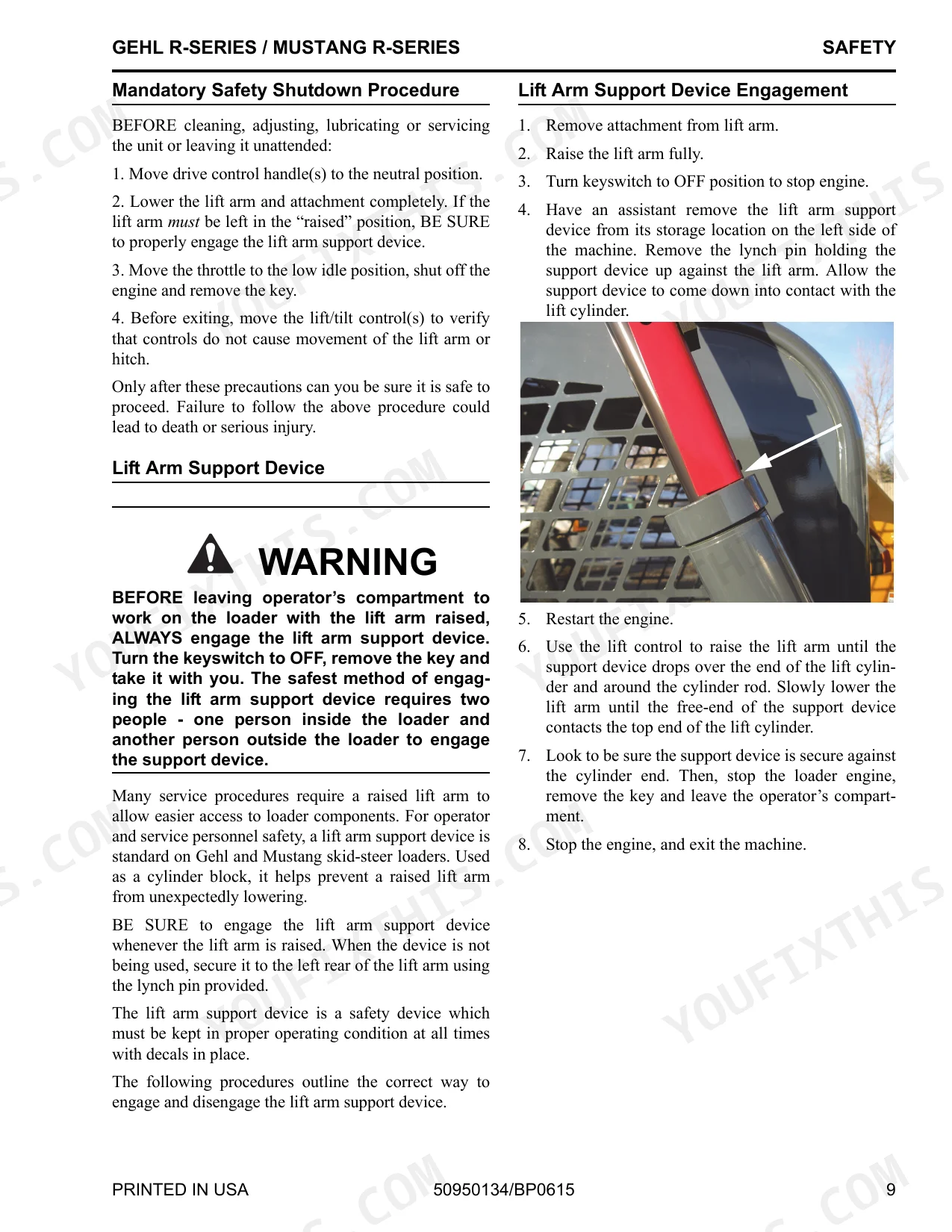

| Mandatory Safety Shutdown Procedure | 9 | Remove Attachment From Lift Arm, Lower the Lift Arm and Attachment, Move the Throttle to Low Idle, Shut Off Engine, Remove Key, Move lift/tilt control(s) to Verify No Movement |
| Lift Arm Support Device | 9 | - |
| Lift Arm Support Device Engagement | 9 | Remove Attachment From Lift Arm, Raise the Lift Arm Fully, Turn Keyswitch to Off, Remove Lift Arm Support Device From Storage, Restart the Engine |
| Lift Arm Support Device Disengagement | 10 | Raise the Lift Arm Fully, Turn Keyswitch to Off, Remove the Key, Store the Lift Arm Support Device |
| ROPS/FOPS – Raising | 10 | Remove Hex Nut, Washer and Capscrew, Grip Front Grab Handles, Push Up and Back Until Lock Mechanism Engages |
| ROPS/FOPS - Lowering | 11 | - |
| Relieving Hydraulic Pressure - T-Bar Controls - Lift/Tilt/Auxiliary | 11 | Attachment Removal, Lift Arm Lowering, Keyswitch Operation, Restraint Bar, lift/tilt/auxiliary Hydraulics Controls |
| Relieving Hydraulic Pressure - Dual Joystick, Dual Hand and Hand/Foot Controls - Lift/Tilt/Auxiliary | 12 | Attachment Removal, Lift Arm Lowering, Keyswitch Operation, Float Switch, Standard Auxiliary Function, Tilt Circuit Pressure |
| This Page Intentionally Left Blank | 2-21 | - |
| Chapter Notes | 22-124 | General Information, Hydraulic Oil Reservoir, Crankcase Oil, Chaincases, Grease Fitting Locations, Cooling System Drain Procedure, Index |

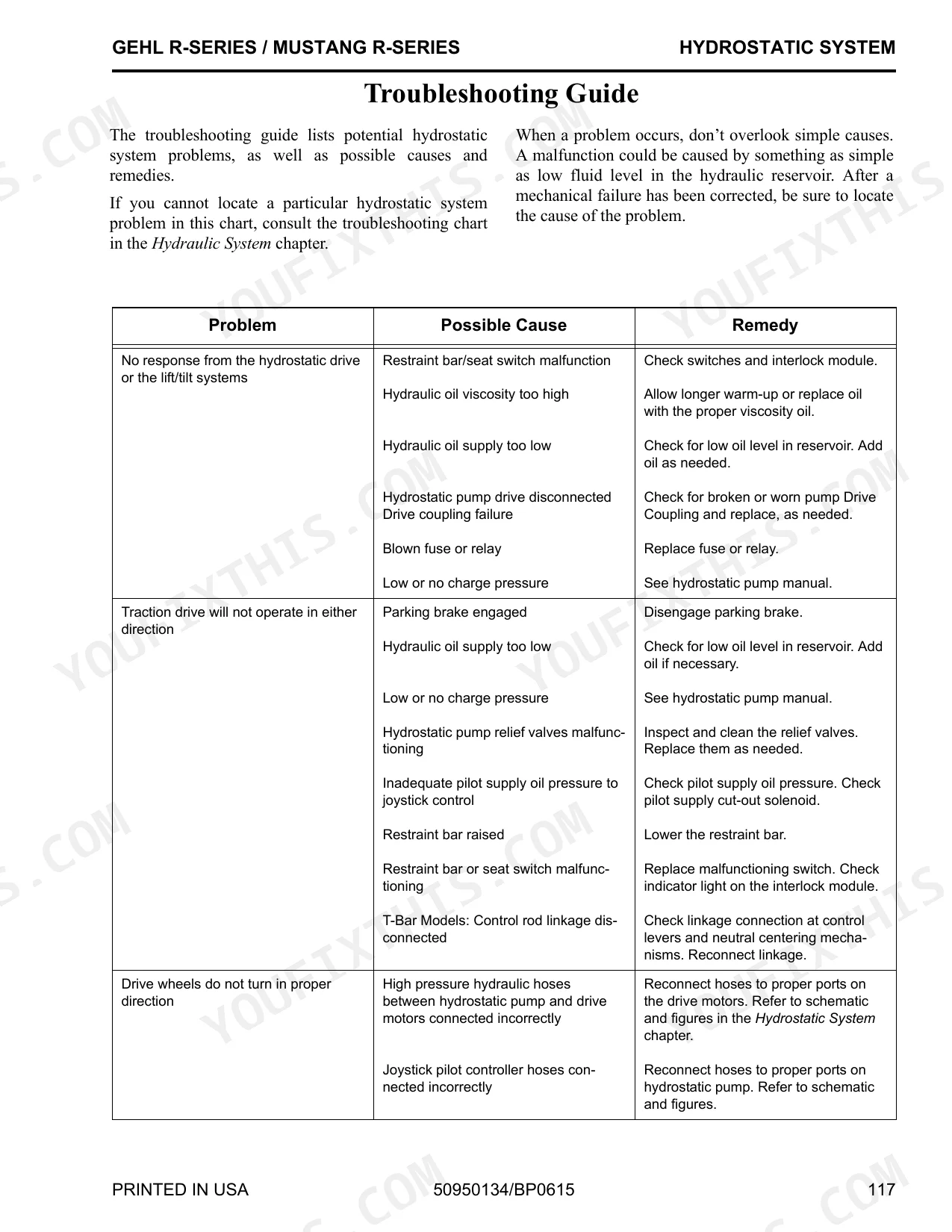

| Troubleshooting Guide | 125-132 | Hydrostatic/Hydraulic Schematic - Hand/Foot Controls, Hydrostatic/Hydraulic Schematic - Dual Joystick/Dual Hand Controls, Hydrostatic/Hydraulic Schematic - T-Bar Controls |
| Parts Listing for R190/1900R Engine Illustration on Previous Page | 265-266 | fitting/straight, clamp/hose, nut/lock, spacer/alternator, coupler/flex, hose/fuel |
| Parts Listing for R220/R260/2200R/2600R Engine Illustration on Previous Page | 267-295 | Oil Filter Element Removal and Installation, Air Cleaner Assembly Removal and Installation, Air Filter Element Removal and Installation |

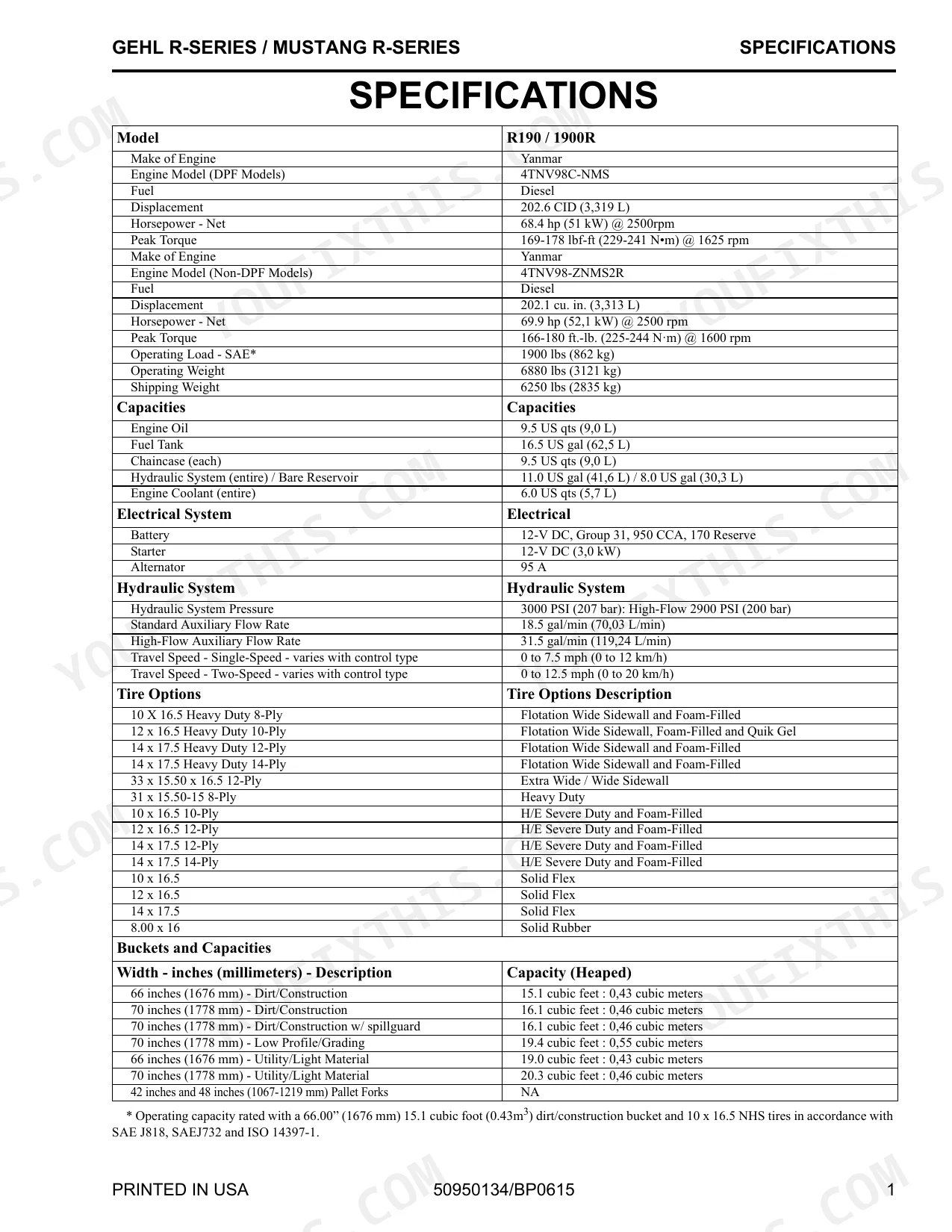

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Maximum allowable lift cylinder drifting | 0.75" (19 mm) of cylinder retraction in 15 minutes | p. 179 |
| Locknut torque | 350 ft.-lbs. (474 N·m) | p. 191 |
| Operating Load - SAE | 1900 lbs | p. 9 |
Gehl R190/R220/R260 (Mustang 1900R/2200R/2600R) Common Problems This Manual Covers
Gehl R190 lift arm drifts downward under load and won't hold raised position
Test for drift with the bucket raised: mark the cylinder rod and wait 15 minutes; more than 0.75 inch (19 mm) of retraction (page 179) means worn piston seals. Before pulling the cylinder, relieve pressure with the key ON and engine off, cycling the lift, tilt and auxiliary controls per page 19, then replace the seal kit.
Manual Section: Hydraulic System Troubleshooting Guide p. 179Jerky lift arm and bucket action, oil weeping past the lift cylinder rod seal
Engage the lift arm support device before any cylinder work: raise the arm fully, shut off the engine, and let the device drop over the cylinder rod. Remove the cylinder, replace the rod and piston seals, and torque the piston locknut to 350 ft.-lbs. (474 N·m) as specified on page 191.
Manual Section: Hydraulic System Troubleshooting Guide p. 191Starter won't engage or engine turns over slowly on cold winter mornings
Test the battery under load before condemning the starter; these machines spec a 950 CCA battery (page 9). Clean and tighten both cable ends and the ground strap at the frame. If the battery passes, check the keyswitch and start circuit. Never bypass the keyswitch; use the jump-starting procedure in the Operator's Manual instead (page 16).
Manual Section: Electrical System Troubleshooting GuideLift arm drops suddenly during service, support device lynch pin missing from storage post
Inspect the support device and lynch pin before raising the arm for service. Have an assistant lower the device over the cylinder rod, then settle the arm until the device seats against the cylinder end. Reinstall the lynch pin through the welded steel post afterward (page 18). Even a healthy cylinder can drift 0.75 inch (19 mm) in 15 minutes.
Manual Section: Lift Arm Support Device EngagementFrequently Asked Questions
What are the torque specifications for the main pump bolts on a Mustang 2200R?
When reinstalling the hydrostatic pump to the flywheel housing, the two capscrews should be torqued to 55 lbf-ft (74.6 N·m). Loctite™ 242 or an equivalent product should also be used. p. 121
What are the torque specifications for the engine mount bolts on a Gehl R220?
When reinstalling the engine mount bolts, use Loctite® 242 or an equivalent product. The carriage bolt and hex nut should be torqued to 110 lbf-ft (149 N·m). p. 287
What is the engine oil capacity for the Gehl R190 and Mustang 1900R models?
The Yanmar four-cylinder diesel engine crankcase for R190 and 1900R models has a capacity of 9.5 U.S. quarts (9.0 liters). This information can be found in the Specifications and Lubrication chapters. p. 23
What is the standard hydraulic system pressure for standard auxiliary flow on Gehl R-Series/Mustang R-Series loaders?
The standard hydraulic system pressure for standard auxiliary flow is 3000 PSI (207 bar). For R190/1900R standard flow, the pressure should be at least 3000 PSI ± 25 PSI (207 bar ± 1.7 bar). p. 176
What is the oil capacity for each chaincase on Gehl R260 and Mustang 2600R models?
Each chaincase on Gehl R260 and Mustang 2600R models requires 11.0 quarts (10.4 L) of motor oil. This quantity should be maintained at all times, and the oil should be drained and refilled every 500 hours of operation or annually. p. 25
Is this Gehl R190 & variants Service Manual a digital download?
You get a 306-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this Gehl R190 & variants manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
