Before the tilt cylinder comes off the boom this afternoon, you can match every seal, rod and gland to its factory number in this Gehl RS10-44, RS10-55, RS12-42 parts catalog PDF: 290 pages, Form No. 913322, covering three telescopic handlers. Hydraulics take up the largest share of the book, with exploded views of the main valve in every controller setup and each cylinder from frame level to axle steer. The 3- and 4-section booms, transmission clutch packs and axle hub reductions break down the same way, and numerical and subject indexes let you trace a stamped part number back to its assembly. List the anti-shock valve as part 103048, rated 140 bar, and confirm the frame level pressure switch you replace is the 150 psi unit. A wrong seal kit means a second teardown. Bookmarked by section and text-searchable, the PDF takes you from worn part to order number, so the handler goes back to lifting loads.
What's Inside This Gehl RS10-44, RS10-55, RS12-42 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2-7 | Table of Contents, Filters |
| Filters | 8-9 | Primary Air Filter, Secondary Air Filter, Hydraulic Filter, Engine Oil Filter, Transmission Filter, Fuel Filter |

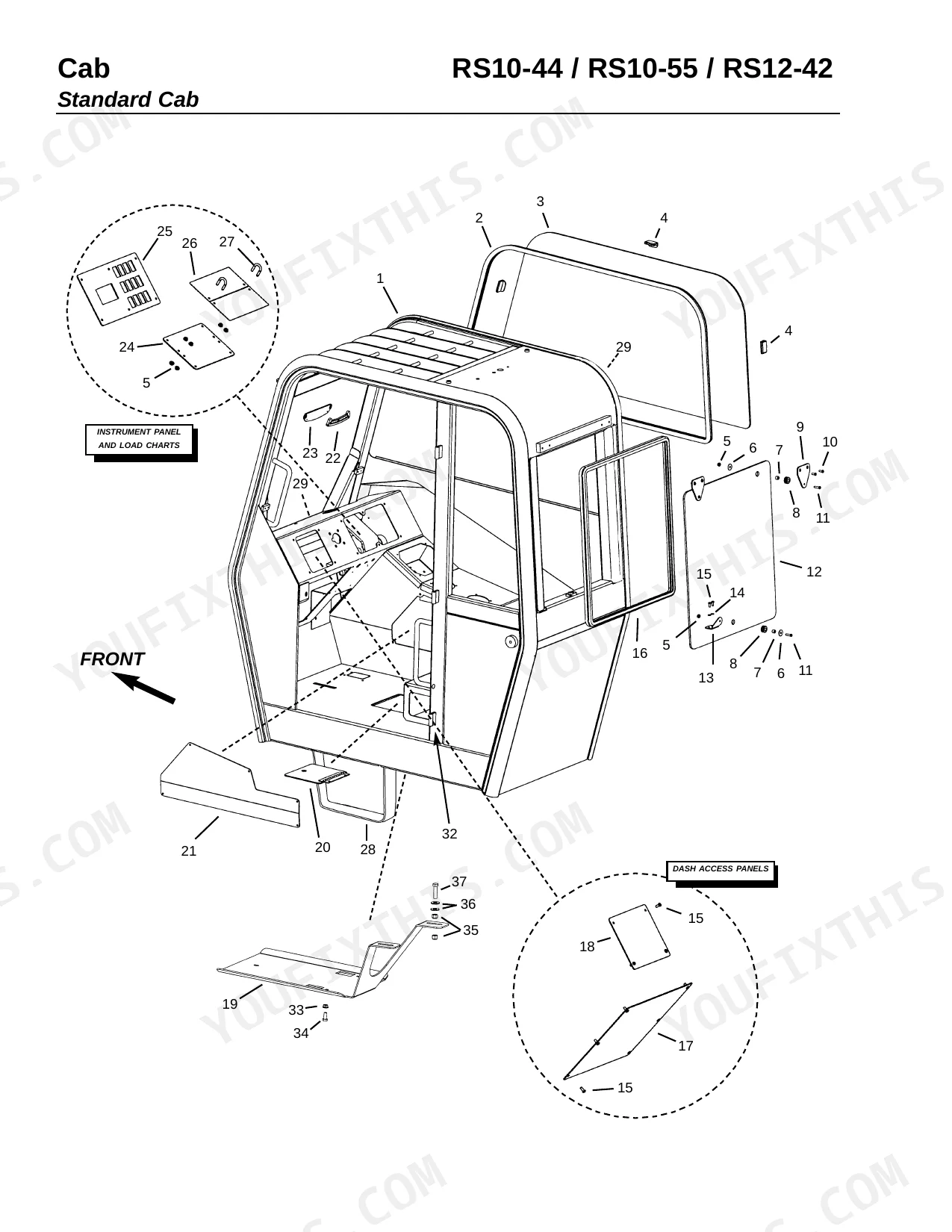

| Cab | 10-39 | Standard Cab, Front and Rear Window - Enclosed Cab, Wipers - Front and Top - Enclosed Cab, Top and Left Window - Enclosed Cab, Door - Enclosed Cab, Instrument Panel and Switches |
| Chassis, Covers and Tanks | 40-51 | Hoods and Covers, Fuel Tank and Battery, Hydraulic Tank, Outriggers - Option, Outrigger Valve - Option |
| PWP (Personnel Work Platform) | 52-55 | Boom Components, Chassis Components, Radio Remote - Transmitter and Receiver |

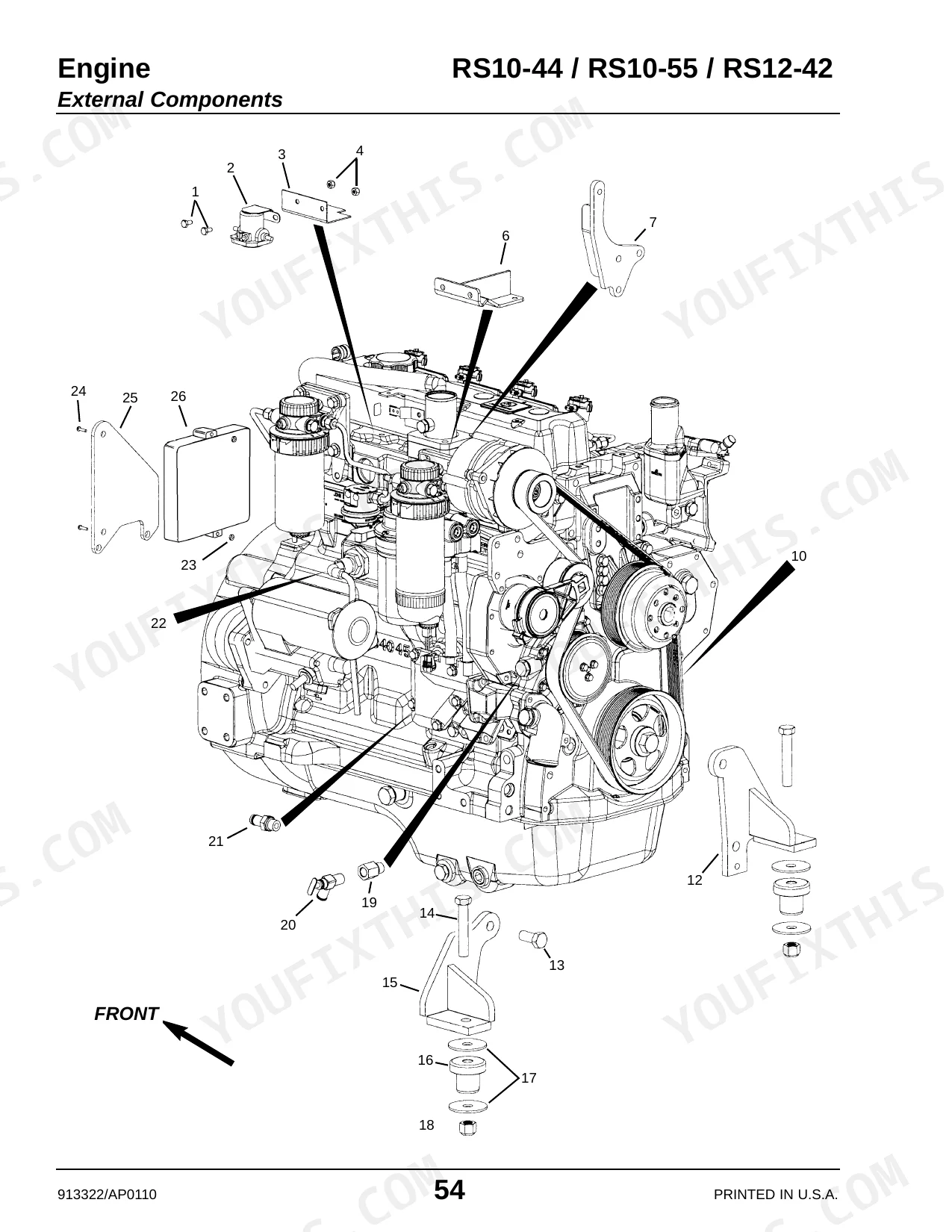

| Engine | 56-65 | External Components, Air Intake, Exhaust, Radiator and Coolers |

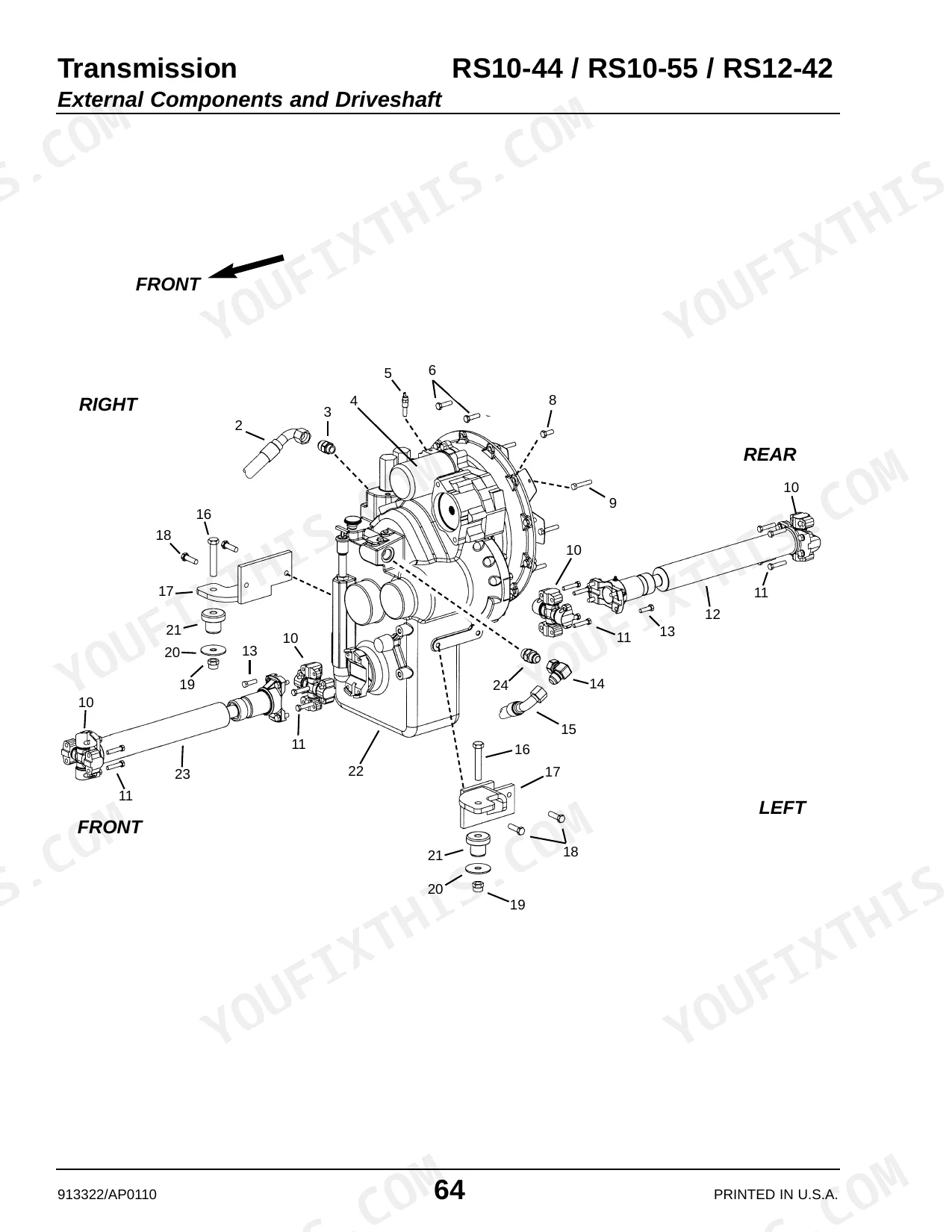

| Transmission | 66-87 | External Components and Driveshafts, Torque Converter Housing, Torque Converter, Case, Module Plate, Pump Drive, Charge Pump, Reverse Idler |

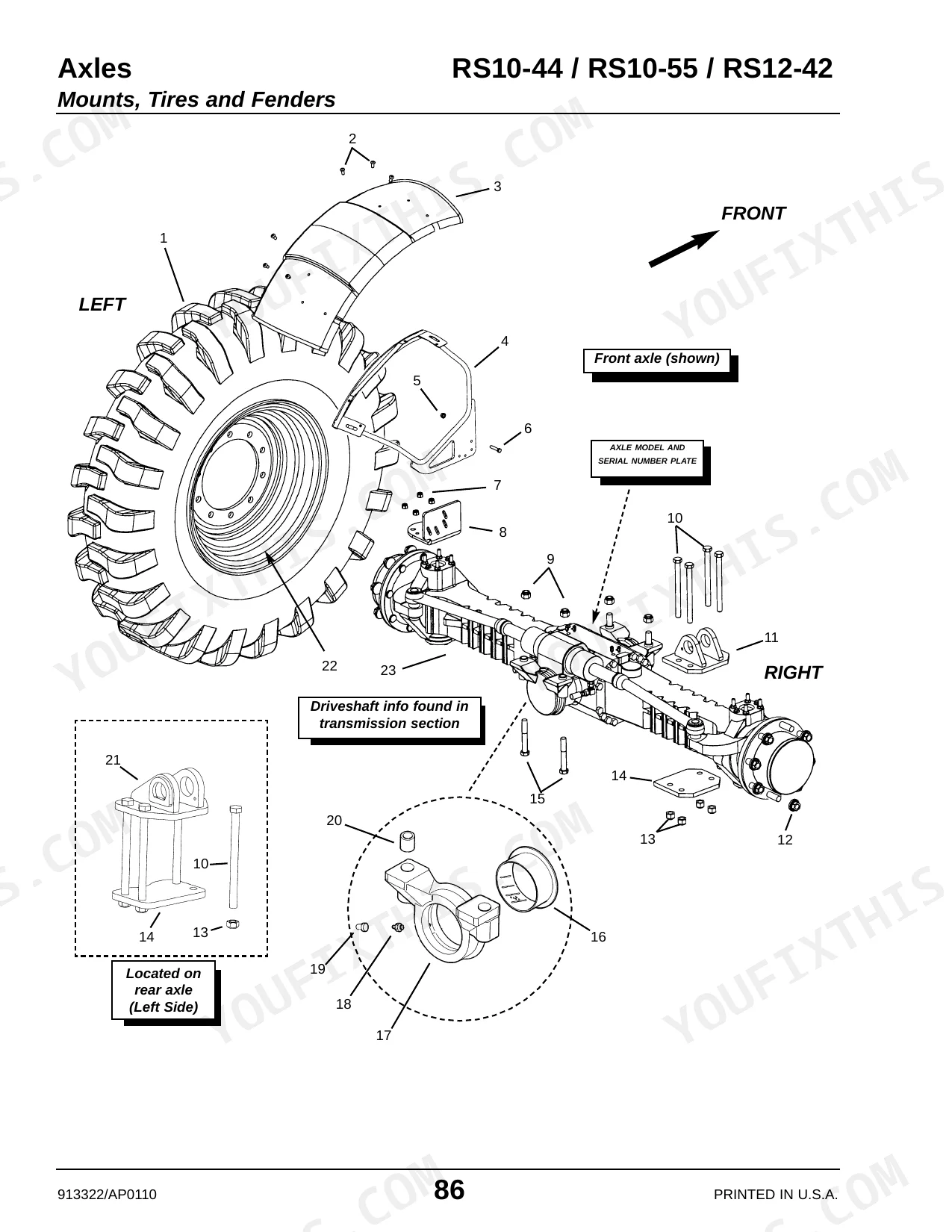

| Axles | 88-107 | Mounts, Tires and Fenders, Front Axle - Brake and Steering Circuit, Rear Axle - Brake and Steering Circuit, Front and Rear Axle - Steer Cylinder, Central Housing and Trunion |

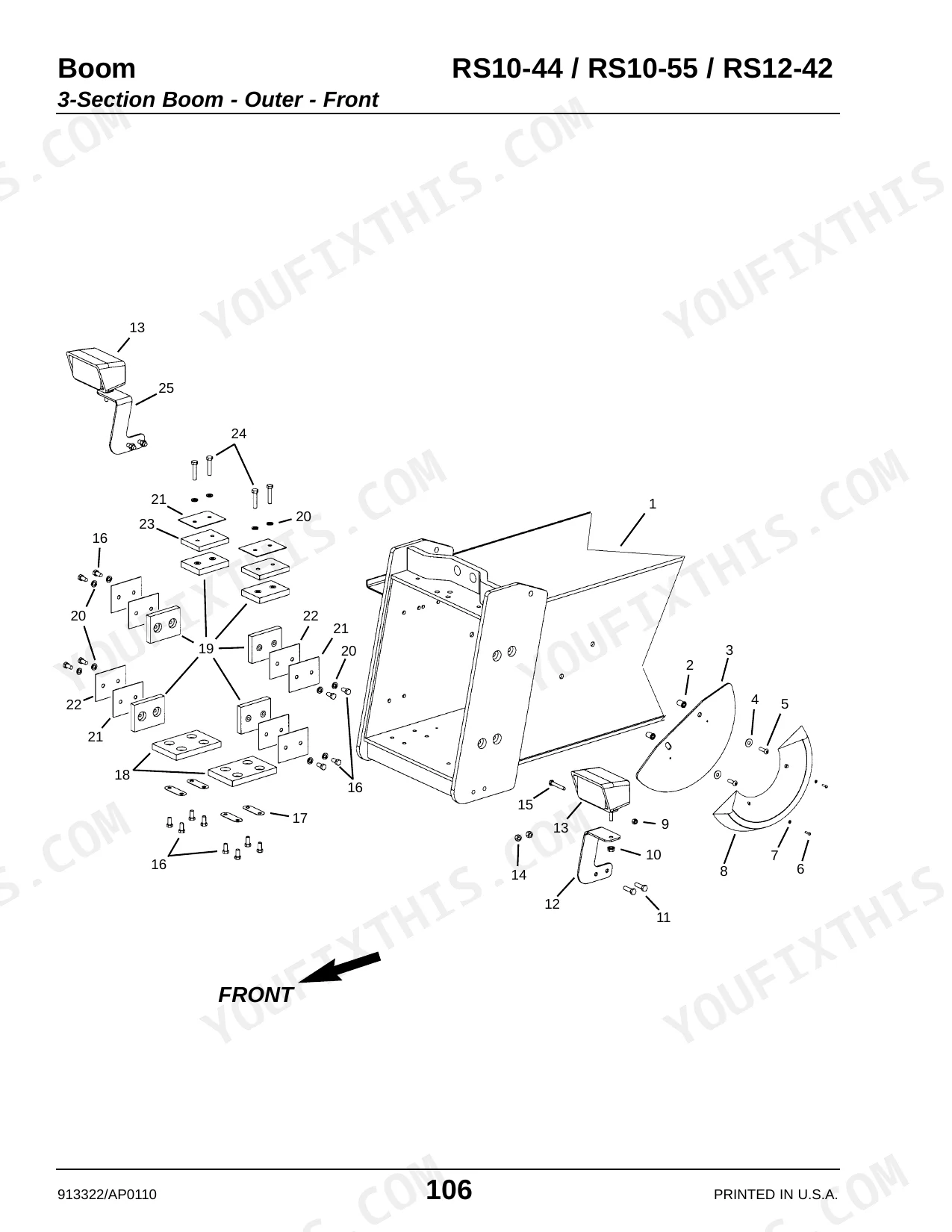

| Boom | 108-145 | 3-Section Boom (Outer - Front, Outer - Rear, Outer Side Cover) |

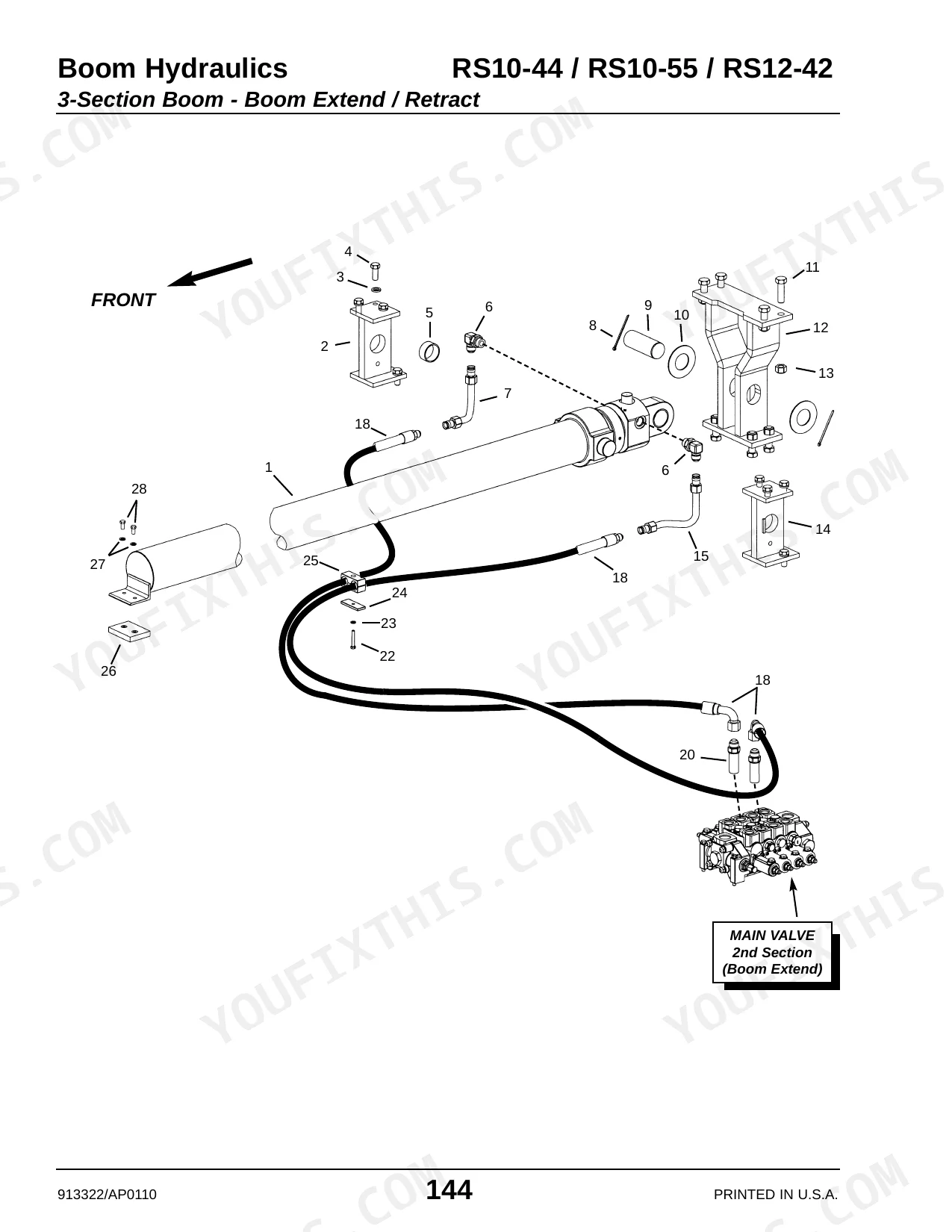

| Boom Hydraulics | 146-161 | 3-Section Boom - Boom Extend / Retract, 4-Section Boom - Boom Extend / Retract, 3-Section Boom - Tilt, 4-Section Boom - Tilt, 3-Section Boom - Auxiliary Hydraulics Circuit |
| Chassis Hydraulics | 162-165 | Frame Level, Frame Stabilizing |
| Hydraulics | 166-201 | Hydraulic Pump, Steering |
| Hydraulic Cylinders | 202-221 | Frame Level, Frame Stabilizing, Boom Lift, Boom Extend - 3-Section Boom, Boom Extend - 4-Section Boom, Slave, Tilt, Outrigger |
| Hydraulic Components | 222-245 | Hydraulic Pump, Brake Cylinder with Booster, Steer Motor, Steer Select Valve, Priority Flow Divider Valve, Joystick Relief - Flow Divider |
| Attachments | 246-264 | Carriage Forks, Standard Carriage, Fork-Shift Carriage, Rotating Carriage, Swing Carriage, Swing Platform, Log/Pipe Carriage, Truss Boom and Winch |
| Decals | 265-269 | Decal Application and Paint, Decal Locations |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Anti-shock valve pressure | 140 BAR | p. 233 |
| Standard attaching hardware torque (Grade 5) | 1/4-20: 9 lb-ft (Dry), 5/16-18: 17 lb-ft (Dry), 3/8-16: 30 lb-ft (Dry), 1/2-13: 75 lb-ft (Dry), 3/4-10: 260 lb-ft (Dry), 1-8: 640 lb-ft (Dry) | p. 289 |
| Metric torque (Grade 8.8) | M6-1: 8 lb-ft (Dry), M10-1.5: 37.5 lb-ft (Dry), M12-1.75: 65 lb-ft (Dry), M14-2: 103.5 lb-ft (Dry), M16-2: 158.5 lb-ft (Dry) | p. 289 |
| 60 Amp Maxi Fuse | 60 Amp | p. 23 |
| Pressure Switch (Frame Level) | 150 psi | p. 37 |
| CB Valve (Rotating Carriage) | 3000 psi | p. 218 |
Gehl RS10-44, RS10-55, RS12-42 Common Problems This Manual Covers
Rotating carriage CB valve needs replacing, can't find the part number or pressure rating
Check the Hydraulic Cylinders section on page 218. The rotating carriage CB valve is listed there as part L48868A, rated 3000 psi, with a quantity of two. Verify that the old valve is marked 3000 psi before ordering, and confirm the carriage type against the Rotating Carriage listing in Attachments on page 246.
Manual Section: Hydraulic Cylinders p. 218Anti-shock valve in the hydraulic components group, need the correct part number and bar rating
Check the Hydraulic Components exploded view on page 233. The anti-shock valve is listed as part 103048, rated 140 bar. Verify that rating against the markings on the valve you removed, and match the callout number on the diagram to the parts list line before you order.
Manual Section: Hydraulic Components p. 233Steer select valve or steer motor replacement, need the right part number for the steering circuit
Check the Hydraulic Components section starting on page 222. It lists the steer motor, steer select valve and priority flow divider valve. Trace the steering hose routing in the Hydraulics section on page 166 to confirm which component and fittings you're replacing, then order using the part number on the matching exploded view.
Manual Section: Hydraulic Components p. 222Frequently Asked Questions
What is the part number for the 60 amp maxi fuse near the engine starter on the Gehl RS10-44?
Check the cab electrical fuse and relay listing on page 23. The 60 amp maxi fuse is part L500225, located near the engine starter. Before you order, use the wire harness identification on the same pages to confirm which circuit it protects, and verify the old fuse is a 60 amp maxi. p. 23
Where are the air, hydraulic, engine oil, transmission and fuel filter part numbers listed for the Gehl RS10-44?
Check the Filters section on page 8. It lists the primary air filter, secondary air filter, hydraulic filter, engine oil filter, transmission filter and fuel filter in one place. Copy every part number from that page and order the full set together so the machine isn't left waiting on a single missing filter. p. 8
Which boom extend cylinder listing fits a Gehl RS10-44 with a 3-section or 4-section boom?
Verify how many sections the boom has before you open the catalog. The Hydraulic Cylinders section starting on page 202 lists the boom extend cylinder separately for the 3-section and 4-section boom. Take part numbers only from the matching listing, then cross-check the extend/retract hose routing in the Boom Hydraulics diagram on page 146. p. 202
How is this Gehl RS10-44 Parts Manual delivered?
A single searchable PDF file of 290 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print just the pages I need from this Gehl RS10-44 manual?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
