Ordering a pickup tine, conveyor belt or lift cylinder for the Gehl 1160 / WM1160 windrow merger is the job this 32-page Gehl WM1160 parts catalog PDF (OEM ID 904197) is built around. Exploded views break down the main frame and crop guide, pickup, crop conveyor, drive components, lift system, wheel brackets and tractor mounting components, each keyed to orderable part numbers. The Charlynn motor 082813 and selector valve 064674 get their own breakdowns, accessory kits such as the dual hydraulics kit are listed, and a numerical index traces any part number back to its assembly. For striping, order part 080068, a 50-yard roll 2-7/8 inches wide; for a grease line, order kit 065185 with 5 ft of tubing. Check your serial number first. Frame and crop guide parts split at SN20650, so your build decides which page applies. Bookmarked and text-searchable, the catalog travels on your laptop or tablet to wherever the merger is parked.
What's Inside This Gehl 1160, WM1160 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | Ordering Service Parts, Unit Identification, Abbreviations |
| Decal Locations | 4-5 | Decal Application, Paint, Decal Set, Safety Rules |
| Main Frame & Crop Guide (Before SN20651) | 6-7 | Flat/Deflector, Deflector/Vertical, Deflector/Angle, Arm/Deflector, Frame/Assy, Wheel & Bracket Assy |
| Main Frame & Crop Guide (After SN20650) | 8-9 | Flat/Deflector, Deflector/Horizontal, Deflector/Vertical, Deflector/Angle, Arm/Deflector, Frame/Assy |
| Pickup | 10-11 | Bearing/Ball, Cam/Pickup, Shaft/Pickup, Tine/Pickup, Guide/Spring, Shield/Right |
| Crop Conveyor | 12-13 | Collar/Bearing, Flangette/Bearing, Bearing/Ball, Roller/Drive, Belt/Conveyor |
| Drive Components | 14-15 | Motor/Hydraulic, Coupler/Shaft, Divider/Priority, Valve/Selector, Hose/Assy, Bracket/Motor |
| Lift System & Hydraulics | 16-17 | Quick/Disconnect, Hose/Assy, Cylinder/Hydraulic, Link/Cylinder, Link/Transport, Spring/Lift |
| Wheel & Bracket Assembly | 18 | Washer, Bushing, Bracket, Collar, Bearing, Shield |
| Hydraulic Components | 19 | Charlynn Motor 082813, Selector Valve 064674, Valve 089283 |
| Accessories | 20-21 | Belt Speed Control 804203, Crowder Wheel Kit 804199, Dual Hydraulics Kit 801087 |
| Tractor Mounting Components | 22-26 | Brackets, Supports, Pins, Washers, Spacers, Bars |
| Standard Hardware Torque Specifications | 31-32 | SAE Grade 2, SAE Grade 5, SAE Grade 8, Dry Torque, Lubricated Torque |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Replacement Striping Width | 2-7/8 inch | p. 4 |
| Grease Line Tubing Kit Length | 5 ft | p. 9 |
| Standard Hardware Torque (8-32, Grade 2, Dry) | 19 in. lbs. | p. 31 |
| Standard Hardware Torque (1/4-20, Grade 5, Dry) | 9 ft. lbs. | p. 31 |
Gehl 1160, WM1160 Common Problems This Manual Covers
Gehl WM1160 windrow merger hydraulic drive motor seal kit part number missing from motor parts list
Check the Drive Components exploded view on page 14 and match your motor to the parts list: 087438 MOTOR/HYDRAULIC (MTE) or 082813 MOTOR/HYDRAULIC. For the 087438 motor, order seal kit 088853 as the footnote on that line directs. For internal parts of the 082813 Charlynn motor, go to the Hydraulic Components breakdown on page 19.
Manual Section: Drive Components p. 14Pickup arm cam follower replacement part numbers unclear on merger units built before SN20651

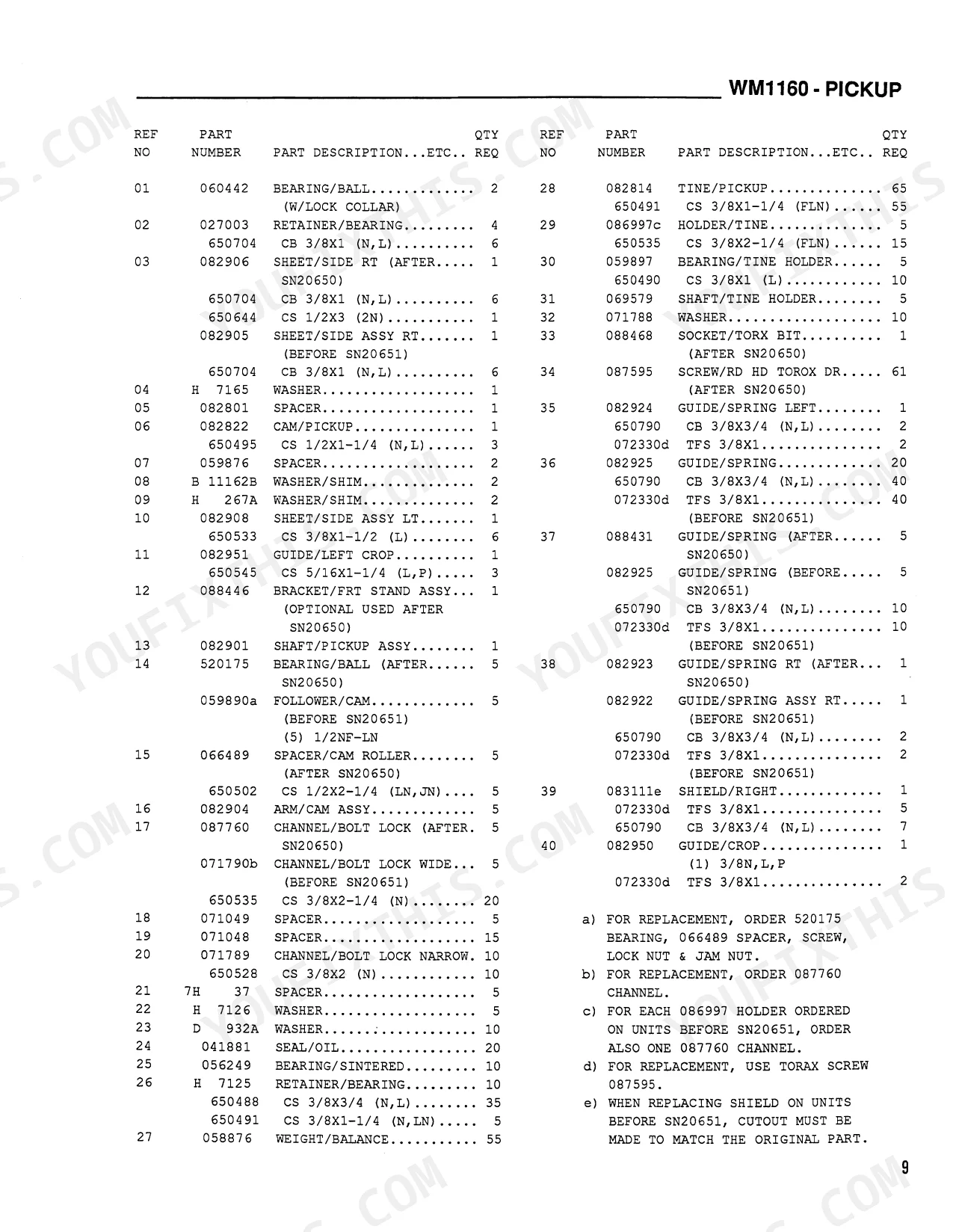

Check the Pickup parts list on page 11. The 059890 cam follower is not ordered as a unit; order 520175 bearing, 066489 spacer, screw, lock nut and jam nut instead. The list calls for five per machine. If you also replace 086997 tine holders on units before SN20651, order one 087760 channel with each holder.
Manual Section: Pickup p. 11Crop conveyor belt and upper slide part numbers changed at the serial break, unsure which fits
Read your serial plate, then check the Crop Conveyor exploded view on page 12. Order belt 087598 for units after SN20650 or 089208 for units before SN20651. Drive rollers split the same way: 087742 after, 082916 before. For the older 082911 upper belt slide, the parts list directs you to order slide assembly 087732.
Manual Section: Crop Conveyor p. 12Remote grease line tubing replacement part number hard to find on later main frame

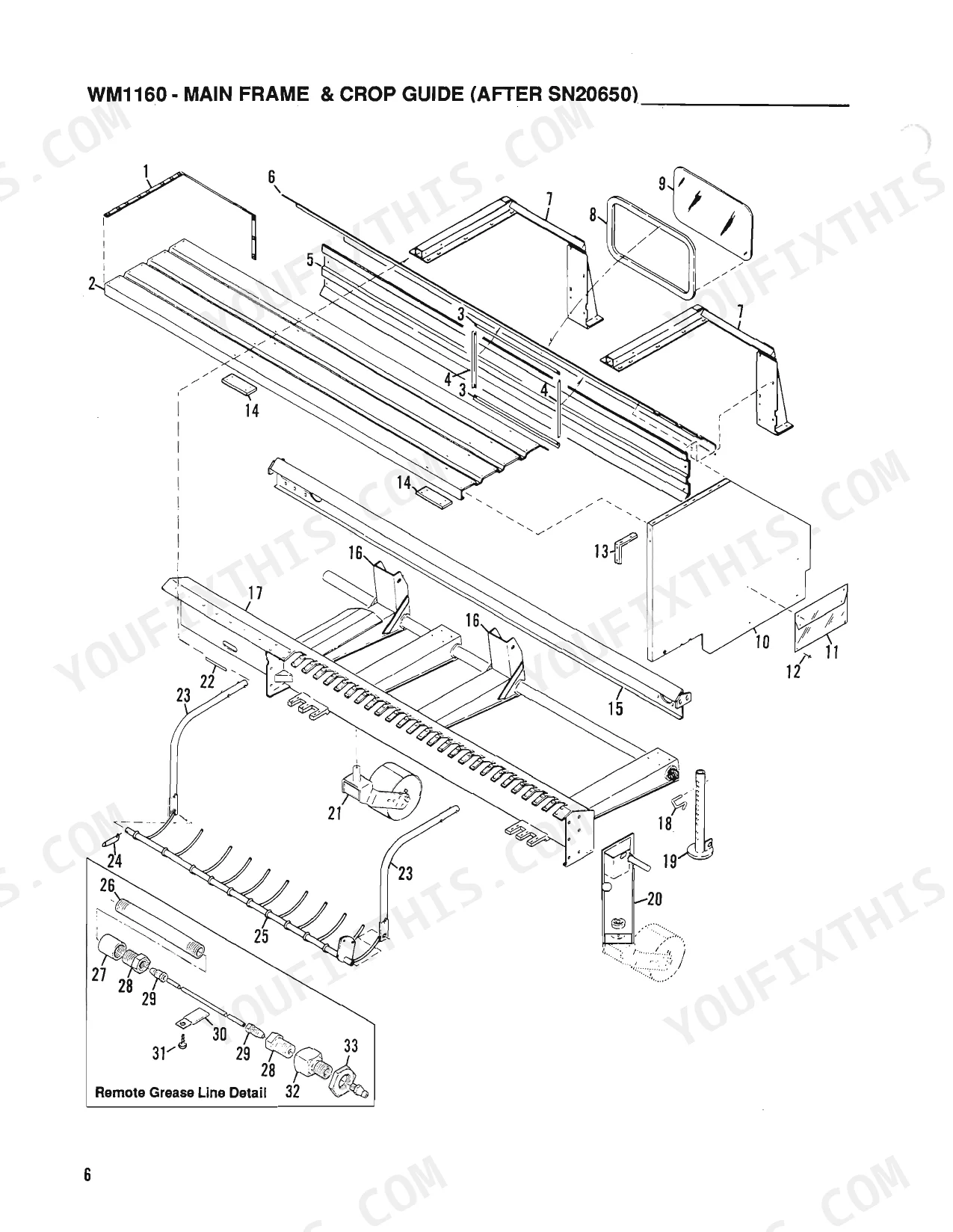

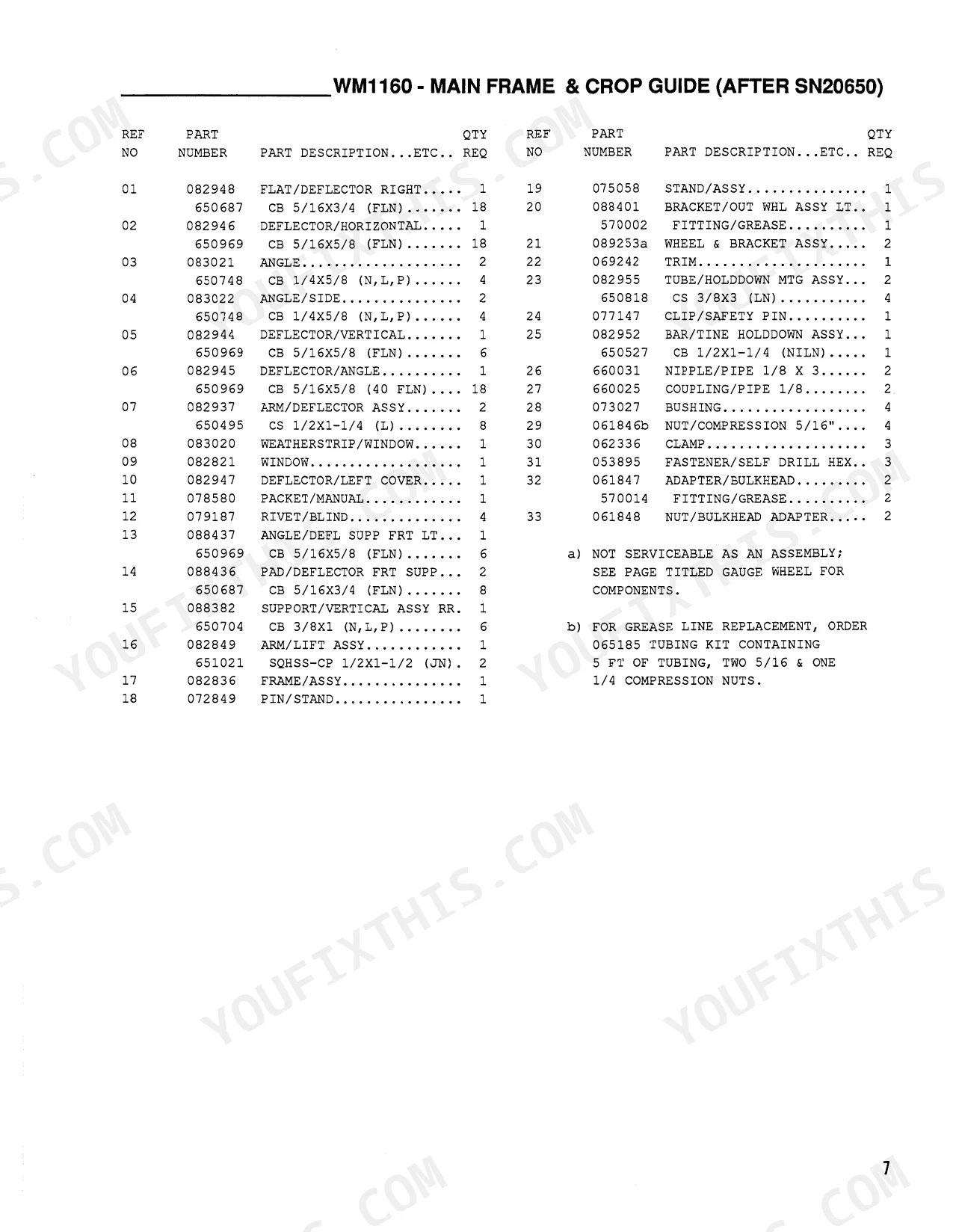

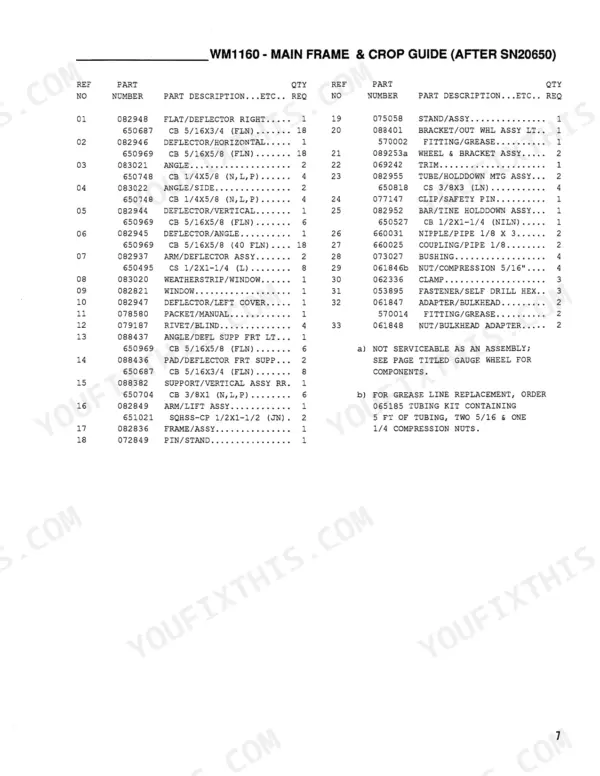

Check the Remote Grease Line Detail in the page 8 diagram against the parts list on page 9 for units after SN20650. Order tubing kit 065185, which contains 5 ft of tubing plus two 5/16 and one 1/4 compression nuts. Match the end hardware to 061847 bulkhead adapter, 061848 bulkhead nut and 570014 grease fitting.
Manual Section: Main Frame & Crop Guide (After SN20650) p. 9Main frame deflector replacement on units before SN20651, unsure which deflectors must be ordered together

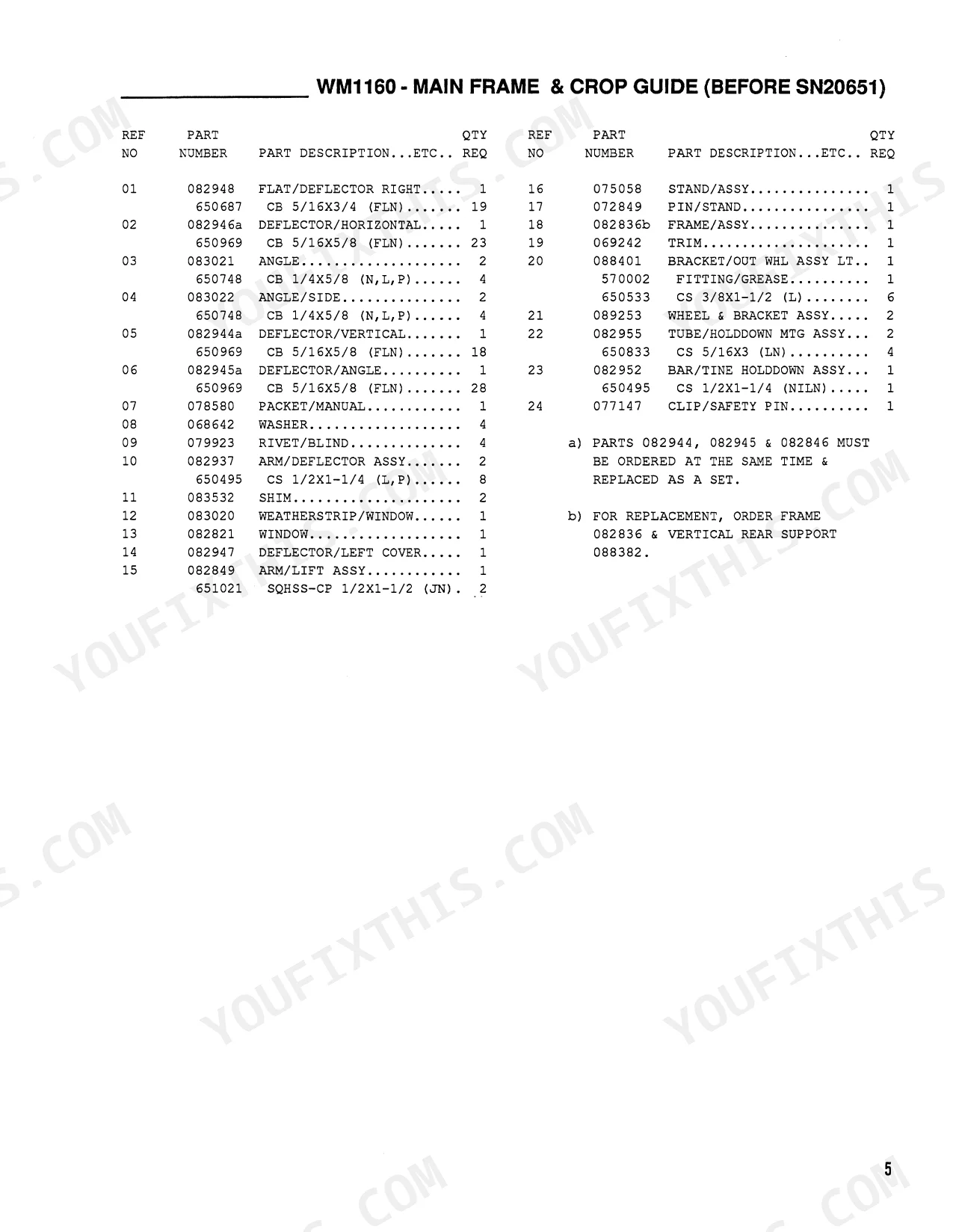

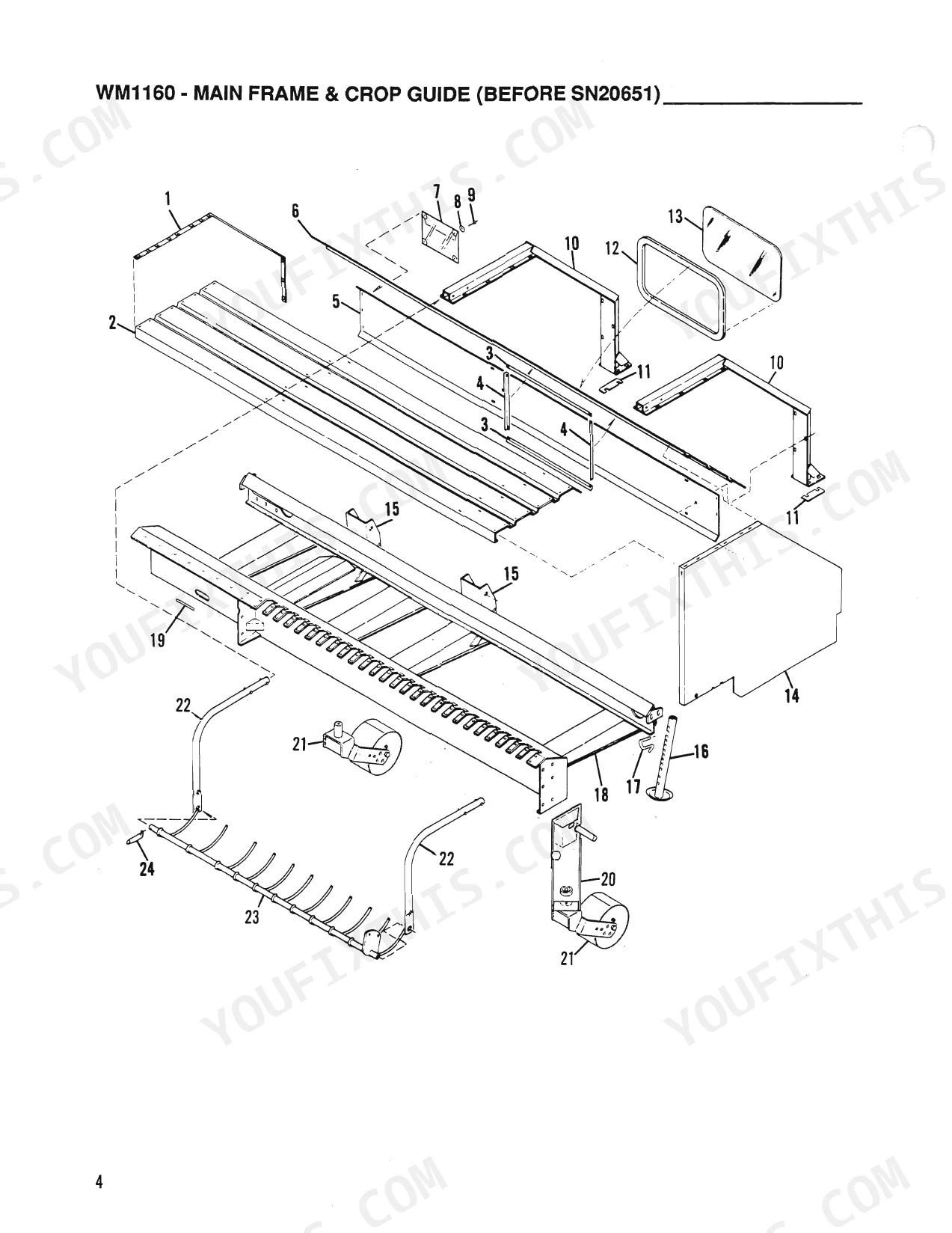

Check the Main Frame & Crop Guide diagram on page 6 and the parts list on page 7. The three parts flagged with note a (082946 horizontal, 082944 vertical and 082945 angle deflectors) must be ordered at the same time and replaced as a set. If the frame itself needs replacing, order frame 082836 together with vertical rear support 088382.
Manual Section: Main Frame & Crop Guide (Before SN20651) p. 7Safety decals damaged or machine repainted, need decal set and striping part numbers
Check the Decal Locations listing on page 4 and order decal set 083705 for the WM1160. Order striping by part number 080068, a 50 yard roll of 2-7/8 inch striping. Paint is 901225 Blaze or 901226 Maize by the gallon. Clean dirt, dust and grease off surfaces before applying. Per the page 4 caution, replace every damaged decal and affix all applicable kit decals after repainting.
Manual Section: Decal Locations p. 4Frequently Asked Questions
What is the part number for the Decal - Grease Fitting Symbol in this manual?
Page 4 lists part number 061187 for the Decal - Grease Fitting Symbol. p. 4
What is the part number for the FLAT/DEFLECTOR RIGHT in this manual?
Page 7 lists part number 082948 for the FLAT/DEFLECTOR RIGHT. p. 7
What is the part number for the WEATHERSTRIP/WINDOW in this manual?
Page 9 lists part number 083020 for the WEATHERSTRIP/WINDOW. p. 9
What is the part number for the BEARING/BALL in this manual?
Page 11 lists part number 060442 for the BEARING/BALL. p. 11
What is the part number for the COLLAR/BEARING in this manual?
Page 13 lists part number 520084 for the COLLAR/BEARING. p. 13
What format is this Gehl 1160 manual in?
You download the Parts Catalog yourself: 32 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Is printing allowed for this Gehl 1160 Parts Catalog?
Yes. Print individual pages or full chapters for your own shop use, on letter or A4 paper.
