Written for a single machine, the GRT9165 rough terrain crane, the Grove GRT9165 operator manual PDF runs 476 pages under OEM ID 668-03 and matches the controls your crew sees in the cab. Operating procedures fill more than a third of the book, covering pre-starting checks, cold weather operation, axle and crane warm-up, driving, and every craning function. Drain hydraulic oil warm, between 65°C and 90°C (150°F to 200°F), and have 729 L (192.6 gal) ready to fill the tank. Every idle hour on the pad is billable time lost. The PDF is bookmarked by chapter and searchable by keyword, and you buy it once and keep it for as long as you run this GRT9165.
What's Inside This Grove GRT9165 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Operator Manual | 1 | - |
| Safety Warnings | 2-4 | Diesel Engine Exhaust, California Proposition 65, California Spark Arrestor, Battery Chemicals |
| Introduction | 17-24 | Customer Support, Noise and Vibration Test Results, Serial Number Location, Crane Components, Specifications |
| Safety Information | 25-74 | Safety Messages, Operator Qualifications, Operational Aids, Crane Stability, Wind Forces, Electrocution Hazard |

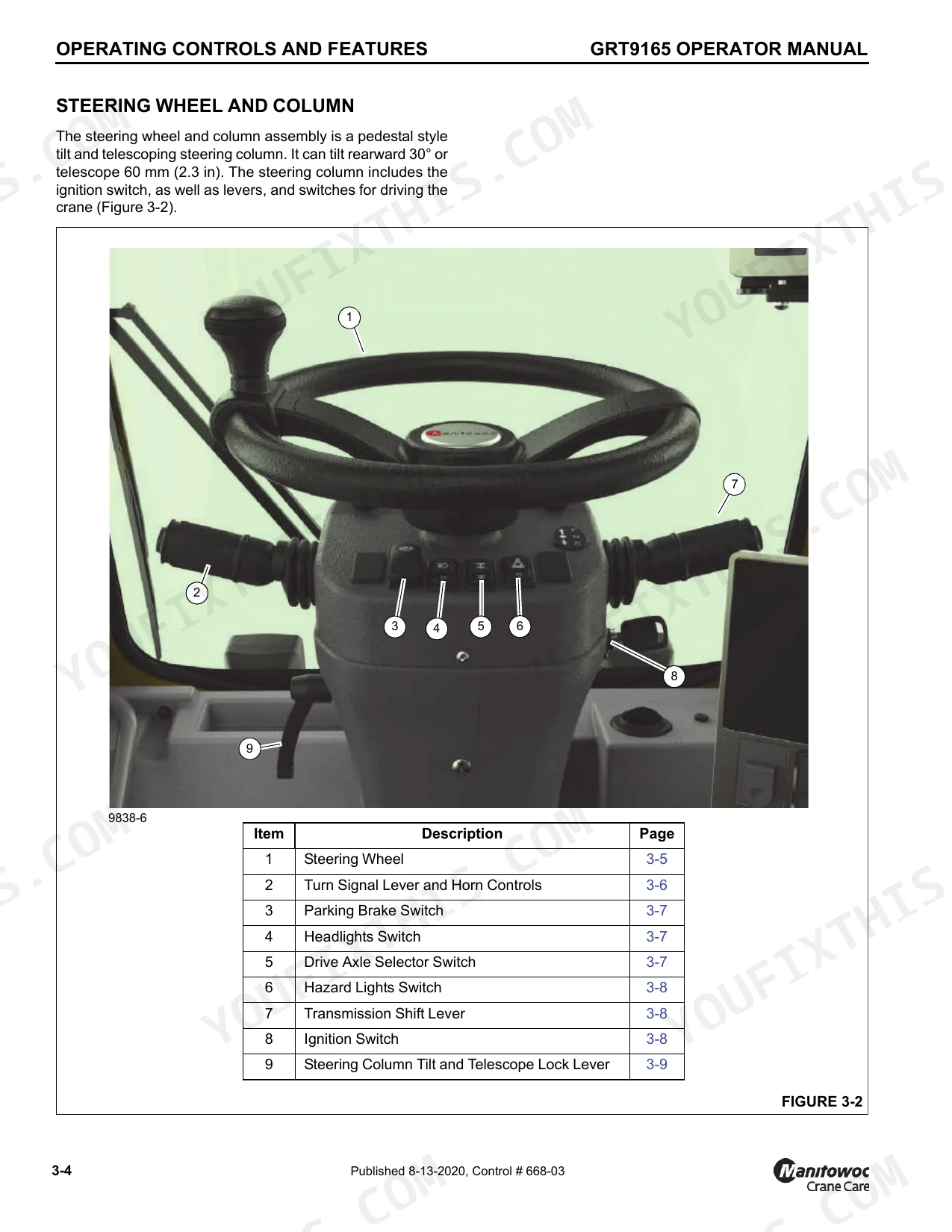

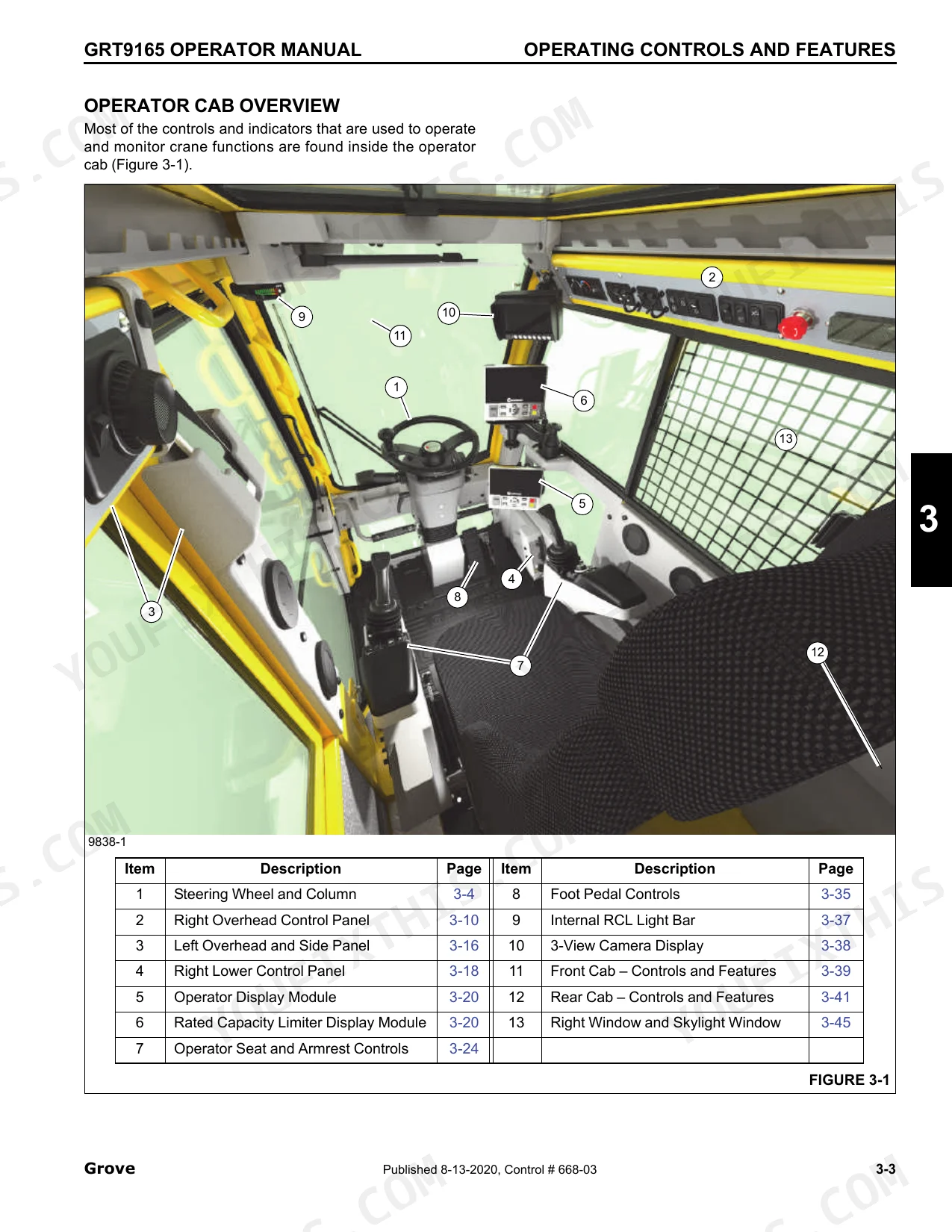

| Operating Controls and Features | 75-136 | Steering Wheel and Column, Operator Cab, Right Overhead Control Panel, Left Overhead and Side Panel, Remote Control Unit, Operator Display Module |

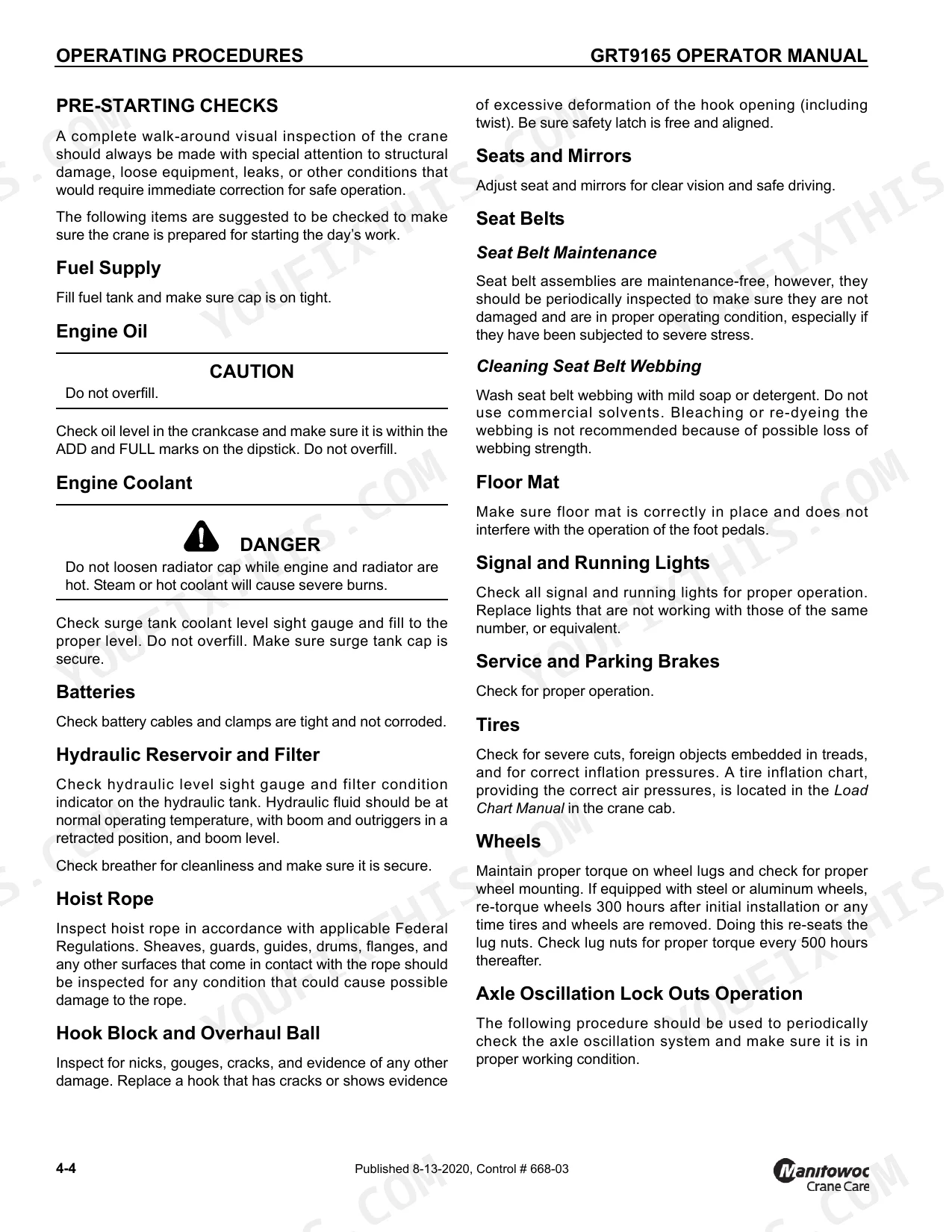

| Operating Procedures | 137-312 | Pre-Starting Checks, Cold Weather Operation, Engine Operation, Crane Warm-Up Procedures, Driving the Crane, Craning Functions |
| Set-Up and Installation | 313-402 | Hoist Camera, Outrigger Floats, Counterweight Removal, Boom Extension, Lattice Insert, Auxiliary Single Sheave Boom Nose |

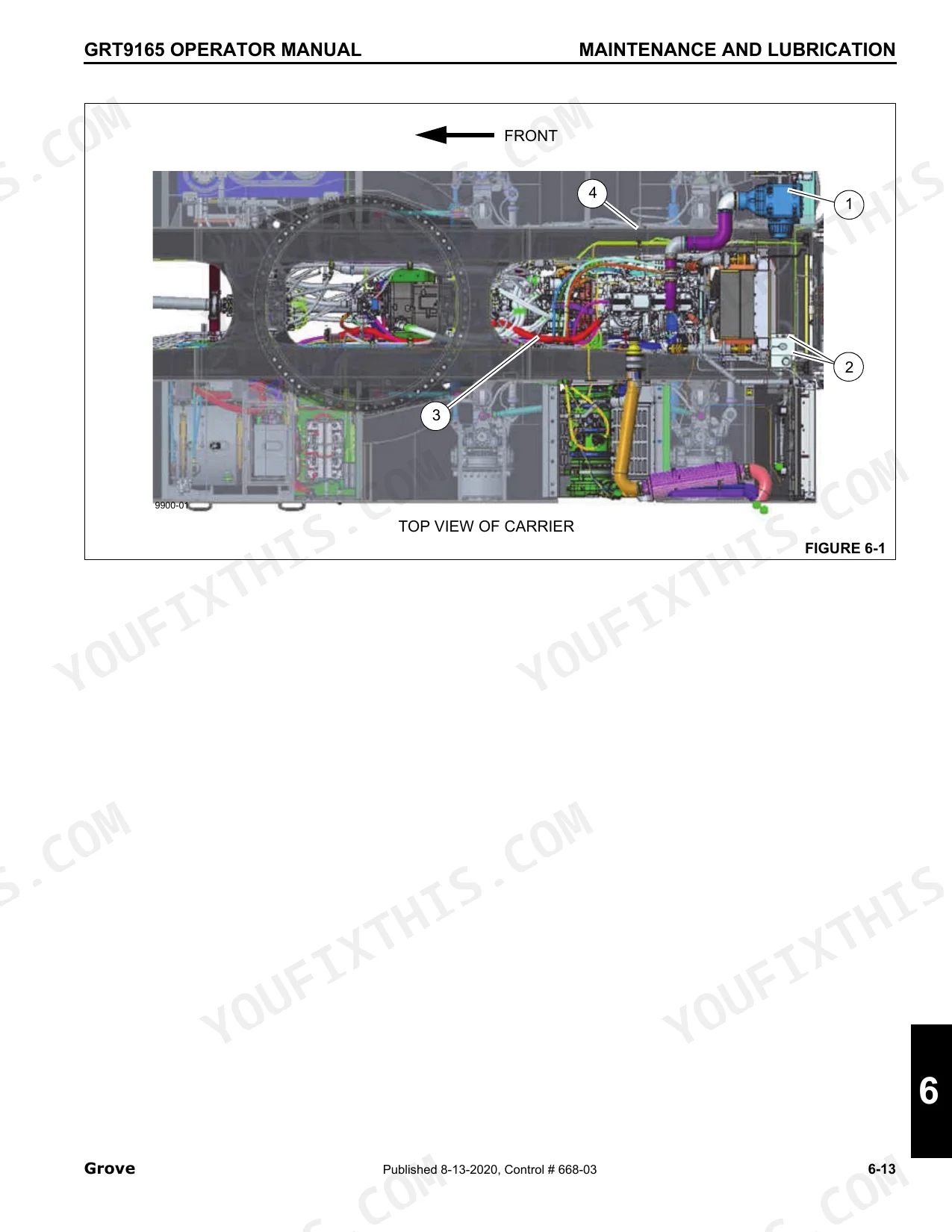

| Maintenance and Lubrication | 403-456 | Backrest Adjustment Lever, Backup Alarm, Batteries, Charging, Battery Disconnect Switch, Beacon, Beacon Lights, Bleed Valve |
| Decals | 457-466 | Decal Locations, Warning Decals, Danger Decals, Caution Decals |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic Tank Capacity | 729 L (192.6 gal) | p. 450 |
| Hydraulic Tank Capacity (Total) | 838.58 L | p. 22 |
| Fuel Tank Capacity | 271 L | p. 22 |
| Diesel Exhaust Fluid (DEF) Tank Capacity | 37.9 L | p. 420 |
| Engine Oil Capacity (Cummins QSB 6.7L) | 15 L | p. 22 |
| Transmission Fluid Capacity (includes Torque Converter) | 44.5 L | p. 22 |
| Wheel Lug Torque | 610 to 678 N·m | p. 22 |
| Swing Gearbox Continuous Torque | 381 N·m | p. 22 |
| Swing Gearbox Maximum Torque | 762 N·m | p. 22 |
| Main Hoist Max Permissible Line Pull | 7784 kg | p. 23 |
| Auxiliary Hoist Max Permissible Line Pull | 7784 kg | p. 23 |
Grove GRT9165 Common Problems This Manual Covers
Grove GRT9165 telescoping function shut down with lost boom configuration and error code on display
Check the error code on the Operator Display Module and match it to the Telescoping System Malfunctions listing. Before you try to telescope again, verify whether the boom configuration has been lost. Do not keep cycling the control. Confirm why the telescoping function shut down, then follow the documented steps for lost boom configuration.
Manual Section: Telescoping System MalfunctionsHydraulic fluid leaks found during walkaround with oil level dropping in the hydraulic tank
Inspect for hydraulic fluid leaks during pre-starting checks, and relieve system pressure before loosening anything. Check the tank level and top up. The hydraulic tank holds 729 L (192.6 gal), as listed on page 450. When changing the oil, drain it warm at 65°C to 90°C (150°F to 200°F) and replace the filter.
Manual Section: Hydraulic System Maintenance p. 450Engine or crane fault code showing on the operator display module after startup
Record the active code on the Operator Display Module and look it up in the Engine Faults or Crane Faults listing. Check that routine service is current. The engine oil filter and fuel filter are both due every 500 hours, per page 422. Correct the listed cause before you put the crane back to work.

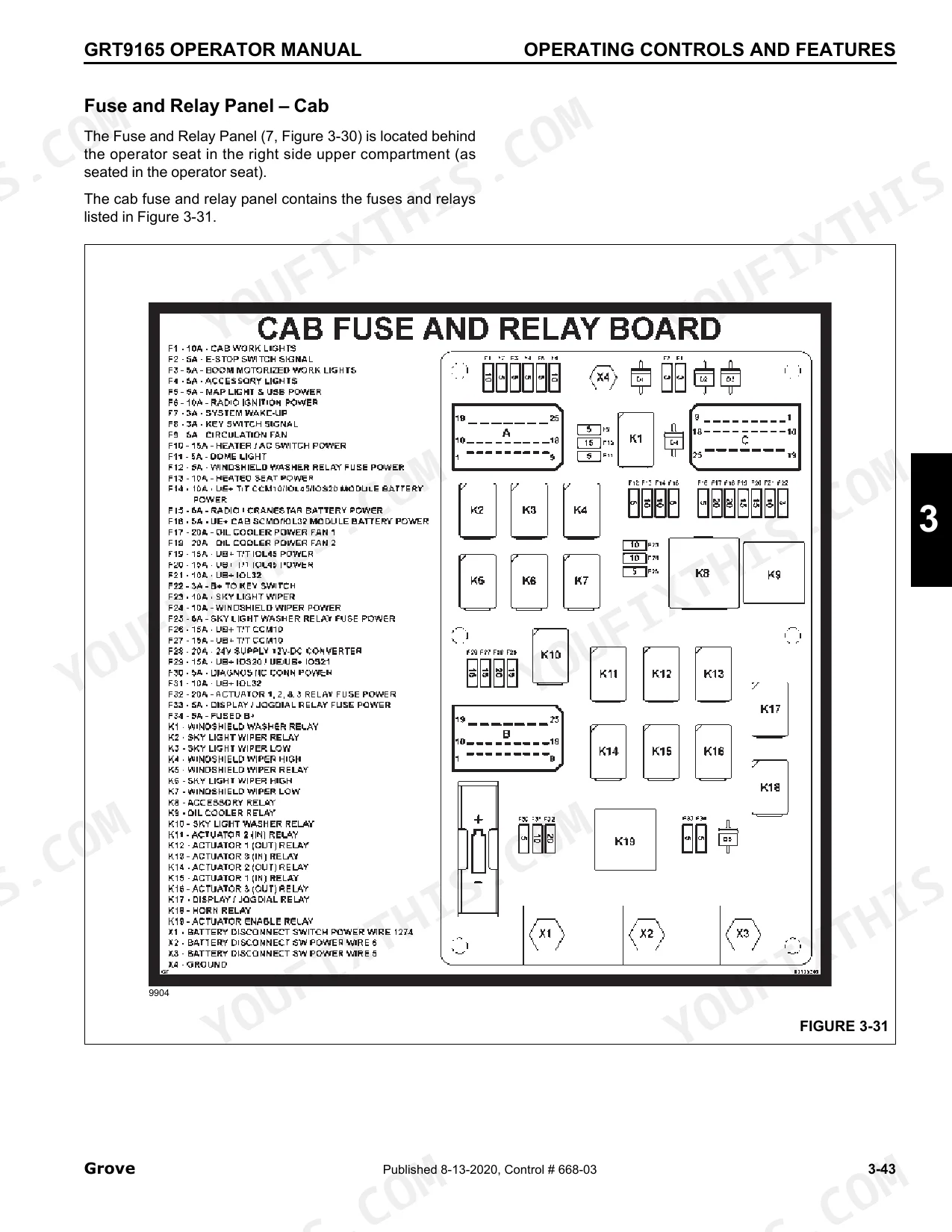

Manual Section: Engine FaultsElectrical circuit dead with no power at the function and fuse and relay panel location unknown
Check the battery disconnect switch position first. Then locate the fuse and relay panel using the layout. Inspect the fuse and relay that serve the dead circuit and replace any that have failed. Verify the batteries are charged before you start tracing wiring or suspecting the component itself.
Manual Section: Electrical System TroubleshootingHoist drum oil level low and breather needing service on main or auxiliary hoist
Check the hoist drum oil level following the Hoist System Troubleshooting procedure and top up if it reads low. Service the hoist breather as documented so the drum can vent properly. Before you go back to lifting, run the hoist and verify that the hoist rotation indicators respond as the drum turns.
Manual Section: Hoist System TroubleshootingTransmission fluid level low and transmission filter due for replacement at scheduled service
Check the transmission fluid level and top up with the specified fluid. Total capacity is 44.5 L including the torque converter, listed on page 22. Replace the transmission filter when it is due. If you have concerns about drive performance, run the torque converter stall check as the Transmission Troubleshooting section documents.
Manual Section: Transmission Troubleshooting p. 22Frequently Asked Questions
How do I clear error codes on a Grove GRT9165?
Crane fault codes with an "X" beside them can be cleared by the operator. Codes with an "X" surrounded by a red circle with a strike-through cannot be cleared without first correcting the malfunction, then cycling the ignition key to the Off position and back to the On position. p. 280
What are the torque specifications for the wheel nuts on the Grove GRT9165?
The wheel lug nuts on the Grove GRT9165 must be torqued to between 610 and 678 N·m (450 to 500 lbf-ft). p. 22
What is the service interval for replacing the engine oil filter on the GRT9165?
The engine oil filter for the Cummins B6.7L Stage V engine should be replaced every 500 hours of operation. p. 414
What is the capacity of the hydraulic tank on the Grove GRT9165?
The total capacity of the hydraulic tank is 838.58 L (221.5 gal), with a full level capacity of 729 L (192.6 gal). p. 22
How often should the fuel filter be replaced on the GRT9165?
The fuel filter should be replaced every 500 hours of service, or every 6 months, whichever interval comes first. p. 422
What format is this Grove GRT9165 manual in?
Immediate download of the complete 476-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print a copy of this Grove GRT9165 Operator Manual for the shop?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
