Covering four Grove industrial crane variants across the CD3330F and YB4409 families, publication 464-03 runs 308 pages of factory service data from the charging circuit to the boom sheaves. Wiring diagrams in this Grove CD3330F, CD3330FL, YB4409 service manual PDF trace the fuse layout, anti-double block and rated capacity limiter circuits, while hydraulic schematics follow oil flow through the lift, telescope, hoist, swing and outrigger circuits. Hydraulics take up about a quarter of the book: pressure settings, cylinder leakage tests, and full repair of the pumps, main control valve, swing motor, hoist motor and swivel. Set your pump compensator at 3625 ± 50 psi with margin pressure at 325 ± 25 psi, then bring SAE 8 straight thread O-ring fittings to 48 lb ft. Every idle hour on a parked crane costs you. Bookmarked by chapter and searchable by keyword, this PDF is a one-time purchase that stays yours for the life of the machine.
What's Inside This Grove CD3330F/FL, YB4409/XL Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 13-24 | General, Lubricants and Capacities, Environmental Protection |
| Safety Practices | 25-28 | Signal Words, Personal Considerations, Equipment Considerations, Operational Considerations, Final Word |
| Electric System | 29-42 | General (Comparing Electrical System to a Hydraulic System, Magnetism), Main Electrical System (General, Wire Harnesses, Fuses) |
| Hydraulic System | 43-118 | Hydraulic System Adjustments, Component Repair |
| Maintenance | 119-160 | Preparation, Hydraulic System Maintenance Precautions, Label Parts When Disassembling, Hydraulic Oil Recommendations, Draining and Flushing, Removing Air From the Hydraulic System |
| Engine and Engine Systems | 161-170 | General (Engine Type, Engine Performance, Engine RPM, Governor), Engine Crankcase System (Crankcase Oil Data) |
| Transmission and Torque Converter | 171-204 | Technical Data (Clutch Solenoid Technical Data), Operation (General), Troubleshooting (Water Contamination), Tests (Torque Converter Stall Test, Pressure and Flow Test) |
| Axles/Drive Shafts/Wheels and Tires | 205-242 | Description (Front Axle, Rear Axle), Technical Data (Front Steering Drive Axle, Rear Steering Non-Drive Axle) |
| Brake System | 243-258 | Technical Data (Front Axle Brakes, Accumulator, Accumulator Charging Valve, Priority Flow Control Valve), Description (Service Brake System, Parking Brake System) |
| Steering System | 259-278 | Technical Data, Description (General, Steering Modes, Two-Wheel Steering, Four-Wheel Steering, Crab Steering), Relief Valve Pressure Check, Troubleshooting |
| Structurals | 279-308 | Booms (General, Servicing the Boom), Wire Rope, Sheaves and Hoist Blocks (Wire Rope Description, Wire Rope Safety, Inspecting Wire Rope) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Non-Adjustable Steel Straight Thread O-ring Fitting Torque | SAE 2: 7.5 ± 0.5 lb ft, SAE 3: 14 ± 1.0 lb ft, SAE 4: 18 ± 1.0 lb ft, SAE 5: 22 ± 1.0 lb ft, SAE 6: 27 ± 2.0 lb ft, SAE 8: 48 ± 2.0 lb ft, SAE 10: 90 ± 5.0 lb ft, SAE 12: 110 ± 5.0 lb ft, SAE 14: 145 ± 6.0 lb ft, SAE 16: 160 ± 6.0 lb ft, SAE 20: 225 ± 12.0 lb ft, SAE 24: 250 ± 12.0 lb ft, SAE 32: 325 ± 15.0 lb ft | p. 24 |
| Fuse FU1 rating | 30 AMP | p. 31 |
| Fuse FU2 rating | 5 AMP | p. 31 |
| Main System Pressure (Pump Compensator) | 249.94 ± 3.45 bar (3625 ± 50 psi) | p. 44 |
| Pump Margin Pressure | 22 ± 1.7 bar (325 ± 25 psi) | p. 44 |
| Telescope Circuit Port Relief Setting (Extend) pressure adjustment | 1/4 turn equals 15.51 bar (225 psi) | p. 56 |
| Parking Brake Adjustment feeler gauge | 0.30 mm (0.012 in) | p. 57 |
| Air cleaner element replacement frequency | after six cleanings or after every 500 hours of operation | p. 133 |
| Air cleaner cleaning compressed air pressure | 205 Nm (30 psi) | p. 133 |
| Wire rope diameter reduction limit | more than 5% | p. 135 |
| Independent wire rope core strength contribution | 7.5% | p. 284 |
| Lubrication interval for sliding surfaces of wear pads | every 50 hours | p. 279 |
Grove CD3330F/FL, YB4409/XL Common Problems This Manual Covers
Grove CD3330F YB4409 crane hydraulic system slow operating speeds or no movement on boom functions
Check main system pressure at the pump compensator against 249.94 ± 3.45 bar (3625 ± 50 psi) using the specs on page 44. Then verify pump margin pressure reads 22 ± 1.7 bar (325 ± 25 psi). If either is out, work the hydraulic troubleshooting steps for slow speeds and no movement before replacing parts.
Manual Section: Hydraulic System TroubleshootingMain hoist low lifting capacity, slow line speed, or hook block creeping under load
Verify main system pressure at the pump compensator reads 249.94 ± 3.45 bar (3625 ± 50 psi) per page 44 before blaming the hoist. Inspect the wire rope and replace it if diameter reduction exceeds 5%, following page 135. Then run the main hoist circuit checks for line speed and load holding.
Manual Section: Main Hoist Circuit TroubleshootingSwing circuit relief valve suspected, crane will not rotate or swing speed is slow
Test the swing circuit relief valve against 138 ± 3.5 bar (2000 ± 50 psi) using the pressure specs on page 44. A low reading points you at the relief valve. If the setting is correct, confirm main system pressure at the pump compensator before tearing into the swing circuit.
Manual Section: Swing Circuit TroubleshootingTelescope crowd cylinder slow to extend, or boom will not extend or retract at all
Check the telescope circuit port relief setting (extend) before replacing cylinder parts. Adjust it following page 56, where each 1/4 turn equals 15.51 bar (225 psi). Make small moves, recheck pressure after each one, and confirm main system pressure on page 44 is within spec first.
Manual Section: Telescope (Crowd) Circuit Troubleshooting p. 56Boom drifts down under load or lift cylinder will not extend or retract properly
Check the lift circuit for boom drift and cylinder extension or retraction faults using the lift circuit troubleshooting steps before pulling the cylinder. Verify main system pressure reads 249.94 ± 3.45 bar (3625 ± 50 psi) on page 44 so you are not chasing a pump problem at the cylinder.
Manual Section: Lift Circuit TroubleshootingElectric system problem: winch motor will not operate or alternator is not charging

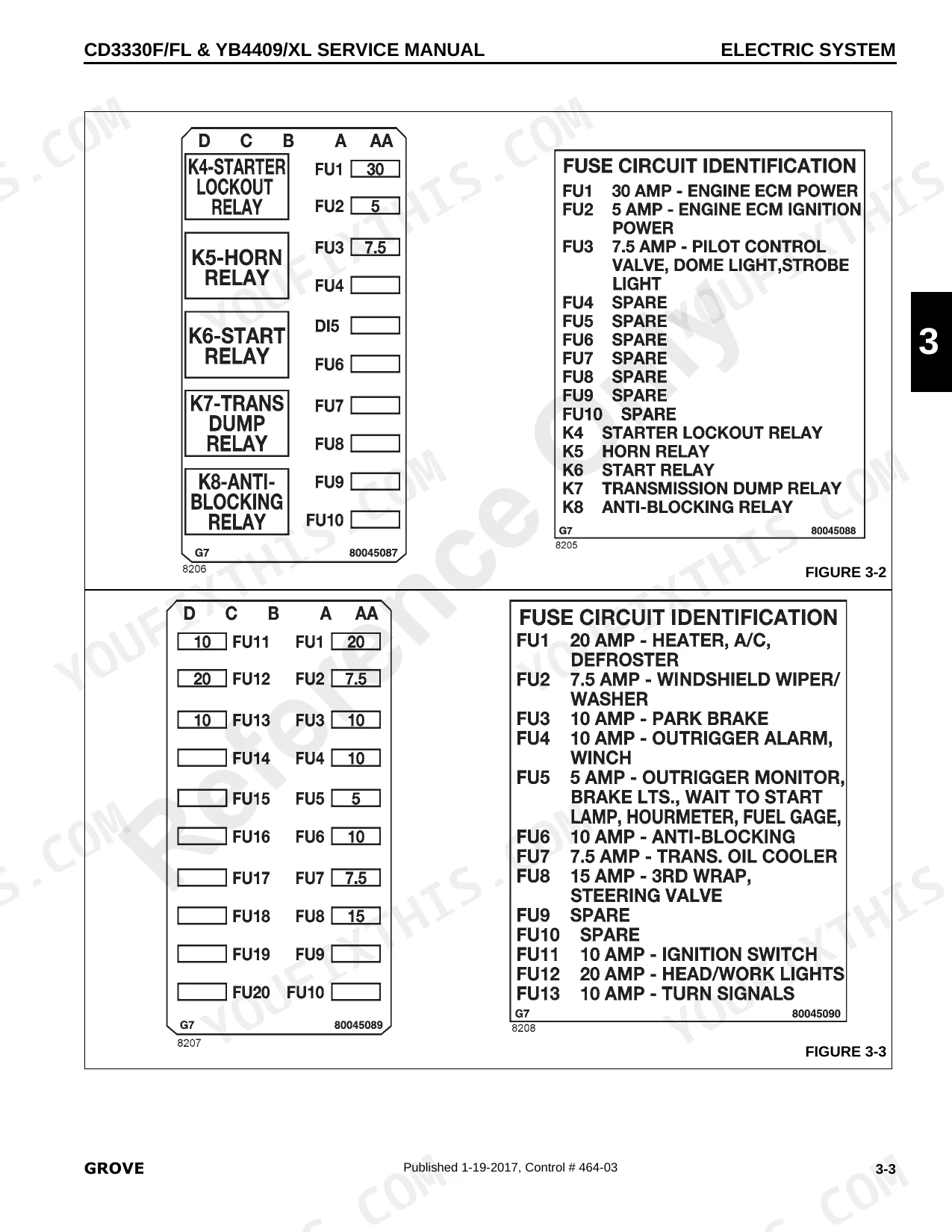

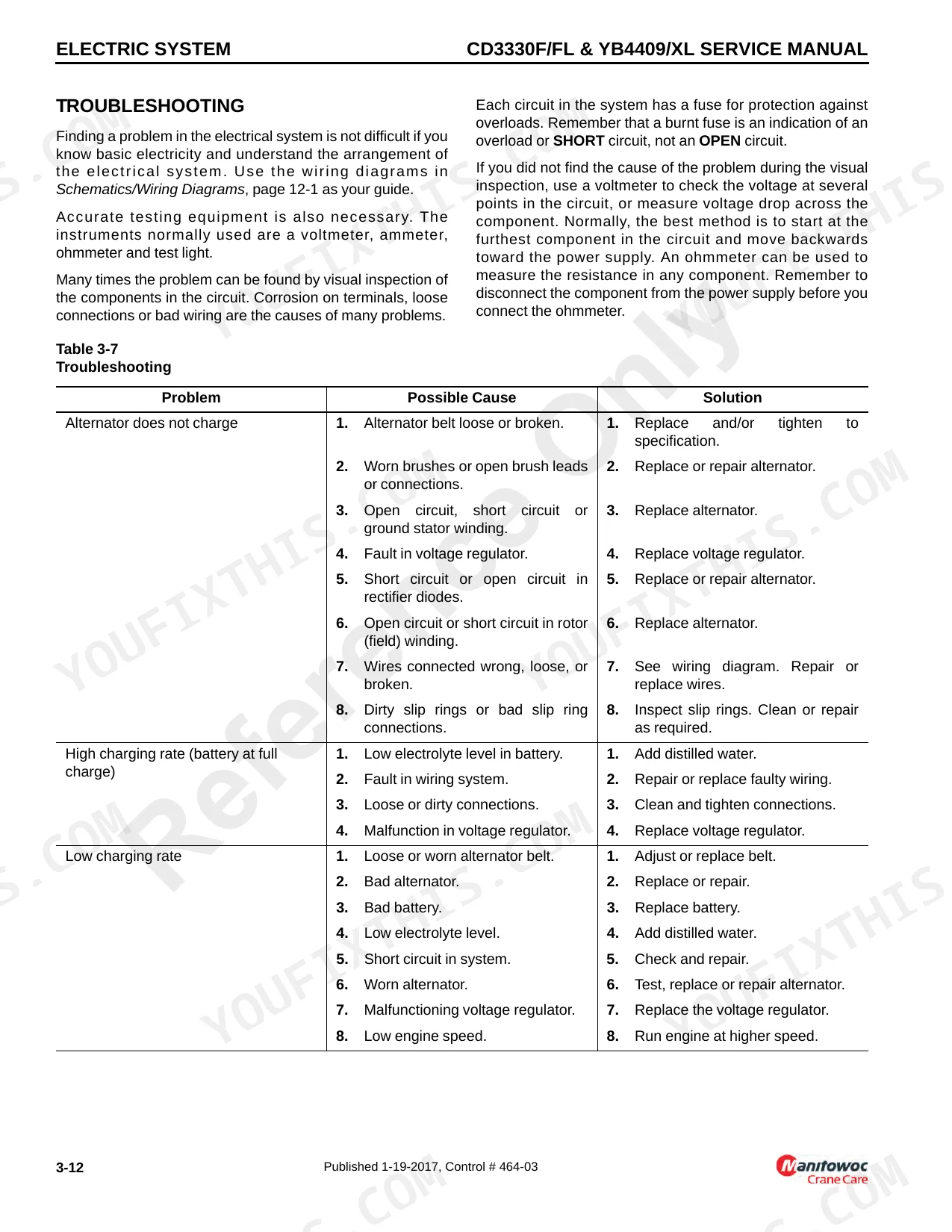

Check fuse FU4 (10 AMP, outrigger alarm and winch) in the Figure 3-3 fuse list on page 31 before testing the winch motor. For charging complaints, test the alternator using the electric system troubleshooting procedures starting on page 40. Replace blown fuses only with the rated amperage shown.
Manual Section: Electric System Troubleshooting p. 40Frequently Asked Questions
What are the recommended service intervals for the Grove CD3330F/FL, YB4409/XL crane?
Maintenance intervals are based on the hourmeter reading. Key intervals include daily (before operation), every 50 hours (weekly), 100 hours (two weeks), 250 hours (monthly), 500 hours (three months), 1000 hours (six months), and 2000 hours (yearly). Refer to the Maintenance Schedule and Checklist on pages 124-125 for specific tasks. p. 124
What are the engine and hydraulic fluid capacities for the Grove CD3330F/FL, YB4409/XL crane?
The engine crankcase capacity is 7.4 qts (7.0 l) without filter change and 8.5 qts (8.0 l) with filter change. The hydraulic tank capacity is 39 gal (147.6 l). The cooling system capacity is 15 qts (14.0 l). p. 122
How do I troubleshoot an engine that is hard to start or will not start?
First, review the starting procedure in the Engine Operator's Manual. Check the fuel gauge, bleed the fuel lines, and ensure you are using oil with the proper viscosity for the ambient temperature. If the problem persists, drain, flush, and bleed the fuel system, or replace the fuel filter. p. 167
What is the torque spec for the hoist gearbox mounting bolts on the Grove CD3330F/FL, YB4409/XL crane?
The four 5/8" mounting bolts for the hoist gearbox must be torqued to 216 Nm (159 lb-ft). p. 141
What is the correct procedure for checking the transmission oil level?
Check the transmission oil level when the oil is cold. Level the crane, engage the parking brake, and shut off the engine. Open the engine compartment cover, remove the transmission dipstick, and ensure the oil level is between the minimum and maximum marks. p. 131
Is this Grove CD3330F manual a PDF I download?
Instant PDF download. You get the full 308-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this Grove CD3330F Service Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
