Hunting a part number for your Hitachi EX15? This 265-page Hitachi EX15 parts catalog PDF (OEM #P1A7-1-5) maps every component on the mini excavator, from track frame to boom tip. You get exploded views paired with numbered parts lists for the engine group, hydraulic pumps and motors, control valves, cylinders, cab and canopy hardware, plus the full undercarriage: idlers, rollers, adjusters, and both steel and rubber crawler track links. Piping runs get the same treatment; main, pilot, and travel circuits are broken down hose by hose, fitting by fitting. Need to shim a motor rebuild? The catalog lists 0.05 mm and 0.1 mm shims, and separate sections cover every bucket option from 250 mm to 500 mm wide. Ordering the wrong seal kit twice gets old fast. Bookmarked and text-searchable; type the component name, land on the exploded view, order once.
What's Inside This Hitachi EX15 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Air Cleaner, Fuel Pipings, Fuel Tank | |
| Cooling System | Radiator, Radiator Support, Reserve Tank | |

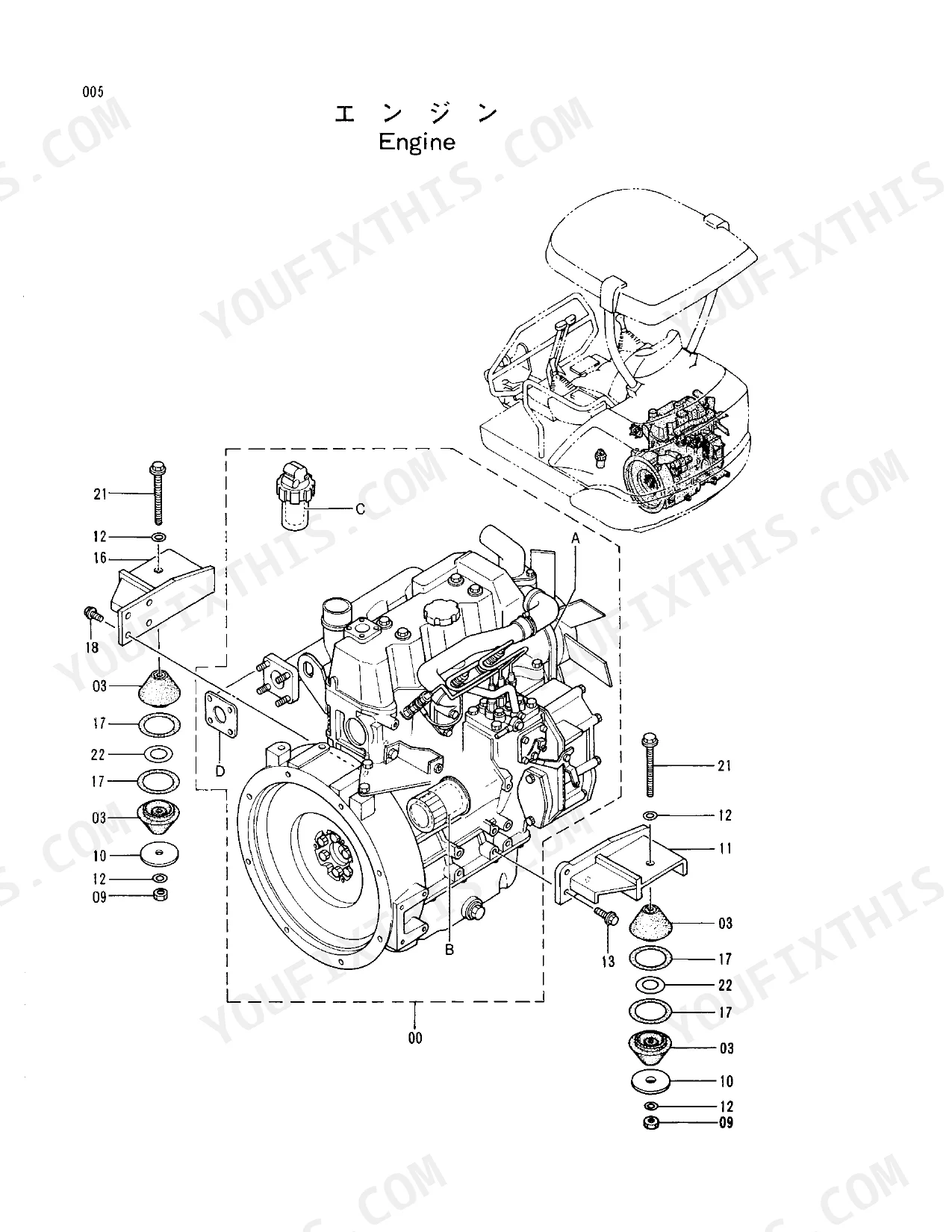

| Engine | Muffler, Engine Control, Lubricate Pipings, Engine Cover Guard | |
| Electrical System | Gauge Panel _Canopy_, Gauge Panel _Canopy, Cab_, Wire Harness | |
| Hydraulics & 3-Point Hitch | Pump Device, Extra Pipings _Hydraulic Ports_, Pump;Gear, Valve;Control, Valve;Pilot, Valve;Relief | |

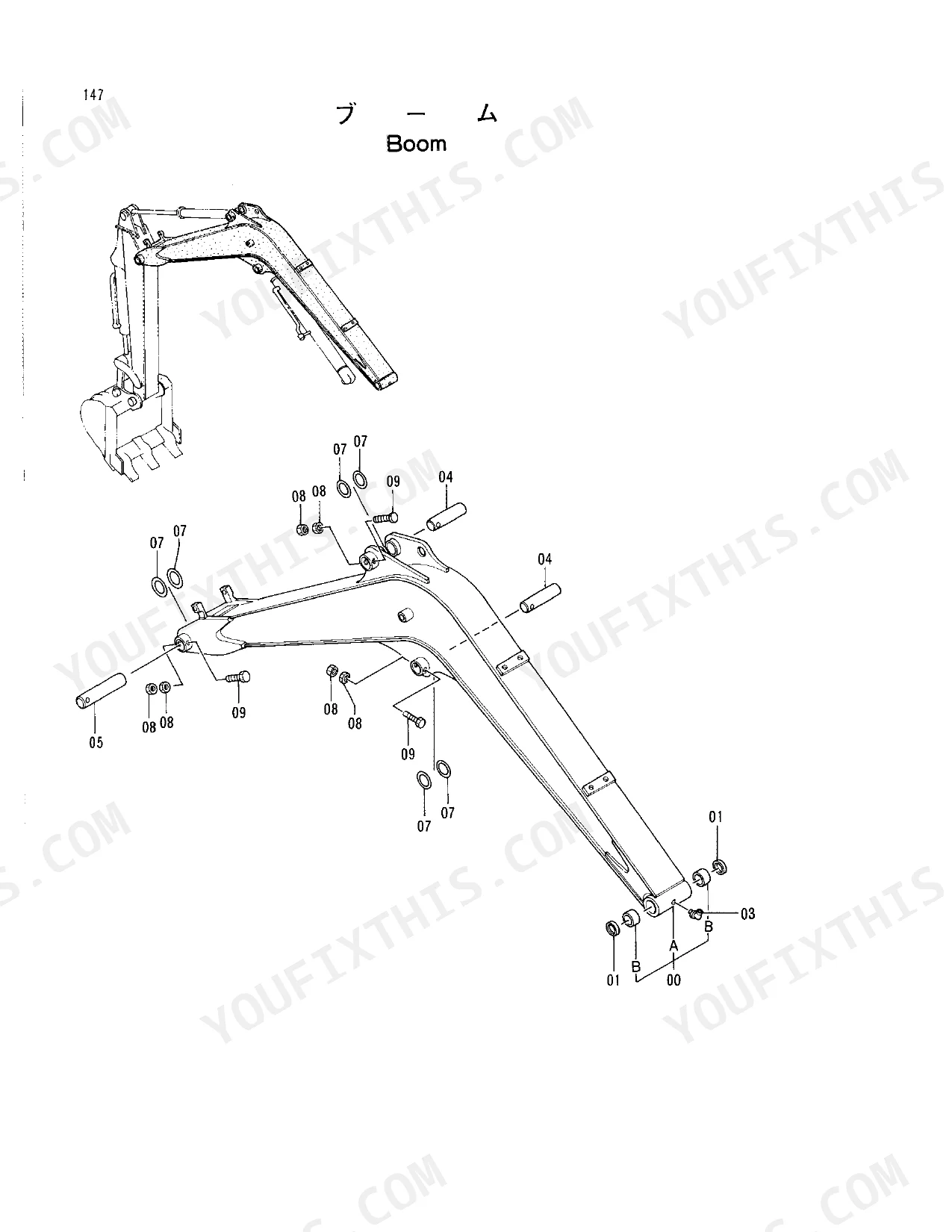

| Loader, Backhoe & Attachments | Swing Device, Swing Post, Swing Lock, Boom, Bucket 0.04, Bucket 0.02•I250Mm Wide, Bucket 0.03, Bucket 0.035, Bucket 0.045, Cyl.;Boom, Cyl.;Bucket | |

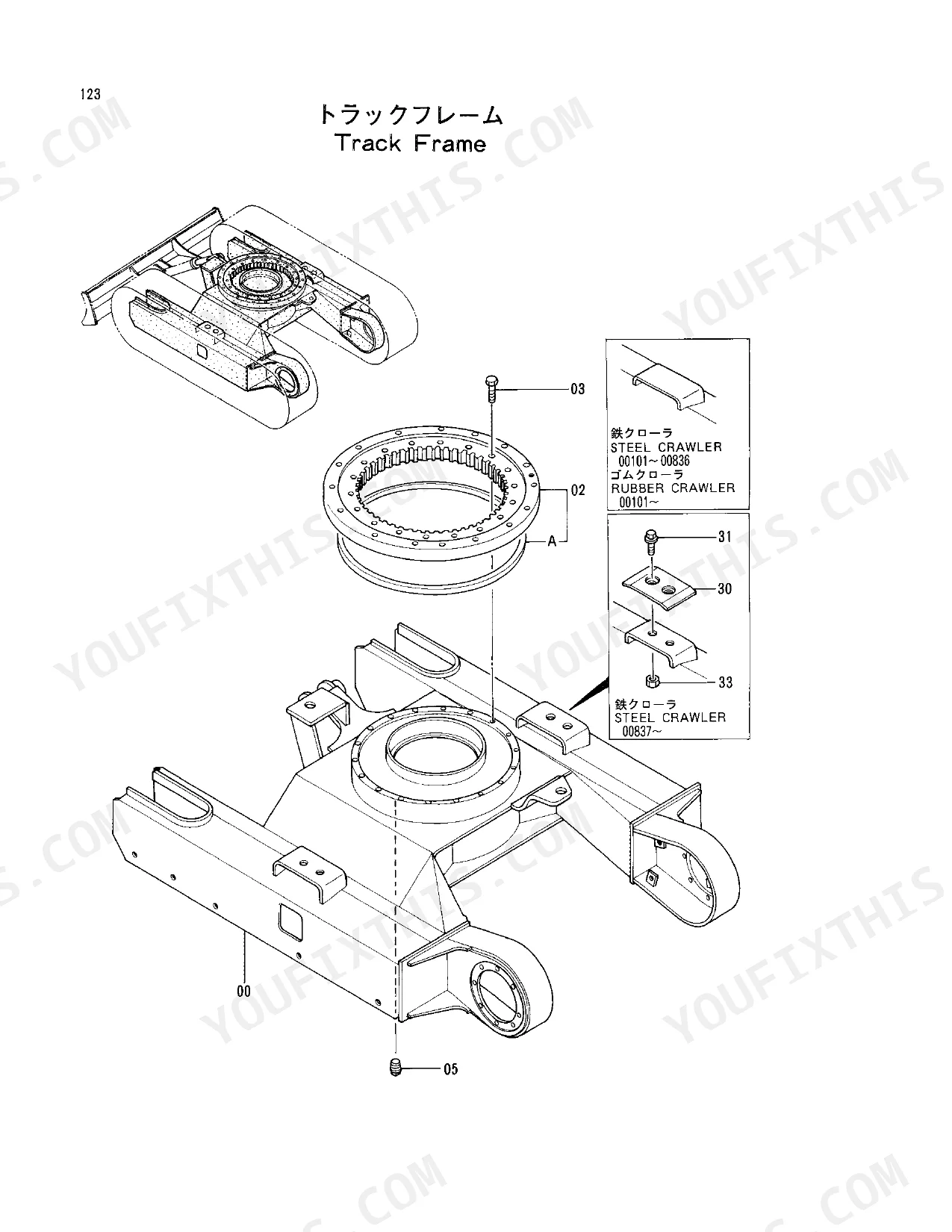

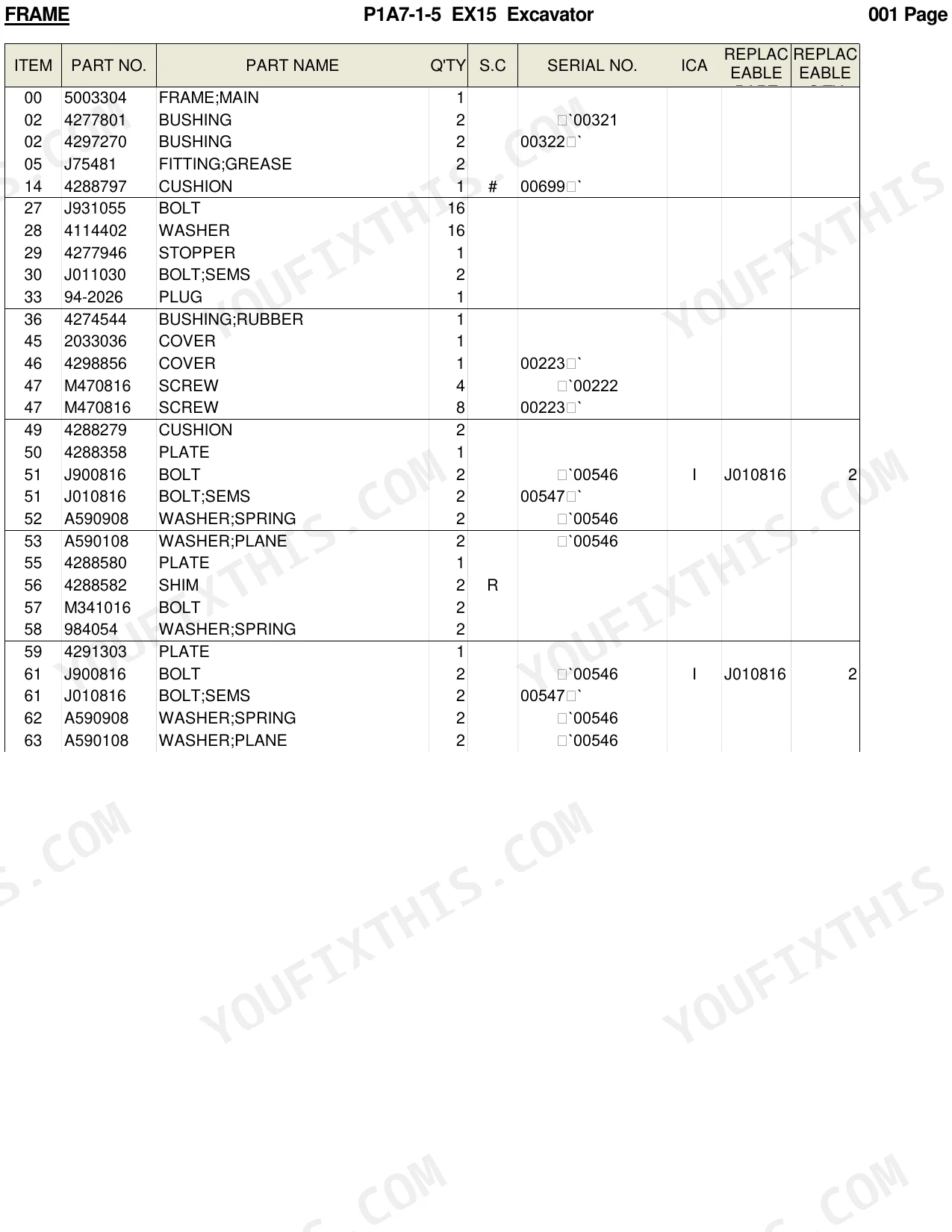

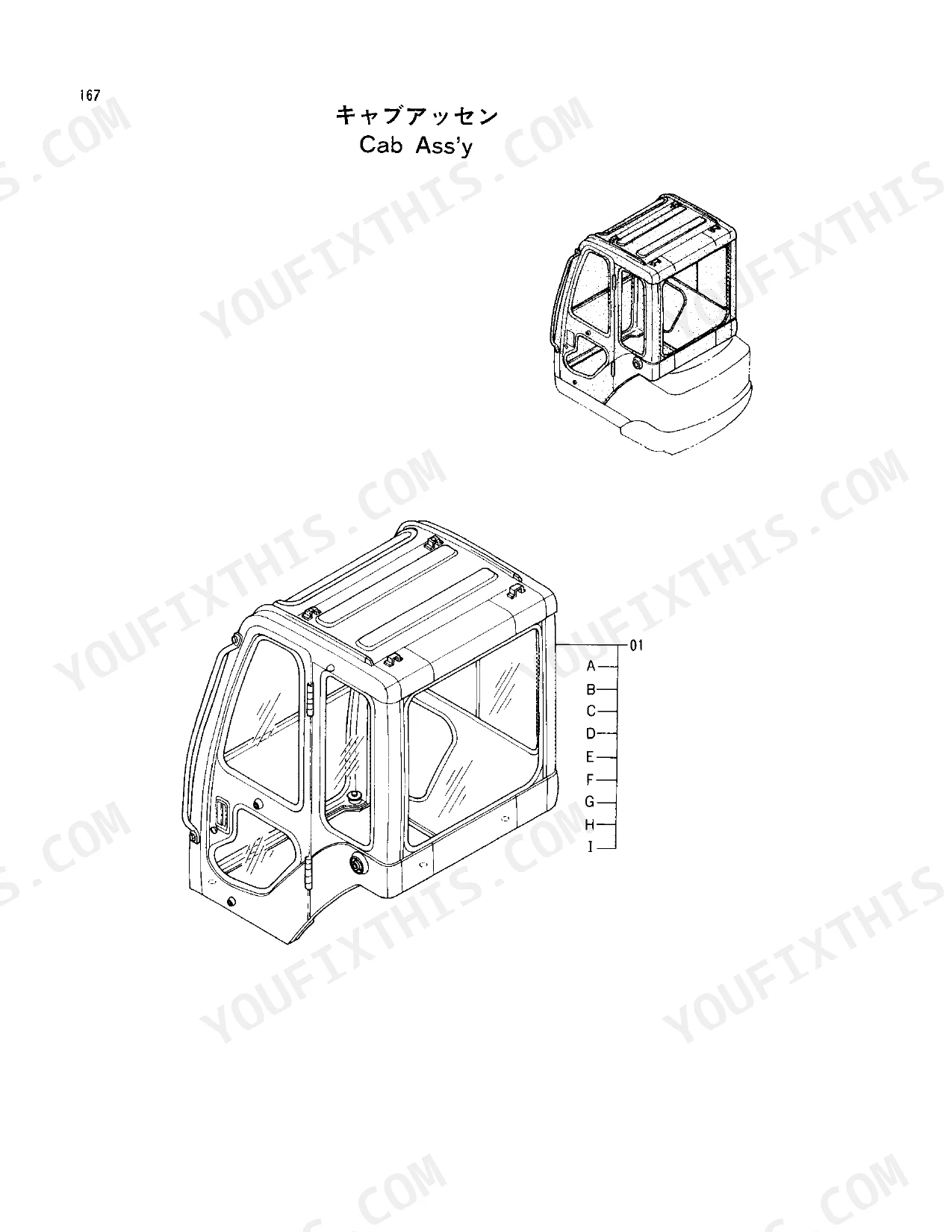

| Body & Operator Station | Frame, Oil Tank, Console _Canopy_, Console _Cab_, Canopy, Floor, Seat, Cover, Track Frame, Travel Pipings Cover, Cab Ass'Y, Cab, Cab _Window Washer_ | |
| Decals & Accessories | Tools | |

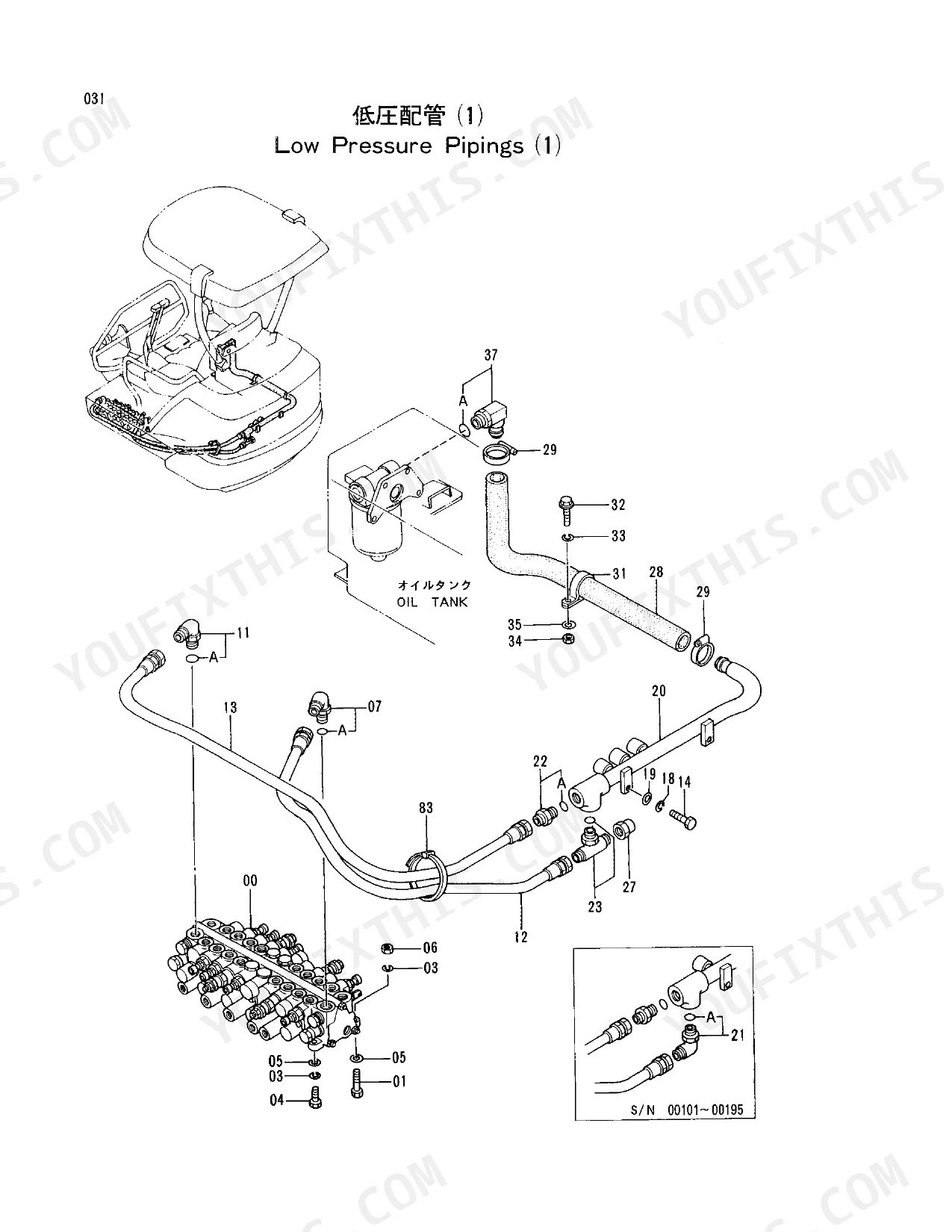

| Other Components | Counterweight, Fule Pipings, Low Pressure Pipings, Main Pipings, Control Lever, Control Pedal, Lever Lock, Lever Link Support, Lever Link, Pilot Pipings, Console, Electric Parts, Travel Device, Front Idler, Adjuster, Lower Roller |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse (5A) | 5A | p. 100 |
| Fuse (15A) | 15A | p. 100 |
Hitachi EX15 Common Problems This Manual Covers
Hitachi EX15 swing motor leaking at pinion shaft, can't identify correct oil seal and shim sizes
Check the oil motor exploded view on page 228. The pinion shaft oil seal, ball bearing, and shims are itemized there; shims come in 0.05 mm, 0.1 mm, and 0.3 mm thicknesses, so measure the originals before ordering. Match the item numbers against the swing device mounting hardware on page 26.
Manual Section: Motor;Oil (1_3) p. 228Blown fuse keeps killing the monitor and gauges, not sure which amperage the fuse box takes
Verify ratings against the Electric Parts (2) list on page 100 before buying replacements; it shows 5A and 15A fuses for the fuse box and monitor circuits. Record the item number for each slot, then order straight from the parts list instead of guessing amperage at the parts counter.
Manual Section: Electric Parts (2) p. 100Ordering replacement bucket teeth and pins, five bucket widths listed and the parts look identical
Measure your bucket cutting width first; the catalog carries separate listings for 250 mm, 350 mm, 410 mm, 450 mm, and 500 mm buckets. For the 450 mm bucket, pull tooth, bolt, nut, boss, shim, and plate item numbers from the assembly breakdown on page 152, and order only from that page.
Manual Section: Bucket 0.04 (450Mm Wide) p. 152Frequently Asked Questions
What are the replacement specifications for the engine oil filter?
The engine oil filter for the EX15 excavator is part number 4294841. This part is listed under the engine components section. p. 6
What is the part number for the main hydraulic suction filter?
The suction filter for the oil tank is part number 4294127. The replacement cartridge element for this filter is part number 4294128. p. 30
What is the part number for the engine fan belt?
The fan belt for the engine is part number 4294840. p. 6
What is the part number for the main radiator hose?
The radiator hose is part number 4217603. p. 8
What is the part number for the fuel filter element?
The fuel filter element is part number 4294842. p. 6
What format is this Hitachi EX15 manual in?
You get a 265-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Hitachi EX15 Parts Catalog?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
