Part of the Hitachi Parts Manuals.

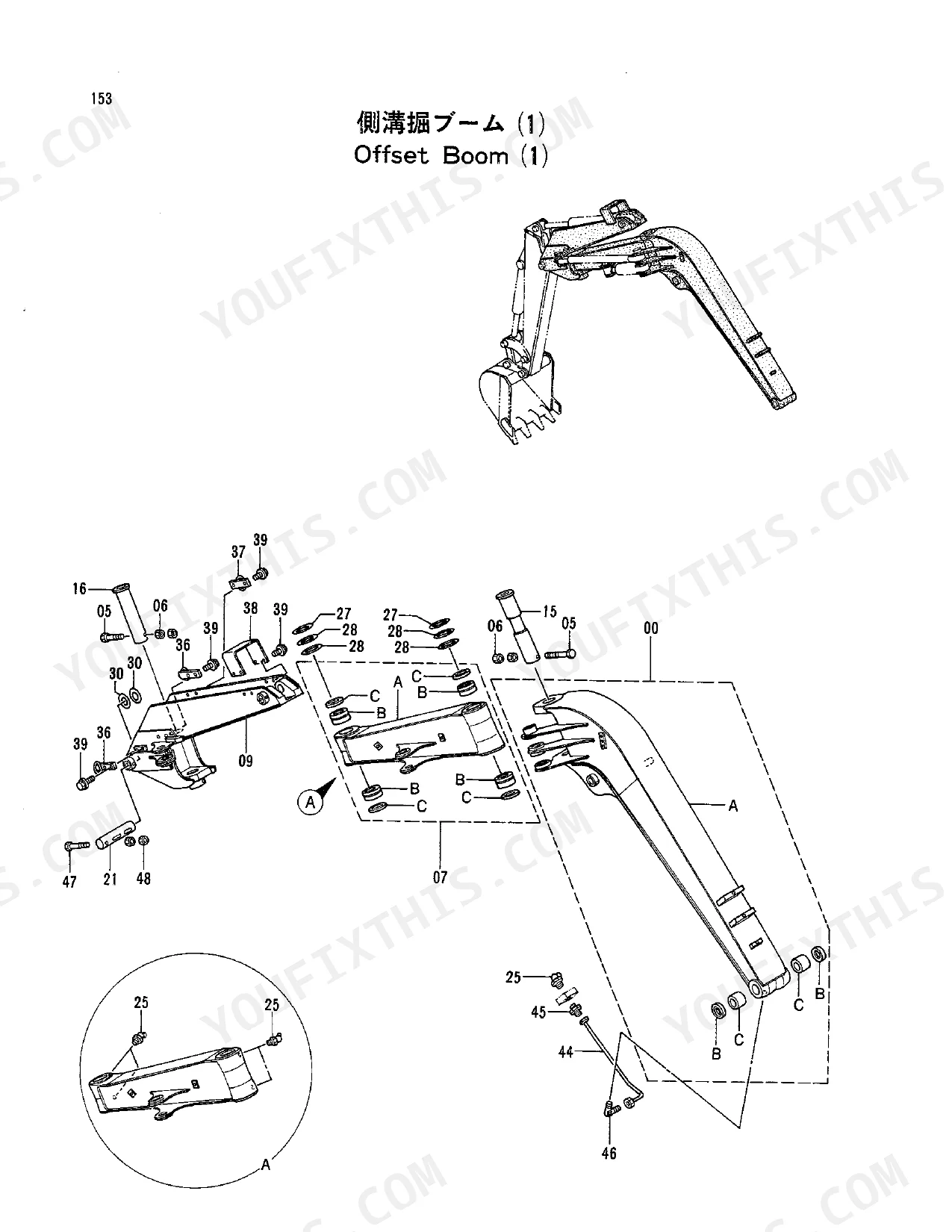

All 236 pages of this Hitachi EX40UR parts catalog PDF (OEM #P1BA-1-2) focus on one thing: getting the exact replacement components for your excavator. Inside, you get highly detailed exploded views of the entire machine, from the swing device to the offset boom assembly. Open to the hydraulic sections to find complete breakdowns of the control valves, travel motors, and pilot pipings, complete with factory numbers for every individual piece. Match the exact O-ring for the main relief valve, and verify the correct replacement shoe, retainer, and block assembly before rebuilding your piston pump. Stop ordering the wrong components from vague aftermarket schematics. Bookmarked and searchable; jump to any section or search any component by keyword so you can get back to work.
What's Inside This Hitachi EX40UR Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Air Cleaner, Fuel Pipings, Fuel Tank | |
| Cooling System | Radiator, Radiator Support, Reserve Tank | |

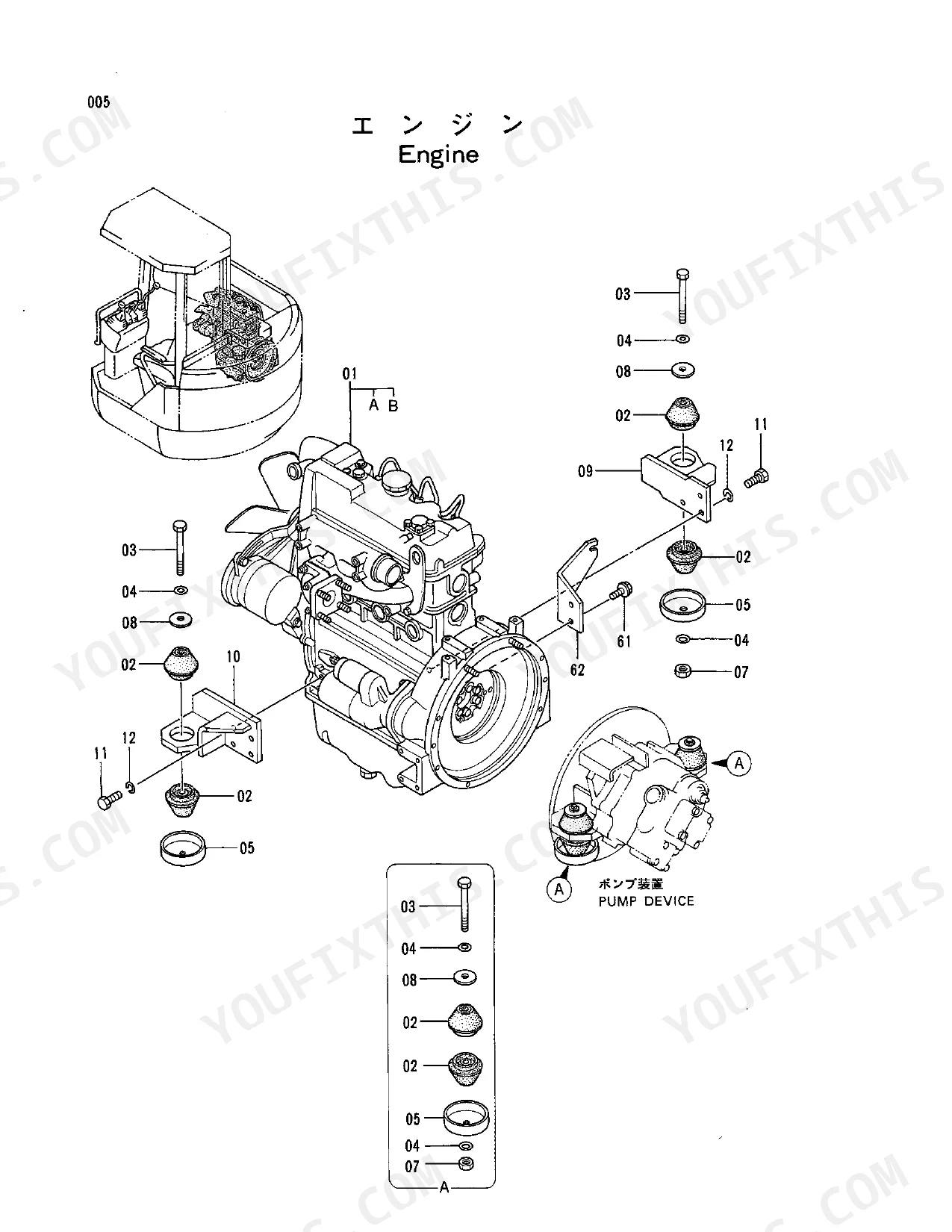

| Engine | Muffler, Oil Cooler Pipings, Lubricate Pipings, Pump;Piston | |

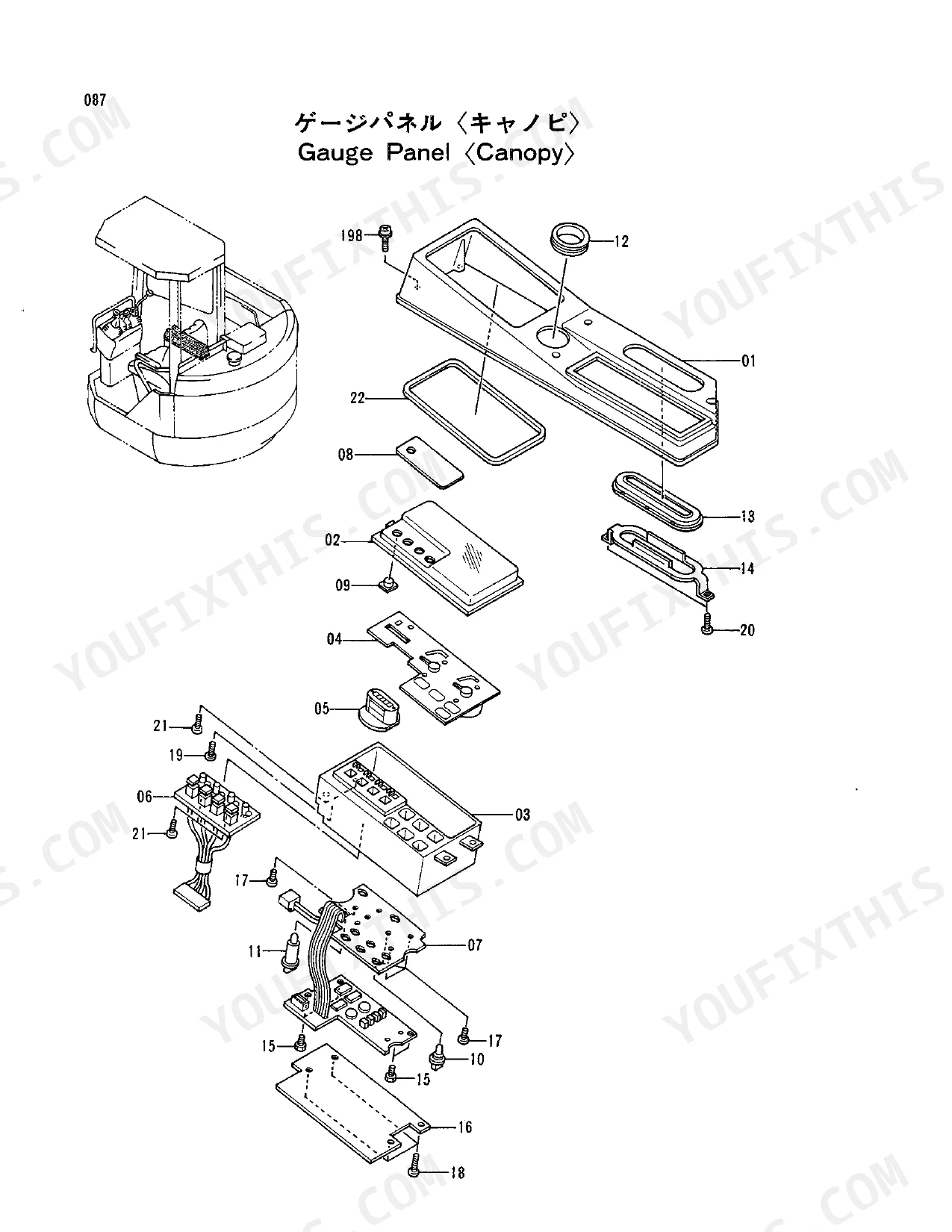

| Electrical System | Gauge Panel _Canopy_, Gauge Panel _Cab_, Wire Harness, Valve;Solenoid | |

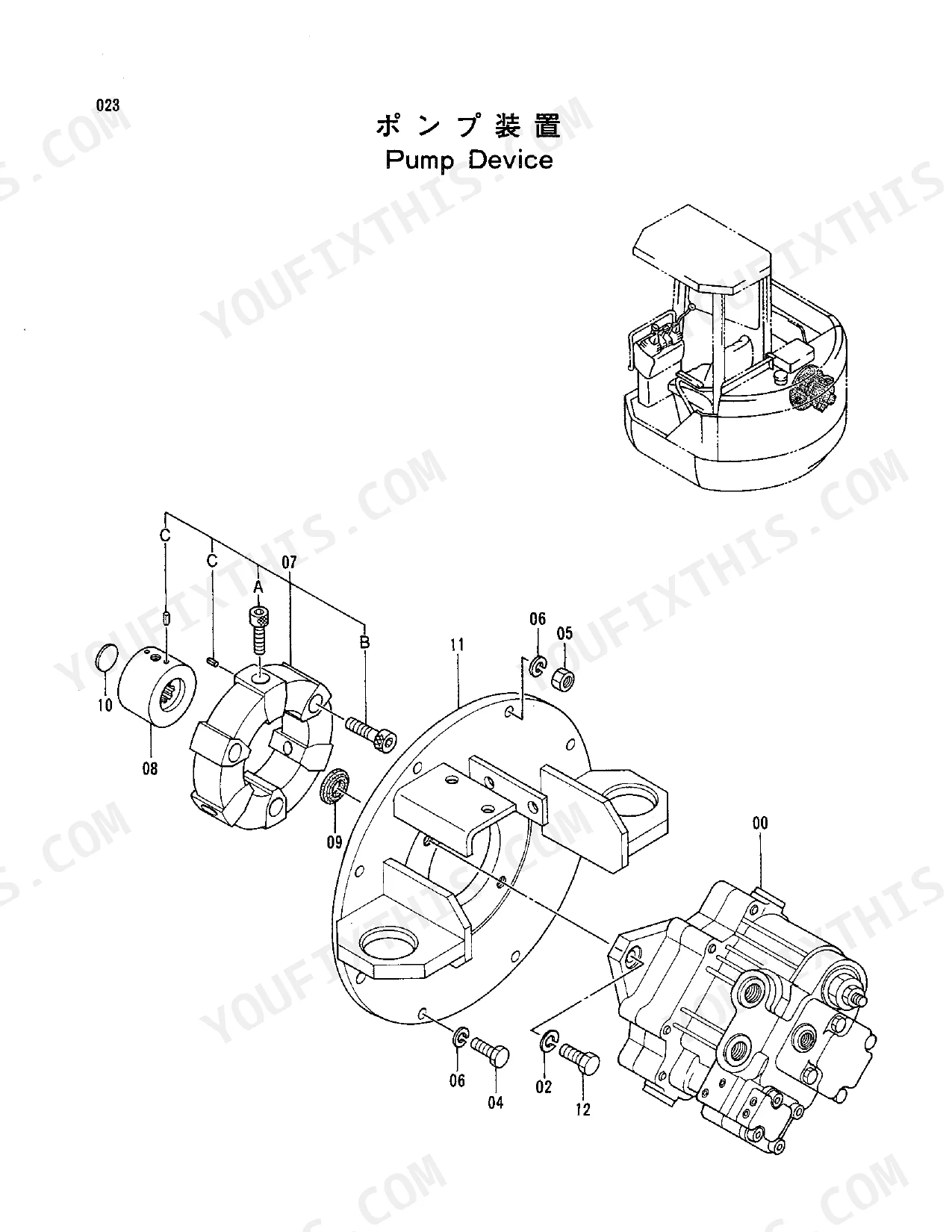

| Hydraulics & 3-Point Hitch | Pump Device, Valve;Relief, Valve;Control, Valve;Pilot | |
| Body & Operator Station | Frame, Oil Tank, Engine Control Cable, Canopy, Floor, Seat, Cover, Track Frame, Travel Pipings Cover, Cab Ass'Y, Cab | |
| Decals & Accessories | Tools | |
| Other Components | Counterweight, Engine, Swing Device, Main Pipings, Control Box, Lever Stand, Engine Control Lever, Control Lever, Control Pedal, Lever Lock, Swing Lock, Lever Link Parts, Lever Link, Pilot Pipings, Electric Parts, Travel Device |
Hitachi EX40UR Common Problems This Manual Covers
Hitachi EX40UR bucket teeth are completely worn out and the side cutters are missing
Inspect the bucket assembly breakdown on page 164. Find the exact part numbers for the tooth, side cutter, and boss shim plate specifically for the 580 mm wide bucket. Cross-reference these numbers with your serial prefix to ensure proper fitment before ordering the replacement hardware.
Manual Section: Bucket 0.10 (580Mm Wide) p. 164Narrow trenching bucket has broken side cutters and missing boss shims after heavy digging
Check the bucket parts list on page 192. Locate the exact part numbers for the side cutter, tooth, and plate required for the 350 mm wide bucket assembly. Verify the required shim thickness and boss dimensions to properly secure the new teeth to the bucket lip.
Manual Section: Bucket 0.05 (350Mm Wide) p. 192Steel crawler chains are worn out and need replacement master pins and track bushings
Review the steel crawler breakdown on page 186. Identify the master pin, track pin, and bushing part numbers for the 400G track-link assembly. Verify the 400G shoe dimensions match your existing undercarriage components to ensure correct chain pitch before ordering replacements.
Manual Section: Track-Link 400G (Steel Crawler) p. 186Frequently Asked Questions

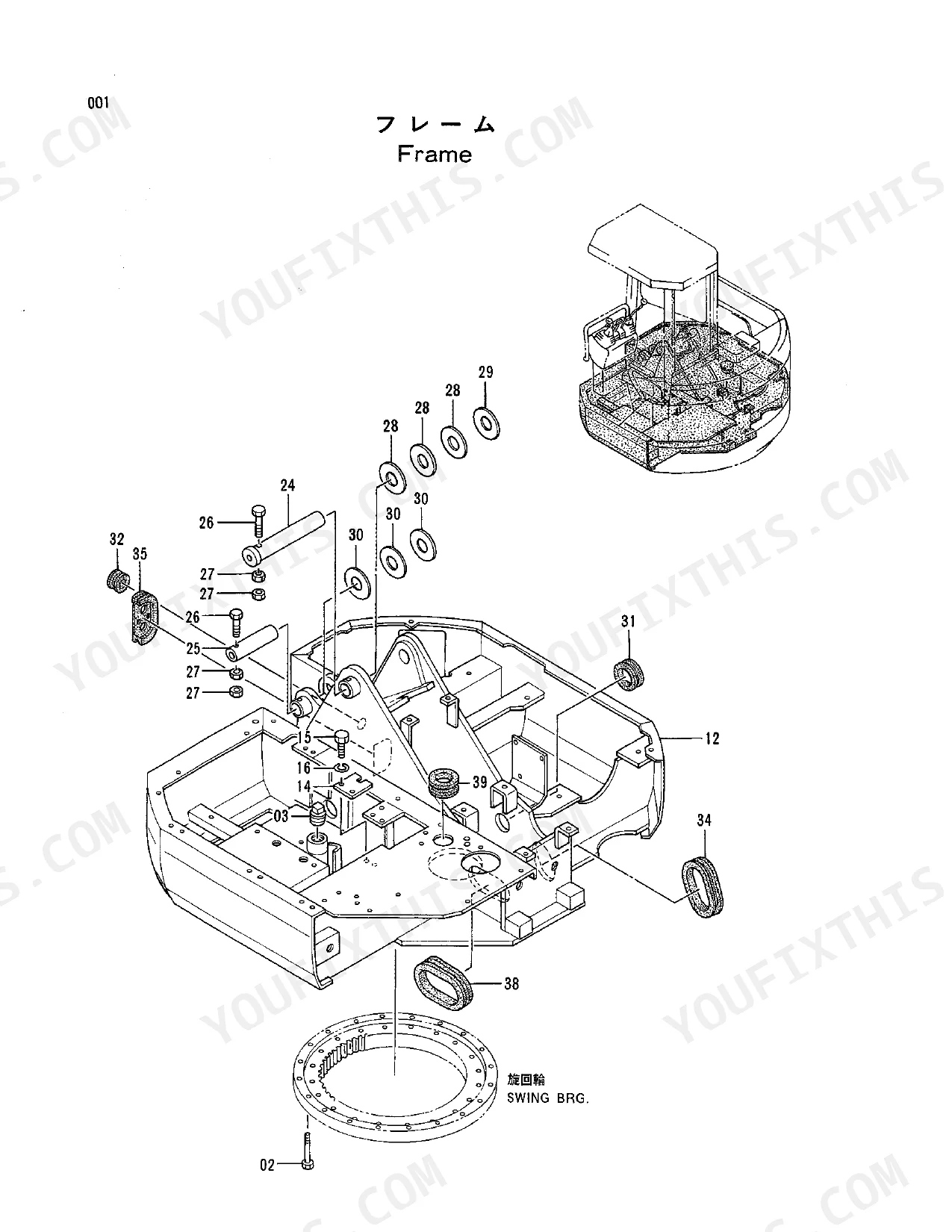

What is the part number for the main frame of the Hitachi EX40UR excavator?
The main frame for the Hitachi EX40UR excavator is identified by part number 5003747. p. 4
What is the part number for the engine oil filter on the Hitachi EX40UR?
The engine oil filter for the Hitachi EX40UR is part number 4294841. p. 10
What is the part number for the fuel filter element on the Hitachi EX40UR?
The fuel filter element for the Hitachi EX40UR is part number 4313065. p. 22
What is the part number for the air cleaner element on the Hitachi EX40UR?
The air cleaner element for the Hitachi EX40UR is part number 4294846. p. 18
What is the part number for the radiator cap on the Hitachi EX40UR?
The radiator cap for the Hitachi EX40UR is part number 4296743. p. 12
Is this Hitachi EX40UR Parts Catalog a digital download?
Immediate download of the complete 236-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this Hitachi EX40UR manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
