Hydrostatic propulsion quits halfway down a row, and the picking window closes on you. That failure is where the Ji Case 1800 service manual PDF earns its keep: 904 factory pages, OEM number 8-99500, written for the 1800 cotton harvester. Wiring schematics trace circuits from the neutral start switch through the instrument cluster, alternator, and starter motor. Hydraulics and power train claim the longest run of the book: schematics paired with troubleshooting charts, pump and compensator work, electro hydraulic valves, the Foot-N-Inch valve, hydrostatic drive pump and motor, transmission service, final drive and pinion. Pull the 15 amp warning lamp fuse before you suspect the cluster, then set cylinder head short bolts at 90 Nm plus 90 degrees and the long ones at 120 Nm plus 90 degrees. Bookmarked and searchable.
What's Inside This Ji Case 1800 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 4-7 | Loctite Product Chart |

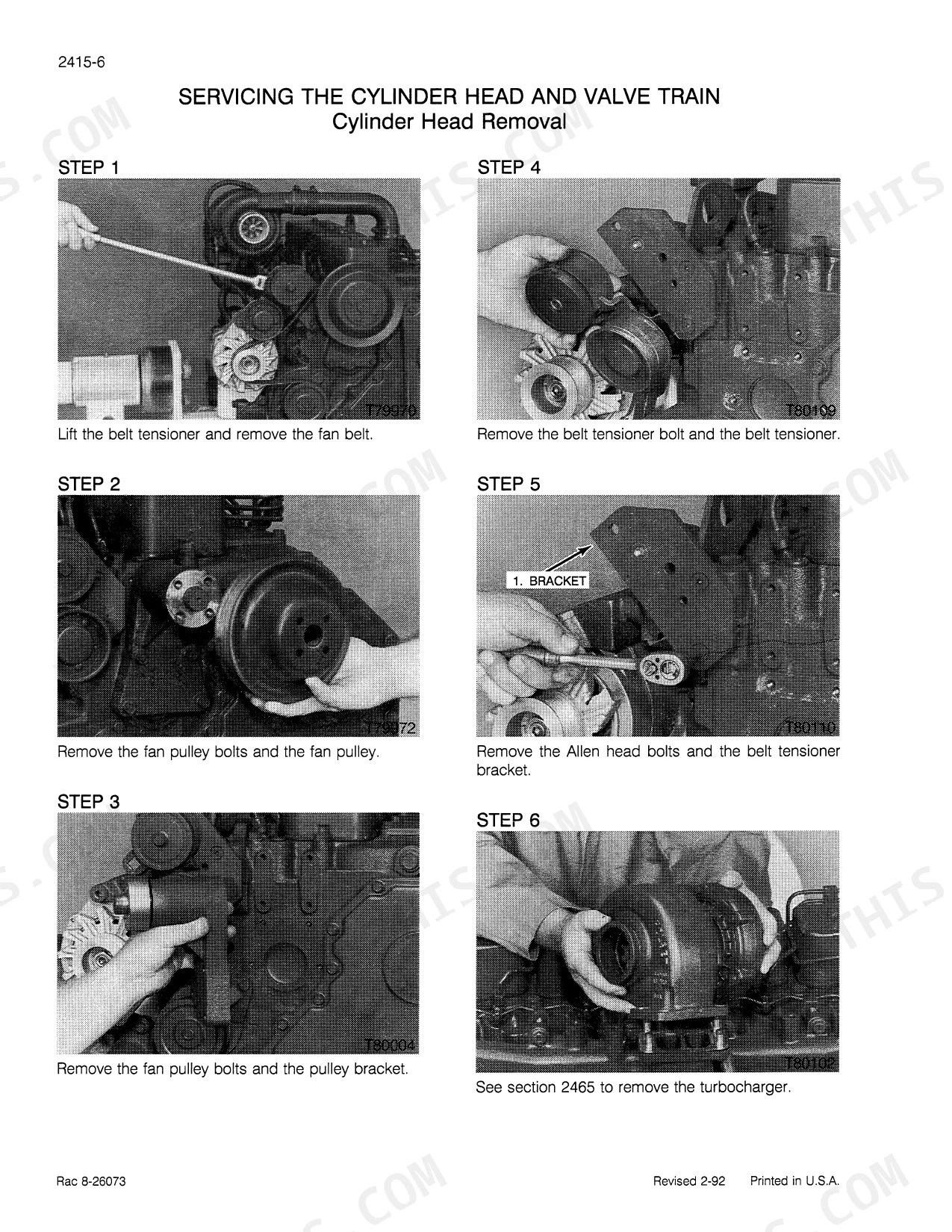

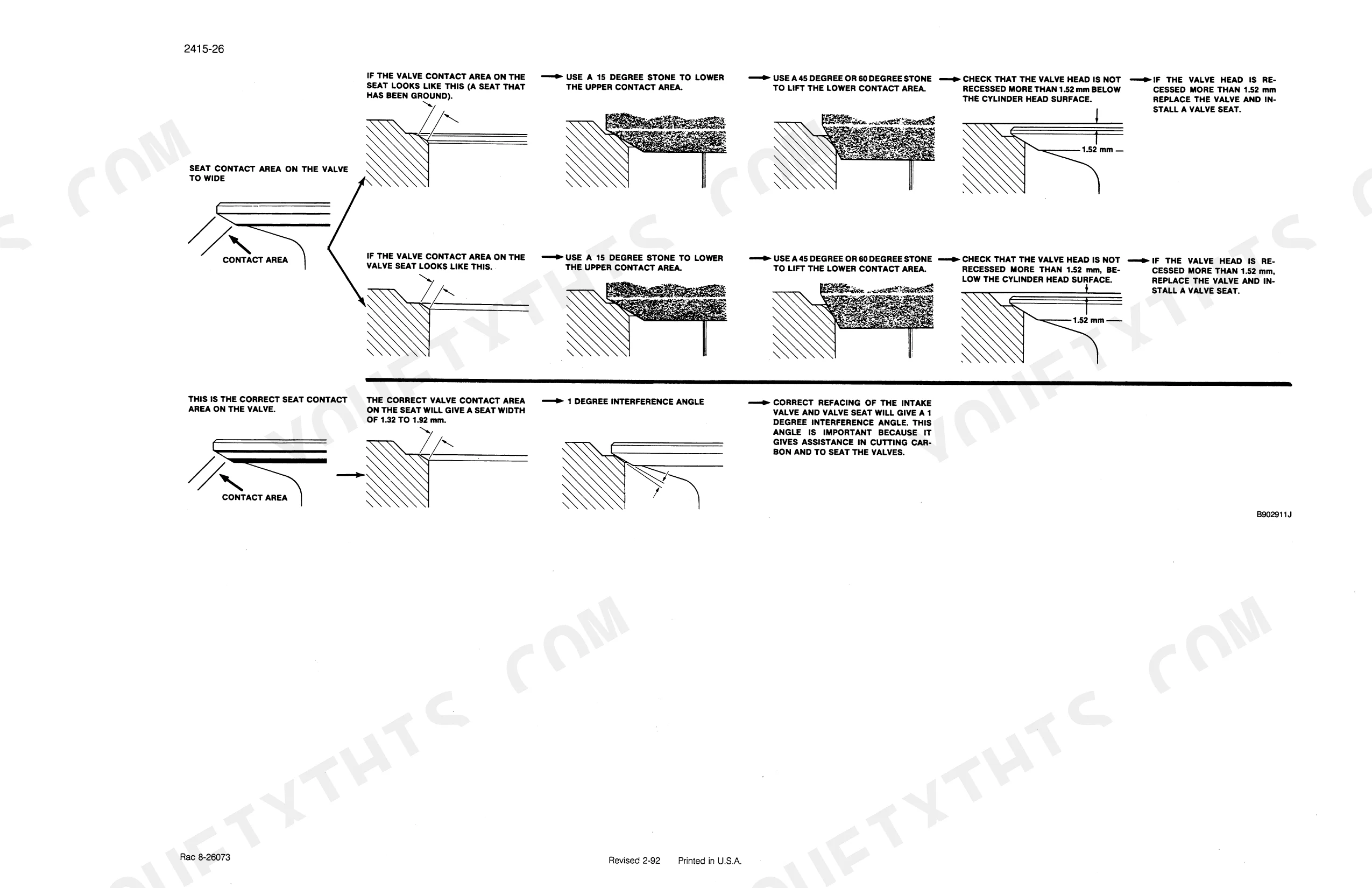

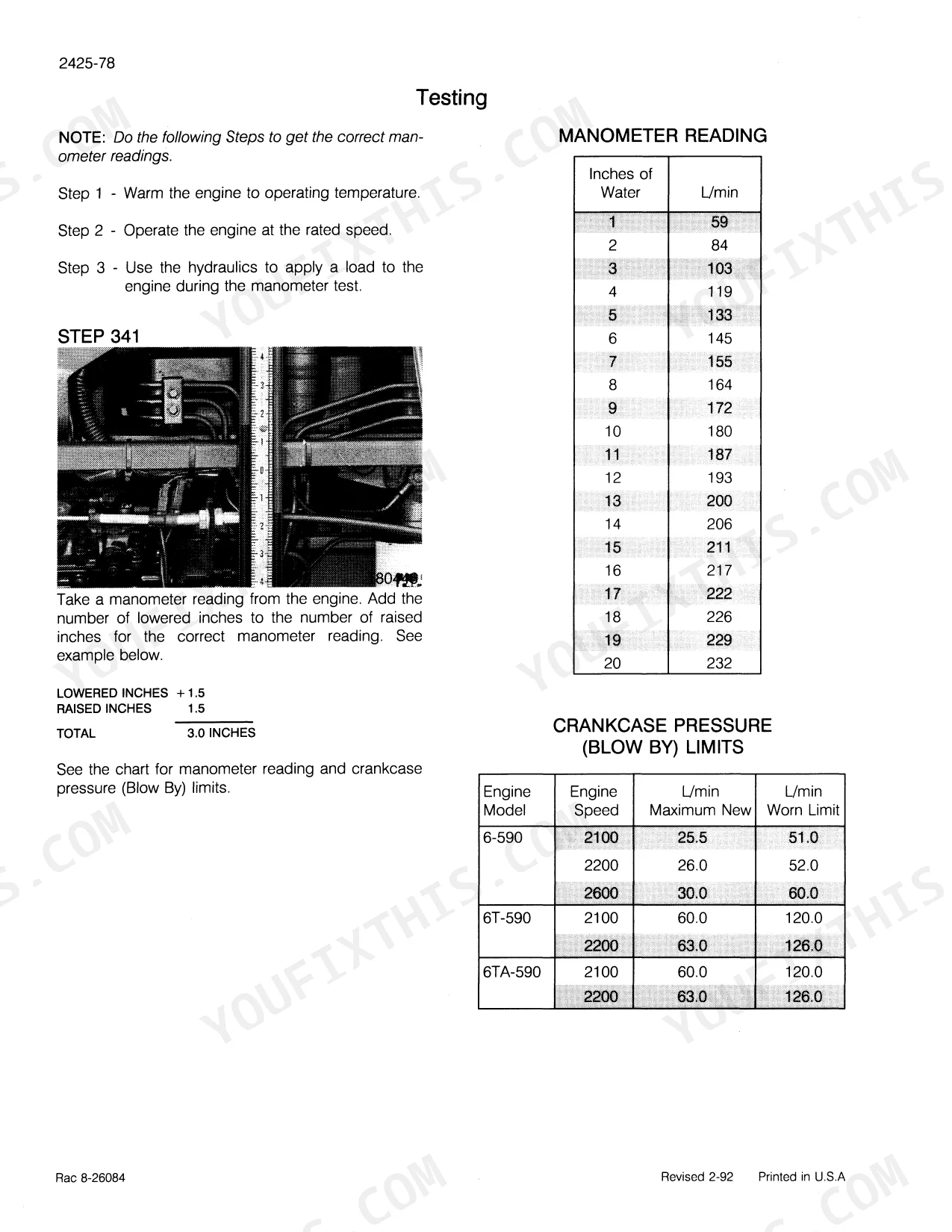

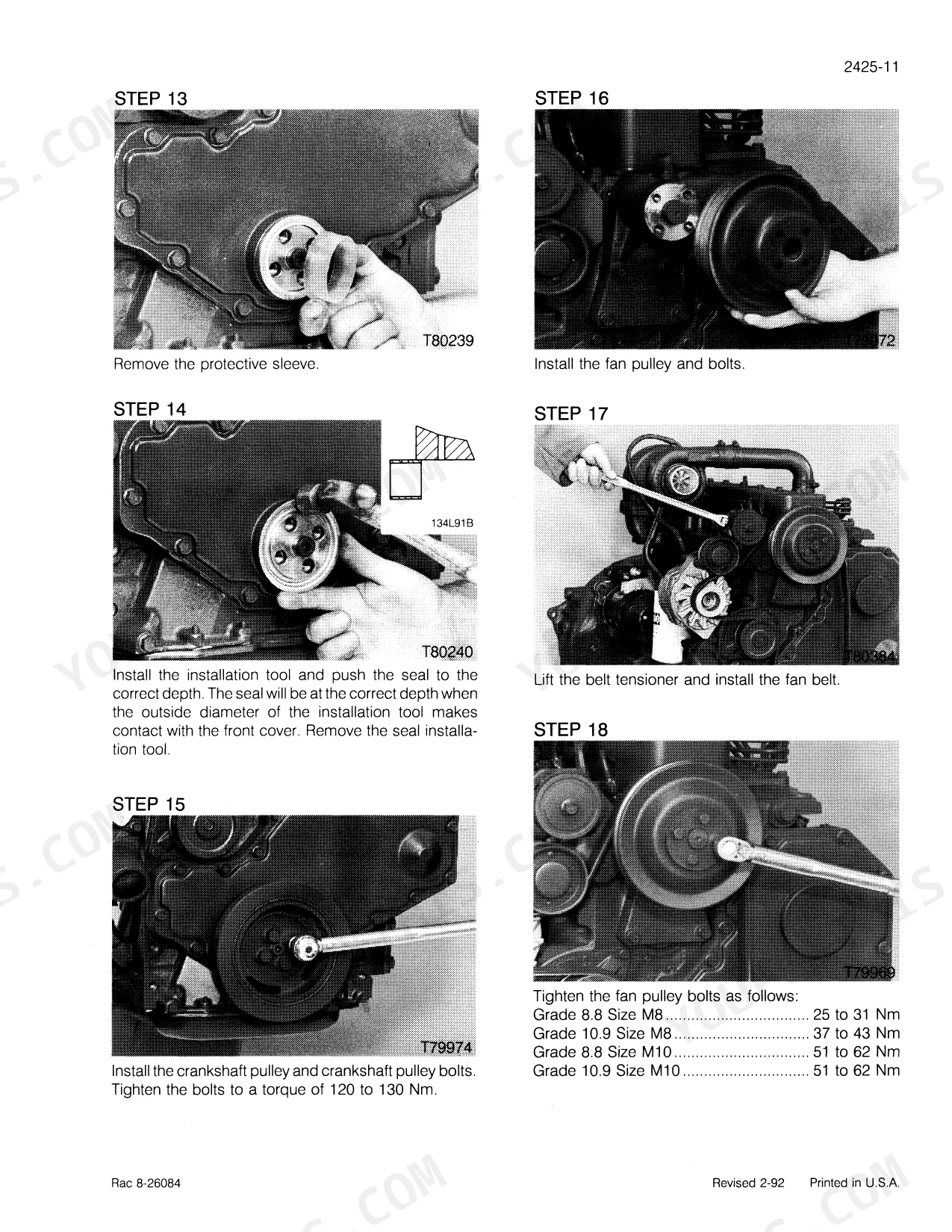

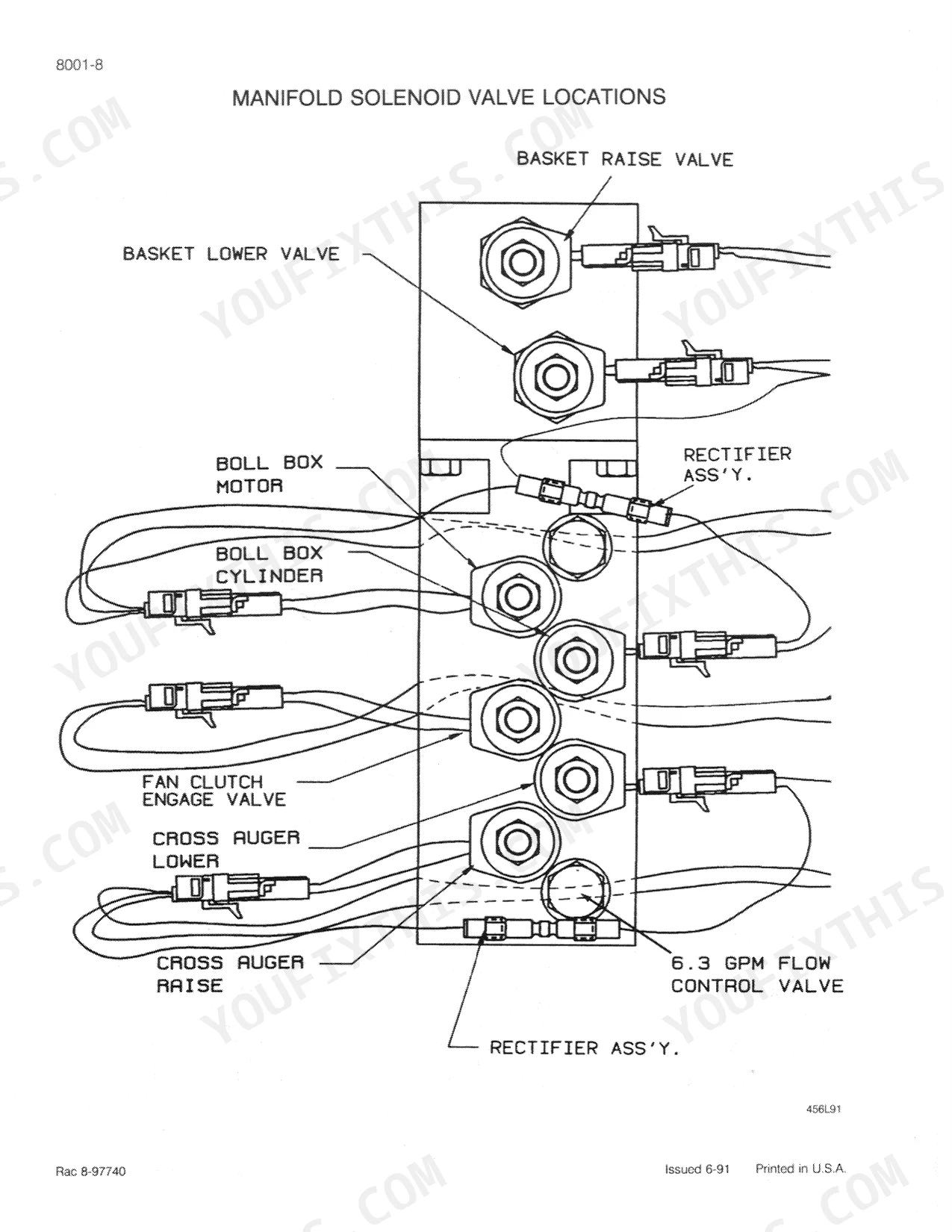

| Engine 6-590 Case | 8-218 | Engine Specifications - 6-590, Cylinder Head and Valve Train, Cylinder Block, Lubrication System, After Cooler, Cooling System, Turbocharger (- Failure Analysis) |
| Fuel System 6-590 Case Engine | 219-262 | Fuel System and Filters, Fuel Injection Pump, Fuel Injectors |
| Electrical | 263-392 | Wiring Schematics and Troubleshooting, Instrument Cluster Troubleshooting, Battery Service and Testing, Starter Motor, Alternator, Neutral Start Switch |
| Steering | 393-456 | Steering System Testing, Steering Column and Hand Pump, Steering Cylinder, Steering Axle |
| Power Train | 457-593 | Hydrostatic Propulsion Troubleshooting, Foot-N-Inch Valve, Hydrostatic Drive Pump Removal and Installation, Hydrostatic Drive Pump, Hydrostatic Drive Motor |
| Brakes | 594-615 | Service and Parking Brake, Brake Valve and Cylinders |
| Hydraulic | 616-776 | Hydraulic Schematics and Troubleshooting, Hydraulic Pump Removal and Installation, Hydraulic Pump and Compensator, Electro Hydraulic Valves, Hydraulic Valves, Cylinders and Motors |
| Accessories | 777-904 | Servicing the Air Conditioner Compressor (Sanden Model SD 508HD), Air Conditioner Troubleshooting, Air Conditioner System Gauges and Testing, Air Conditioner System Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

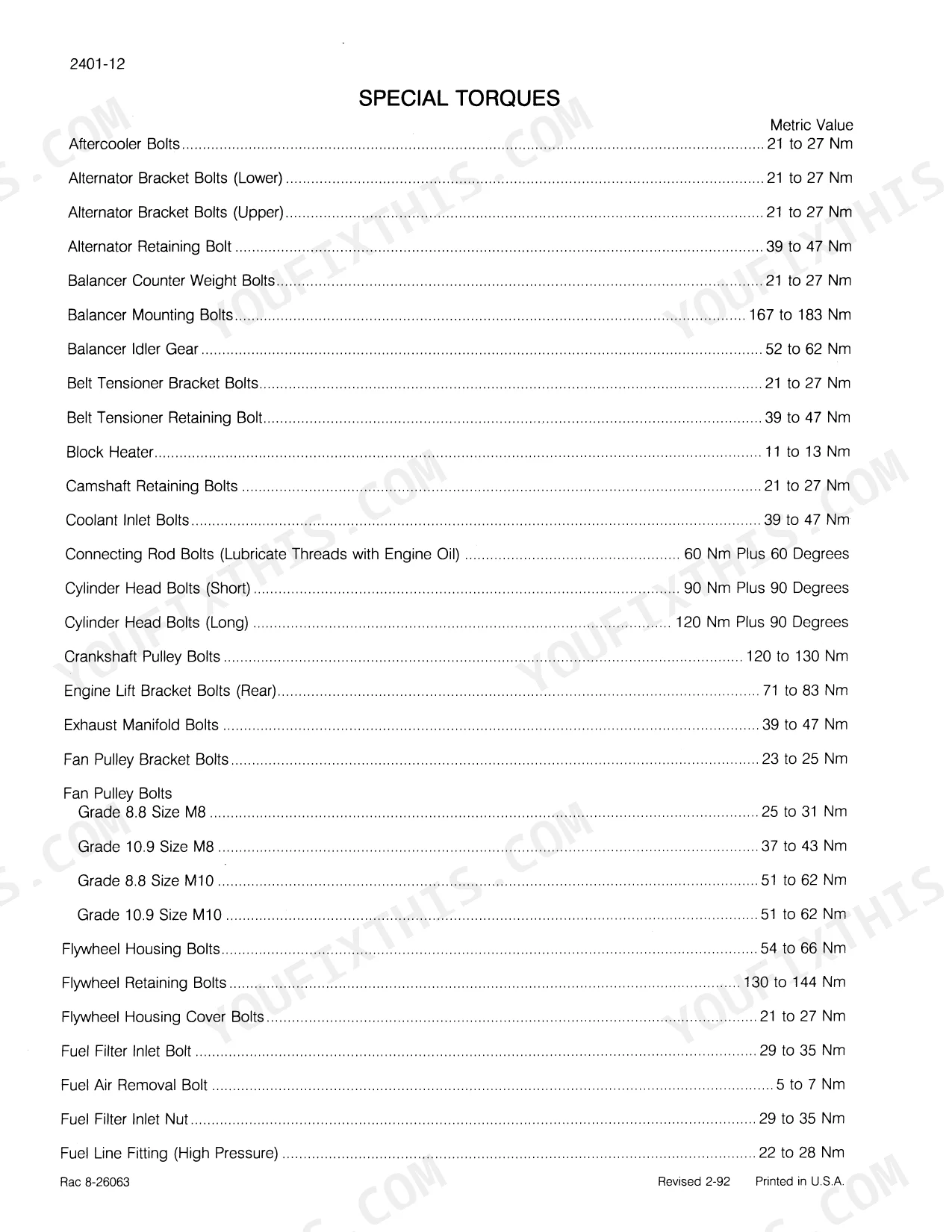

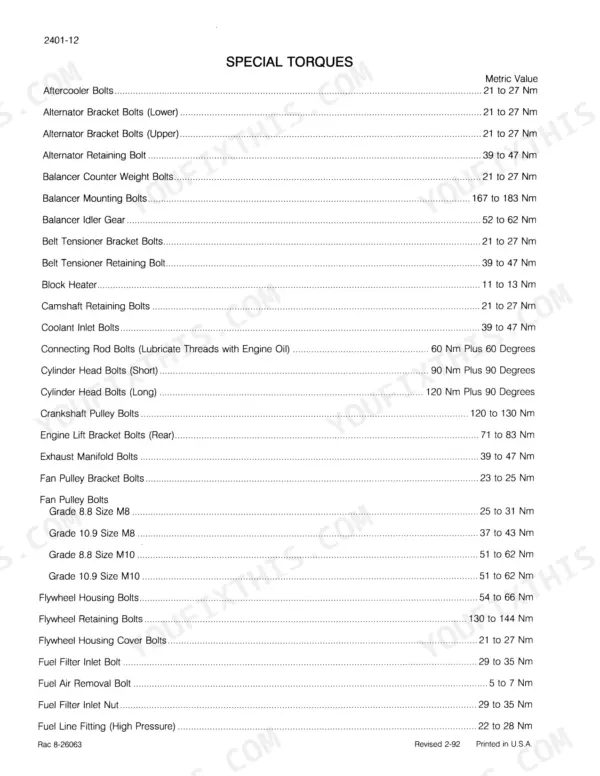

| Connecting Rod Bolts | 60 Nm Plus 60 Degrees | p. 19 |
| Cylinder Head Bolts (Short) | 90 Nm Plus 90 Degrees | p. 19 |
| Warning Lamps Fuse | 15 AMP | p. 268 |
| Cigarette Lighter Fuse | 10 AMP | p. 268 |
| Steering Cylinder Ball Joint to Cylinder Rod | 110 to 125 lb ft (149 to 169 Nm) | p. 423 |
| Steering Cylinder Ball Joint Clamp Nuts | 25 to 30 lb ft (34 to 41 Nm) | p. 423 |
| Charge Pump Mounting Screws Torque | 20 to 27 Nm (14 to 20 lb ft) | p. 505 |
| Control Valve Mounting Screws Torque | 20 to 27 Nm (14 to 20 lb ft) | p. 505 |
| Drive motor assembly to drum drive housing flange torque | 108 to 122 Nm (80 to 90 lb ft) | p. 539 |
| Motor to adapter plate mounting bolts torque | 108 to 122 Nm (80 to 90 lb ft) | p. 541 |
| Auxiliary Piston Pump Flow | 26.6 GPM at 2000 PSI | p. 619 |
| Brush Roll Drive Piston Pump Flow | 40.8 GPM at 1200 PSI | p. 619 |
Ji Case 1800 Common Problems This Manual Covers
Ji Case 1800 hydrostatic drive loses power under load, machine slows or stops moving in the field
Check charge pressure at the test ports before condemning the pump. Stall the machine against the brakes with warm oil and read the gauge. Low pressure points to a worn charge pump or a stuck relief cartridge, which torques to 88 to 96 Nm (65 to 70 lb ft) on page 505. Diagnose before teardown and keep picking.
Manual Section: Power Train p. 505Loss of steering assist, wheel goes heavy or wanders while turning at the row end
Inspect the steering supply, return, and sensing lines for weeping fittings and collapsed hose before pulling the hand pump. Loose ball joint hardware fakes a steering complaint, so retorque the ball joint to the cylinder rod at 110 to 125 lb ft (149 to 169 Nm) per page 423, then recheck assist at full lock.
Manual Section: Steering p. 423Basket lift or header lift raises slowly and drifts down under load
Test auxiliary pump output first: the piston pump should deliver at least 26.6 GPM at 2000 PSI per the specs on page 619. If flow is short, check the compensator setting and pull the suction screen. Trace the circuit on the hydraulic schematic before replacing any cylinder.
Manual Section: Hydraulic p. 619Basket door will not latch or close fully, cylinder creeps open during dumping
Rebuild the door cylinder before you chase linkage. Strip the piston, fit new seals with the 3.08 ID x 2.18 mm back up ring listed on page 744, and tighten the door cylinder piston to 96 lb ft (130 Nm) as shown on page 735. Cycle the door ten times and recheck latch engagement.
Manual Section: Hydraulic p. 735Dash gauges and basket controls cut out intermittently, switches go dead then work again
Pull the fuse block cover and confirm each fuse matches the chart on page 268: the gauge cluster and audible alert circuit takes a 5 AMP, basket controls take a 10 AMP. Then unplug the console harness connectors, clean the pins, and wiggle test each one with the key on.
Manual Section: Electrical p. 268Frequently Asked Questions
What are the cylinder head bolt torque specs for the Case 6-590 diesel engine in the 1800 cotton harvester?

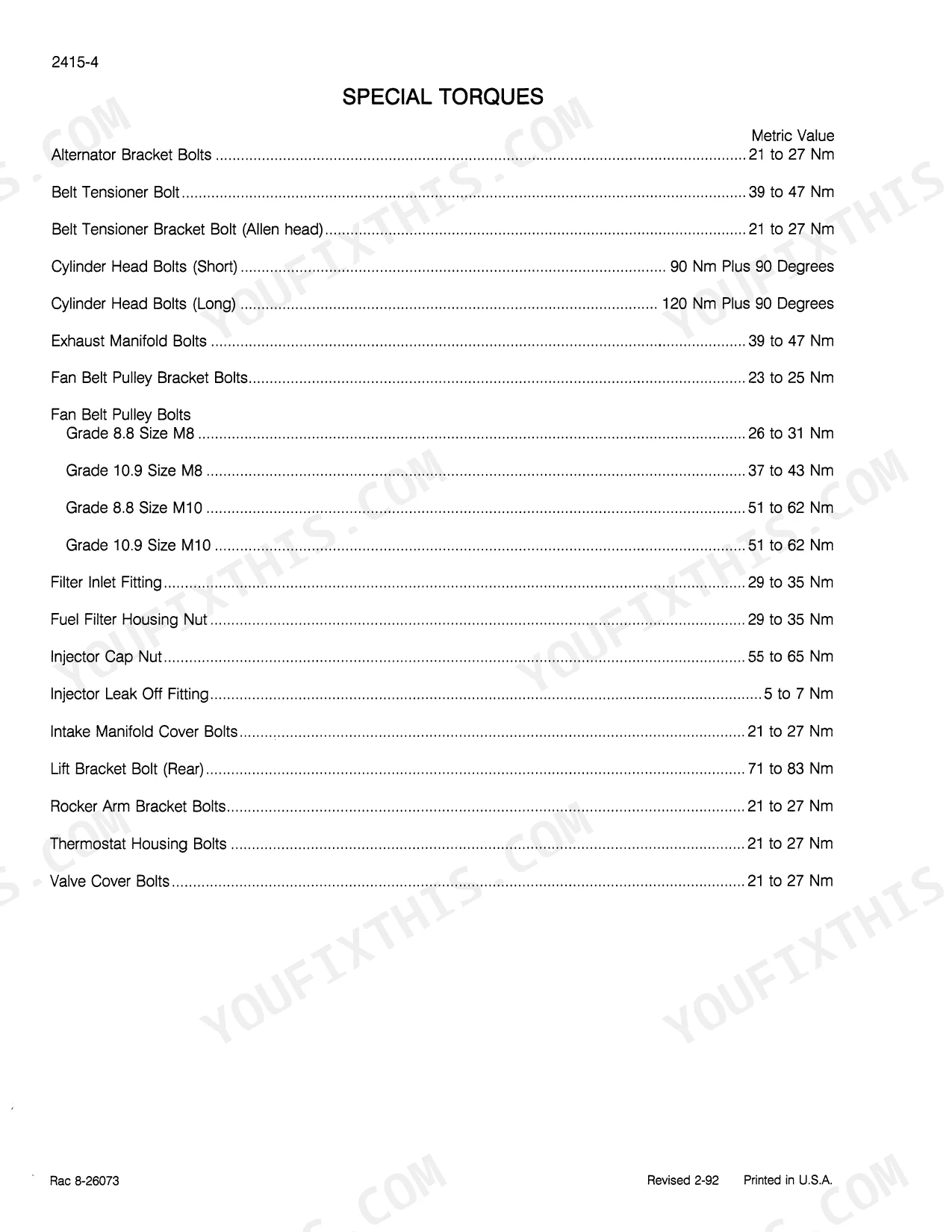

For the 6-590 diesel engine, the short cylinder head bolts should be torqued to 90 Nm plus 90 degrees, and the long cylinder head bolts should be torqued to 120 Nm plus 90 degrees. p. 19
What is the correct run-in procedure for a rebuilt 6-590 engine without a dynamometer?
The run-in procedure without a dynamometer involves three steps: 5 minutes at 1000 RPM with no load, 5 minutes at 1100 RPM with a light load, and 5 minutes at 2200 RPM with a light load. p. 10
What is the intake and exhaust valve clearance on the Case 1800 6-590 engine?
The intake valve tappet clearance (cold) is 0.254 mm, and the exhaust valve tappet clearance (cold) is 0.508 mm. p. 17
What is the fuel filter service interval on the Case 1800 6-590 engine?
Replace the first and second stage fuel filters every 500 hours, or sooner if there is a loss of engine power (page 220). p. 69
What is the correct torque for the main bearing bolts on the 6-590 engine in a Ji Case 1800?
The main bearing bolts on the 6-590 engine must be torqued to 80 Nm plus 60 degrees, and the threads must be lubricated with engine oil. p. 20
How will I receive this Ji Case 1800 Service Manual?
This is a 904-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is printing allowed for this Ji Case 1800 Service Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
