A mast that drifts down or slack lifting chains keep the platform grounded until they are put right, and this 67-page JLG Toucan Junior, Junior 6 and Junior 8 service manual PDF (OEM ID MA0256-07) shows how on this compact aerial work platform. Separate electrical schematics cover the standard machine, the battery cutout and hourmeter build, and the DI platform option, while hydraulic schematics trace oil from power unit to mast cylinder. Adjustment procedures set the relief valves, tilt indicator and steering sensors, while the biggest part of the book handles removal and installation of the mast cylinder, slide blocks, lifting chains, wheel motor brakes and power unit. Confirm power circuit fuse F1 at 63 A and control fuse F4 at 500 mA before you condemn the electronic controller. Every hour the platform sits tagged out costs you. Bookmarked, keyword searchable, and yours to keep for as long as this lift is in your fleet.
What's Inside This JLG Toucan Junior 6 / 8 Manual

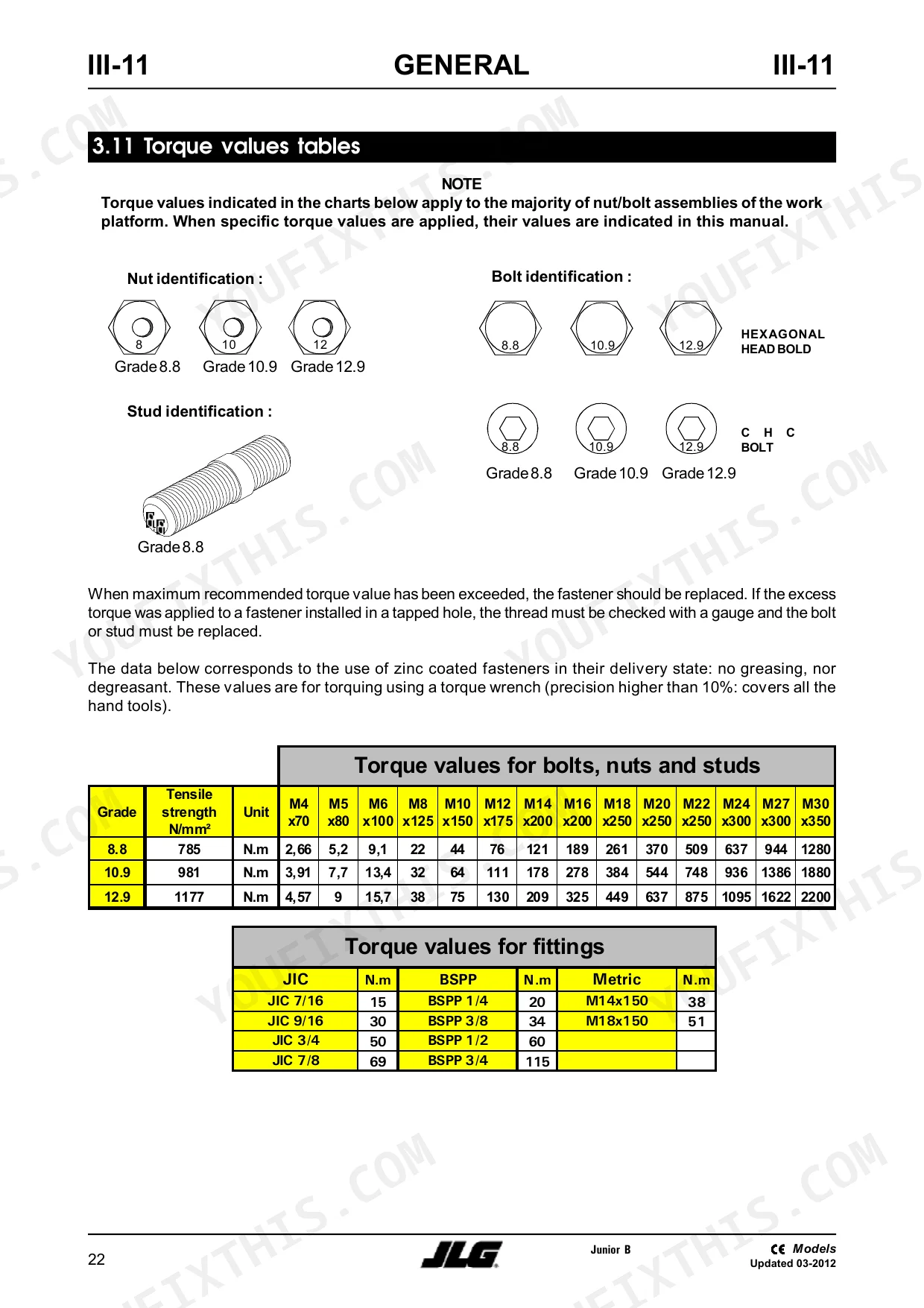

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-12 | Foreword, Important Information, Safety Instructions, Operating Procedures, Maintenance Procedures |
| Work Platform Characteristics | 13-16 | Description, Characteristics Dimensions Performances |
| General | 17-30 | Cleanliness, Handling, Welding From the Work Platform, Assembly - Disassembly, Bushing Installation, Bearings, Locks, Loctite |
| Adjustments | 31-40 | Chain Attachments, Lifting Chains Tension, Pressure Relief Valves, Tilt Indicator Setting, Wheel Motor Brake Adjustment, Steering Sensors Setting |

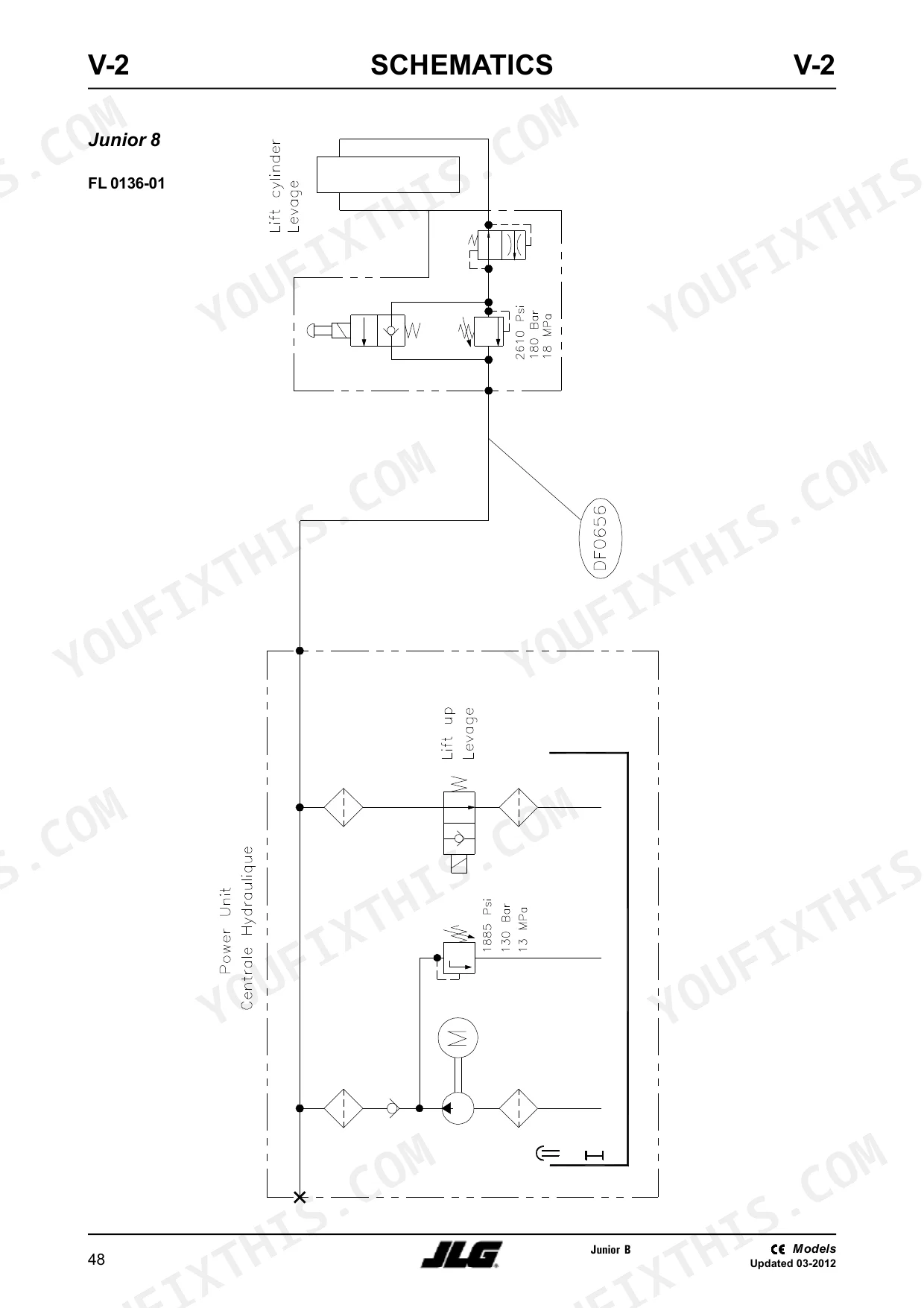

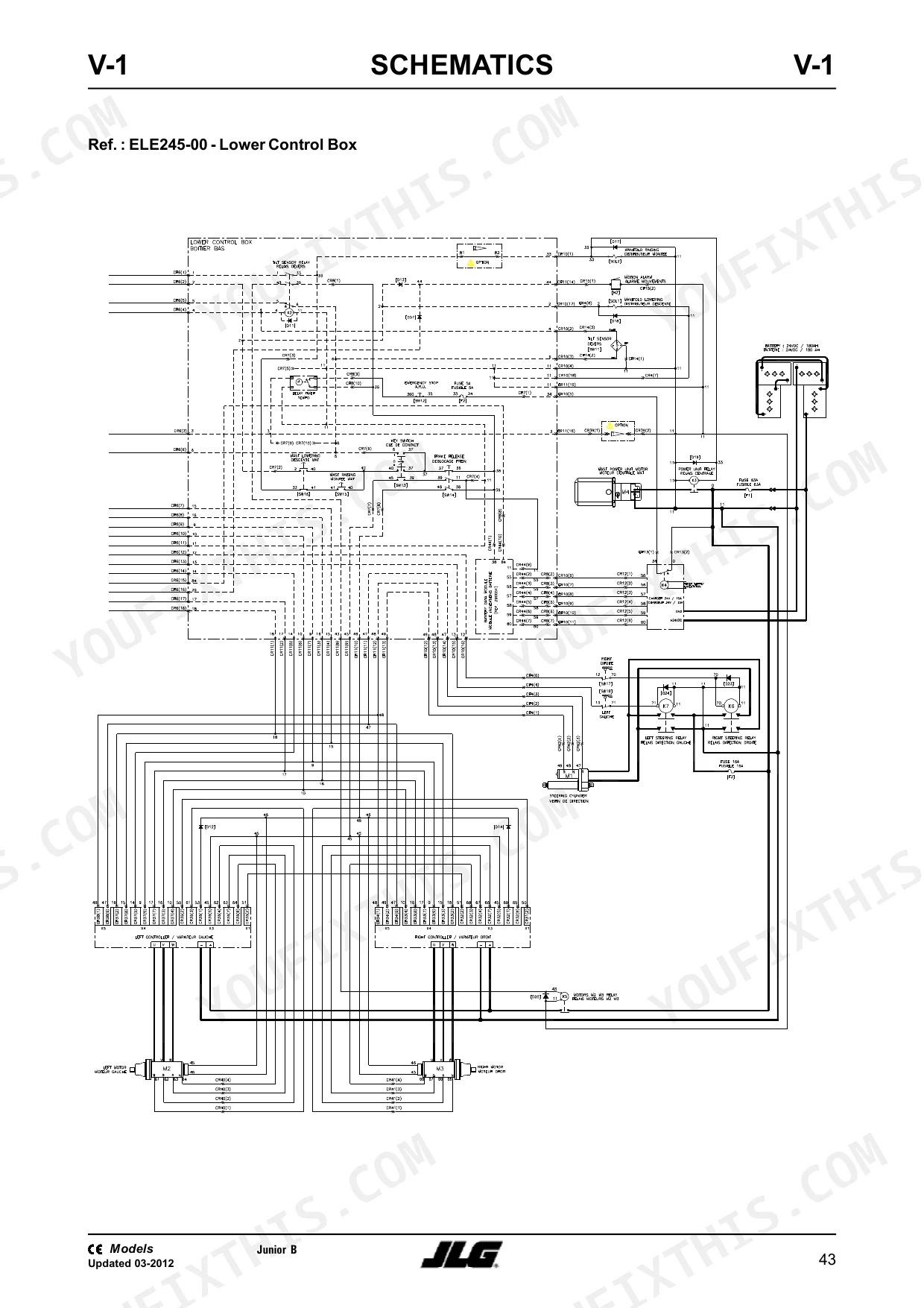

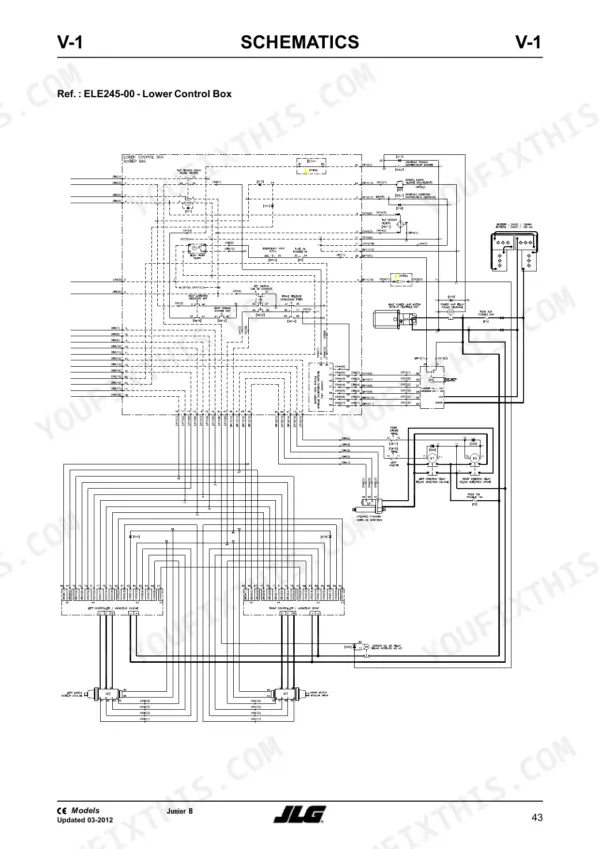

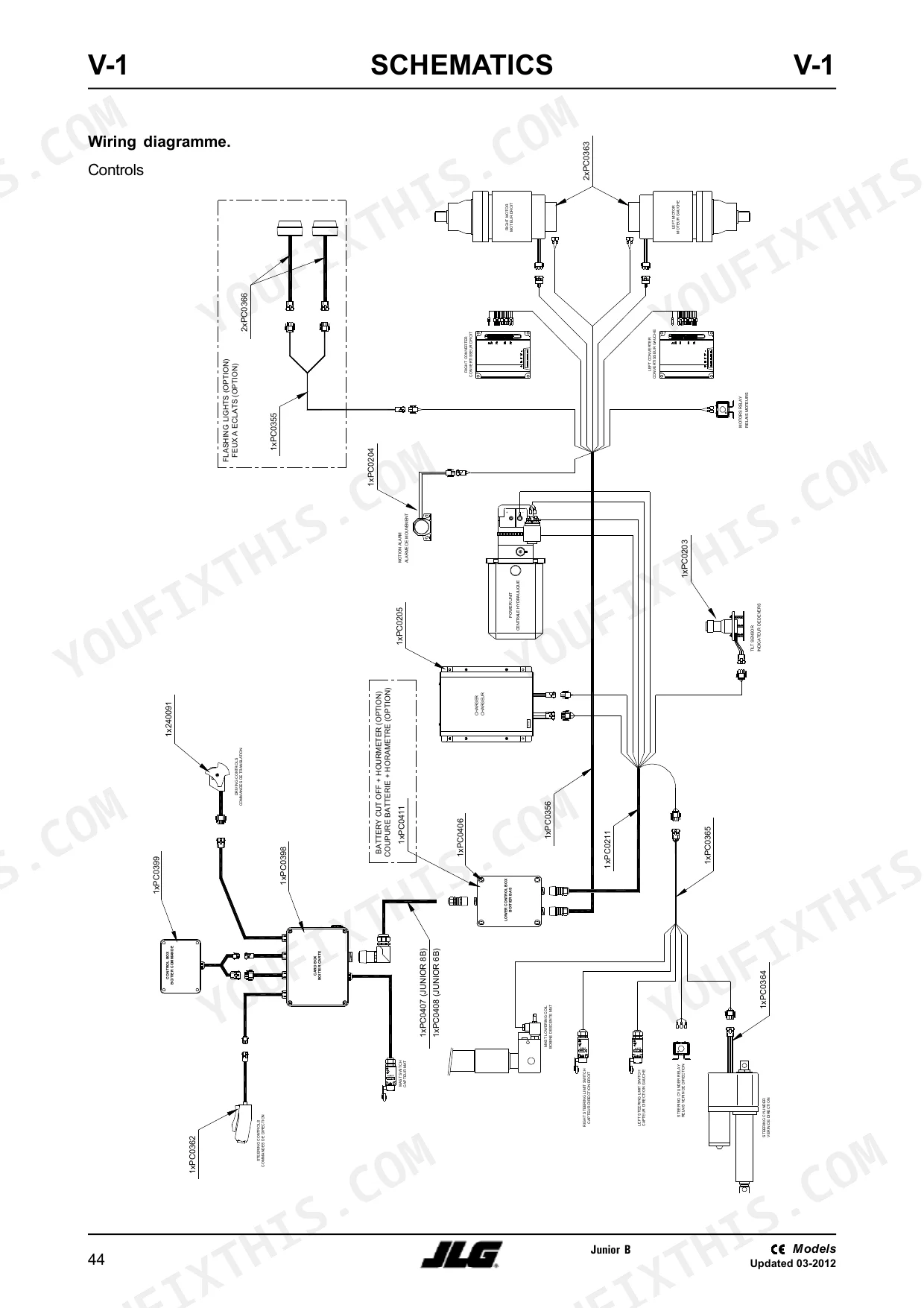

| Schematics | 41-48 | Electrical Schematics (Standard Machine, Machine with Battery Cutout and Hourmeter Options, Machine with DI Platform Option), Hydraulic Schematics |

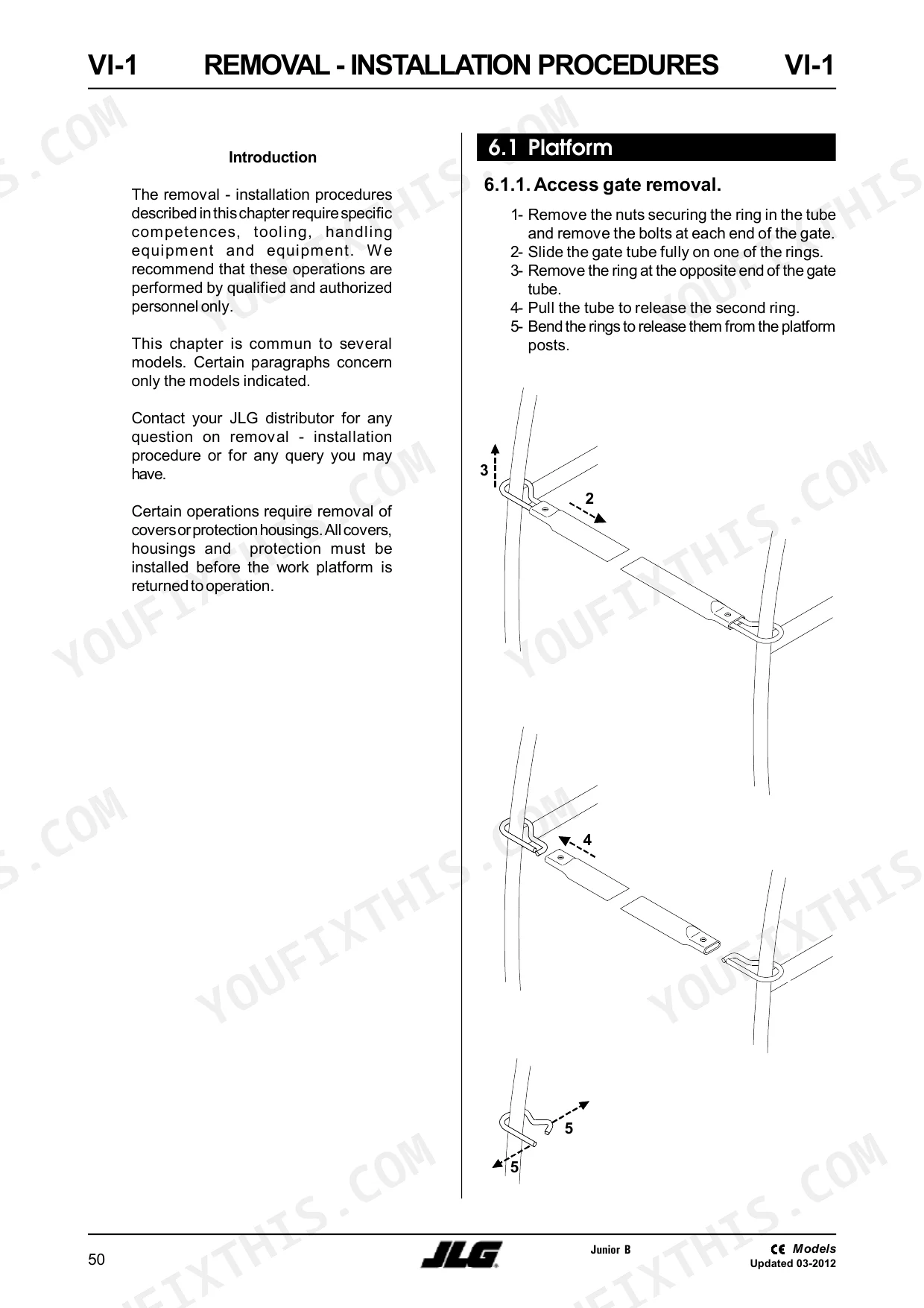

| Removal - Installation Procedures | 49-67 | Platform (Access Gate Removal, Removal), Mast on Chassis Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Drive motor power | 0.32 kW - 24 VAC | p. 16 |
| Power of electrical cylinder motor | 0.4 kW - 24 VDC | p. 16 |
| Charger model | Delta Q 24V-25A | p. 24 |
| Control circuit fuse (F4) | 500 mA | p. 27 |
| Capacity of power unit reservoir | 5 l | p. 16 |
| Power of hydraulic power unit motor | 1 kW - 24 VDC | p. 16 |
| Junior 6 | ||
| Weight | 850 kg | p. 16 |
| Hydraulic circuit max. pressure | 15 MPa | p. 16 |
| Junior 8 | ||
| Weight | 950 kg | p. 16 |
| Hydraulic circuit max. pressure | 13 MPa | p. 16 |
JLG Toucan Junior 6 / 8 Common Problems This Manual Covers

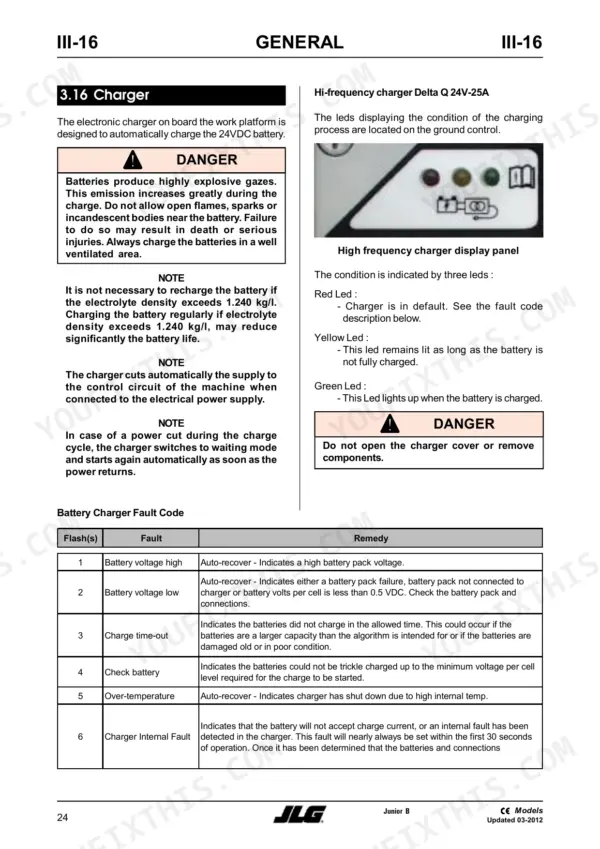

JLG Toucan Junior Delta Q battery charger showing charge time-out, check battery, or over-temperature fault code

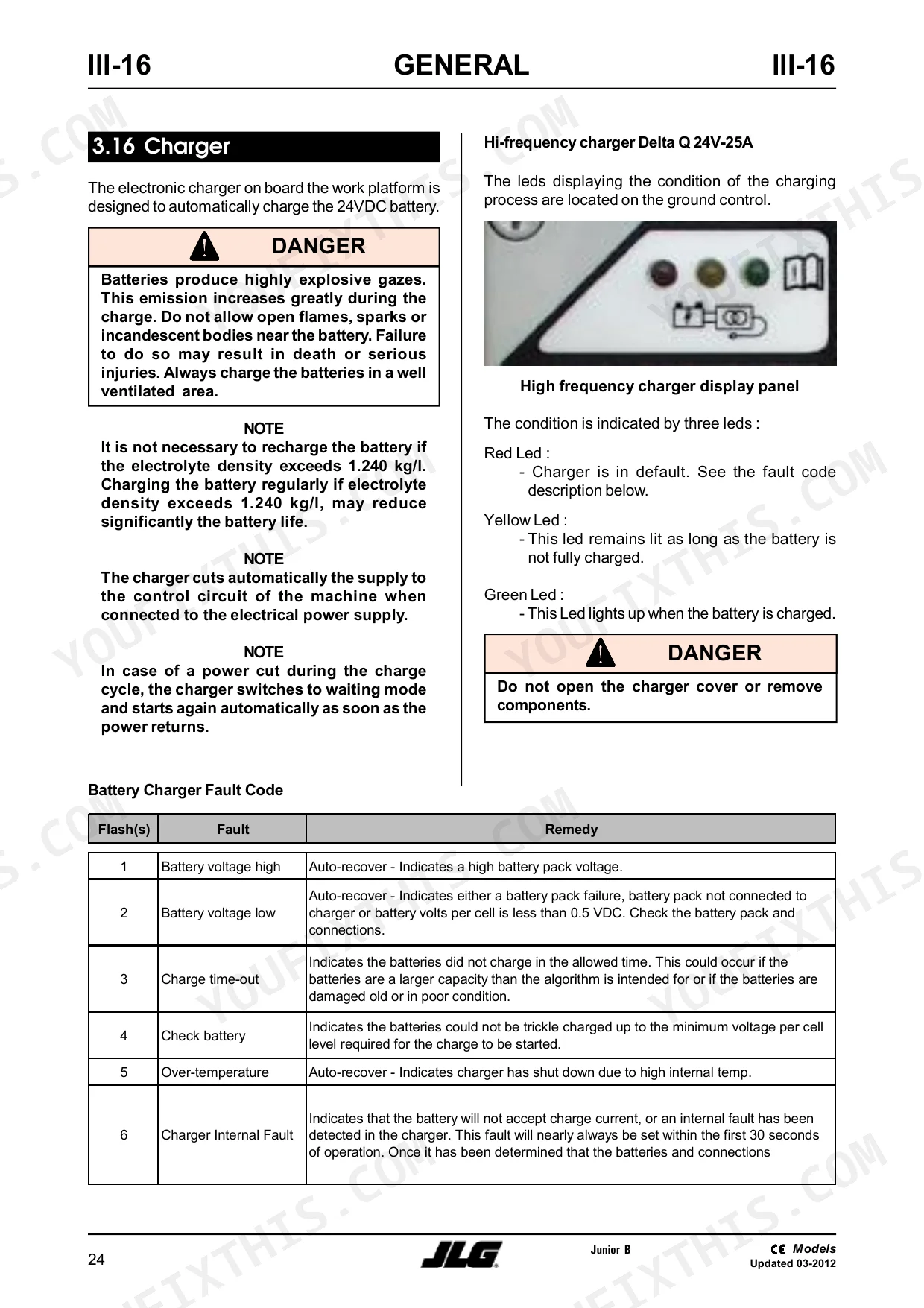

Read the fault code on the Delta Q 24V-25A charger and match it to the fault table on page 24. Check battery voltage at the pack for a high or low reading, and let an over-temperature charger cool before you retry. An internal fault code points at the charger itself, not the batteries.
Manual Section: Battery charger fault codes p. 24Electronic controller green LED status indicating a motor brake, battery voltage, or communication problem
Read the green LED status on the controller and compare it with the diagnostic chart on page 26. Check battery voltage first, since a weak pack shows up here, then inspect the communication link and the motor brake circuit. If the controller reads hot, let it cool before you put anyone back in the platform.
Manual Section: Electronic controller diagnostic p. 26Electrical cylinder overheating and cutting out on thermal protection until the emergency stop is reset
Let the electrical cylinder cool once thermal protection trips, then reset the emergency stop following page 27. Check the fuses listed on that page: F1 at 63 A, F3 at 16 A, F2 at 5 A, and the F4 control circuit fuse at 500 mA. Don't keep cycling a hot cylinder with people in the basket.
Manual Section: Electrical cylinder overheating p. 27Hydraulic power unit pump noisy, failing to respond, or heating the oil

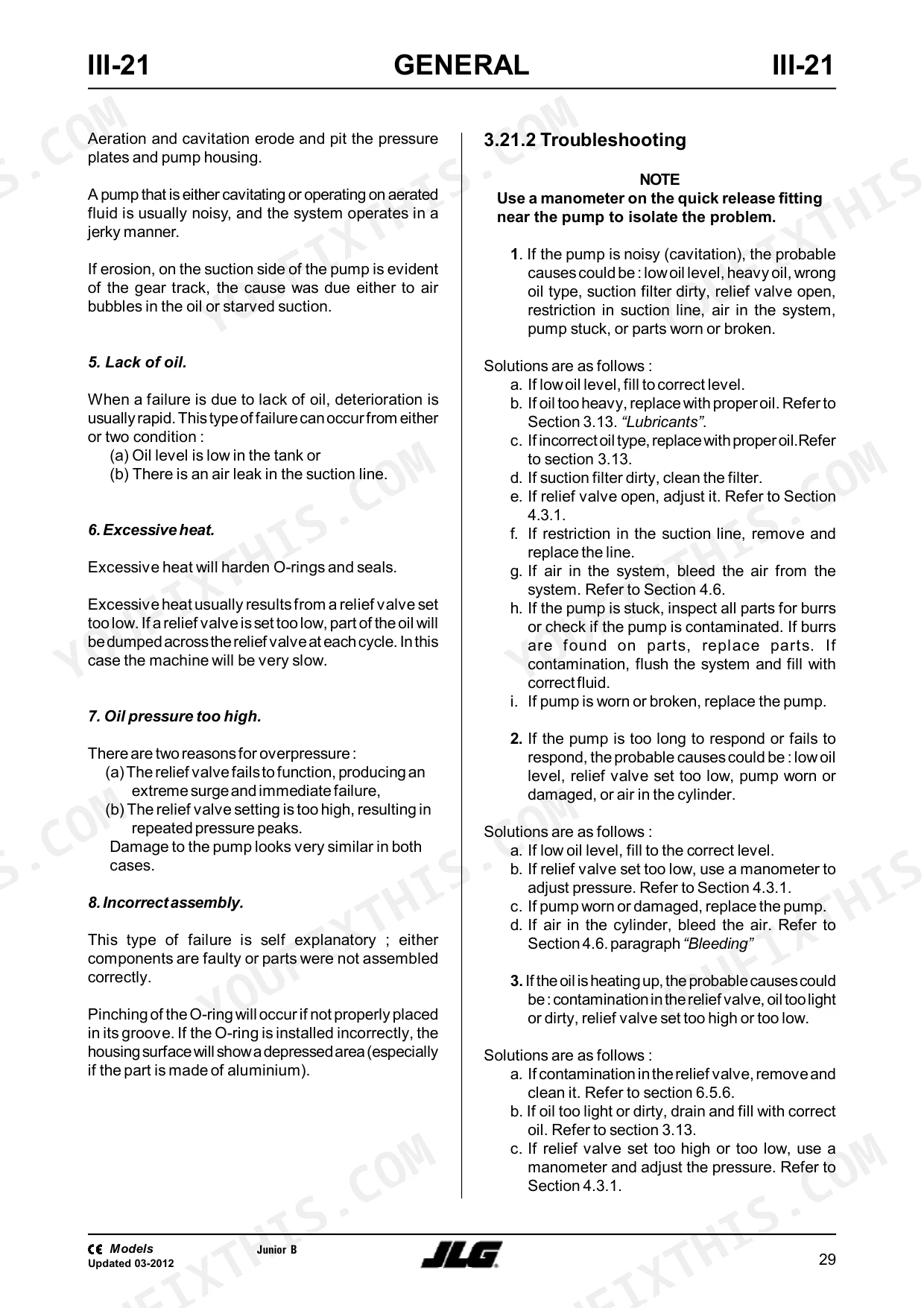

Check the oil level in the 5 l power unit reservoir before anything else, because lack of oil is one of the listed causes. Then work through the troubleshooting steps on page 29 for excessive heat, oil pressure too high, incorrect assembly, and abrasive wear. A noisy pump on a machine that lifts people gets fixed before the next shift.
Manual Section: Power unit general maintenance and troubleshooting p. 29Steering sensors out of adjustment on the right and left hand side wheels
Adjust the steering sensors for the right hand and left hand side wheels separately, following the steering sensors setting procedure on page 38. Verify each sensor reads its wheel position correctly before running the machine, then test steering in both directions from the platform controls with the basket lowered.
Manual Section: Steering sensors setting p. 38DI basket gate sensors out of adjustment after access gate removal or reinstallation
Adjust the gate sensors on the DI basket following the gate sensors setting procedure on page 40. If the gate still reads wrong, check the sensor wiring against the DI Platform Option electrical schematic in the Schematics section. Test the gate closed and open from the platform before anyone works at height.
Manual Section: Gate sensors setting p. 40Frequently Asked Questions
How do you reset the emergency stop on a JLG Toucan Junior?
To reset the emergency stop, pull the button out after the issue causing the stop has been resolved. Before resuming operations, it is necessary to solve the problem that required the emergency stop. p. 27
What do JLG Toucan Junior flashing fault codes mean?
Flashing codes on the controller's green LED indicate specific faults: 3 flashes mean the controller temperature is too high, 4 flashes indicate low battery voltage, 5 flashes indicate high battery voltage, 6 flashes indicate a communication problem, and 8 flashes indicate a motor brake problem. p. 26
What is the torque spec for the main pressure relief valve locknut on the JLG Toucan Junior 6 / 8?
When adjusting the main pressure relief valve, the locknut must be tightened to 16 ± 1 N.m while holding the setting screw to preserve the setting. p. 34
What is the torque spec for the rear wheel attachment bolts on the JLG Toucan Junior 6 / 8?
When installing the rear wheels, the attachment bolts must be torqued to 21 N.m using a torque wrench. p. 60
What is the hydraulic power unit reservoir capacity on the JLG Toucan Junior 6 / 8?
The capacity of the power unit reservoir for both the Junior 6 and Junior 8 models is 5 liters. p. 16
What do I get after purchasing this JLG Toucan Junior 6 manual?
You get a 67-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print a copy of this JLG Toucan Junior 6 Service Manual for the shop?
Yes. Print the sections you need to take out to the shop for your own use. Standard letter or A4 paper works.
