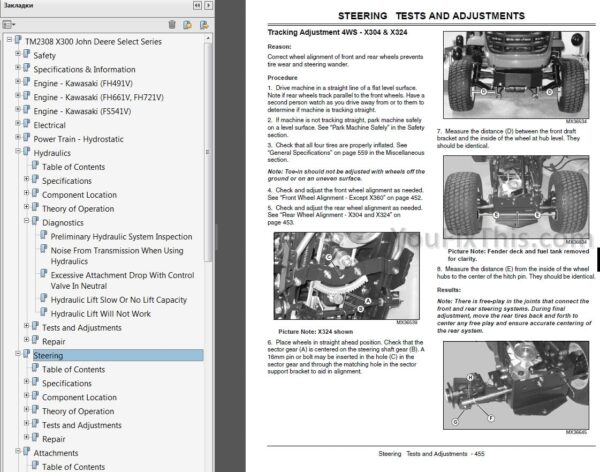

TM2308 is the factory technical manual for John Deere Select Series tractors: models X300, X304, X320, X324, X340, and X360. This January 2011 North American edition runs 582 pages and is written for the technician actually doing the work, organized so all the information on a given system stays together.Each Kawasaki engine has its own section (FH491V, FH661V/FH721V, and FS541V) with specifications, a troubleshooting guide, valve clearance adjustment, and complete removal and installation procedures. The manual also covers electrical schematics and cranking circuit diagnostics, the hydrostatic power train, the hydraulic lift system, steering and wheel alignment, and mower deck attachments including blades, spindles, and idlers.The PDF has a searchable text layer and 664 bookmarks, so you can jump straight to a torque table, a schematic, or a repair procedure. Print individual pages for the shop, or keep the whole file on a tablet next to the machine.
What's Inside This John Deere X300–X360 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 5-8 | Recognize Safety Information, Handle Fluids Safely, Wear Protective Clothing, Use Care in Handling and Servicing Batteries, Park Machine Safely, Dispose of Waste Properly |
| Specifications & Information | 9-22 | General Specifications, Metric Fastener Torque Values, Inch Fastener Torque Values, O-Ring Seal Service Recommendations, Fuels and Lubricants, Serial Number Locations |

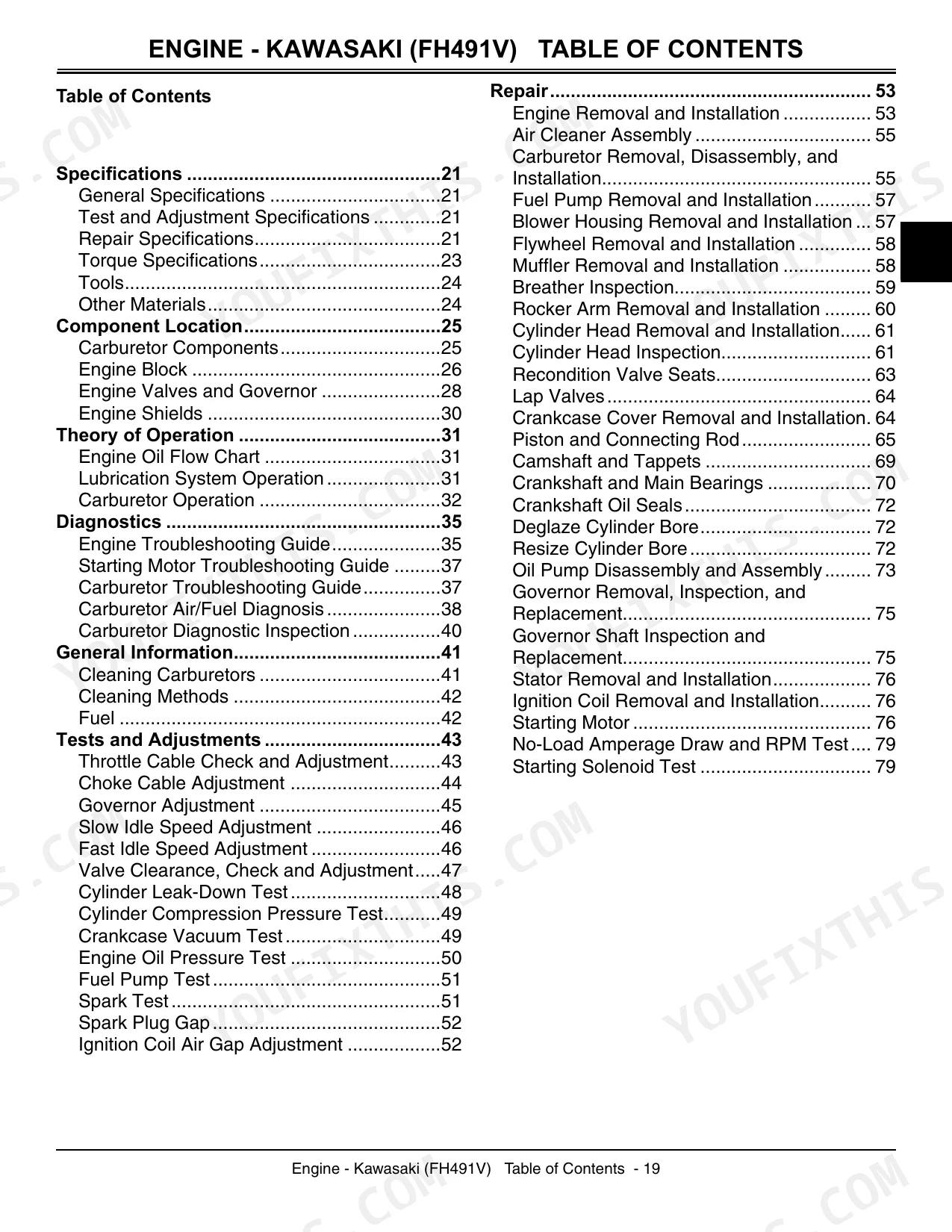

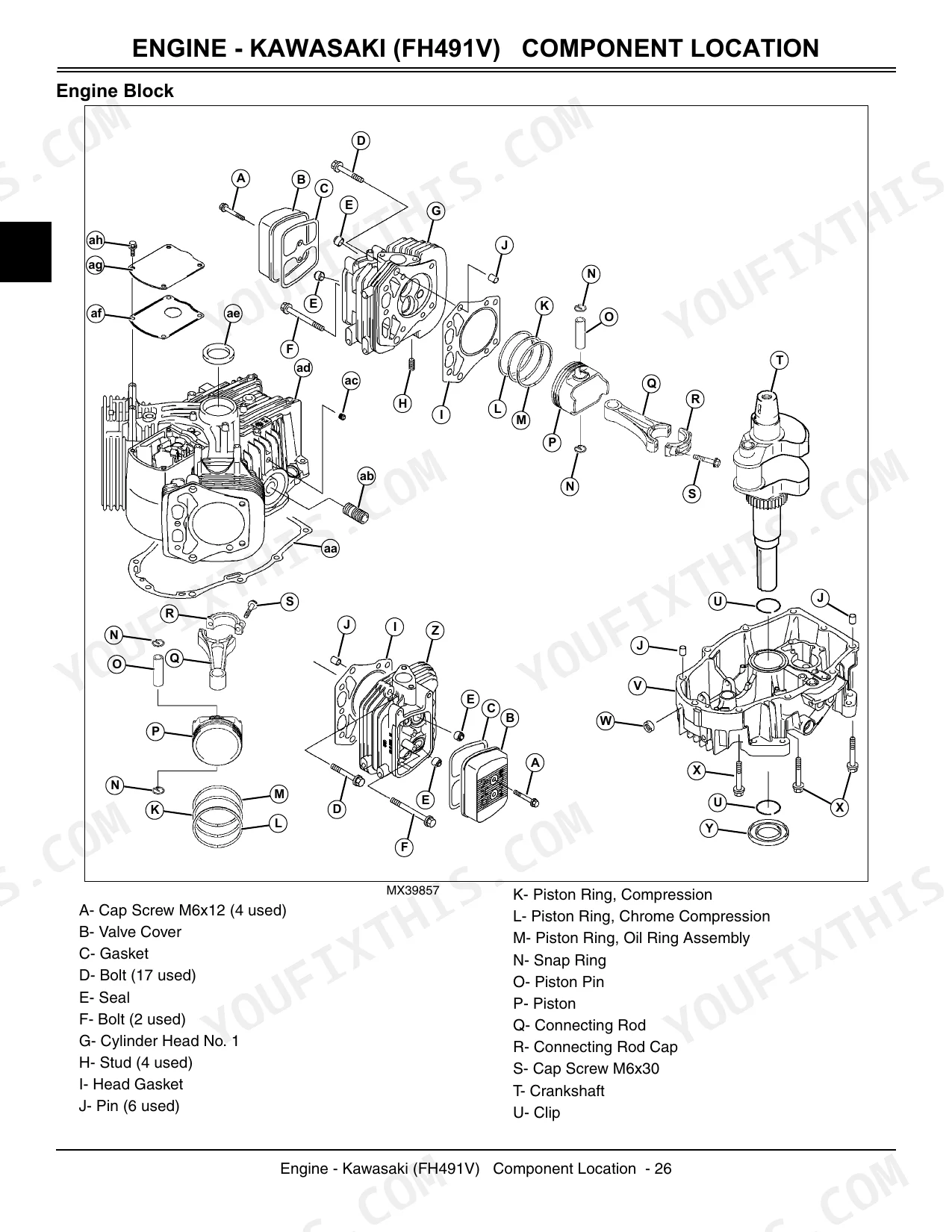

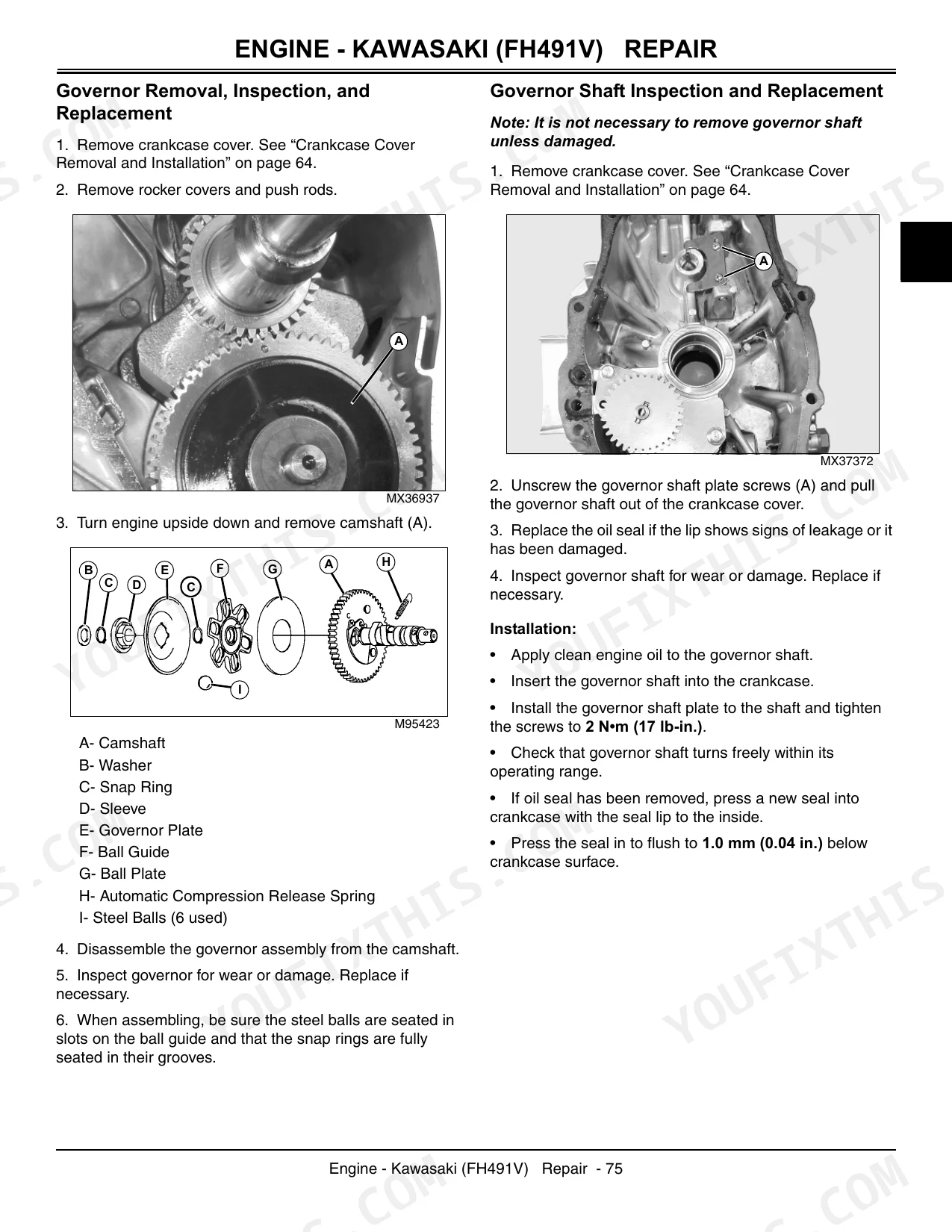

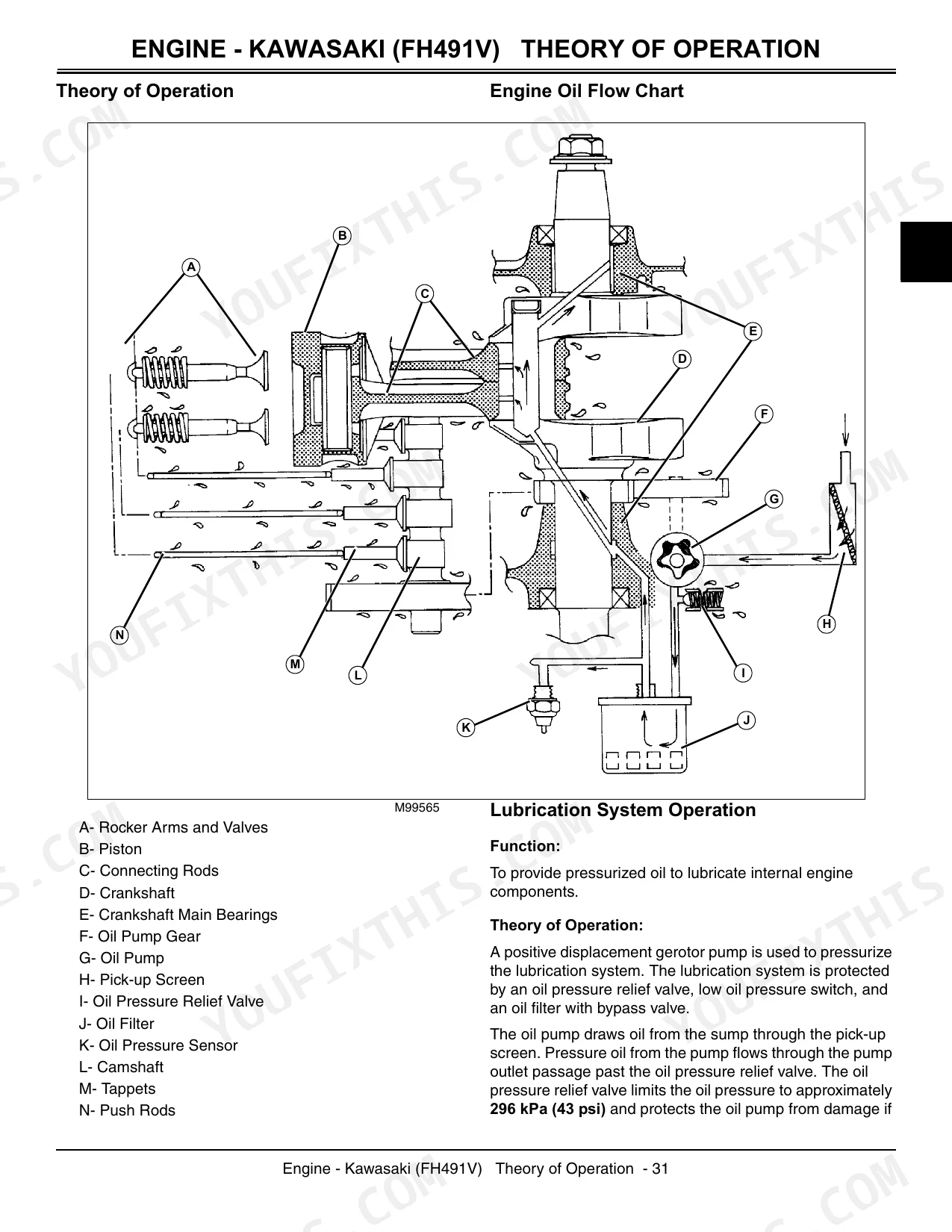

| Engine - Kawasaki (FH491V) | 23-84 | General Specifications, Carburetor Components, Lubrication System Operation, Engine Troubleshooting Guide, Valve Clearance, Check and Adjustment, Engine Removal and Installation |
| Engine - Kawasaki (FH661V, FH721V) | 85-156 | General Specifications, Component Location, Lubrication System Operation, Engine Troubleshooting Guide, Valve Clearance Check and Adjustment, Engine Removal and Installation |
| Engine - Kawasaki (FS541V) | 157-222 | General Specifications, Component Location, Lubrication System Operation, Engine Troubleshooting Guide, Valve Clearance Adjustment, Engine Removal and Installation |
| Electrical | 223-366 | Reading Electrical Schematics, System Specifications, Power Circuit Operation, Cranking Circuit Diagnostics, Battery Test, Ignition Coil Replacement and Adjustment |
| Power Train - Hydrostatic | 367-420 | General Specifications, Drive and Brake Components, Hydrostatic System Operation, Hydrostatic Transmission Diagnosis, Transaxle Bleeding, Transaxle Removal and Installation |

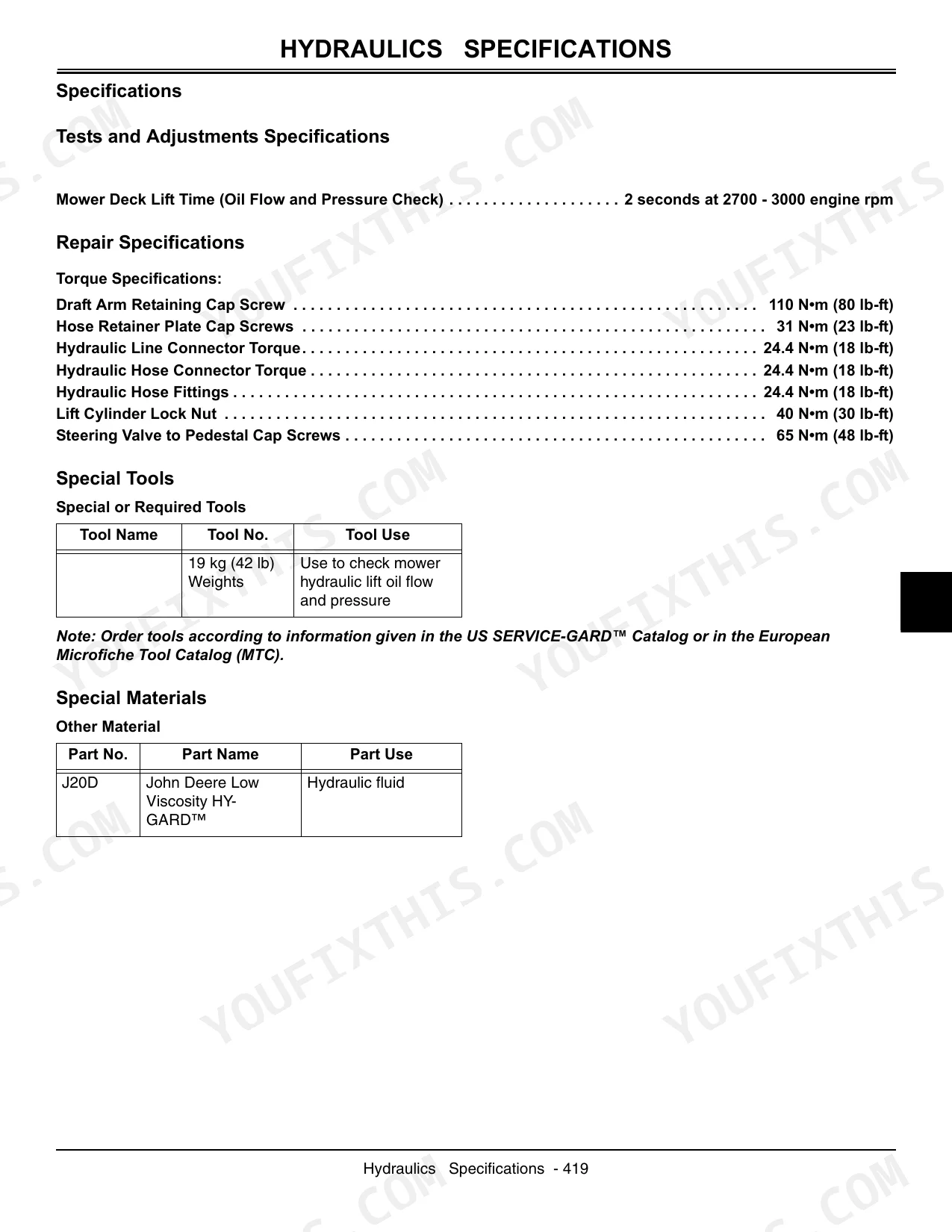

| Hydraulics | 421-442 | Hydraulic System Components, Hydraulic Schematic, Hydraulic Lift System Operation, Hydraulic Lift Slow or No Lift Capacity, Hydraulic Lift Oil Flow and Pressure Test |
| Steering | 443-470 | Steering Components, Front Wheel Alignment, Rear Wheel Alignment, Steering Gear Assembly, Steering Tilt Unit, Front Steering Spindles |
| Attachments | 471-560 | Mower Deck, Idlers and Sheaves, Spindles, Mower Blade, Deck Lift Assembly, Manual Lift Linkage |
| Miscellaneous | 561-572 | Tire Pressure Adjustment, Lift Assist Spring Adjustment, Front Wheel Removal and Installation, Rear Wheel Removal and Installation, Hood Removal and Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 38, 42C, 42M, 48C, 54C Mower Decks | ||
| Spindle Mounting Cap Screw Torque | 30 N•m (22 lb-ft) | p. 469 |
| Mower Deck Idler Sheave Nuts Torque | 47 N•m (35 lb-ft) | p. 469 |
| All Models | ||
| Clutch Cap Screw Torque | 72 N•m (53 lb-ft) | p. 395 |
| Transaxle Fan Nut Torque | 30 N•m (22 lb-ft) | p. 366 |
| Wheel Bolts Torque | 88 N•m (65 lb-ft) | p. 559 |
| Traction Drive Belt Replacement Value | Replace as necessary if worn, frayed, glazed, or stretched | p. 387 |
| Traction Drive Belt Idler Nut Torque | 26 N•m (19 lb-ft) | p. 399 |
| Belt Tension Spring Replacement Value | Replace as necessary if damaged, worn, or weak | p. 387 |

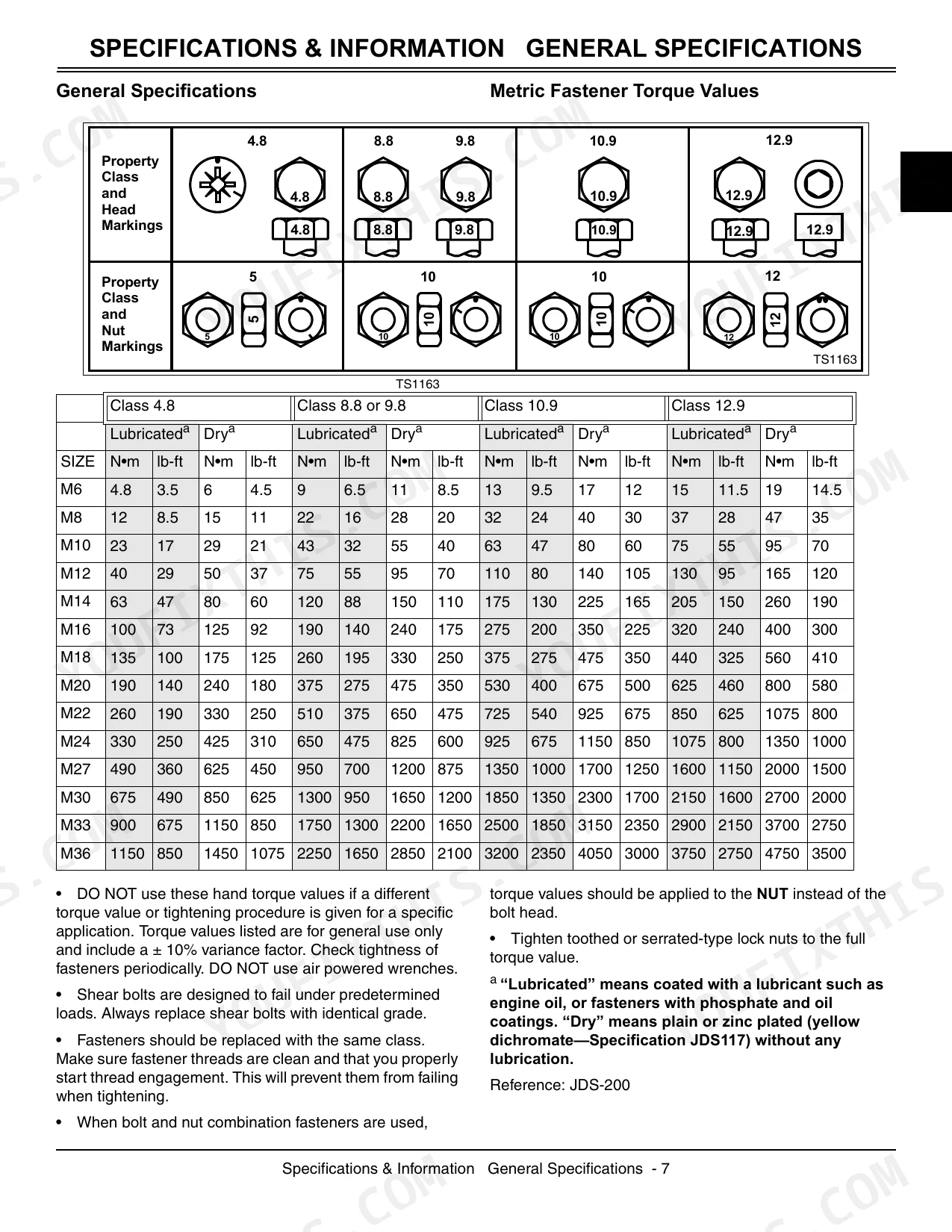

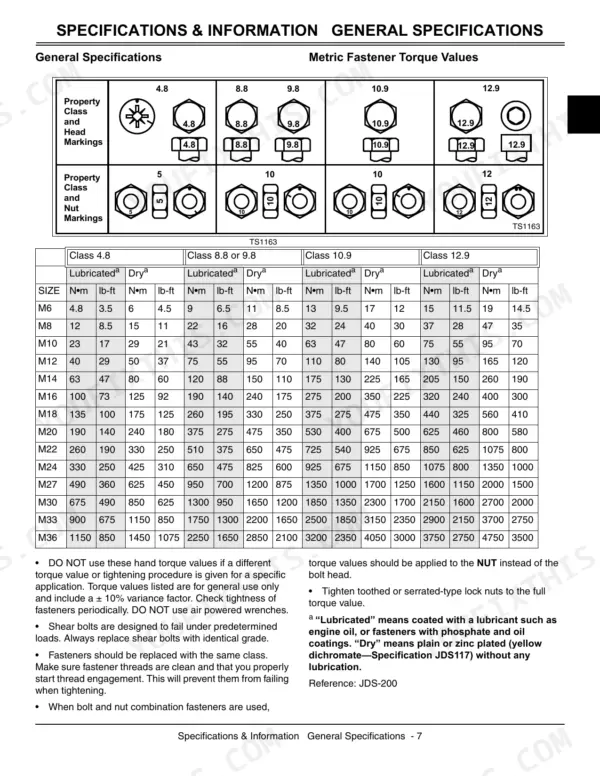

| Metric Fastener Torque (M6, Class 4.8, Lubricated) | 4.8 N•m (3.5 lb-ft) | p. 11 |
| 48 and 54-Inch Decks | ||
| Spindle Mounting Hardware Torque | 30 N•m (22 lb-ft) | p. 551 |
| SN -040000 | ||
| Key Switch Continuity (OFF position) | continuity between N and G | p. 359 |
| Key Switch Continuity (RUN position) | continuity between B and L | p. 359 |
John Deere X300–X360 Series Common Problems This Manual Covers
Tractor will not move in either direction
One of the most reported X300-series failures: the tractor stops pulling, often with squealing or grinding from the transaxle area. The Power Train - Hydrostatic section covers drive and brake components, hydrostatic transmission diagnosis, and transaxle bleeding to trace belt, pulley, or transaxle causes.
Manual Section: Power Train - Hydrostatic p. 367Engine cranks but will not start

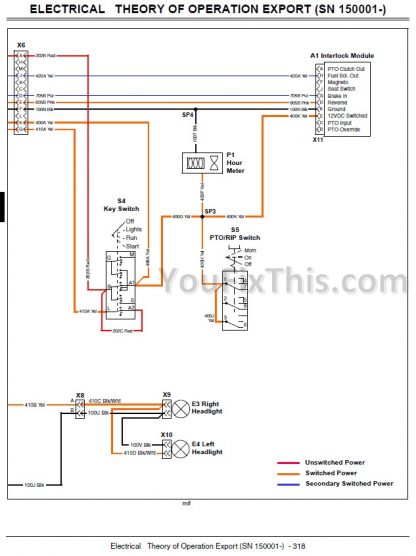

A blown fuse, faulty key switch, or safety interlock usually interrupts the start circuit. The Electrical section (pages 223-366) includes cranking circuit diagnostics, switch and interlock testing, and guidance on reading the electrical schematics so you can test instead of guess.
Manual Section: Electrical p. 223Drive belt slips or squeals under load
A worn, frayed, glazed, or stretched traction drive belt, or a weak tension spring, causes intermittent loss of drive. The power train section gives inspection and replacement guidance for the belt, tension spring, and idler hardware.
Manual Section: Power Train - Hydrostatic p. 367Hydraulic lift slow or no lift
Weak or missing lift capacity is a documented troubleshooting case in this manual. The Hydraulics section covers lift system operation, the hydraulic schematic, and an oil flow and pressure test to isolate the cause.
Manual Section: Hydraulics p. 421Uneven cut or mower deck vibration
Worn spindles, damaged blades, and failing idlers and sheaves show up as vibration and poor cut quality. The Attachments section covers the 38, 42C, 42M, 48C, and 54C decks: blades, spindles, idlers, and the deck lift assembly.
Manual Section: Attachments p. 471Engine runs rough or lacks power

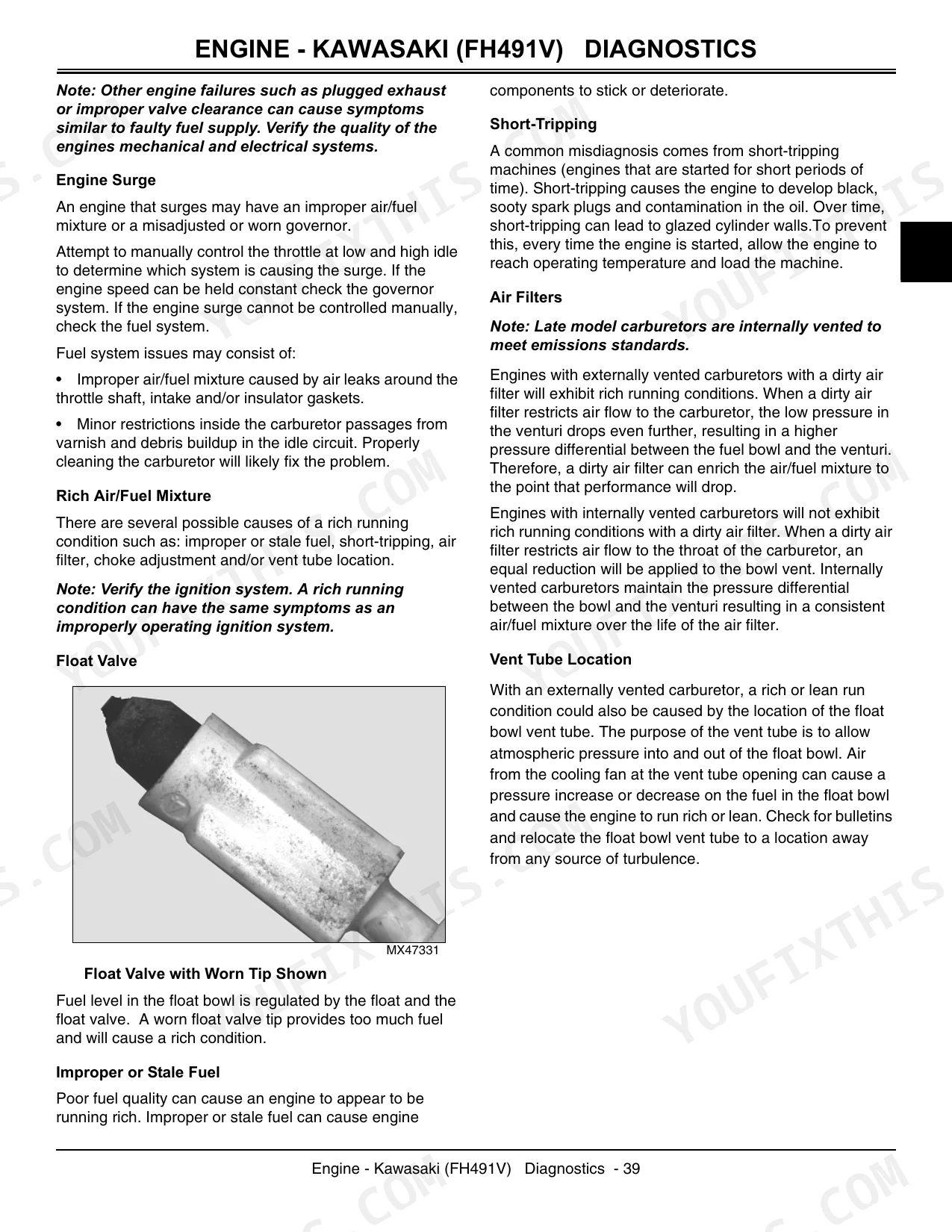

Valve clearance drifts out of specification on these Kawasaki engines over time. Each engine section includes a valve clearance check and adjustment procedure plus an engine troubleshooting guide for the FH491V, FH661V, FH721V, and FS541V.
Manual Section: Engine - Kawasaki p. 23Steering feels loose or tractor wanders
Worn front spindles and misalignment cause wander and uneven tire wear. The Steering section covers front and rear wheel alignment, the steering gear assembly, the tilt unit, and the front steering spindles.
Manual Section: Steering p. 443Frequently Asked Questions
Which John Deere models does this manual cover?
TM2308 covers the John Deere Select Series X300, X304, X320, X324, X340, and X360 tractors (North American version), with dedicated sections for all four Kawasaki engines used across these models: FH491V, FH661V, FH721V, and FS541V. p. 9
Is this the official John Deere technical manual?
Yes. It is John Deere Technical Manual TM2308, January 2011 edition, written for experienced technicians. It is the workshop-level document with specifications, diagnostics, tests and adjustments, and repair procedures, not a basic operator's manual.
Does it cover the hydrostatic transmission?
Yes. The Power Train - Hydrostatic section covers system operation, transmission diagnosis, transaxle bleeding, and transaxle removal and installation. The quick-reference specs include the K46 transaxle oil capacity of 2.2 L (2.3 qt). p. 367
Does it include torque specs and wiring schematics?
Yes. It has metric and inch fastener torque tables plus system-specific values, such as the 72 N•m (53 lb-ft) clutch cap screw torque. The Electrical section explains how to read the schematics and includes circuit diagnostics and component tests. p. 223
How quickly can I access this John Deere X300–X360 Series manual after buying?
Your download starts the moment you buy: the complete 582-page searchable Technical Manual. Open it on any device, from a desk laptop to a phone in the field.
Is this John Deere X300–X360 Series Technical Manual printable?
Yes, and there are no limits on how many copies you print. Plenty of mechanics run off just the section they need and carry it to the shop floor.
Can I find wiring schematics in this John Deere X300–X360 Series manual?
Included. The John Deere X300–X360 Series Technical Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
