Four 2007 variants sit behind this Kioti service set (OEM #DS21-W00): the EX35, EX40, EX45, and EX50, documented across 610 factory pages. The electrical section runs wiring diagrams with component locations, backed by hydraulic schematics that route both the mechanical and HST circuits. Troubleshooting charts and step-by-step procedures cover the engine, clutch, transmission, HST, rear axle, brakes, front axle, steering, and hydraulics. Need torque figures? Cylinder head screws (M11 x 1.25) go to 103.0~107.9 Nm; M16 wheel nuts to 196.1~225.6 Nm. Because downtime costs you, the bookmarks let you tap straight to the section you need on a tablet and get the machine moving again.
What's Inside This Kioti EX35–EX50 Series Manual

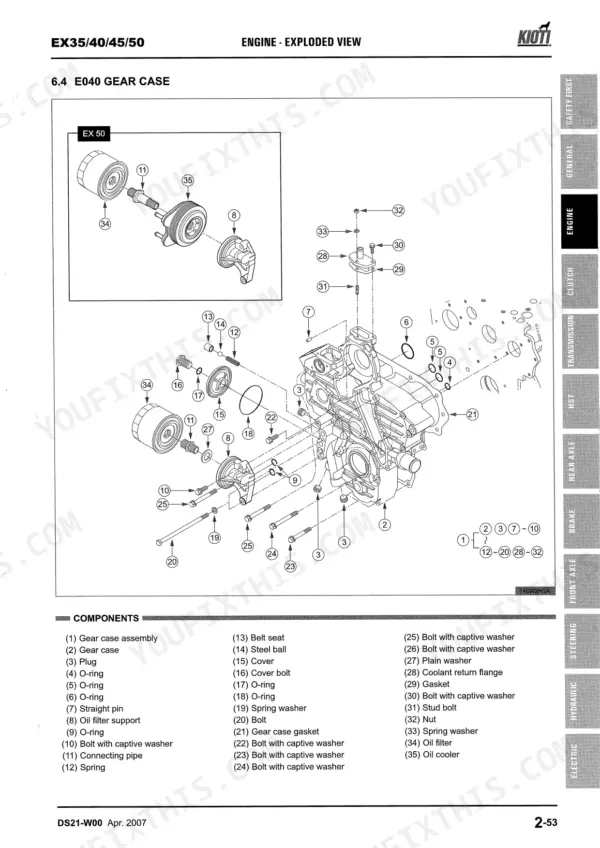

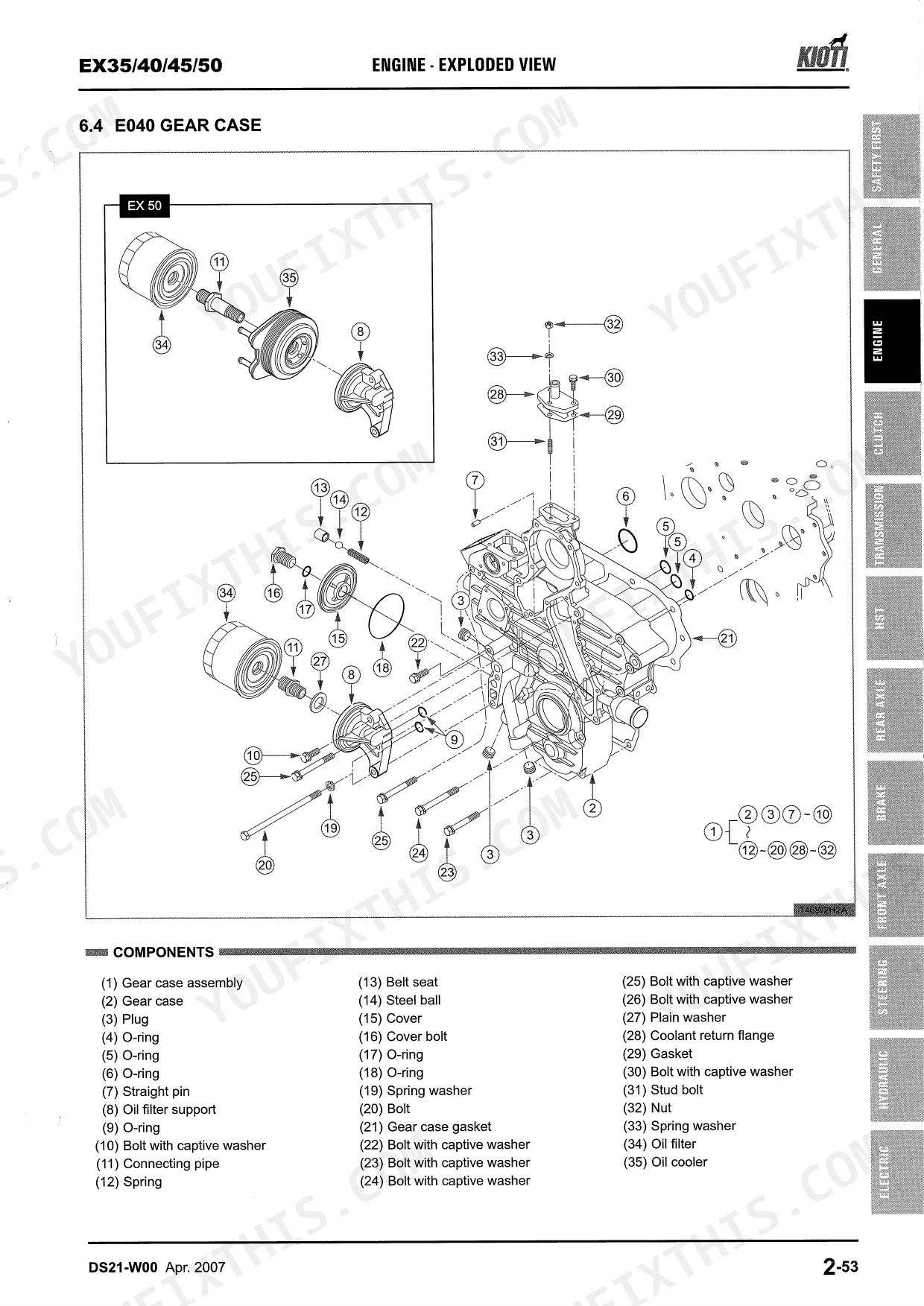

| System | Pages | Key Topics |
|---|---|---|
| Safety First | 3-14 | For Safety (Alert Symbols) |
| General | 15-38 | Identification Number (Tractor Serial Number Location, Tractor Serial Number Assignment Standard, Engine Serial Number Location, Transmission Number, Engine Number Assignment Standard) |
| Engine | 39-138 | Engine Identification (Engine Epa Decal, Bar Code for Engine Number, Engine Number, Assignment Standard for Engine Model Code) |
| Clutch | 139-152 | Table of Contents, Specifications (Tightening Torques, Sealant), Operating Principle, Troubleshooting |
| Transmission 1 | 153-231 | Table of Contents, Specifications (Tightening Torque for Major Components, Sealant and Adhesive Specifications) |
| Transmission | 232 | Structure and Operating Principle, Structure (PTO Driving, Main Gear Shift Section, Shuttle Section, Range Shift Section, 4WD Section, Mid PTO) |
| HST | 233-270 | Table of Contents, Specifications (General, Major Tightening Torque), Operating Principle (Structure and Function of HST, Operation of HST), Troubleshooting |
| Rear Axle | 271-292 | Table of Contents, Specifications (Transmission Fluid, Tightening Torques) |
| Brake | 293-304 | Table of Contents, Specifications, Basic Operating Principle (Braking Force for Forward/Reverse Driving), Troubleshooting |
| Front Axle | 305-346 | Table of Contents, Specifications (Sealant and Adhesive, Tightening Torque for Major Components) |
| Steering | 347-378 | Table of Contents, Specifications (Steering Cylinder, Steering Unit, Tightening Torque for Major Components) |

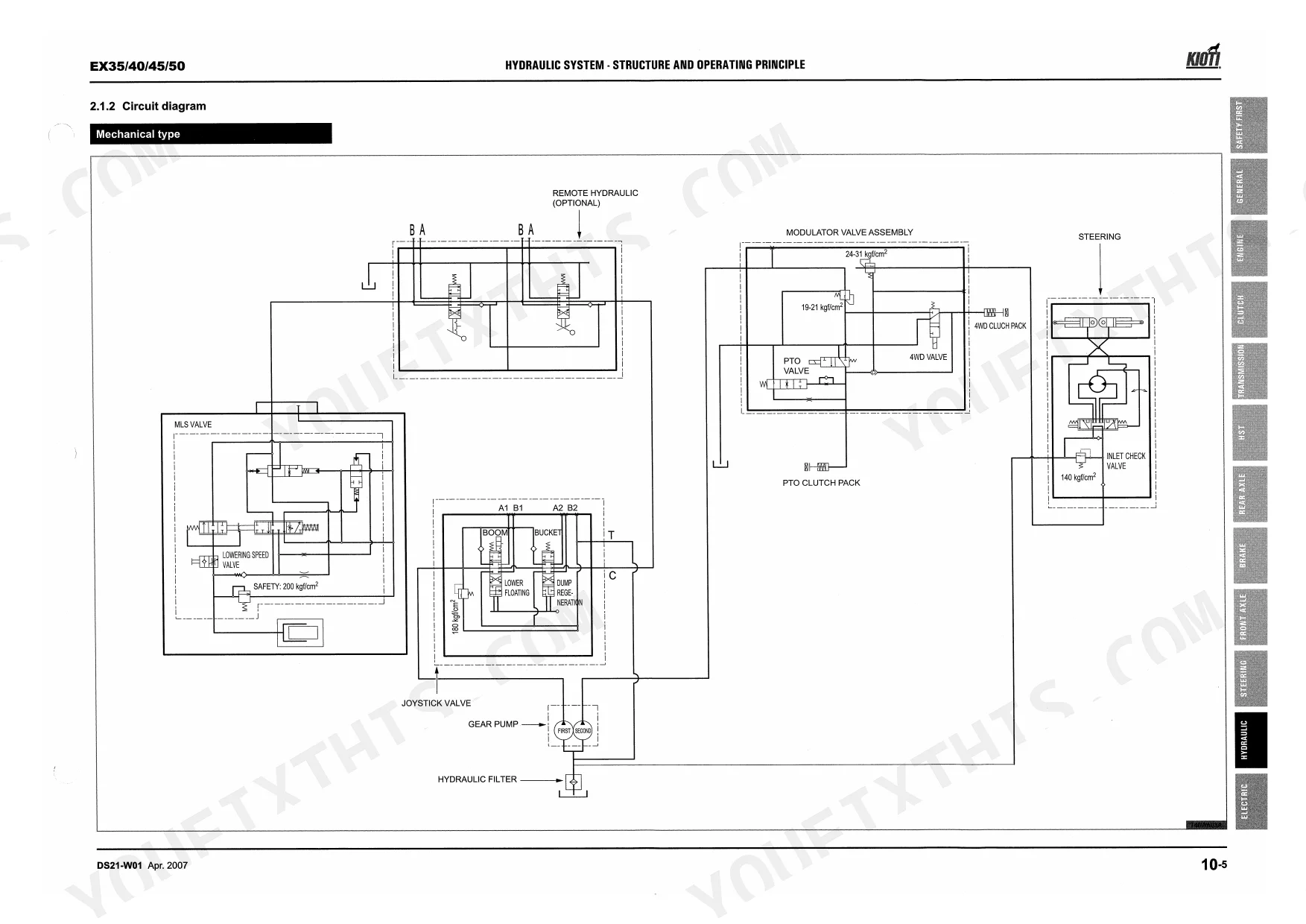

| Hydraulic | 379-464 | Table of Contents, Specifications, Operating Principle (Schematic and Circuit Diagram, Operation), Troubleshooting |
| Electric | 465-598 | Table of Contents (Battery, Precautions When Inspecting and Servicing the Wiring Harness, Effective Troubleshooting for Electric Problems, Causes for Blown Fuse, Checking Circuits) |

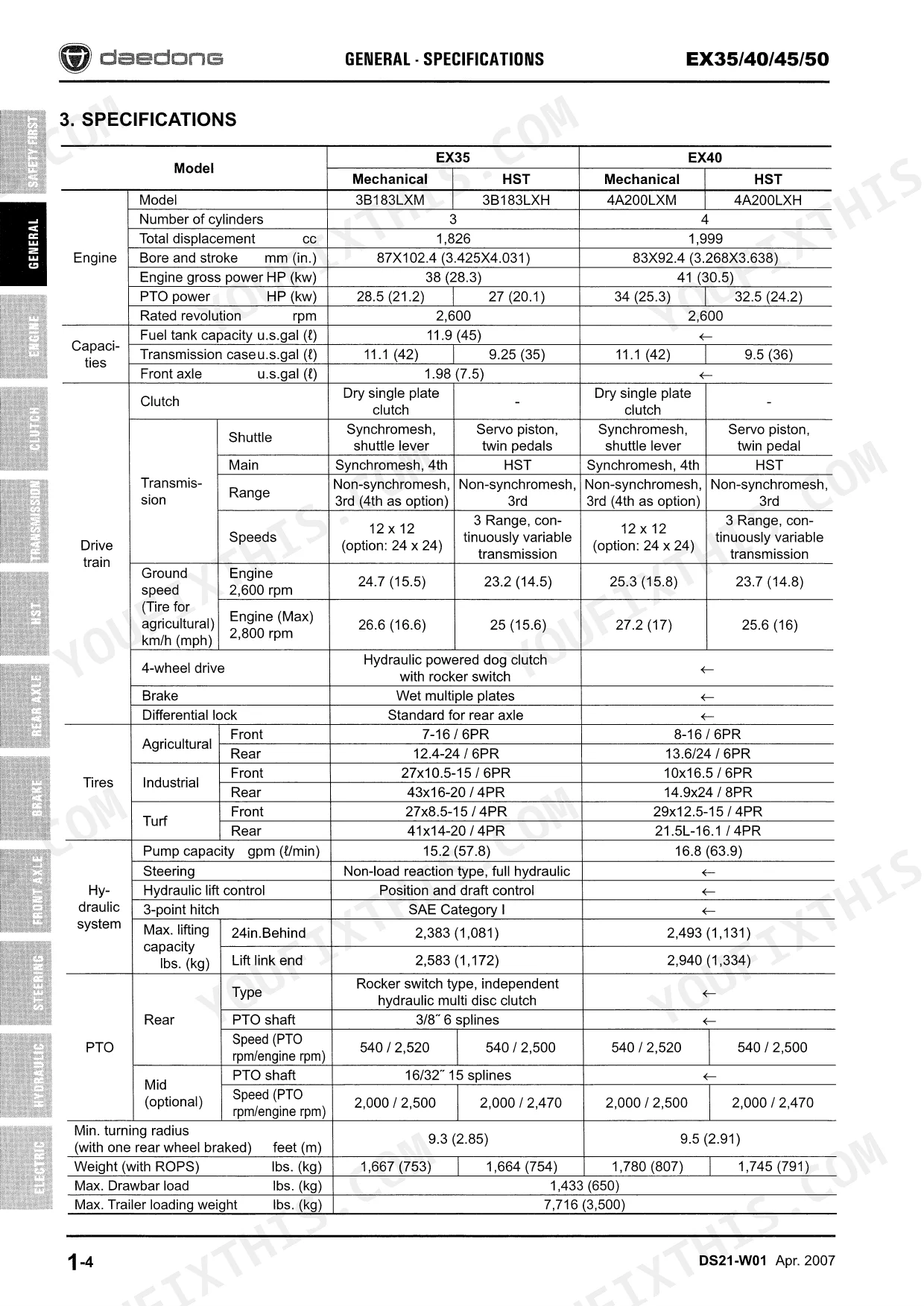

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

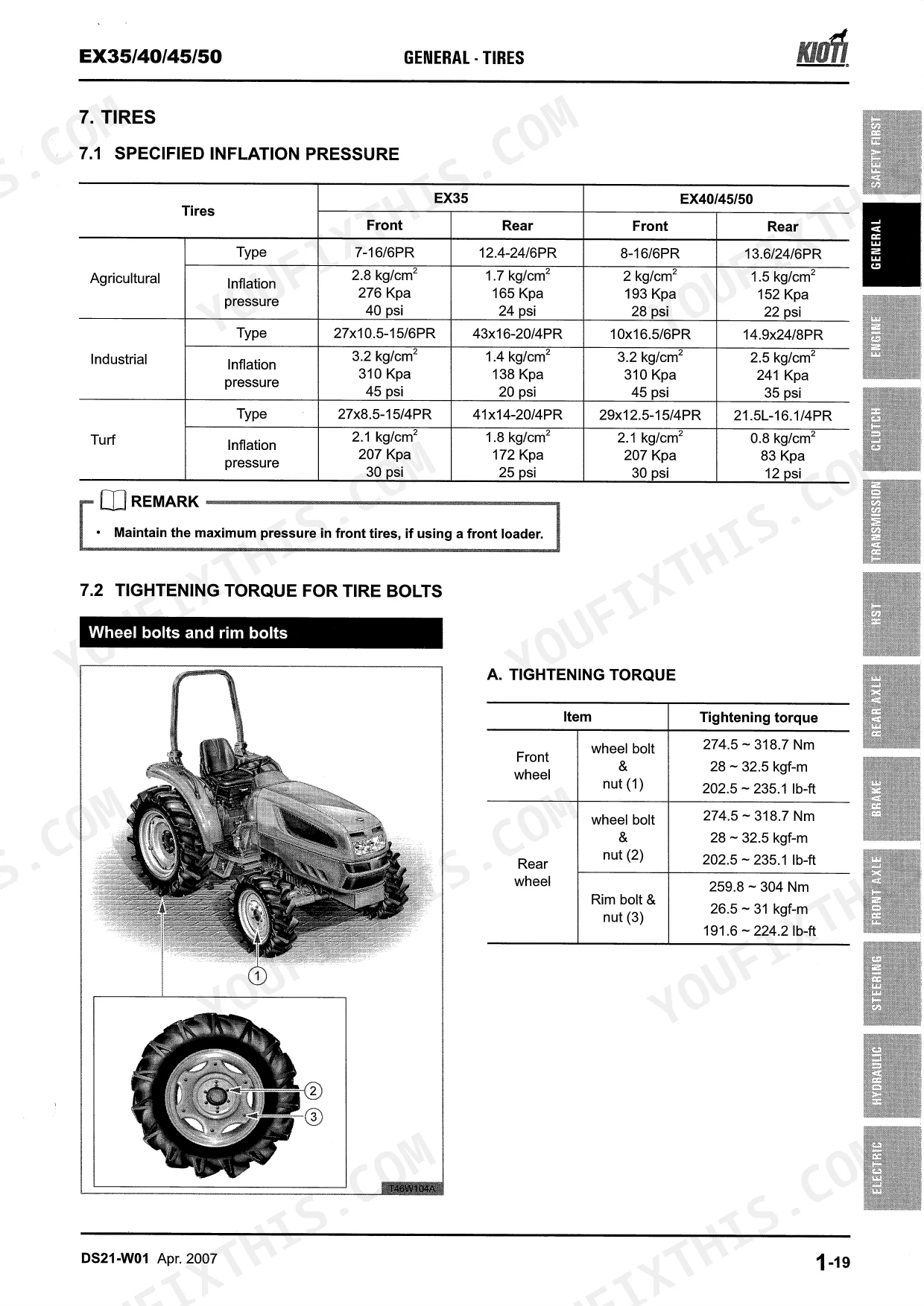

| Front wheel bolt, wheel nut (M16) tightening torque | 196.1~225.6 Nm | p. 33 |
| Rear wheel nut (M16) tightening torque | 196.1~225.6 Nm | p. 272 |

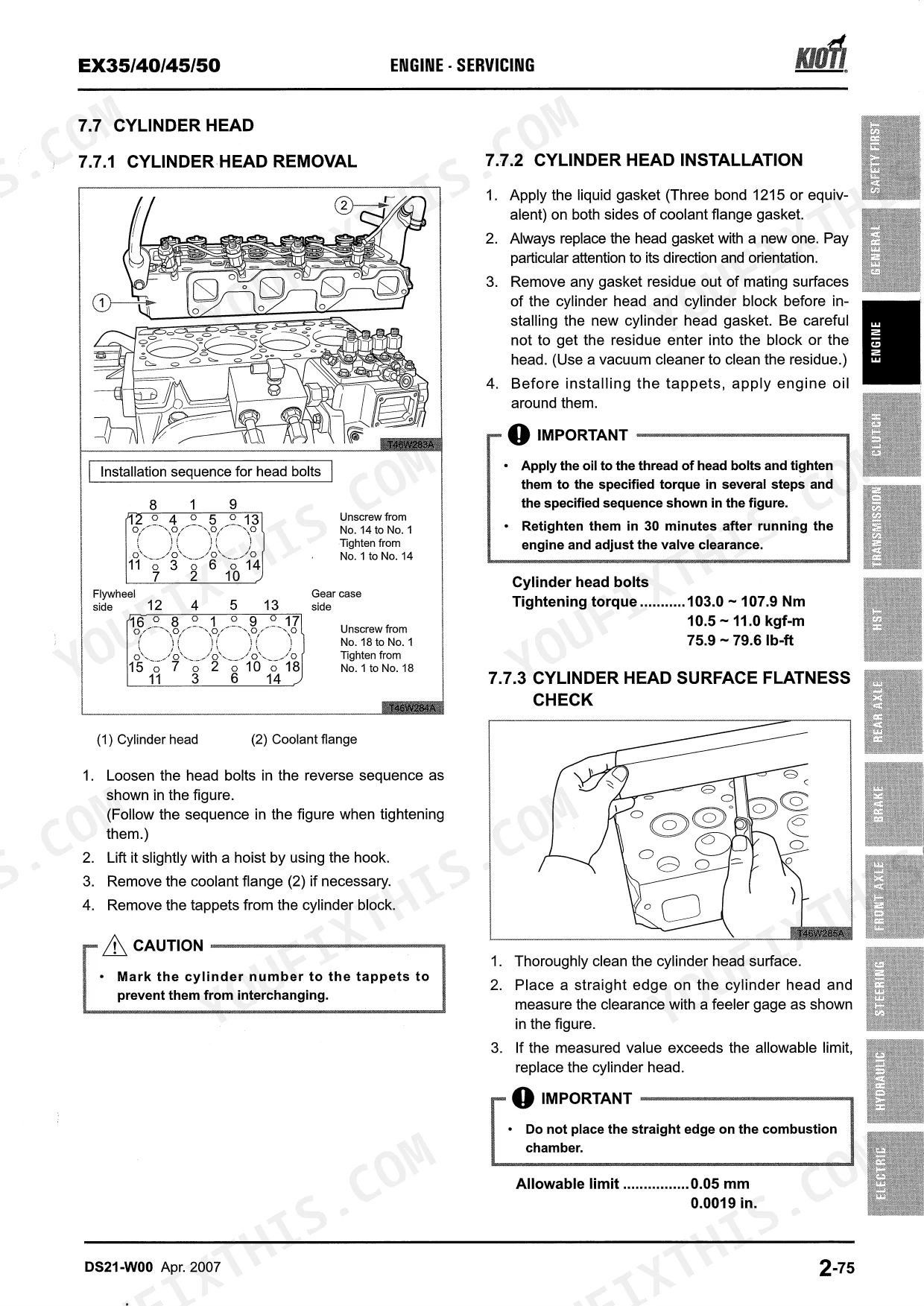

| Cylinder head screws (M11 x 1.25) tightening torque | 103.0~107.9 Nm | p. 53 |
| Fuel filter element replacement | Replace | p. 31 |
| Fuel filter element type | paper type and is not reusable | p. 71 |
| Hydraulic filter change interval | Initial change after 50 hours, then change at every 400 hours | p. 391 |
| Hydraulic filter filtered dimension | 4,100 cm² ± 10% | p. 391 |
| Engine oil filter replacement | Replace | p. 31 |
| Oil filter paper fineness | Max. 99 ± 5 microns | p. 66 |
| Air cleaner element maintenance | Clean | p. 31 |
| Battery voltage | 12 V | p. 467 |
| Battery cold cranking ability | 630 A at -18°C | p. 467 |
Kioti EX35–EX50 Series Common Problems This Manual Covers

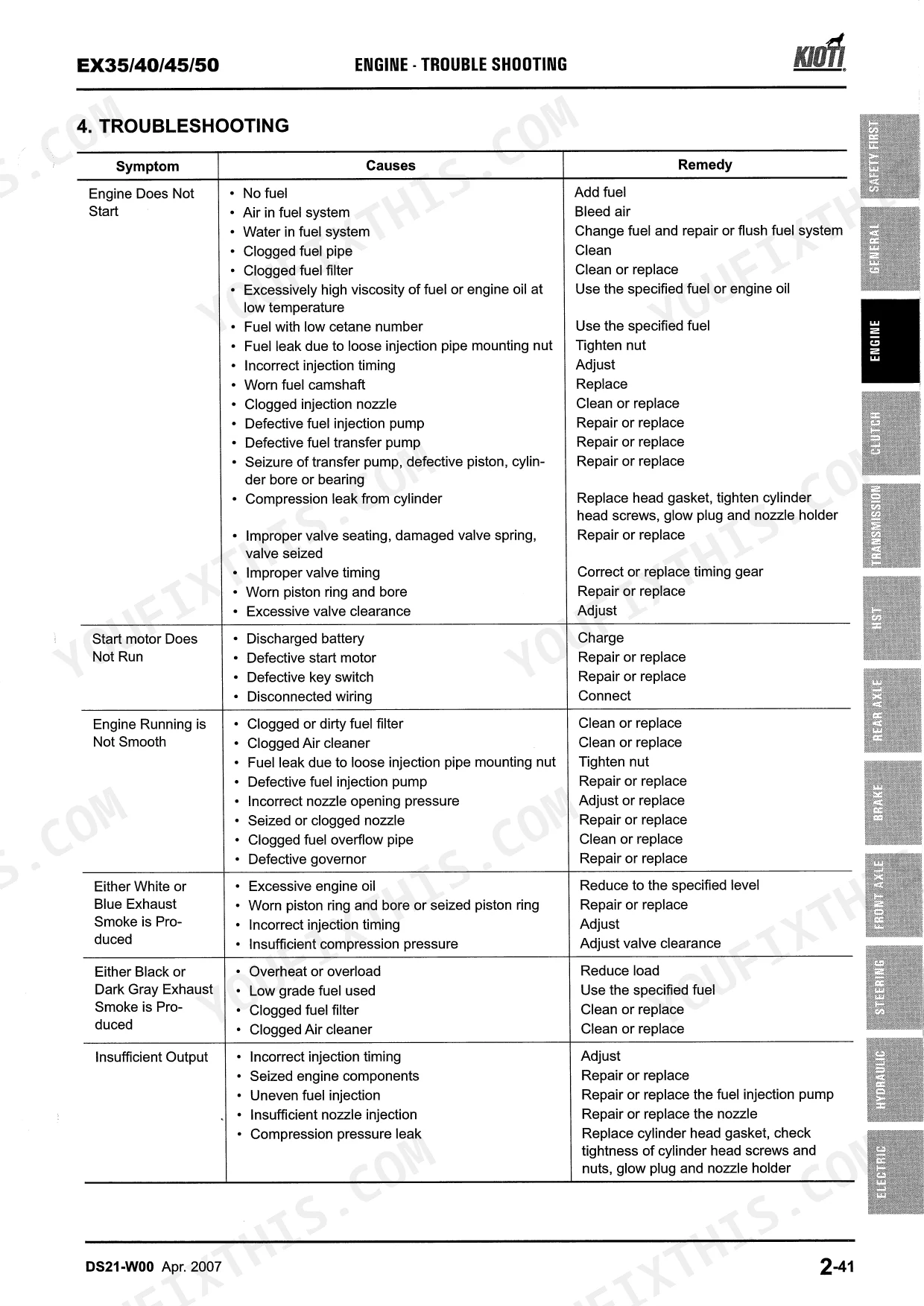

Kioti EX40 engine cranks over but will not fire or start in cold weather p. 509
Begin at the glow plug circuit and confirm the element preheat test temperature reaches 800 °C. Measure glow plug resistance; it should read roughly 0.43 Ω per page 509. If poor fuel has clogged or damaged the paper-type fuel filter element, swap it out.
Manual Section: Electric System Troubleshooting (Ignition)Loader moves slowly and three-point hitch will not lift properly under normal load p. 380
Test the main relief valve pressure and confirm it reaches 180 kgf/cm² (17652 kPa, 2560 PSI) per page 380. Then drain the system and fit a new hydraulic filter, keeping the schedule of an initial change at 50 hours and every 400 hours after that (page 391).
Manual Section: Hydraulic System TroubleshootingTractor engine overheats rapidly under heavy load and triggers high temperature warning light p. 81
Adjust the fan belt deflection to 7~9 mm (page 81), then work through the rest of the cooling system. Clear any debris from the radiator screen and wash it down. Using the dipstick, confirm engine oil sits at 6.5L (1.72 US gal), referencing page 43.
Manual Section: Engine TroubleshootingHydrostatic transmission lacks power and tractor will not move forward or reverse p. 234
Gauge the HST charge relief pressure; it should measure 18 kgf/cm² (1765 kPa, 256 PSI). Drain the system, then refill to the HST transmission capacity of 36 ℓ (9.5 gal.), per the specifications on page 234.
Manual Section: HST TroubleshootingFrequently Asked Questions
What do the EX35, EX40, EX45, or EX50 warning lights mean?
The instrument panel carries indicator lamps for High speed shift, Low speed shift, High beam, Neutral, Parking, Mid speed shift, Hydraulic filter, Charge, ENG oil, Glow, Cruise, Quick turn, 4WD, PTO, Turn/L, Turn/R, and Differential Lock, each assigned its own lamp color and wattage.
Torque specs for Kioti EX45 wheel lug nuts
Front and rear wheel nuts (M16 bolt, M16 nut) torque to 196.1 ~ 225.6 Nm (20 ~ 23 kgf-m, 144.7 ~ 166.4 lb-ft). Run the nut down until torque climbs sharply, keep going to the next pin hole, then insert the split pin.
What are the replacement specifications for Fuel filters?
The fuel filter element gets replaced on a set schedule rather than as needed. Per the maintenance chart, change it at 100, 400, 600, 1500, and 3000 hours, and also once every year or every two years.
What are the replacement specifications for Hydraulic filter?
Made of paper, the hydraulic filter element cannot be reused. Replace it first at 50 hours, then on a 400-hour cycle. Its specs: a filtered dimension of 4,100 cm² ± 10%, 55 ± 5 folds, strength above 4.5 bars, thickness over 1 mm, and a max fineness of 110 ± 8 microns.
How quickly can I access this Kioti EX35–EX50 Series manual after buying?
Checkout triggers an instant download of the 610-page searchable PDF. Open it on a laptop, tablet, or phone and carry it straight to the shop floor.
Are there any print restrictions on this Kioti EX35–EX50 Series manual?
There are none. Print single pages, whole chapters, or the full manual. This PDF ships completely unlocked.

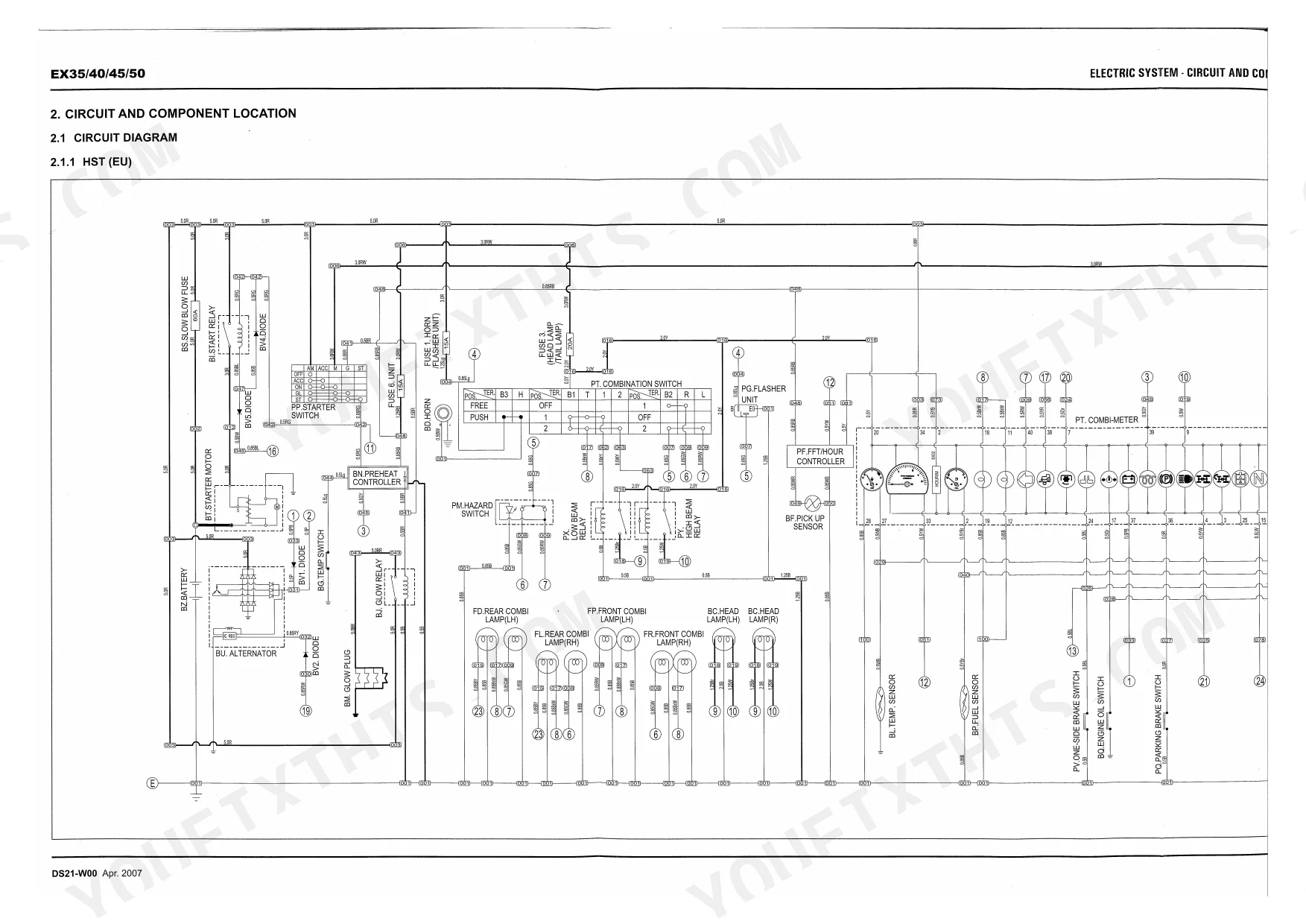

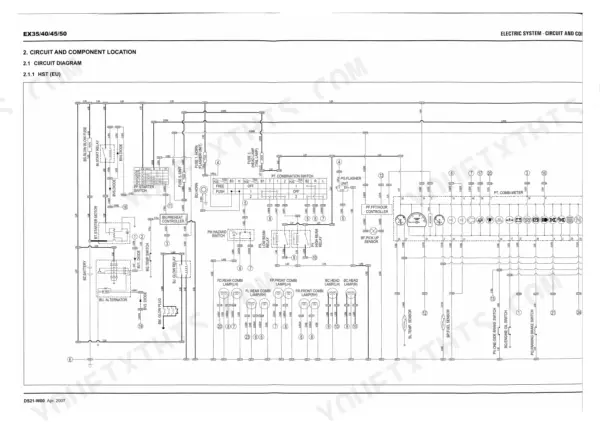

Are there wiring harness diagrams in this Kioti EX35–EX50 Series manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy the full text. The text quality is consistently crisp and easy to read throughout. Diagrams and illustrations are raster images, but they are clear, and all labels are readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content, and there are no notable blank or filler pages.
