Your SK135SR has a weeping swing motor seal and the parts counter wants a number before they quote it: this 758-page Kobelco SK135SR, SK135SRL parts catalog PDF (OEM ID S3YY00003ZE04) holds it for the hydraulic excavator, SRLC included. Exploded views take the superstructure, undercarriage and attachments down to the bolt, from slewing ring and track rollers to boom, arm and bucket, each callout tied to a part number. Hydraulic components fill close to a quarter of the book, with the main relief valve, propel motor and swivel joint broken down piece by piece, and wiring diagrams trace the upper harness. Before you order a cartridge, match the main relief valve to its 350 kgf/cm² set pressure at 60 L/min, and port relief F2 to 400 kgf/cm² at 30 L/min. A guessed relief setting can split a hose. Search it, jump by bookmark, or print the valve pages for the bench; grease on paper costs nothing.
What's Inside This Kobelco SK135SR, SK135SRL, SK135SRLC Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Parts Manual Cover | 1-2 | Hydraulic Excavators, SK135SR(LC), SK135SRL |
| Editorial Procedure | 3-4 | Machine Serial Number, Engine Serial Number, Date Delivered, District Indication |
| Preface | 5-7 | Placing Order, Machine Type, Machine Number, Part Number, Part Name, Quantity Required |
| General Drawing | 8 | Bucket Cylinder, Arm Cylinder, Boom Cylinder, Swing Motor, Hydraulic Pump, Radiator and Oil Cooler |
| General Maintenance Items | 23-32 | Filter List, Nut & Sleeve Parts No, Paint Color |
| Superstructure | 33-280 | Frame Assy, Upp, Counterweight Assy, Engine Assy, Engine Instal, Radiator Instal, Radiator Assy, Cleaner Assy |
| Undercarriage | 281-328 | Low Group, Slewing Ring, Crawler Idler, Track Roller, Upper Roller, Shoe Assembly |

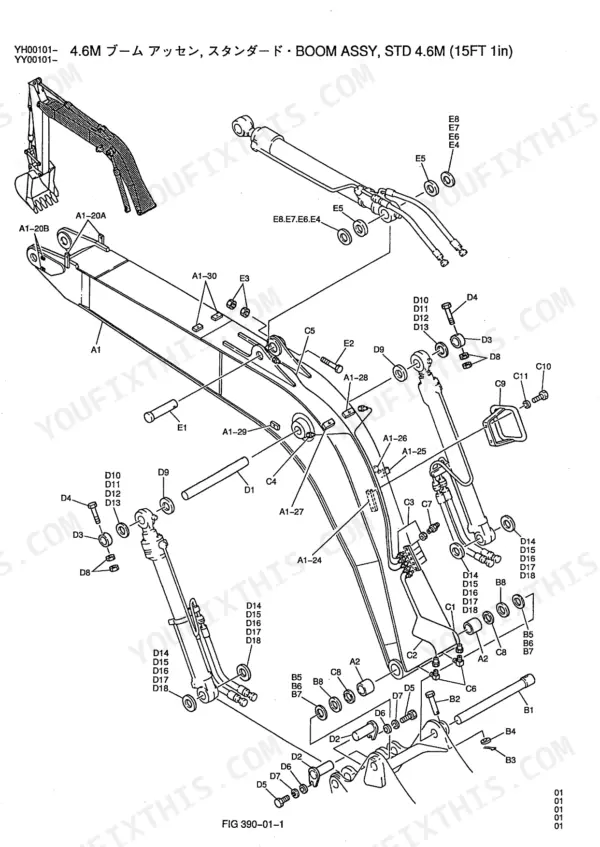

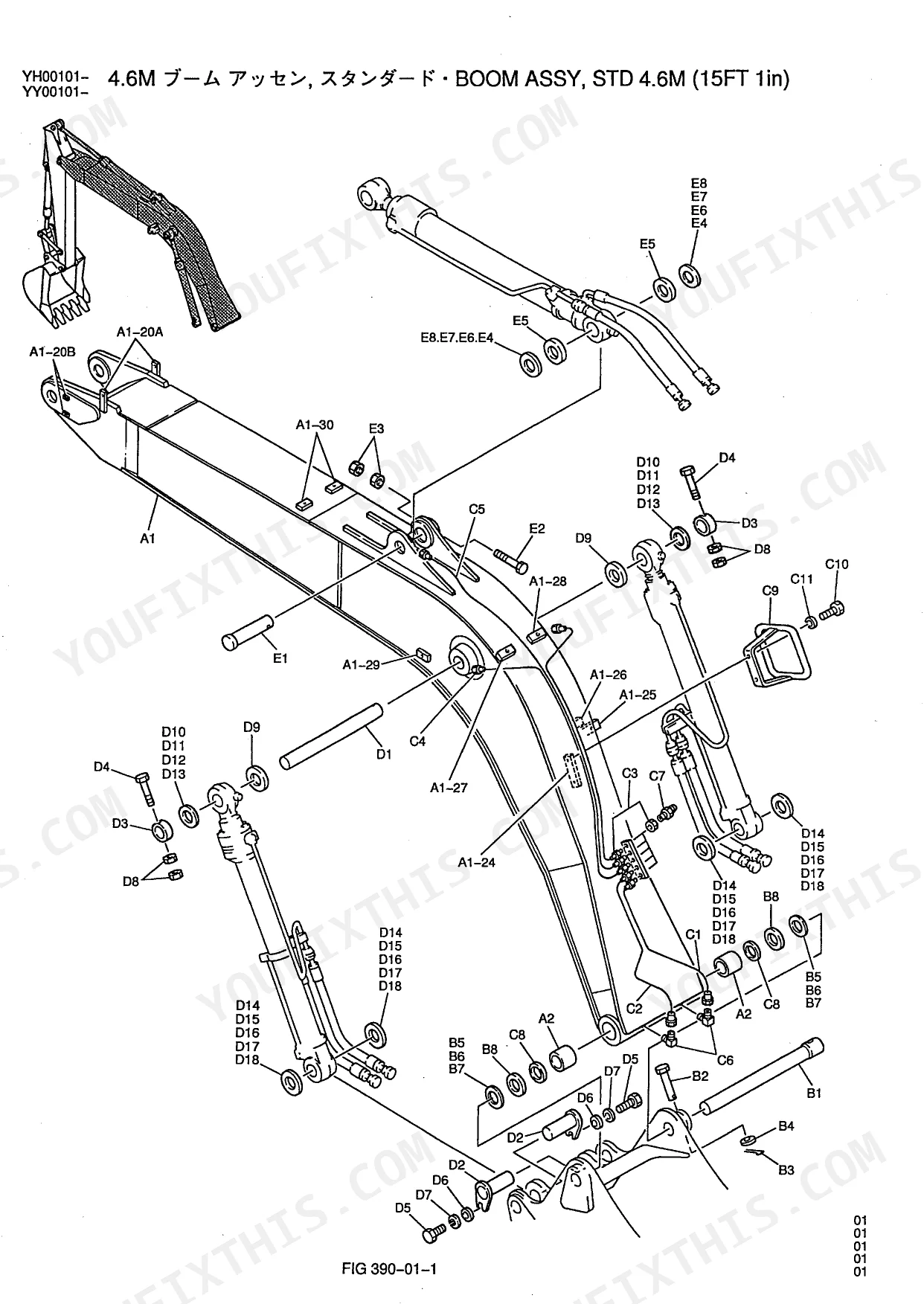

| Attachments | 329-368 | Boom Assembly, Arm Assembly, Bucket Assembly, Hydraulic Lines |
| Tools and Spare Parts | 369-378 | Tool and Accessory, Tool Box Assembly, Element Kit |

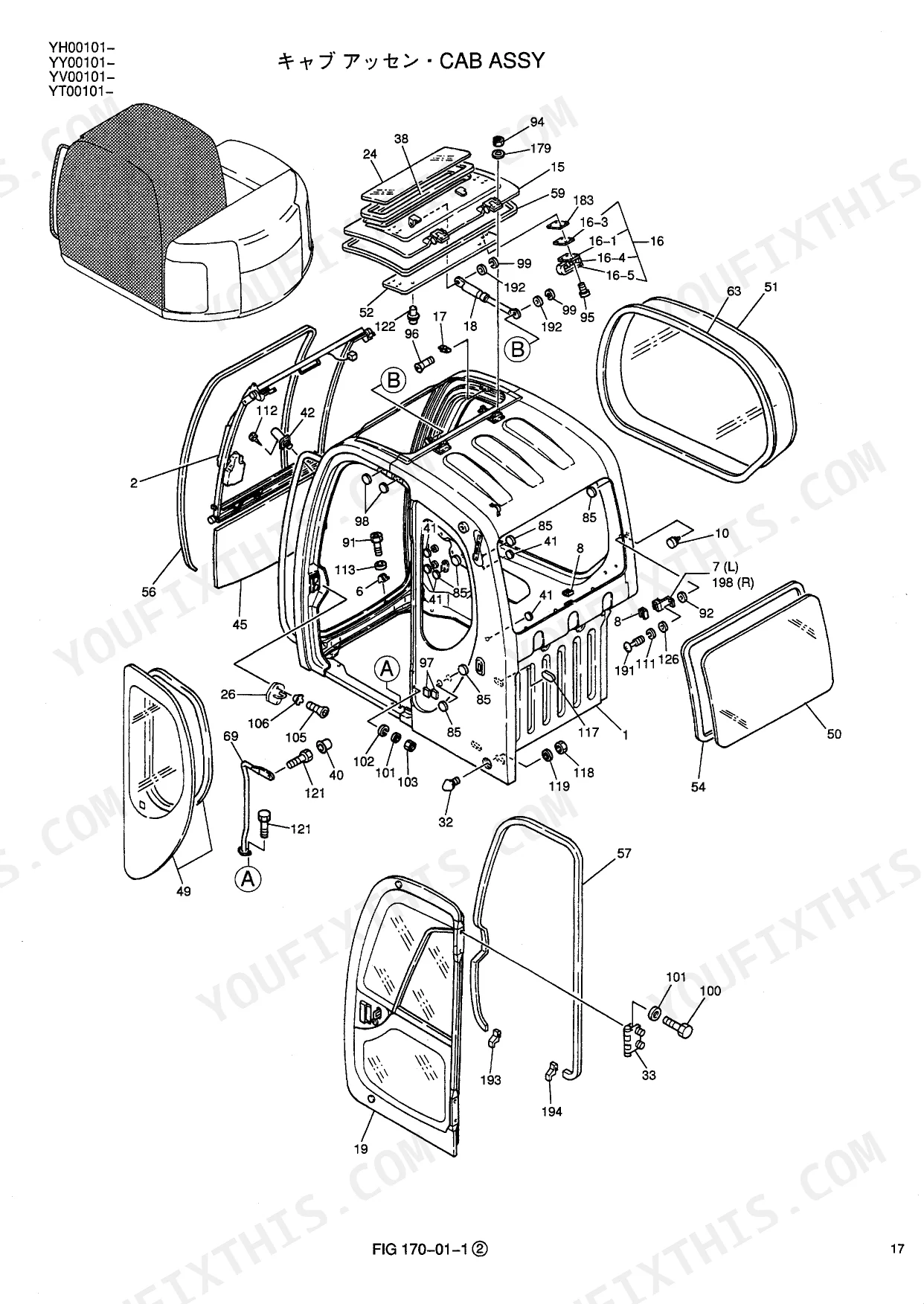

| Optional Parts | 379-460 | Fuel Lines, Lamp Installation, Cab Assembly, Control Lines, Boom and Arm Safety |
| Hydraulic Components | 493-670 | Valve Assy Relief, Valve Assy Selector, Motor Assy Propelling, Joint Assy Swivel, Valve Assy Main Relief, Valve Assy Holding |
| Engine Components | 671-758 | Engine Gasket Kit, Cylinder Head Cover, Cylinder Head, Cylinder Block, Oil Pan and Level Gauge, Camshaft and Valve |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Set Pressure (Main Relief Valve) | 350 kgf/cm² at 60 L/min | p. 518 |
| Set Pressure (Valve Assy, Port Relief F1) | 385 kgf/cm² at 30 L/min | p. 524 |
| Set Pressure (Valve Assy, Port Relief F2) | 400 kgf/cm² at 30 L/min | p. 524 |
| Set Pressure (Valve Assy, Port Relief F3) | 230 kgf/cm² at 30 L/min | p. 524 |
| Set Pressure (Valve Assy, Port Relief F4) | 315 kgf/cm² at 30 L/min | p. 524 |
| Set Pressure (Valve Assy, Port Relief F5) | 325 kgf/cm² at 30 L/min | p. 524 |
| Set Pressure (Valve Assy, Port Relief F6) | 300 kgf/cm² at 190 L/min | p. 524 |
| Set Pressure (Valve Assy, Control F1) | 405 kgf/cm² at 150 L/min | p. 520 |
| Set Pressure (Valve Assy, Control F2) | 385 kgf/cm² at 150 L/min | p. 520 |
Kobelco SK135SR, SK135SRL, SK135SRLC Common Problems This Manual Covers
Kobelco SK135SR fuel filter, bypass oil filter and water separator part numbers hard to find
Check the filter list on page 25 before the parts run. The fuel filter is 894414-7963, the bypass oil filter 897026-1342, the full flow oil filter 894160-9641 and the water separator 113200-8410, all Isuzu engine parts. Hydraulic filter element YR50V00004P1 is on the same page, with a separate element listed for nibbler and breaker machines.

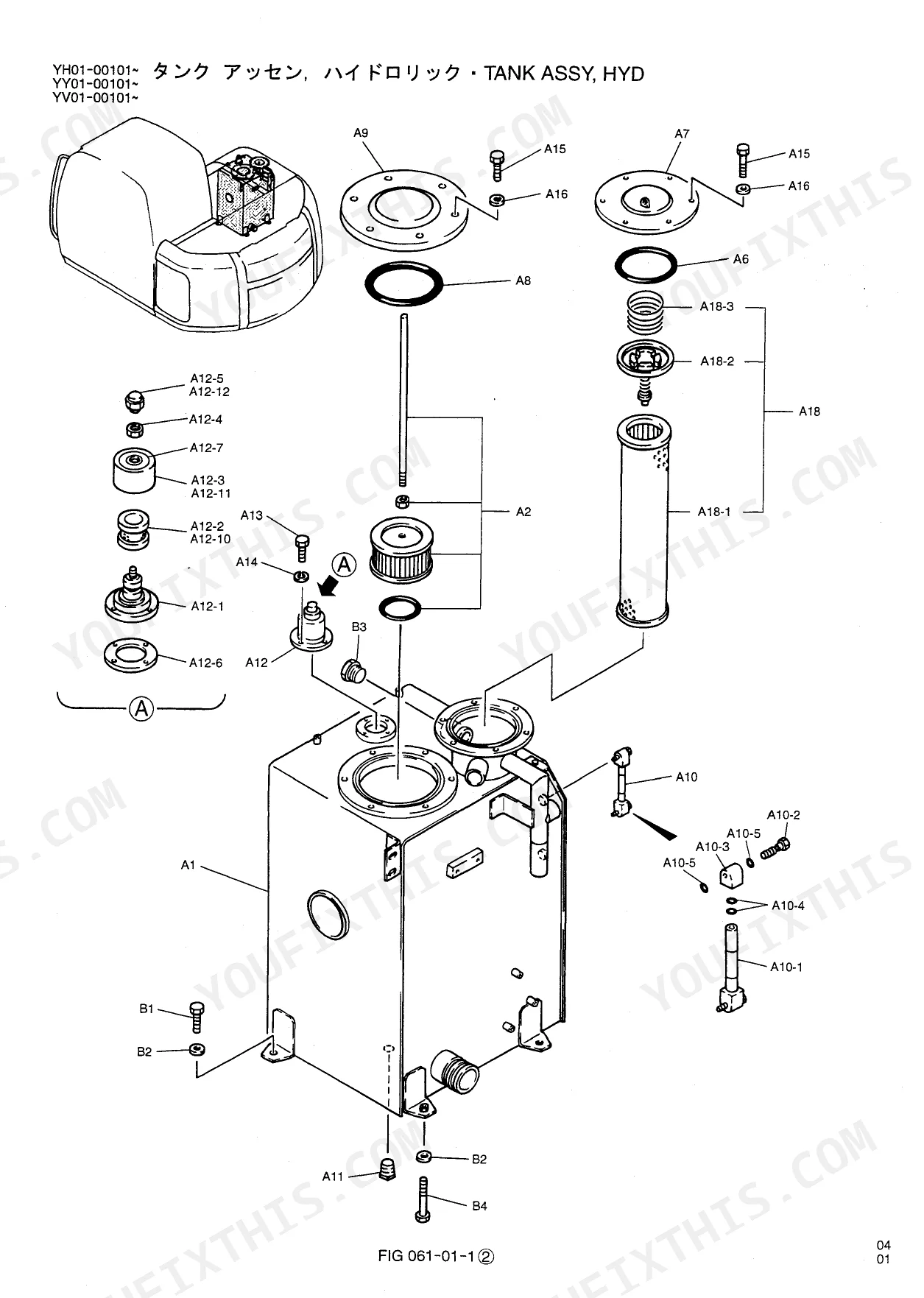

Manual Section: General Maintenance Items p. 25Hydraulic tank breather element part number changes by serial range, wrong element shows up
Check the machine serial number, then match it in the filter list on page 25. Breather element YN57V00002S002 covers YH01-00101 to 00381 and YY01-00101 to 00776. Machines from YH01-00382 and YY01-00777 onward take YN57V00002S010. Quote the machine number with the order, as the preface on page 5 requires.
Manual Section: General Maintenance Items p. 25Radiator bracket assembly part number differs by serial number, insulation and brackets do not fit
Check the radiator install list on page 45 against your serial number. Bracket assembly YX05P01032F1 fits YH01-00101 to 00500 and YY01-00101 to 00974. YX05P01032F2 fits YH01-00501 and YY01-00975 onward and has its own bracket and insulation items. The radiator hoses are YX05P01030P1 and YX05P01031P1. The water sub tank assembly is YX05P01012F1.
Manual Section: Superstructure p. 45Starter, thermostat and engine V-belt part numbers hard to locate for the Isuzu engine

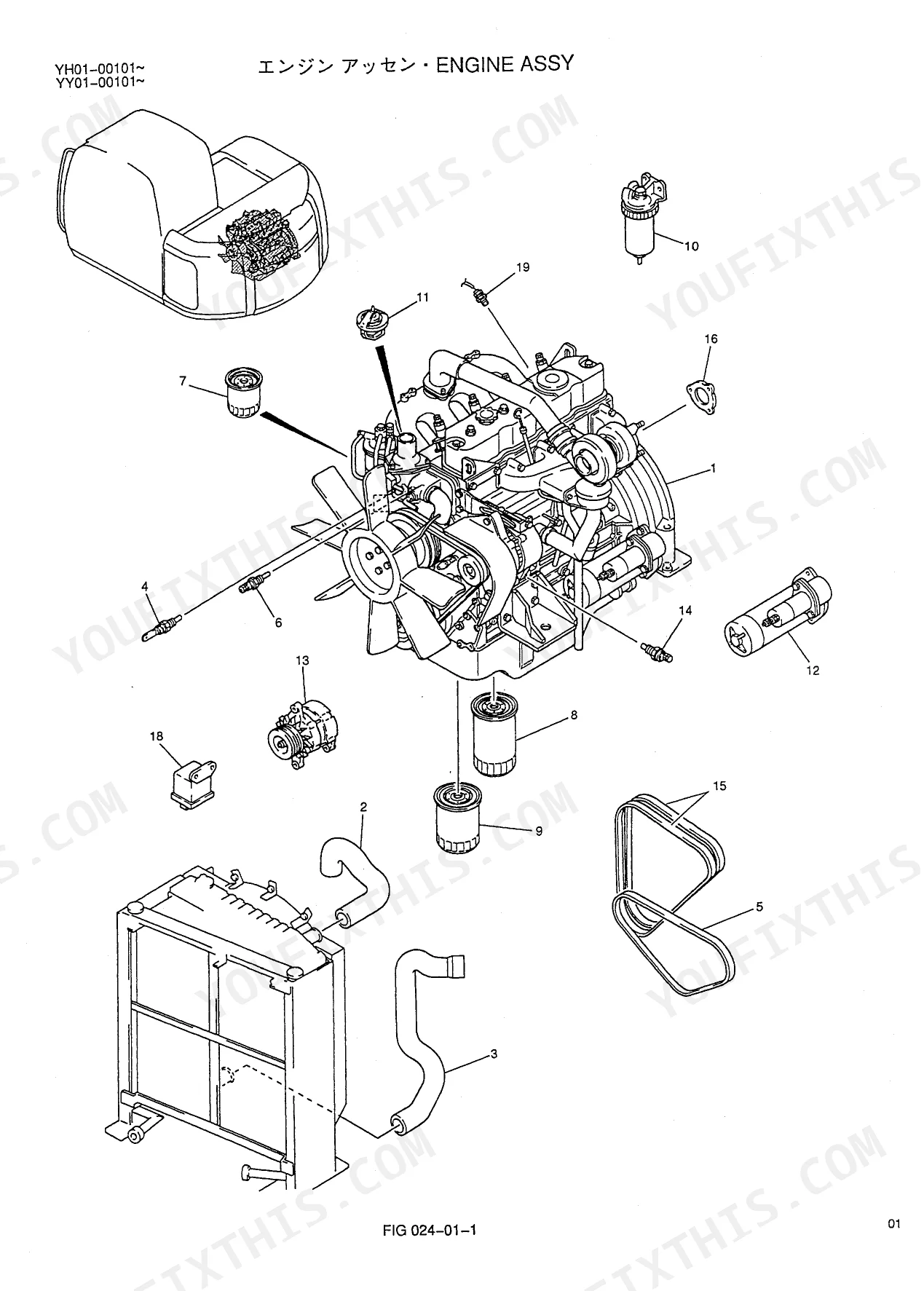

Check the engine assembly list on page 39. The starter assembly is 897029-8634, thermostat 113770-0700, V-belt 113671-2880 (quantity 2), air conditioner V-belt YX20M01025P1, glow relay 894258-0140 and oil switch 182410-0082. For cylinder head, cylinder block, oil pan and fuel injection parts, go to the Engine Components section starting on page 671.
Manual Section: Superstructure p. 39Travel motor and sprocket part numbers hard to find in the undercarriage low group

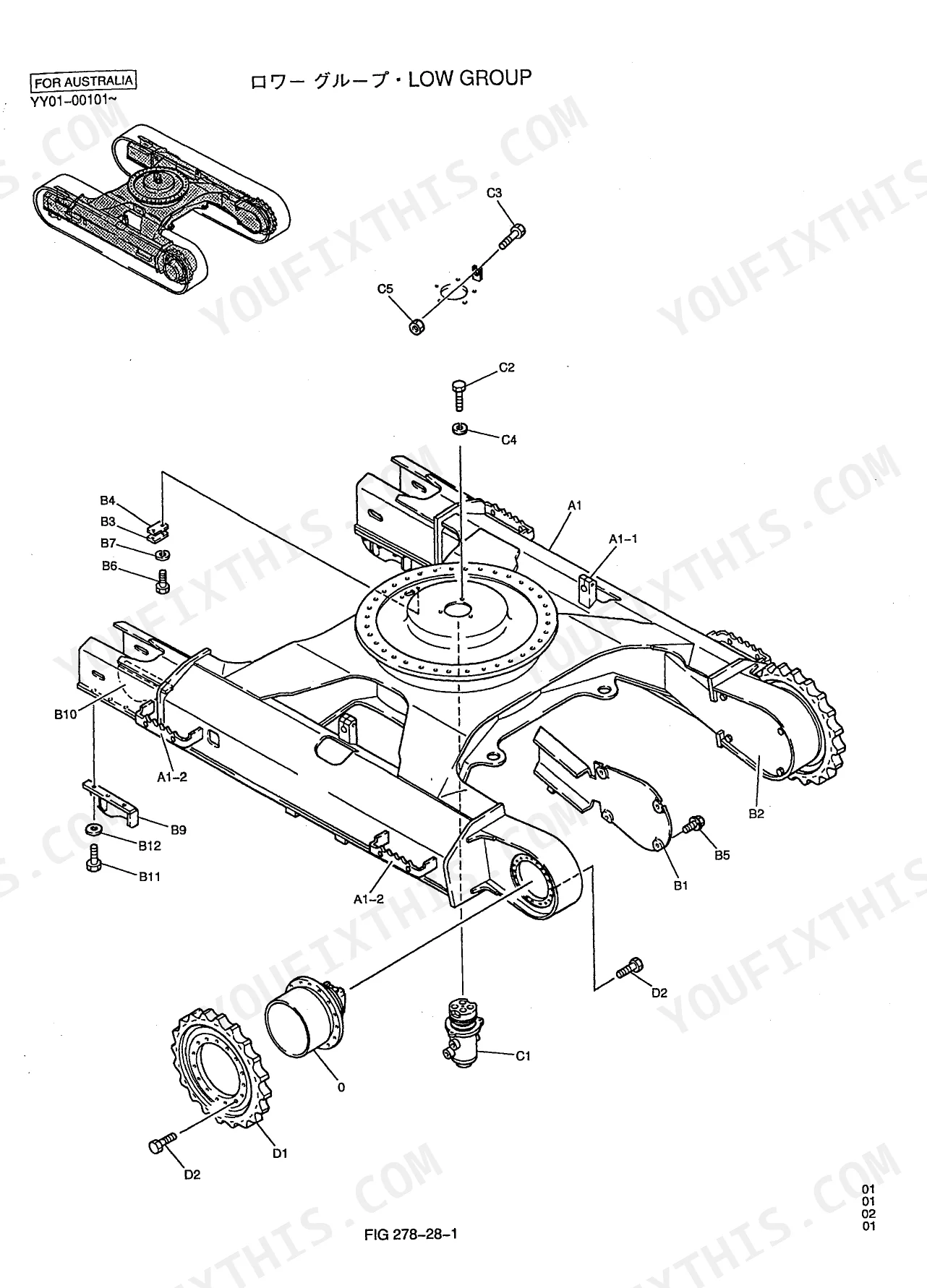

Check the low group parts list on page 283 for one low frame version, or on page 285 for the other. Both list propelling motor assembly YX15V00003F1 at quantity 2. Page 283 also lists sprocket 2404N271 and mounting capscrews LP53001001P1. For the propelling motor breakdown, go to the Hydraulic Components section, which starts on page 493.
Manual Section: Undercarriage p. 283Hydraulic line nut and sleeve part numbers needed by tube size for a leaking fitting
Measure the tube outside diameter in millimetres, then go to the nut and sleeve chart on page 27. Nuts and sleeves are listed by tube size, from 6 mm up to 38 mm, in two series, and each has its own part number. Match the series already fitted on the machine before you order the replacement nut and sleeve.
Manual Section: General Maintenance Items p. 27Frequently Asked Questions
What part number does this parts catalog list for the BUSHING on page 35?
Page 35 lists part number YX52F01044P1 for the BUSHING. p. 35
What part number does this parts catalog list for the MOUNT, RUBBER on page 43?
Page 43 lists part number YW02P01002P1 for the MOUNT, RUBBER. p. 43
How will I receive this Kobelco SK135SR Parts Catalog?
Straight to your device: 758 pages of searchable Parts Catalog, downloadable the moment payment goes through.
Can I print this Kobelco SK135SR manual?
Yes. Print the pages you need for the job in your own shop, and bin them when they get greasy.
Does this Kobelco SK135SR Parts Catalog have electrical diagrams?

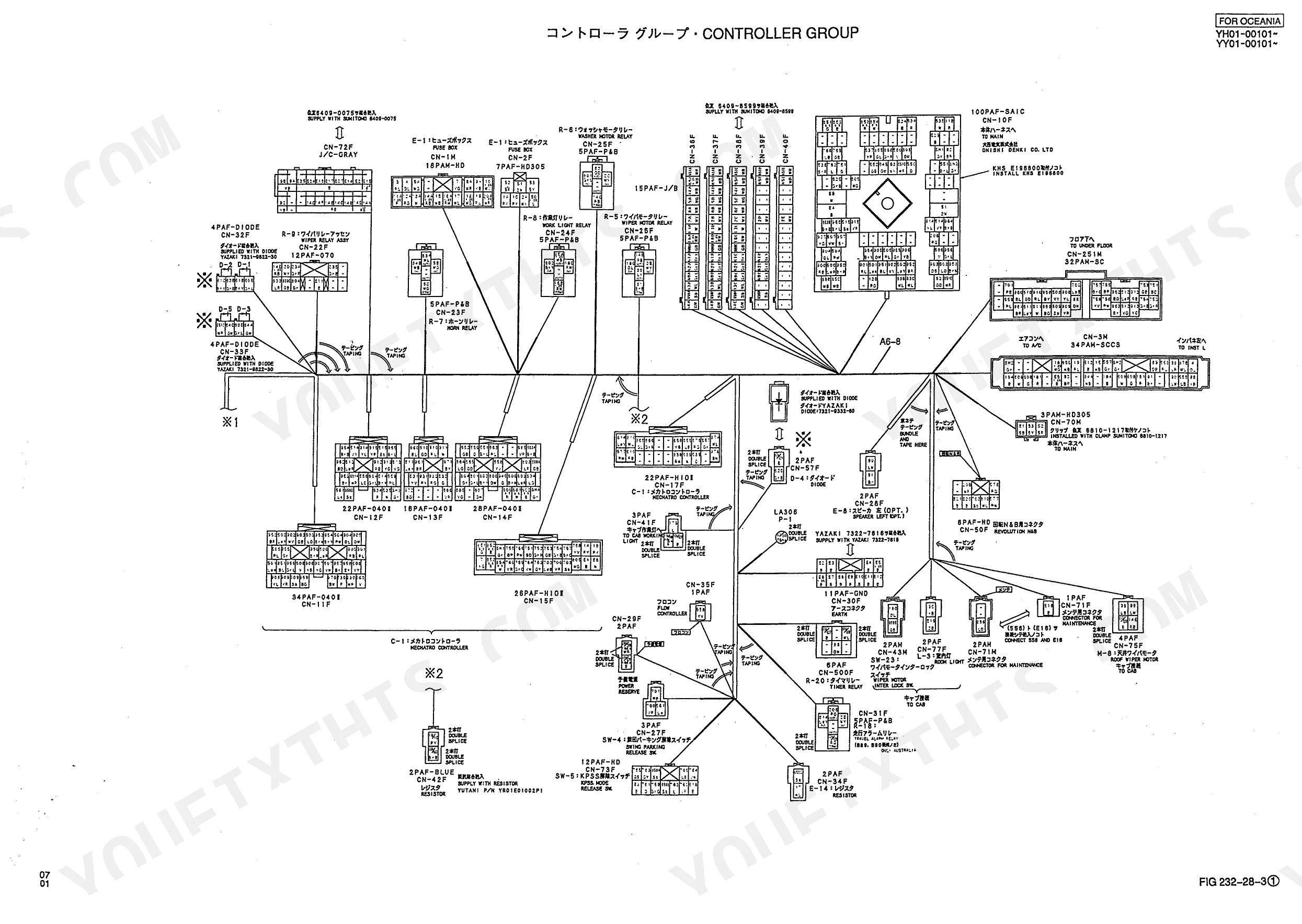

An electrical diagram is included, enough to follow the main wiring on the Kobelco SK135SR, SK135SRL, SK135SRLC. You can see one on page 221.
