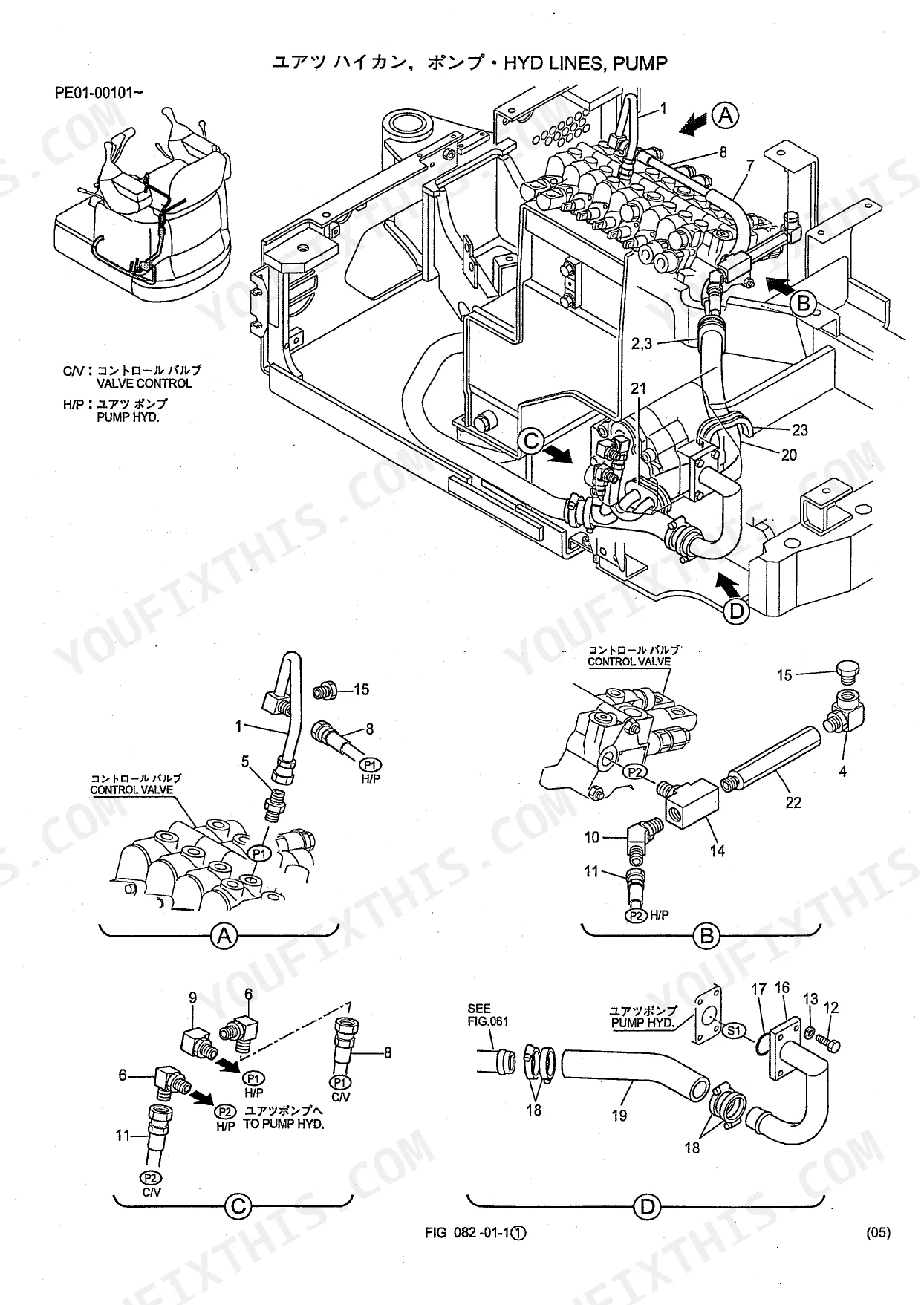

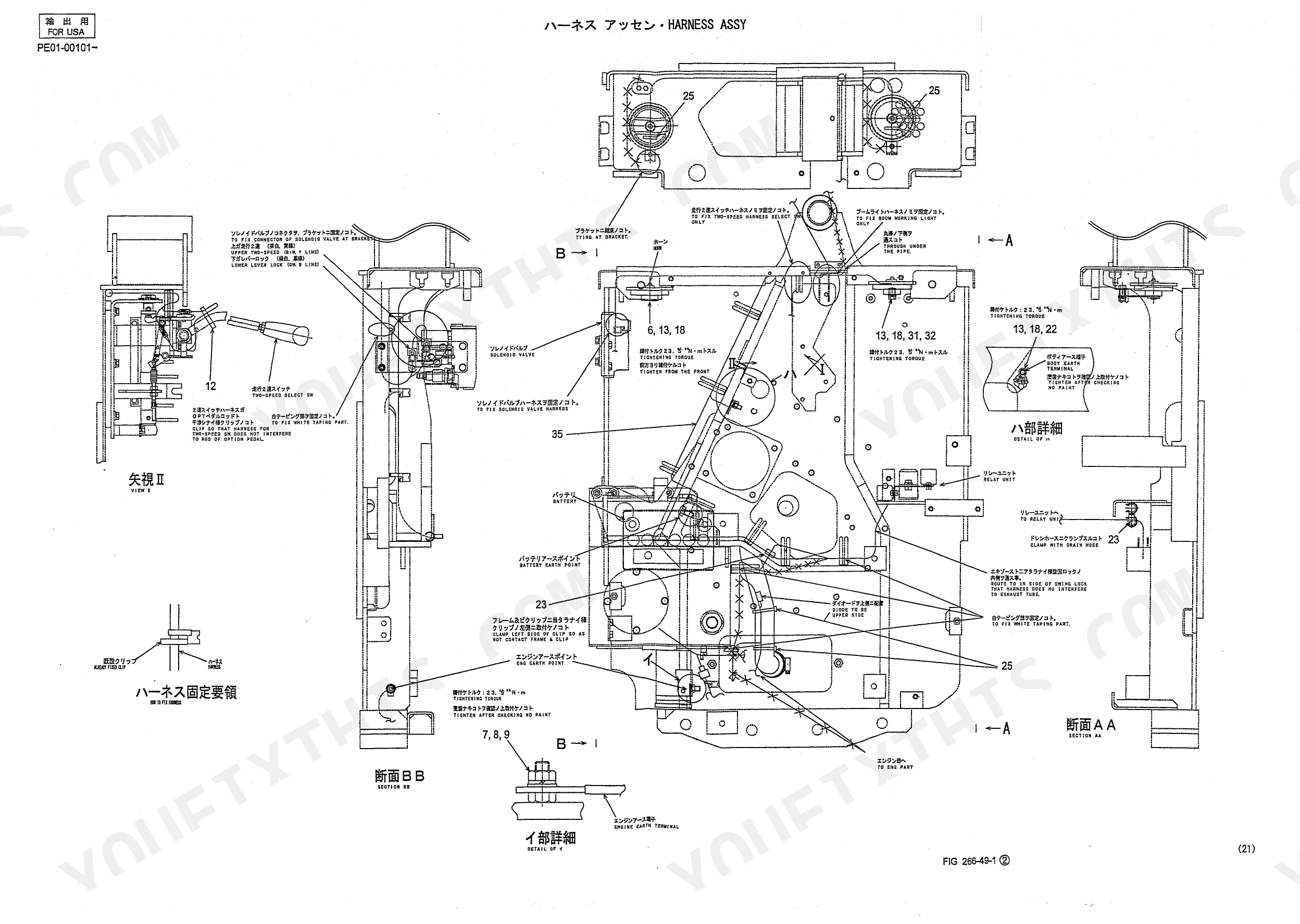

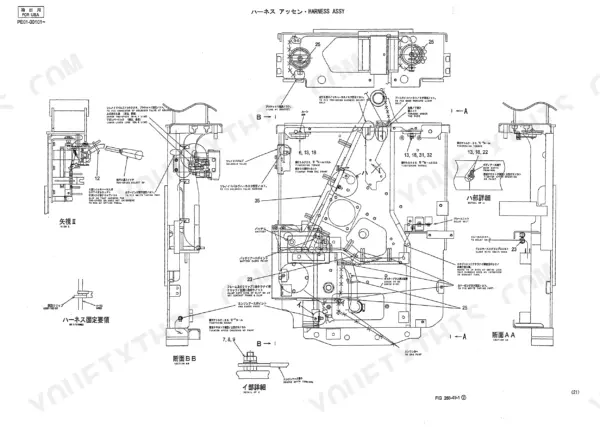

Kobelco's own part numbers for the SK13SR hydraulic excavator, the ones a generic aftermarket listing can only guess at, are settled in this 320-page factory parts catalog, OEM ID S3PE00001ZE04. Exploded views in the Kobelco SK13SR parts catalog PDF split the machine into superstructure, undercarriage and attachment groups. The slewing motor, crawler idler and idler adjuster, track rollers, dozer blade, and boom and arm hydraulic lines each get their own figure with numbered callouts. Harness assembly drawings cover the electrical side. A filter list, a nut and sleeve reference and a parts name index let you cross-reference a component when all you have is its name. Order the fuel system O-ring as 24311-240100 (size 1A P-10A) and the 8S seal washer as 22190-080002. Guessing a seal washer size by eye wastes a morning. The PDF is bookmarked and has a text layer, so your copy goes on a laptop or phone to whatever site the machine is working.
What's Inside This Kobelco SK13SR Parts Manual

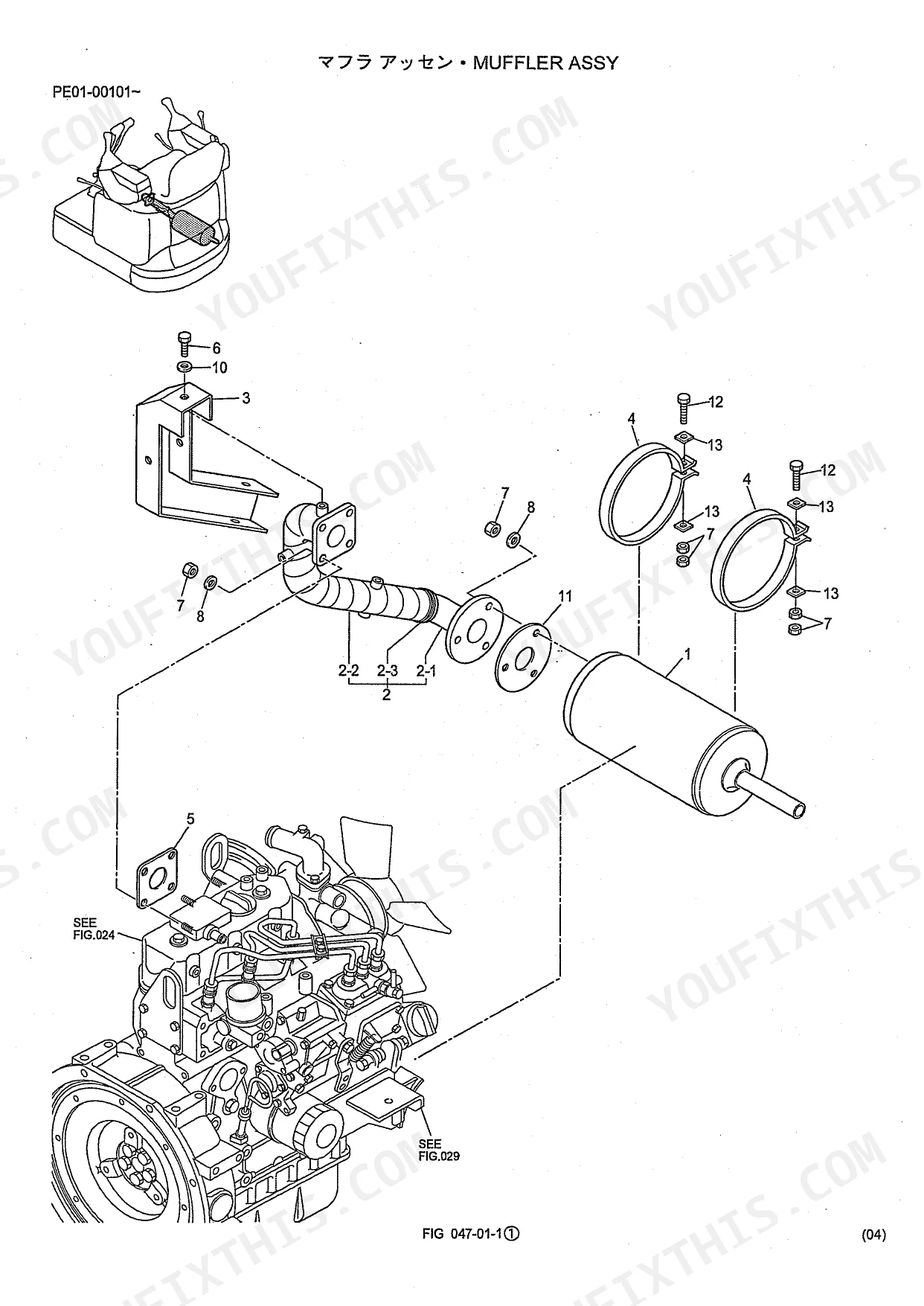

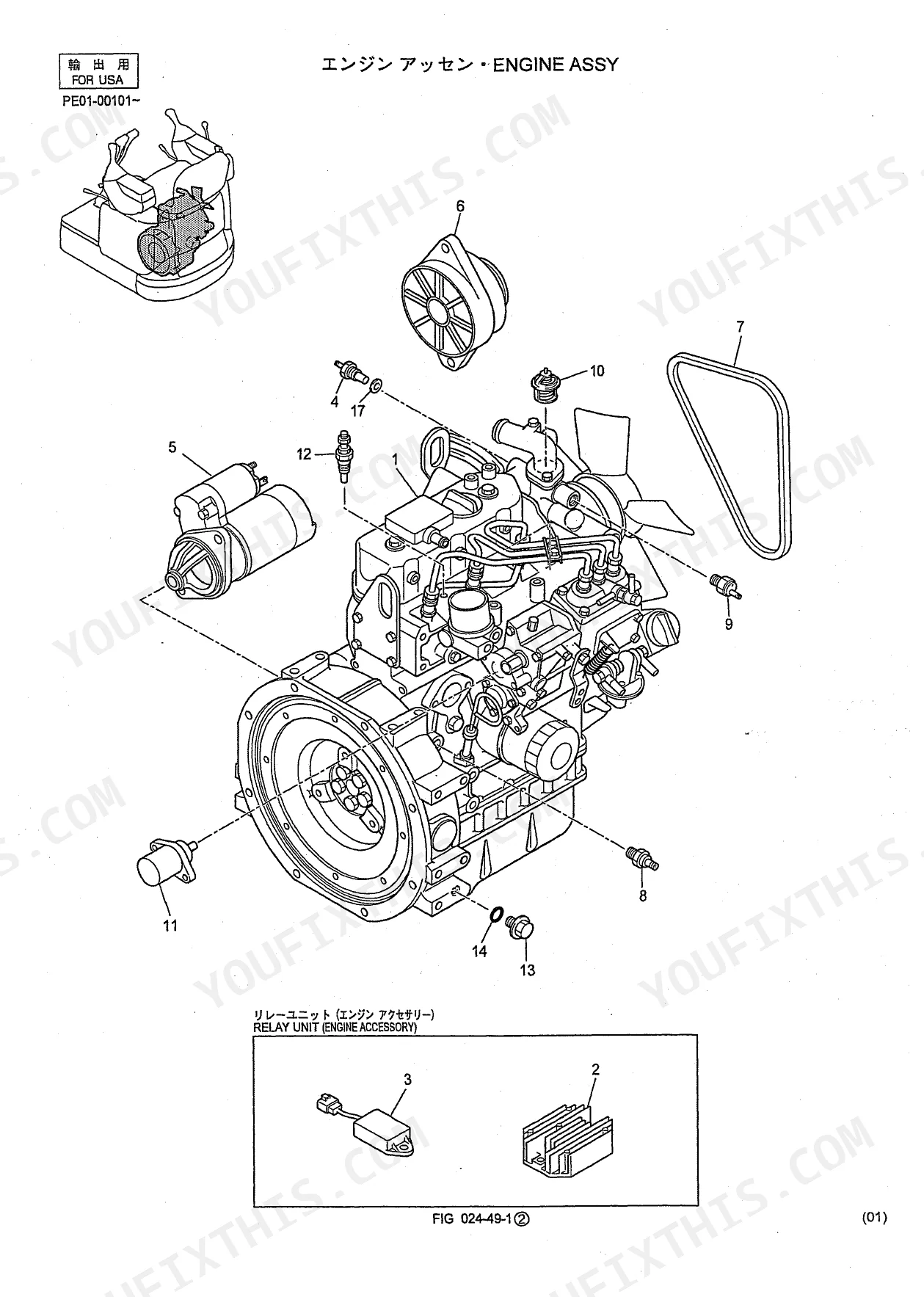

| System | Pages | Key Topics |
|---|---|---|
| General Maintenance Items | 15-20 | Filter List, Nut and Sleeve Parts, Paint Color |
| Superstructure | 21-112 | Frame Assy, Upper, Bracket Assy, Swing, Counter Weight, Installation, Engine Assy, Control Assy |

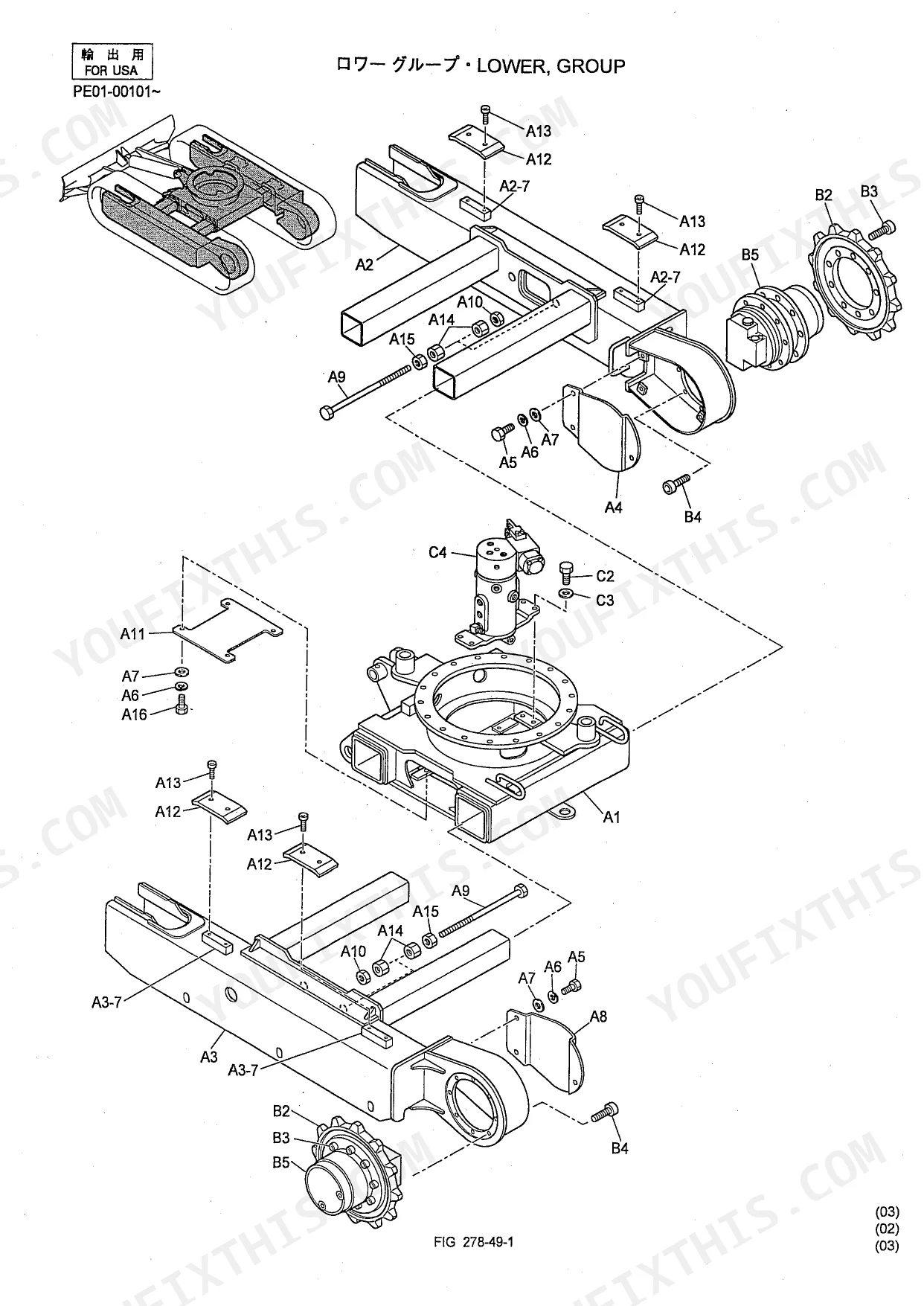

| Undercarriage | 113-132 | Panel Assy, Instrument, Lower, Group, R/H, Cylinder Installation, Ring Assy |

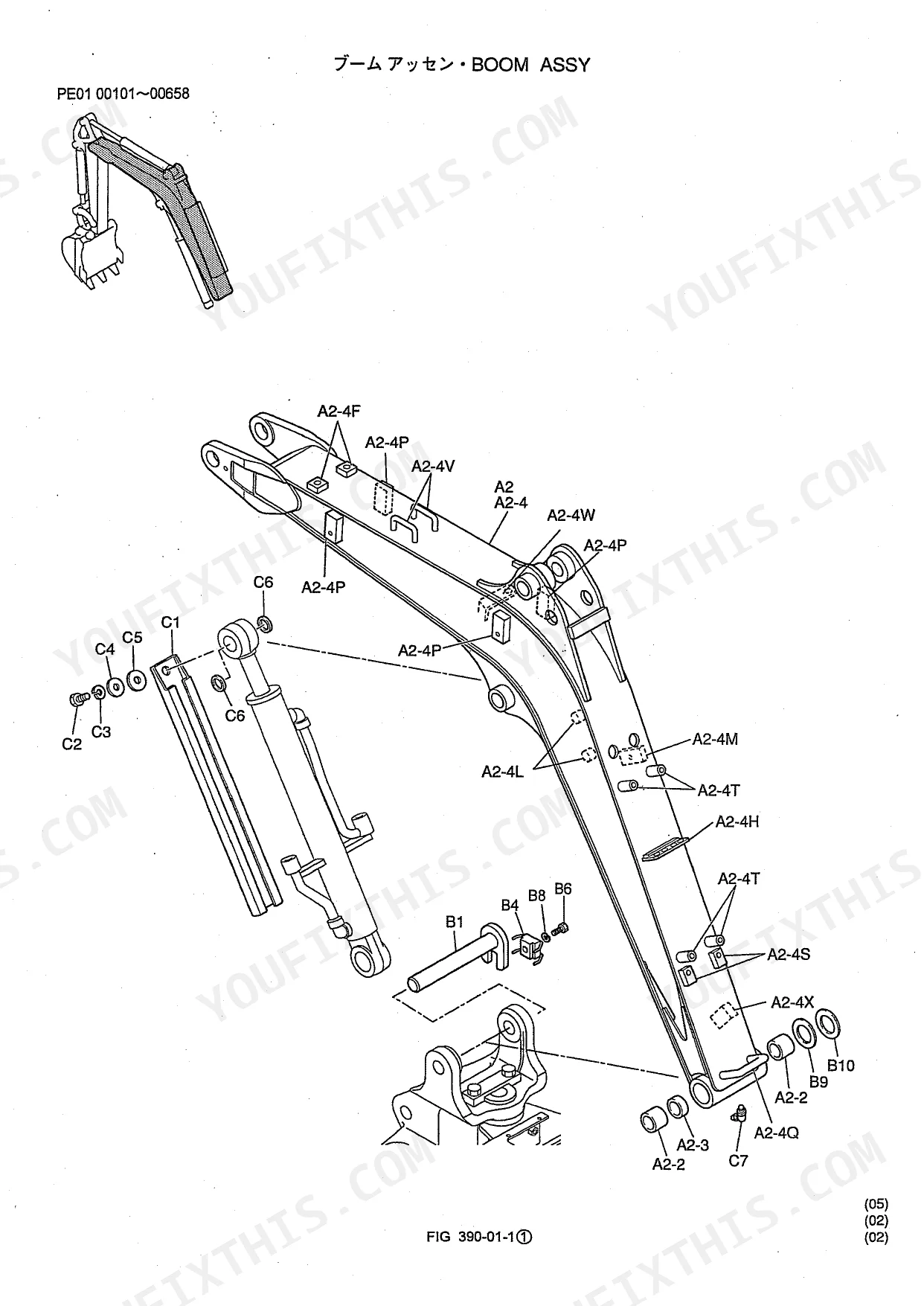

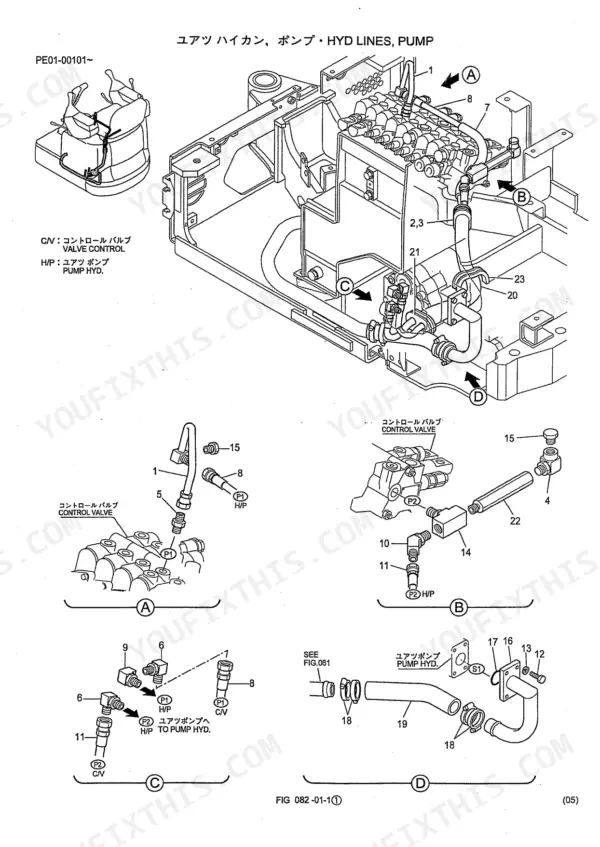

| Attachments | 133-156 | Boom, Assy, Hyd Lines, Arm Assy, Breaker |
| Tools and Spare Parts | 157-158 | Working Light Assy, Tool Assy |
| Optional Parts | 159-168 | Lever Assembly, Harness Assembly |
| Name-Plate | 169-176 | Name Plate Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| O-Ring 1A P-10A | 1A P-10A | p. 303 |
| Seal Washer 8S | 8S | p. 303 |
| Main Bearing US=0.25 | 0.25 mm | p. 279 |
Kobelco SK13SR Common Problems This Manual Covers
Kobelco SK13SR 3TNE68 main bearing part number unclear for undersize 0.25 mm crankshaft journals
Check the Cylinder Block parts list on page 279, where the standard main bearing and the under-size main bearing (U.S=0.25, 0.25 mm) appear as separate lines, quantity 4 each. Pull the thrust bearing (quantity 2) and the cylinder head gasket from the same page so the block order is complete in one shot.
Manual Section: Cylinder Block p. 279Crankpin bearing and oversize piston ring set part numbers hard to find for engine rebuild
Open the Crankshaft & Piston parts list on page 291. The crankpin bearing is listed in standard and U.S=0.25 under-size, while the piston assembly and ring set are listed in O.S=0.25 over-size, quantity 3 each. Read the remarks column codes, (2) under-size and (3) over-size, before you place the order.
Manual Section: Crankshaft & Piston p. 291Engine lube oil filter and switch (oil pressure) replacement part numbers hard to locate
Check the filter list in General Maintenance Items starting on page 15, then confirm it against the Lubrication Oil System parts list on page 293. That page lists the lube oil filter, the oil pump assembly and its gasket, the dipstick, the oil pressure valve assembly and the switch (oil pressure). Add the oil intake pipe O-ring to the same order.
Manual Section: Lubrication Oil System p. 293Cooling water system thermostat, V-belt and radiator cap part numbers hard to match
Pull up the Cooling Water System exploded view on page 294 and its parts list on page 295. The list covers the C.W. pump assembly with gasket and O-ring, V-belt, fan, thermostat with cover and O-ring, radiator cap, sub-tank cap and the 110°C thermo switch. Match each reference number on the drawing to the list before you order.
Manual Section: Cooling Water System p. 295Fuel injection valve seal washers and fuel line O-rings needed, correct size unclear
Check the Fuel Injection Valve parts list on page 301, which shows seal washer 14S as part 22190-140002, quantity 3. Page 303 lists O-ring 1A P-10A as part 24311-240100 and seal washer 8S as part 22190-080002, quantity 2. Order these sealing parts together so the job is not held up by one missing washer.
Manual Section: Fuel Injection Valve p. 301Valve stem seals and bonnet gasket part numbers needed for cylinder head reseal
Check the Cylinder Head & Bonnet parts list on page 285. It shows the valve stem seals and valve guides (quantity 6 each), the nozzle gaskets, the bonnet gasket and the glow plugs, and it flags the valve guide as a repair part. The head gasket is in the Cylinder Block list on page 279, so build your order from both pages.
Manual Section: Cylinder Head & Bonnet p. 285Frequently Asked Questions
What are the replacement specs for the hydraulic return and suction filters on the Kobelco SK13SR?

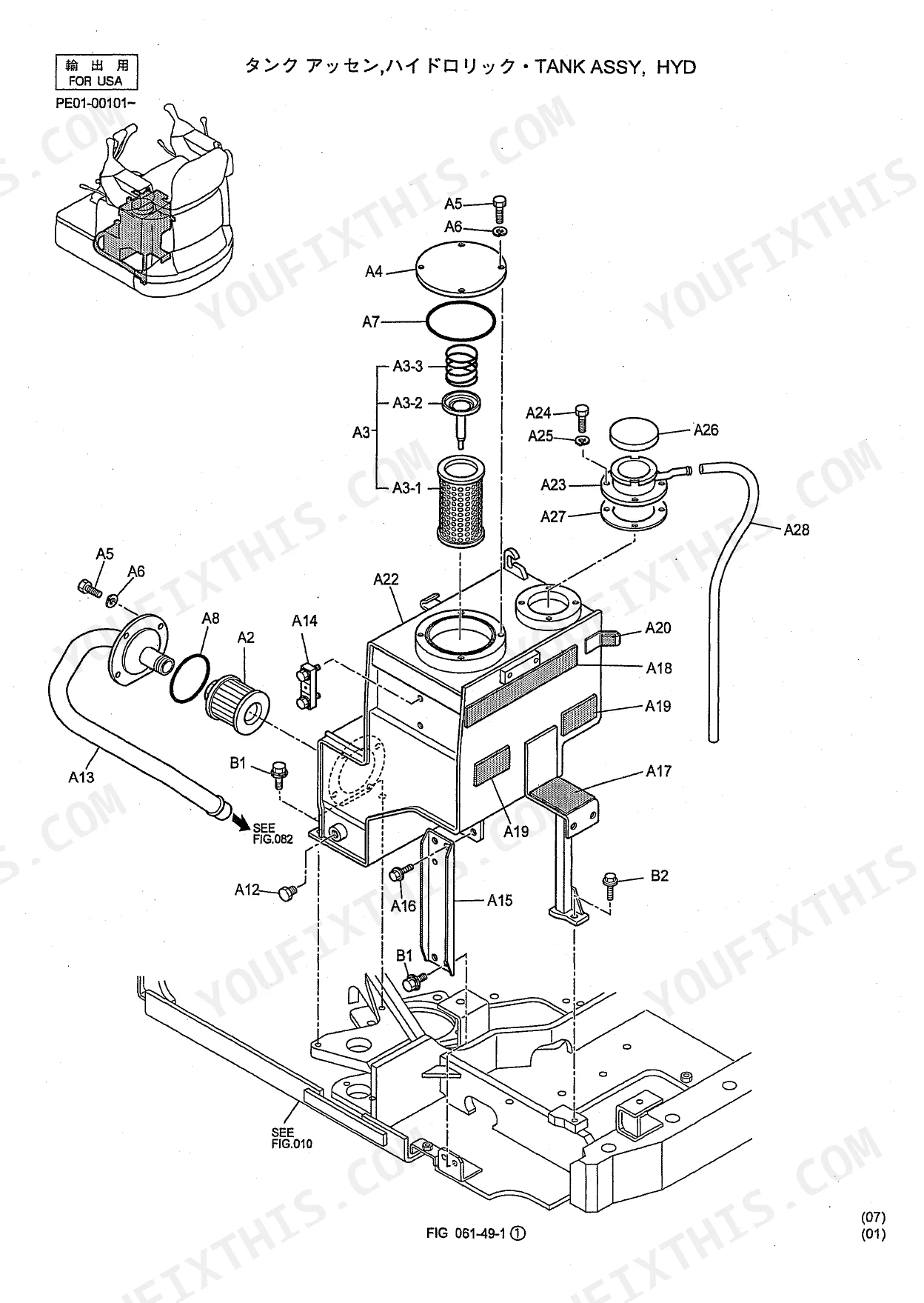

The hydraulic system uses a return filter (Part No. PA33H01040P1) and a suction strainer (Part No. PA33H01015P1). Both are required in a quantity of one for the filter list. p. 16
What are the replacement specs for the fuel filter and water separator elements on the Kobelco SK13SR?
The fuel system requires an element kit for the fuel filter (Part No. 124550-55700) and an element for the water separator (Part No. 171081-55910). p. 16
What is the part number for the engine oil-filter element kit on the Kobelco SK13SR?
The engine oil-filter element kit is part number 119305-35150, listed in the filter list on page 16. p. 16
What is the part number for the fuel injection valve seal washer on the Kobelco SK13SR?
The fuel injection valve seal washer is part number 22190-140002, quantity 3, on page 301. p. 301
What is the set pressure for the relief valve on the Kobelco SK13SR?
The relief valve set pressure is 35 kgf/cm² at 15 L/min. p. 257
Do I get instant access to this Kobelco SK13SR Parts Catalog?
A 320-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this Kobelco SK13SR manual?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.
