Kobelco SK15SR SK20SR Repair & Parts Manual [Excavator]

Included 4 manuals:

SK15SR SK20SR Workshop Repair Manual [Excavator]Pu06001- Pm02001-
SK15SR Parts Manual [Excavator] Pm02001 S4pml004 9312
SK15SR Parts Manual [Excavator] Pm0350103654 S4pml006 9312
SK15SR Parts Manual [Excavator] Pu0700107254 S4pul0119312

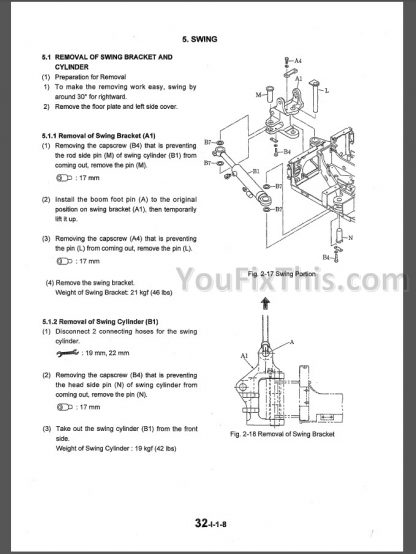

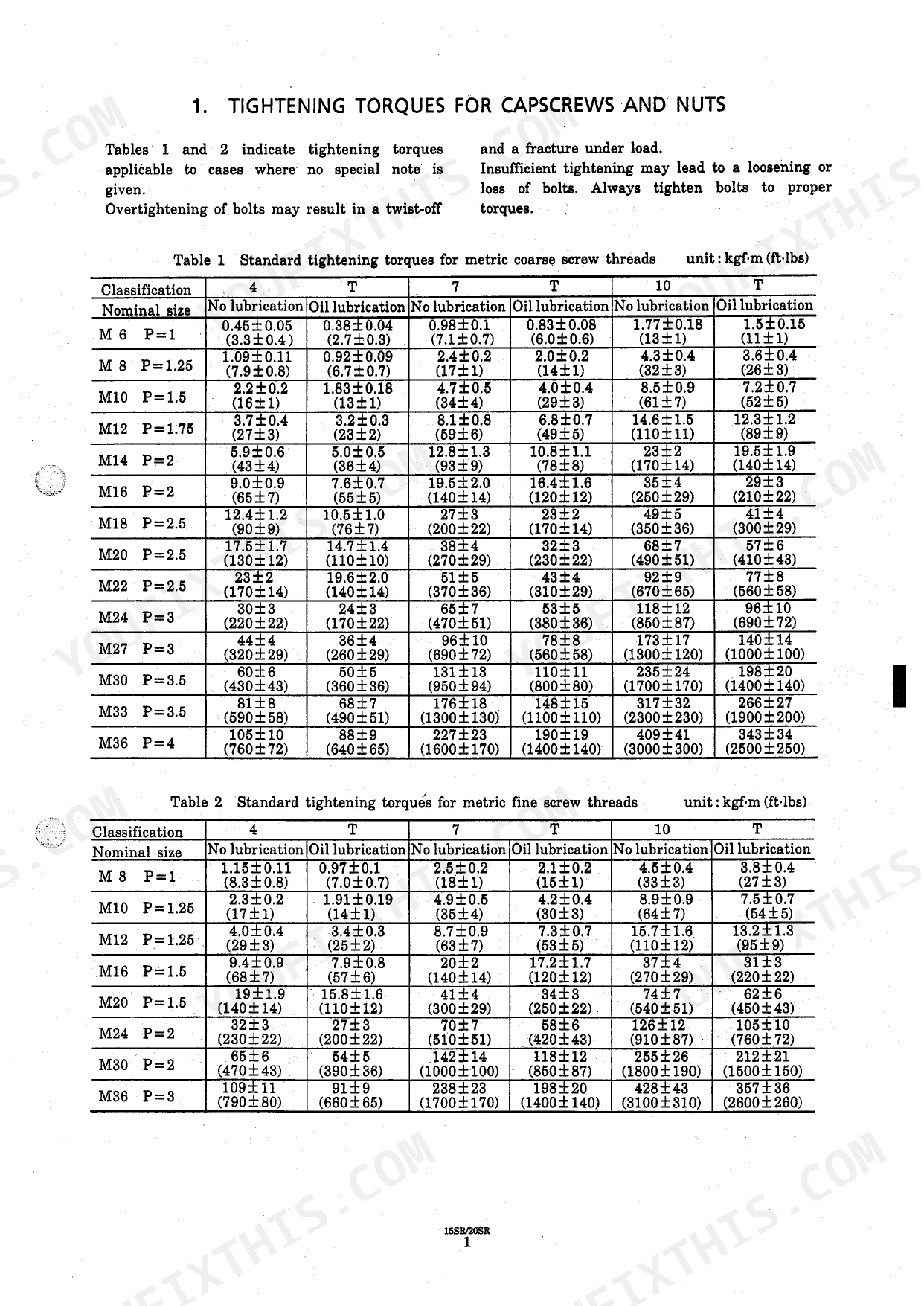

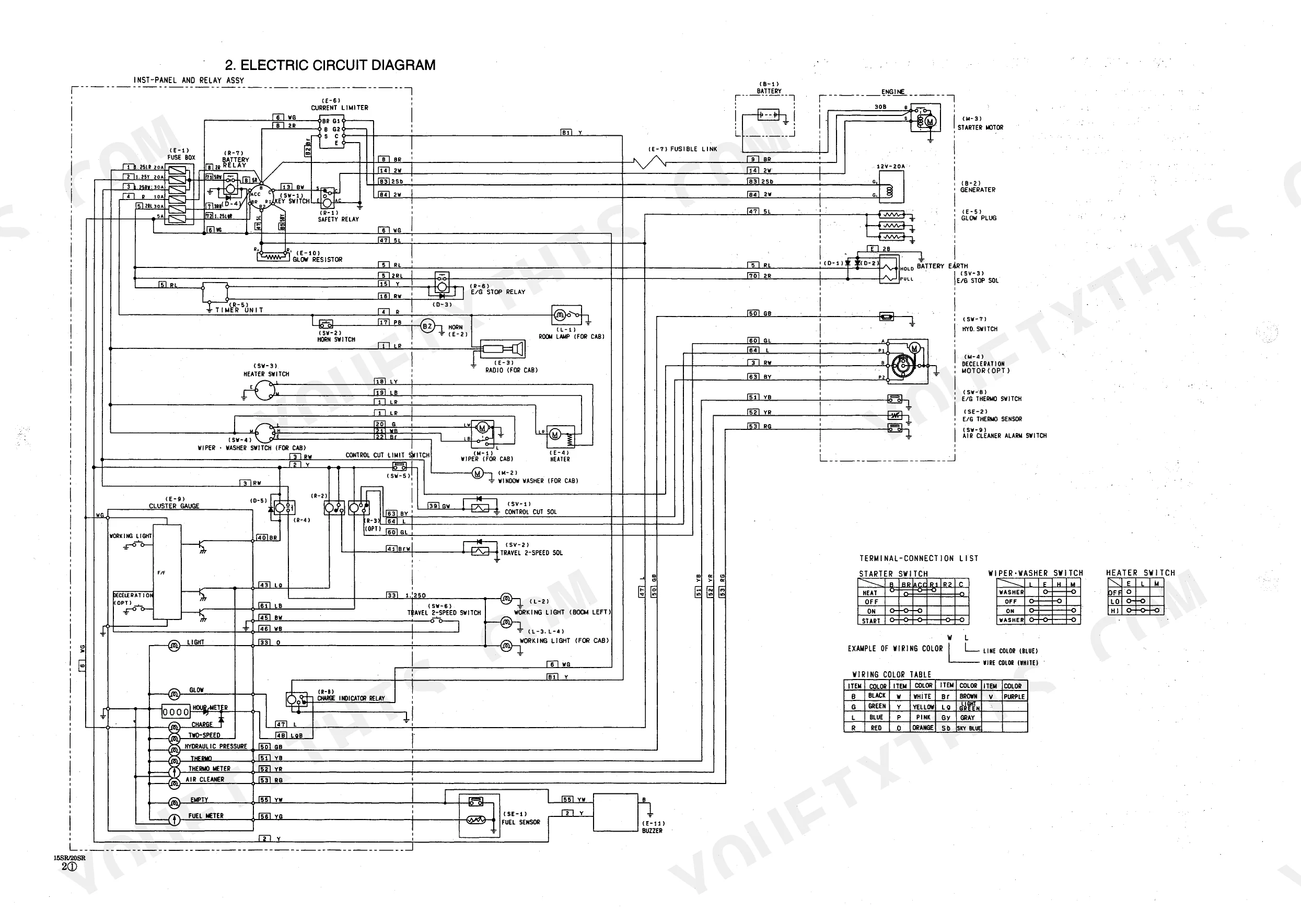

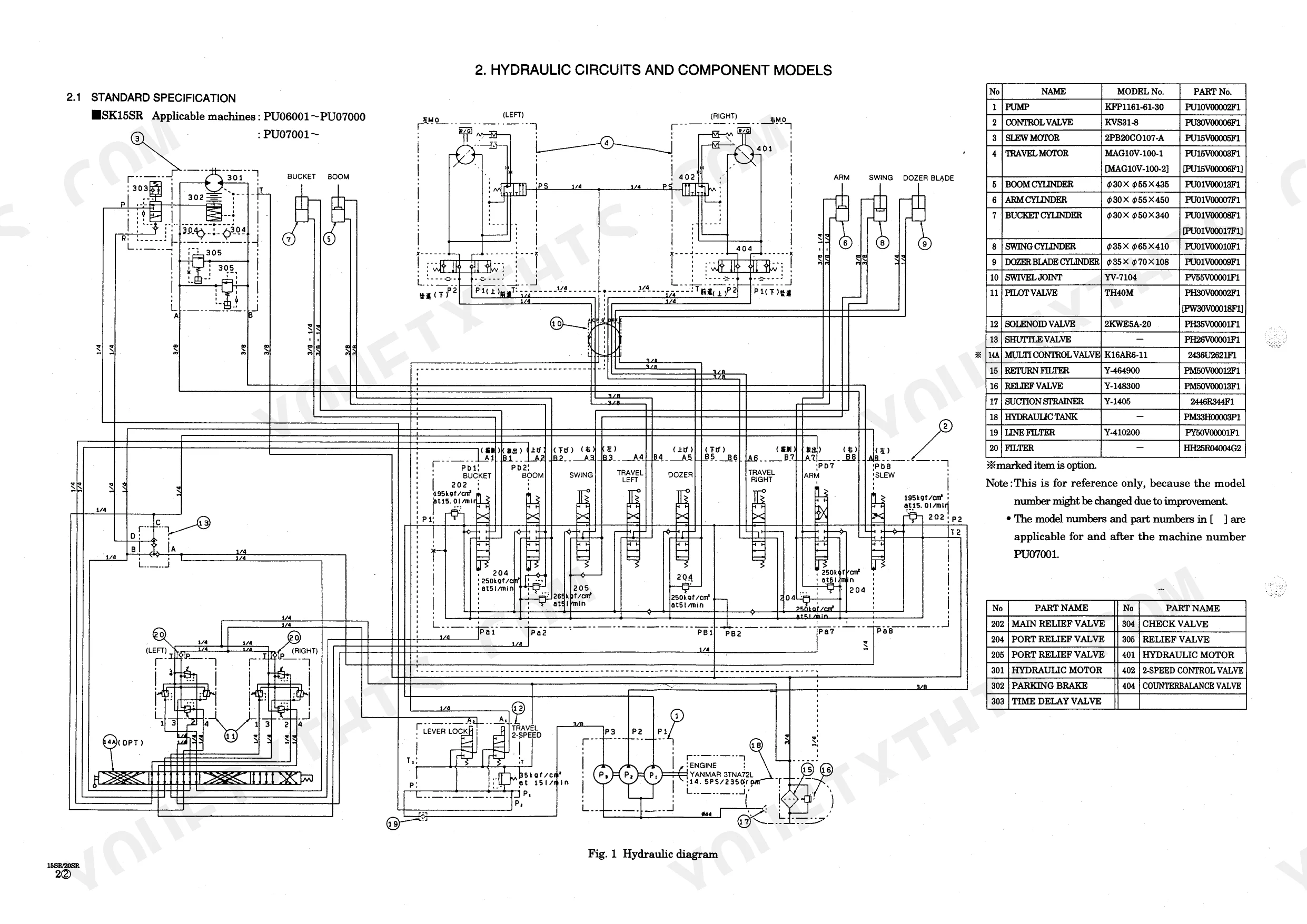

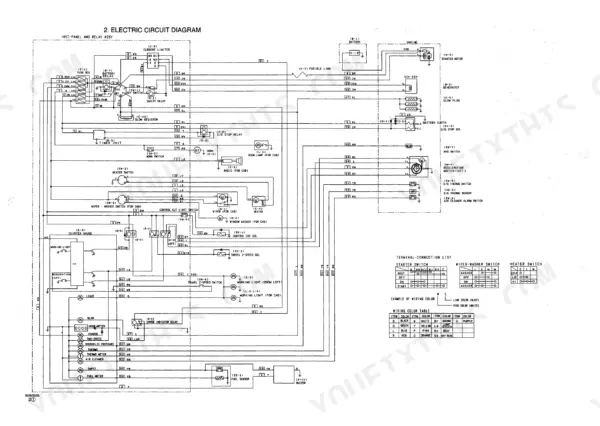

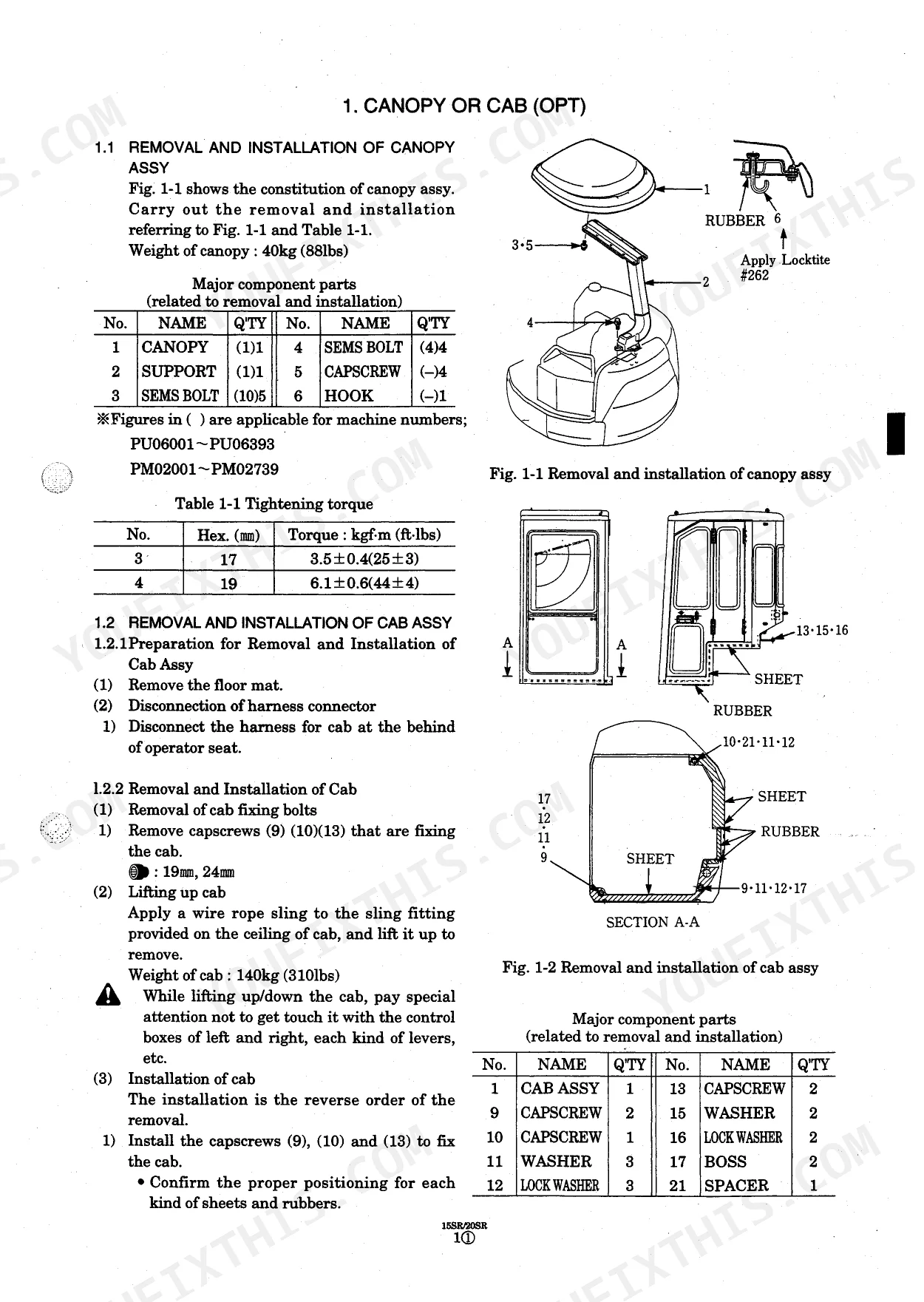

Factory Service Repair Manual For Kobelco SK15SR SK20SR Excavators. Special tools, Specifications, Preliminary Work, Removing, Disassembling, Exploded View, Assembling, Adjusting, Reconditioning, Installing procedures included in almost every chapter. Guaranteed Highly detailed Hydraulic Circuits, Wiring Diagrams and Parts illustrations, instructions.

PDF Manual:

Instant download – You will receive the link for download on your email immediately after payment.
Lifetime PDF and access to download (by request)
Compatible with Windows, Mac, IOS, Android and other systems
Searchable Text and Built-in index for instant information search
Printable – pages or entire manual
Zoomable – detailed exploded diagrams, picture
Models

Kobelco
SK15SR
SK20SR

Contents

Repair Manual

SK15SR : PU06001 –
SK20SR : PM02001 –

This is the shop manual for KOBELCO hydraulic excavator. Contained is the necessary technical data concerning the maintenance and repair of this model. The manual is divided into the following four major sections :

GENERAL

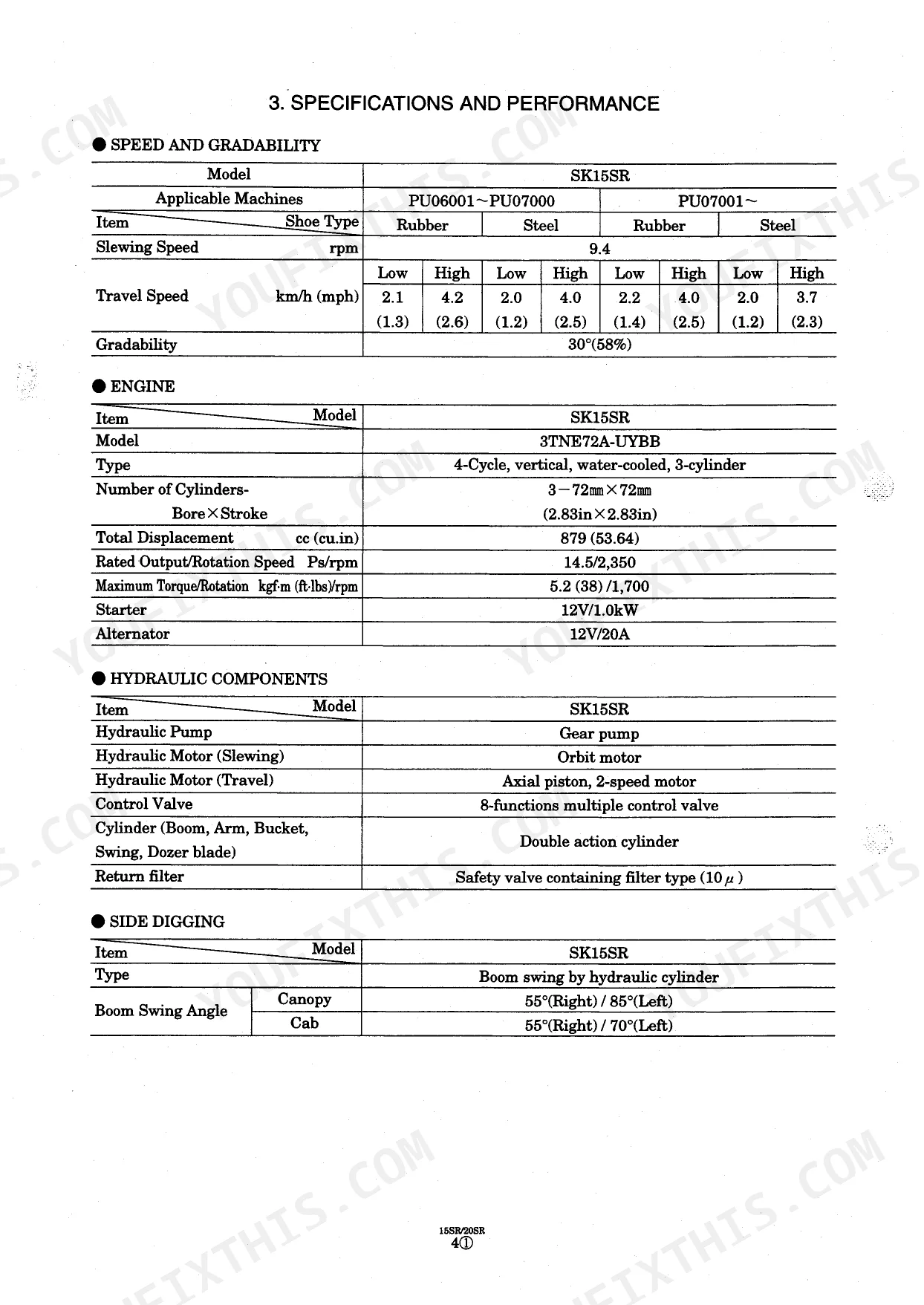

Specification
Operation And Controls (Refer To Operators Manual)
Location And Weight Of Components
Maintenance Standard And Test Procedure
Preventive Maintenance (Refer To Operators Manual)
Working Standard
SYSTEMS
Hydraulic System
Upper Structure
Travel System
Attachments
Control System
Electric System

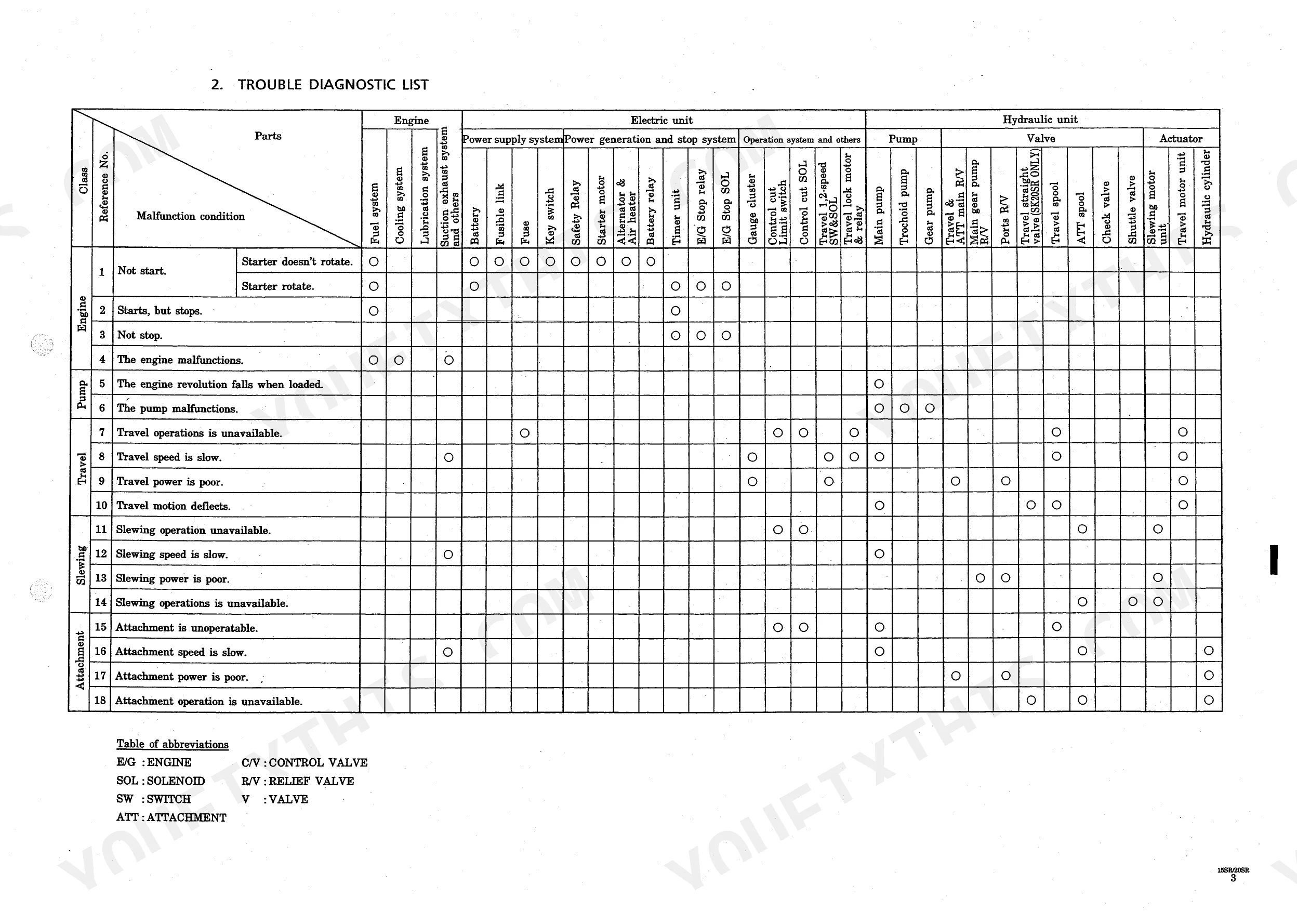

Trouble Shooting
COMPONENTS
Hydraulic Pump
Control Valve
Other Valves
Hydraulic Motor
Swivel Joint
Hydraulic Cylinder
Engine
PROCEDURE
Parts Manual

SK15SR PU07001 ~07254
SK20SR PM02001-
SK20SR PM03501 ~03654

GENERAL MAINTENANCE ITEMS
UNDERCARRIAGE
SUPERSTRUCTURE
ATTACHMENTS
TOOLS AND SPARE PARTS
OPTIONAL PARTS
NAME – PLATE
PARTS INDEX
HYDRAULIC COMPONENTS
ENGINE COMPONENTS

Exmp:

The swash plate (5) has 3 planes, A, B and C, as shown in the figure, and it is assembled in such a way that its angle of inclination in the flange holder (15) can varied by two steel balls (14). When the 2- speed control valve is switched to the 1st speed side, the swash plate control piston chamber is connected to tank port and the swash plate (5) is stabilized at plane A, forming swash plate angle a , by the piston assembly (16) and the force of the springs (17), (18), achieving 1st speed (low speed) motor rotation. When the 2- speed control valve is switched to 2nd speed, the swash plate control piston chamber (27) is connected to the motor drive Reduction Gear Operation The reduction gear consists of a 2-stage planetary gear mechanism. The drive gear (19) is engaged with the 1st stage planetary gear A (20). The 2nd stage sun gear (21) is engaged with the holder (22) and 2nd stage planetary gear B (23) and the shaft (4) of planetary gear B (23) is fastened to the flange holder (24). Planetary gears A (20) and B (23) are also engaged with the ring gear (housing) (25). Driving force from the hydraulic motor is transmitted to the drive gear and the speed is reduced by each of the gears. The driving force is then transmitted to the ring gear (housing) (25) via planetar)’ gear B (23), fastened to the flange holder (24) at the final stage. (Torque is also transmitted from the 1st stage planetary gear A (20).) Furthermore, the direction of output rotation is opposite that of input rotation.
