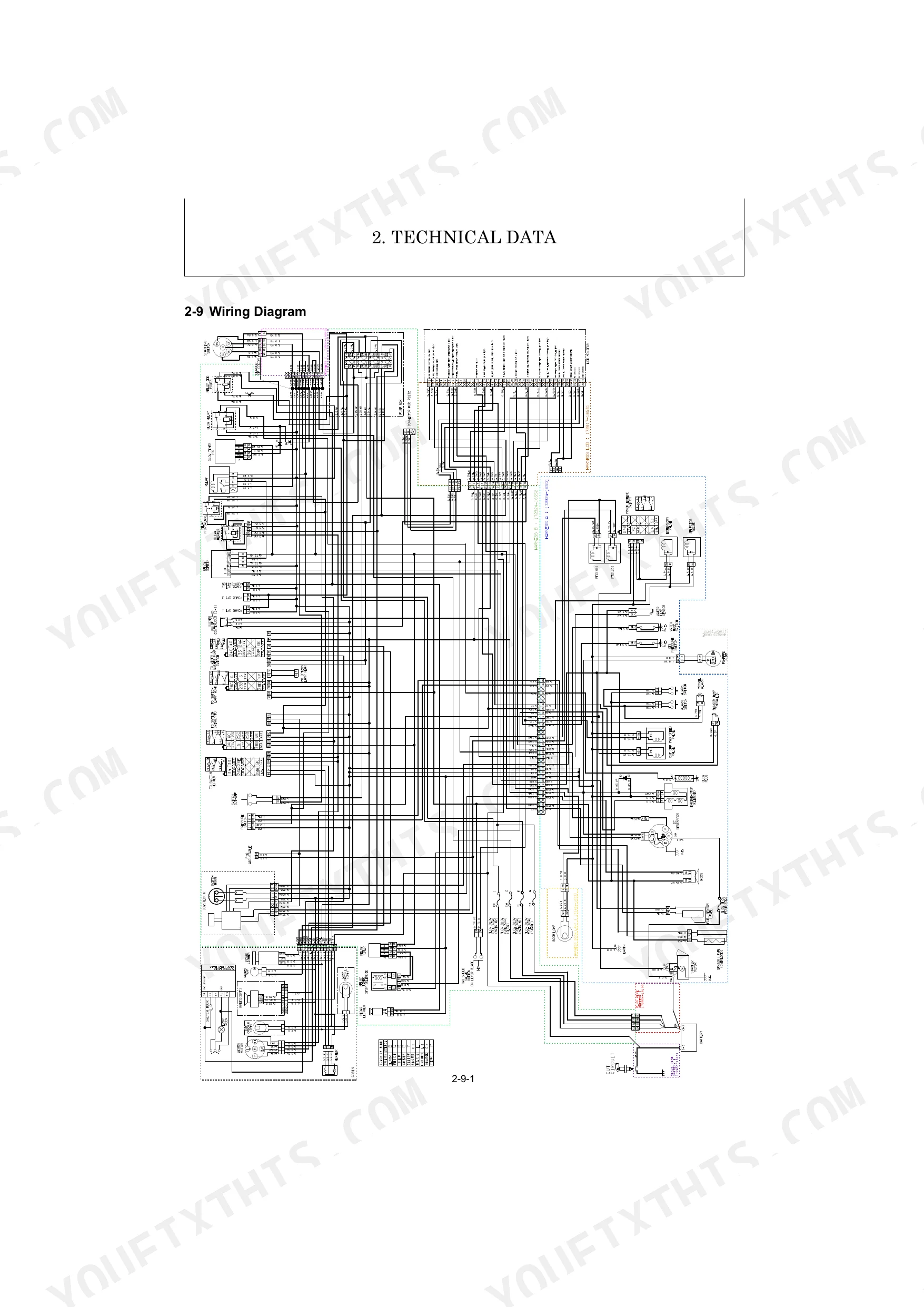

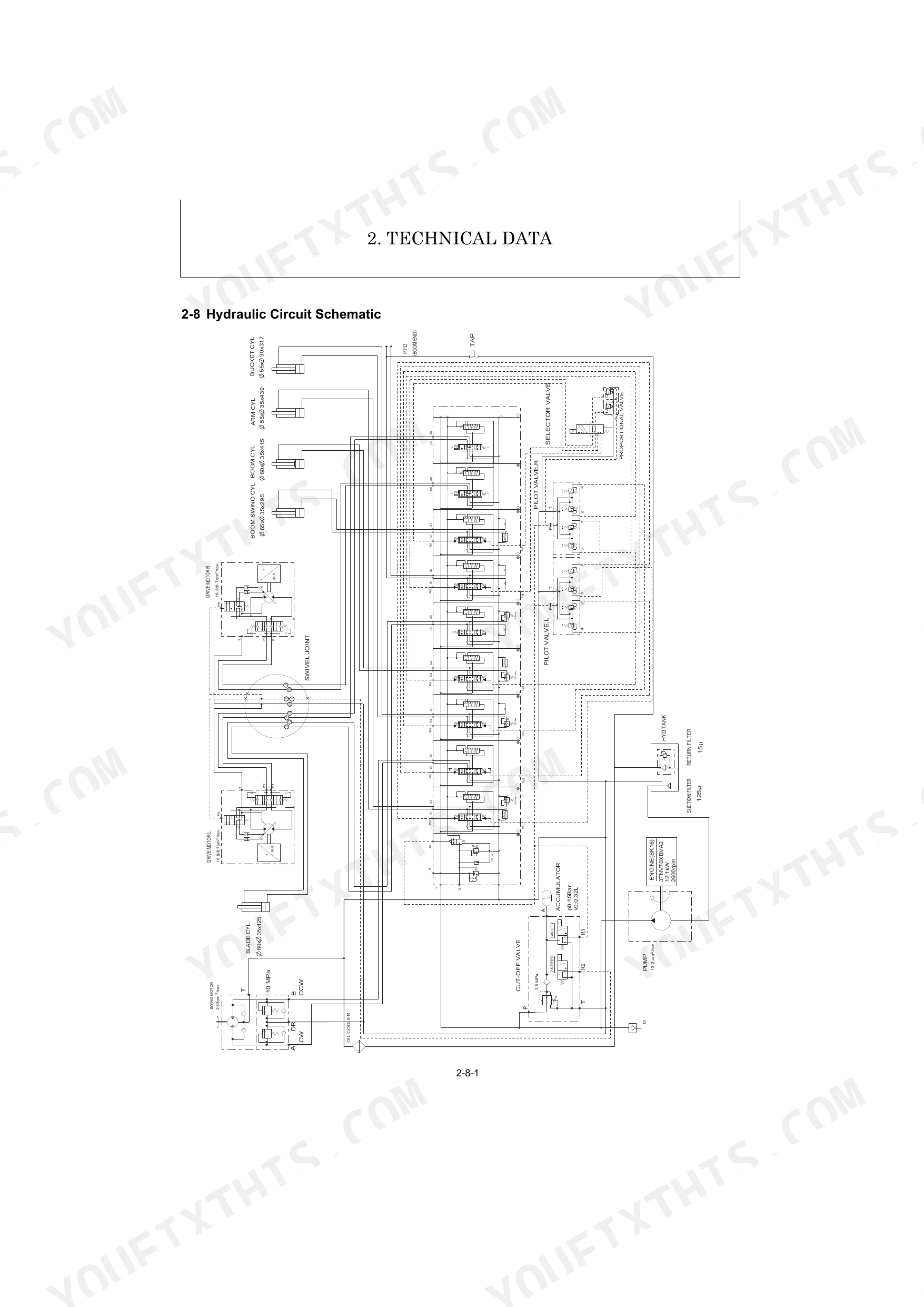

All 401 pages of this Kobelco SK16 shop manual PDF (OEM #S5PFA101E) are built around one machine: the SK16 PFA1 mini excavator, covered from fuel injection timing through hydraulic circuit operation and complete electrical wiring. Inside you get hydraulic schematics mapping every flow path across boom, arm, bucket, swing, travel, and P.T.O. circuits, plus wiring diagrams for the starter motor, alternator, and LCD monitor alarm system. A complete error code list and multi-branch troubleshooting trees address engine, implement, swing, and travel faults. Replace the hydraulic return filter every 250 hours; the bypass valve cracks at 0.15 MPa, and M10 fasteners torque to 46-54 N·m across the machine. Your machine is down and forum threads won't fix it. Bookmarked by section and keyword-searchable, this PDF opens on any device - pull it up at the machine and get the factory answer on the first try.
What's Inside This Kobelco SK16 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 4-15 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

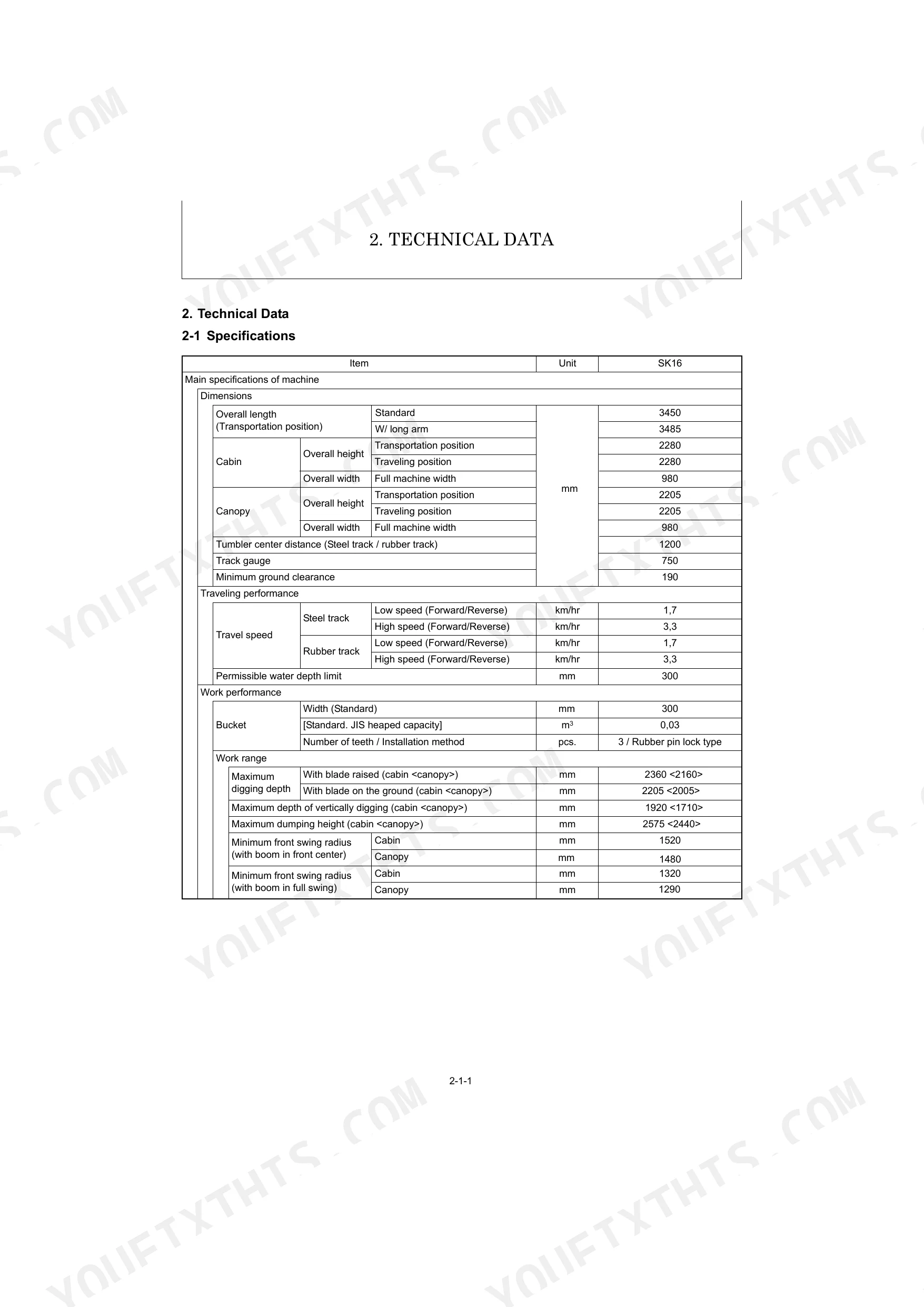

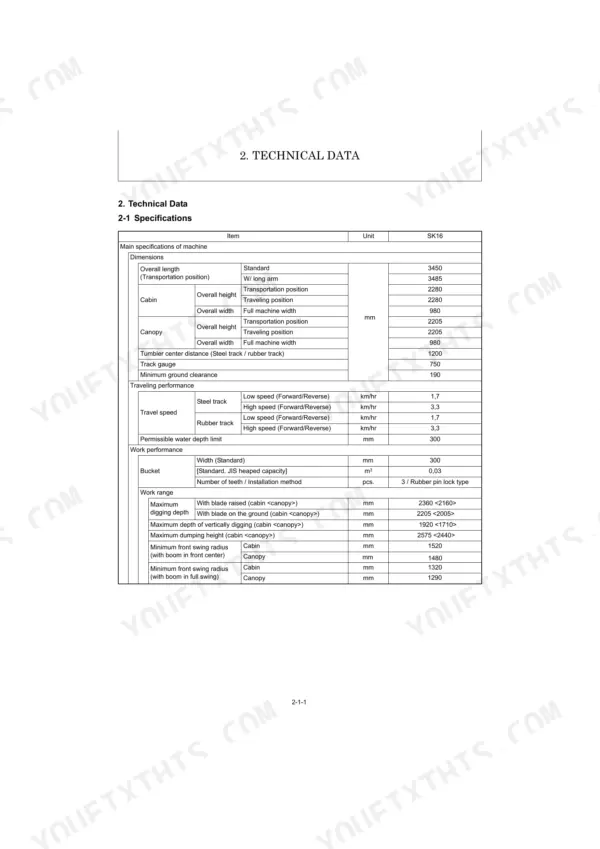

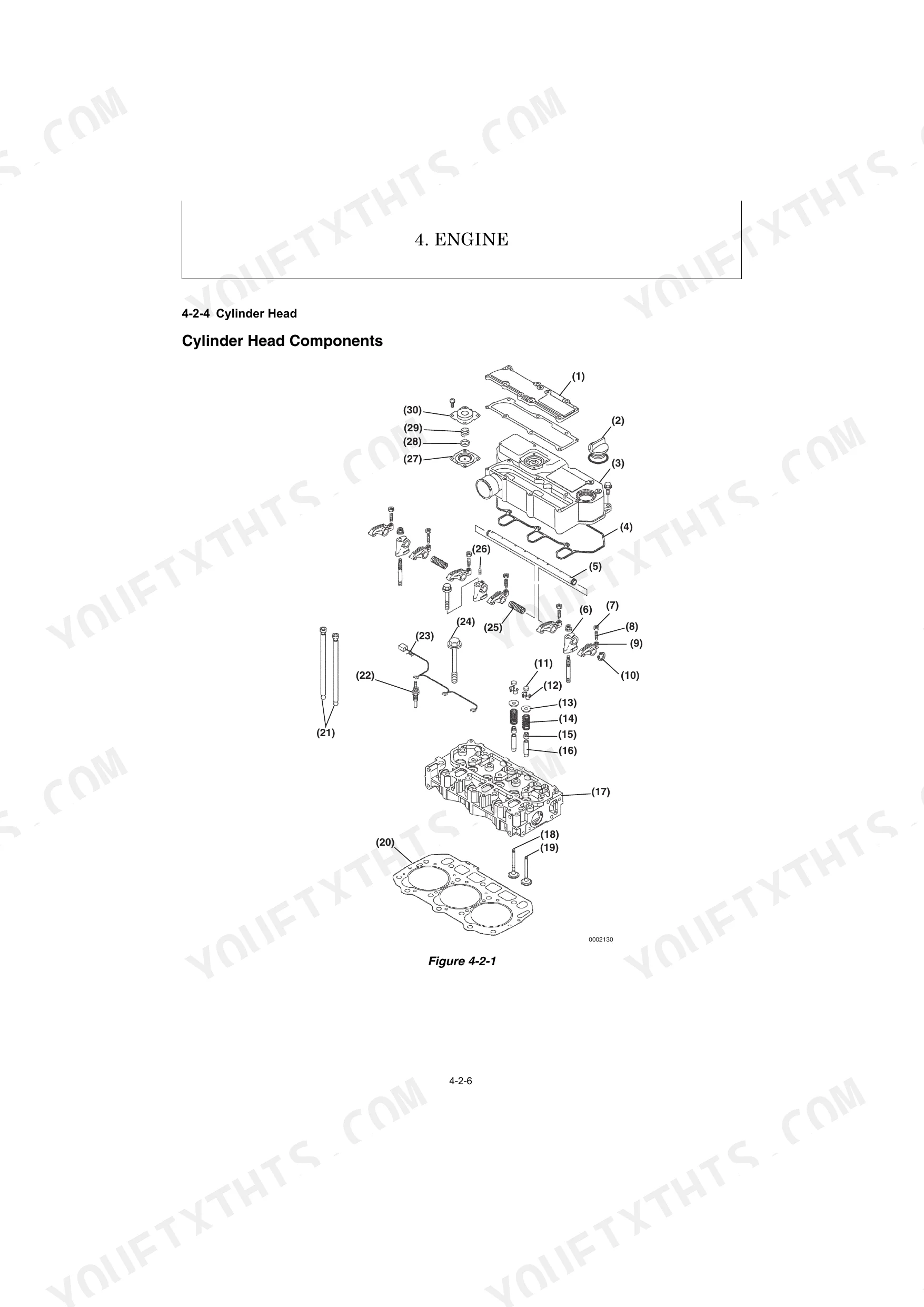

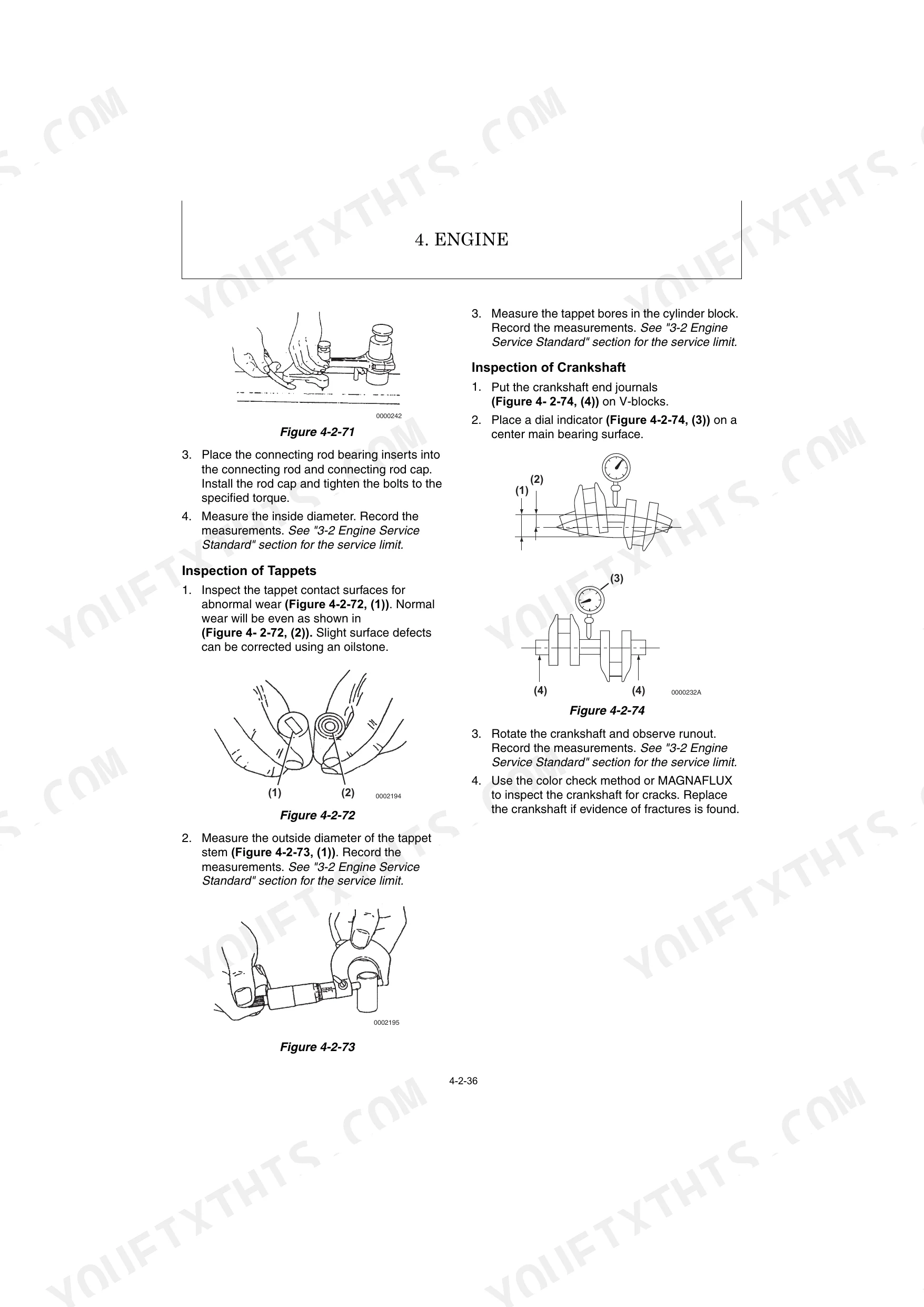

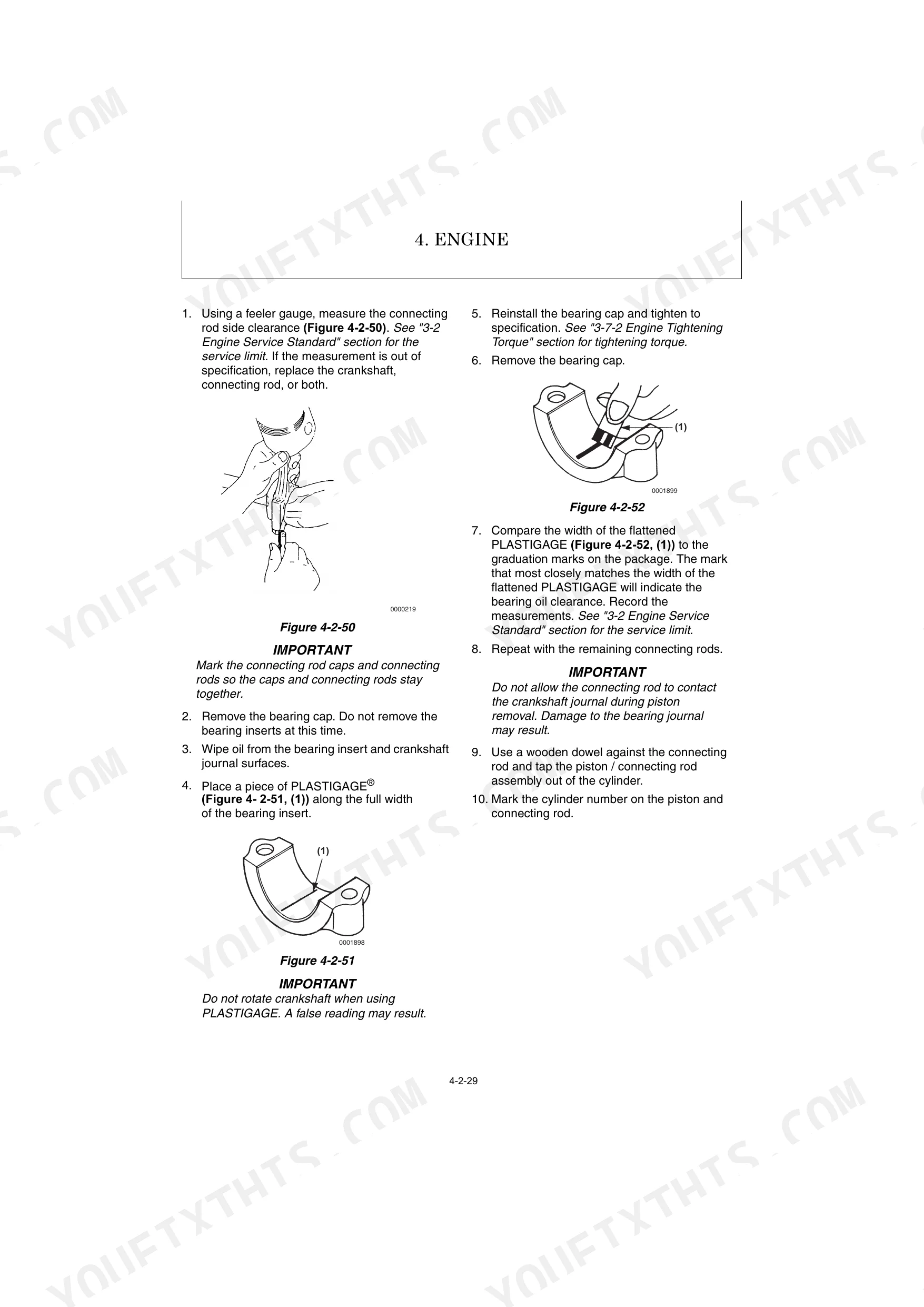

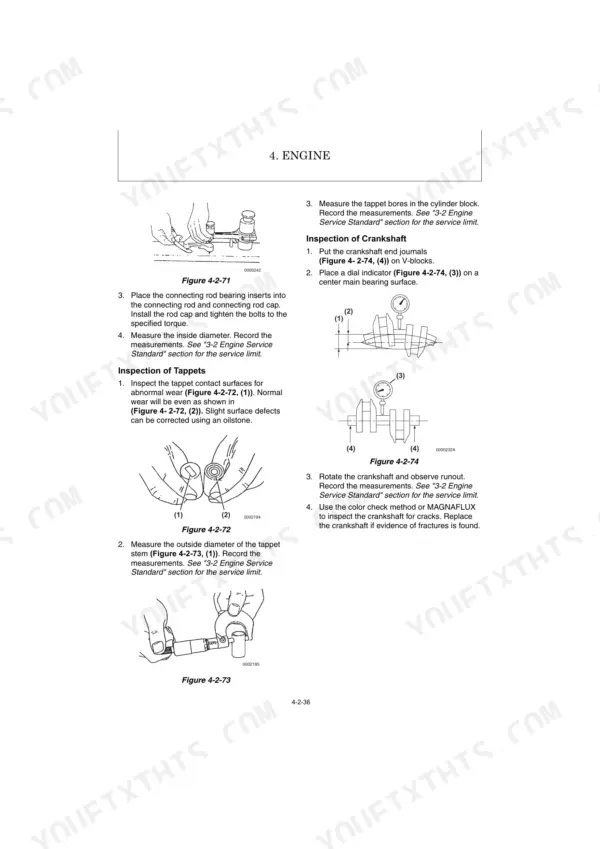

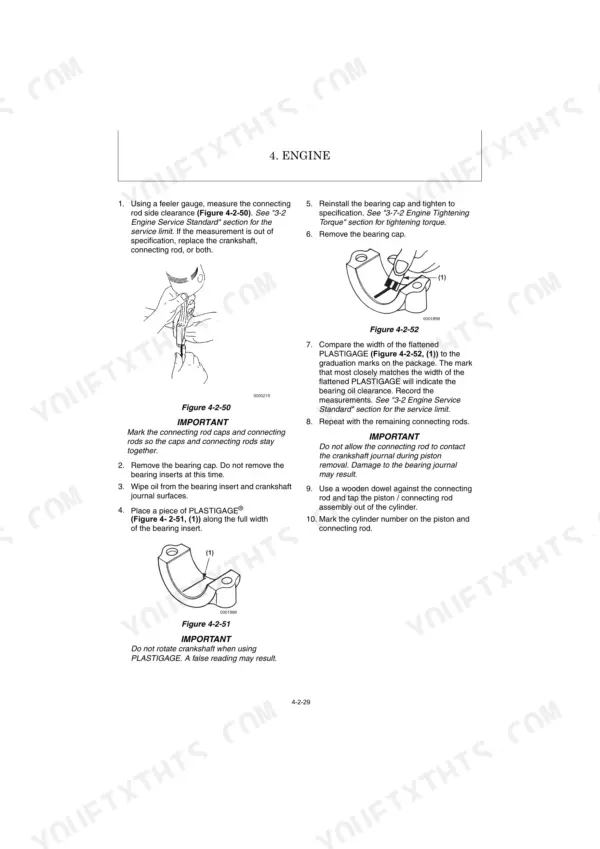

| Technical Data | 16-37 | Specifications, Outline Drawing and Working Area, Weight List of Main Parts, Lifting Capacity List (Cabin, Canopy), Specifications for Attachment, Periodic Inspection and Servicing |
| Service Standards | 38-63 | Machine Performance, Undercarriage (Rubber Track Specifications), Controls, Hydraulic Equipment (Hydraulic Cylinders), Implement (Front Attachments, Blade Moving Device) |
| Engine | 64-197 | Safety, Fuel System, Cooling System, Lubrication System, Starter Motor, Alternator, Electric Wiring |
| Electric System | 198-217 | Electric Equipment of Machine (Parts Layout of Electrical Equipment, LCD Monitor and Alarm Systems), Circuit Description of Engine Start and Stop (Battery Charge), Error Code List |

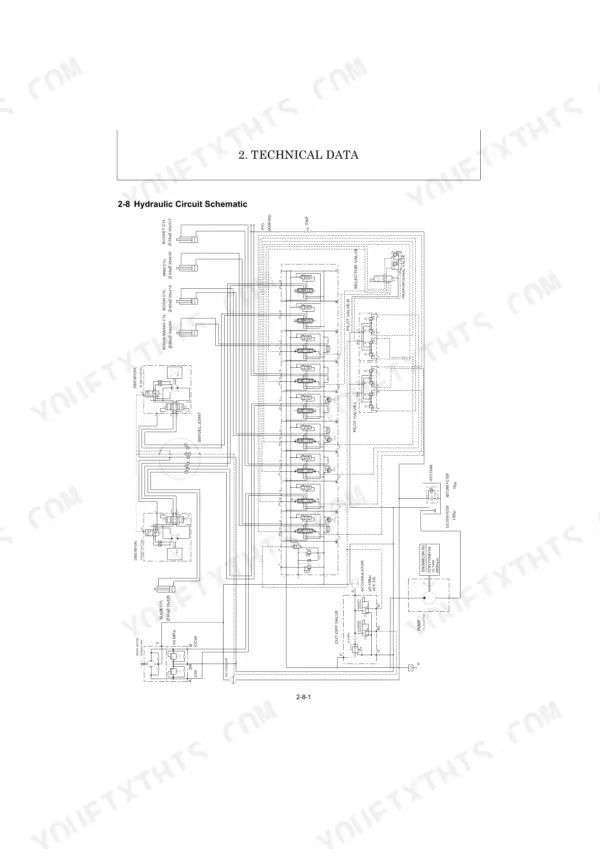

| Hydraulic System | 218-307 | Outline, Circuit Operation (Boom, Arm, Bucket, Swing, Boom Swing, P.T.O., Blade, Travel) |
| Adjustment and Repair | 308-371 | Engine and Electric Equipment (Removal Reinstallation: Starter Motor, Fuel Injection Pump, Fuel Tank, Radiator) |
| Troubleshooting | 372-401 | Non-Breakdowns |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

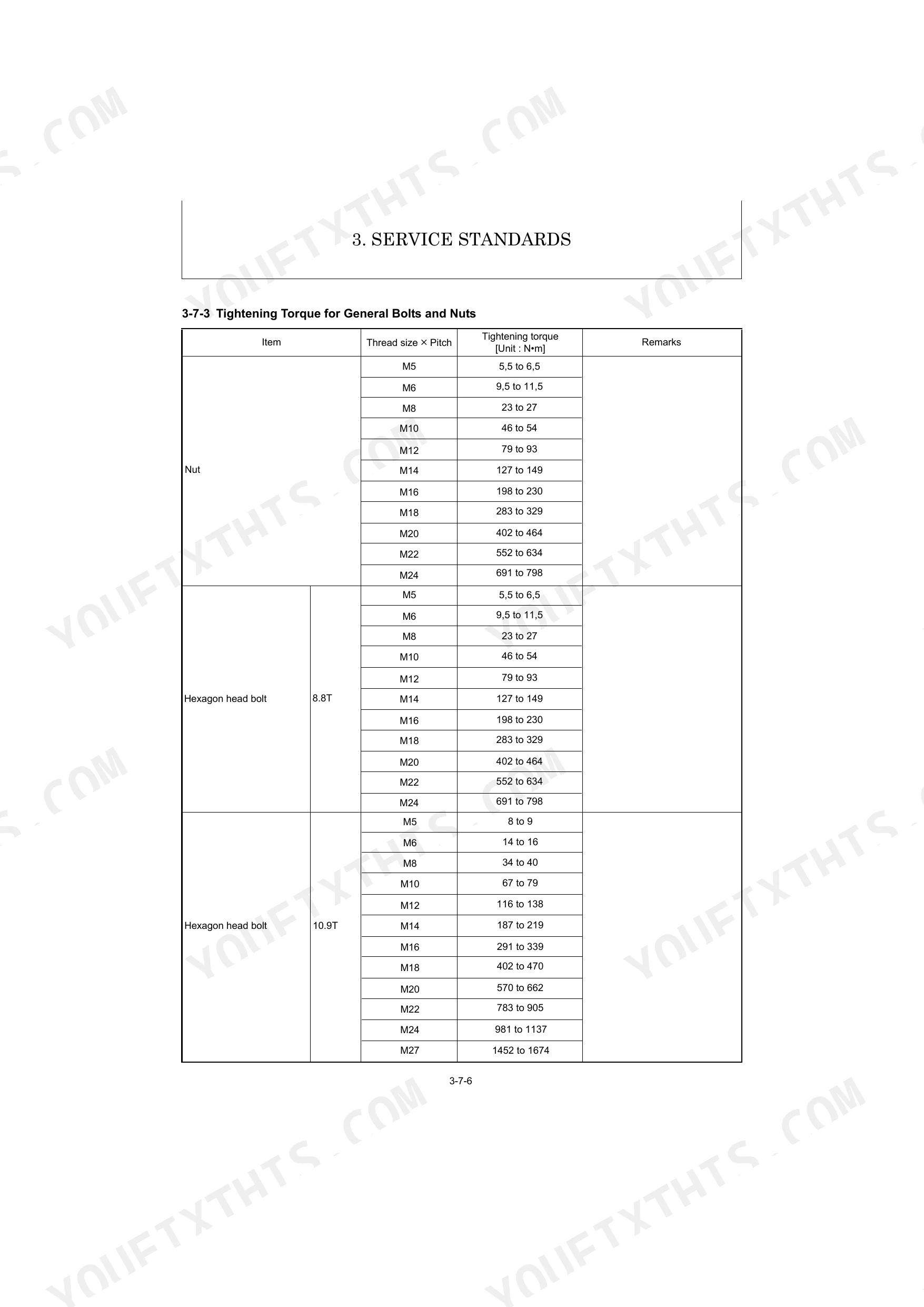

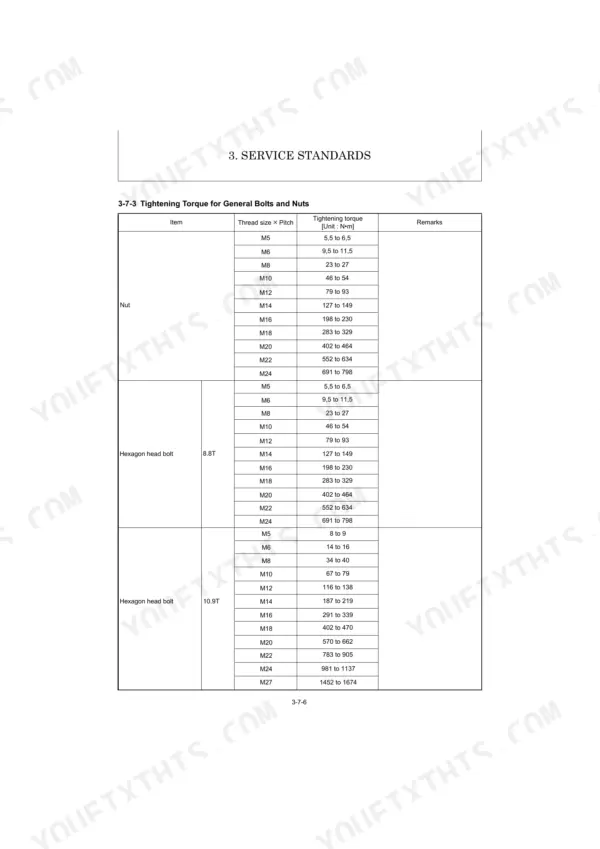

| Tightening torque for Hexagon head bolt 8.8T (M10) | 46 to 54 N·m | p. 58 |
| Suction filter filtration accuracy | 125 u | p. 20 |
| Return filter filtration accuracy | 15 u | p. 20 |
| Fuel filter filtration area | 432 cm² | p. 23 |
| Fuel filter type | Filter paper element | p. 23 |
| Battery type (JIS) | 65B24 | p. 24 |
| Battery voltage - 5 hrs rate capacity | 12-45 V - Ah | p. 24 |
| Starter motor nominal output | 12 - 1.4 V - kW | p. 24 |
| Starter motor pinion coming out voltage | ≦8 V | p. 32 |
| General seal replacement instruction | Use new seals, split pins, etc. for reassembly | p. 4 |
| Hose working pressure (2489 to 2986 psi) | 17.2 to 20.6 MPa | p. 9 |
| Hose nominal diameter (3/8") | 06 | p. 9 |
Kobelco SK16 Common Problems This Manual Covers
Kobelco SK16 hydraulic functions slow or stalling under load, bucket won't lift to full height p. 387
Check hydraulic oil level first — tank capacity is 20.0 L, top off if low. Replace the return filter if you're past the 250-hour interval; its bypass valve opens at 0.15 MPa, meaning contaminated oil bypasses filtration entirely. Inspect hoses rated to 17.2 to 20.6 MPa for cracks or weeping. If flow is still weak after servicing fluids and filters, verify system relief pressure against the 17.6 MPa set point on page 18 and cross-reference the weak digging force chart on page 387.
Manual Section: Work Implements TroubleshootingEngine won't crank or turns over slowly, especially in cold weather p. 200
Measure battery voltage at the terminals — spec is 12 V, 45 Ah capacity (type JIS 65B24 per page 24). Clean any corrosion and verify terminal torque. If voltage is good but cranking is sluggish, check starter pinion engagement: the pinion should come out at 8 V or higher. Inspect all safety switches (seat, travel) for open circuits. Follow the no-start decision tree on pages 200 to 203 and the starter motor circuit checks on pages 168 to 169.
Manual Section: Engine Troubleshooting Charts (No Start, Low Output, Overheating, Smoke)Engine overheating during operation, coolant temperature alarm active p. 200
Stop work and let the engine cool. Check coolant level against the 2.8 L radiator capacity on page 32; fill to the mark if low. Inspect the radiator core for mud or debris packing — a mini excavator working in tight spaces picks up material fast. Verify the V-belt for tension and wear, since a slipping belt starves both cooling and charging. Refer to the overheating chart on pages 200 to 203 for a step-by-step corrective sequence.
Manual Section: Engine Troubleshooting Charts (No Start, Low Output, Overheating, Smoke)Tracks derailing or machine pulling to one side during travel p. 394
Inspect rubber track lug height — new height is 17 mm, replace when worn to the 8 mm limit per page 46. Measure track roller flange diameter against the 58 mm wear limit on page 48; a worn roller lets the track walk sideways under load. Check sprocket tooth depth against the 20 mm wear limit on page 48. If replacing rollers, torque mounting bolts to 67 to 79 N·m with Loctite 262 per page 54. For straight-line travel diagnosis, use the travel troubleshooting chart on pages 394 to 400.
Manual Section: Travel Equipment TroubleshootingFuel system fault or engine dying shortly after start, fuel sensor error on display p. 212
Replace the fuel filter at the 50-hour interval — it uses a paper element with 432 cm² filtration area per page 23 and clogs fast in dirty fuel environments. Drain and inspect the fuel tank (capacity 24.5 L) for water or sediment. Check for error codes on pages 212 to 216; a fuel sensor short circuit code points to the sender circuit rather than actual fuel level. Bleed air from the injection system if the machine sat idle for an extended period.
Manual Section: Electrical System Error CodesAbnormal grinding or knocking noise from engine, compression feels low on hand-crank
Measure compression pressure at 250 rpm — the specification is 3.24 MPa for the 3TNV70-XBVA2 engine. A reading significantly below that points to valve, ring, or head gasket wear. Check valve clearance and adjust to 0.15 to 0.25 mm as detailed on page 43 before pulling the head. Use the compression pressure quick-reference table on pages 196 to 197 to match your measurement to the most likely corrective action.
Manual Section: Engine Troubleshooting (Compression Pressure)Frequently Asked Questions
What are the torque specs for Kobelco SK16 PFA1 track rollers and undercarriage bolts?
For track rollers, the tightening torque is 67 to 79 N•m for M10x25 10.9T bolts. Loctite 262 or K-965 adhesive should be used for these bolts. The manual also specifies that for track roller mounting bolts (M10), Three Bond 1324 or its equivalent adhesive should be used, and to refer to the 'List of Tightening Torque' on page 3-7-1 for the specific torque value.
How do I clear error codes on a Kobelco SK16 PFA1 mini excavator?
To clear error codes, you should turn the starter switch to the “OFF” position and then to the “ON” position to check if the error code is displayed again. The LCD screen displays icons and error codes corresponding to machine failures, and for detailed information on specific error codes, refer to Section 5-5.
How to check error codes on Kobelco SK16 PFA1
To check error codes, observe the LCD screen where icons and error codes corresponding to machine failures are displayed. For detailed information on specific error codes, refer to Section 5-5. After checking, you can attempt to clear the code by turning the starter switch to the “OFF” position and then back to the “ON” position.
What are the replacement specifications for Hydraulic oil filter?
The hydraulic oil return filter has a filtration area of 2200 cm² and a filtration accuracy of 15 u. It should be replaced every 1000 hours or every year. The suction filter has a filtration area of 550 cm² and a filtration accuracy of 125 u, and should be cleaned, but replaced if the wire gauze is damaged.
What format is this manual in?
A 401-page Shop Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this Kobelco SK16 PFA1, SK16 Shop Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Kobelco SK16 PFA1, SK16 manual include wiring diagrams?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Kobelco SK16 PFA1, SK16.
