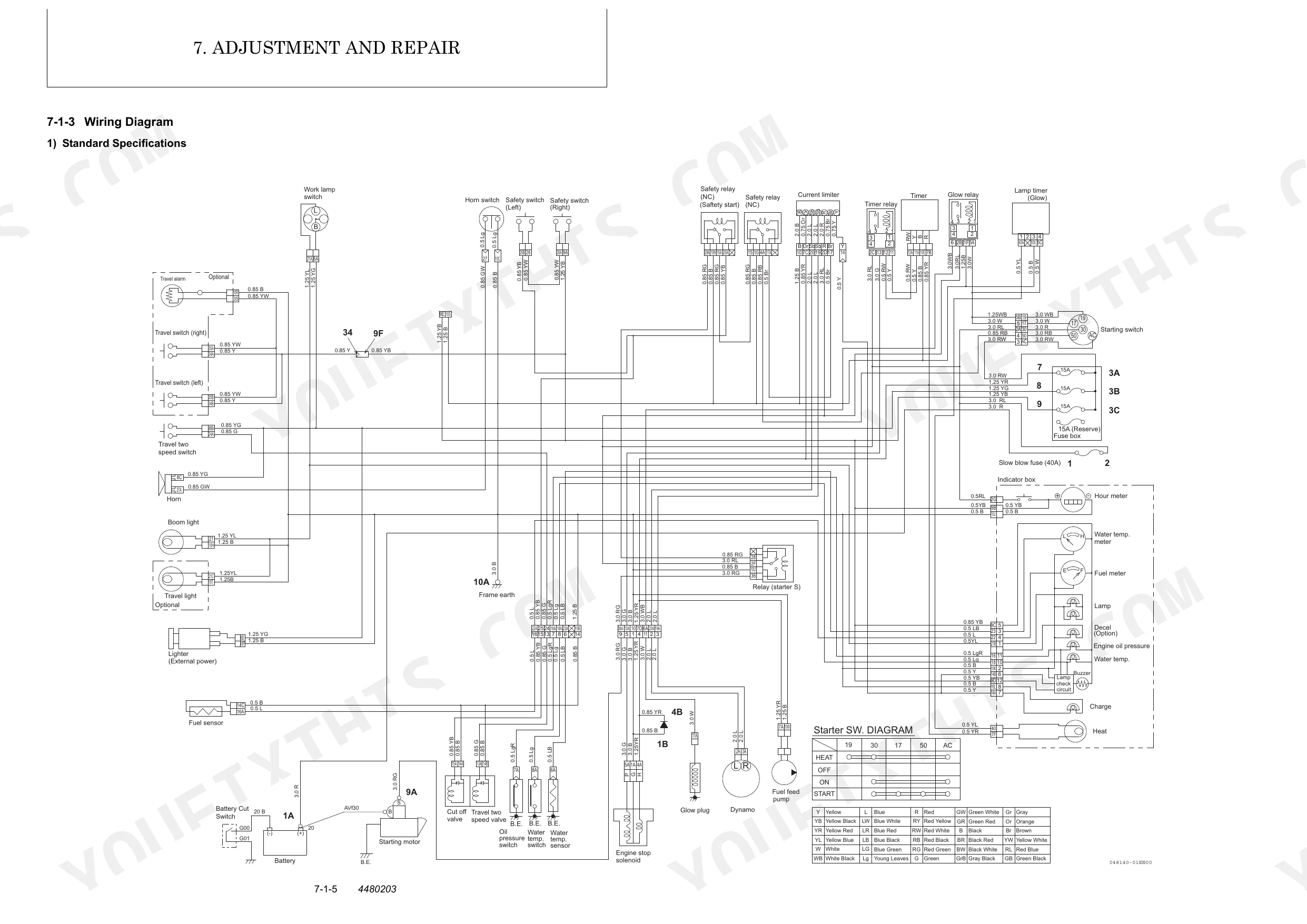

Looking for the exact factory teardown procedures for your mini excavator? This 396-page Kobelco sk17sr-5 shop manual pdf (OEM #S5PU0023E01) breaks down the complete engine, hydraulic system, and undercarriage for the SK17SR-5. You get complete hydraulic circuit schematics showing fluid routing for the boom, arm, and travel motors, plus factory wiring diagrams. Open up the dedicated troubleshooting charts to diagnose control valve faults fast, or rely on page after page of service standards and torque tables. Fill the travel reduction gear with SAE90 (GL-4) oil and lock down the M10 starter motor mounting bolts to exactly 32.5 to 43.4 ft-lbf (44.1 to 58.8 N-m). Your shop time is too valuable for guesswork. Grab this bookmarked digital download, open it on your phone or tablet, and get your machine moving again.
What's Inside This Kobelco SK17SR-5 Manual
| System | Pages | Key Topics |
|---|---|---|
| General Cautions for Maintenance Work | 3-8 | Correct Work, Safety Precautions, Preparations, Cautions for Disassembly and Reassembly, Cautions for Removal and Installation of Hydraulic Equipment |

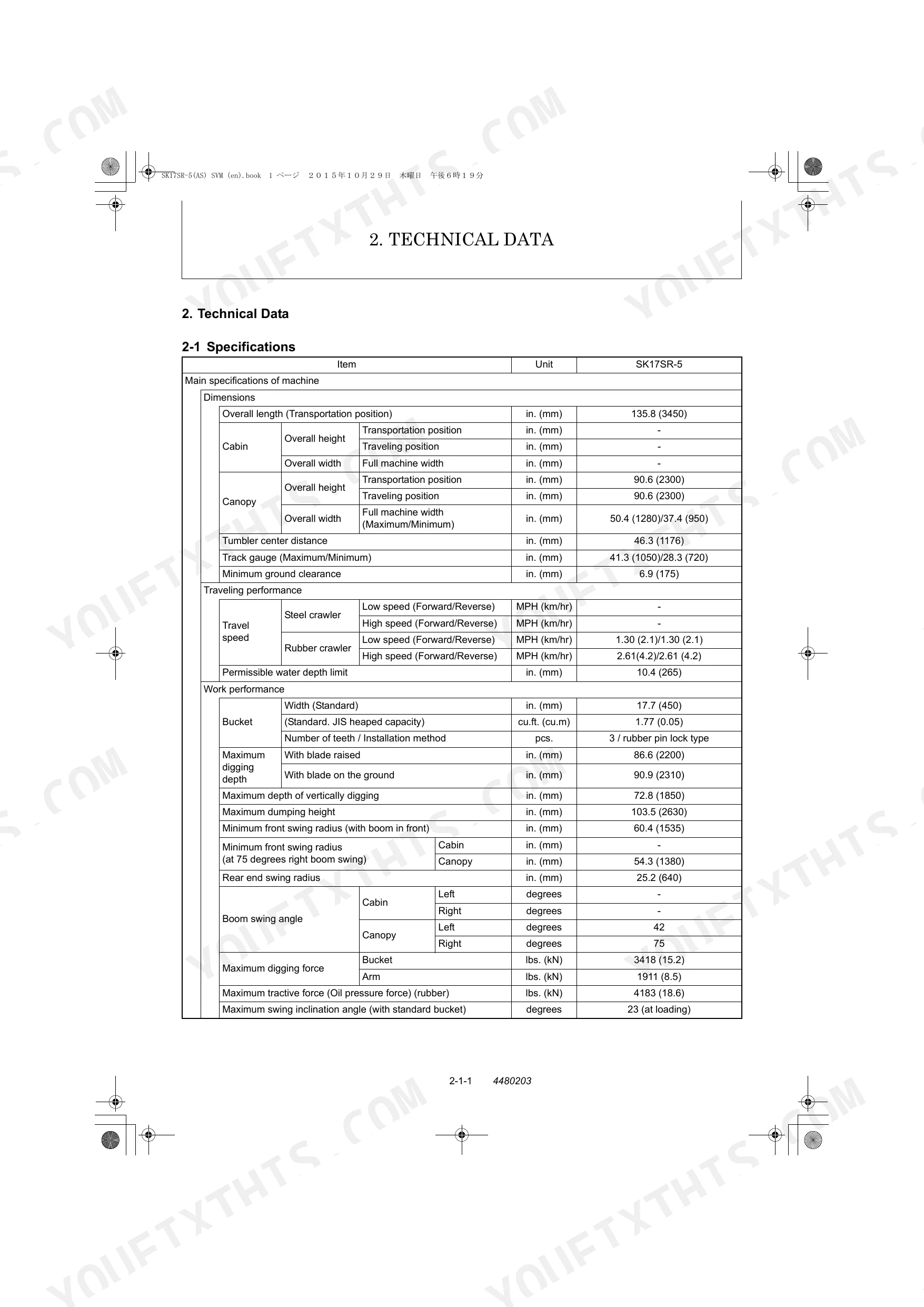

| Technical Data | 9-36 | Specifications, Outline Drawing and Working Area, Weight List of Main Parts, Lifting Capacity List, General Maintenance Cautions |
| Service Standards | 37-58 | Machine Performance, Engine Service Standards, Undercarriage (Rubber Crawler Specifications), Controls, Hydraulic Cylinders |
| Engine | 59-98 | Engine Measurement and Inspection Standards |

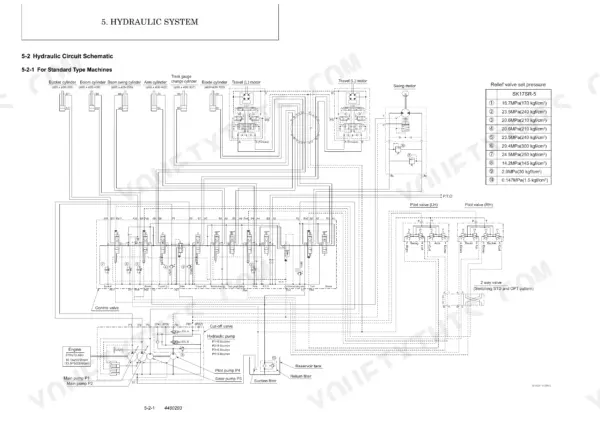

| Hydraulic System | 99-134 | Control Valve Operation, Additional Operation of Control Valve, Hydraulic Circuit Schematic (Standard Type Machines) |

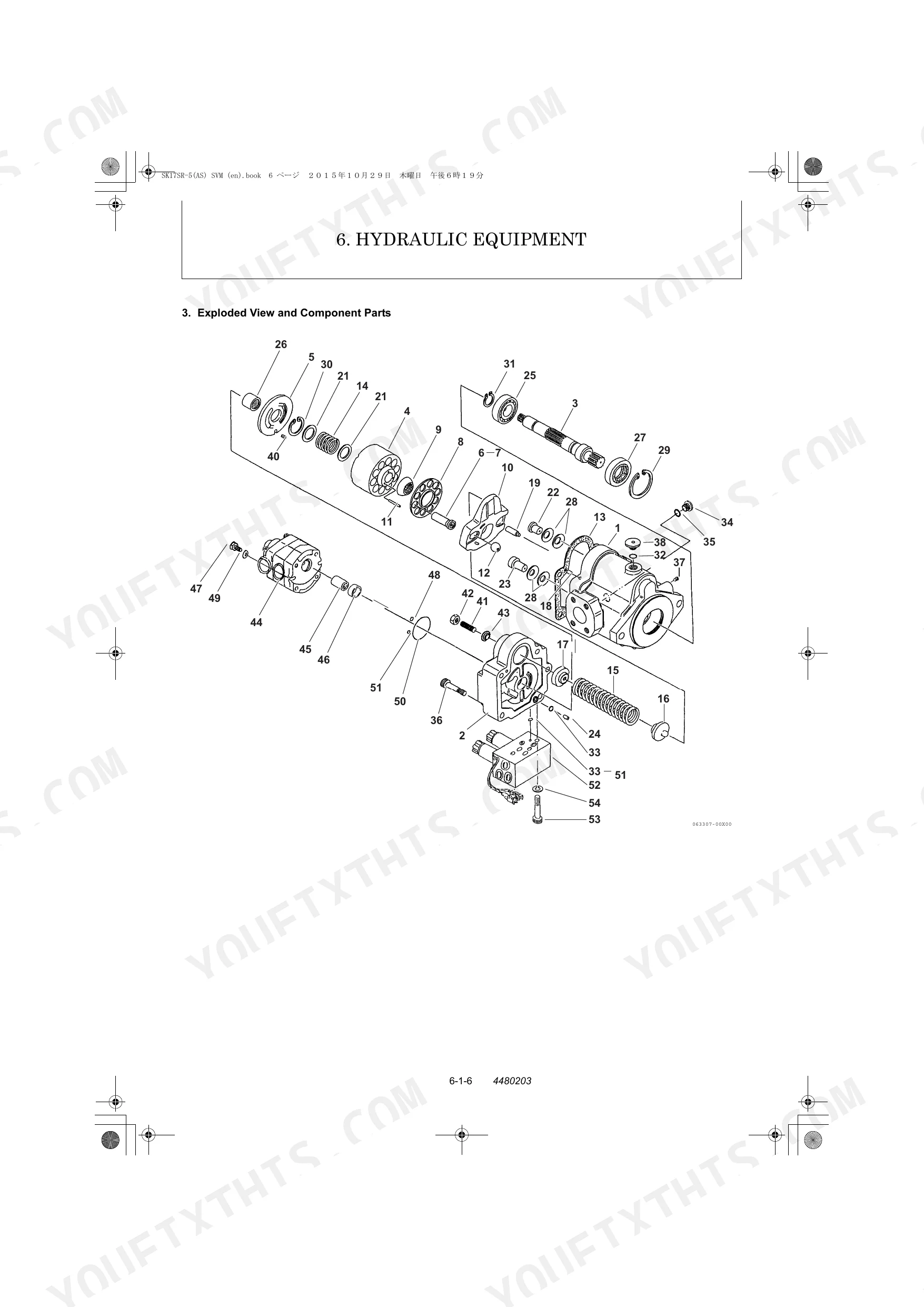

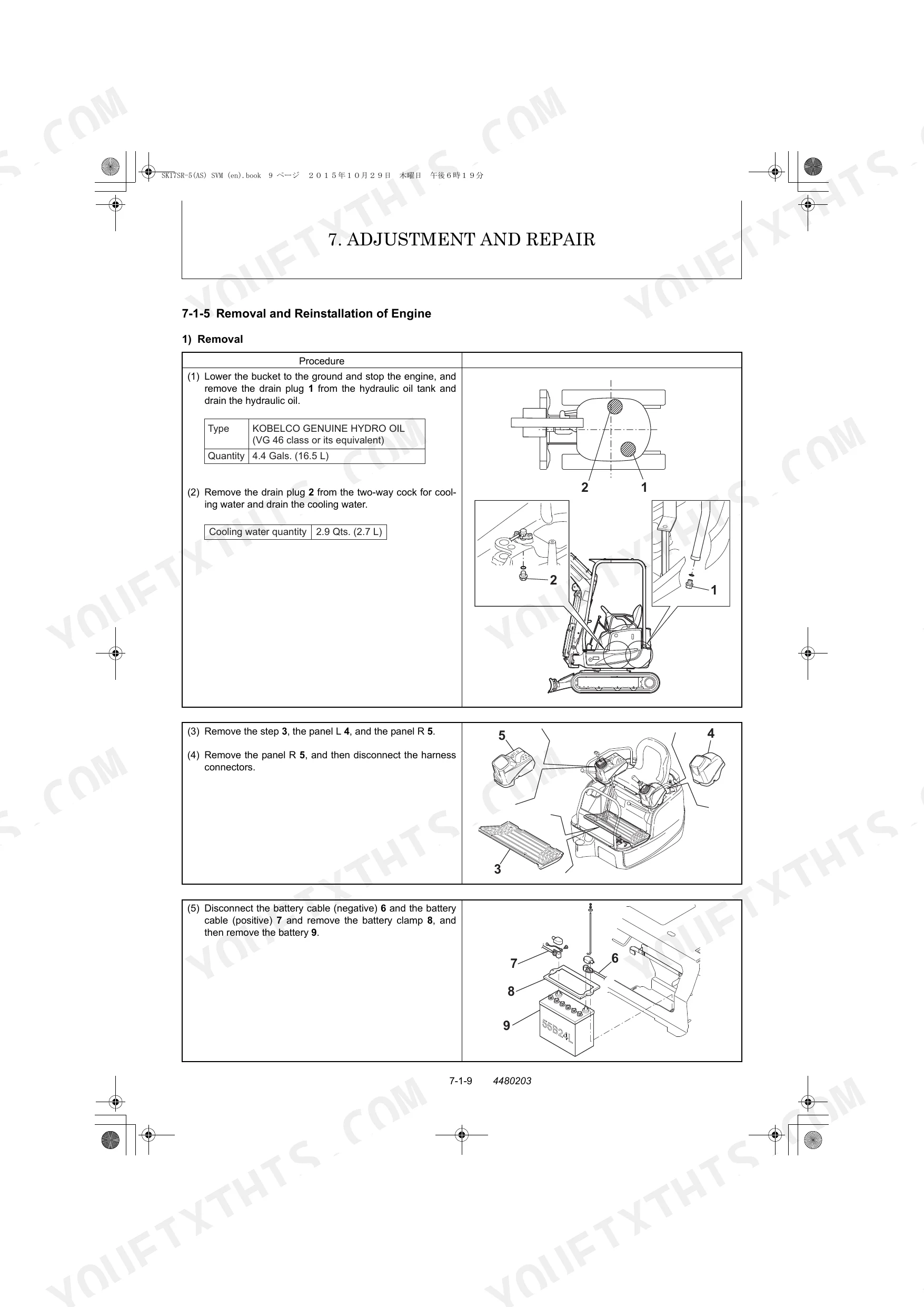

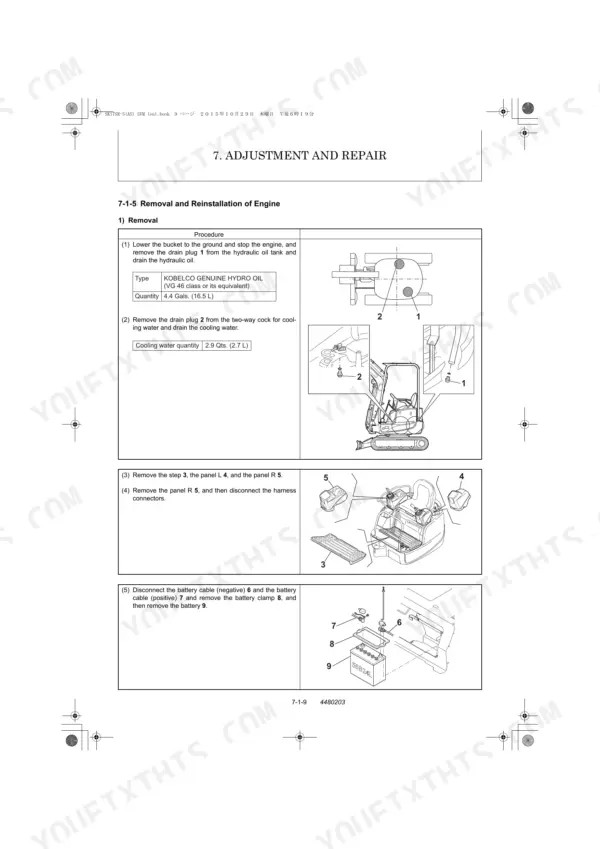

| Hydraulic Equipment | 135-258 | Hydraulic Pump, Control Valve, Pilot Valve, Swing Motor, Travel Motor |
| Adjustment and Repair | 259-348 | Electric Equipment, Parts Layout of Electrical Equipment, Pilot Valve, Swing Motor, Travel Motor |

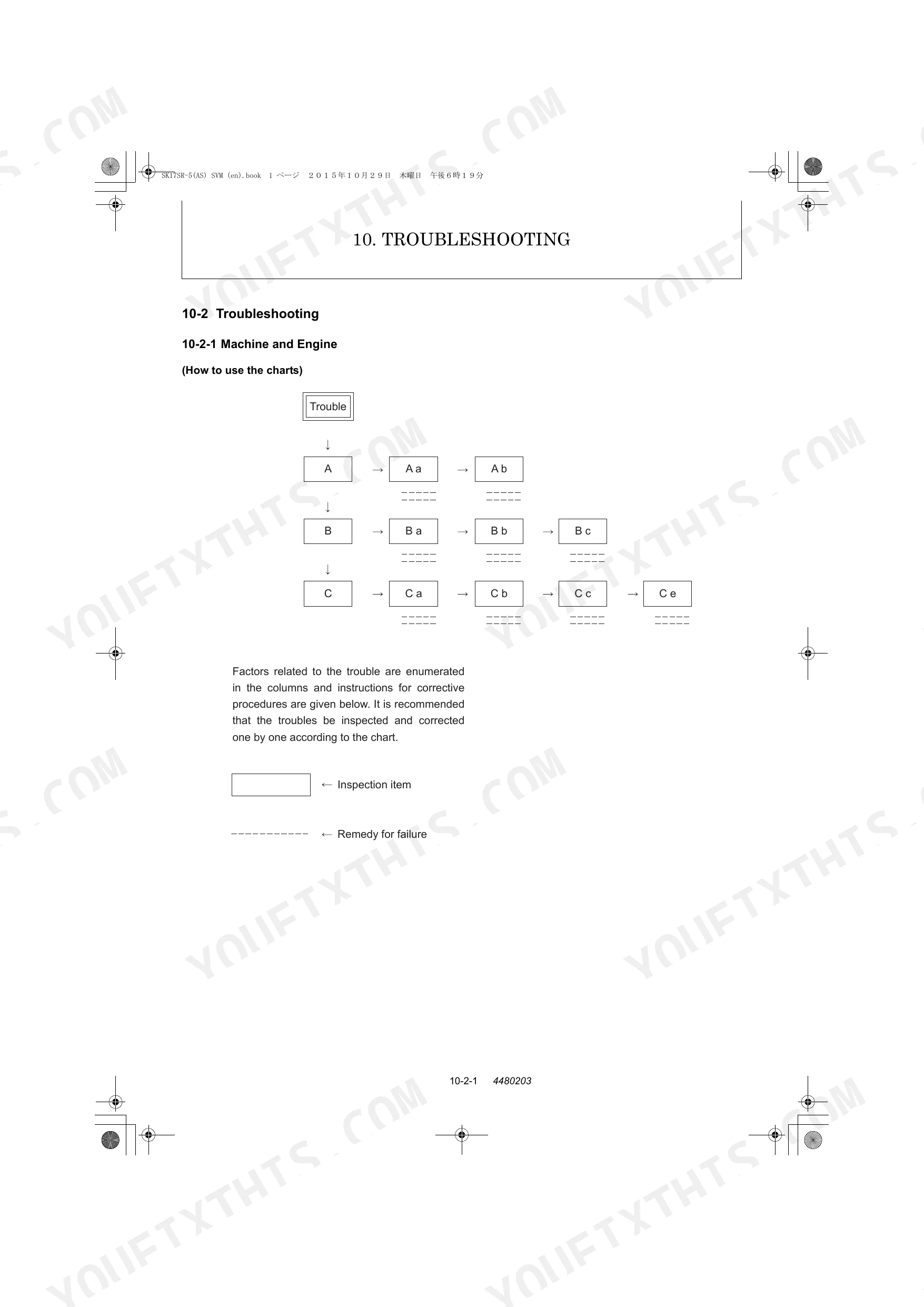

| Troubleshooting and Maintenance | 349-394 | Troubleshooting, Periodic Inspection and Servicing, Fuel, Lube Oil and Grease Recommended |
| Reference Data | 395-396 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine mount vibroisolating rubber Nut M10 tightening torque | 18.1 to 23.9 ft•lbf (24.5 to 32.4 N•m) | p. 51 |
| Travel reduction gear oil type | Gear oil SAE90 (GL-4) | p. 353 |
| Starter motor nominal output | 1.4 kW | p. 92 |
| Starter motor mounting bolt (M10) tightening torque | 32.5 to 43.4 ft•lbf (44.1 to 58.8 N•m) | p. 273 |
| Battery type | 65B24L | p. 29 |
| Battery voltage - 5 hrs rate capacity | 12-36 V-Ah | p. 29 |
| Fuse (A x pcs) | 153, 401, 151 Apcs. | p. 29 |
| Suction filter type | Wire gauze | p. 26 |
| Suction filter filtration area | 50.5 sq.in. (326 sq.cm) | p. 26 |
| Rubber hose (High pressure type) (SAE J517,100R1) hose dia. | 02 (Inner dia. 0.25 in. (6.3 mm), Outer dia. 0.53 in. (13.5 mm), Working pressure 2489 PSI (17.2 MPa)) | p. 15 |
| Tightening torque for parallel pipe thread G (PF) 1/8" | 10.1 to 12.3 ft•lbf (13.7 to 16.7 N•m) | p. 55 |
| Swivel seal kit O-ring dimension | 55.765.7 | p. 317 |
Kobelco SK17SR-5 Common Problems This Manual Covers
Kobelco SK17SR-5 engine will not start or only cranks slowly in cold weather conditions. p. 273
Inspect the battery terminals and ground wiring for corrosion. Test the starter motor output to verify it meets the 1.4 kW specification listed on page 92. If replacing the starter, torque the M10 mounting bolts to 32.5 to 43.4 ft•lbf (44.1 to 58.8 N•m) as detailed on page 273.
Manual Section: Starter Motor IssuesExcavator boom and bucket functions are weak, slow, or operate intermittently under heavy load. p. 24
Check the hydraulic oil tank level and top off to the 6.86 Gals (26 L) capacity specified on page 26. Test the system relief set pressure (P1, P2) and adjust to 2986 PSI (20.6 MPa) as shown on page 24. Inspect the wire gauze suction filter for debris.
Manual Section: Hydraulic Pump MalfunctionsMachine runs hot under load with the water temperature alarm lamp illuminating continuously. p. 28
Drain the cooling system and inspect the radiator for clogged fins or debris buildup. Check the intake valve clearance on a cold engine and adjust to 0.006 to 0.010 in (0.15 to 0.25 mm) according to page 28. Verify fuel injection pressure reaches 1784 to 1926 PSI (12.3 to 13.28 MPa) on page 29.
Manual Section: Engine OverheatingTracks wear out quickly, derail easily, or exhibit poor travel performance over rough terrain. p. 289
Inspect the undercarriage for damaged rollers and verify the track roller shaft diameter meets the Ø0.98 (Ø25) standard on page 46. Replace worn rollers and tighten the M12 mounting bolts to 57.9 to 72.3 ft•lbf (78.5 to 98.1 N•m) as instructed on page 289.
Manual Section: Chapter 3 Service StandardsFrequently Asked Questions
How do I calibrate or relearn the controls on a Kobelco SK17SR-5?
The manual provides adjustment procedures for various controls. For instance, to adjust the control levers, move the lever boot upward, loosen the lock nut, and adjust the right and left control levers to achieve a distance of 18.7 inches (476 mm) between them, ensuring they are in a straight line and do not interfere with the blade lever. Then, holding the adjustable nut, tighten the lock nut to a specified torque of 73.5 to 83.4 N·m (7.5 to 8.5 kgf·m).

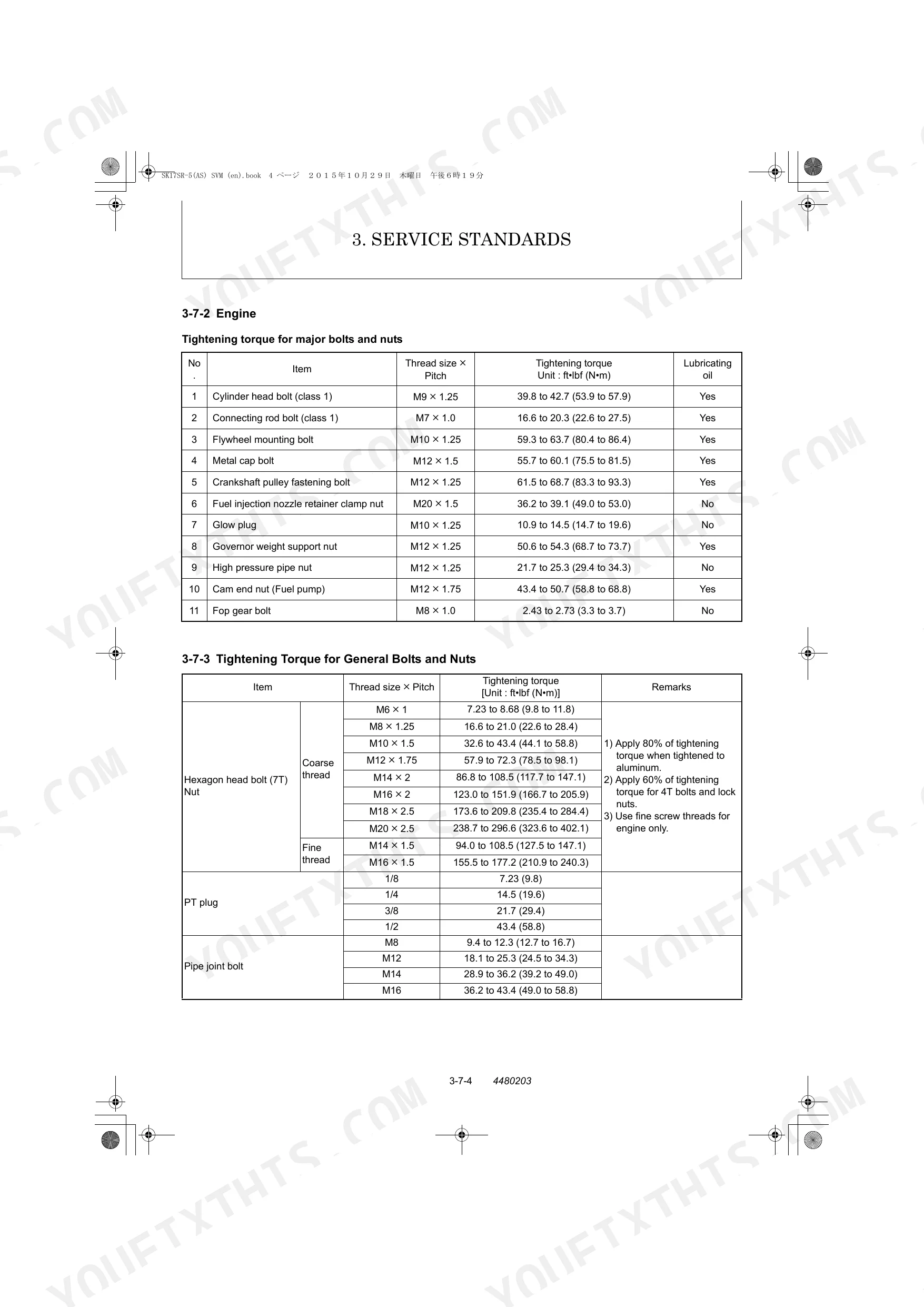

How to find torque specs for Kobelco SK17SR-5?
Tightening torque specifications for the Kobelco SK17SR-5 can be found in Chapter 3, Service Standards, under section 3-7 "List of Tightening Torque". This section includes specific tables for machine components, engine parts, general bolts and nuts, and hydraulic hose joints, providing values in ft·lbf (N·m).
What are the replacement specifications for starter motor?
The starter motor for the SK17SR-5 is model RA1.4 with a nominal output of 1.4 kW (8.4 lbs or 3.8 kg). It operates with a nominal voltage of 12V and has a pinion DP or module of M2.54 with 15 pinion teeth.
What are the replacement specifications for battery?
The battery for the SK17SR-5 is type 65B24L, with a voltage of 12V and a 5-hour rate capacity of 36 V-Ah. This information is listed under the electrical equipment specifications for the engine.
What format is this manual in?
This is a 396-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Kobelco SK17SR-5 Shop Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

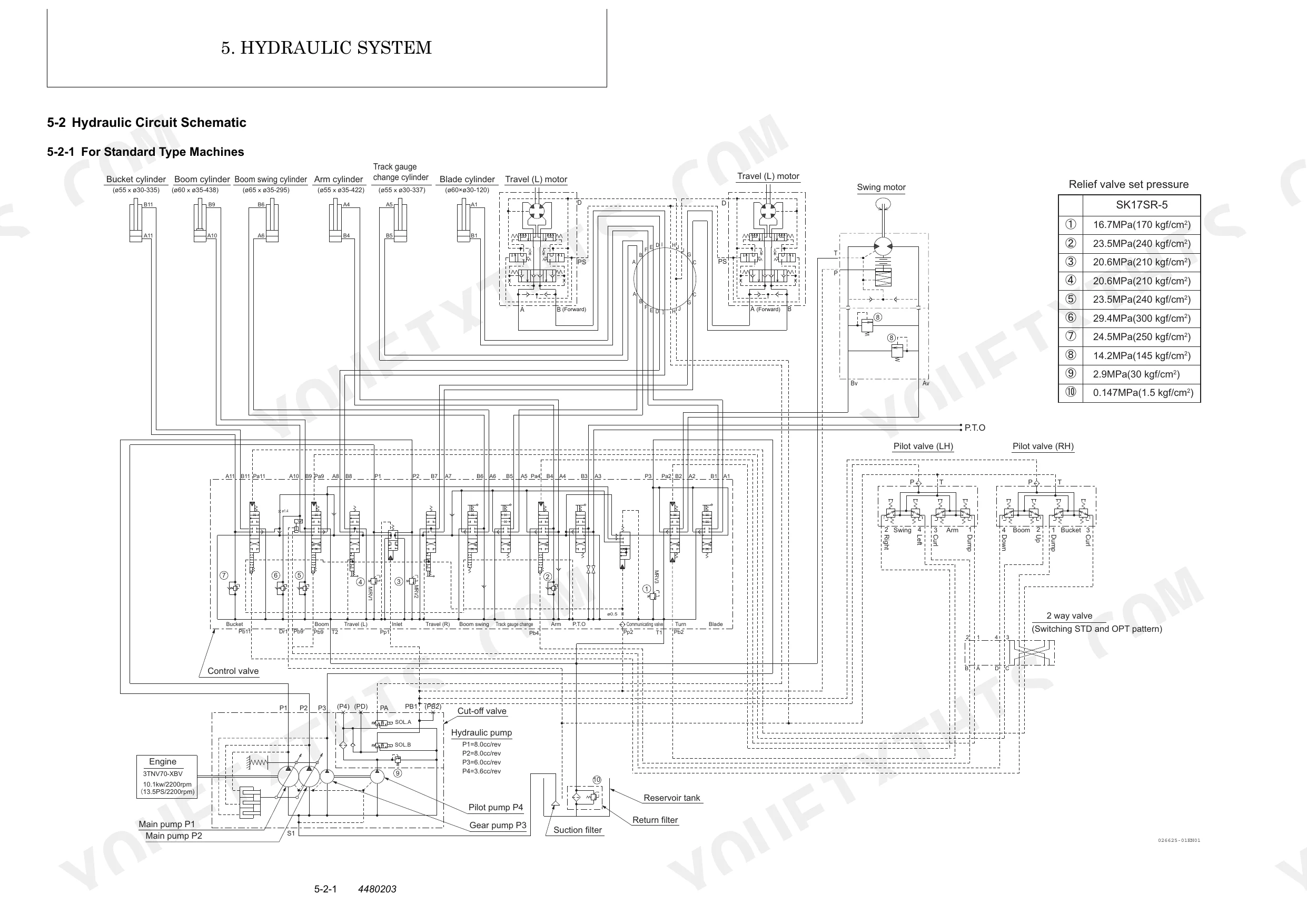

Are there hydraulic schematics in this Kobelco SK17SR-5 manual?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Kobelco SK17SR-5.
Document Quality
This document is a scanned PDF with an OCR layer, enabling full text search and copy functionality. The text is consistently crisp and easy to read across all pages. Diagrams and illustrations are clear with legible labels, presenting well-defined details, though they are raster images and may show slight pixelation at very high zoom levels. Pages are clean and free of scan artifacts, but you will find several blank pages interspersed throughout the document, which act as dividers or placeholders.
