Fitted to one machine, the Manitowoc 11000-1 crawler crane, this Manitowoc 11000-1 operator manual PDF runs 824 pages under OEM ID 243-01 and covers the cab controls, load safety monitor and attachment layouts on your crane. Hydraulic diagrams and electric schematics close out the book, while the load safety device chapter walks through crane configuration setup, auto-stop release and a full warning code list with the action each code calls for. About a third of the pages cover field assembly of the base machine, boom, jib and counterweights, and the maintenance chapter lays out inspection intervals, lube points and wire rope replacement standards. Plan around a 12.2 m (40') boom insert weighing 965 kg (2,100 lbs), and bring swing bearing bolts to 2,780 N·m. On a remote pad at dawn, nobody's around to ask. Bookmarks take you straight to any chapter, and the consumable parts list gets the right filter numbers onto your first order.
What's Inside This Manitowoc 11000-1 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 15-64 | Safety Information, Explanation of Warning Labels in the Machine (Label Layout, Detail of Label), Safe Operating Practices for Mobile Cranes |

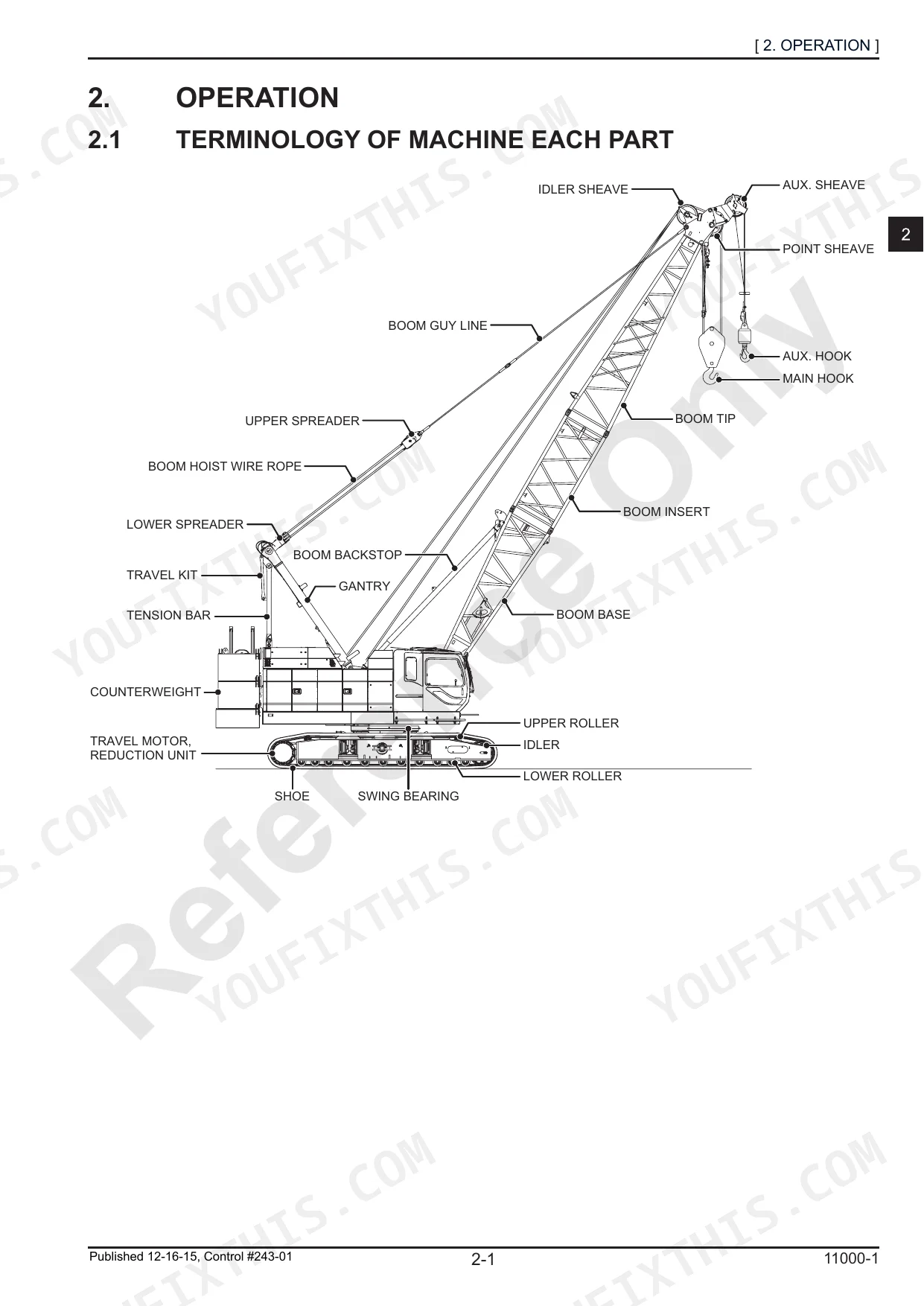

| Operation | 65-236 | Terminology of Machine Each Part |
| Load Safety Device | 237-326 | Arrangement of Equipments, Types and Functions of Equipment, Connecting Procedure of Wiring (Crane Attachment), Function of Monitor |

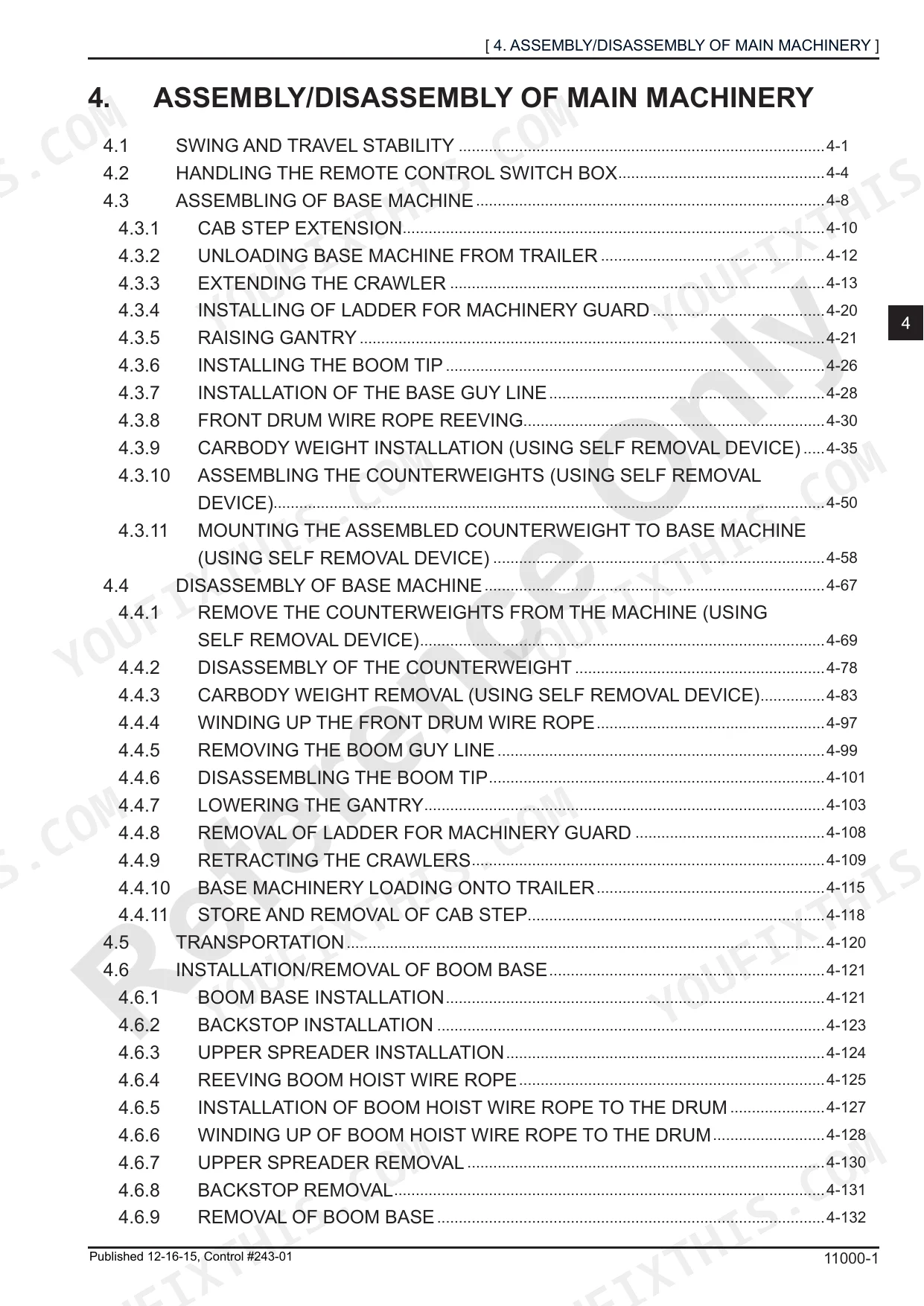

| Assembly/Disassembly of Main Machinery | 327-524 | Swing and Travel Stability, Handling the Remote Control Switch Box |
| Assembly/Disassembly of Crane Attachment | 525-592 | Assembling the Attachment (Arrangement of Boom/Jib/Guy Line, Boom and Guy Line Arrangement, Handling of Spreader Guide) |
| Wire Rope | 593-614 | Handling of Wire Rope (Specification of Wire Rope, Wire Rope Length, Cautions in Handling Wire Rope, Winding Wire Rope to the Drum, Correcting Method of Entangled Wire Rope, Rope Socket Installation, Replacement Standards for Wire Rope) |

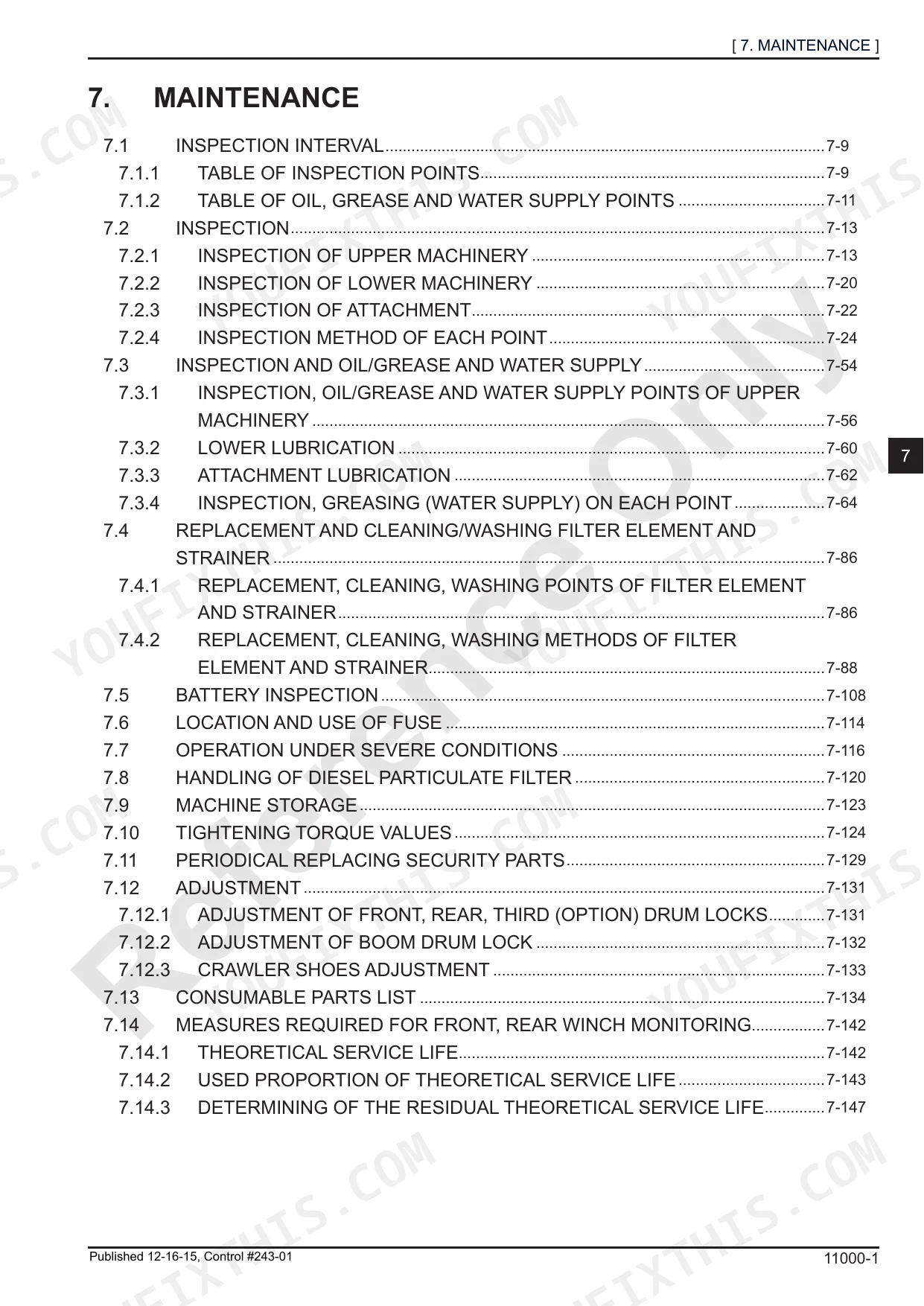

| Maintenance | 615-766 | Inspection Interval (Table: Inspection Points, Oil, Grease and Water Supply Points), Inspection (Upper Machinery, Lower Machinery, Attachment, Method of Each Point) |
| Reference Materials | 767-796 | Specification (Crane: Outside Dimension, Specification, Performance, Working Ranges), Dimension, Weight of Each Component (Base Machine, Counterweight, Attachment) |

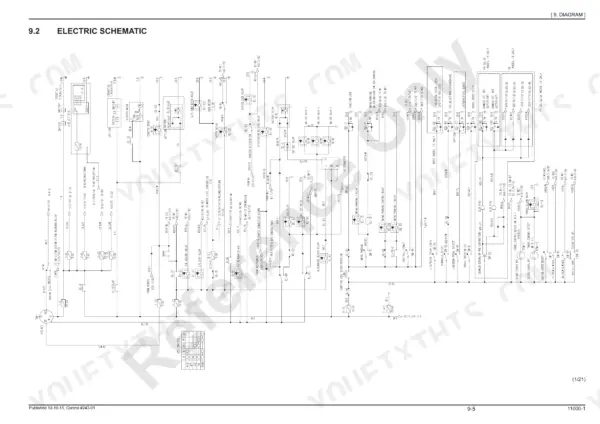

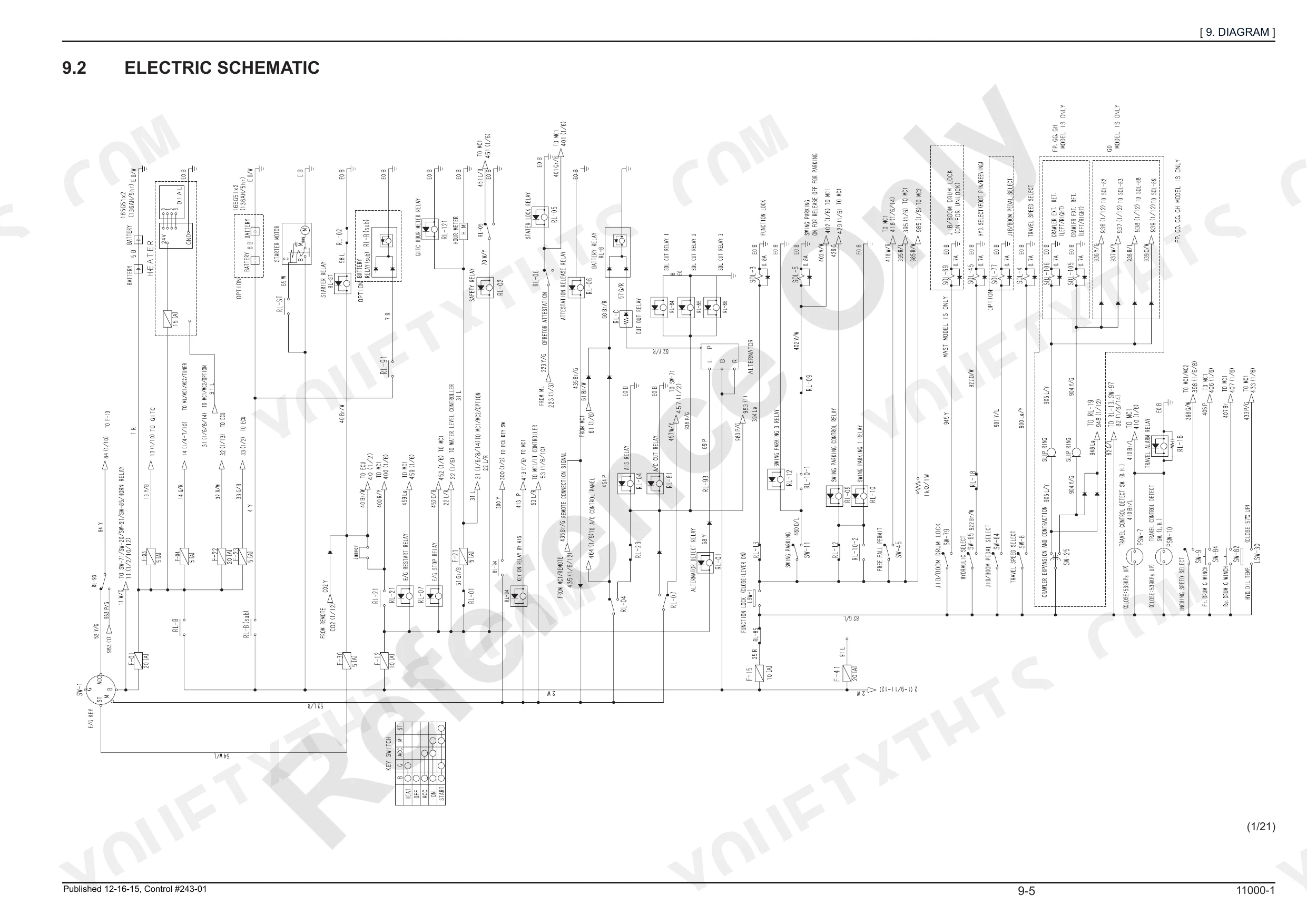

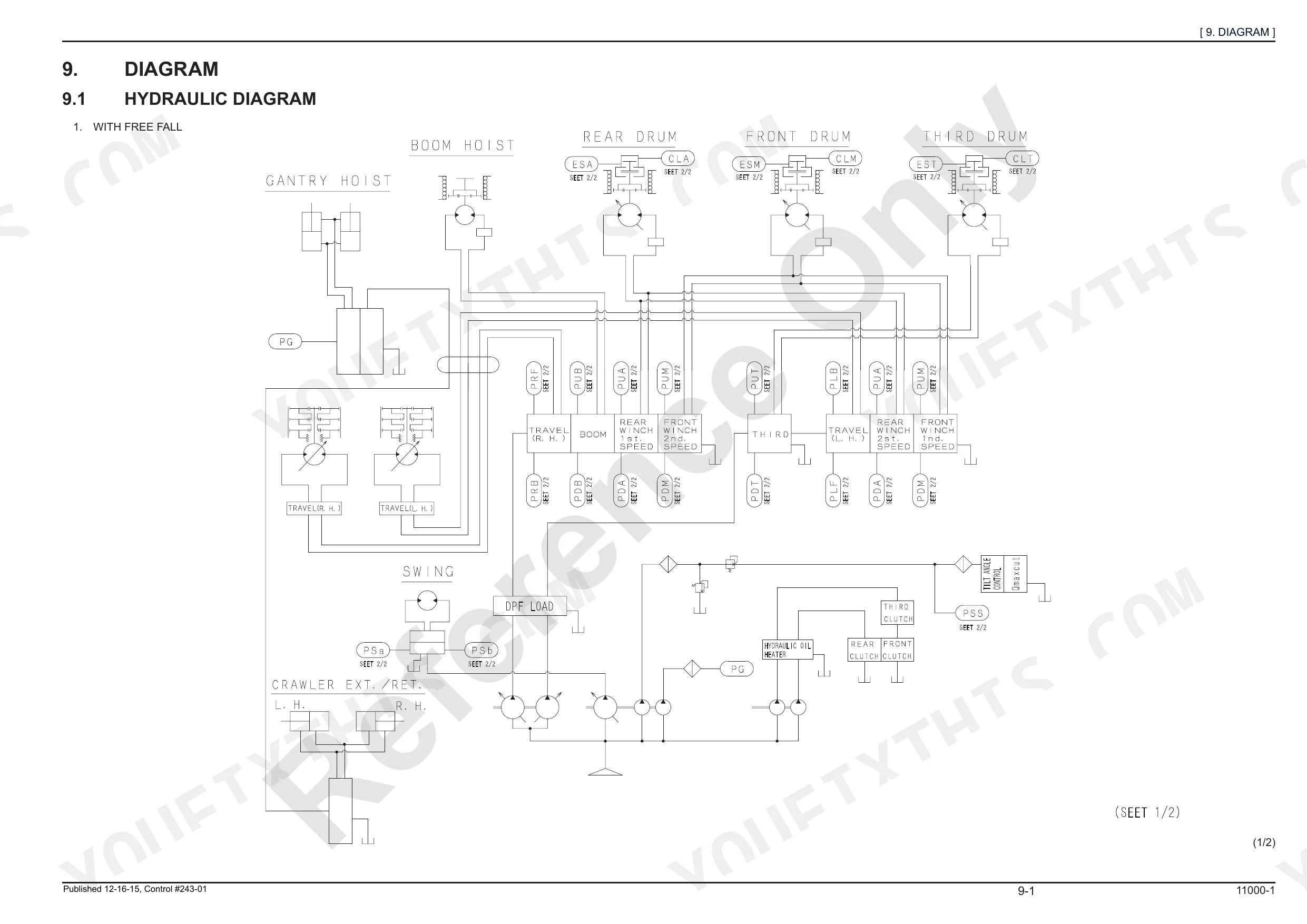

| Diagram | 797-824 | Hydraulic Diagram, Electric Schematic |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 3.0 m (10') Boom insert weight | 310 kg (680 lbs) | p. 779 |
| 12.2 m (40') Boom insert weight | 965 kg (2,100 lbs) | p. 779 |
| 3.0 m (10') Jib insert weight | 100 kg (220 lbs) | p. 780 |
| Compressed air for drying open air filter | 5 Pa | p. 706 |
| M6 4T Dry Torque | 4.6 to 5.6 N·m | p. 740 |
| M36 7T Lubricated Torque | 1843 to 2253 N·m | p. 740 |
| Engine Oil Capacity | 28.5L | p. 670 |
| Hydraulic Oil Tank Capacity | 380L | p. 670 |
| Fuel Tank Capacity | 400L | p. 670 |
| Coolant Capacity | 30L | p. 682 |
| Swing Bearing Mounting Bolt Torque (Outer) | 2,780 N·m | p. 742 |
| Swing Bearing Mounting Bolt Torque (Inner) | 2,780 N·m | p. 742 |
Manitowoc 11000-1 Common Problems This Manual Covers
Manitowoc 11000-1 load safety device monitor showing an error code and message during crane operation
Check the exact code and message shown on the monitor and match it to the error code list in the Load Safety Device section beginning on page 237. Follow the troubleshooting action listed for that code. Verify the crane attachment wiring is connected per the connecting procedure before you resume lifting.
Manual Section: Load Safety Device Error Codes p. 237Engine emission control device showing soot accumulation and inducement control error codes
Check the error code and soot accumulation level, then select the regeneration mode the Engine Emission Control Device section specifies for that condition. Let the regeneration finish before putting the crane back to work. If inducement control has engaged, look up the related error code in the same section and correct that cause first.
Manual Section: Engine Emission Control Device p. 150Front or rear drum wire rope entangled or winding badly onto the drum after reeving
Inspect the rope on the drum before you pay out any more line. Correct the entanglement using the method in the Wire Rope section starting on page 593, then rewind it following the procedure for winding wire rope to the drum. Check the rope against the replacement standards in that section and replace it if it fails.
Manual Section: Wire Rope Handling and Replacement p. 593Fuel filter element replaced and drained, now air trapped in the fuel system
Verify the fuel filter element is tightened to 9 to 11.3 N·m and the drain valve to 4 to 6 N·m, both listed on page 710. Bleed air at the fuel filter air bleeding bolt, then torque that bolt to 1.69 to 2.26 N·m per page 647. Go easy on these small fittings; they strip easily.
Manual Section: Fuel System Maintenance p. 710Engine coolant level reading low during a routine cooling system inspection before startup
Check the coolant level following the Cooling System Maintenance procedure on page 682 and top up before starting the engine. When the coolant is due for changing, drain and refill per the same section, planning for a system capacity of 30L. Record how much you add each time; steady loss means a leak worth tracking down.
Manual Section: Cooling System Maintenance p. 682Crawler shoes sagging with excess tension slack found during the lower machinery inspection
Measure crawler shoe tension slack as described in the lower machinery inspection on page 749 and compare it to the 10 to 20 mm spec. Adjust tension until the slack sits inside that range. Check both crawlers the same way and record the readings so you can spot one side stretching faster than the other.
Manual Section: Maintenance p. 749Frequently Asked Questions
What is the tightening torque for M20 coarse thread plated screws in 4T grade on the Manitowoc 11000-1?
For M20 metric coarse thread screws (plated) in the 4T grade, the tightening torque is 174 to 212 N·m (128 to 156 ft·lbs) for dry conditions and 146 to 178 N·m (108 to 131 ft·lbs) for lubricated conditions. p. 740
What is the recommended interval for changing the hydraulic oil on a Manitowoc 11000-1 crawler crane?
The hydraulic oil should be changed every 2 years or 2,000 hours, whichever comes first, or sooner if the oil is remarkably contaminated or deteriorated. p. 694
What is the tightening torque for the swing bearing mounting bolts on the Manitowoc 11000-1 crawler crane?
The tightening torque for both the outer and inner swing bearing mounting bolts is 2,780 N·m (2,050 ft·lbs). p. 742
What is the hydraulic oil tank capacity on the Manitowoc 11000-1 crawler crane?
The hydraulic oil tank has a capacity of 380 L (100.3 gal). p. 670
What is the correct deflection for the compressor side fan belt?
The compressor side fan belt should have a deflection of 10 to 15 mm (13/32 to 19/32 in.) when firmly pressed in the middle with a finger. p. 649
Is this Manitowoc 11000-1 manual a PDF I download?
A single searchable PDF file of 824 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print a copy of this Manitowoc 11000-1 Operator Manual for the shop?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
