This 54-page Mccormick-deering F-30 Farmall Tractor Operator Manual (OEM #INT-5142A) puts every gasoline and distillate starting procedure, gear shifting sequence, and cold weather routine for your F-30 in one place. You get the full lubrication chart covering crankcase, magneto, transmission, and rear axle carriers, plus the Alemite hydraulic lubrication system breakdown and a dedicated interval schedule so you're not guessing when to grease a fitting. Open to the operating precautions section before you ever crank the engine, and you'll find the anti-freezing solution specific gravity tables right alongside the corrective measures chart for failure to start, knocking, or overheating. Set your carburetor idling adjustment by the book, not by ear, and check winterfront shutter settings before the first cold snap catches you out. No more flipping through a worn-out shop copy looking for the storage procedure every fall. Bookmarked by section so you can jump straight from Governor to Steering without hunting page by page.
What's Inside This Mccormick-deering F-30, Farmall Tractor F-30, McCormick-Deering Farmall Tractor F-30 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

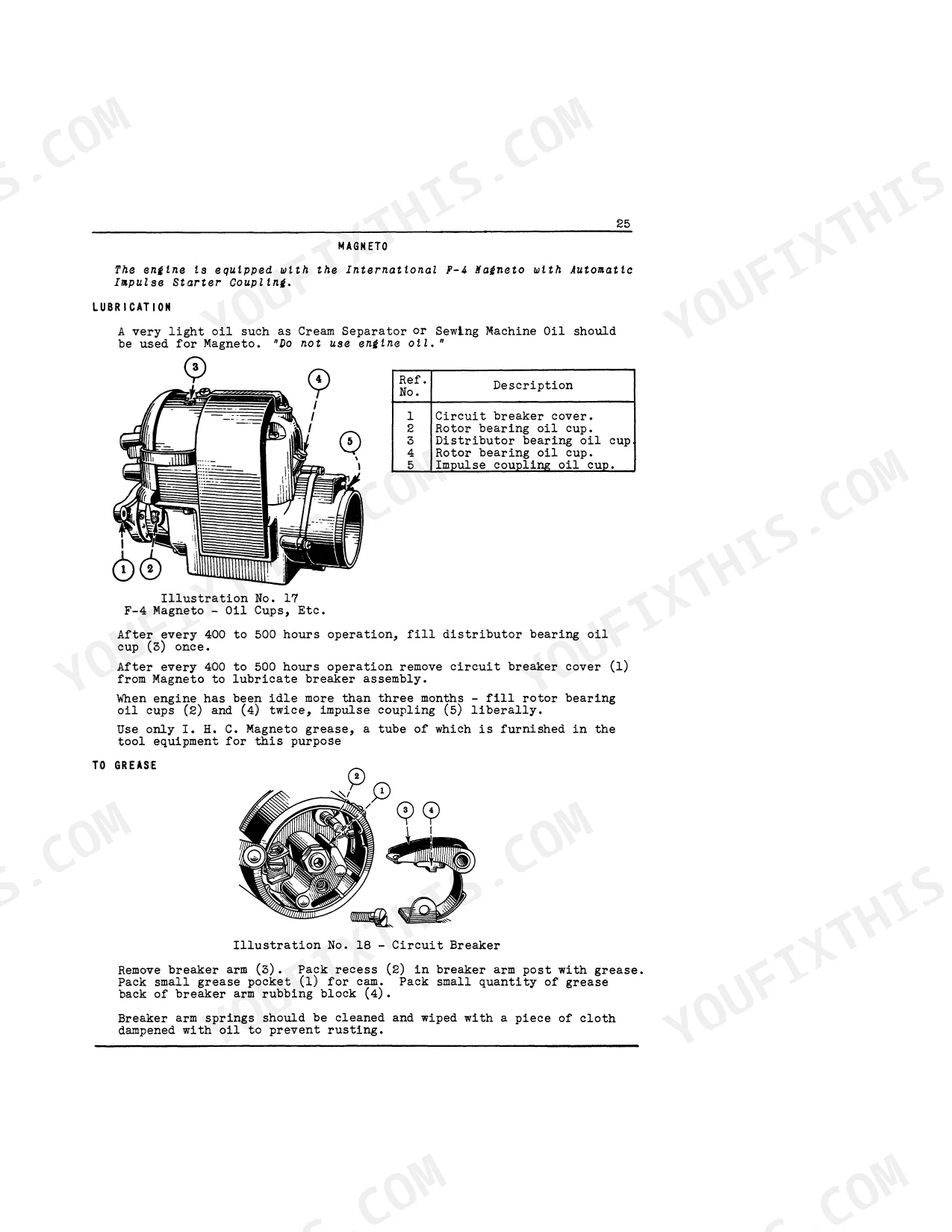

| Lubrication | 8 | S. a. E. Numbers or Weights of Oil and Lubricants, Engine Crankcase, Magneto & Coupling, Lubricating Fittings, Air Cleaner, Transmission, Rear Axle Carriers, Steering Gear Case |

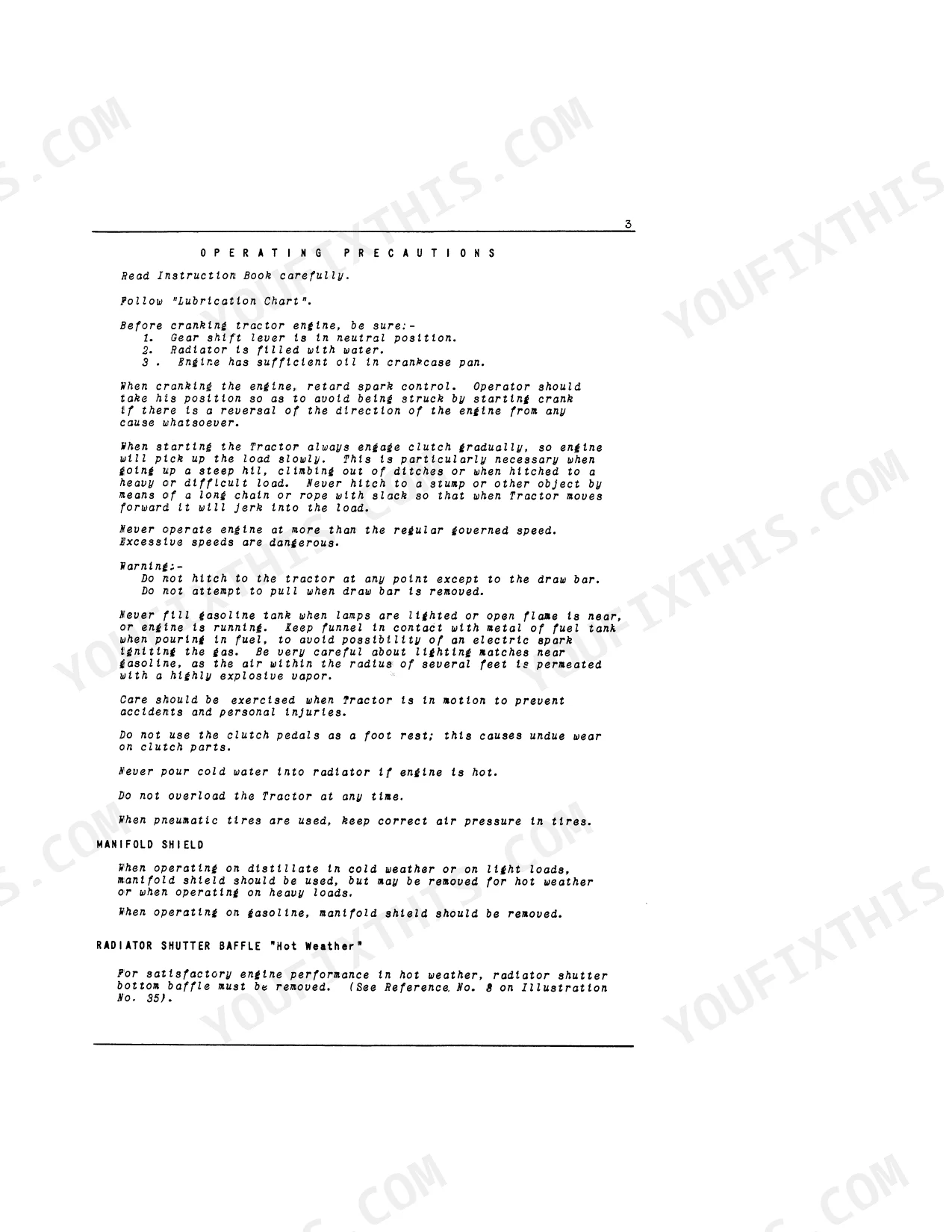

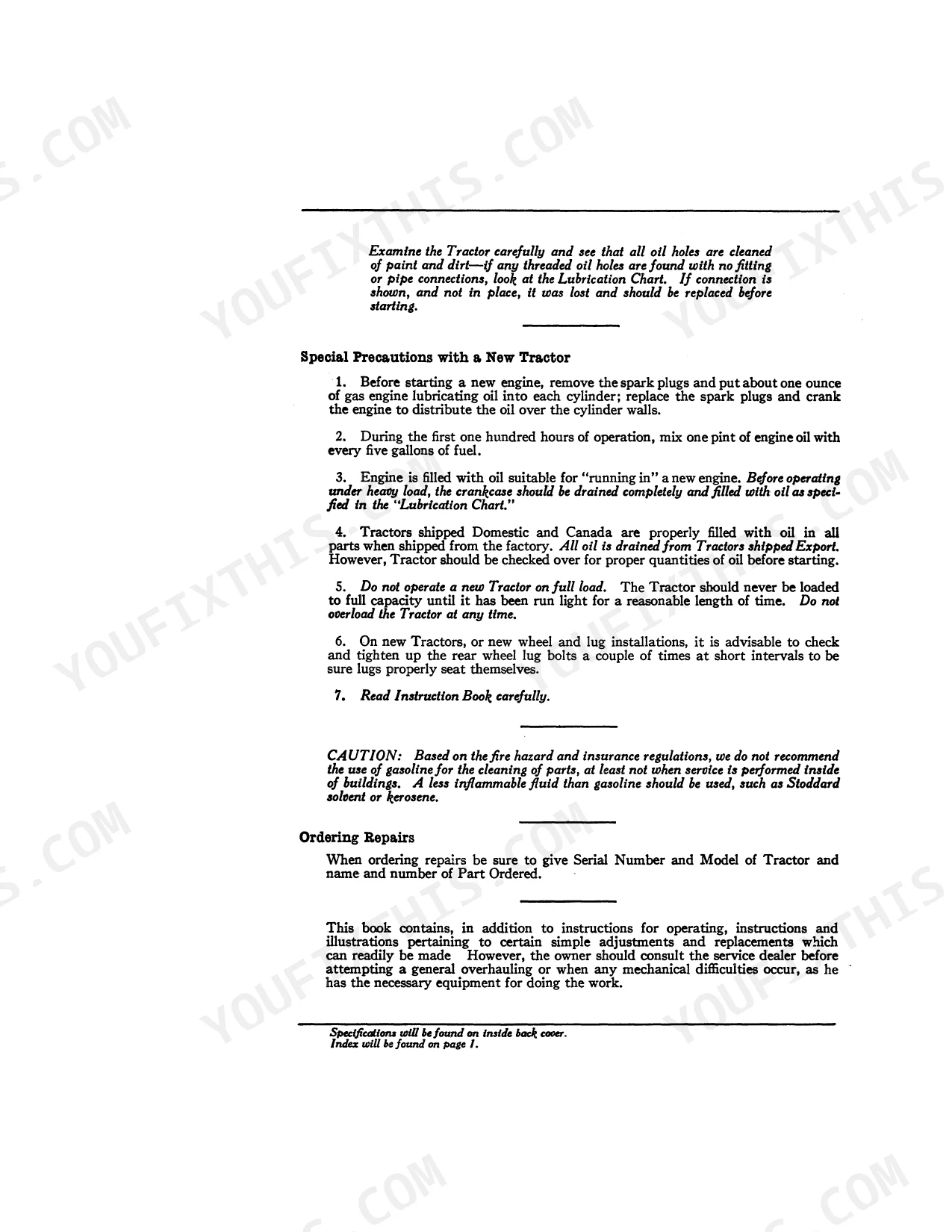

| Operating Precautions | 9 | Before Cranking Tractor Engine, Starting the Tractor, Gasoline Tank Filling, Clutch Pedals, Overload the Tractor, Pneumatic Tires |

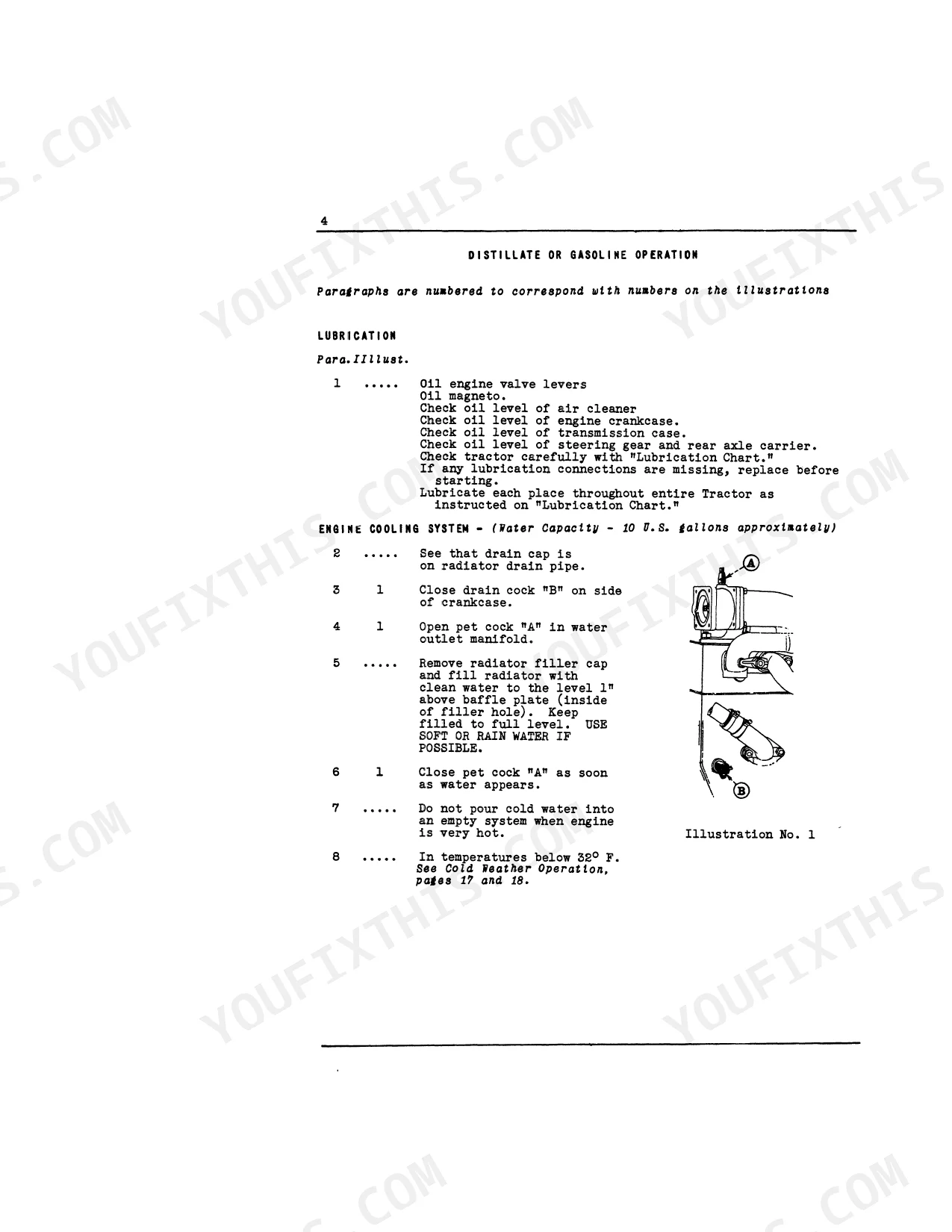

| Distillate Operation/ Preparing Tractor for Operation (Gasoline) | 10 | Fuel System, Engine Cooling System, Manifold Heat Control, Winterfront, Lubrication |

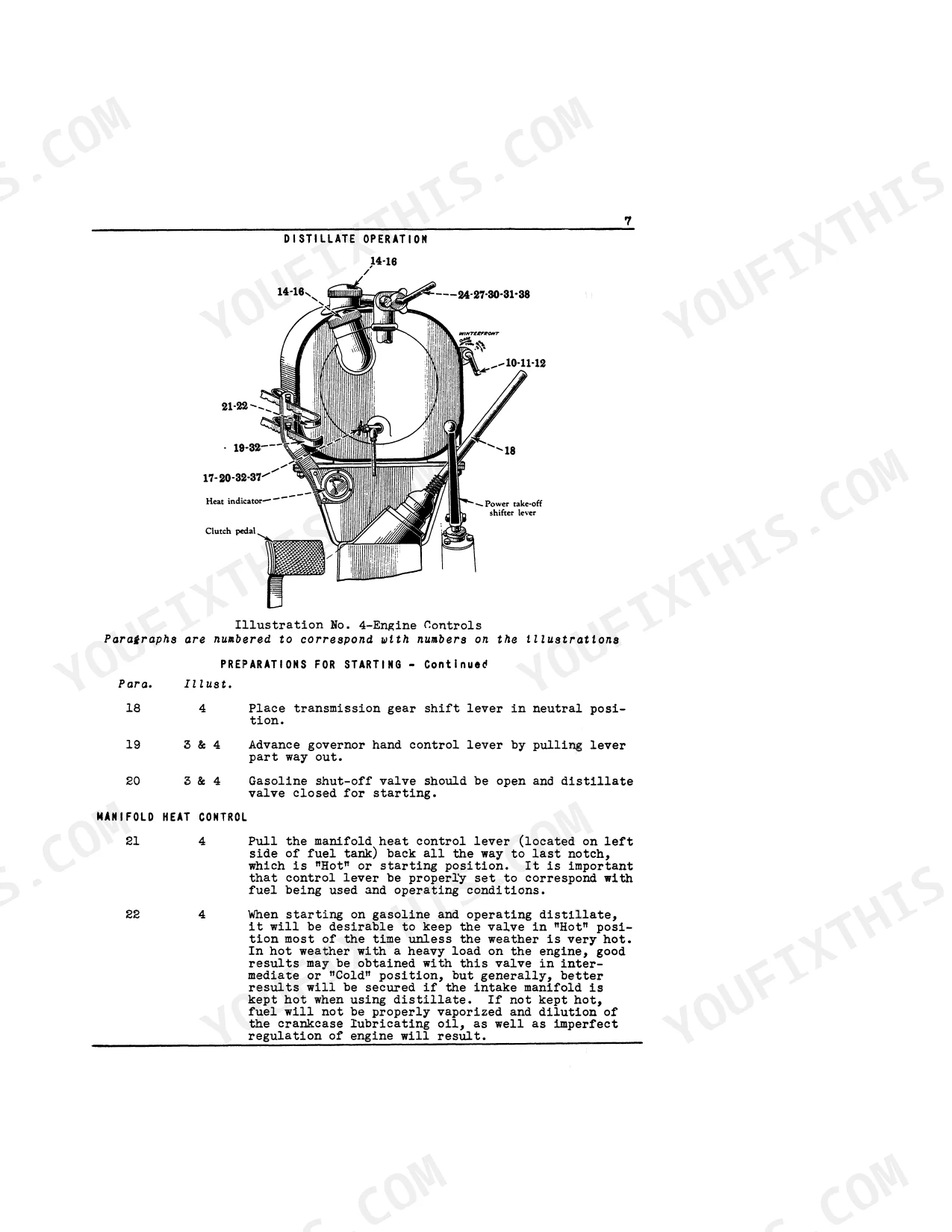

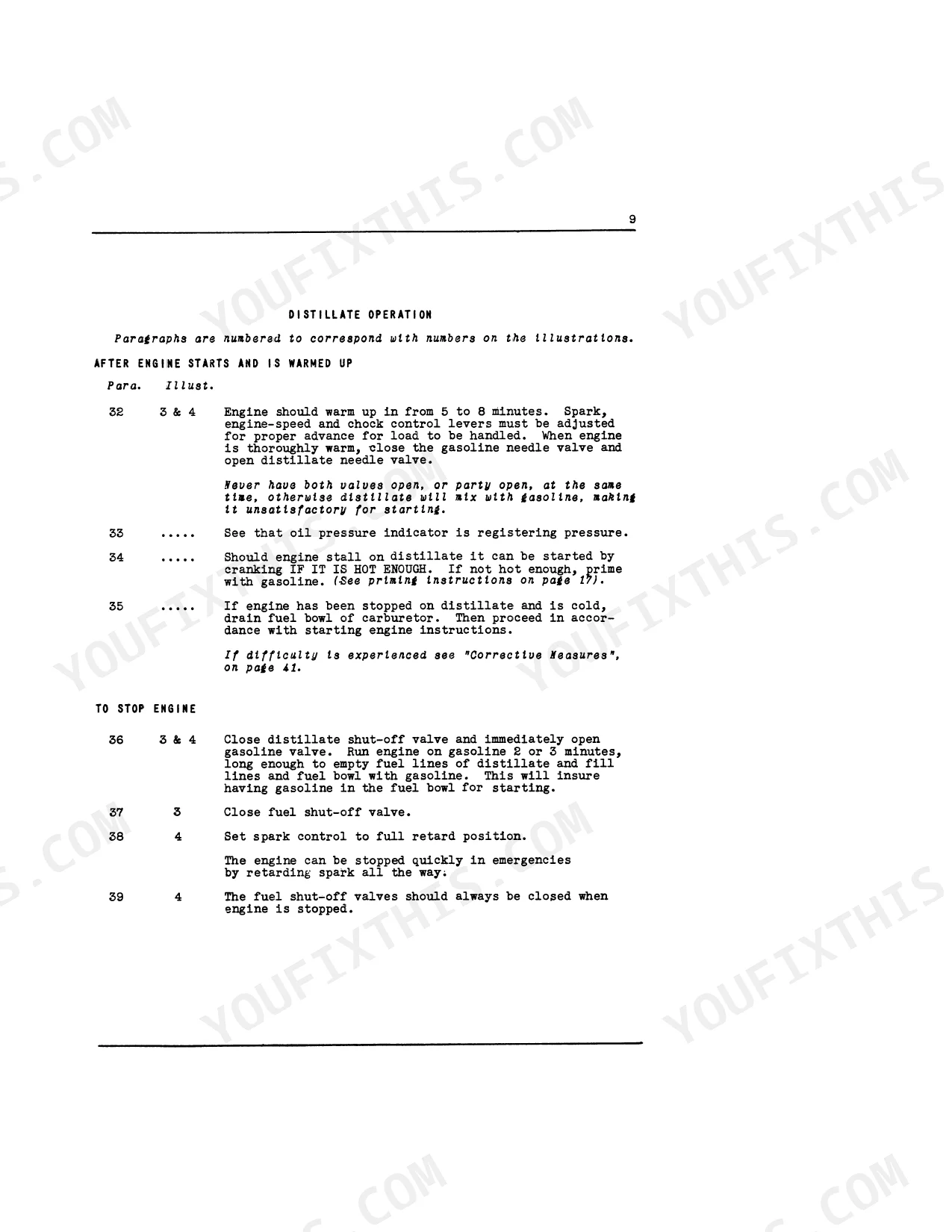

| Preparing Tractor for Operation (Distillate) / Winterfront | 11-15 | Winterfront Shutter Crank, Heat Indicator, Distillate Fuels Vaporization, Manifold Heat Control Lever, Fuel System |
| Gasoline Operation | 16-17 | Fuel System, Winterfront Shutter, Manifold Shield, Engine-Speed Control Lever, Heat Control Lever, Cold Weather Operation |
| Starting Tractor/ Gear Shifting/ Stopping Tractor | 18 | Clutch Pedal Operation, Gear Shifting Lever Positions, Spark Control Lever, Choke Rod, Fuel Shut-Off Valves, Engine Speed Control Lever |
| Governor/ Power Take-Off/ Belt Pulley | 19 | Rated Engine Speed, Governor Control Adjustment, Power Take-Off Gear Shift Lever, Clutch Operation, Belt Pulley Diameter, Pulley Shaft Gears |
| Steering Tractor/ Drawbar and Hitch | 20 | Brakes Operation, Front Wheels, Rear Wheels, Draw Bar Adjustment, Hitching Alignment, Stresses and Strains |
| Alemite Hydraulic Lubrication System | 21-22 | Cap, Handle and Plunger Assembly, Barrel, Follower, Piston, Coupling, Booster Chamber |
| Cold Weather Operation | 23 | Engine Starting, Water System, Water System Draining, Anti-Freezing Solutions |
| Anti - Freezing Solutions | 24-25 | Distilled Glycerine, Ethylene Glycol (Prestone), Freezing Point, Specific Gravity |
| Fuel Strainer/ Fuel Tanks | 26 | Fuel Strainer, Cleaning Fuel Strainer, Fuel and Gasoline Tanks, Fuel Tank Caps, Air Vents |
| Carburetor | 27 | Idling Adjustment, Idling Speed Adjustment, Main Jet Adjustment, Fuel Screen |
| Air Cleaner | 28-29 | Oil Cup, Oil to Use, Air Intake Pipe Screen, Washing Cleaner, General Precautions |
| Oil Filter Care | 30 | Drain Plug, Retaining Bar, Outer Shell, Metal Element, Filter Element Cleaning, Base Flushing |
| Magneto | 31-36 | Lubrication, Greasing, Point Adjustment, Impulse Coupling, Distributor, Magneto Timing |
| Spark Plugs | 37 | Cleaning, Checking Gaps, Electrode Gap Adjustment, Outer Electrode Bending, Recommended Type, Cable Position |
| Engine Ignition | 38 | Magneto Timing, Firing Order, Spark Plug Cables Connection, Wiring Diagram, Cable Terminals, Distributor Block Sockets |
| Corrective Measures | 47 | Failure to Start, Irregular Speed, Lack of Power, Overheating, Knocking, Defective Ignition |

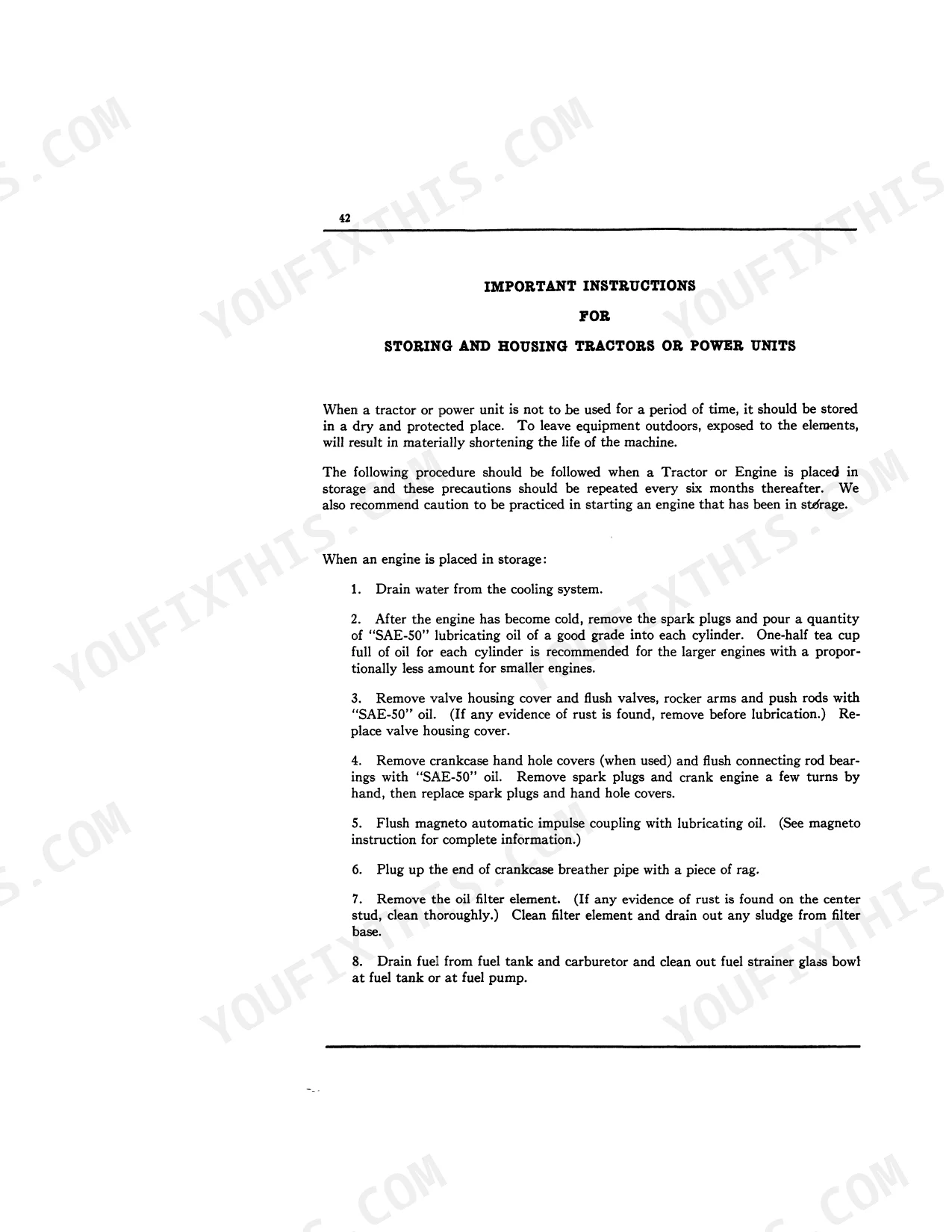

| Storing Tractor | 48-54 | Cooling System Draining, Spark Plug Removal, Cylinder Lubrication, Valve Mechanism Flushing, Magneto Impulse Coupling Flushing, Fuel System Draining |
Mccormick-deering F-30, Farmall Tractor F-30, McCormick-Deering Farmall Tractor F-30 Common Problems This Manual Covers
Mccormick-deering F-30 engine backfires through the carburetor on cold morning startup p. 18
Check the choke rod and engine-speed control lever settings on page 18 before cranking. Verify the manifold heat control lever is in the WARM position for at least the first few minutes of running. Clean the fuel screen in the carburetor per page 27 if backfiring continues after warm-up.
Manual Section: Starting Tractor/ Gear Shifting/ Stopping TractorEngine loses power and runs rough after switching from gasoline to distillate fuel p. 11
Confirm the manifold heat control lever is fully in the heat position before opening the distillate valve, per the preparing tractor for operation instructions. Do not switch to distillate until coolant temperature is warm; run on gasoline for the first several minutes of every start to avoid raw fuel washing down the cylinder walls.
Manual Section: Preparing Tractor for Operation (Distillate) / WinterfrontWinterfront shutters won't close fully, engine stays too cold in winter operation p. 13
Locate the winterfront shutter crank on the operator controls layout on page 13. Work the crank through its full travel and check for binding or debris in the shutter linkage. Adjust the heat indicator reading to the recommended warm-up range before resuming field work in cold conditions.
Manual Section: Preparing Tractor for Operation (Distillate) / WinterfrontAlemite hydraulic lubrication plunger won't push grease out to the fittings p. 21
Inspect the cap, handle, and plunger assembly described on page 21 for a stuck piston or worn coupling seal. Remove the barrel and check the follower moves freely inside the booster chamber. Refill the barrel completely; an air pocket from a low grease level is the most common cause of a dead stroke.
Manual Section: Alemite Hydraulic Lubrication SystemAir cleaner oil cup fills with dirty oil quickly during dusty field work p. 28
Remove the oil cup daily under dusty conditions and inspect per page 28. Wash the cleaner element in clean fuel or solvent and refill the cup to the marked level line with the oil grade specified for lubrication service. Check the air intake pipe screen for packed dirt restricting airflow.
Manual Section: Air CleanerTractor stored over winter won't start reliably in spring p. 50
Review the storing tractor safety instructions on page 50 before returning the machine to service. Verify the cooling system was drained and refilled correctly, spark plugs are reinstalled and gapped per page 37, and cylinder lubrication oil added before storage has been cleared by turning the engine over by hand first.
Manual Section: Storing TractorFrequently Asked Questions
How to reset governor on McCormick-Deering F-30?
The governor on the McCormick-Deering F-30 is factory-set and typically does not require adjustment. Therefore, no resetting procedure is provided for the owner.
How to adjust variable speed governor on McCormick-Deering F-30?
The variable speed governor on the McCormick-Deering F-30 is factory-set and does not require adjustment by the operator. It is designed to maintain constant engine speed under variable loads.
What is the recommended spark plug gap for the Farmall F-30 tractor?
The recommended spark plug gap for the Farmall F-30 tractor is between .020" and .025". When making this adjustment, always bend the outer electrode and never the center electrode to avoid damaging the insulator.
What is the specified valve clearance for the Farmall F-30 engine when warm?
A valve clearance of .017" is necessary between the end of the valve levers and valve stems when the valves are closed and the engine is warm. This clearance should be checked every 400 hours and adjusted if necessary.

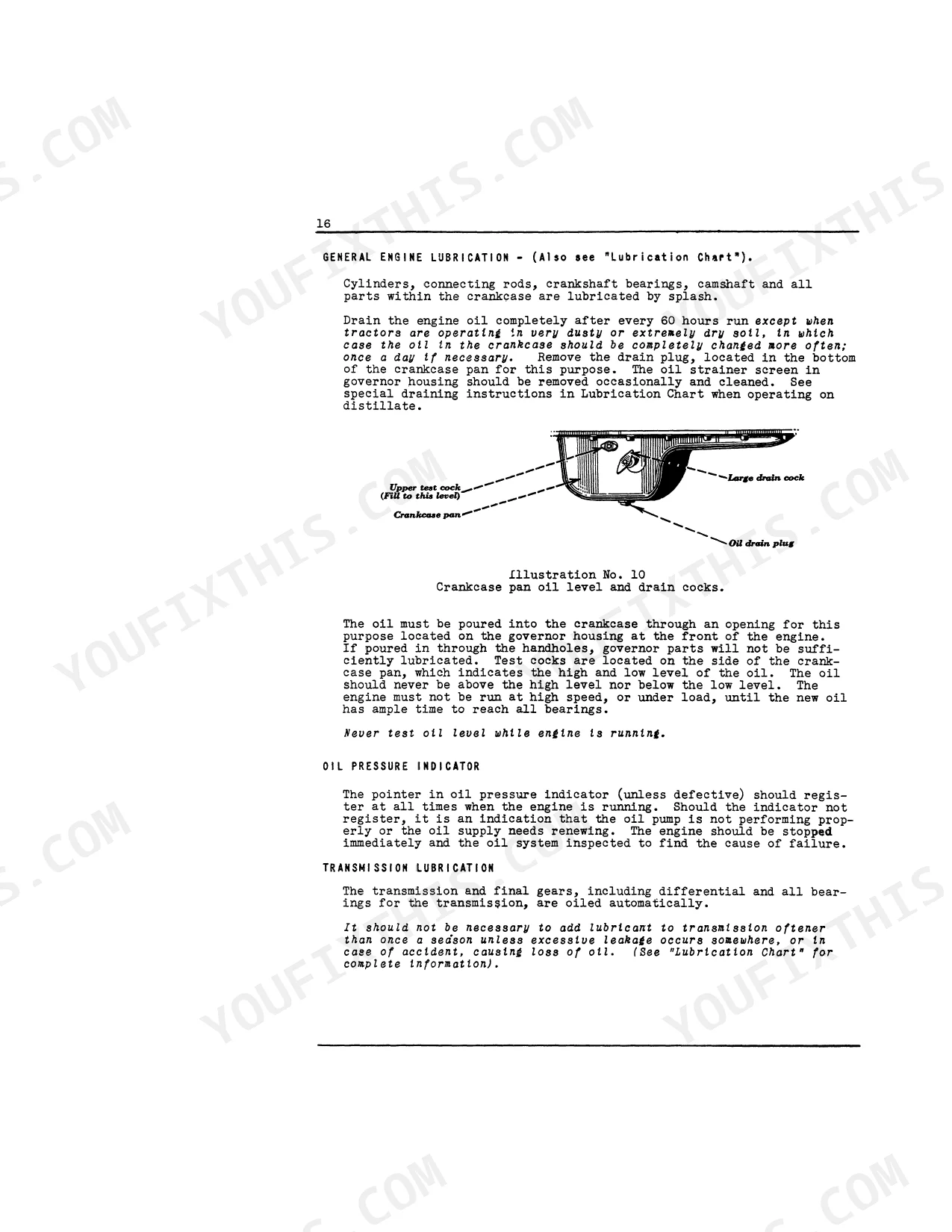

What is the crankcase oil capacity for the Farmall F-30 engine?
The crankcase pan-oil capacity for the Farmall F-30 engine is approximately 7 U.S. quarts. It is important to maintain the oil level between the high and low test cocks.
How will I receive this Mccormick-deering F-30, Farmall Tractor F-30 manual?
This is a 54-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this Mccormick-deering F-30, Farmall Tractor?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
