Looking for the factory operating procedures for your vintage machine? This 50-page Case IH F12 operator manual PDF (OEM #INT-5119A) covers the complete controls, daily maintenance, and fluid requirements for the F12 McCormick-Deering Farmall Tractor. You get full dashboard indicator breakdowns, cold weather starting procedures for both distillate and gasoline, and clear wiring diagrams to sort out ignition faults. Open to the maintenance section for daily service schedules and high-quality exploded views of the carburetor controls. Set your breaker point opening exactly to .013 inches and dial in the spark plug gap between .020 and .025 inches before putting it to work. Stop relying on forum guesses for your classic iron. This bookmarked file opens on your phone or tablet, so you can grab the right numbers and keep your tractor running strong.
What's Inside This Case IH F12, F12 McCormick-Deering Farmall Tractor Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Lubrication | 4 | Engine Crankcase, Magneto & Coupling, Lubricating Fittings, Air Cleaner, Transmission Case, Steering Gear Case |
| Operating Precautions | 5 | Gear Shift Lever, Radiator, Engine Oil, Spark Control, Clutch, Draw Bar |
| Distillate Operation, and Preparing Tractor for Starting | 6 | Distillate, Winterfront, Heat Indicator, Manifold Heat Control, Fuel System, Gasoline Shut-Off Valve |
| Radiator Shutter (Distillate Operation) | 7-8 | Winterfront, Shutter Crank, Control Handle, Operating Temperature |
| Starting Engine (Distillate Operation) | 9-10 | Spark Control Lever, Choke Rod, Magneto, Spark Lever, Fuel Mixture, Oil Pressure Indicator |
| Gear Shifting | 11 | Clutch Pedal, Gear Shifting Lever, Low Speed Forward, Intermediate Speed Forward, High Speed Forward, Reverse |
| Carburetor (Distillate) | 12 | Air Intake, Fuel Adjusting Screw, Idling Adjusting Screw, Idle Throttle Stop Screw, Main Fuel Adjustment, Hot Spot Manifold |
| Gasoline Operation | 13-14 | Fuel Tank, Gasoline Shut-Off Valve, Engine Speed Control Hand Lever, Manifold Heat Control Valve, Spark Control Lever, Choke Rod |
| Starting Engine (Gasoline Operation), and Engine Speed Control | 15-16 | Spark Control Lever, Choke Rod, Cranking Engine, Oil Pressure Indicator, Governor, Engine Speed Control Hand Lever |
| Carburetor (Gasoline) | 17 | Air Intake, Starting Shutter Shaft, Fuel Adjusting Screw, Idling Adjusting Screw, Throttle Shaft Assembly, Hot Spot Manifold |
| Draw Bar, Rear Wheels, Steering, Brakes, and Stoping Engine | 18 | Steering Mechanism, Internal Expanding Brakes, Clutch Pedal, Gear Shifting Lever, Rear Wheel Hub Bolts, Draw Bar Assembly |
| Cold Weather Operation | 19-23 | Engine Lubricants, Transmission Lubricants, Magneto Coupling Kerosene, Water System Drainage, Anti-Freezing Solutions, Winter Grade Gasoline |
| Air Cleaning System | 24-25 | Oil Cup, Air Intake Pipe Screen, Inlet Tube, Washing Cleaner, Flexible Rubber Connections, Gaskets |
| Oil Filter Care | 26 | Drain Plug, Retaining Bar, Outer Shell, Metal Element, Filter Base, Case Gasket |
| Fuel Pump, Fuel Strainer, and Fuel Tanks | 27 | Fuel Strainer, Fuel Pump Diaphragm, Fuel Lines, Fuel Tank Air Vent, Fuel Tank Capacity, Fuel Shut-Off Valve |
| Spark Plugs and Cables, Engine Ignition, and Wiring | 28 | Spark Plugs, Spark Plug Cables, Magneto Wiring, Engine Timing, Magneto Timing, Engine Firing Order |
| Magneto | 29-34 | Lubrication, Breaker Points, Impulse Coupling, Distributor, Timing |
| Corrective Measures | 35 | Failure to Start, Irregular Speed, Lack of Power, Overheating, Missing and Backfiring, Lack of Oil Pressure |
| Storing Tractor | 36-38 | Draining Water, Lubricating Cylinders, Flushing Valves, Flushing Connecting Rod Bearings, Flushing Magneto Automatic Impulse Coupling, Draining Fuel System |

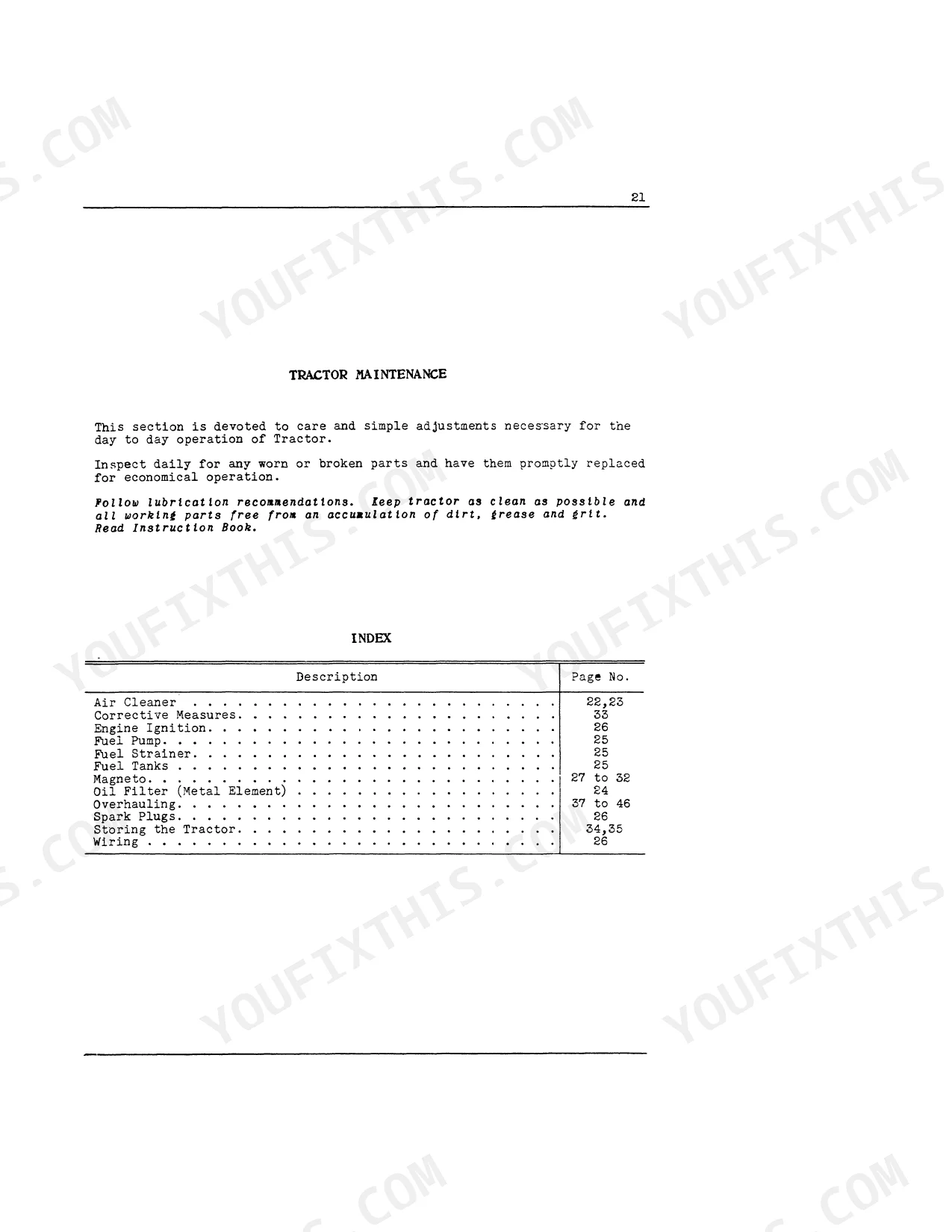

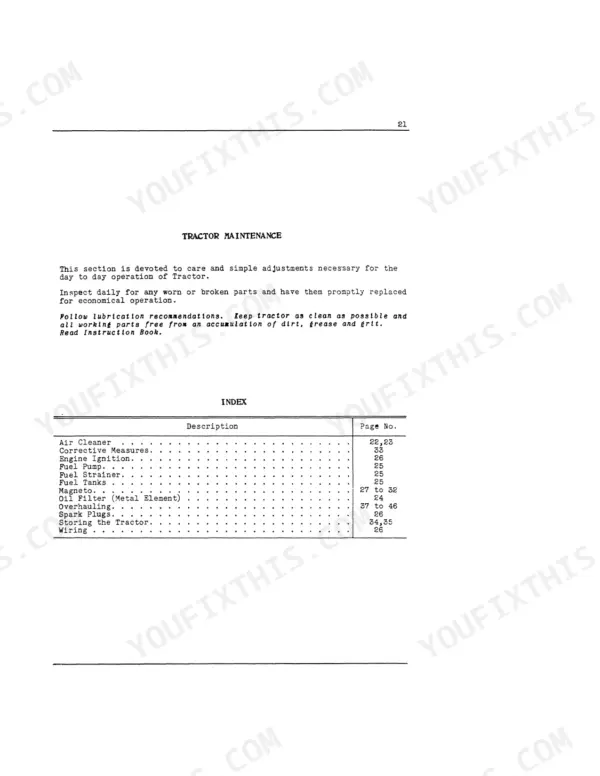

| Overhauling | 39-50 | Crankshaft Bearings, Cylinders - Carbonized, Gaskets, Pistons, Piston Rings, Valve Clearance and Adjustment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Breaker point opening | .013" | p. 30 |
| Distributor block removal interval | 200 or 300 hours | p. 32 |

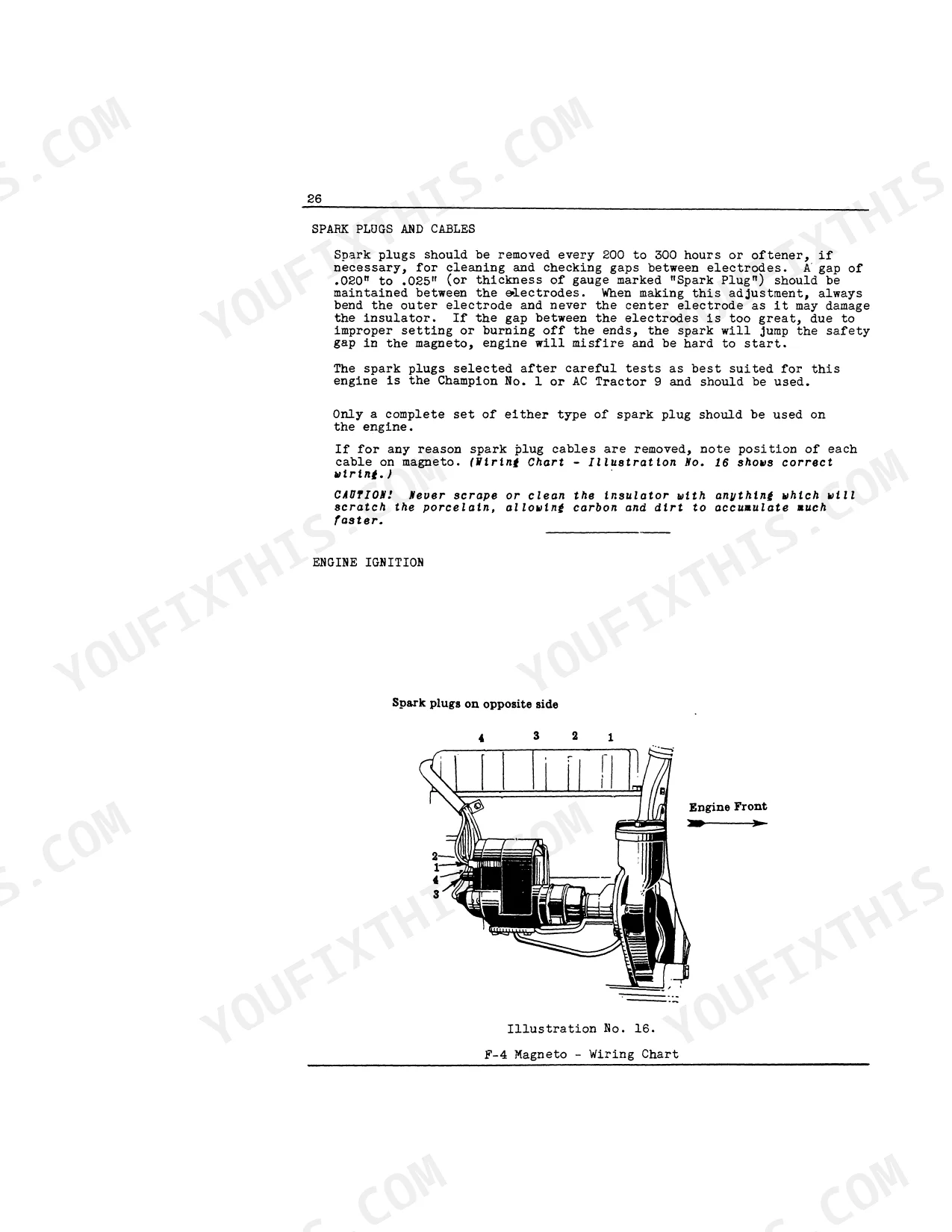

| Spark plug gap | .020" to .025" | p. 28 |
| Recommended spark plug type | Champion No. 1 or AC Tractor 9 | p. 28 |
| Oil filter cleaning interval | daily | p. 26 |
| Oil filter element replacement condition | if there are any breaks | p. 26 |
| Engine Cylinders | 4 | p. 38 |
| Engine Bore | 3 in. | p. 38 |
| Engine Stroke | 4 in. | p. 38 |
| Engine Speed (governed) | 1400 r.p.m. | p. 38 |
| Crankcase Pan Oil Capacity | Approx. 5½ U.S. qts. | p. 38 |
| Water Cooling System Capacity | Approx. 3½ U.S. gals. | p. 38 |
Case IH F12, F12 McCormick-Deering Farmall Tractor Common Problems This Manual Covers
Case IH F12 magneto drive making clicking or grinding noise during operation p. 29
Check the Corrective Measures troubleshooting chart on page 35 for defective ignition symptoms. Remove the distributor block per page 32 after every 200 to 300 hours of operation and inspect the impulse coupling for wear. Verify breaker point opening is .013" as shown on page 30; regap or replace worn points causing the noise.
Manual Section: MagnetoEngine fails to start or runs intermittently after sitting idle for an extended period p. 34
Check page 34 for hard-starting causes tied to long idle periods. Verify spark plug gap is .020" to .025" per page 28 and clean carbon deposits from the electrodes. If the engine sat idle more than three months, fill the rotor bearing oil cups twice and lubricate the impulse coupling liberally as described on page 29.
Manual Section: Engine Hard to StartOil pressure indicator shows no pressure or reads low immediately after cold startup each morning p. 35
Check the Corrective Measures chart on page 35 under lack of oil pressure. Verify crankcase oil is filled to capacity, approximately 5½ U.S. quarts per page 38. Inspect the oil filter element daily per page 26 and renew it if there are any breaks in the element.
Manual Section: Corrective MeasuresEngine overheating and boiling over during operation in hot summer field conditions p. 35
Check the Corrective Measures chart on page 35 for overheating causes. Verify the water cooling system is filled to capacity, approximately 3½ U.S. gallons per page 38. Clean debris from the radiator core and check fan belt tension, replacing the belt if it is cracked or glazed.
Manual Section: Corrective MeasuresEngine misfires or backfires intermittently under heavy load while plowing or pulling p. 35
Check the Corrective Measures chart on page 35 for missing and backfiring causes. Remove and inspect the spark plugs per page 28; regap electrodes to .020" to .025" or replace with Champion No. 1 or AC Tractor 9 plugs. Clean plugs every 200 to 300 hours or sooner if fouled.
Manual Section: Corrective MeasuresFrequently Asked Questions
Where can I find the service manual for a Case IH F12 with wet sleeves?
Manuals for the operation, service, and repair of your machine are available from your authorized Case dealer. For prompt and convenient service, you should contact your dealer for assistance in obtaining the correct manuals for your machine.
How to time the magneto on an F12 model tractor?
To time the magneto, first crank the engine until the No. 1 piston is at the upper dead center of the compression stroke, aligning the D.C. No. 1 mark on the flywheel with the timing mark on the flywheel housing. Then, lock the impulse coupling out of engagement and set the circuit breaker (1) as high as it will go, ensuring the rubbing block is on the high point of the cam, and adjust the point opening to .013".
What are the replacement specifications for the Magneto unit?
The magneto unit specified for the F12 McCormick-Deering Farmall Tractor is an IHC Type F-4. This information is listed under the general specifications for the engine.
What is the engine oil capacity for the F12 tractor?
The crankcase pan oil capacity for the F12 McCormick-Deering Farmall Tractor is approximately 5½ U.S. quarts. This capacity is crucial for proper engine lubrication.
How will I receive this Case IH F12, F12 McCormick-Deering Farmall Tractor?
Immediate download of the complete 50-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this Case IH F12, F12 McCormick-Deering Farmall?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Does this Case IH F12, F12 McCormick-Deering Farmall Tractor manual have?
Yes, this Case IH F12, F12 McCormick-Deering Farmall Tractor Operator Manual includes a wiring diagram for the electrical system.
