Before you turn the key on your tractor, make sure you have this 118-page Case IH JX55T, JX75T Operator Manual PDF (OEM #48063711) sitting in the cab. You get complete daily maintenance schedules, fluid capacities, and detailed dashboard indicator charts to keep the machine running right. Open the working operations section for step-by-step instructions on adjusting the three-point linkage, engaging the ground speed PTO, and setting the front wheel track width. Set the clutch pedal free travel exactly between 35 and 40 mm, and verify your main relief valve pressure is hitting 210 bar before hooking up heavy implements. Prevent expensive downtime caused by skipped service intervals. Grab this bookmarked file right now, load it onto your phone, and keep your daily maintenance schedule on track.
What's Inside This Case IH JX55T, JX75T Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-10 | Introduction |
| Safety Information | 11-20 | Safety Rules, Personal Safety, Driving the Tractor, Operating the Tractor, Operating the Power Take-Off, Servicing the Tractor, Diesel Fuel, Instructions for Driving on Road |

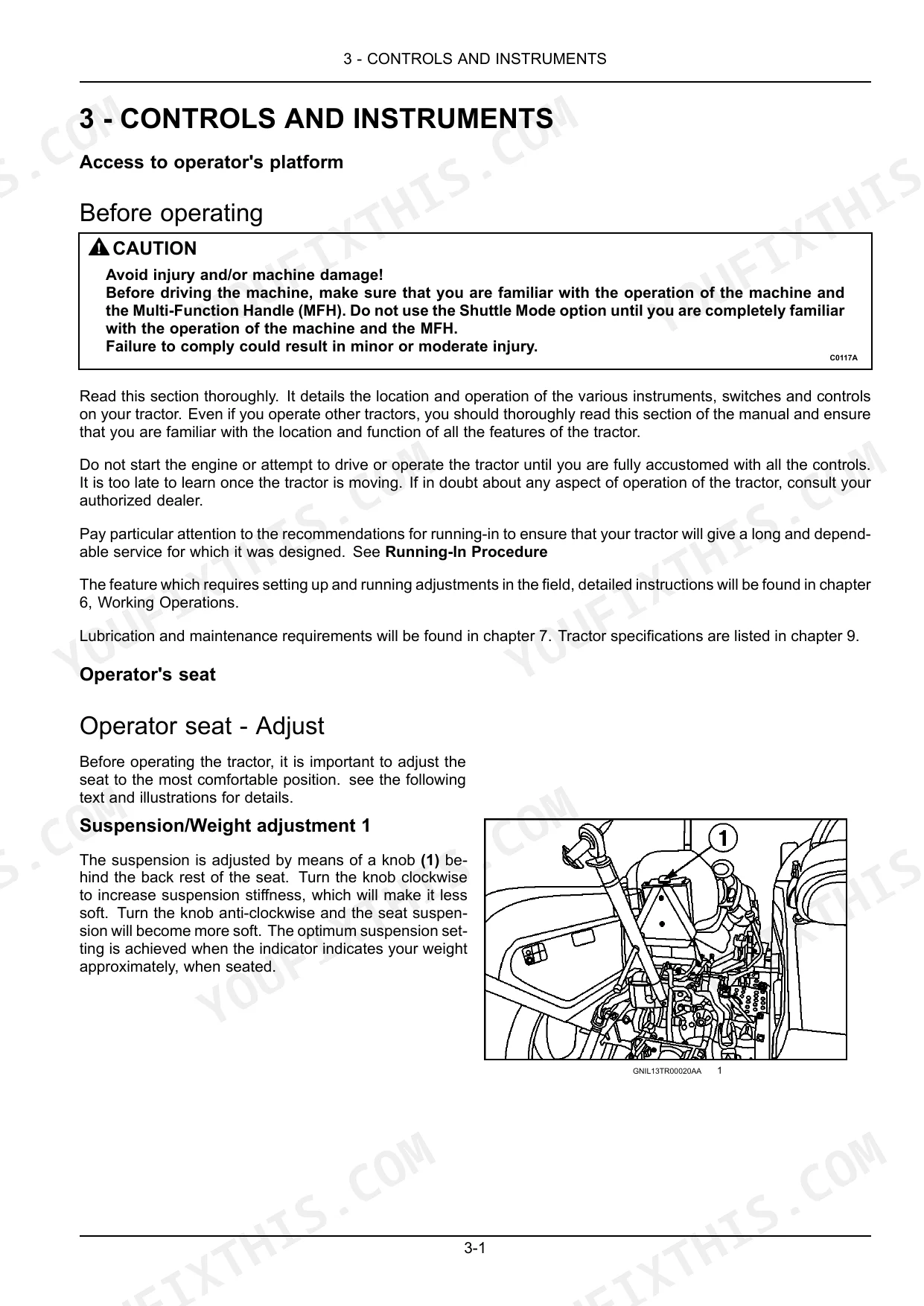

| Controls and Instruments | 21-32 | Access to Operator's Platform (Before Operating), Operator's Seat (Operator Seat - Adjust) |

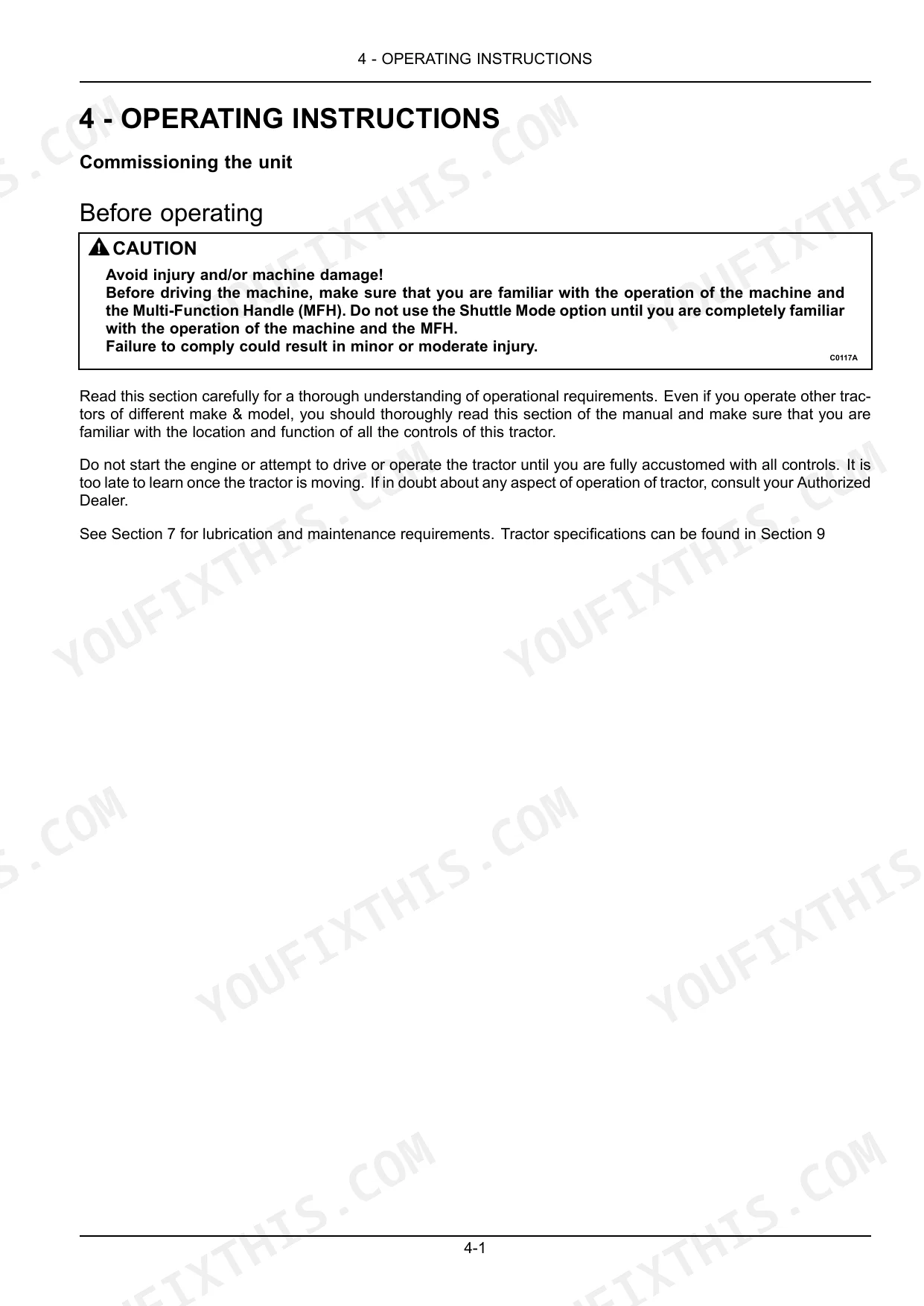

| Operating Instructions | 33-38 | Commissioning the Unit (Before Operating, Running-In Procedure), Starting the Unit (Tractor with Jumper Cables, Engine), Stopping the Unit (Stopping the Engine) |
| Transport Operations | 39-40 | Recovery Transport (Towing the Tractor) |
| Working Operations | 41-68 | Power Take Off (Power Take-Off Operating Precautions, Attaching PTO Driven Equipment, Connecting the Power Take-Off, Power Take-Off Protective Cap and Guard, Power Take-Off - Operating, Ground Speed PTO) |

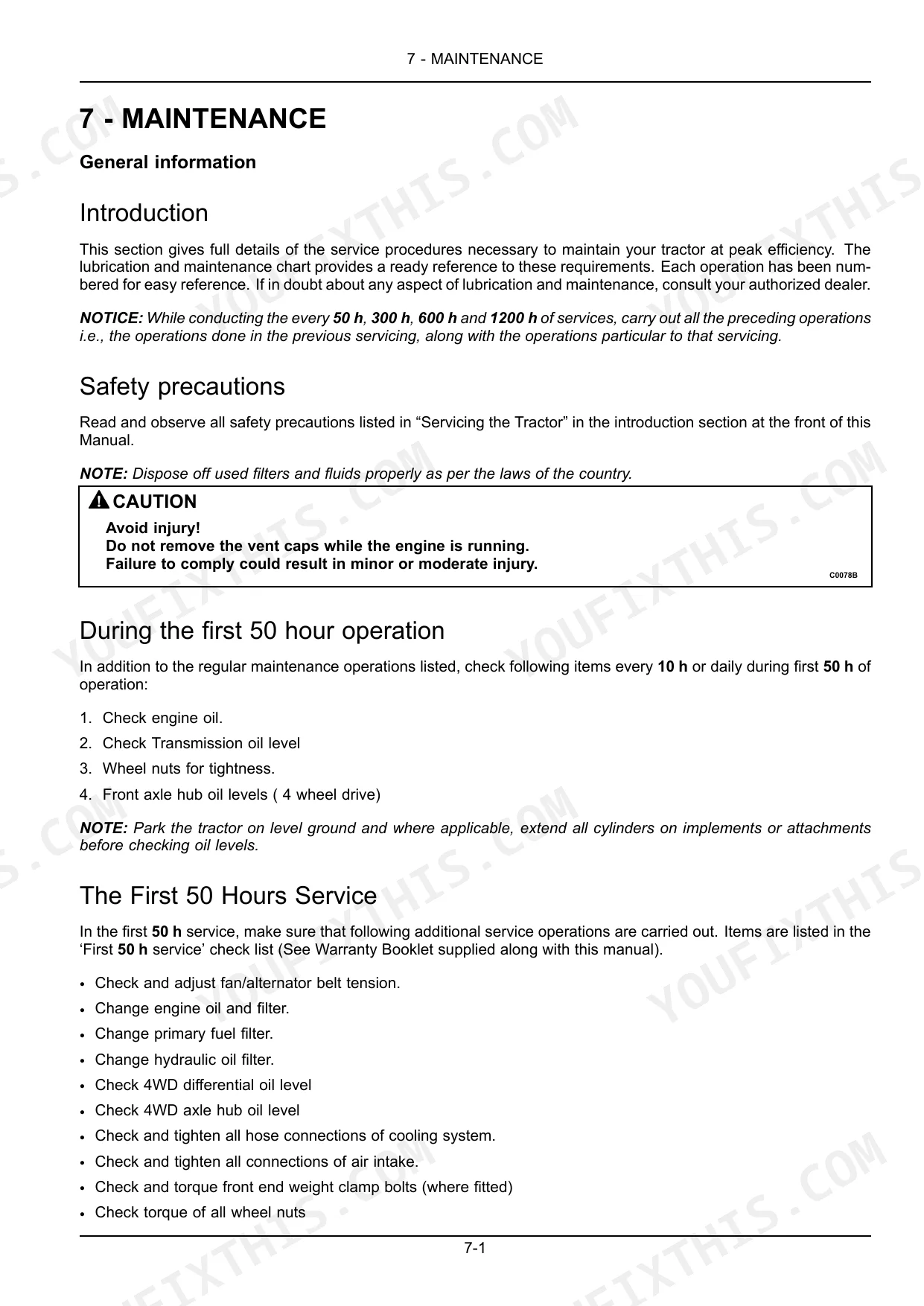

| Maintenance | 69-104 | Engine Oil Level Check, Fuel Filters Replacement, Clutch Pedal Free Play Adjustment, Fan/alternator Belt Adjustment, Transmission/hydraulics Oil Level, Front Wheel Bearings |

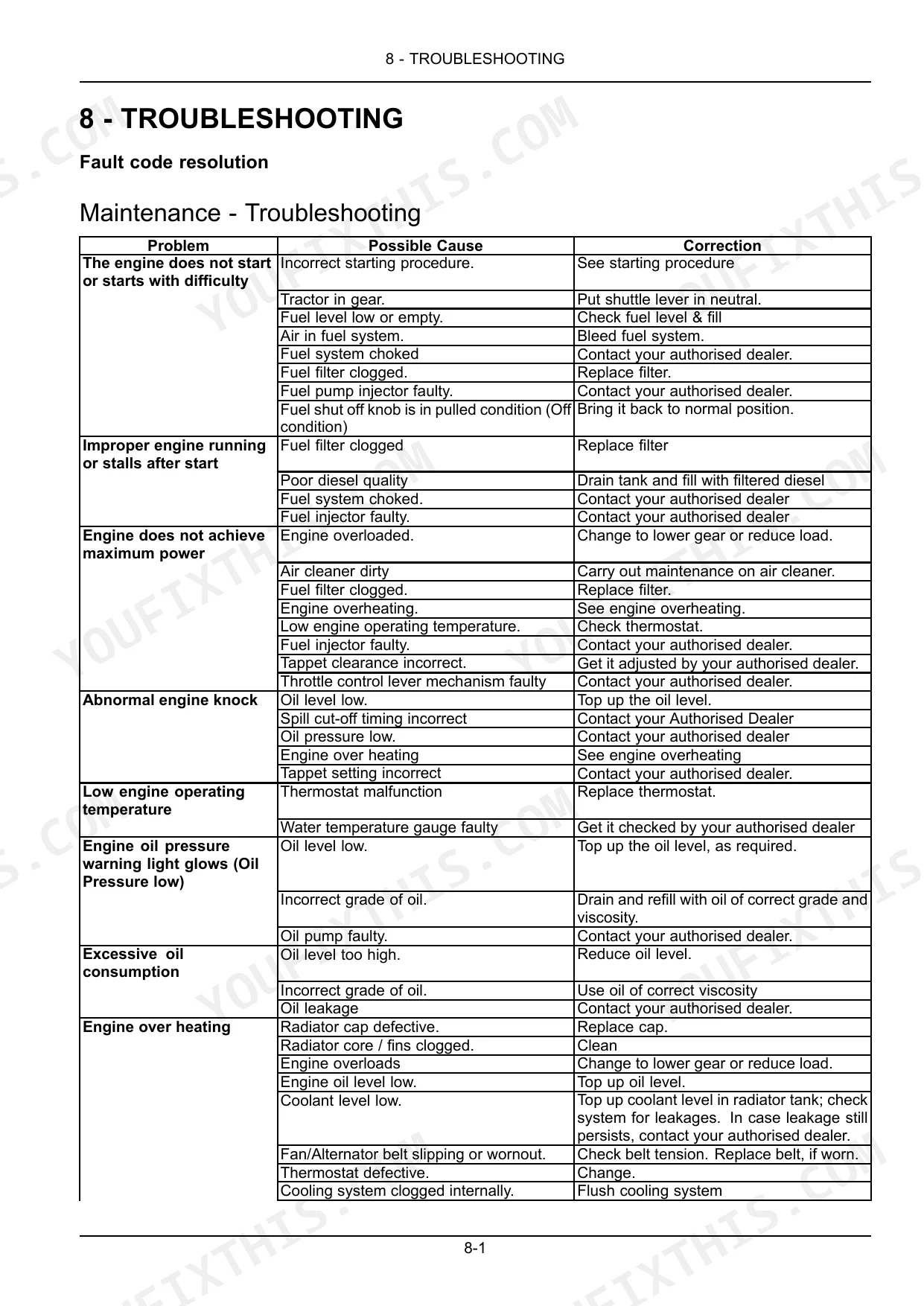

| Troubleshooting | 105-108 | Engine Does Not Start or Starts with Difficulty, Engine Does Not Achieve Maximum Power, Engine Oil Pressure Warning Light Glows, The Electrical System Does Not Work |

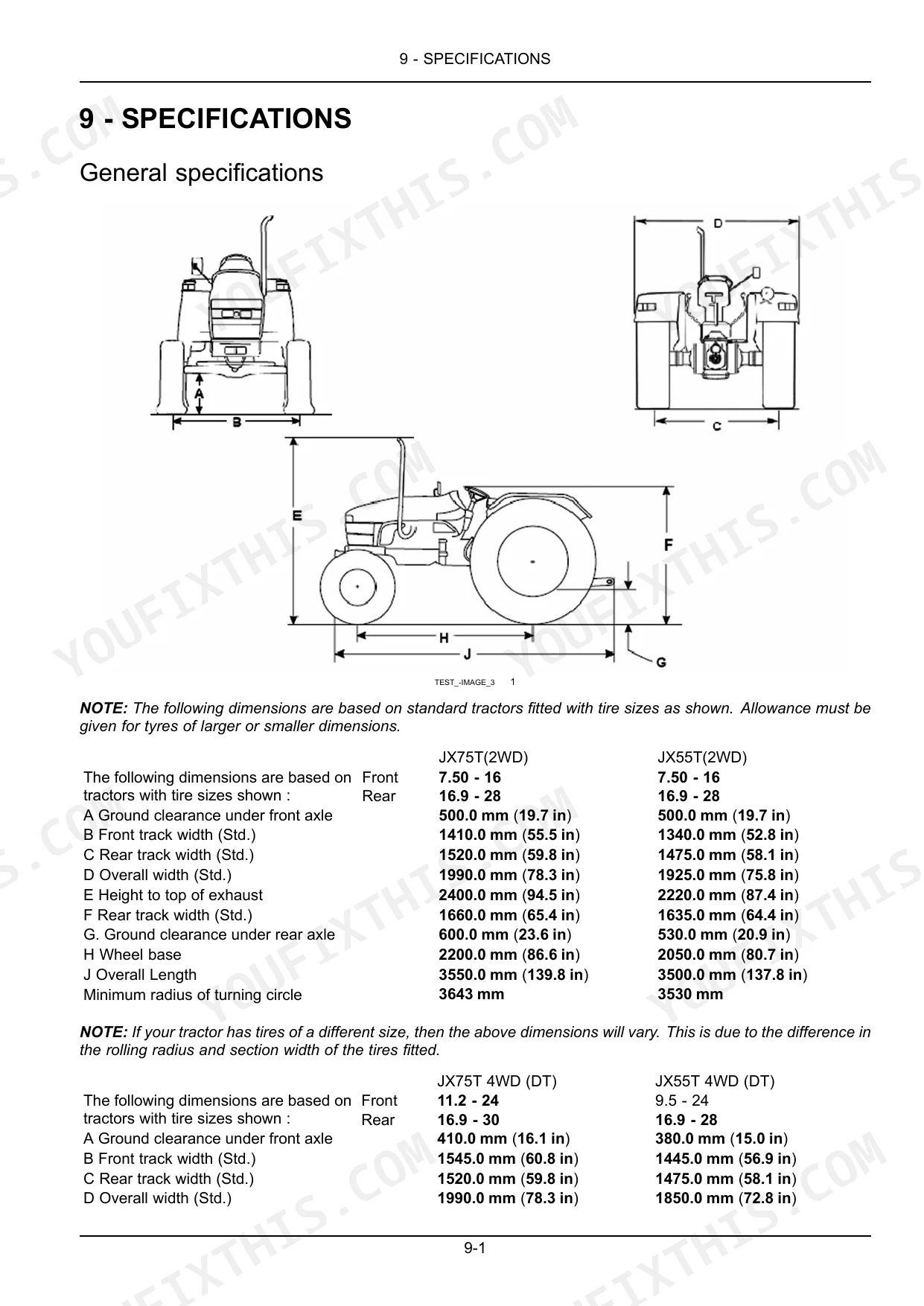

| Specifications | 109-114 | General Dimensions, Engine Technical Data, Clutch Technical Data, Power Take-Off (PTO) Technical Data, Hydraulic Systems Technical Data, Electrical System Technical Data |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Clutch pedal free travel | 35 - 40 mm | p. 111 |
| Starter motor mounting nuts torque | Tight | p. 101 |
| Relief valve pressure | 210 bar +/- ±10 | p. 112 |
| Hydraulic system not working properly - Cause | Oil level low | p. 106 |
| Hydraulic system not working properly - Correction | Replace hydraulic filter | p. 106 |
| Engine Idle Speed | 600 RPM +/- 25 | p. 111 |
| Tappet Clearance (Cold) | 0.45 mm | p. 111 |
| JX75T | ||
| Engine Oil Capacity | 8.5 L | p. 113 |
| Rear Axle Oil Capacity | 5.6 L | p. 113 |
| JX55T | ||
| Engine Oil Capacity | 7.5 L | p. 113 |
| Rear Axle Oil Capacity | 9.0 L | p. 113 |
| JX75T 4WD | ||
| Transmission & Hydraulic Oil Capacity | 34 L | p. 113 |
Case IH JX55T, JX75T Common Problems This Manual Covers
Case IH JX55T/JX75T engine won't start or cranks slowly on cold mornings p. 105
Check the troubleshooting procedures on page 105 for engine no-start causes: verify the fuel shut-off knob isn't pulled, confirm adequate fuel level, and bleed air from the fuel system. Once running, confirm idle speed settles at 600 RPM +/- 25 per page 111; if it hunts, inspect the fuel filter for clogging.
Manual Section: Engine No-Start/Difficulty StartingTractor loses power climbing hills or struggles pulling heavy loads in the field p. 105
Check the troubleshooting chart on page 105 for reduced power causes. Inspect the air cleaner element for dirt and clean or replace it, verify the fuel filter isn't clogged, and confirm the engine isn't overheating. Check tappet clearance is set to 0.45 mm cold; incorrect clearance robs power under load.
Manual Section: Engine Does Not Achieve Maximum PowerHydraulic lift raises slowly or won't hold the implement in raised position p. 106
Check the hydraulic troubleshooting section on page 106. Verify oil level is up to the correct mark on the dipstick or sight glass; low oil is the most common cause. If level is fine, replace the hydraulic filter if clogged. On JX75T 4WD models the reservoir holds 34 L; refill to spec after servicing.
Manual Section: The Hydraulic System Is Not Working ProperlyTransmission gears feel hard to engage or slip out of gear during field operation p. 111
Check clutch pedal free travel first; it should measure 35 to 40 mm per page 111. If travel is out of spec, adjust the clutch linkage before assuming a transmission fault. Also check transmission/hydraulic oil level is correct, since low oil in that circuit can cause hard or slipping gear engagement.
Manual Section: Clutch Pedal Free Play AdjustmentBrake pedal feels spongy or brakes pull unevenly to one side when stopping p. 107
Check brake pedal free travel on page 112; it should measure 50 to 55 mm before resistance. If travel is outside spec or the brakes engage unevenly, verify both sides are adjusted equally, inspect linings for oil contamination, and correct the pedal linkage adjustment before returning the tractor to road use.
Manual Section: Brake System MalfunctionsFrequently Asked Questions
What is the engine oil capacity for the JX75T tractor?
The engine oil capacity for the JX75T tractor is 8.5 L. For the JX55T, the capacity is 7.5 L. It is important to use Genuine CASE IH Engine Oil Ambra Mastergold.
What is the transmission and hydraulic oil capacity for the JX75T 4WD version?
The transmission and hydraulic oil capacity for the JX75T 4WD version is 34 L. For the JX55T 4WD version, the capacity is 33 L. It is recommended to use Genuine CASE IH Transmission Oil Ambra Supertran.
What is the recommended free travel for the clutch pedal?
The recommended free play for the clutch pedal should be 35 - 40 mm. This adjustment is crucial for proper operation and to prevent premature clutch failure.
What is the recommended free travel for the brake pedals?
The recommended free play at the brake pedals should be 35 - 45 mm. This ensures uniform brake application and maximum stopping ability when the pedals are locked together for road travel.
At what engine speed is the standard 540 RPM PTO speed obtained?
The standard 540 RPM PTO speed is obtained at an engine speed of 1967 RPM. This information is also indicated by a PTO symbol on the tachometer's RPM scale.
Is this Case IH JX55T, JX75T Operator Manual a digital download?
This is a 118-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Case IH JX55T, JX75T Operator Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
