Every one of these 765 pages targets the Case IH JX55T and JX75T Tier 1 engine tractors, both 2WD and 4WD variants, in a single OEM factory service manual (OEM #47899738). Open it to complete hydraulic schematics tracing every circuit from the fixed displacement pump through the main control valve, remote valves, and main lift system. You also get full electrical wiring diagrams for harnesses, the starting system, alternator, battery, and warning indicators, backed by a full troubleshooting section, factory torque tables, and page after page of exploded views spanning engine, transmission, front and rear axles, PTO, brakes, and steering. Torque the injection pump shaft gear nut to 64 N·m, then check your transmission clutch plate thickness at 8.800 to 9.600 mm before reassembly. No more hunting forum posts for specs that may not match your machine. Grab the bookmarked PDF, search any spec by keyword, and get back to work.
What's Inside This Case IH JX55T, JX75T Tier 1 Manual

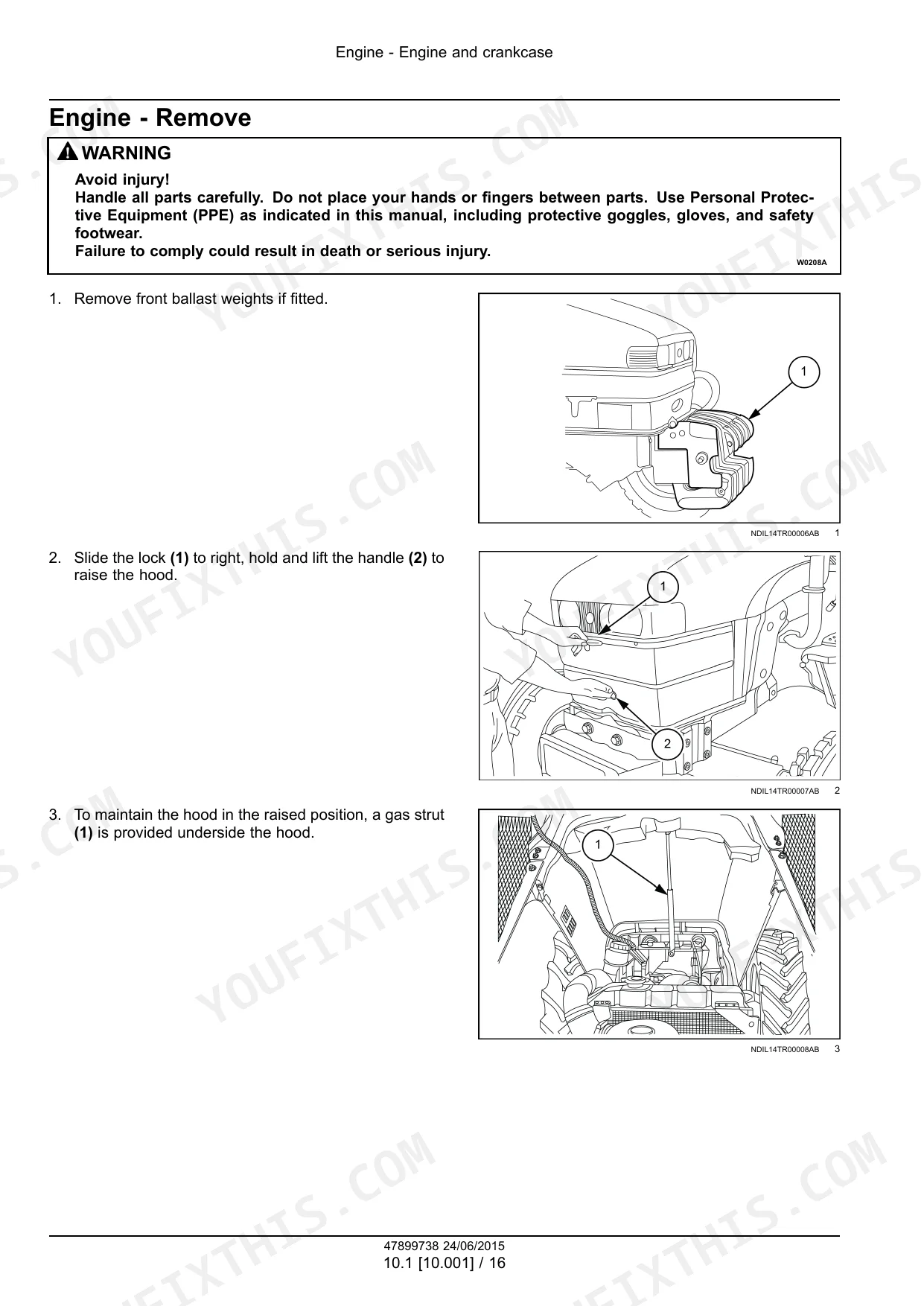

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-22 | Foreword, Safety Rules |
| Engine - 10 | 23-214 | Engine and Crankcase, Pan and Covers, Valve Drive and Gears, Cylinder Heads, Connecting Rods and Pistons, Crankshaft and Flywheel, Balancer and Damper, Fuel Injection System |
| Clutch - 18 | 215-246 | Clutch and Components |
| Transmission - 21 | 247-310 | Mechanical Transmission, Mechanical Transmission Internal Components, Gearbox External Controls, Gearbox Internal Components |
| Four-Wheel Drive (4WD) System - 23 | 311-326 | Drive Shaft |
| Front Axle System - 25 | 327-390 | Non-Powered Front Axle, Powered Front Axle, Front Bevel Gear Set and Differential, Final Drive Hub, Steering Knuckles, And Shafts |
| Rear Axle System - 27 | 391-444 | Powered Rear Axle, Rear Bevel Gear Set and Differential, Planetary and Final Drives |
| Power Take-Off (PTO) - 31 | 445-466 | Rear Mechanical Control, Power Take-Off Drive Shaft |
| Brakes and Controls - 33 | 467-494 | Mechanical Service Brakes, Parking Brake or Parking Lock |
| Hydraulic Systems - 35 | 495-600 | Fixed Displacement Pump, Main Control Valve, Remote Control Valves, Main Lift System |
| Steering - 41 | 601-672 | Steering Control, Hydraulic Control Components, Cylinders |
| Wheels - 44 | 673-680 | Front Wheels |

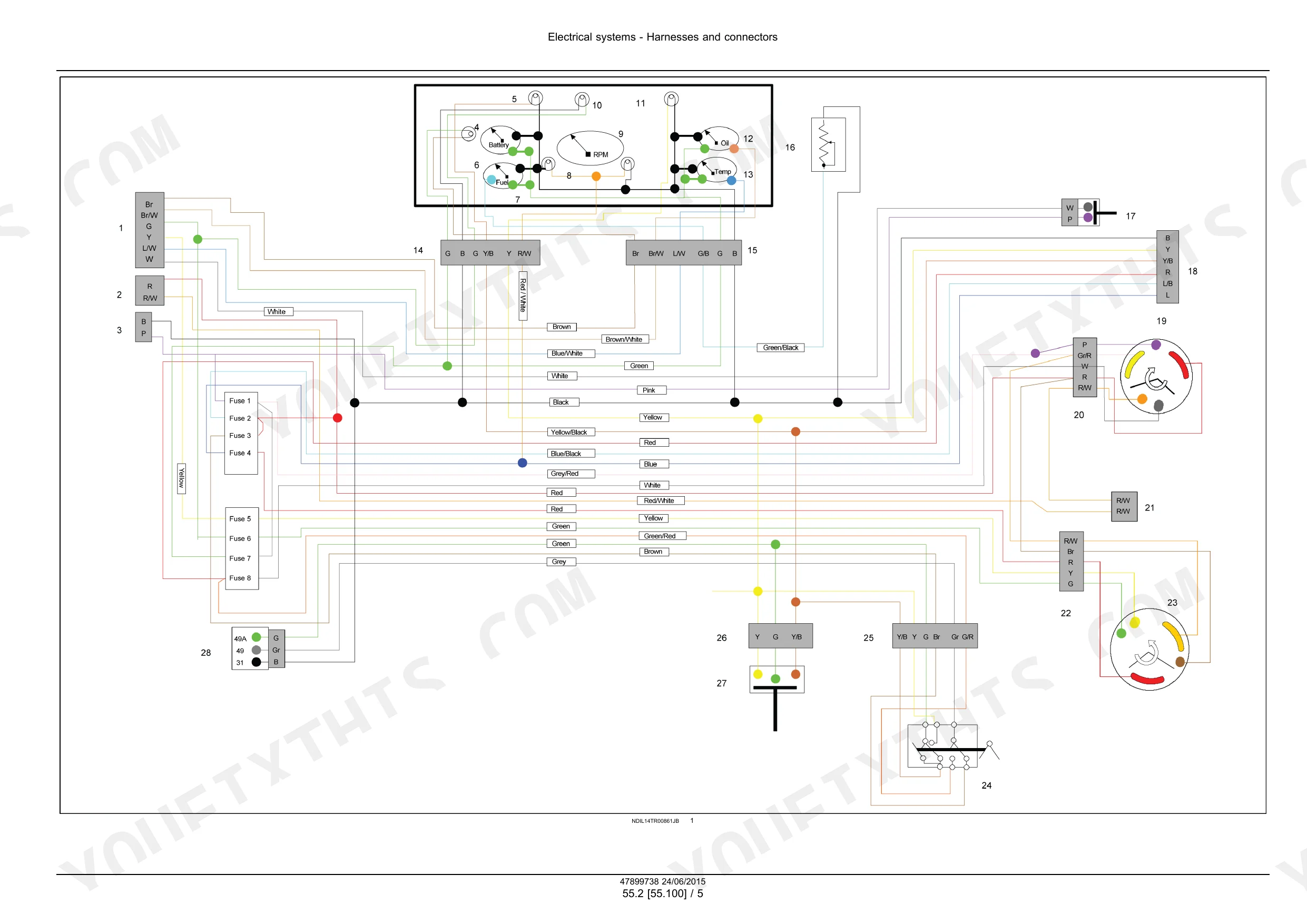

| Electrical Systems - 55 | 681-763 | Electrical System, Harnesses and Connectors, Engine Starting System, Alternator, Battery, External Lighting, Warning Indicators, Alarms |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Hydraulic system adjustment procedures | Described for position control, maximum lift arm travel, draft control spring, and lift-o-matic control | p. 591 |

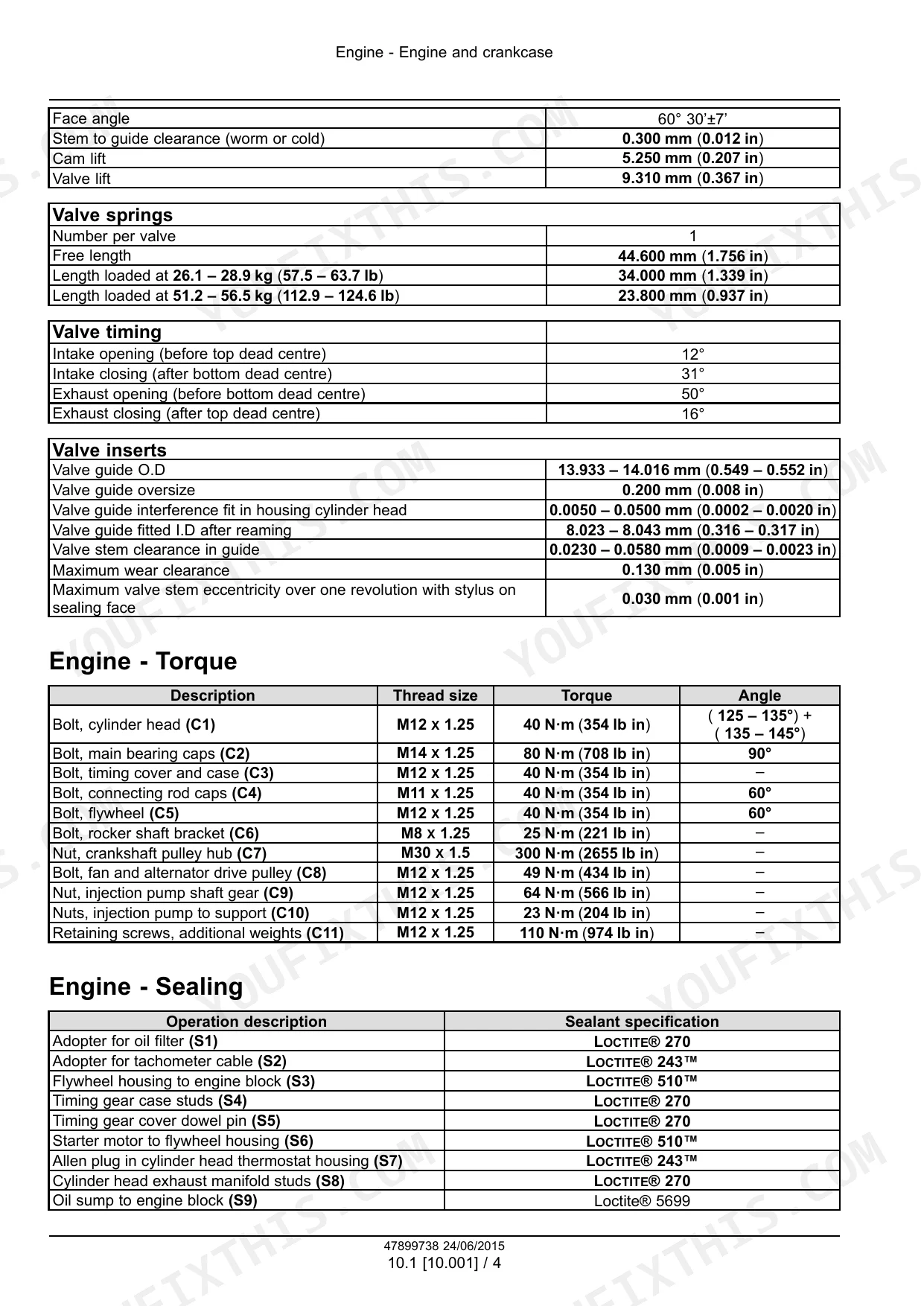

| Nut, injection pump shaft gear (C9) torque | 64 N·m (566 lb in) | p. 27 |
| Nuts, injection pump to support (C10) torque | 23 N·m (204 lb in) | p. 27 |
| Transmission clutch plate thickness | 8.800 – 9.600 mm (0.346 – 0.377 in) | p. 218 |
| Power Take-Off (PTO) clutch plate thickness | 8.300 – 8.900 mm (0.326 – 0.350 in) | p. 218 |
| Engine oil filter replacement interval | Every 300 working hours | p. 202 |
| Hydraulic pump maximum rated output | 32.800 L/min (8.665 US gpm) | p. 508 |
| Hydraulic pump output at 1450 RPM and 166 bar (new or reconditioned) | 19.100 L/min (5.046 US gpm) | p. 508 |
| High oil consumption definition | In excess of 0.4% of the total fuel used over the same period, i.e. 0.4 of a liter of engine oil to 100 liters of fuel | p. 194 |
| Oil consumption threshold for service repair action | Below 0.4% | p. 197 |
| JX75T | ||

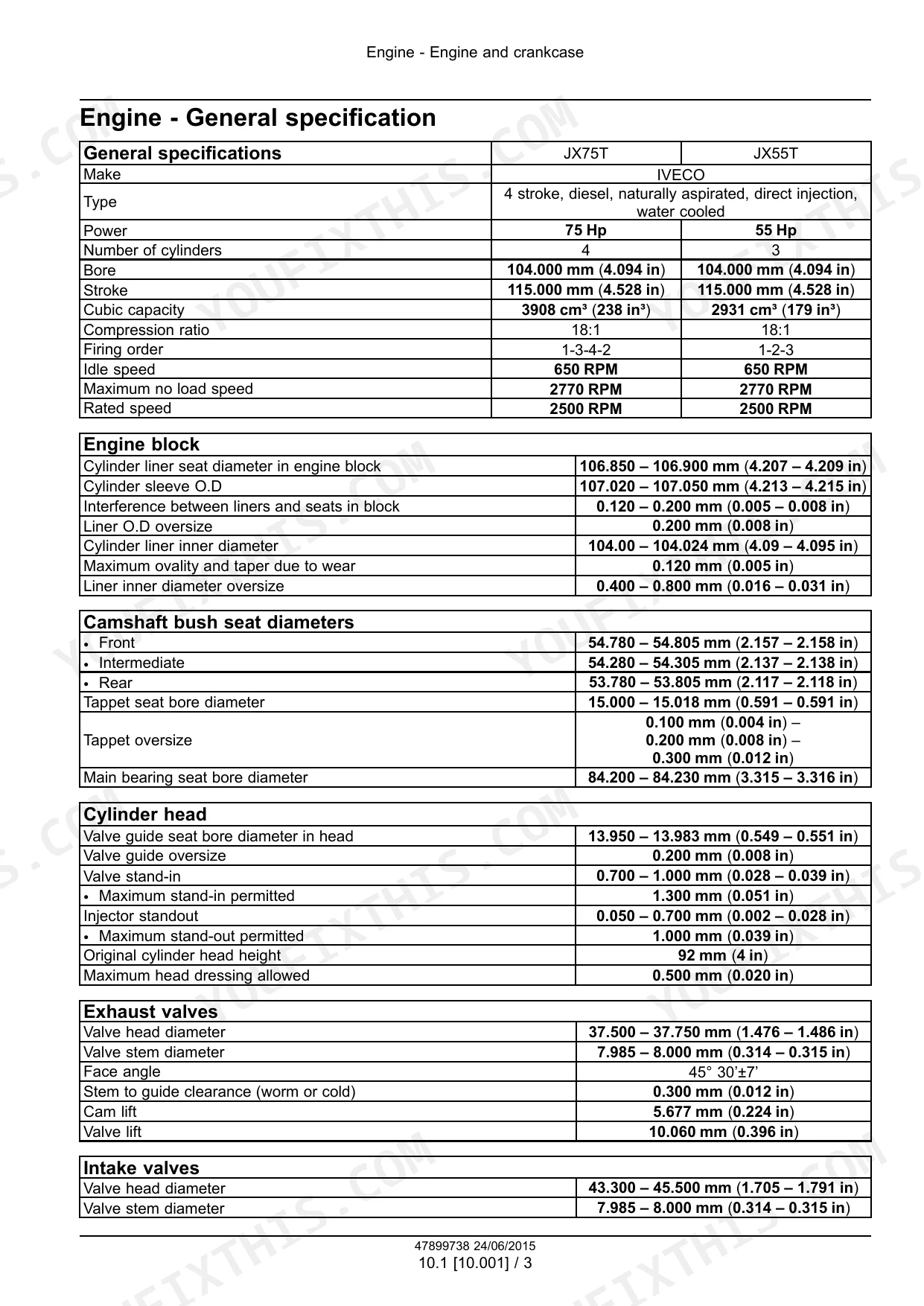

| JX75T Engine Power | 75 Hp | p. 26 |
| JX55T | ||
| JX55T Engine Power | 55 Hp | p. 26 |
Case IH JX55T, JX75T Tier 1 Common Problems This Manual Covers
Case IH JX55T engine stalling under load with loss of power and low fuel pressure.
Inspect the fuel injection system. Torque the injection pump support nuts to 23 N·m (204 lb in). Check the pumping element stroke is exactly 1.000 mm (0.039 in) as detailed on page 148. Replace the engine oil filter every 300 working hours to maintain clean flow.

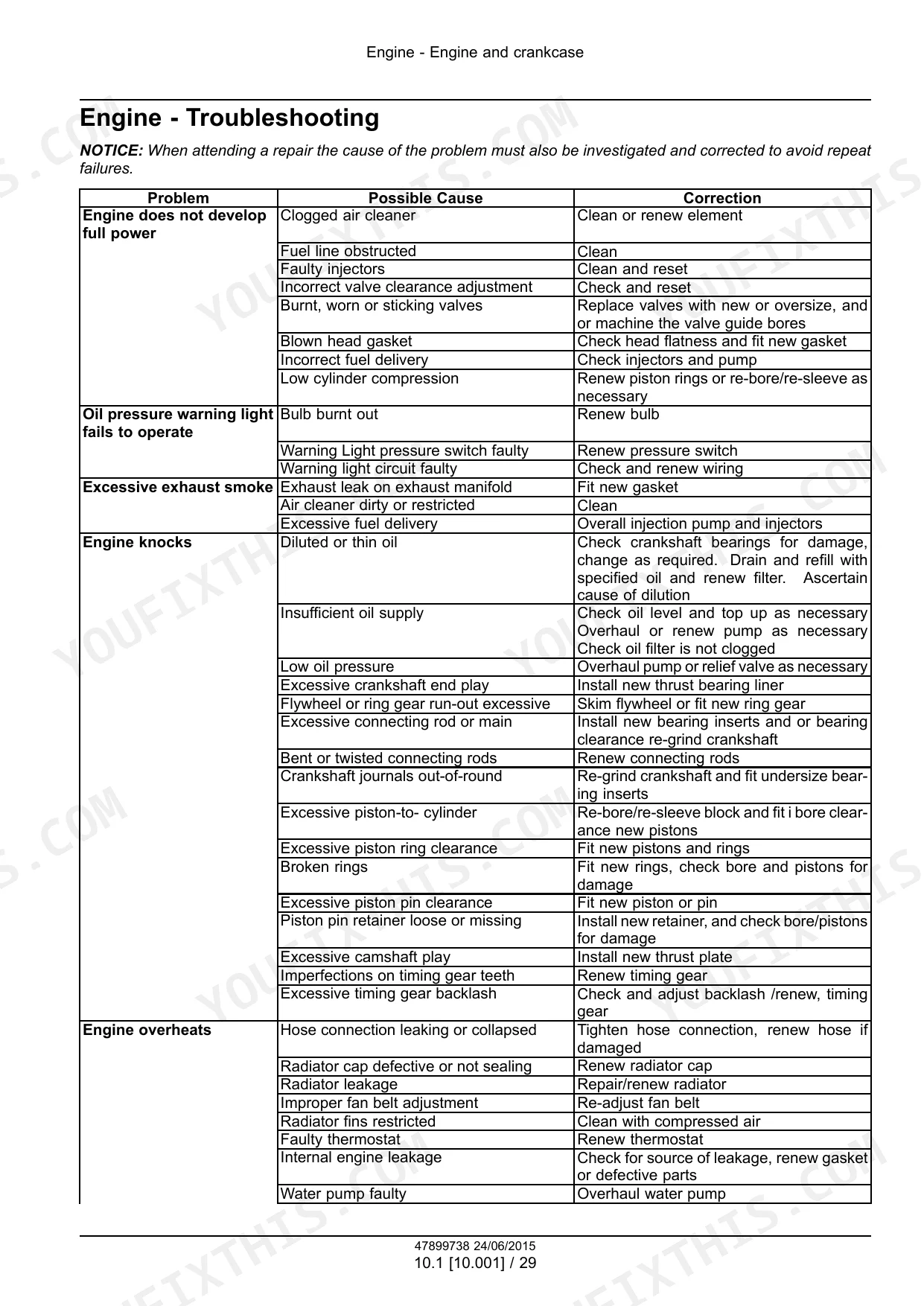

Manual Section: Engine TroubleshootingTransmission slipping or self disengagement of speed and range gears during heavy operation. p. 218
Verify transmission clutch pedal free play adjustment on page 218. Measure the gap and adjust to 45.000 to 50.000 mm (1.771 to 1.968 in). Inspect clutch plate thickness and replace if worn below 8.800 to 9.600 mm (0.346 to 0.377 in). Torque mounting bolts to 26.0 N·m (19.2 lb ft).
Manual Section: Clutch - 18Main lift system fails to operate or required load not lifting when fully engaged. p. 508

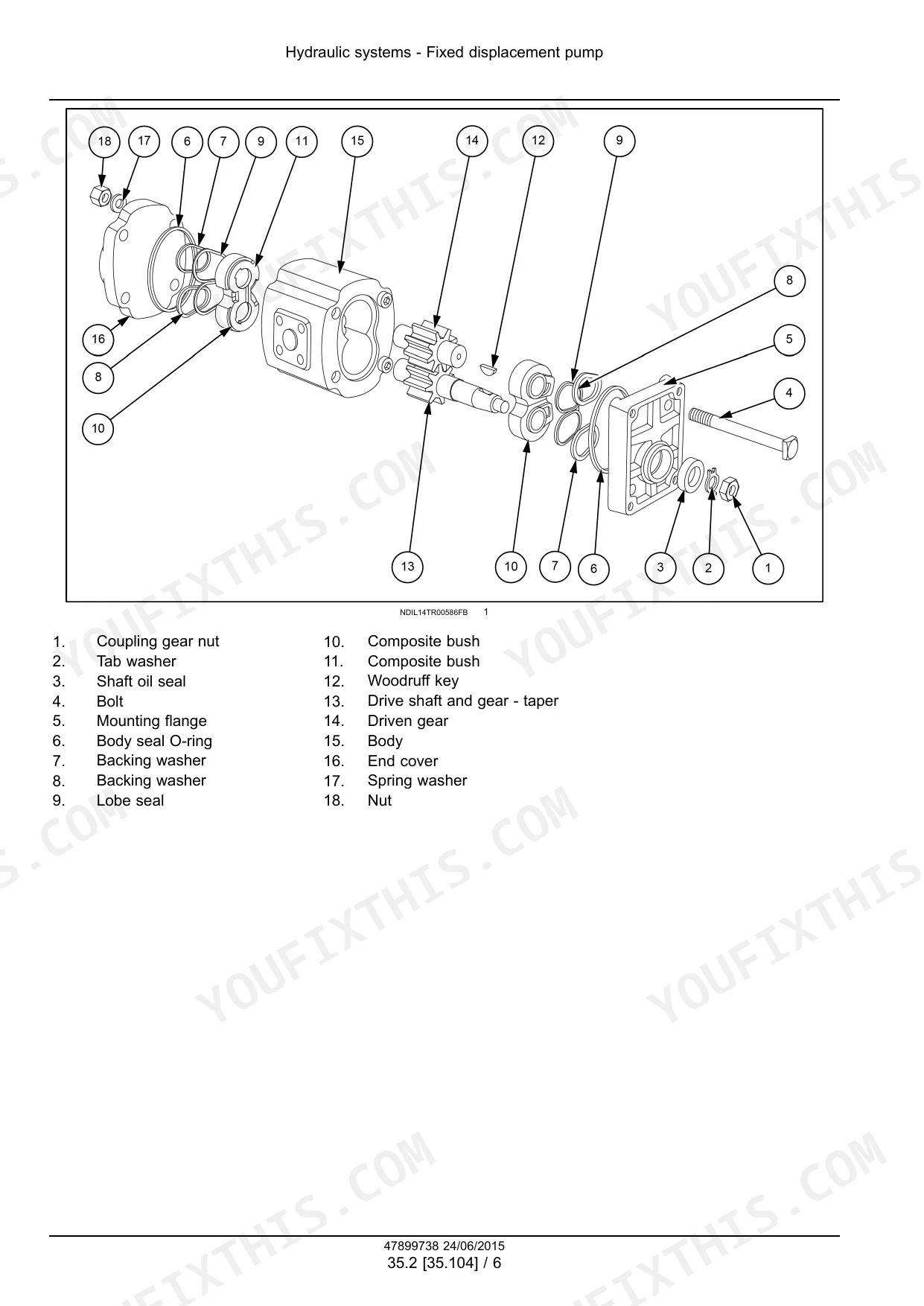

Test the hydraulic pump maximum rated output. Verify flow reaches 32.800 L/min (8.665 US gpm) on page 508. Check the gear clearance in the pump body is between 0.020 and 0.064 mm (0.001 to 0.003 in). Torque the pump cover bolts to 42 N·m (31 lb ft).
Manual Section: Hydraulic Systems - 35Excessive exhaust smoke and high engine oil consumption with persistent blue smoke.
Calculate the exact fuel and oil usage rates. Verify if high oil consumption exceeds 0.4 percent of total fuel used, as defined on page 194. If the rate falls below 0.4 percent per page 197, no immediate repair is needed. Replace the engine oil filter every 300 working hours.
Manual Section: Engine TroubleshootingFrequently Asked Questions
What are the torque specs for the engine bolts on CASE IH JX75T?
For the JX75T engine, the cylinder head bolts (M12 X 1.25) require a torque of 40 N·m (354 lb in) followed by two angular tightening steps of 125 – 135° and 135 – 145°. Main bearing caps (M14 X 1.25) are torqued to 80 N·m (708 lb in) plus 90°, and connecting rod caps (M11 X 1.25) are torqued to 40 N·m (354 lb in) plus 60°.
What are the replacement specifications for Fuel injector pump?
The manual states that the fuel injection pump should not be tampered with. If its operation is suspect, it should be taken to an approved MICO service center for testing and repair.
What are the replacement specifications for Transmission clutch plate?
The nominal thickness for the transmission clutch plate is 8.800 – 9.600 mm (0.346 – 0.377 in). The wear limit for the service/parking brakes disc is 4.3000 mm (0.1693 in). Clutch driven discs should be replaced if rivets are near or flush with the top facing, or if organic facings are oil-soaked.
How do you fix case IH JX55T engine stalling under load with loss of power and low fuel pressure?
Inspect the fuel injection system. Torque the injection pump support nuts to 23 N·m (204 lb in). Check the pumping element stroke is exactly 1.000 mm (0.039 in) as detailed on page 148. Replace the engine oil filter every 300 working hours to maintain clean flow.
How quickly can I access this manual after buying?
This is a 765-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.

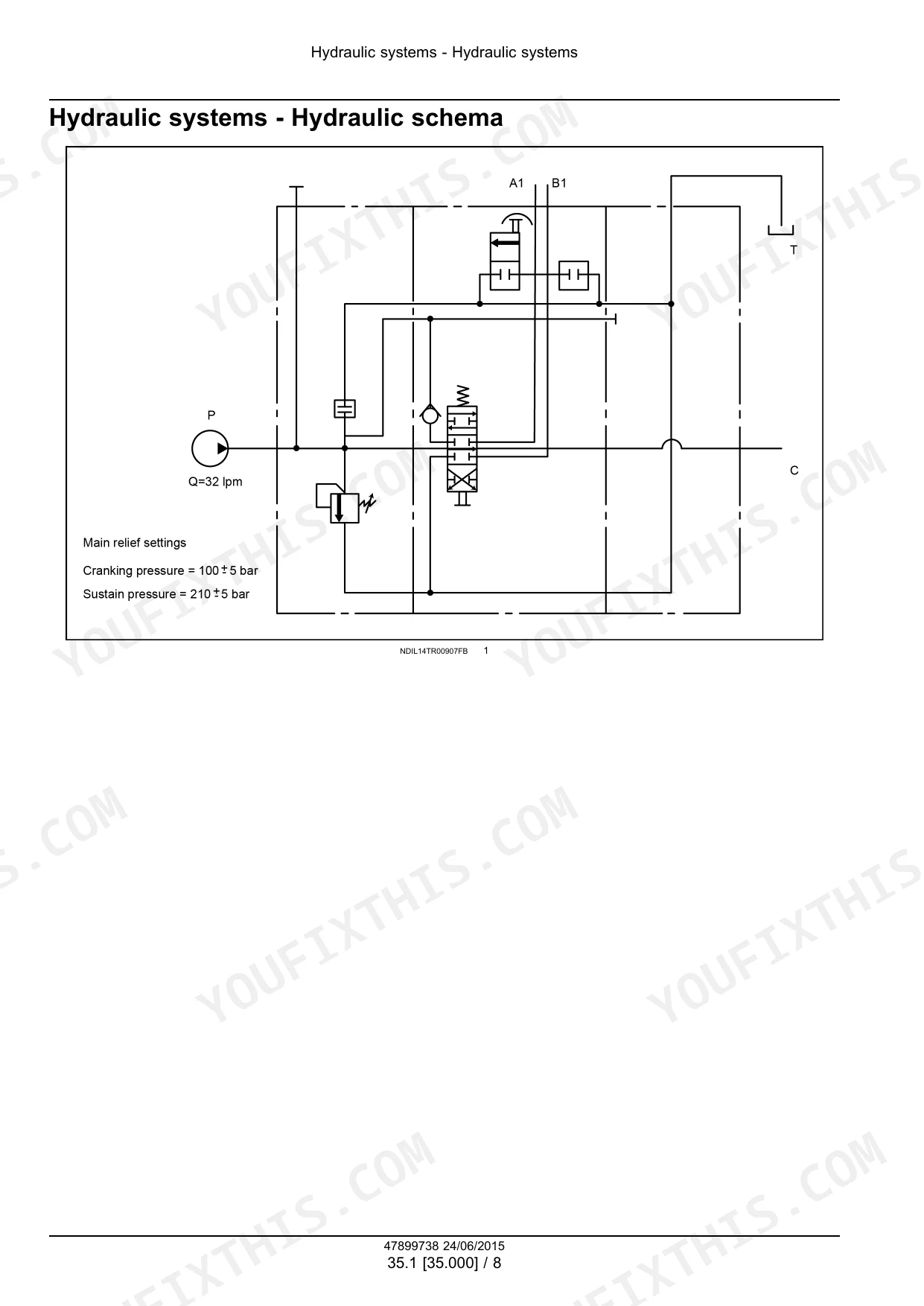

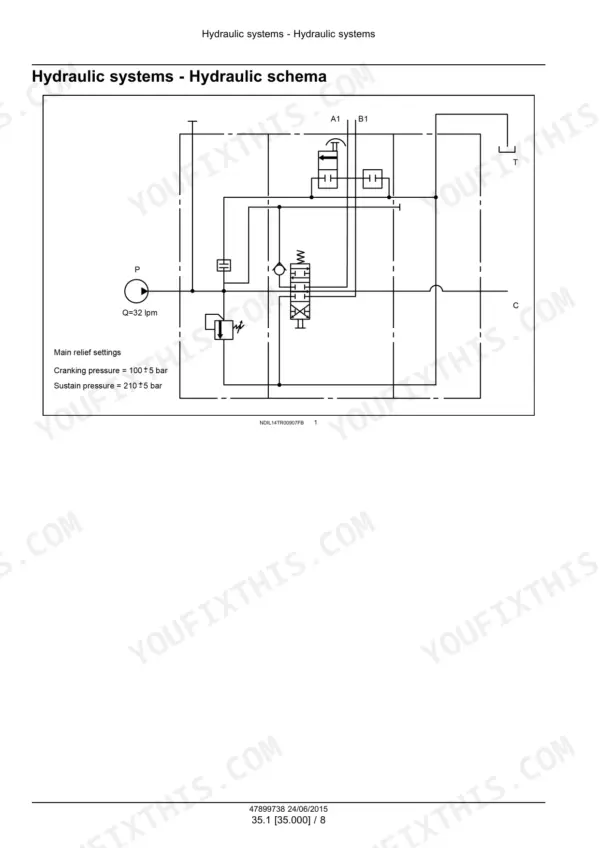

Does this Case IH JX55T & variants manual include hydraulic schematics?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the Case IH JX55T & variants.
