Part of the New Holland Parts Manuals.

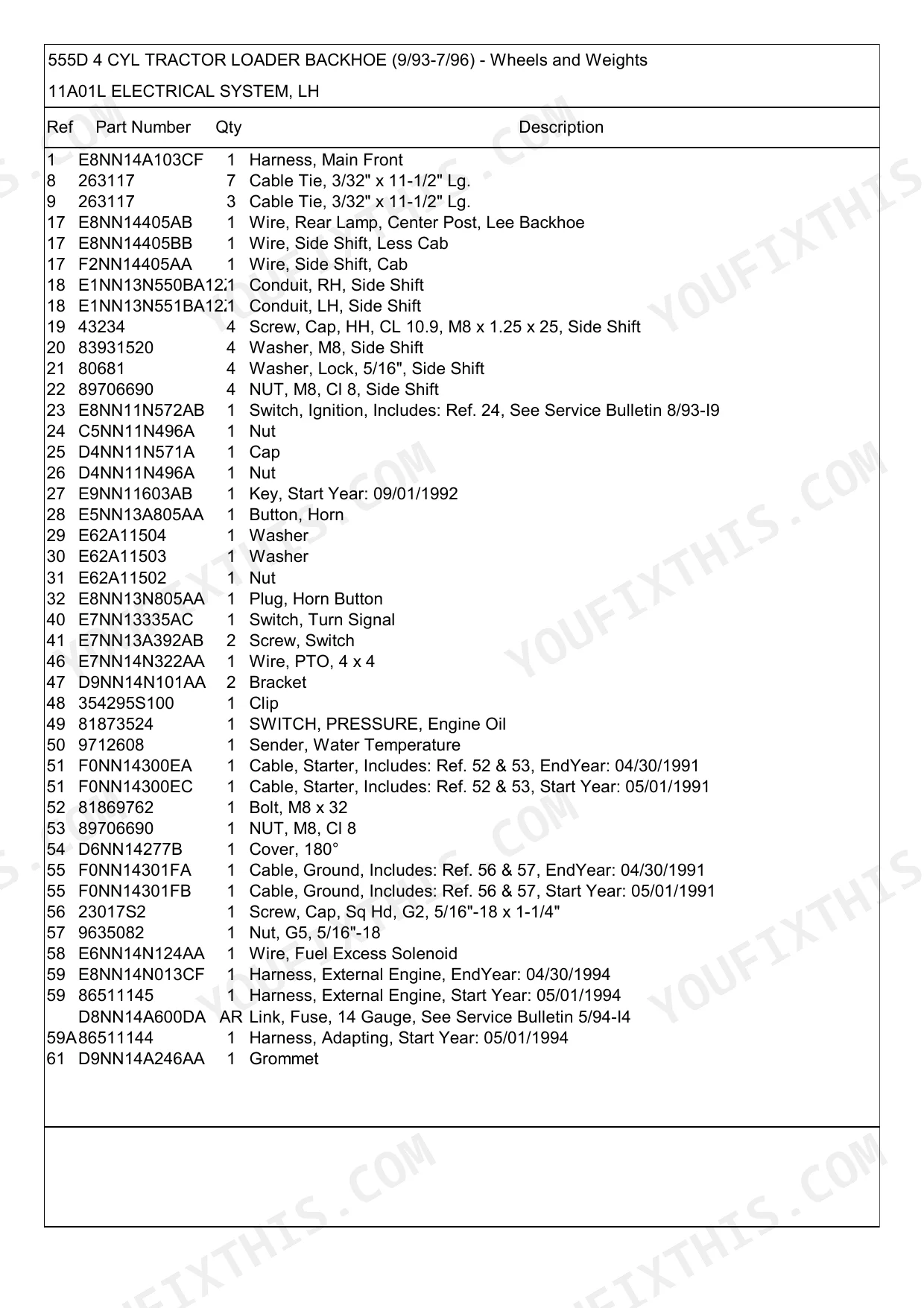

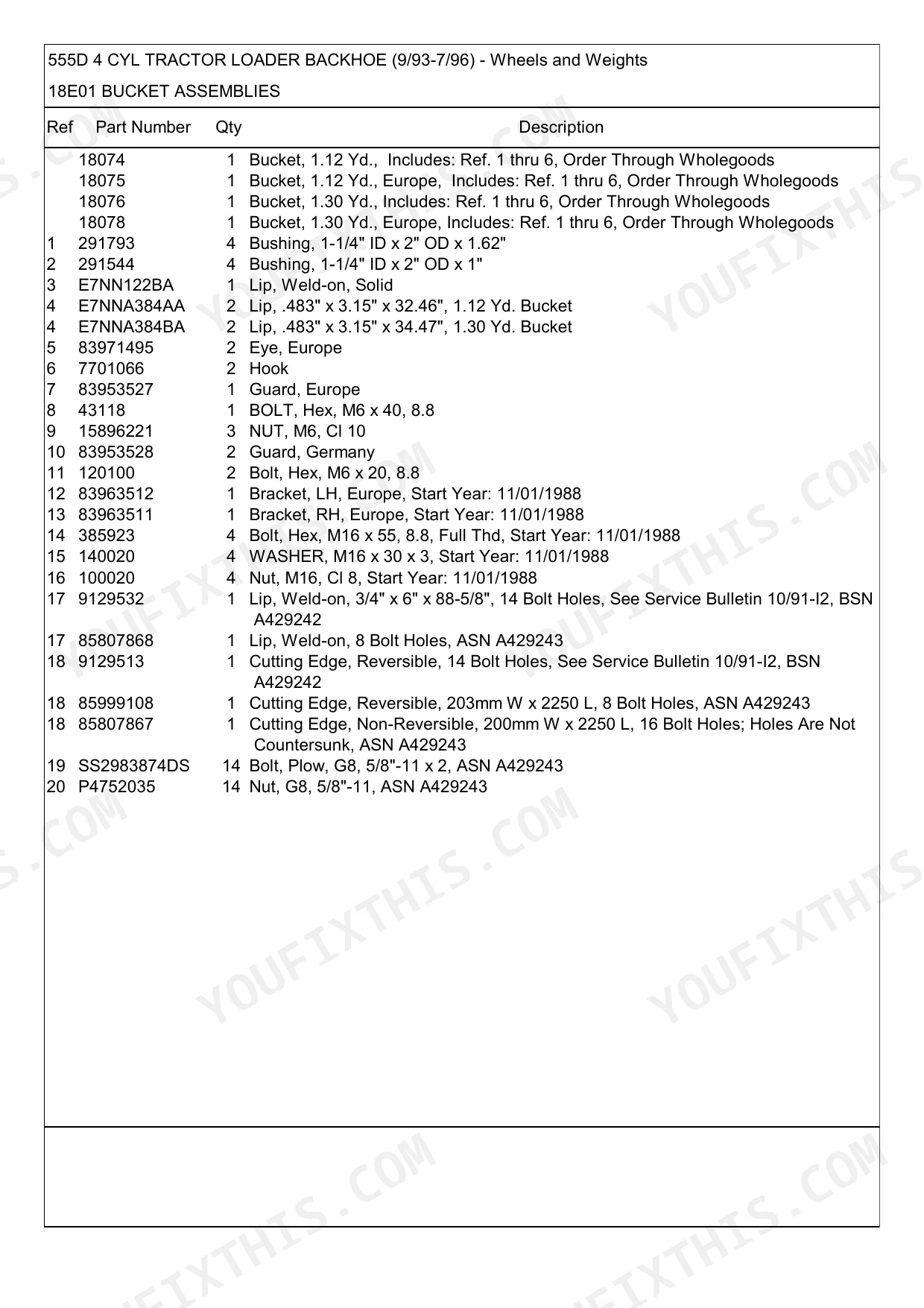

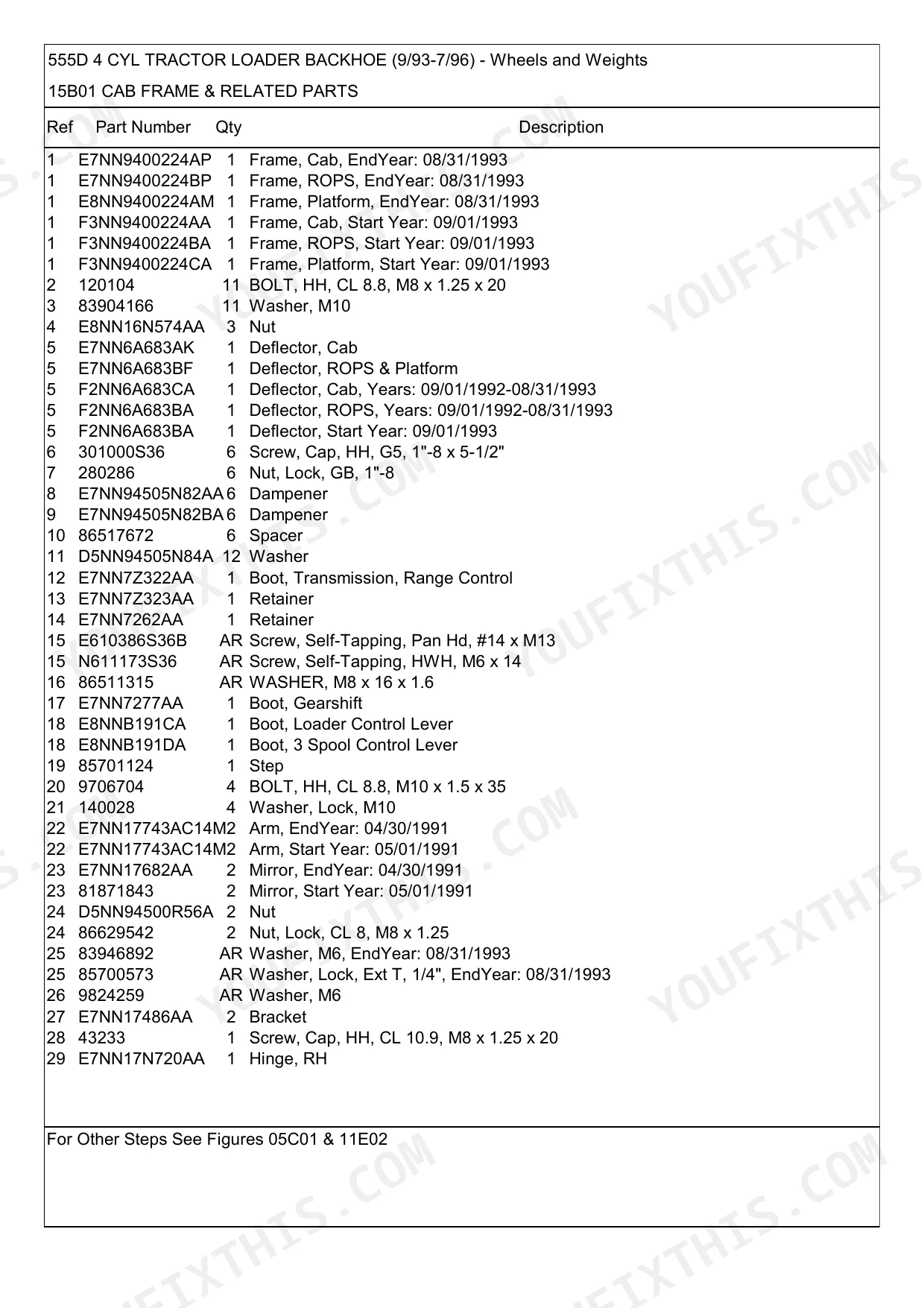

Every single piece of your 1993-1996 machine is broken down inside this 462-page New Holland 555D Parts Catalog PDF. You get crystal-clear exploded views for the entire 555D 4 CYL Tractor Loader Backhoe, complete with factory numbers, cross-references, and precise component identification to speed up your parts order. Open to detailed hydraulic schematics mapping out the entire two-spool valve system, plus complete wiring routing to help track down electrical components quickly. Verify whether you need the 90 Duro 16-1 O-ring for the main pump tube or the exact M10 x 1.5 x 60 hex bolt for the loader control bracket before you ever call the dealer. Waiting on the wrong shipments kills your shop time. Grab this bookmarked file, pull it up on your phone, and order the right hardware on the first try.
What's Inside This New Holland 555D, 555D 4 CYL Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Wheels, Weights & Ballast | Front Wheel Assembly, Rear Wheels, Front End Weights, Front & Side Weights, Rear Wheel Weights | |
| Brakes & Handbrake | Brake Housing & Discs, Brake Linkage & Rods, Brake Pedals, Handbrake Lever & Controls, Handbrake Shaft & Cables | |
| Front Axle & Four-Wheel Drive | Front Axle Assembly, 4WD Driveline, Axle Housing & Shafts | |
| Steering | Steering Column & Connectors, Steering Panel & Connectors, Power Steering Motor & Column Assembly, Steering Ball & Nut Assembly | |
| Hydraulics & 3-Point Hitch | Hydraulic Pump & Reservoir Assembly, Hydraulic Reservoir, Hydraulic Cylinders, Control Valves, Hydraulic System & Hoses | |
| Loader & Backhoe Attachments | Loader Controls & Lock, Loader Assembly, Attachment Mounting |
New Holland 555D, 555D 4 CYL Common Problems This Manual Covers
Can't find the correct transmission bearing part number for a New Holland 555D gearbox rebuild
Pull up the drivetrain parts diagram on page 150. System 63 (pages 149-150) breaks down every shaft, gear, and bearing in the transmission housing. Match the exploded view callout number to the bearing in question, then cross-reference it against the serial number range table in the front of the manual before ordering, since bearing part numbers changed across production runs.
Manual Section: System 63 - Drivetrain Parts Diagram (pages 149-150) p. 150Need the F/R shuttle piston seal kit part number for a transmission stuck in neutral
Check the piston, pin, retainer, and rings breakdown listed under system 52 on page 124. The forward and reverse shuttle piston seal kit is broken out as its own line item, separate from the individual piston rings. Verify the casting number stamped on the transmission housing matches the parts list entry before ordering the kit.
Manual Section: System 52 - Piston, Pin, Retainer & Rings (pages 124-127) p. 124Hydraulic pump seal kit part number unknown for a main pump leaking fluid
Check the hydraulic pump exploded view under system 39 on page 93. The pump seal kit is broken out from the thrust plate kit as a separate part line, so verify you're ordering the correct kit and not the thrust plate kit alone. Cross-reference the pump housing casting number against the parts list before placing the order.
Manual Section: System 39 - Pump & Reservoir Assembly (pages 93-94) p. 93Brake disc friction plate part number needed for worn pedal-actuated brake discs
Check the brake housing and disc breakdown under system 06 starting on page 11. Friction discs and actuating discs are listed as separate line items, so confirm which one you need before ordering. Cross-reference the disc part number against the parts index and your unit's serial number range to confirm the correct friction material spec.
Manual Section: System 06 - Brake Housing and Discs (pages 11-13) p. 11Loader control valve relief valve part number needed after valve fails to hold pressure

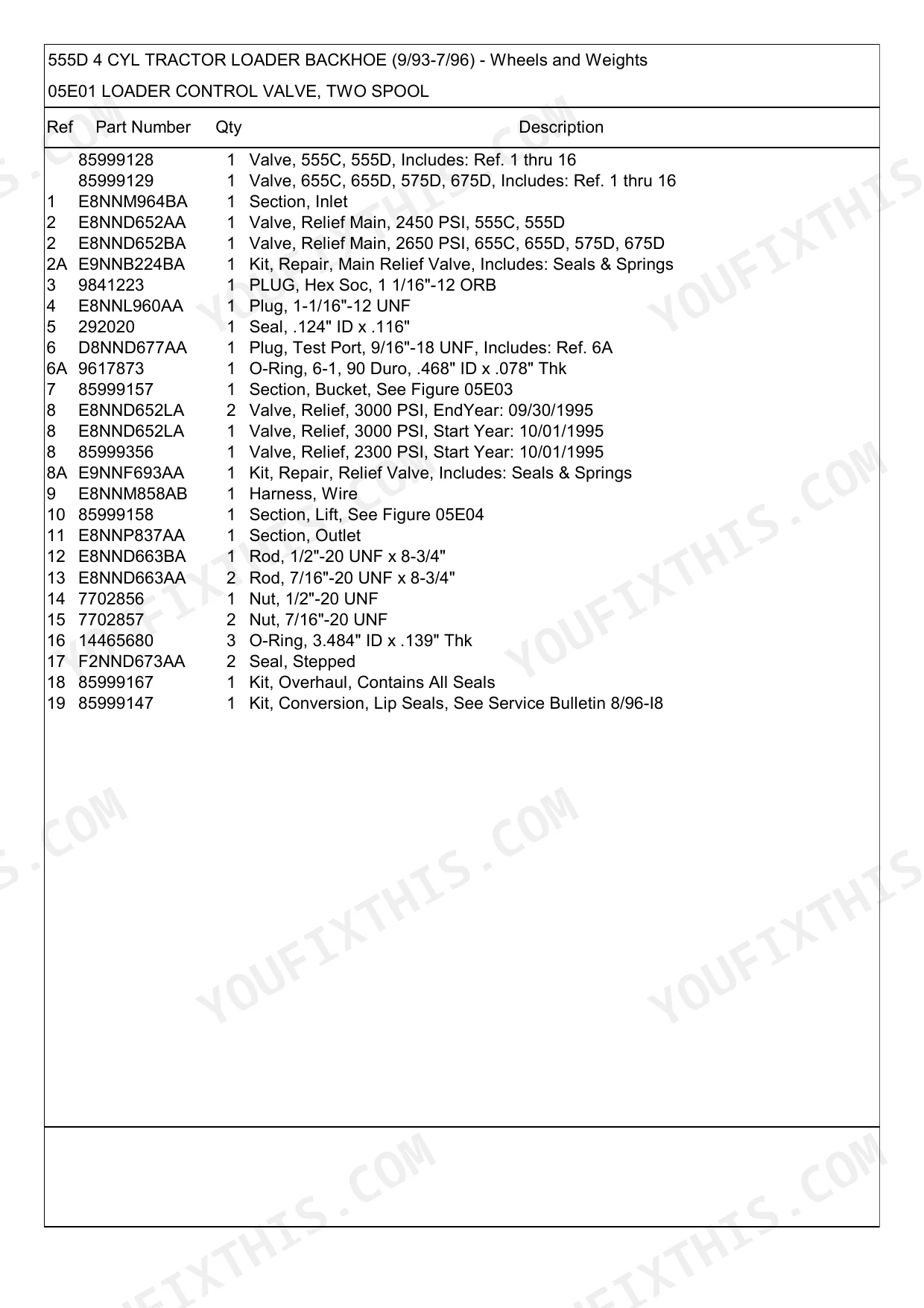

Check the hydraulic parts diagram under system 42 on page 101. The main relief valve for the loader control valve is listed as its own component within the valve assembly breakdown, separate from the spool and housing. Verify the valve's spool configuration (two or three spool) against the parts list before ordering the correct relief valve part number.
Manual Section: System 42 - Hydraulic Parts Diagram (pages 100-101) p. 101Frequently Asked Questions

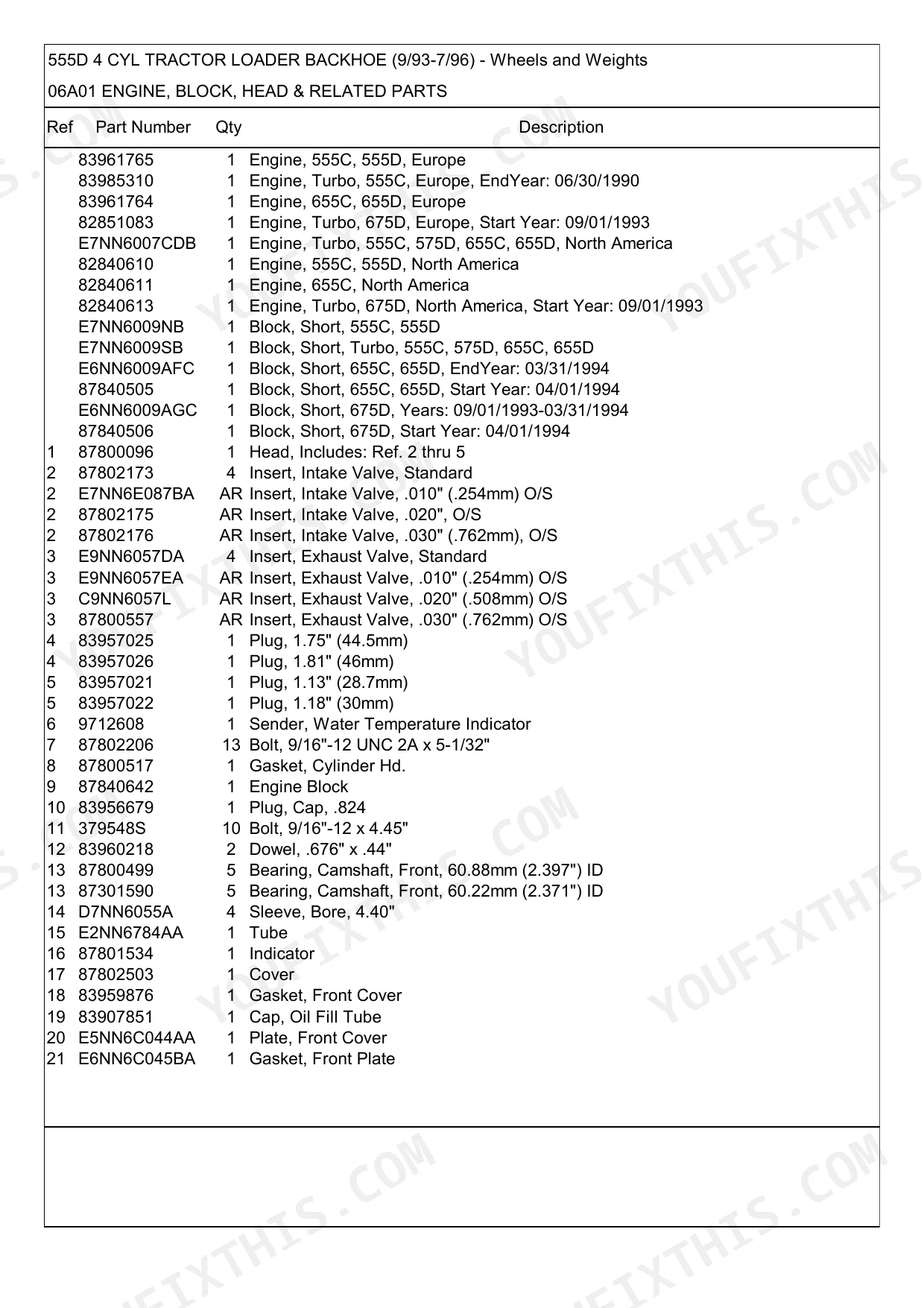

What are the torque specs for the Ford New Holland 555D engine cylinder head bolts?
The manual lists the engine cylinder head bolts as part number 87802206, with specifications of 9/16"-12 UNC 2A x 5-1/32" and a quantity of 13. However, the specific torque specifications for these bolts are not provided in this manual. p. 114

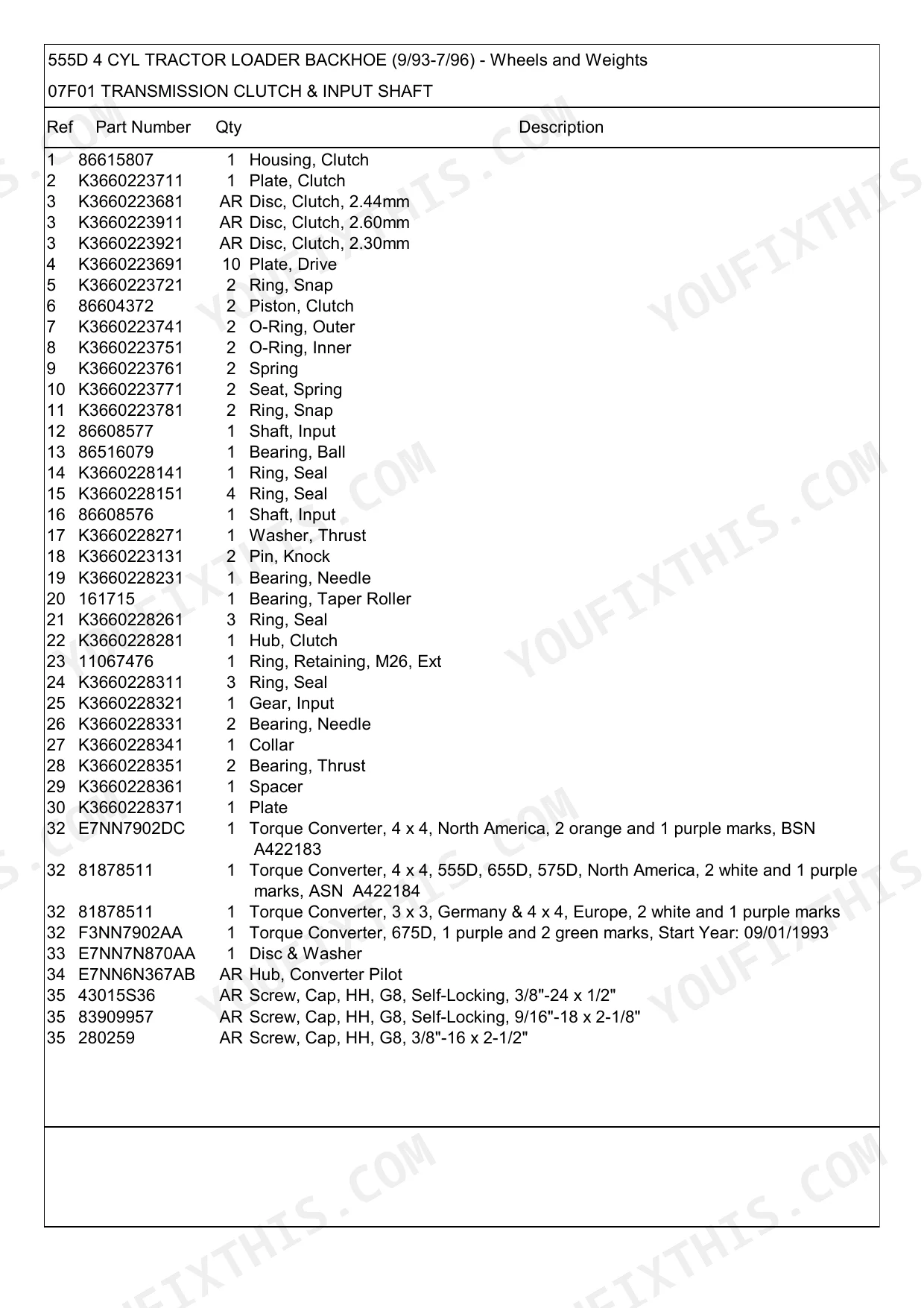

What are the replacement specifications for Transmission bearings?
The manual lists various transmission bearings by part number and quantity. For instance, in the '07F01 TRANSMISSION CLUTCH & INPUT SHAFT' section, part number 86516079 is identified as a 'Bearing, Ball' and part number 161715 as a 'Bearing, Taper Roller'. However, detailed replacement specifications such as dimensions or installation procedures are not provided.
What are the replacement specifications for Gearbox?
The manual identifies gearbox components such as 'Gear, 33T' (part number CAR124676) and 'Bearing' (part number CAR26860) in the '03E08 4WD GEARBOX' section. While these parts are listed with their quantities, specific replacement specifications or detailed procedures for the gearbox are not provided.
What are the dimensions for the 2WD front wheel rim?
The 2WD front wheel rim (part number E5NN1007JA12G) has dimensions of 8.00 x 16 inches and is designed for an 11 x 16 tire. This information is found in the front wheel assembly section. p. 2
How will I receive this New Holland 555D, 555D 4 CYL Tractor Loader Backhoe?
A 462-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this New Holland 555D, 555D 4 CYL Tractor?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are there hydraulic schematics in this New Holland 555D, 555D 4 CYL Tractor?
A hydraulic system diagram for the New Holland 555D, 555D 4 CYL Tractor Loader Backhoe is included.
