When your Round Baler goes down in the field, you need factory-level repair data fast. This 186-page New Holland BR7050 repair manual (OEM #87728696) covers seven complete systems, including the implement driveline, hydraulic lift, electrical controls, and twine wrapper assembly. You will find hydraulic schematics with full lift cylinder procedures and wiring diagrams for the baler lights and electrical control box. The guide provides 50 pages of step-by-step overhaul instructions spanning PTO CV joints, apron belt tracking, and sledge roll rebuilds. It also features troubleshooting charts for both hydraulic and electrical systems. Set the drive roll M16 cap screw to 240 N·m (177 ft. lbs.) and the pickup cam bearing nut to 113 N·m (83 ft. lbs.). Download the searchable PDF directly to your tablet and pull up any specification by keyword in seconds.
What's Inside This New Holland BR7050 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

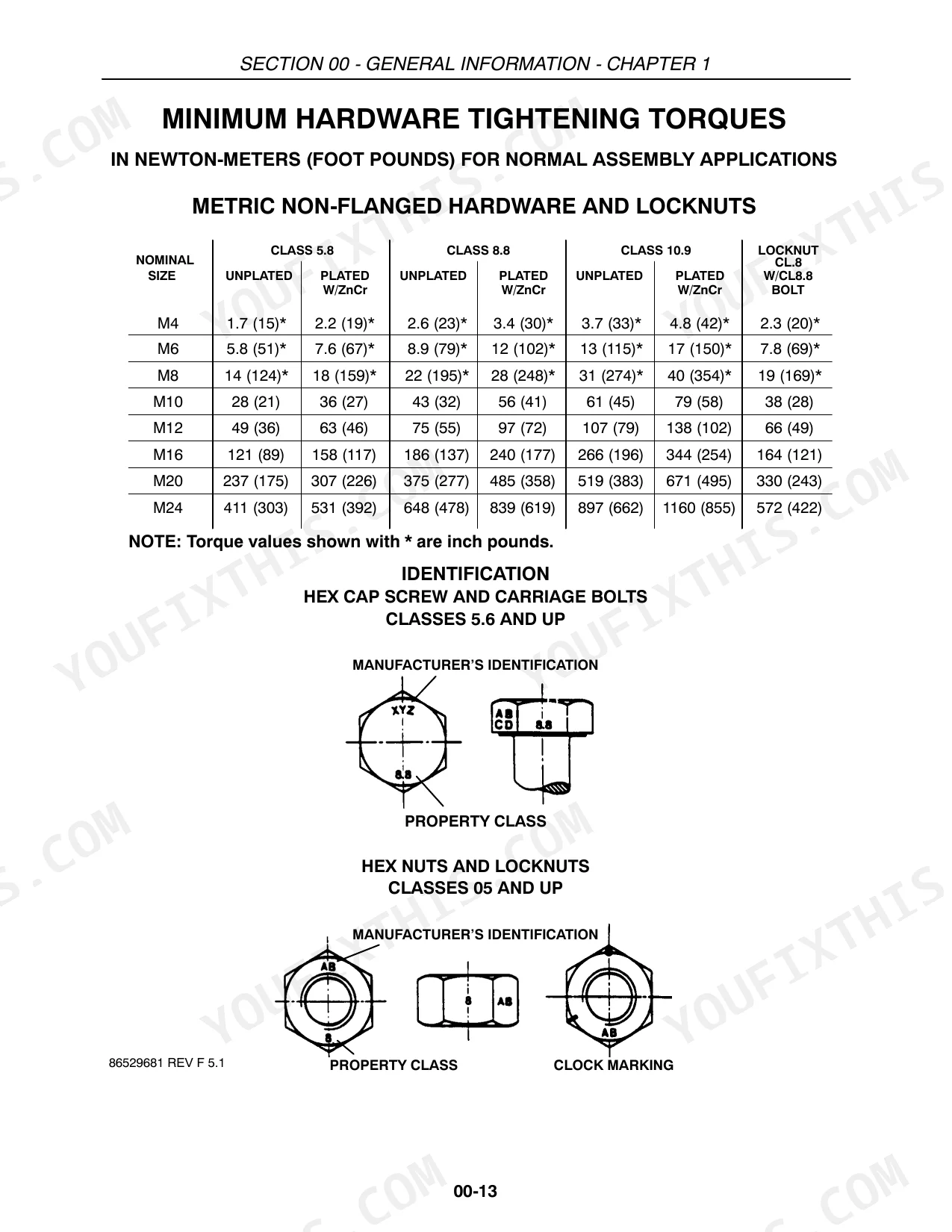

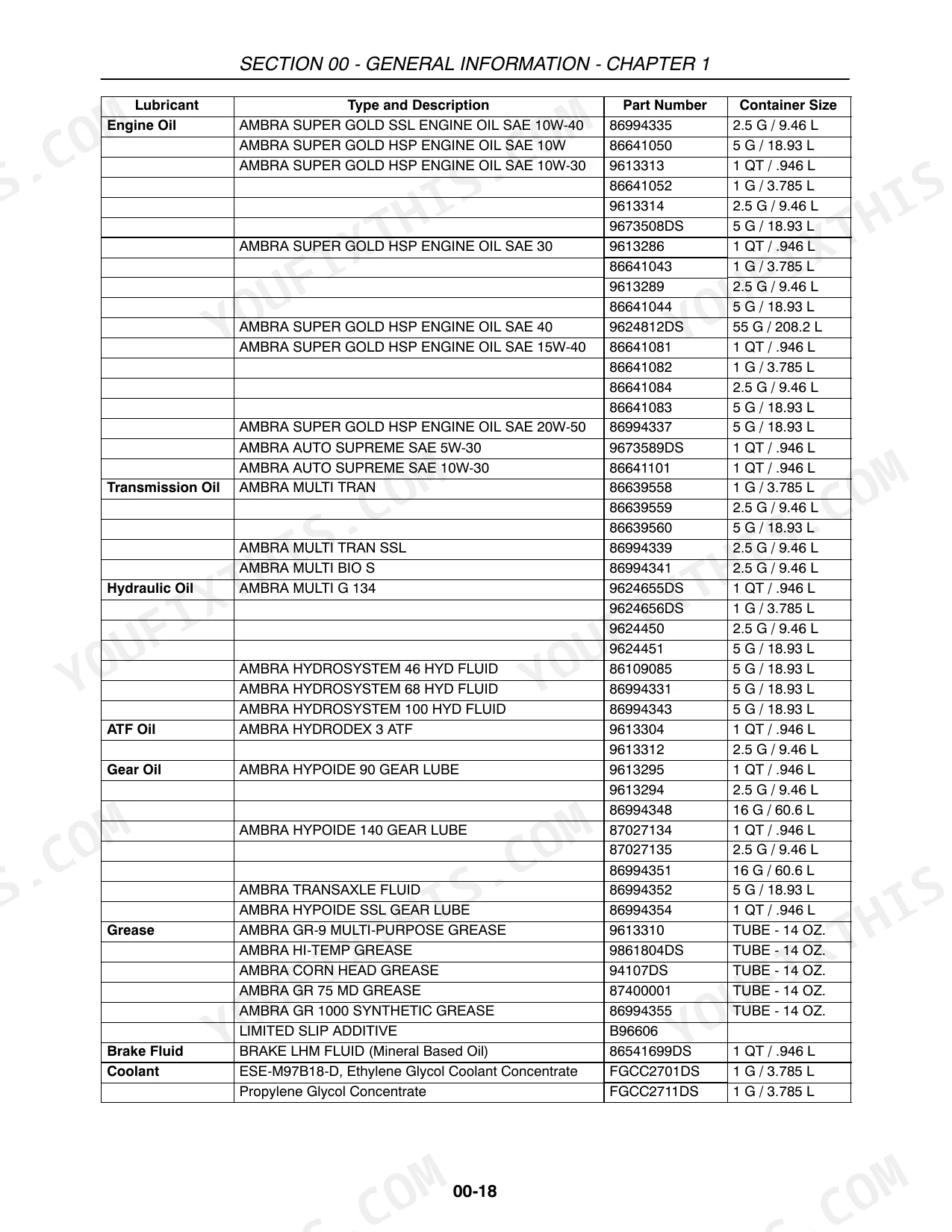

| General Information | 13-42 | Hardware, Minimum Hardware Tightening Torques, Thread Locking Compounds, Sealants, Lubrication, Roller Chains |

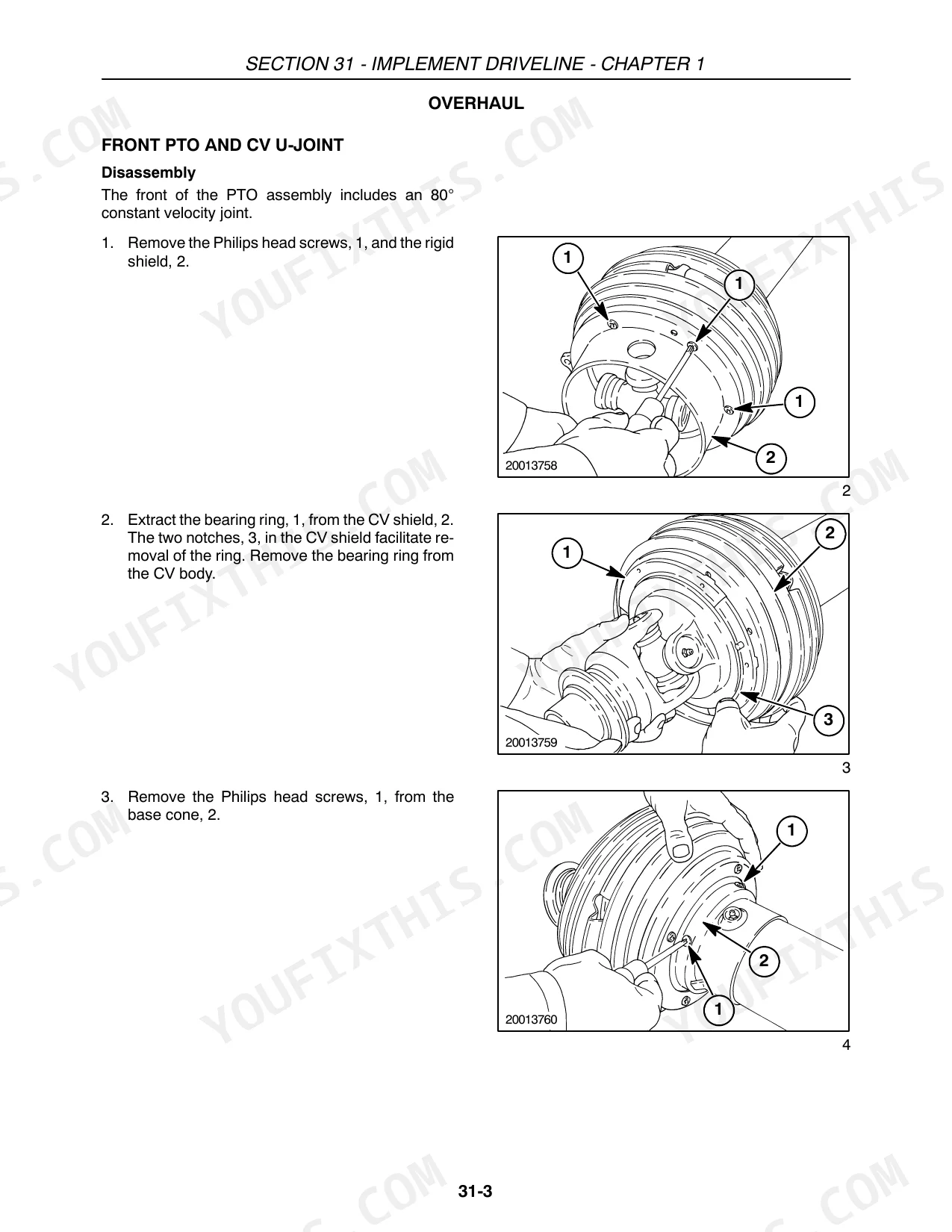

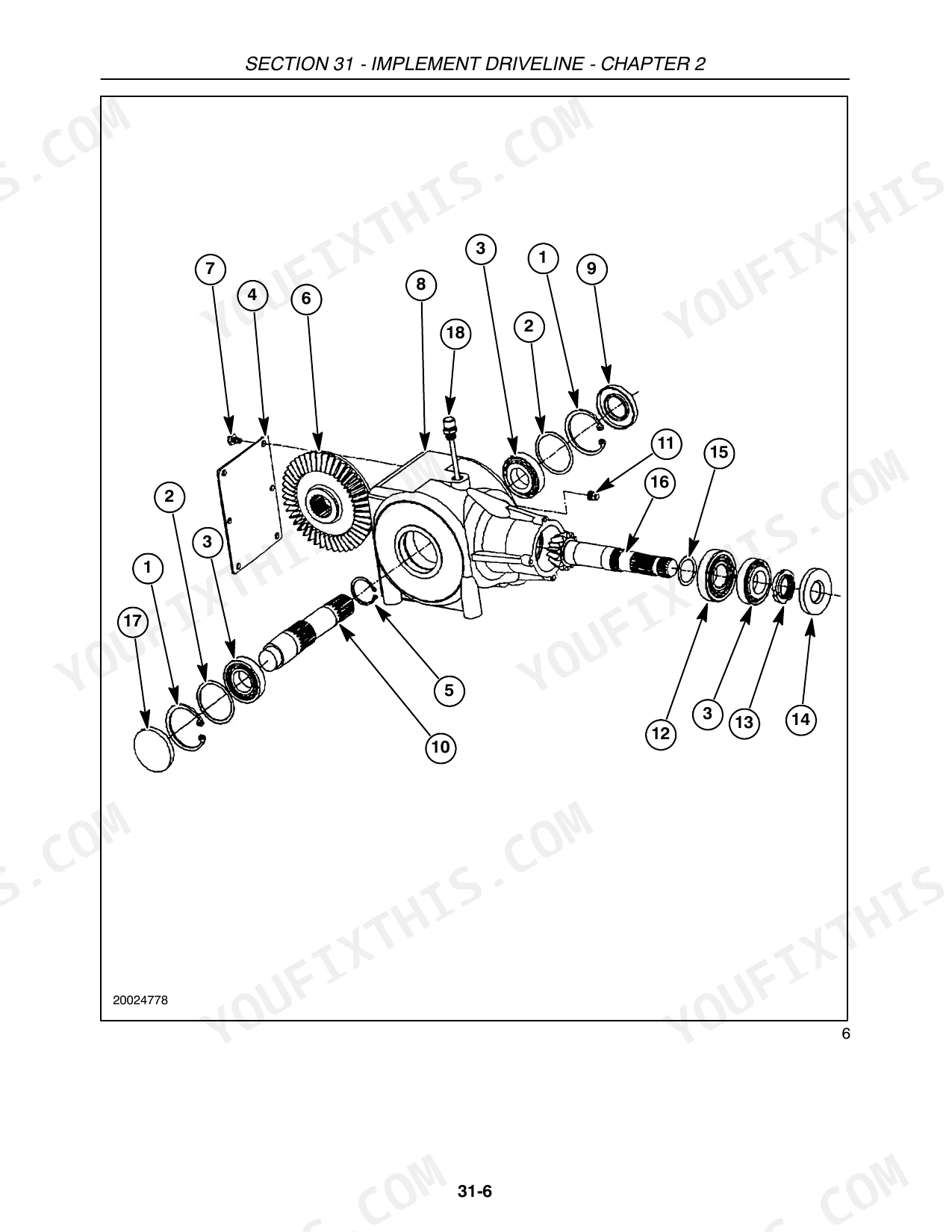

| Implement Driveline | 43-82 | PTO Constant Velocity, Front PTO and Cv U-Joint, Rear PTO, Shear Bolt Hub, Slide Collar Quick-Disconnect, Gearbox |

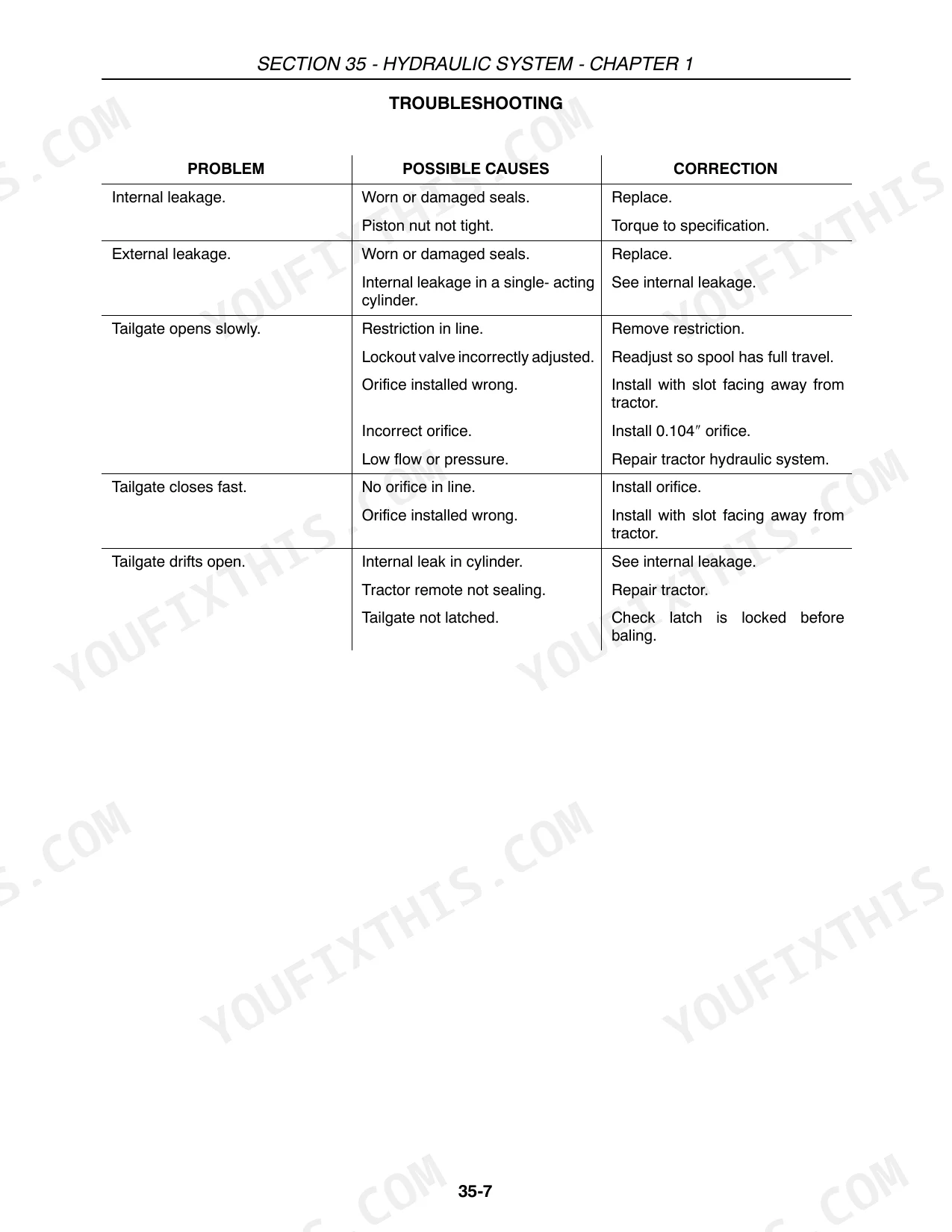

| Hydraulic System | 83-90 | General Procedures, Description of Operation, Lift Cylinder, Troubleshooting |

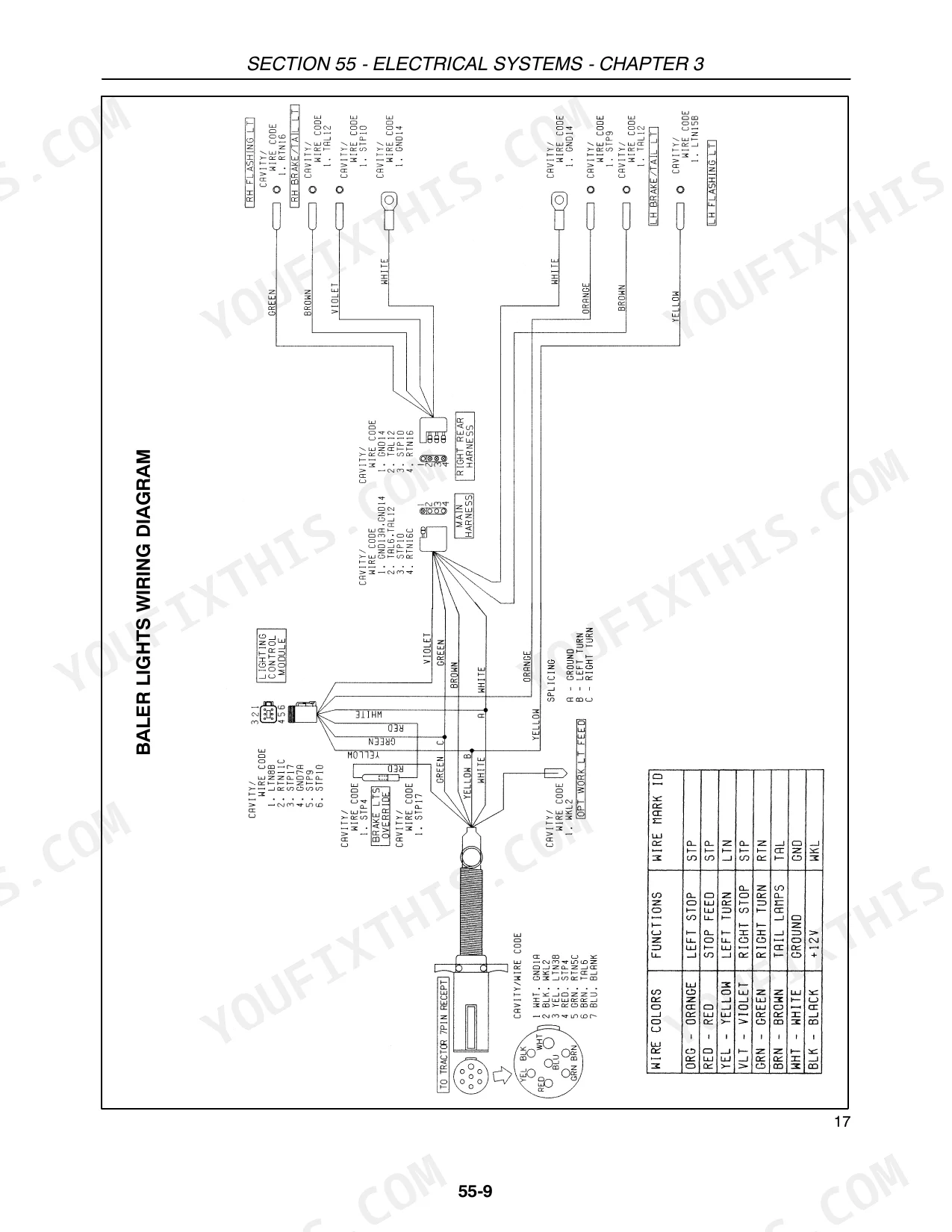

| Electrical Systems | 91-114 | Definition of Terms, Troubleshooting, Electrical Control Box, Wire Harness Connector, Light Module, Baler Lights Wiring Diagram |
| Product Feeding | 115-122 | Overhaul, Finger (Replace), Cam Bearing (Replace) |
| Pressing | 123-178 | Floor Roll, Starter Roll, Apron Rolls, Apron Belts, Sledge Rolls, Pivot Roll Sledge Assembly |
| Tying | 179-186 | Twine Wrapper System, Drive Chains, Wrapper Arm, Twine Knife, Drive Motor, Full Bale Alarm Switch |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cam Bearing Nut Torque | 113 N⋅m (83 ft. lbs.) | p. 116 |
| Starter Roll Sprocket Bolts Torque | 52 N⋅m (38 ft. lbs.) | p. 133 |
| Drive Roll M16 Cap Screw Torque | 240 N⋅m (177 ft. lbs.) | p. 139 |
| Drive Roll M10 Bearing Cap Screw Torque | 56 N⋅m (41 ft. lbs.) | p. 139 |
| Pickup Cam Bearing Nut Torque | 113 N⋅m (83 ft. lbs.) | p. 116 |
| Pickup Slip Clutch Initial Cap Screw Torque | 13 N⋅m (120 in. lbs.) | p. 118 |

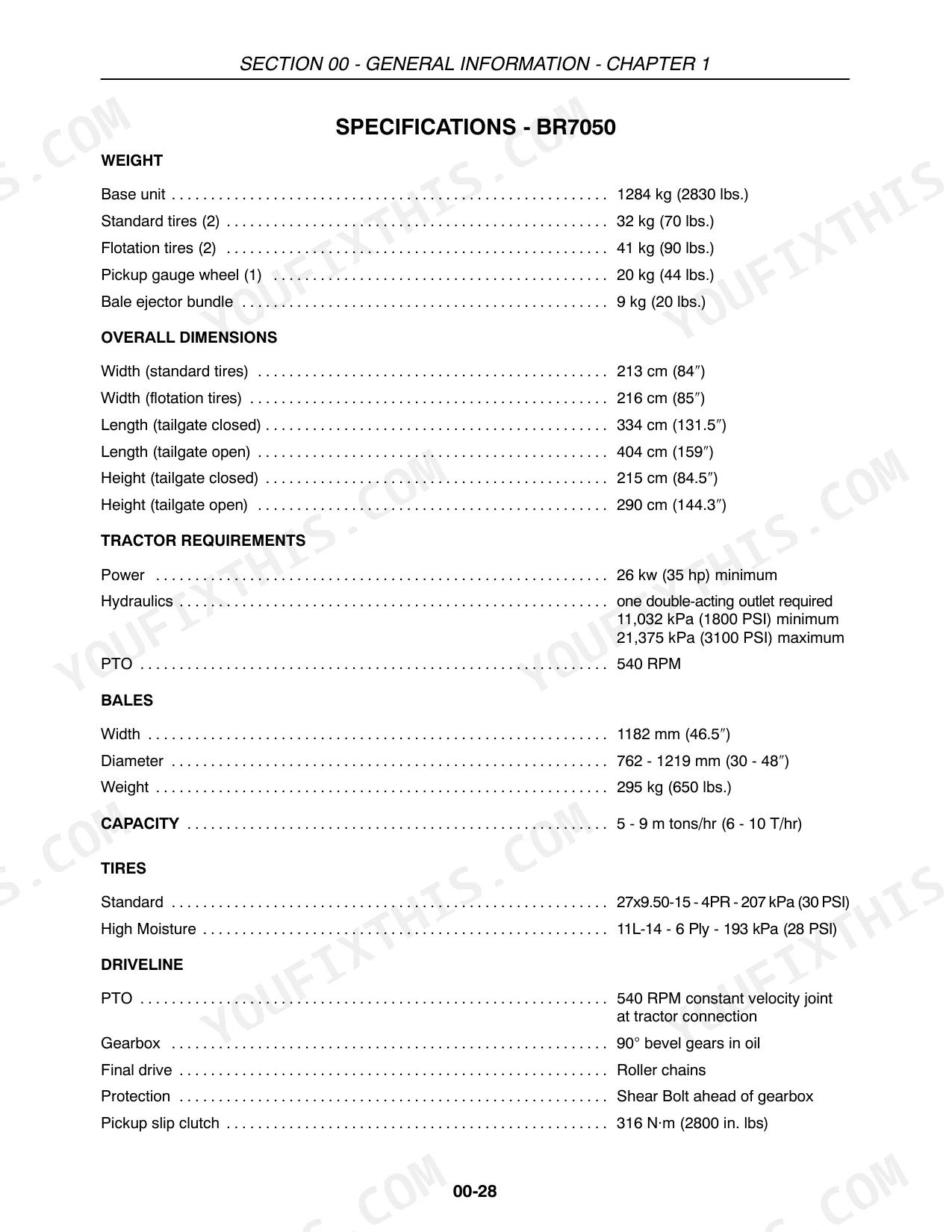

| Base Unit Weight | 1284 kg (2830 lbs.) | p. 40 |
| Minimum Power Requirement | 26 kw (35 hp) | p. 40 |
| PTO Speed | 540 RPM | p. 40 |
| Bale Maximum Diameter | 1219 mm (48″) | p. 40 |
| Pickup Slip Clutch Torque | 316 N·m (2800 in. lbs) | p. 40 |
| Gearbox Oil Capacity | 0.65 L (22 oz.) | p. 62 |
New Holland BR7050 Common Problems This Manual Covers
Net wrap fails to start, stalls mid-cycle, or wraps intermittently p. 179
Start by checking the brake/retention assembly. Manually rotate each roller in the net-wrap drive path and feel for binding; a seized bearing here is the most common culprit. Verify the wrap trigger switch has continuity per page 91. If mechanics check out, run a full wrap cycle with the PTO at 540 RPM and watch for hesitation at the drive chain.
Manual Section: Section 68 - TyingPickup or stuffer area plugs repeatedly, especially in heavy or wet crop conditions p. 115
Examine the pickup fingers and cam bearing for wear. Torque the cam bearing nut to 113 N·m (83 ft. lbs.) per page 116. Check the drive chain tension at the idler, targeting 5-13 mm (3/16-1/2") sag per page 120. Confirm the slip clutch setting: initial cap screw torque is 13 N·m (120 in. lbs.) and slip torque is 316 N·m (2800 in. lbs.) per page 118.
Manual Section: Section 60 - Product FeedingDrive roll bearings worn or seized, producing grinding noise during bale formation p. 139
Pull the drive roll assembly per Section 62. Inspect both bearing bores for spalling, pitting, or discoloration and replace as needed. Torque the M16 cap screws to 240 N·m (177 ft. lbs.) and M10 bearing cap screws to 56 N·m (41 ft. lbs.) per page 139. Spin the roll by hand to confirm smooth rotation before reassembly.
Manual Section: Section 62 - PressingApron belts track to one side, crowd a roll, or flip over during operation
Look for uneven crop feeding first, as side-loading is the most common cause of belt migration. Inspect all roll surfaces for debris or worn crowns. Adjust the roll position per the tracking procedure. The replacement belt length is 6920 mm (272.5"). For damaged belts, review the failure analysis before ordering to confirm the root cause.
Manual Section: Section 62 - PressingPTO shear bolt fails repeatedly or driveline bangs under normal operating conditions p. 44
Always replace with the correct grade shear bolt; a hardened substitute bypasses the designed shear point. The verified shear bolt setting is 1080 N·m (796 ft. lbs.) per page 44. Inspect the slide collar quick-disconnect and CV U-joints for binding per the overhaul procedure on page 45. If shearing continues with correct hardware, check the pickup slip clutch drag.
Manual Section: Section 31 - Implement DrivelineFrequently Asked Questions
How do I fix net wrap that fails to start or wraps intermittently on the New Holland BR7050?
Start by checking the brake/retention assembly (page 179). Manually rotate each roller in the wrap system to identify binding. A sticking brake roller is the most common cause of intermittent wrap starts; the repair procedure walks through disassembly, inspection, and reassembly of the retention mechanism.
What should I do when the BR7050 pickup or stuffer area plugs repeatedly?
Examine the pickup fingers and cam bearing for wear (page 115). Torque the cam bearing nut to 113 N⋅m (83 ft. lbs.) after any bearing replacement. Worn cam bearings allow finger timing to drift, causing the pickup to throw crop into the stuffer at the wrong angle — which plugs the machine even at moderate throughput.
What are the torque specs for the pickup bearings on a New Holland BR7050?
Torque the pickup cam bearing nut to 113 N⋅m (83 ft. lbs.) when installing a new bearing. This specification applies after any bearing replacement or cam disassembly (page 116).
What are the torque specs for the roller chain sprocket bolts on a New Holland BR7050?
Tighten the starter roll sprocket bolts to 52 N⋅m (38 ft. lbs.). This value applies to the specific fasteners labeled as starter roll sprocket bolts in Section 62 (page 133).
Is this New Holland BR7050 Repair Manual a digital download?
Yes, this 186-page searchable PDF is ready for immediate download. It works on any device, allowing you to view it on a laptop, tablet, or phone.
Can I print specific sections of this New Holland BR7050 Repair Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned PDF, meaning the text is embedded as images rather than being natively digital. While an OCR layer has been applied, allowing you to search the full text and copy content, the text itself is rasterized and appears slightly less crisp than a native digital document. Diagrams and illustrations are also raster images, but their labels are generally clear and readable. All pages are clean with no noticeable scan artifacts, stains, or skewed content, and there are a few blank pages serving as section breaks.
