Hydrostatic drive, main gearbox, conditioner rolls, sickle drive, and reel: the New Holland 499 service manual PDF (OEM 40049910) takes each system on the Pivot Tongue Haybine Mower-Conditioner from removal through reassembly across 48 pages. Hydraulic schematics map the pump, relief valve, motor, and tongue reservoir circuit, so you can trace where pressure is going before you pull a single line. Cylinder rebuilds get the same treatment: swing, master, and slave, each stripped and reassembled with inspection checks that tell you whether seals or bores are at fault. Set the relief valve at 3500 psi, fill the reservoir with 20 gallons (75.7 L) of oil, and torque the gearbox attaching bolts to 70 to 80 ft. lbs. Nobody around still works on these. It's you, the machine, and this bookmarked, text-searchable PDF; print the pages that matter and let them take grease on the bench.
What's Inside This New Holland 499 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and General Information | 2-3 | Scope of the Manual and Its Relationship to the Operator's Manual, How the Hydrostatic Troubleshooting Section Is Organised, The Safety-Symbol Convention, Directional Orientation, Bolt Installation, Lock Washer and Flat Washer Practice |
| Hydrostatic System | 4-5 | Pump and Gearbox Assembly, Relief Valve, Hydrostatic Motor, Oil Filter, Tongue Reservoir, Hydrostatic Oil |

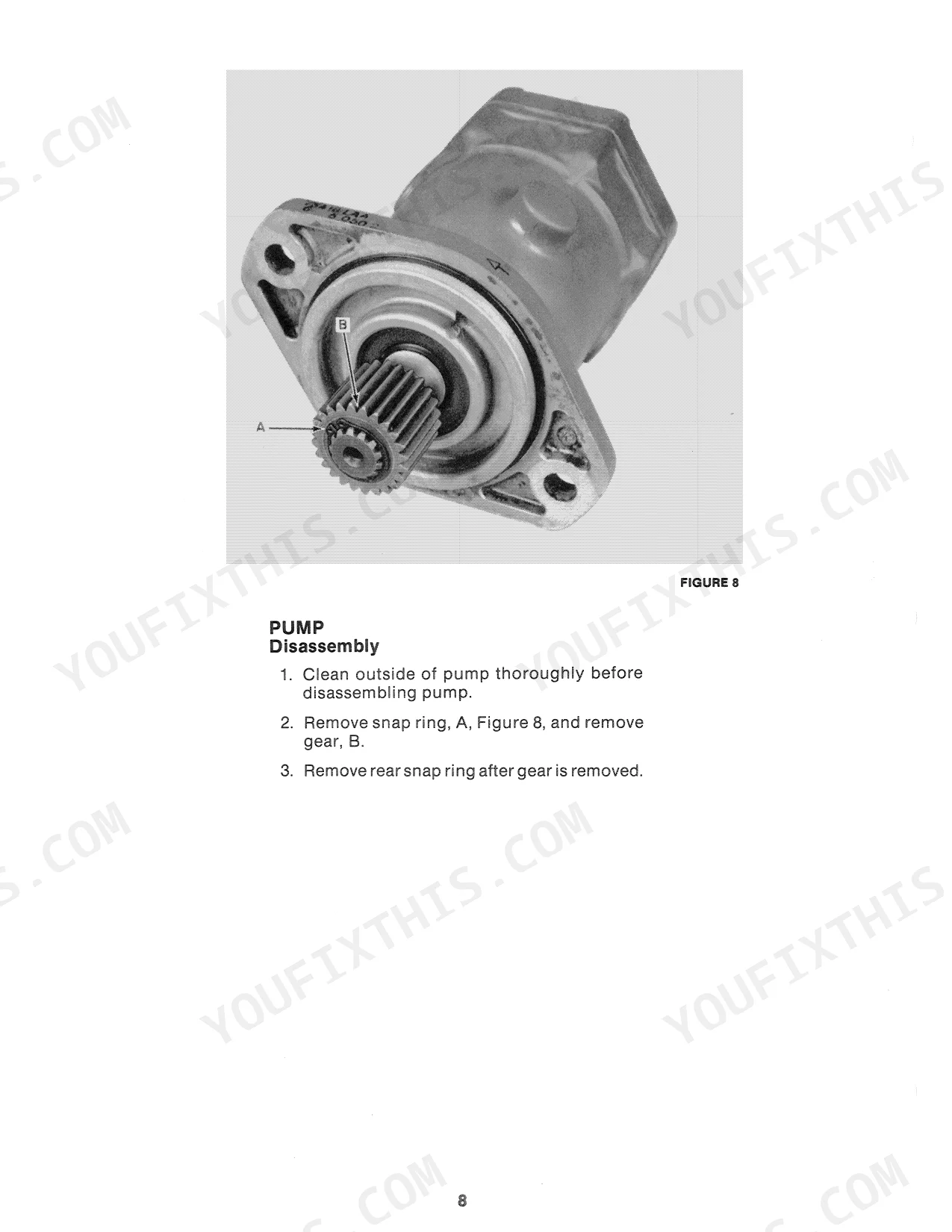

| Hydrostatic Pump and Gearbox | 6-13 | Pump Disassembly, Pump Assembly |

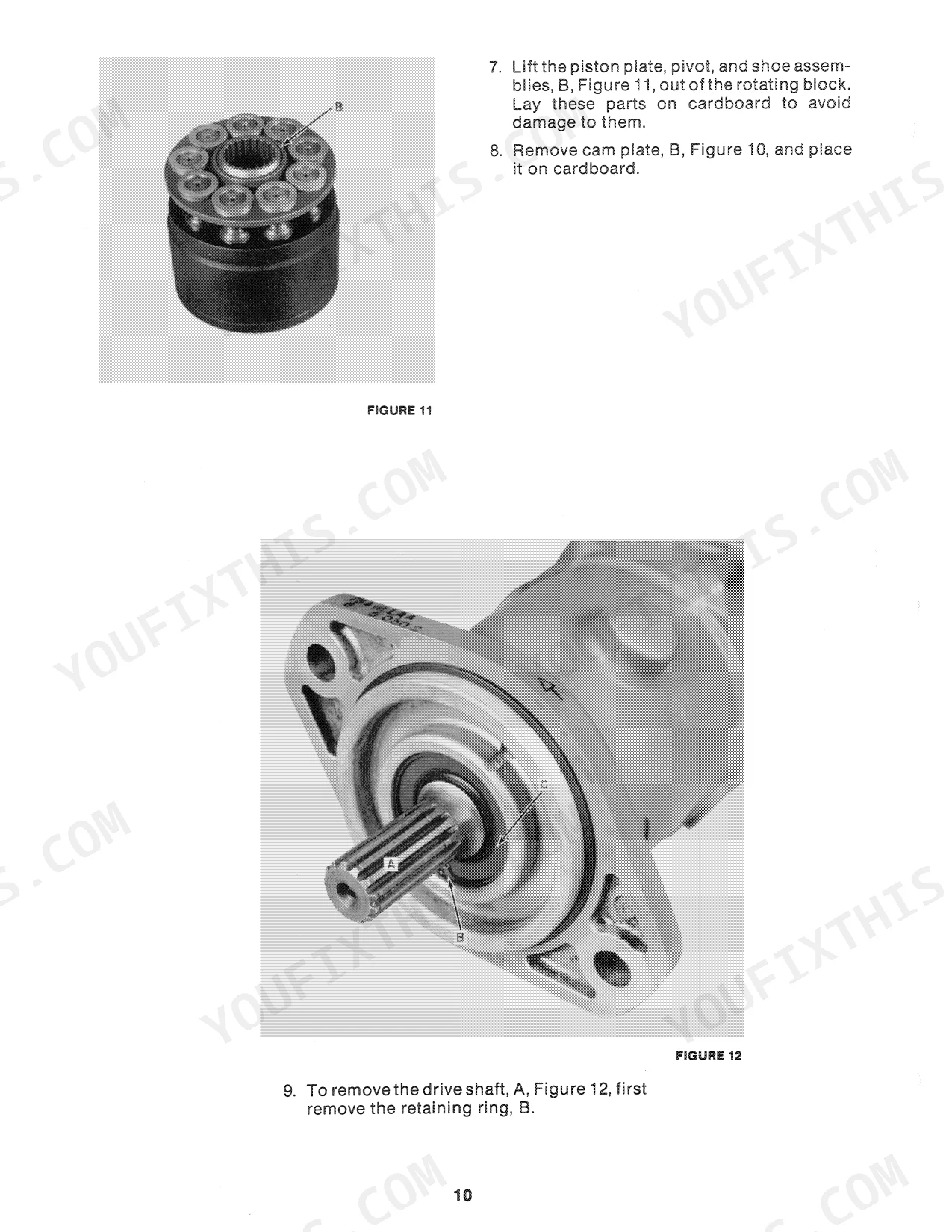

| Hydrostatic Motor | 14-18 | Motor Disassembly, Motor Assembly |
| Hydraulic Cylinder | 19-25 | Swing Cylinder Disassembly, Master Cylinder Disassembly, Slave Cylinder Disassembly |
| Main Gearbox | 26-28 | Gearbox Removal, Gearbox Disassembly, Gear Inspection, Bearing Assembly, Gearbox Installation |
| Conditioner Rolls | 29-31 | Lower Roll Removal, Upper Roll Removal, Roll Assembly |
| Sickle Drive Gearbox | 32-36 | Right Side Removal, Gearbox Disassembly, Gearbox Assembly |
| Connecting Rod | 37-39 | Crank Pin Bearings, Rocker Arm Bearings, Bearing Assemblies, Slotted Nut, Cotter Pin, Grease Zerk |
| Reel | 40-44 | Tine Bar Bearings, Reel U-Joints, Reel Cams and Bushings |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Relief valve pressure setting | 3500 psi (24,133 kPa) | p. 4 |
| Hydrostatic reservoir capacity | 20 gallons (75.7 L) | p. 6 |
| Back plate bolts torque | 15-18 ft. lbs. (20-24 N·m) | p. 18 |
| Gearbox attaching bolt torque | 70 to 80 ft. lbs. (95 to 108 N·m) | p. 28 |
| Connecting rod bearing preload (running torque) | 2-6 in. lbs. (0.35-1.05 N·m) | p. 35 |
| Gearbox bearing running torque | 2-6 in. lbs. (0.35-1.05 N·m) | p. 35 |
| Pump case drain flow limit | 2 gallons per minute | p. 5 |
| Motor case return flow limit | 2 gallons per minute | p. 5 |
| Reservoir oil capacity | 20 gallons | p. 6 |
| Back plate cap screw torque | 15-18 ft. lbs. | p. 12 |
| Adapter plate cap screw torque | 55-60 ft. lbs. | p. 14 |
| Cylinder rod nut torque | 250 ft. lbs. | p. 22 |
New Holland 499 Common Problems This Manual Covers
New Holland 499 haybine sickle drive knocking, knife head rattles louder as engine speed comes up
Check the rubber bushing in the knife head first; a worn one knocks at any speed. Pull the connecting rod per the procedure on page 37 and inspect the crank pin bearings. Seat the crank pin nut at 35 ft. lbs. (48 N·m), then torque the knife head and connecting rod bolts to 85 ft. lbs. (115 N·m).
Manual Section: Connecting Rod Repair p. 37Ragged cut and plugging in damp or fine-stemmed hay, cutterbar streaks and feeds unevenly
Replace dull or cracked knife sections and straighten or replace bent guards; damp crop shows cutterbar wear first. Check knife hold-down clearance, then inspect the sickle drive gearbox mounting on page 36: torque 1/2 inch bolts to 115 ft. lbs. (156 N·m) and 5/8 inch bolts to 200 ft. lbs. (271 N·m). A loose gearbox shortens knife stroke and leaves streaks.
Manual Section: Sickle Drive Gearbox Repair p. 32Header will not lift and tongue swings slowly or drifts out of position under load
Check the tongue reservoir oil level; the system holds about 20 gallons (75.7 L) at the proper level. Verify relief valve pressure reaches 3500 psi (24,133 kPa) using the troubleshooting chart on page 4. If a cylinder drifts with good pressure, rebuild it per the procedures starting on page 19 and torque the rod nut to 250 ft. lbs. (339 N·m).
Manual Section: Hydraulic Cylinder Repair p. 19Hydrostatic drive loses power or slows down in one direction after the oil warms up

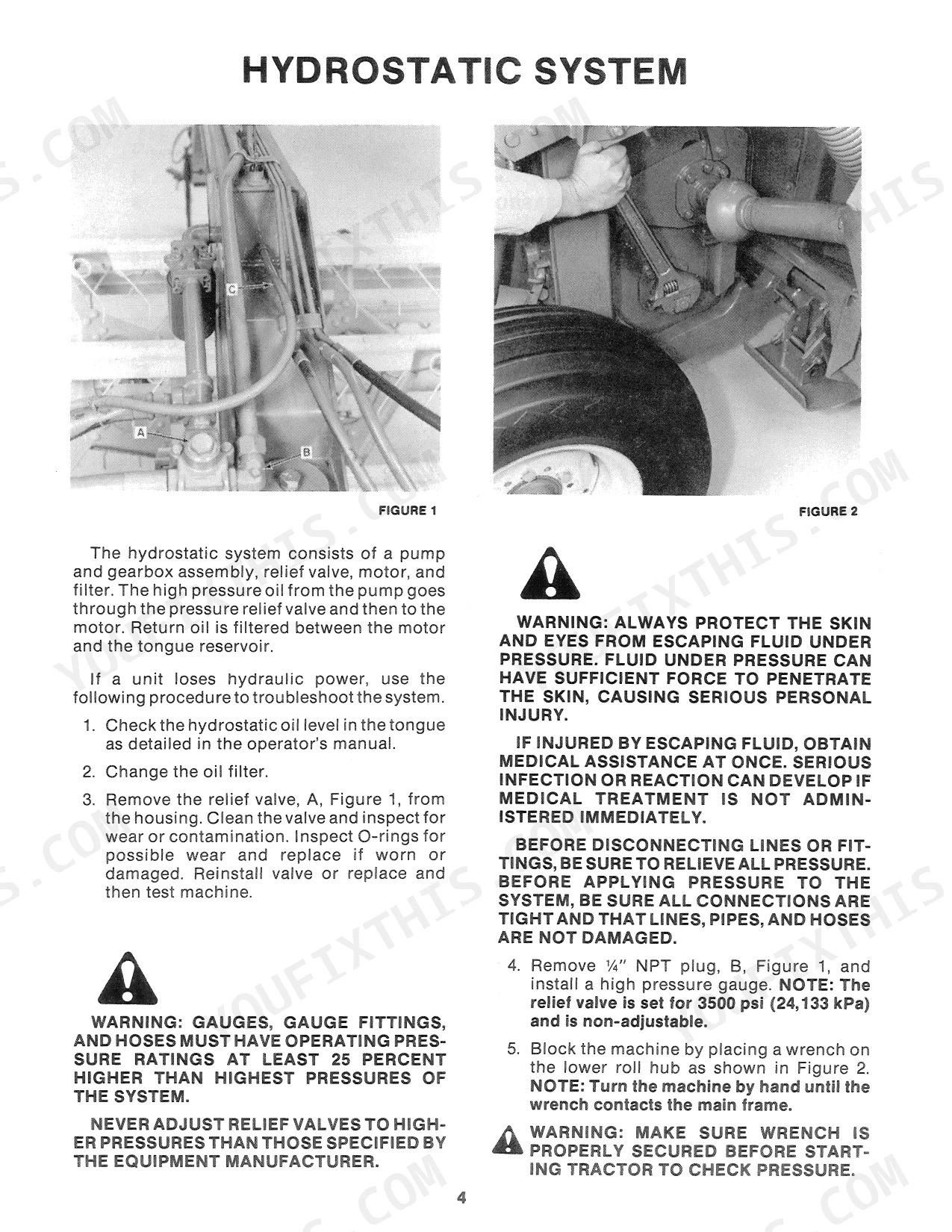

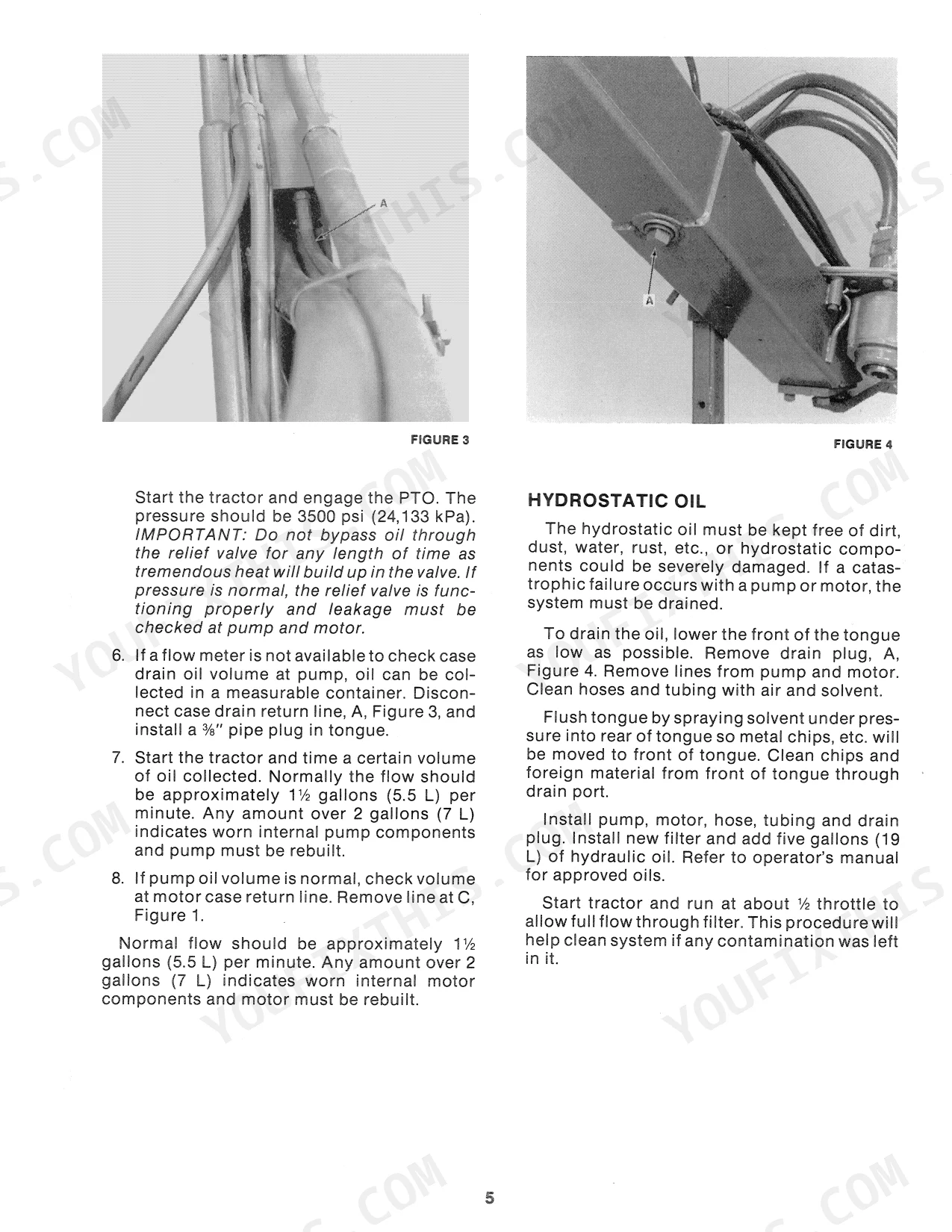

Check oil level and change the filter before pulling anything apart. Measure pump and motor case drain flow as described on page 5; anything over 2 gallons per minute means worn internals. Confirm the relief valve holds 3500 psi (24,133 kPa) per page 4 before condemning the pump or motor.
Manual Section: Hydrostatic System Troubleshooting p. 4Reel wobbles and tine bars clunk on every rotation, tines drag crop instead of feeding it
Inspect the tine bar bearings for play; a worn bearing lets the bar climb and drop each turn. Replace them per the procedure starting on page 40, torque the four mounting bolts to 50 ft. lbs. (68 N·m) and the bearing nuts to 150 ft. lbs. (203 N·m). Check the reel cams and bushings while the reel is apart.
Manual Section: Reel Tine Bar Bearing Repair p. 40Frequently Asked Questions
What are the torque specifications for the knife head and rocker arm bolts?
All three bolts (knife head bolt and top rocker arm bolt) should be torqued to 85 ft. lbs. (115 N·m). p. 39
What is the relief valve pressure setting for the hydrostatic system?
The hydrostatic system relief valve is set for 3500 psi (24,133 kPa) and is non-adjustable. p. 4
What is the required hydraulic oil capacity for the reservoir?
Approximately 20 gallons (75.7 L) of hydraulic oil are required to fill the reservoir to the recommended level. p. 6
What is the torque specification for the wheel bolts?
The wheel bolts must be torqued to 115 ft. lbs. (156 N·m). p. 28
What is the torque specification for the cylinder rod nut on the lift cylinders?
The rod nut on the lift cylinders must be tightened to 250 ft. lbs. (339 N·m). p. 22
Will this New Holland 499 Service Manual download right away?
You get a 48-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this New Holland 499 Service Manual printable?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
