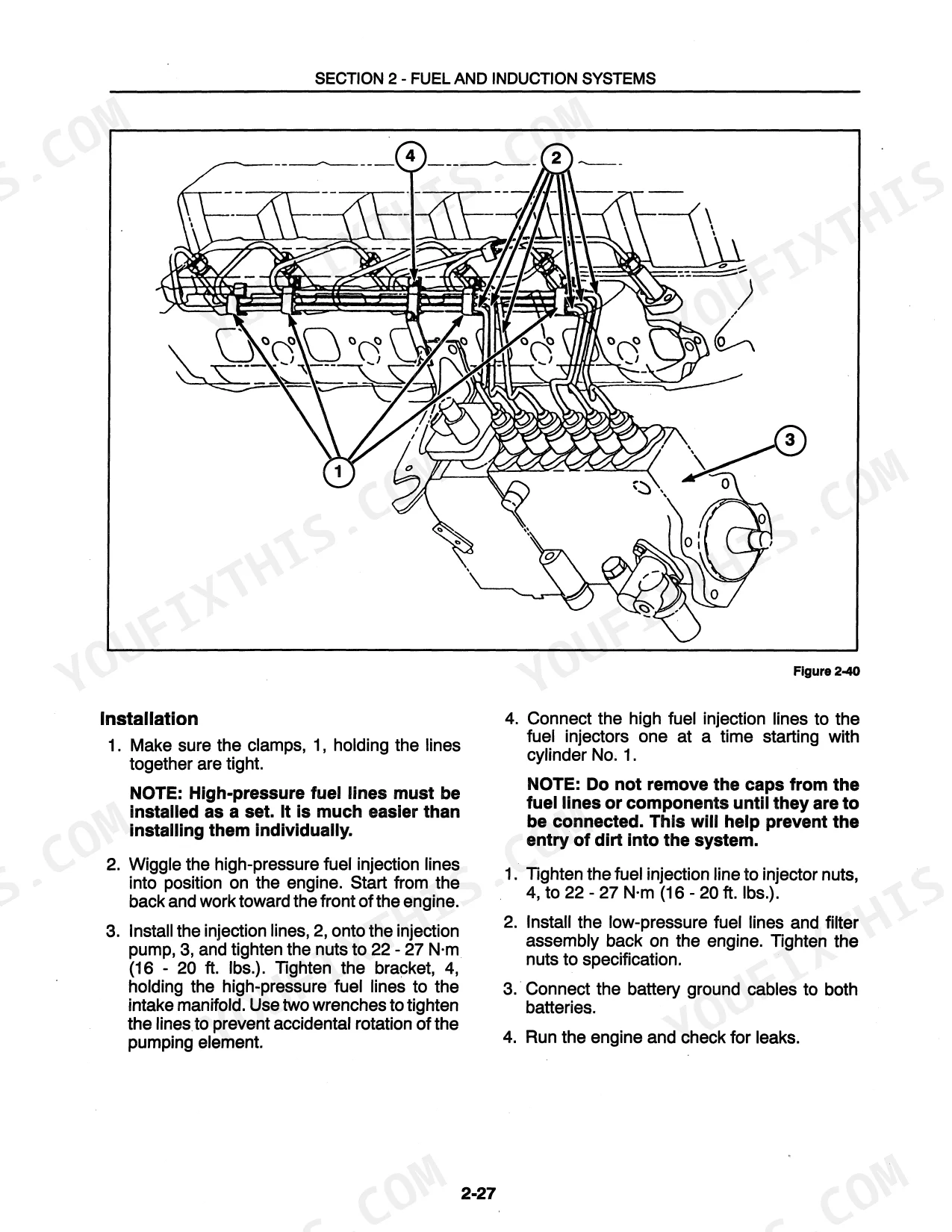

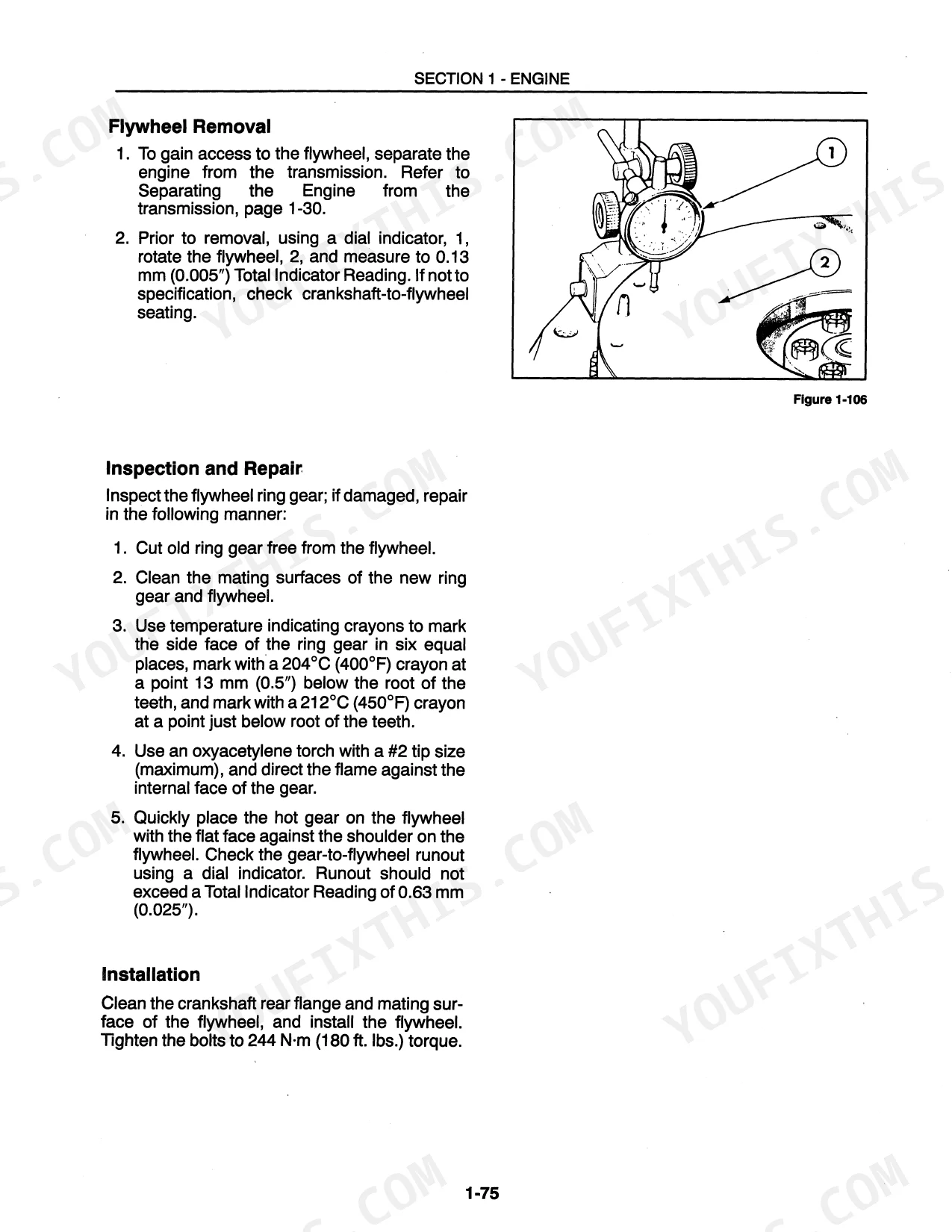

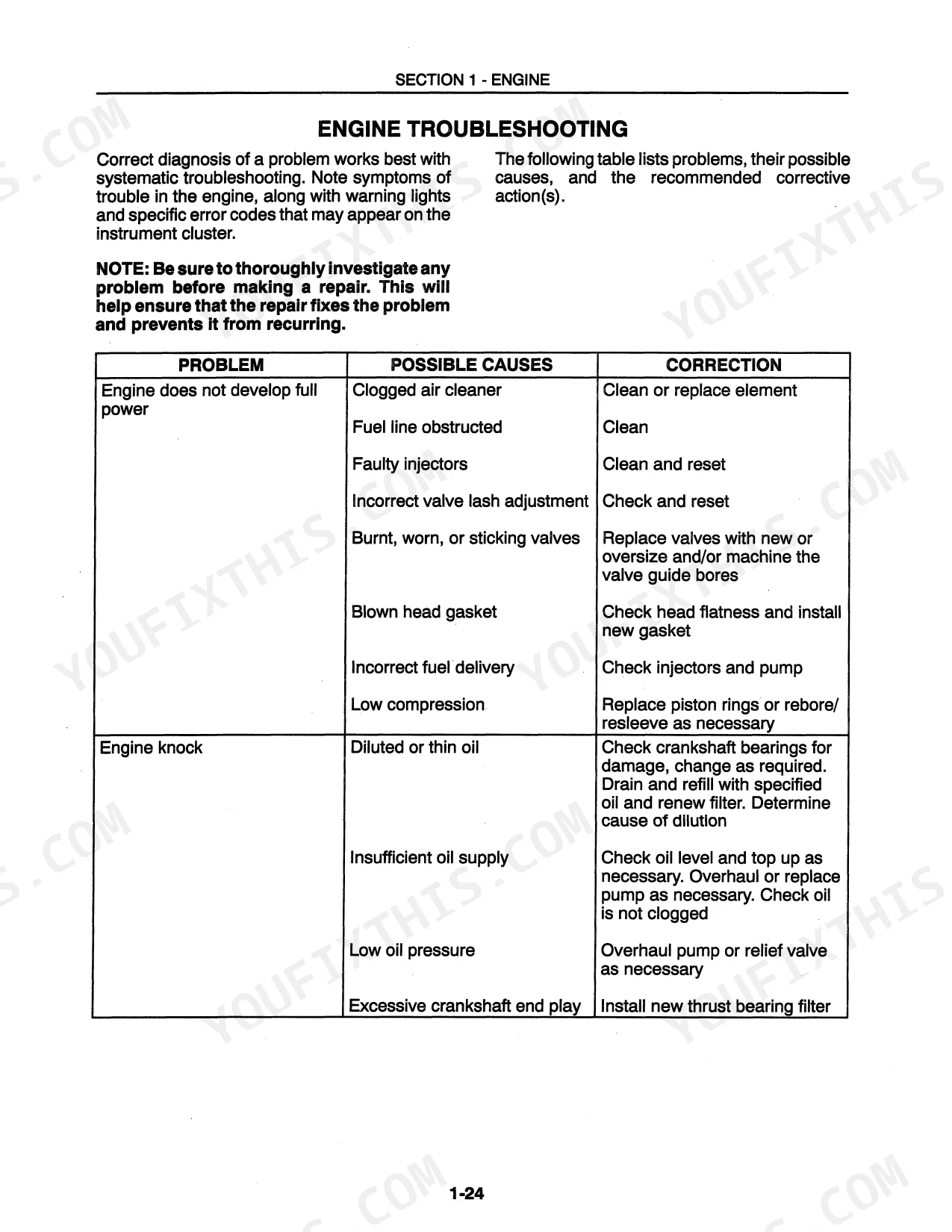

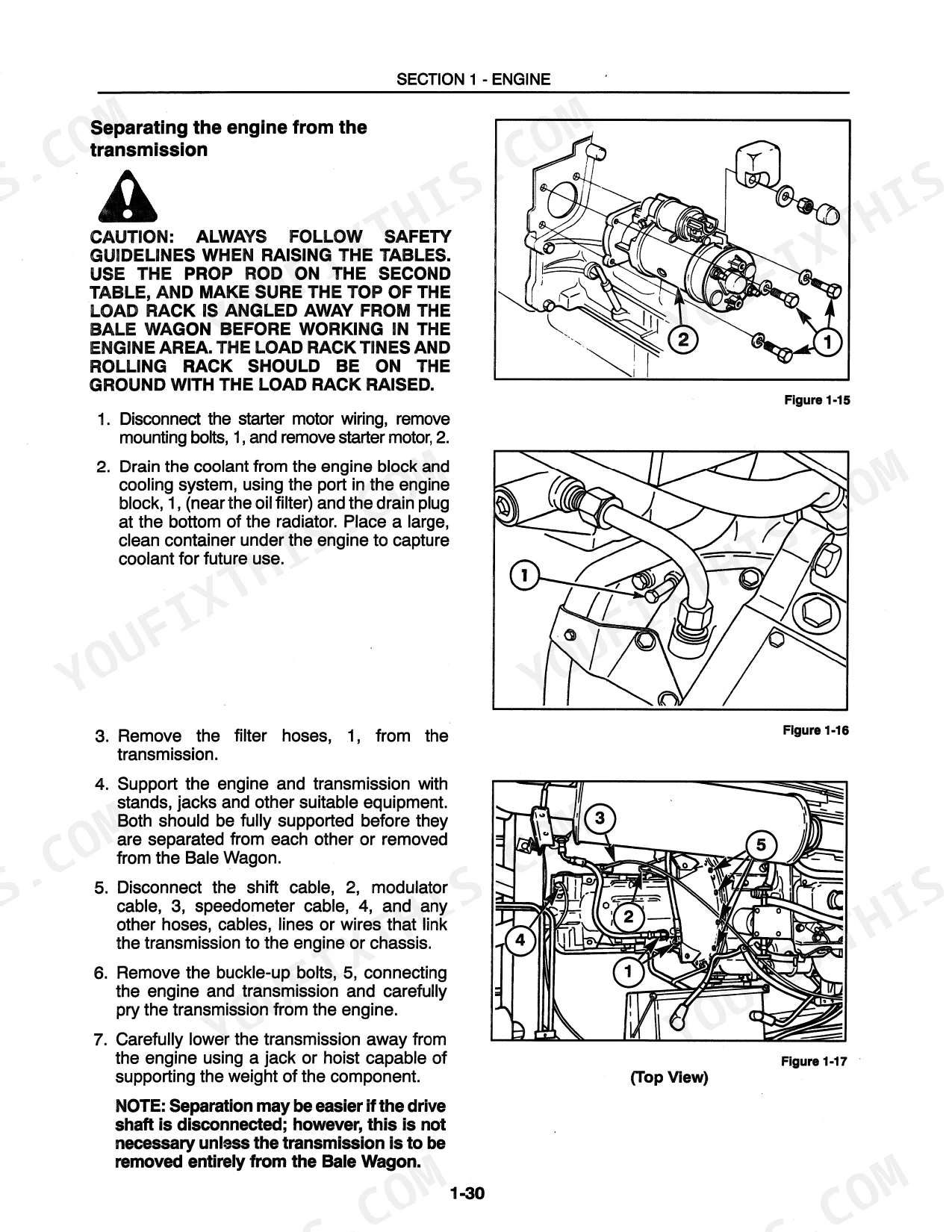

Factory engineers filled 996 pages on the 1089 and 1095 so a farm shop could rebuild either bale wagon without waiting on a dealer, and this New Holland 1089, 1095 repair manual pdf, OEM ID 86614938 for the 2000 model year, is that book. Hydraulic coverage takes the largest share of it, walking you from reading diagram symbols through valve manifold service, while wiring diagrams trace the electrical system from the battery and starting circuits into the electronic control interlocks. Troubleshooting charts back up the engine, cooling, brake, and steering chapters. Before condemning a fuel shutoff solenoid, test it against the 60 amp pull and 0.87 amp hold spec; when the cooling fan goes back on, its bolts torque to 20 to 25 N·m. Interlock gremlins have cut short plenty of baling days. Bookmarked by system, the PDF puts the right chapter a tap away before your weather window closes.
What's Inside This New Holland 1089, 1095 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine | 5-116 | Engine Description and Operation, Engine Specifications, Engine Special Tools, Engine Lubrication, Engine Troubleshooting, Engine Disassembly and Repair |
| Fuel and Induction Systems | 117-194 | Bosch A2000 System, Bosch Ve System, Induction and Turbocharger |
| Transmission | 195-236 | General Information, Principles of Operation, Preventive Maintenance |
| Rear Axle and Suspension | 237-314 | Description and Operation, Troubleshooting, Parts Inspection |
| Front Axle and Suspension | 315-344 | Introduction, Maintenance, Troubleshooting |
| Brake System | 345-456 | Description, Operation, Adjustments and Repairs |
| Steering System | 457-554 | General Information, Adjustments, System Component Replacement |
| Hydraulic System | 555-730 | Introduction, Reading Diagram Symbols, Valve Manifold |
| Electrical System | 731-884 | General Information, Battery, Starting System |
| Electronic Control System | 885-920 | General Information, Operation, Machine Interlocks |
| Air Conditioning System | 921-996 | Introduction, General Information, Refrigerant Handling |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fan blade attaching bolts torque | 20 - 25 N·m (15 - 18 ft. lbs.) | p. 98 |
| V-belt tensioner pulley attaching bolt torque | 54.5 N·m (40 ft. lbs.) | p. 99 |
| Pull current | 60 amps | p. 132 |
| Hold current | 0.87 amps | p. 132 |
| Shackle bolt nut clearance | 0.4 mm - 0.8 mm (0.015" - 0.31") | p. 291 |
| U-bolt nut torque | 312 N·m - 339 N·m (230 ft. lbs. - 250 ft. lbs.) | p. 291 |
| Knuckle bushing inside diameter replacement limit | 45.618 mm (1.796") | p. 329 |
| Knuckle bore inside diameter replacement limit | 48.818 mm (1.922") | p. 329 |
| Front axle U-bolts torque | 365 N·m - 395 N·m (270 ft. lbs. - 290 ft. lbs.) | p. 340 |
| Torque wrench capacity | 34 N·m (300 in.-lb.) | p. 666 |
| Breaker bar capacity | 30-40 cm (12-16 in.) | p. 666 |
| Transmission Oil Capacity (Shallow pan) | 14.2 L | p. 216 |
New Holland 1089, 1095 Common Problems This Manual Covers
Rack sits crooked and bales stack off center, rear springs sagging and clunking over ruts
Inspect the leaf springs for broken leaves and check the shackle bolts; tighten the nuts until 0.4 mm - 0.8 mm (0.015" - 0.31") clearance remains between shackle and spring, per page 291. Torque the U-bolt nuts to 312-339 N·m (230-250 ft. lbs.). Replace worn spring bushings before they wallow out the hangers.
Manual Section: Rear Axle and Suspension p. 291Transmission whines and leaks oil, drive belt slipping under a full load of bales
Drain the transmission and inspect the old oil for metal; refill the shallow pan with 14.2 L of fresh oil, the capacity listed on page 216. Check the drive V-belt for glazing, cracks, and bottoming in the pulley grooves, and verify pulley alignment with a straightedge before installing a new belt.
Manual Section: Transmission p. 216Shifts harshly or slips under a full rack, or the wagon creeps with the lever in neutral
Do not pull the transmission until you have read pressures. Section 3 carries the full oil-circuit diagram for the AT542 automatic transmission on page 222, which shows the main pressure tap, the main pressure regulator valve, the first to fourth clutch trimmer valves, the 1-2, 2-3 and 3-4 shift signal valves, the governor and the vacuum modulator. Gauge the main pressure tap first, then work along the circuit that feeds the clutch that misbehaves. A lazy governor or a leaking modulator changes shift timing without any internal damage, and both are far cheaper than a teardown.
Manual Section: Transmission - Oil Circuits (AT542 Automatic) p. 222Frequently Asked Questions
What is the torque specification for the cylinder head bolts on the engine?
The cylinder head bolts must be tightened in a specific sequence in three stages. The final torque for the cylinder head bolts is 217 N·m (160 ft. lbs.) with the engine cold. p. 54
How do you fix new Holland 1089 bale wagon loses drive in the field, hydraulic drive motor grinding and intermittent?
Check hydraulic oil level and pressure before condemning the drive motor. Remove the orbital motor mounting flange cap screws; expect 35-45 N·m (300-400 in. lbs.) of torque to break them loose, per page 668. Inspect the coupling splines for wear and replace the motor if rotation feels rough or gritty. p. 668
How do you fix engine cranks fine but will not start, or shuts down randomly while loading bales?
Test the fuel shutoff solenoid before pulling the injection pump. Verify the pull winding draws 60 amps and hold current stays at 0.87 amps, per the specs on page 132. Check for voltage drop at the connector; a corroded ground kills the pull circuit. Replace the solenoid if the plunger will not hold its full 25.4 mm (1") stroke. p. 132
How do you fix front end wanders and steers hard, tires scrubbing on the road between fields?
Check kingpin end play with the front axle jacked up; anything over 0.635 mm (0.025") needs shims added to the shim pack, page 333. Measure the knuckle bushings in four positions and replace any averaging over 45.618 mm (1.796"), following the procedure on page 329. Torque the draw key nuts to 45-55 N·m (35-45 ft. lbs.) on reassembly. p. 333
What do I get after purchasing this New Holland 1089 manual?
A single scanned PDF file of 996 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Is printing allowed for this New Holland 1089 Repair Manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
Does this New Holland 1089 manual include wiring diagrams?
Yes, this New Holland 1089, 1095 Repair Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts. Page 292 carries one of them.
