This 699-page New Holland 3910 Parts Catalog PDF focuses on one job: finding the exact part number for your 1983-1990 three-cylinder ag tractor without guesswork. It pairs parts lists with exploded views covering everything from the synchronized 8-speed transmission and independent PTO to the hydraulic lift cylinder, remote control valves, power steering pump, and full LH/RH electrical system. Cab components get serious depth too: the low-profile cab glass, doors, rollbar, heater, and seat assemblies are all mapped out. Factory dimensions confirm you're ordering the right piece: the lift-and-drop hose assembly measures 30-1/4 inches (768.35mm) and the long hydraulic hose run comes in at 118 inches (2997.2mm). Wrong part, second freight charge, machine still down. Bookmarked by section and keyword-searchable, so you find the figure, pull the part number, and place one order.
What's Inside This New Holland 3910 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Wheel Assemblies & Weights | - | Front Wheel Assembly, Rear Wheel Assembly, Power Adjustable Wheels, Front End Wafer Weights, Rear Wheel Weights |
| Brakes & Controls | - | Brake & Brake Controls, Brake Linkage & Pedals, Transmission Handbrake, Hydraulic Trailer Brakes |
| Front Axle & Steering | - | Manual Steering, Power Steering, Steering Gear Assembly, Power Steering Pump & Reservoir, Axle Housing, Drive Shafts |

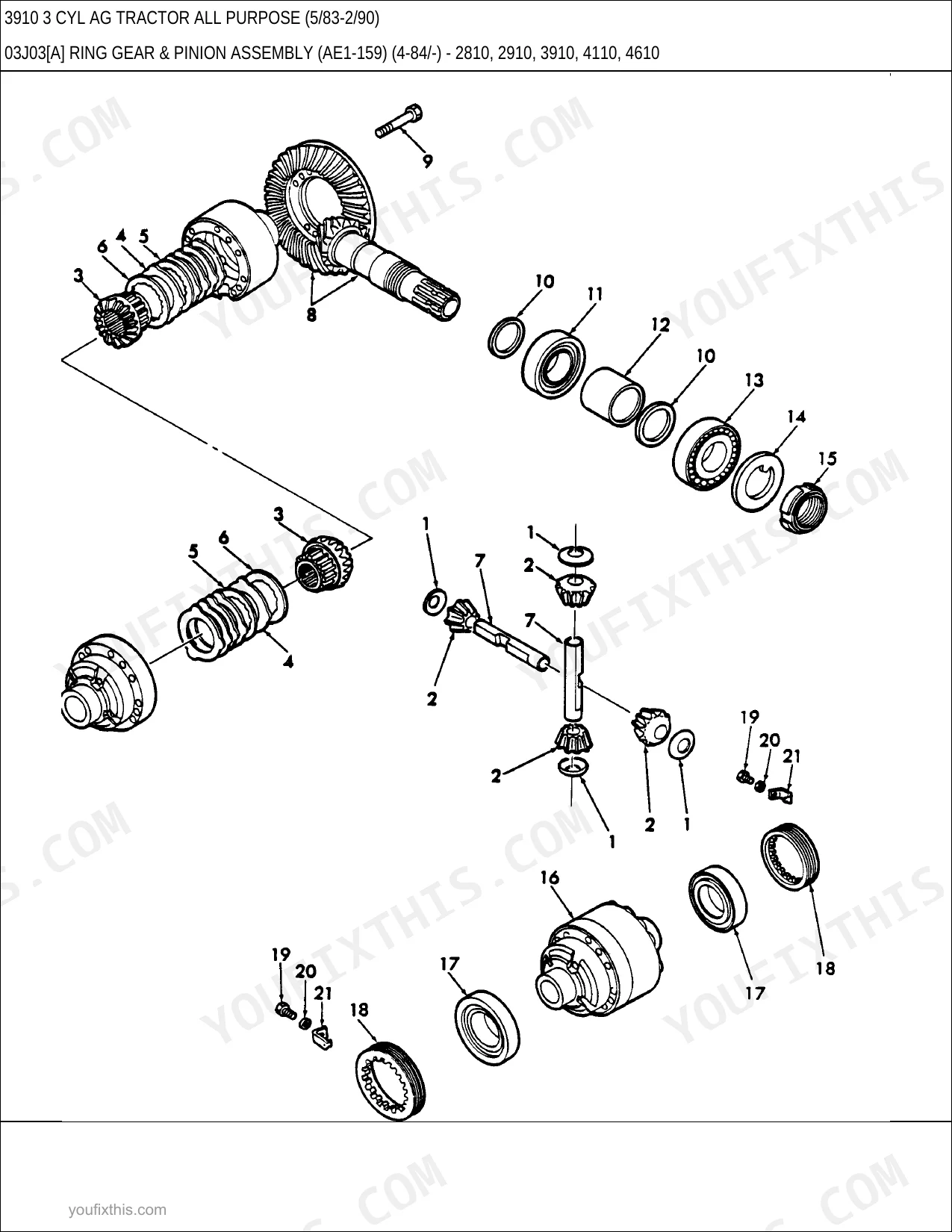

| Rear Axle & Differential | - | Rear Axle Assembly, Differential & Related Parts, Differential Lock Linkage, Center Housing |
| Hydraulic Lift System | - | Hydraulic Lift Cover, Lift Cylinder, Flow Control Valve Assemblies, Remote Control Valves, Automatic Pick-Up Hitch |

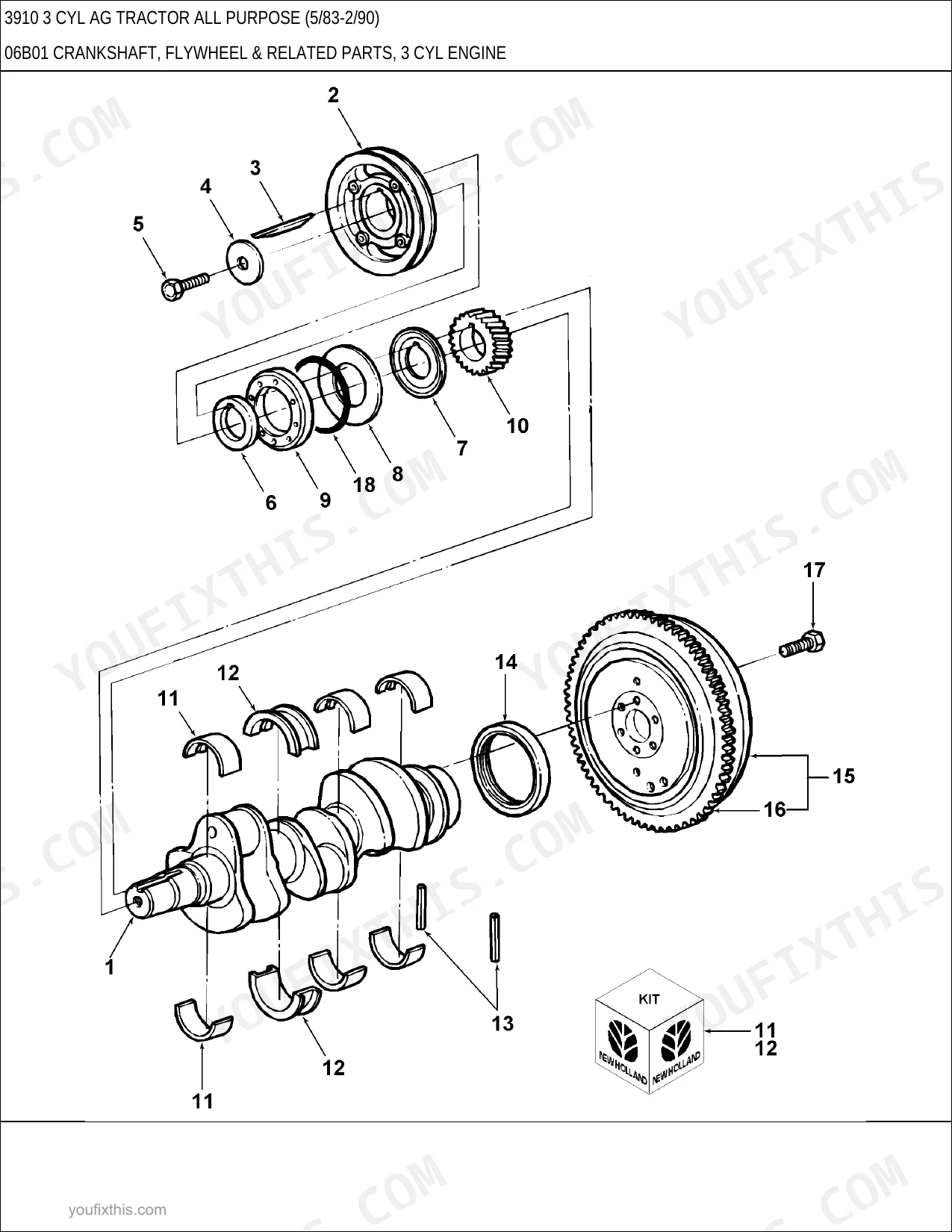

| Engine Components | - | Cylinder Block & Head, Crankshaft & Flywheel, Camshaft & Valves, Oil Pump & Oil Pan, Pistons & Connecting Rods, Engine Gasket Kits |
| Transmission & PTO | - | 8-Speed Transmission Case, Synchronized Transmission Gears, PTO Clutch Linkage, Creeper Gear Kit, Transmission Oil Cooling System |
| Fuel System | - | Radiators & Water Pump, Fuel Filters, Fuel Injection Pump, Air Cleaner Assembly, Throttle Controls |
| Hydraulic Pump Assembly | - | Engine Mounted Gear Type Pump, Center Housing Mounted Pump, Auxiliary Pump Tubing, Dual Pump Attaching Kit |
| Electrical System & Lighting | - | LH & RH Electrical System, Headlamp Assemblies, Flasher & Turn Signals, Battery & Support Assembly, Starter Motor, Alternator Assembly, Instrument Cluster |

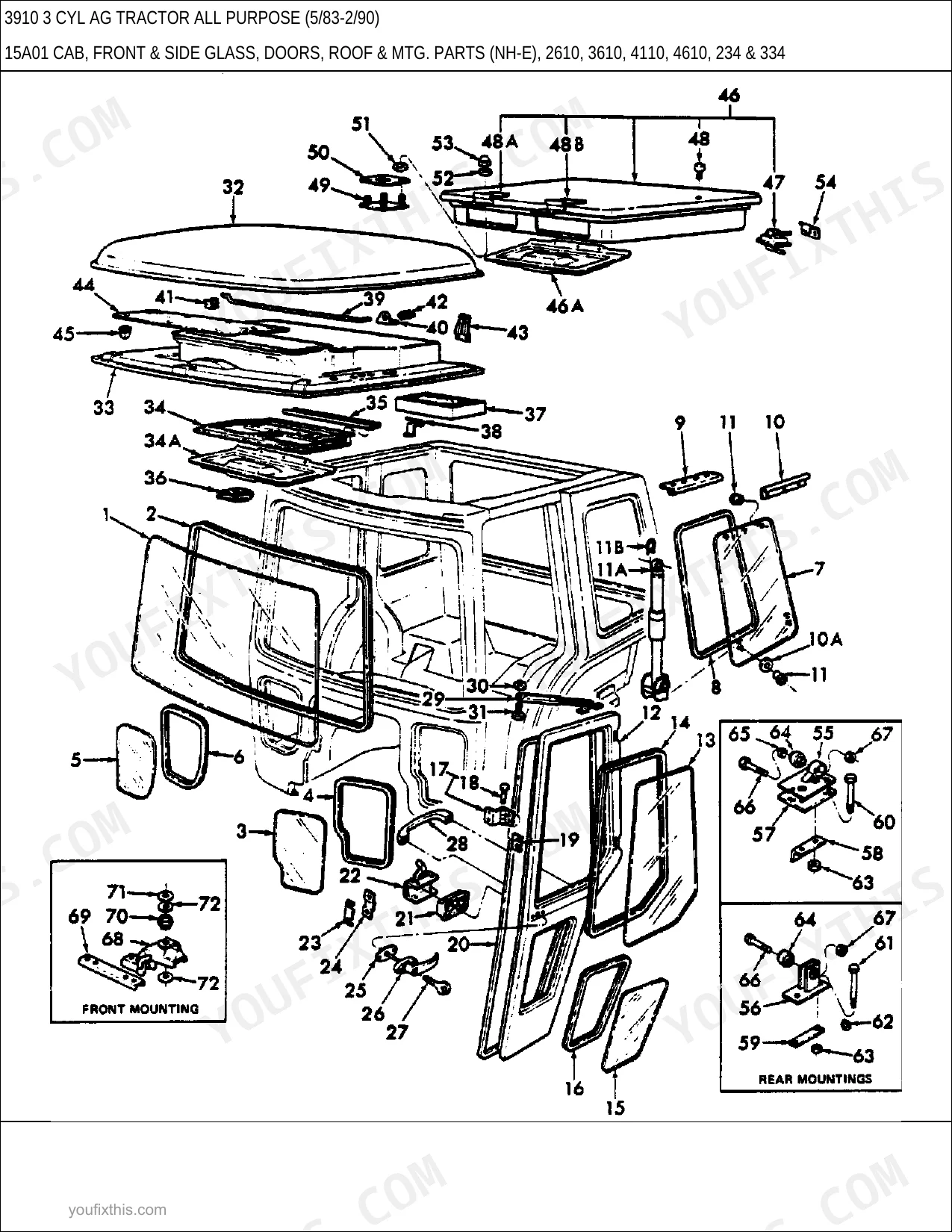

| Cab & Fenders | - | Super Comfort Seat, Custom Deluxe Seat, Crown & Flat Top Fenders, Engine Hood & Grille, Cab Glass & Doors, Rollbars, Cab Heater, Windshield Wiper |
| Decals & Tow Hooks | - | Identification Decals, Instruction Decals, Safety Decals, Transmission Shift Pattern Decals, Front & Rear Tow Hooks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Bushing, Unload clearance | 25.405/25.410mm | p. 155 |
| Bushing, Lift clearance | 25.400/25.405mm | p. 155 |
| Hose Assy., Lift & Drop length | 30-1/4", 768.35mm | p. 187 |
| Hose Assy. length | 118", 2997.2mm | p. 188 |
| Battery Assy. capacity | 77 A.H. | p. 457 |
| Battery, Dry Charged CCA | 810CCA | p. 459 |
| Air Cleaner Assy. size | 6" | p. 364 |
| Disc Assy. size | 11" | p. 307 |
| Disc, Clutch size | 13" | p. 309 |
| Valve Assy. pressure rating | 800 PSI | p. 94 |

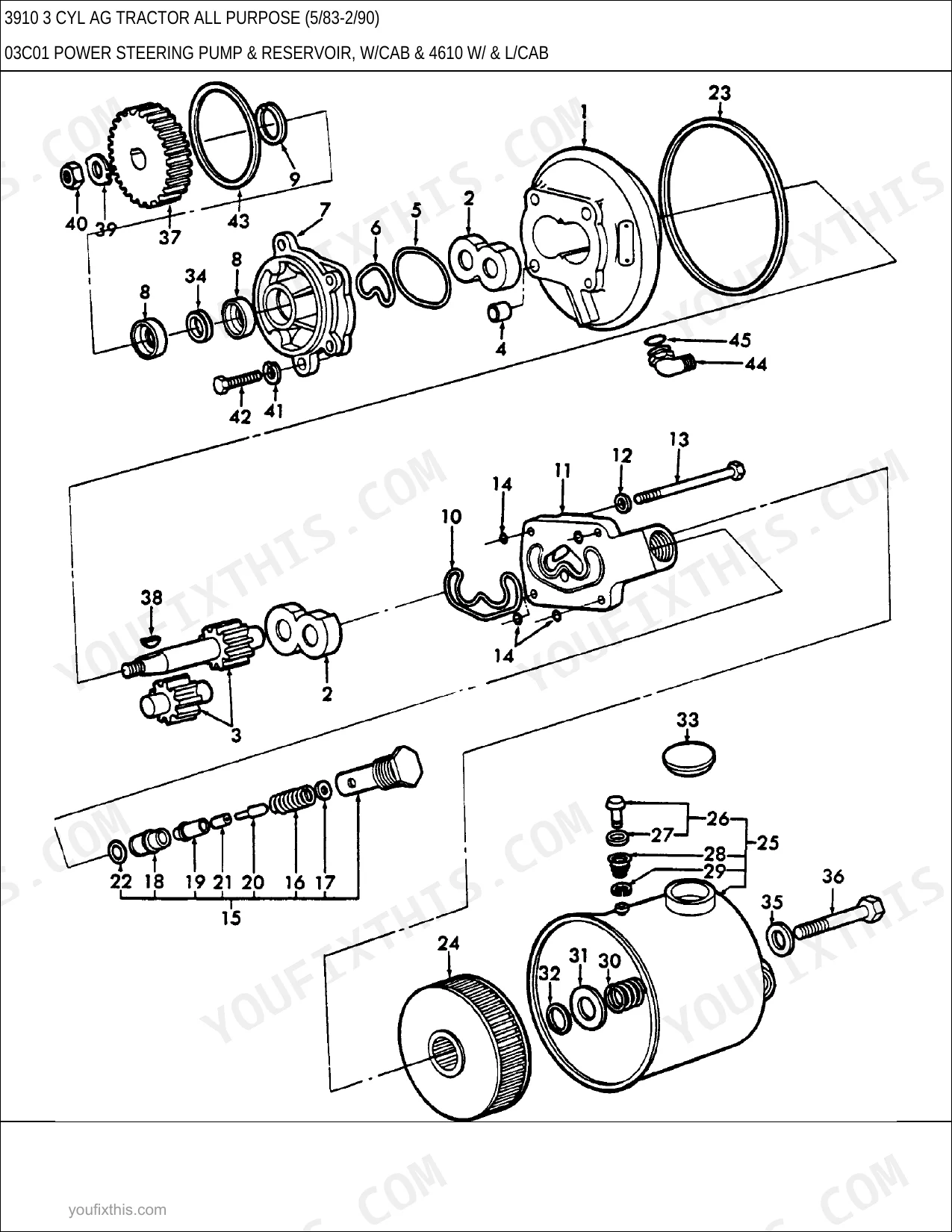

| Pump & Reservoir pressure rating | 650 PSI | p. 97 |

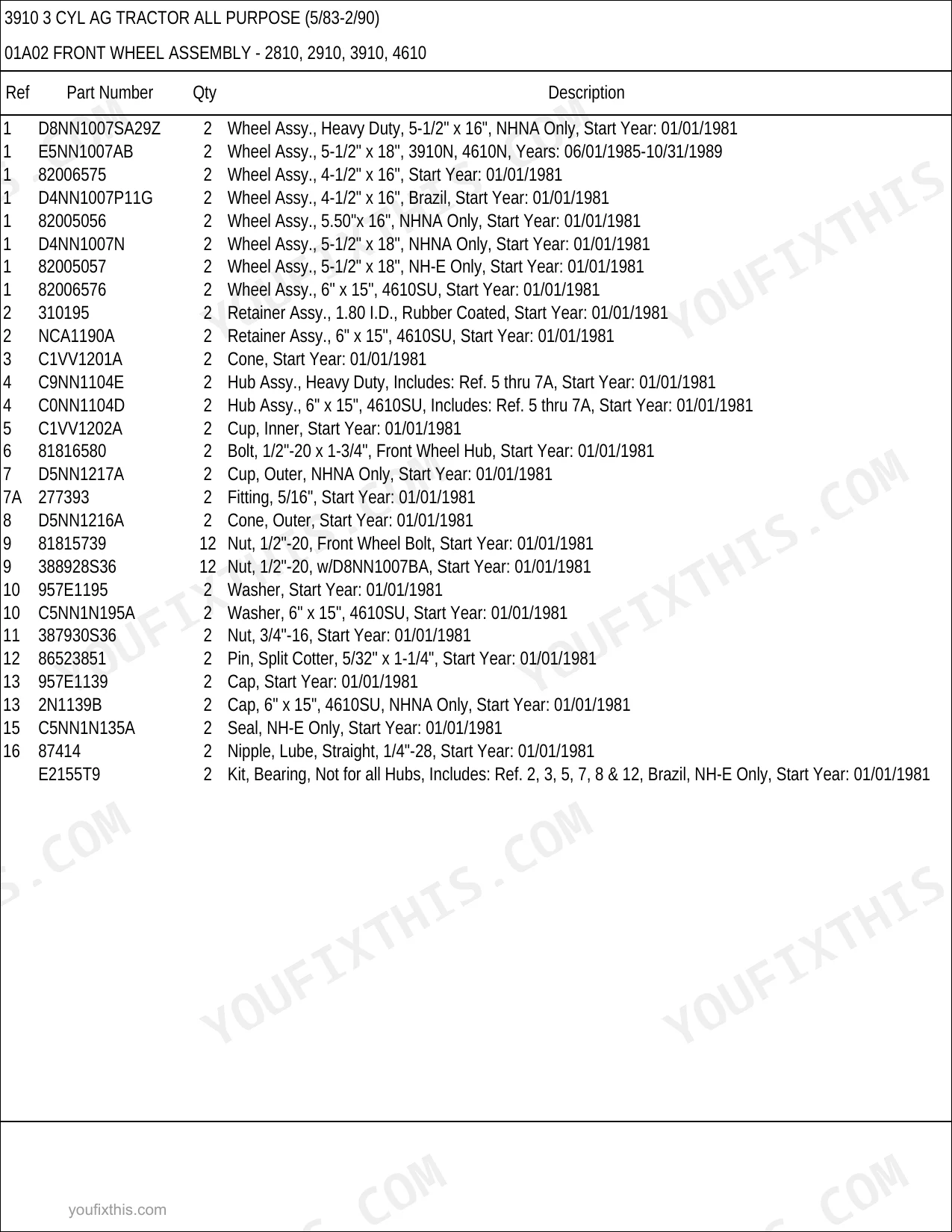

| Front Wheel Assy. (Heavy Duty) Size | 5-1/2" x 16" | p. 9 |
New Holland 3910 Common Problems This Manual Covers
New Holland 3910 hydraulic lift cylinder seal kit number unclear, two part options listed p. 155
Open the Hydraulic Lift System exploded view and locate the lift cylinder assembly on page 155. The unload bushing clearance spec is 25.405/25.410mm, which determines whether you need the standard or oversize seal kit. Match the bushing bore measurement to the correct part number in the adjacent parts list, then verify against your serial number range in the index.
Manual Section: Hydraulic Lift SystemHydraulic hose assembly part number for the lift and drop circuit, length unknown p. 187
Find the hydraulic hose exploded view starting on page 187. The Lift & Drop hose assembly measures 30-1/4 inches (768.35mm), and the main system hose assembly runs 118 inches (2997.2mm) per page 188. Match your hose routing and connection type to the correct part number in the assembly diagram before ordering.
Manual Section: Hydraulic Lift SystemBattery replacement part number and capacity spec, two options listed in the electrical section p. 459
Check the Battery & Support Assembly section on page 459. Two options are cataloged: a standard 80 A.H. unit and a dry-charged variant rated at 810 CCA. Confirm your tractor's electrical configuration matches the correct capacity, then cross-reference the support bracket part numbers on the same page to order a complete replacement kit.
Manual Section: Electrical System & LightingClutch disc part number unclear, two different disc sizes appear in the transmission section p. 307
Locate the clutch assembly exploded view on page 307, which lists the 11-inch disc assembly. For the main transmission clutch, cross-reference page 309, where the 13-inch clutch disc is cataloged separately. Match the disc diameter to your specific configuration, then verify the part number against the PTO Clutch Linkage section to confirm correct fitment.
Manual Section: Transmission & PTOAir cleaner assembly part number uncertain, filter dimensions not obvious from the exploded view p. 364
Pull up the Air Cleaner Assembly diagram on page 364, which catalogs the 6-inch primary filter element. Confirm the mounting bracket configuration matches your hood setup before ordering, since early and late production units used different mounting positions. The parts list adjacent to the diagram separates the primary element, safety element, and body assembly as individual line items.
Manual Section: Fuel SystemAlternator part number for a US-market replacement, amperage rating not confirmed before ordering p. 473
Locate the Alternator Assembly section on page 473. The US-market unit is rated at 51 amps, listed separately from export variants on the same page. Match your current alternator mounting bracket pattern to the exploded view to confirm the correct assembly part number, then cross-reference the wiring connector in the Electrical System section before finalizing the order.
Manual Section: Electrical System & LightingFrequently Asked Questions
What are the part numbers for the hydraulic lift cylinder seal kit on the New Holland 3910?
Review the Hydraulic Lift System exploded view on page 155 and locate the lift cylinder assembly. The seal kit part numbers are listed under the cylinder sub-assembly — bushing unload clearance is 25.405/25.410 mm and bushing lift clearance is 25.400/25.405 mm to confirm correct fitment.
What is the part number and length of the hydraulic hose assembly for the New Holland 3910 lift system?
The Lift & Drop hose assembly is 30-1/4 inches (768.35 mm) — see the hydraulic hose exploded view starting on page 187. The main hydraulic hose run is 118 inches (2997.2 mm), listed on page 188.
What are the replacement specifications for injector pump?
The manual lists several injector pump assemblies with their part numbers and applicable models/years. For example, part numbers and fitment details are catalogued in the fuel system exploded views section.
What are the replacement specifications for starter?
The manual provides several starter motor assemblies with their part numbers and specifications. Part numbers and fitment details are catalogued in the electrical system exploded views section.
How will I receive this New Holland 3910 Parts Catalog?
Immediate download of the complete 699-page searchable Parts Catalog. Access it on any device — laptop at your desk or phone at the machine.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions — print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF with a good OCR layer, allowing you to search and copy all text content, including part numbers and descriptions. Both the OCR'd text and the labels within the diagrams are crisp and easy to read, with illustrations appearing as sharp vector graphics. Pages are clean, free from scan artifacts, stains, or skewed content, though a "youfixthis.com" watermark is present on every page.
