Part of the New Holland Parts Manuals.
When you need to order the right components, this massive 915-page New Holland LB110 parts catalog PDF breaks down every single assembly for your LB75.B, LB85, LB90, LB95, and LB115 backhoe loader series. Inside, you get highly detailed exploded views, complete component identification, and factory cross-references for the entire machine, including the engine, powershift transmission, and complex hydraulic systems. Open the bookmarked file to find page after page of parts lists covering everything from the 4WD front axle down to the individual O-rings on the backhoe swing cylinders. Verify you are ordering the exact E9NN6600AB engine oil pump or confirm the 87802172 water separator filter fits your specific machine serial number before calling the dealer counter. Wrong parts mean dead downtime and lost money. Download this digital manual directly to your phone or tablet, find the OEM number instantly, and get your order placed.
What's Inside This New Holland New Holland LB75.B-LB115 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Tank - Muffler - Radiator - Air Cleaner, Electric Lift Pump & Fuel Filter Assembly, Fuel Injection Pump, Fuel Tank & Related Parts, Air Cleaner & Hoses, Windshield Wiper Reservoir & Nozzles | |
| Cooling System | Water Pump, Radiator, Radiator Guards & Supports, Radiator Hoses | |

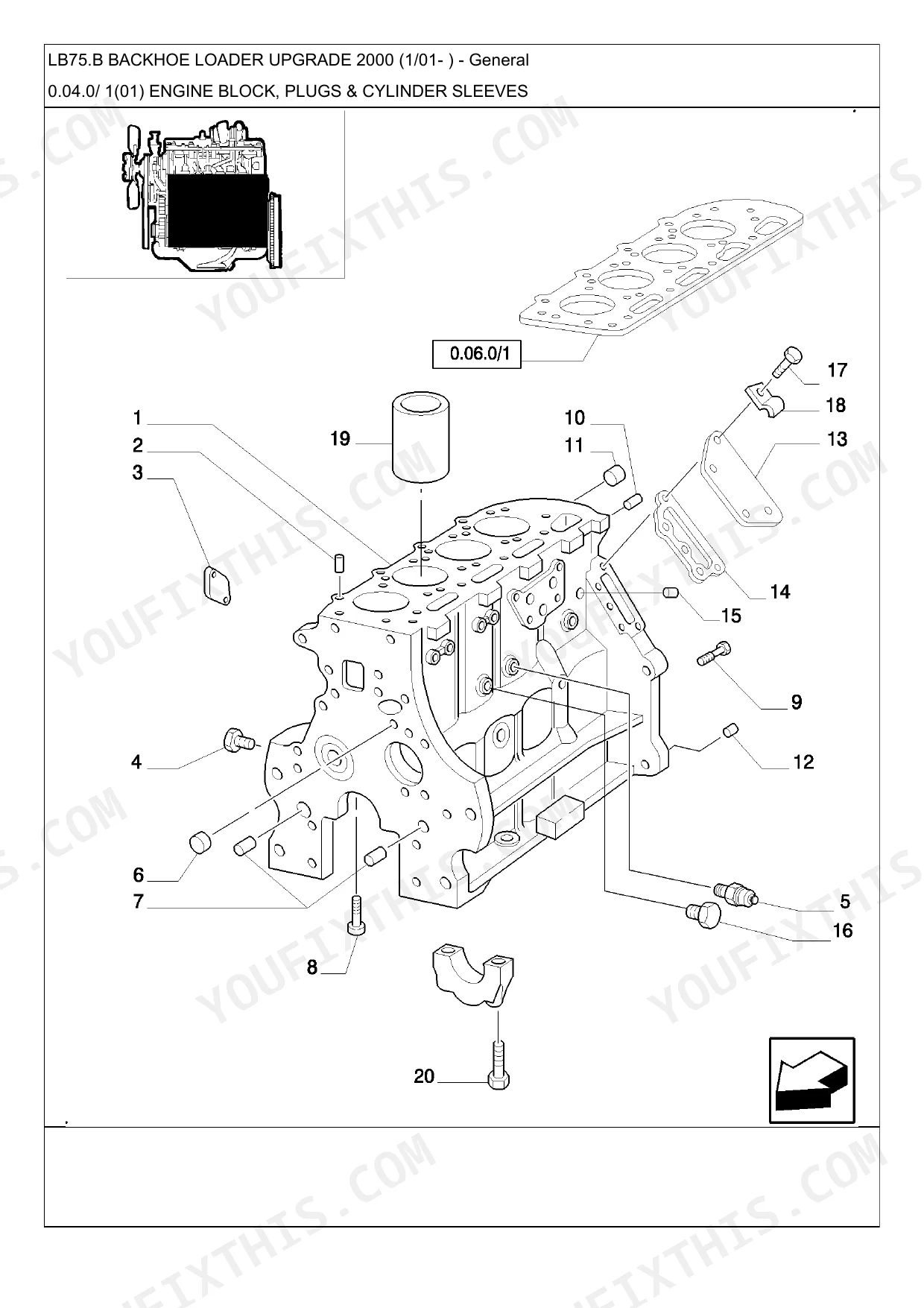

| Engine | Engine 2/2, Engine Assembly, Engine Block, Oil Pan, Engine Covers & Gaskets, Engine Breather, Cylinder Head & Valve Seats, Rocker Arm, Engine Lift Brackets, Crankshaft, Piston & Connecting Rod, Damper & Flywheel, Camshaft & Drive Gears, Oil Pump, Engine Oil Filter | |

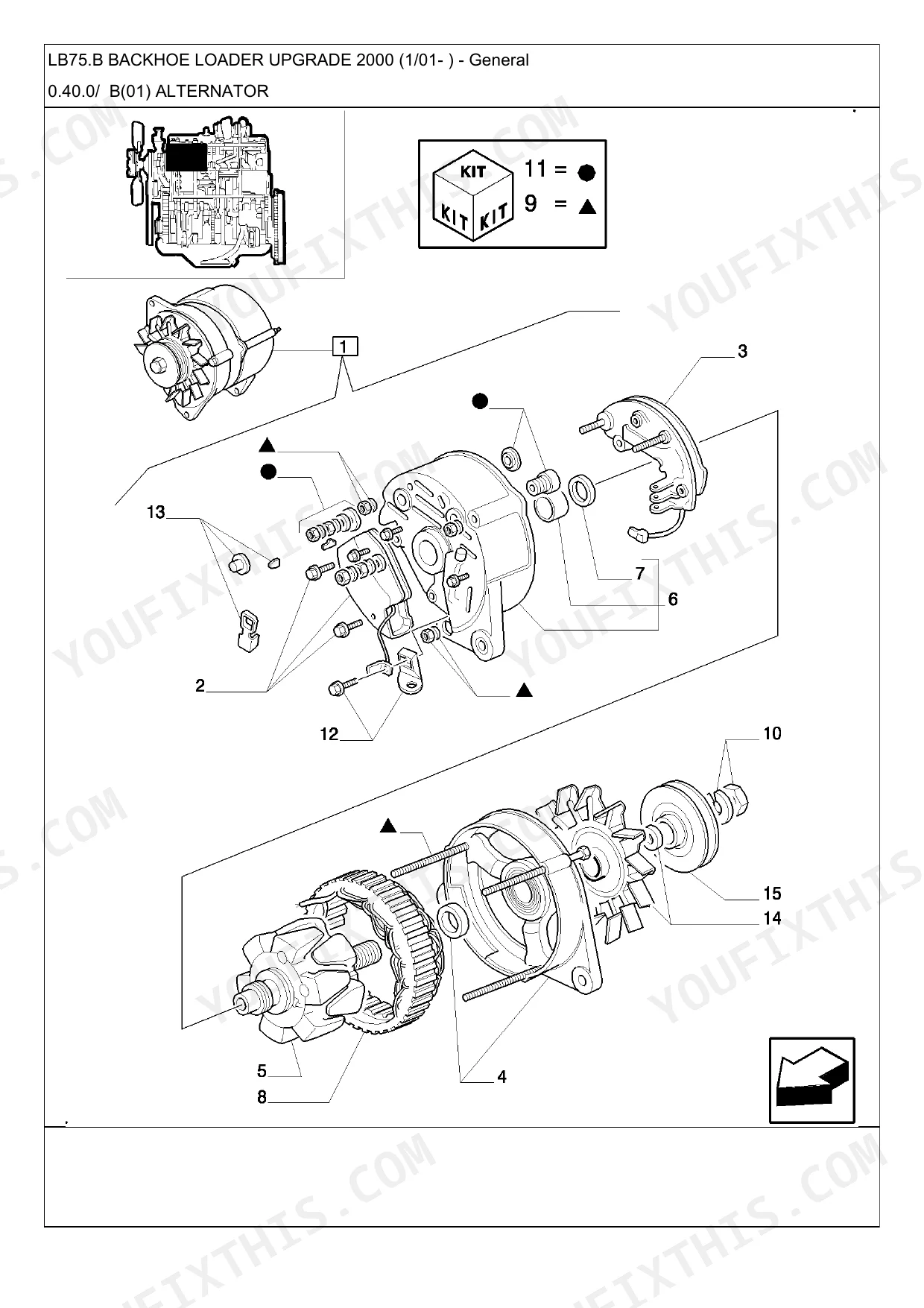

| Electrical System | Starter, Starter Attaching Group, Alternator, Alternator Mounting Brackets, Single Battery & Cables, Battery System, Dual Battery System, 4WD Switch, Chassis Harness & Ground Wire, Battery Lock-Out Switch & Ground Wire, Battery Remote Connection, Rotation Plate Hose Clamps, Return to Dig Sensor, Interior Light, Ignition Switch & Adapting Harness, Igniton Switch | |

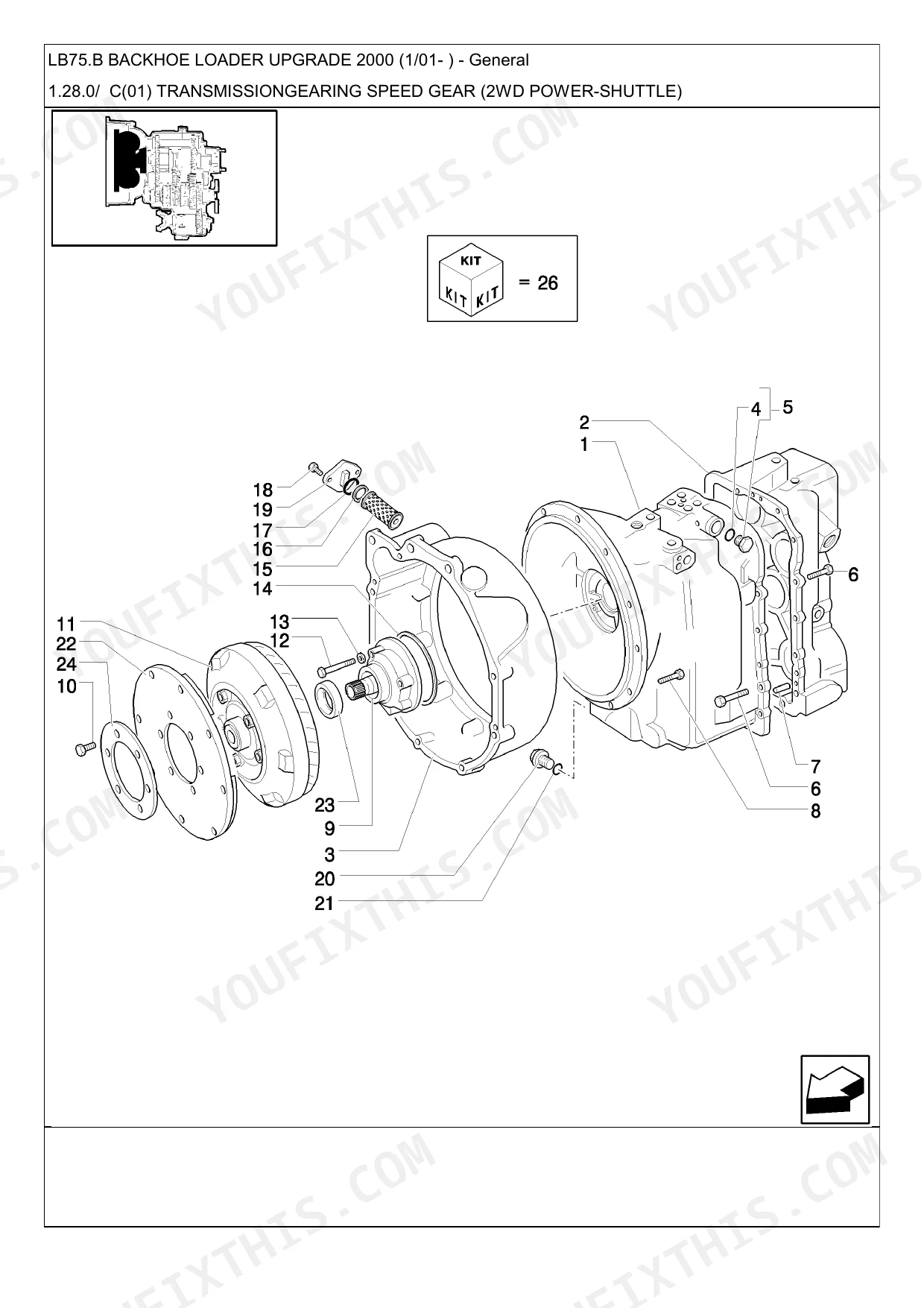

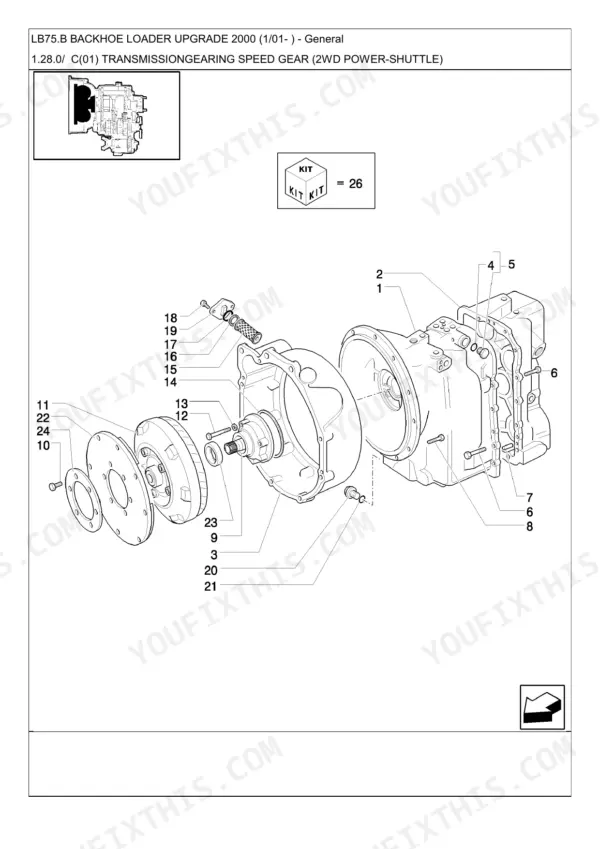

| Clutch & Transmission | Transmission 1/2, Transmission 2/2, Transmission Assemblies & Mounts, Transmission Gearing Speed Gear, Power-Shuttle | |
| Rear Axle, Differential & Brakes | Rear Axle Assemblies, Rear Axle | |

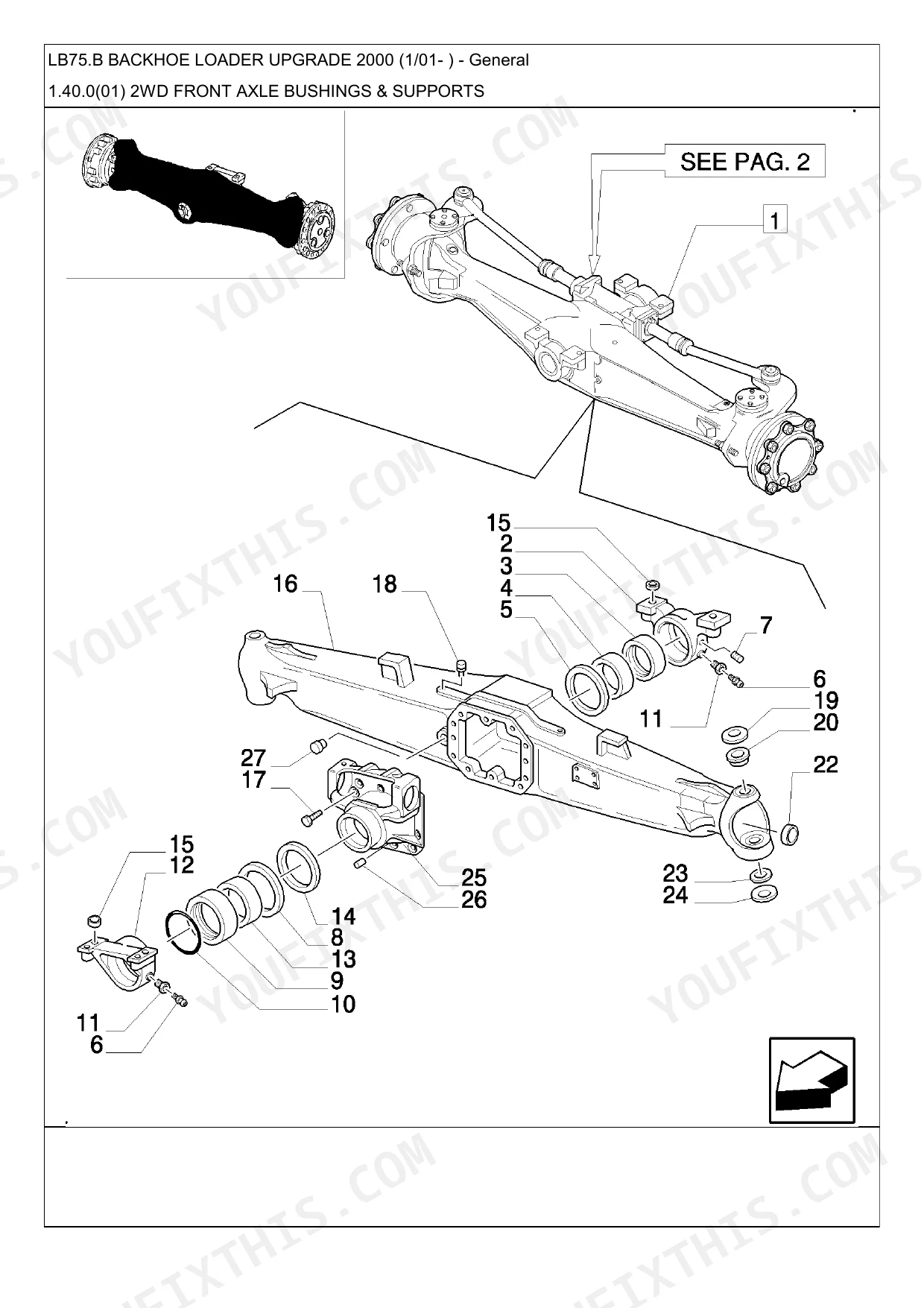

| Front Axle & Steering | Front Axle, 2WD Front Axle Bushings & Supports, 2WD Front Axle Swivel Housing, Power Steering Hydraulic Hoses & Valve | |
| Hydraulics & 3-Point Hitch | Slides Valves, Hydraulic Oil Reservoir, Hydraulic Pump, Front Hydraulic Pump Intake & Outlet Hoses, Rear Hydraulic Pump Stabilizer, Quick Release Couplers & Hoses, Loader Lift & Bucket Cylinder Tubing, Loader Lift Cylinder Hoses, Loader Bucket Cylinder Hoses, Backhoe Swing Cylinder Hoses, Backhoe Control Valve Hoses, Backhoe Control Valve, Dipper Valve Section, Backhoe Control Valve Fittings, Transport Lock Shock Absorber & Cable Linkage, Transport Lock Cylinder | |

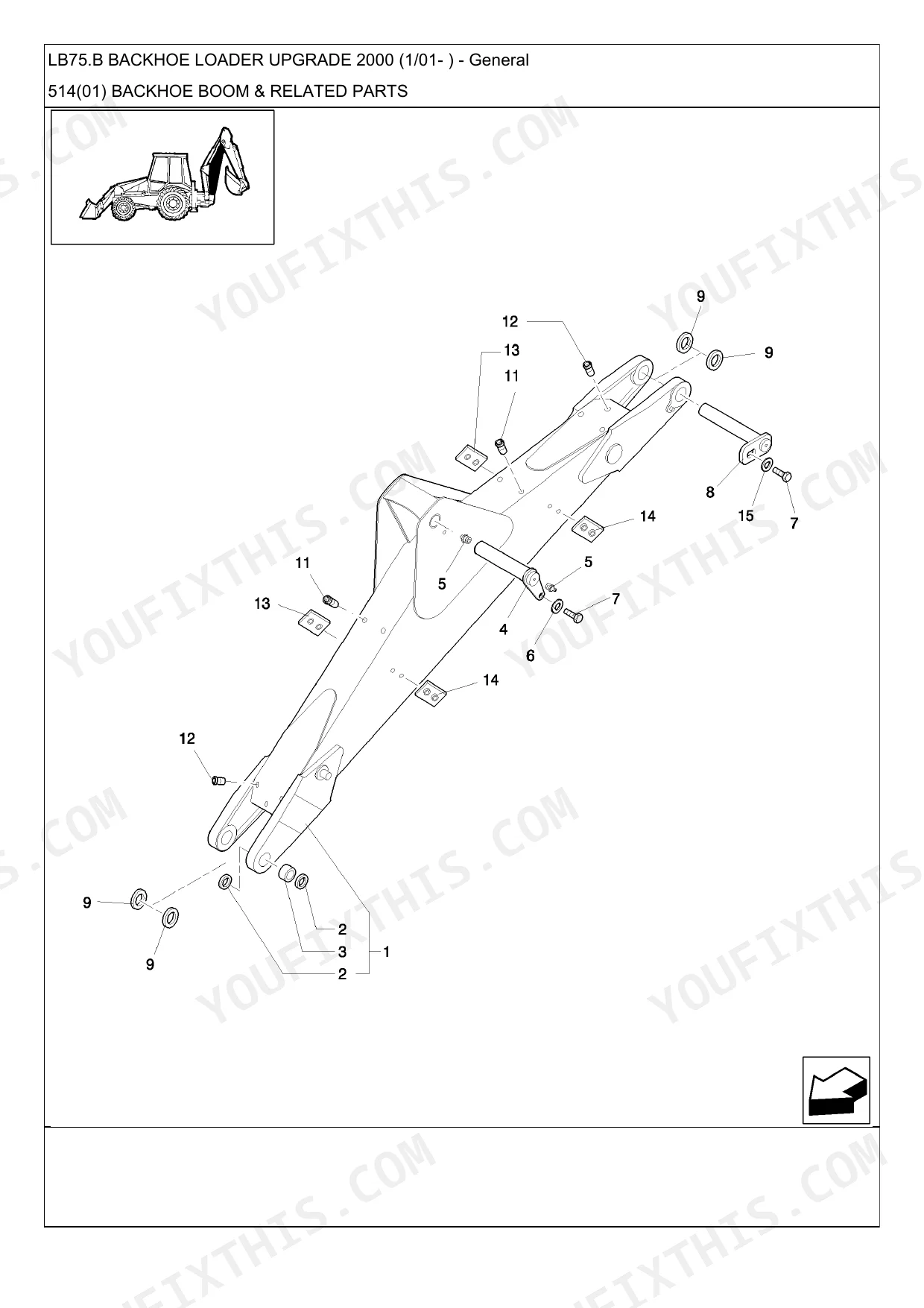

| Loader, Backhoe & Attachments | Backhoe 1/2, Backhoe 2/2, Loader 1/1, Tractor Chassis & Stabilizer Arms, Bucket, Swing Post Assembly, Swing Post Pins & Transport Lock Hook, Loader Control Lever | |

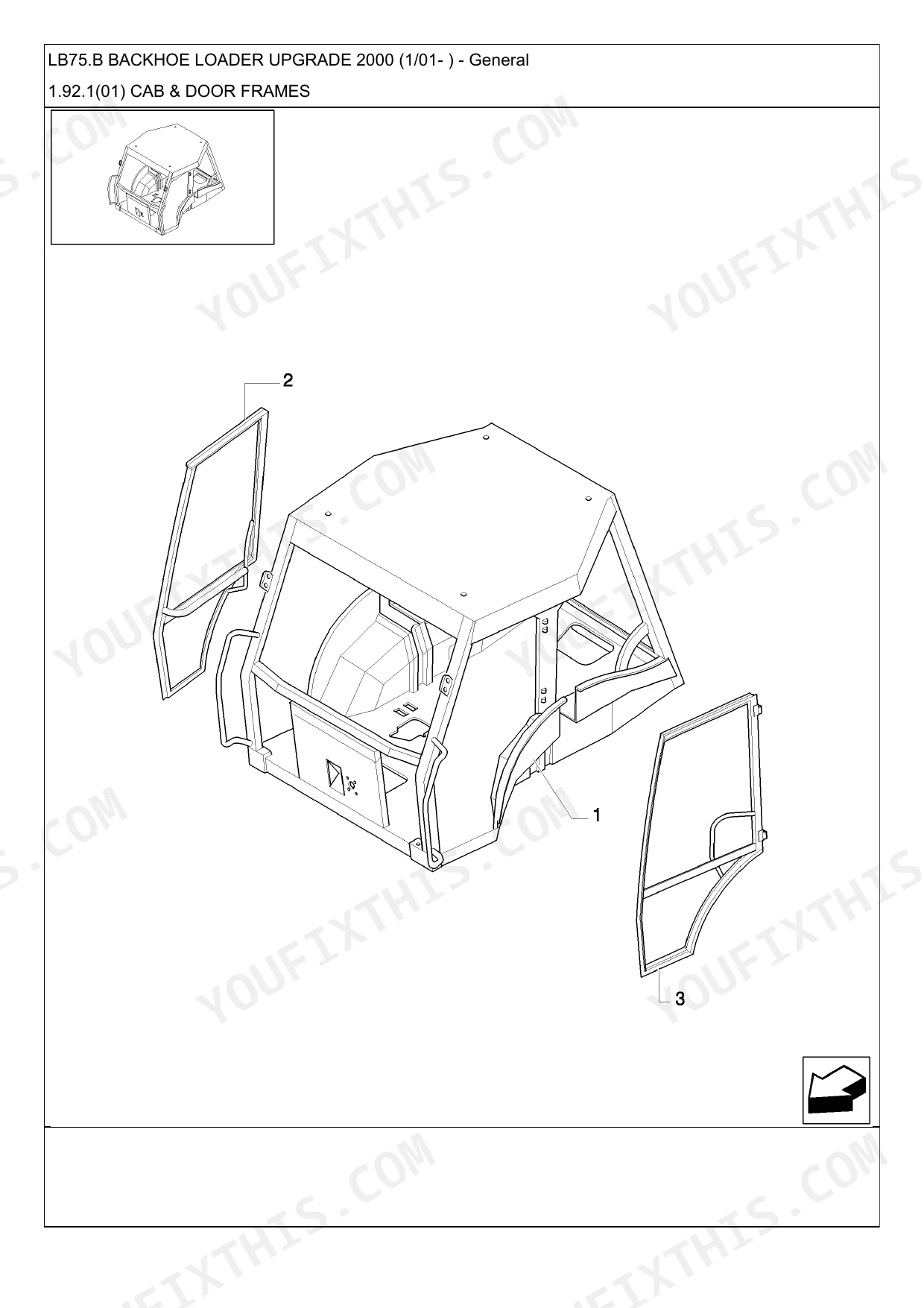

| Body & Operator Station | Body & Hood, Hood, Exterior Cab Trim, Cab Mounts, Transport Lock Cable, Radio Antenna & Speaker Cover | |
| Other Components | Main Sections, Maintenance Parts, Side Reduction, Electrical System, Body, Wheels, Return Manifold Hoses, Filter Assembly & Hose to Return Manifold, Back-Up Alarm, Windshield Wiper Motor and Arm |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Part Number | 87801285 | p. 62 |
| GEAR, Hydraulic Pump Drive | 1 | p. 60 |
| PUMP, ENGINE OIL | E9NN6600AB | p. 70 |
| KIT 85820173 IS COMPOSED BY | 2 GASKETS | p. 250 |
| Engine Breather O-Ring ID | 1.359" ID | p. 46 |
| Fuel Filter Micron Rating | 5 Micron | p. 62 |
| Oil Cooler Inlet Hose Length | 22" (560 mm) | p. 74 |
| A/C Refrigerant Charge | 1.65 lbs (10.750 Kg) | p. 440 |
| Camshaft Bearing ID | 60.22 mm (2.371") | p. 60 |
| LB75.B, LB90, LB95, LB110 | ||
| Tire Rim (Rear) | W14L X 24 | p. 44 |
| LB75.B, LB85, LB90, LB95, LB110 | ||
| Engine Oil Pan Plug Thread | M8 x 1.5 x 9 | p. 42 |
New Holland New Holland LB75.B-LB115 Common Problems This Manual Covers
Cannot find the correct replacement New Holland LB75.B engine breather parts after detecting heavy oil misting
Check the engine breather exploded parts view on page 46. Locate the sealing components and confirm the replacement O-ring inner diameter is exactly 1.359" ID. Order all required clamps and hoses shown in the accompanying diagram to ensure a tight seal.
Manual Section: Engine Breather p. 46Need the exact fuel filter part number to resolve engine knockout and poor starting
Review the electric lift pump and fuel filter assembly diagram on page 62. Identify part number 87801285 and verify it meets the required 5 Micron rating for proper system protection. Inspect surrounding fuel line fittings in the parts list for wear.
Manual Section: Electric Lift Pump & Fuel Filter Assembly p. 62Stripped out the lower oil pan drain plug and need the exact replacement size
Consult the oil pan parts diagram on page 42 to find the replacement drain plug. Verify the new plug thread measures exactly M8 x 1.5 x 9 before installation. Confirm this specification applies to your specific machine in the parts index.
Manual Section: Oil Pan p. 42Hydraulic fluid over temperature error code E004 showing up alongside leaking cooler lines
Inspect the oil cooler and hoses parts list on page 74 for exact replacement numbers. Measure your old inlet hose to confirm it matches the factory 22" (560 mm) length specification. Order replacement clamps and O-rings listed in the adjacent breakdown.
Manual Section: Oil Cooler & Hoses p. 74Frequently Asked Questions
What are the specifications for the engine assembly bolt (Ref 7) for New Holland LB75.B-LB95-LB110?
The engine assembly bolt (Ref 7) has a Hex head, is M12 x 1.25 x 80, and has a grade of 8.8. The part number for this bolt is 15541424. p. 38
What are the specifications for the oil pan bolt (Ref 5) for New Holland LB75.B, LB85, LB90, LB95, LB110?
The oil pan bolt (Ref 5) is a Cap Flg Hd. bolt, 3/8"-16 UNRC-2A x 3/4". The part number for this bolt is F2NN6N759AA. p. 42
What are the specifications for the cylinder head bolt (Ref 20)?
The cylinder head bolt (Ref 20) is a Cap, Flg Hd. bolt, 9/16"-12 x 3". The part number for this bolt is 87801692. p. 40
What is the micron rating for the fuel filter (Ref 10) in the electric lift pump and fuel filter assembly?
The fuel filter (Ref 10) in the electric lift pump and fuel filter assembly has a 5 micron rating. The part number for this filter is 87801285. p. 62
What are the dimensions for the front axle bushing (Ref 3) for 2WD front axles?
The front axle bushing (Ref 3) has dimensions of 125 x 115 x 5. The part number for this bushing is 9967992. p. 146
What format is this New Holland LB75.B & variants manual in?
Immediate download of the complete 915-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Am I able to print pages from this New Holland LB75.B & variants manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
