Part of the New Holland Parts Manuals.
This is the factory illustrated parts catalogue for the New Holland LB90, 1044 pages of it. Every assembly on the machine is drawn exploded, each part on the drawing carries a reference number, and the facing page lists that reference against its New Holland part number, the quantity fitted and the description. That is what you order from.The LB90 was built in many configurations, so most of the 19 main sections carry variant figures alongside the standard ones: cab and platform versions, 2WD and 4WD front ends, the transmission options, market-specific lighting and decals. The catalogue draws each variant separately and labels it with its variant code, so you match the drawing to the machine in front of you rather than guessing.It is a parts book, not a repair manual. There are no torque figures, no clearances and no wiring schematics in it. What it does, it does exactly: it tells you which part number fits your machine, and what else comes apart to reach it.
What's Inside This New Holland LB90 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Master Figure Index | 1-38 | Alphanumeric Figure Index, Figure Code Lookup, Section Map |
| Engine Block, Crankcase and Cylinders | 39-60 | Engine Assembly / Mounts & Gasket Kits, Engine Block / Plugs & Cylinder Sleeves, Oil Pan, Engine Covers & Gaskets / Front & Rear, Engine Breather, Cylinder Head & Valve Seats, Rocker Arm / Cover & Valves, Engine Lift Brackets / Intake & Exhaust Manifold, Crankshaft, Piston & Connecting Rod, Damper & Flywheel |
| Camshaft, Drive Gears and Fuel Delivery | 61-74 | Camshaft & Drive Gears, Electric Lift Pump & Fuel Filter Assembly, Fuel Injection Pump / Injectors / Fuel Lines & Filter, Fuel Injection Pump / Filter / & Water Separator Lines, Engine / Water Separator/Filter Assembly., Turbocharger Attaching Group & Oil Lines, Turbocharger |
| Engine Lubrication and Oil Cooling | 75-94 | Oil Pump, Engine Oil Filter, Oil Cooler & Hoses, Water Pump, Water Pump / Thermostat & Fan, Starter / Bosch, Starter / Iskra, Starter Attaching Group, Alternator, Alternator Mounting Brackets |
| Fuel Tank, Exhaust and Radiator | 95-106 | Fuel Tank & Related Parts, Muffler & Extensions, Radiator / & Expansion Tank, Radiator Guards & Supports, Radiator Hoses, Air Cleaner & Hoses |

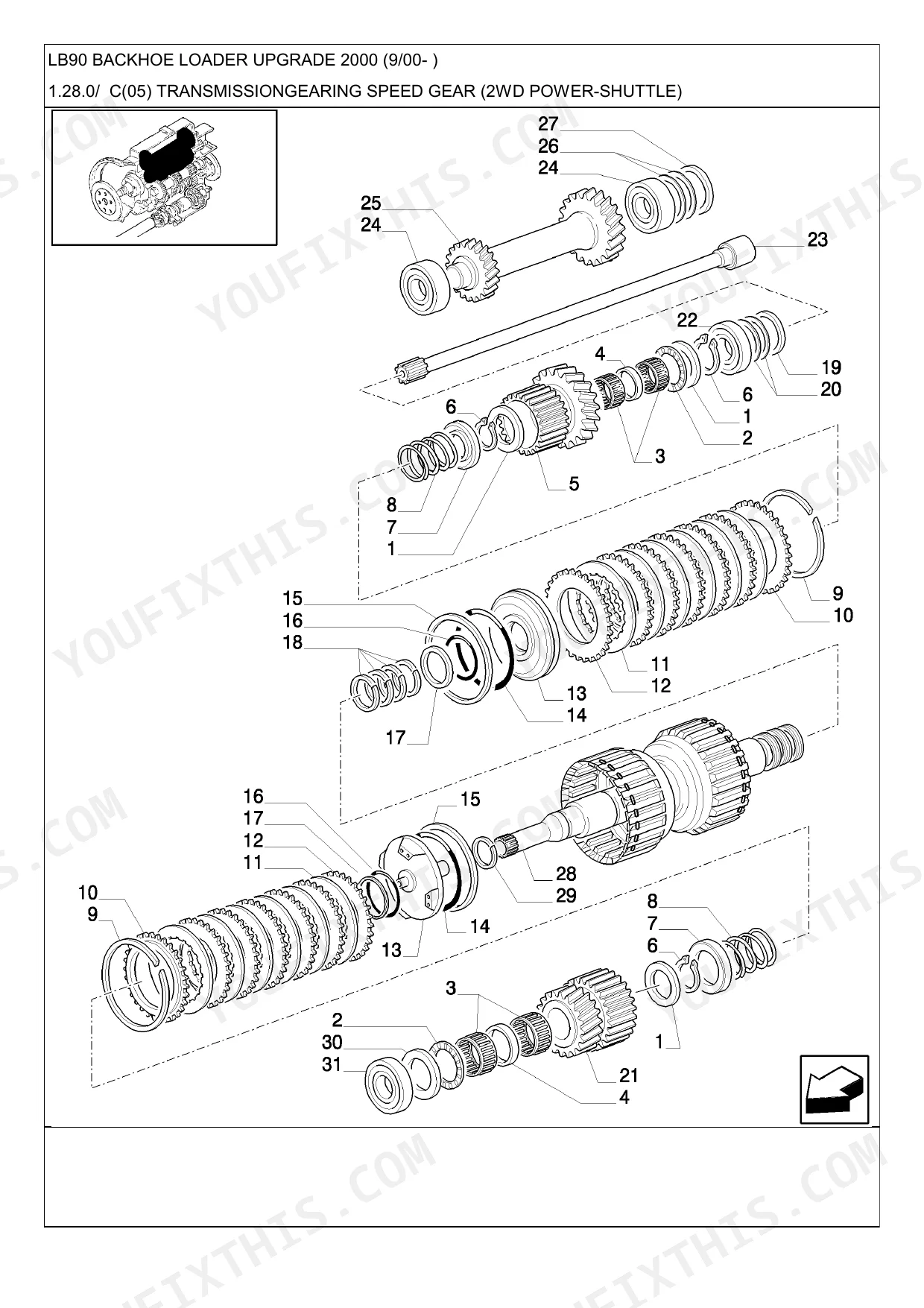

| Chassis, Stabilizers and Transmission | 107-178 | Tractor Chassis & Stabilizer Arms / Center Pivot, Transmission Assemblies & Mounts, Transmissiongearing Speed Gear (2WD Power-Shuttle), Transmissiongearing Speed Gear (4WD Power-Shuttle), Power-Shift / Torque Converter Housing / Oil Filter & Oil Baffle, Power-Shift / Torque Converter Housing Plugs, Power-Shift / Transmission Case Plugs & Attaching Parts, Power-Shift / Hydraulic Pump Drive Shaft & Input Shaft, Power-Shift / Torque Converter / Charge Pump & Drive Plates, Power-Shift / Foward Low High Shaft & Related Parts, Power-Shift / Foward Low High Shaft Gears, Power-Shift / 1St Reverse Shaft & Related Parts |
| Differential Lock and Power Shuttle | 179-188 | Hydraulic Differential Lock / Center Pivot, Power-Shuttle / Front & Rear Driveshaft, Power-Shift / Front & Rear Driveshaft, Power-Shuttle / Transmission Oil Cooling Hoses, Power-Shift / Transmission Oil Cooling Hoses |
| Front Axle and Steering | 189-214 | 2WD Front Axle Bushings & Supports, 2WD Front Axle Swivel Housing / Hub & Steering Cylinder, Power Steering Hydraulic Hoses & Valve, Rear Axle Assemblies, Rear Axle / Housing & Drive Shaft / Power-Shuttle, Rear Axle / Brakes & Carrier Assembly / Power-Shuttle, Rear Axle / Pinion Shaft & Differential Assembly / Power-Shuttle, Rear Axle / Differential Lock / Power-Shuttle, Rear Axle / Housing & Drive Shaft / Power-Shift, Rear Axle / Brakes & Carrier Assembly / Power-Shift, Rear Axle / Pinion Shaft & Differential Assembly / Power-Shift, Rear Axle / Differential Lock / Power-Shift |

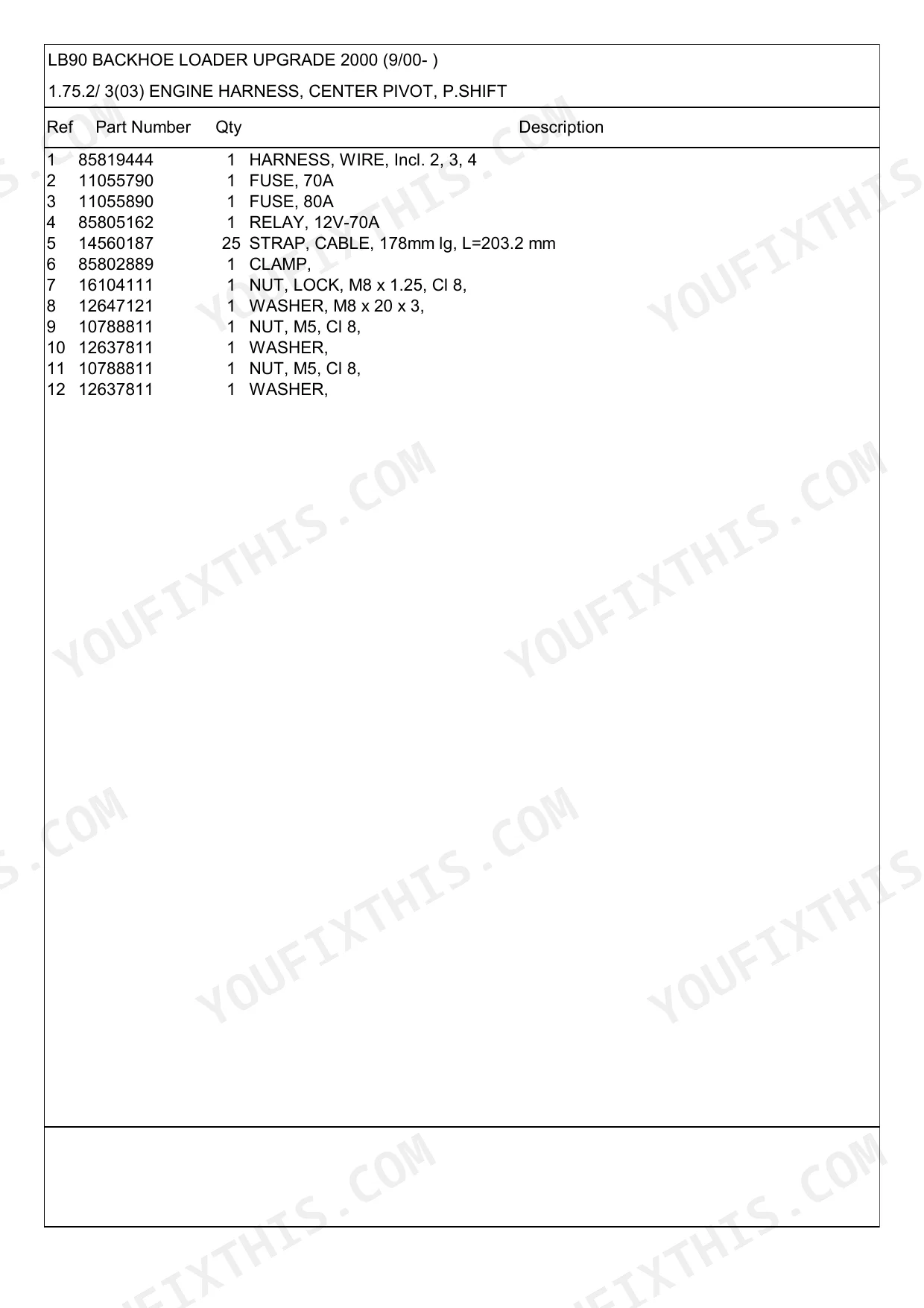

| Battery and Cables | 215-238 | Single Battery & Cables, Battery System, Dual Battery System, 4WD Switch, Chassis Harness & Ground Wire / Center Pivot / P.Shuttle, Battery Lock-Out Switch & Ground Wire / Center Pivot / P.Shuttle, Engine Harness / Center Pivot / P.Shuttle, Chassis Harness & Ground Wire / Center Pivot / P.Shift, Battery Lock-Out Switch & Ground Wire / Center Pivot / P.Shift, Engine Harness / Center Pivot / P.Shift, Battery Remote Connection, Engine - Block Heater |
| Hydraulic Reservoir and Pumps | 239-332 | Hydraulic Oil Reservoir, Hydraulic Pump, Front Hydraulic Pump Intake & Outlet Hoses / Center Pivot, Rear Hydraulic Pump Stabilizer / Loader & Backhoe Valve Hoses / Center Pivot, Quick Release Couplers & Hoses / Center Pivot, Return Manifold Hoses / Center Pivot, Oil Cooler & Filter Hoses / Center Pivot, Filter Assembly & Hose to Return Manifold / Center Pivot, Loader Lift & Bucket Cylinder Tubing / Center Pivot, Loader Lift Cylinder Hoses / Center Pivot, Loader Bucket Cylinder Hoses / Center Pivot, Backhoe Swing Cylinder Hoses / Center Pivot |

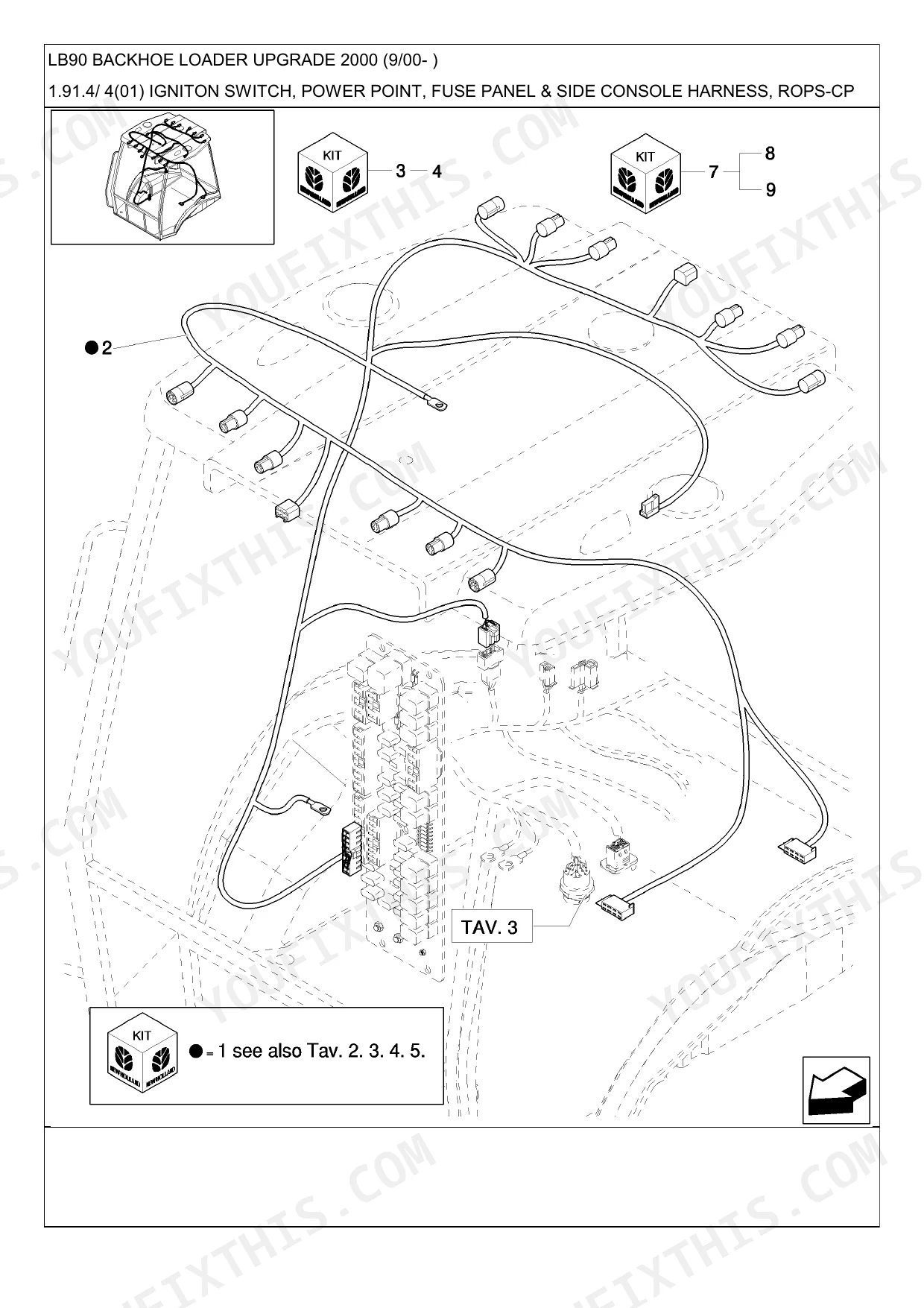

| Cab, ROPS and Controls | 333-538 | Interior Light / Cab, Ignition Switch & Adapting Harness / ROPS, Back-Up Alarm, Igniton Switch / Power Point / Fuse Panel & Side Console Harness / Cab-Cp, Igniton Switch / Power Point / Fuse Panel & Side Console Harness / Rops-Cp, Front Dash / Cab-Cp, Windshield Wiper Motor and Arm / Front & Rear, Windshield Wiper Reservoir & Nozzles, Radio Antenna & Speaker Cover, Lamps & Lights - Cab (Europe), Lamps & Lights - Cab (Usa), Lamps & Lights - ROPS (Usa) |
| Market Kits: Mirrors, Chocks and Spark Arrester | 539-546 | Wheel Chock & Rear-View Mirrors / Germany, Spark Arrester & Exhaust Pipe |
| Counterweights and 4WD Driveshaft | 547-552 | Additional Counterweights, Front Counterweight, 4WD Driveshaft Guard |
| Backhoe Control Valves | 553-640 | Backhoe Control Valve / 6 Sections / North America, Backhoe Control Valve / Inlet Section, Backhoe Control Valve / Boom Section, Backhoe Control Valve / Swing Section, Backhoe Control Valve / Bucket Section, Backhoe Control Valve / Crowd Section, Backhoe Control Valve / Stabilizer Section / North America, Lock Valve on Loader Tilting Cylinders, Lock Valve on Loader Lift Cylinders, Loader Control Valve / Three Section Kit / 4X1 & 6X1 Bucket / Center Pivot, Loader Control Valve / Third Section / 4X1 & 6X1 Bucket / Center Pivot, Loader Control Valve / Two Section / Loader / Bucket & Dump Valves / Center Pivot |
| Rear Axle Brakes and 4WD Front Axle | 641-706 | Rear Axle / Kit Brakes, 4WD Front Axle / 14.308 Ratio / Housing / Bushings & Supports (Center Pivot), 4WD Front Axle / 14.308 Ratio / Swivel Housing & Steering Cylinder (Center Pivot), 4WD Front Axle / 14.308 Ratio / Hubs (Center Pivot), 4WD Front Axle / 14.308 Ratio / Ring Gear & Pinion Assembly (Center Pivot), 4WD Front Axle / 14.308 Ratio / Differential (Center Pivot), 4WD Front Axle / 14.308 Ratio / Drive Shaft (Center Pivot), 4WD Front Axle / 13.7 Ratio / Assembly (Center Pivot), 4WD Front Axle / 12.8 Ratio / Housing / Bushings & Supports (Power-Shift), 4WD Front Axle / 12.8 Ratio / Swivel Housing & Steering Cylinder (Power-Shift), 4WD Front Axle / 12.8 Ratio / Hubs (Power-Shift), 4WD Front Axle / 12.8 Ratio / Ring Gear & Pinion Assembly (Power-Shift) |
| Backhoe Boom and Dipperstick | 707-806 | Backhoe Boom & Related Parts, Backhoe Dipperstick & Related Parts, Dipperstick Bucket Linkage, Boom Lift Cylinder Hoses, Crowd Cylinder Hydraulic Lines, Bucket Cylinder Hydraulic Lines, Boom Lift Cylinder Tubing, Bucket Cylinder Tubing, Three-Section Loader Control Valve Lever / Cable & Decals, 1Mc Loder Bucket Forks, 1Mc Loader Bucket Reversible Cutting Edge, Bolt-On Tooth Kit / 12" (305Mm) Backhoe Bucket |
| Cab Heating, Air Conditioning and Steering Lock | 807-854 | Internal Fan, 4WD Steering Lock, A/C Compressor, Alternator Attaching Group, A/C Compressor Attaching Group, A/C Poly "V" Belts, A/C Accumulator & Filter, A/C Housing & Filters, A/C Blower & Coils, A/C Dryer Filter Hoses, A/C Compressor Hoses, Heater Coil Hoses |
| Auxiliary Hydraulics: Hammer and 4x1 Bucket Lines | 855-940 | Manual Hammer Valve, 4X1 Bucket Hydraulic Lines / Center Pivot, 4X1 & 6X1 Bucket Hydraulic Lines / Center Pivot, 4X1 & 6X1 Bucket Control Lever / Cable & Decals / Center Pivot, 4X1 & 6X1 Bucket Control Valve Section / Center Pivot, Stabilizer Control Valve / 3 Sections / North America, Hed Stabilizer Control Valve Section Hoses / North America, Hed Cylinder Piston End Hydraulic Lines / North America, Hed Cylinder Rod End Hydraulic Lines / North America, Hed Foot Pedal / Cable & Decals / North America, Demolition Hammer Control Valve Hoses & Foot Pedal / Center Pivot, Demolition Hammer Boom Hydraulic Lines / Center Pivot |
| Fenders, Wheels and Tyres | 941-1020 | Fenders / Front, Front Wheels / 2WD, Front Wheels / 4WD / Center Pivot, Rear Wheels / Center Pivot, Rear Wheels / Side Shift, Cloth Seat & Attaching Hardware, Cloth Seat Cushions / Armrests & Related Parts, Cloth Seat Mounting Plate / Adjusting Rails & 2" Seat Belt, Cloth Seat Upper Suspension Parts, Cloth Seat Lower Suspension Parts, Cloth Seat / 3" Belt Option, Air Ride Cloth Seat & Attaching Hardware |
| Boom Lift and Crowd Cylinders | 1021-1044 | Backhoe Boom & Related Parts, Boom Lift & Crowd Cylinder Hydraulic Lines, Hed Dipperstick Bucket Cylinder Hydraulic Lines, Hed Dipperstick Bucket Linkage, Boom Lift & Bucket Cylinder Tubing, Hed Dipperstick Assembly, Telescopic Dipper Short - Hydraulic Systemm, Tools, Ether Cold Start Valve & Hoses, Ether Cold Start On/Off Switch & Valve Support |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| LB90 catalogue | ||
| Total pages | 1044 | |
| LB90 | ||
| Main sections | 19 (Engine Block, Crankcase and Cylinders through Boom Lift and Crowd Cylinders) | |
| Production coverage | 1998-2003 | |
| All figures | ||
| Part numbers | Yes, Ref / Part Number / Qty / Description table facing every figure | |
| Whole document | ||
| Searchable text | Yes | |
| Torque specs | None, this is a parts catalog and not a repair manual | |
New Holland LB90 Common Problems This Manual Covers
Hydraulic system inability to lift heavy loads with jerky movements
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The hydraulics section gives you the pump, the lifter housing and covers and the power take-off drive that turns the pump, each with part numbers. On a LB90 the parts most often replaced here are Cylinder seals, Transmission solenoids. The standard and high-flow machines take different pumps and valve bodies, so match the figure before ordering.
Manual Section: Hydraulic Reservoir and Pumps (pp. 239-332)Fault code 111 appearing on the display
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The engine section gives you the cylinder block, the sump, the head and the rotating parts, with the emissionized and standard engines drawn separately. On a LB90 the parts most often replaced here are Cylinder seals, Transmission solenoids. The emissionized engine is drawn apart from the standard one; the block looks the same and the parts are not.
Manual Section: Engine Block, Crankcase and Cylinders (pp. 39-60)Complete transmission slippage or sticking gears causing loss of drive
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The transmission section gives you the housing, the gears and each clutch pack drawn exploded, so a rebuild kit can be ordered against the box actually fitted. On a LB90 the parts most often replaced here are Cylinder seals, Transmission solenoids. Check the variant code on the figure first: the mechanical box and the semi power shift share a housing drawing but not their internals.
Manual Section: Chassis, Stabilizers and Transmission (pp. 107-178)Engine failure to start or run smoothly due to intermittent shutdowns
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The electrical section gives you the battery mounting, the harness runs, the fuse box and every connector body with its part number, which is what you order rather than splice. On a LB90 the parts most often replaced here are Cylinder seals, Transmission solenoids. Order against the figure that matches your machine's lighting and starting-aid variant, since those change the connector and the solenoid.
Manual Section: Battery and Cables (pp. 215-238)Frequently Asked Questions
Does this catalog include torque specs or wiring diagrams?
No. This is the factory parts catalog: exploded drawings and part numbers. It contains no wiring schematics and no torque figures; those live in the LB90 repair manual, which is a separate book. If you need to know which bolt to order, this is the right document. If you need to know how tight to do it up, it is not.
Can I search it by part number?
Yes. The PDF has a real text layer, so a part number typed into your reader's search box finds every figure that uses it. The master figure index at the front lists every figure by code and name, which is the faster route when you know the assembly but not the number.
Will it cover my serial number?
The book is the 1998-2003 edition of the LB90 catalog and it handles build differences with variant figures rather than serial breaks. Where two parts were fitted across the run, both figures are printed and each carries its variant code, so you match the drawing to your machine.
Why is a parts catalog 1044 pages?
Because the LB90 was sold in many configurations and the catalog draws each one. Alongside the standard figures you get the transmission options, 2WD and 4WD front ends, cab and platform variants, and market-specific lighting and decals.
How will I receive this New Holland LB90 Parts Catalog?
You get a 1044-page searchable PDF (46 MB) that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this New Holland LB90 manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
