![New Holland 575D Parts Manual [Tractor Loader Backhoe]](https://youfixthis.com/wp-content/uploads/2015/04/NH-Parts-illustrtion-300x300.png)
Part of the New Holland Parts Manuals.

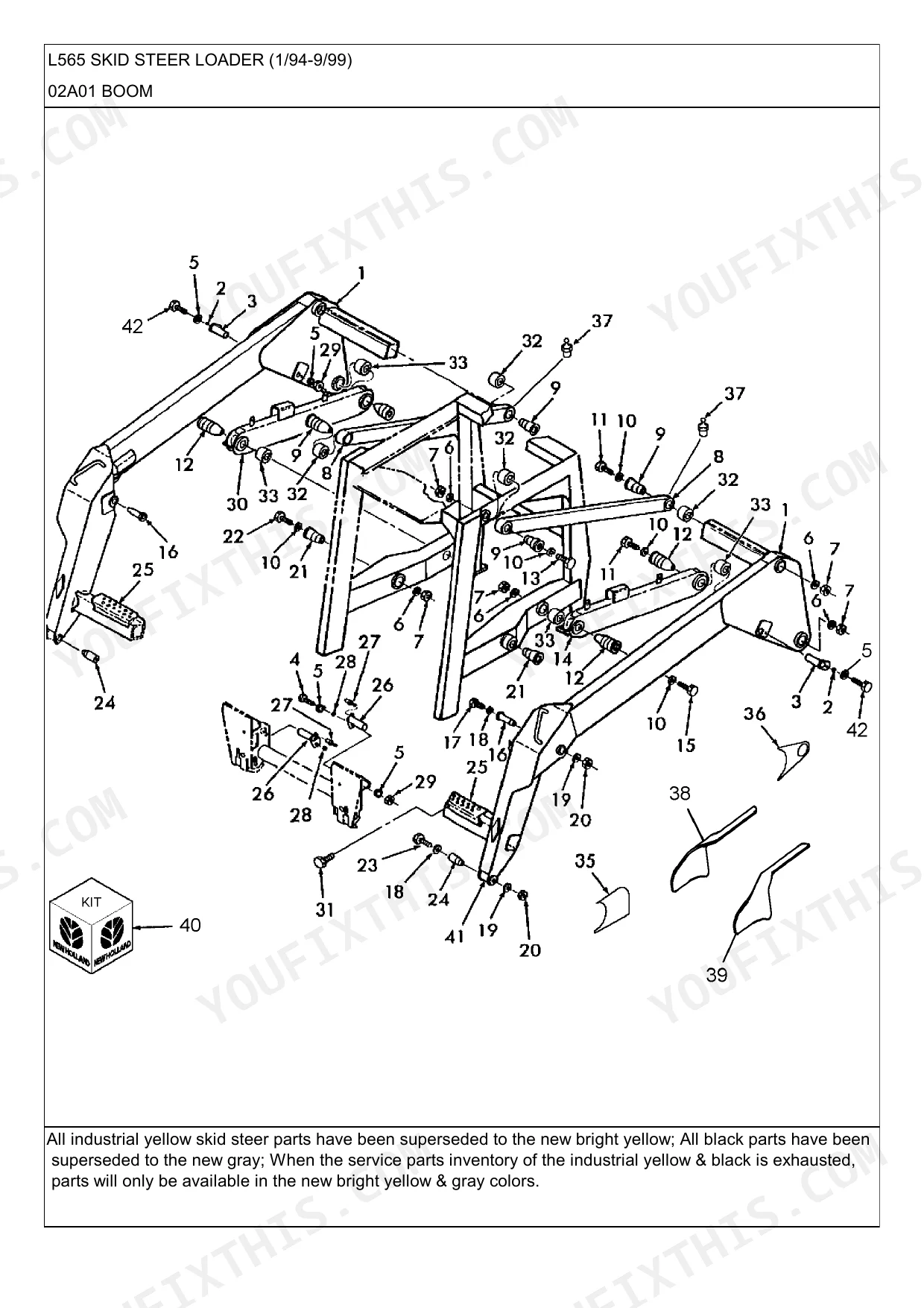

This 328-page New Holland L565 Parts Catalog (1994-1999) covers the L565, LX565, SL45B, LX665, and SL55B skid steer loaders in one bound reference, right down to every boom pin and gear pump housing. Open it and you get exploded views for the cab, boom, hydraulics, engine, chassis, drivetrain, and electrical systems, each diagram keyed to a numbered parts list so you're never guessing which washer goes where. Cross-reference the old-style versus new-style cab door kits, or match the correct gear pump (25000 or 26000 series) to your machine before you order. Specs are grounded in the real catalog: a 1/2"-13 grade-5 nut on page 3, an O-ring at .644" ID x .087" thick on page 57. No more ordering the wrong bracket and waiting a week for the return. Bookmarked by system and section, so you jump straight to boom cylinder parts or snowblower attachment components without paging through 328 sheets by hand.
What's Inside This New Holland New Holland L565, LX565, LX665 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine | Engine Assembly | |
| Electrical System | Starter | |
| Hydraulics & 3-Point Hitch | High Flow Hydraulic Kit, Gear Pump Assembly Components, Boom & Bucket Hydraulics | |
| Body & Operator Station | Cab | |
| Decals & Accessories | Decal | |
| Other Components | Snowblower |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Nut, G5 | 1/2"-13 | p. 3 |
| Screw, Cap, HH, G5 | 1/2"-13 x 1-1/2" | p. 2 |
| O-Ring, 8-1, 90 Duro, .644" ID x .087" Thk | .644" ID x .087" Thk | p. 57 |
| O-RING, 12-1, 90 Duro, .924 ID x .116" Thk | .924 ID x .116" Thk | p. 59 |
| BOLT, Hex, M10 x 30, 8.8, Full Thd | M10 x 30, 8.8 | p. 244 |
| Washer dimensions | 17/32" ID x 2" OD x 3/16" | p. 3 |
| Retractable Seat Belt Width | 3" | p. 17 |
| Heater Core dimensions | 16" x 6-1/4" | p. 44 |
| Upper Boom Cylinder Pin Length | 4-1/2" Lg. | p. 50 |
| Protective Sleeve Length | 82" Long | p. 57 |
| Main System Relief Valve Pressure | 2500 PSI | p. 111 |
New Holland New Holland L565, LX565, LX665 Common Problems This Manual Covers
New Holland L565 bucket tilt cylinder leaking, need correct O-ring size for rebuild

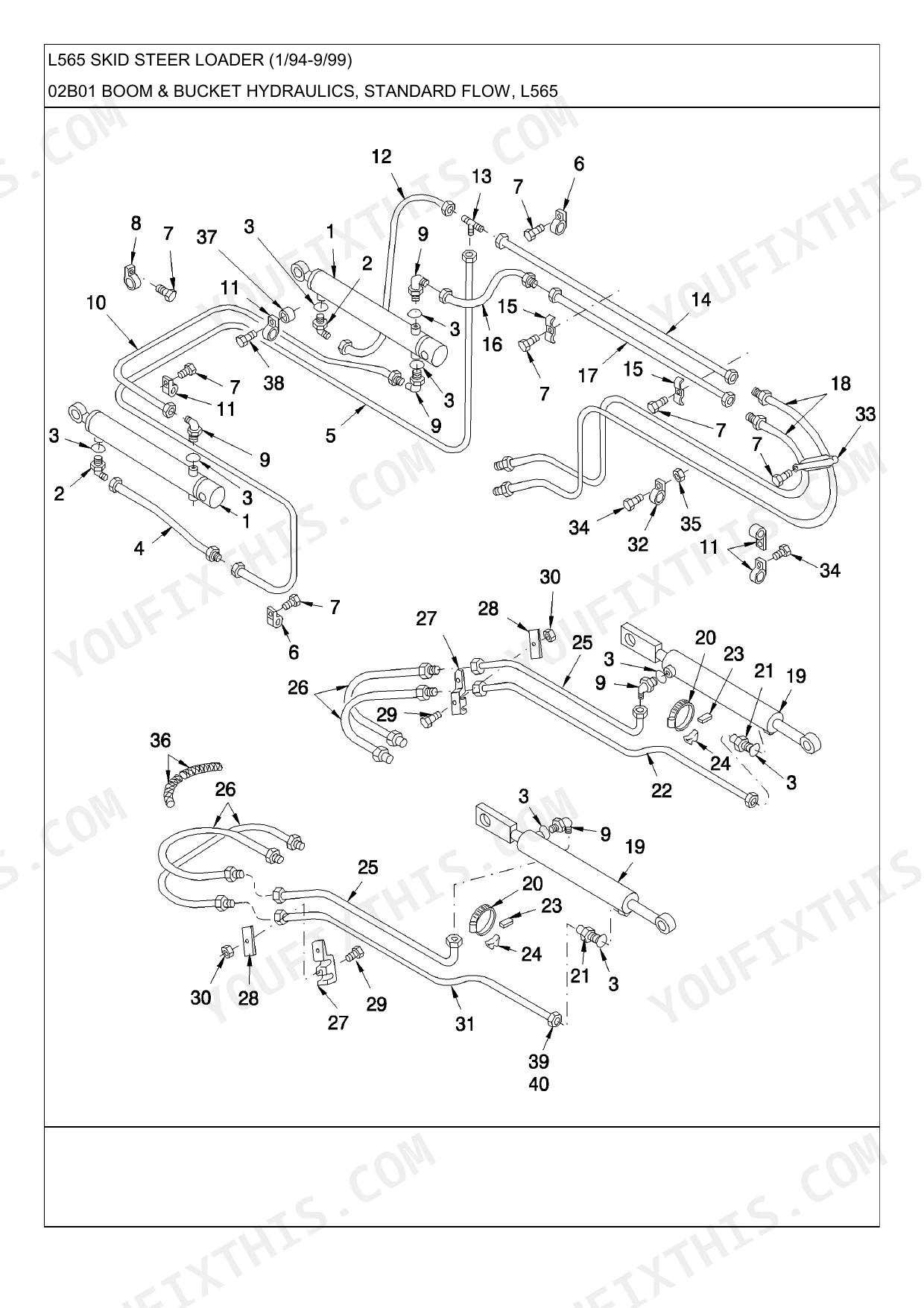

Check the hydraulic parts diagram in section 25 on page 56 and cross-reference the bucket cylinder repair kit listing on page 73. The seal kit lists an O-Ring 90 Duro at .862" ID x .103" Thk. Verify the part number against the exploded view before ordering.
Manual Section: 25: Hydraulic Parts Diagram p. 56Can't identify the right pipe thread fitting size for a hydraulic line replacement
Pull up the parts number list on page 3. Fittings in this range use 1/2"-13 hardware; the SAE washer and hardened washer listed there are both 1/2". Match the fitting thread callout on the exploded view to the parts list before cutting a new line.
Manual Section: 01: Parts Number List p. 3Need the starter motor part number and mounting hardware for a no-crank replacement
Reference the starter assembly diagram in section 22 starting on page 49. Mounting hardware in this section calls for a Bolt, HH, CL 8.8, M10 x 1.5 x 35 with a matching Nut, Flg, CL 8, M10 x 1.5. Confirm the exact starter part number against the exploded view callouts, not the section text.
Manual Section: 22: Starter Assembly Components p. 49Locating the correct gear pump seal kit part number for a worn hydraulic pump
Check the gear pump assembly diagrams in section 50 on page 110 and the seal kit reference on pages 102 through 104. The kit includes an O-Ring at 2.989" ID x .070" Thk. Cross-reference the pump casting number stamped on your unit against the parts list to confirm fitment.
Manual Section: 50: Gear Pump Assembly Components p. 110Unsure which main wire harness part fits an older machine by serial number
Go to the electrical parts section on page 150 and check the old-style main wire harness note on page 151. L565 units in the 850751-999999 or 0001-31152 serial range use the old-style harness listed there. Match your dataplate serial number to the range before ordering to avoid the wrong harness.
Manual Section: 69: Electrical Parts p. 150Chassis or roller chain parts unclear, need pitch count for drivetrain rebuild

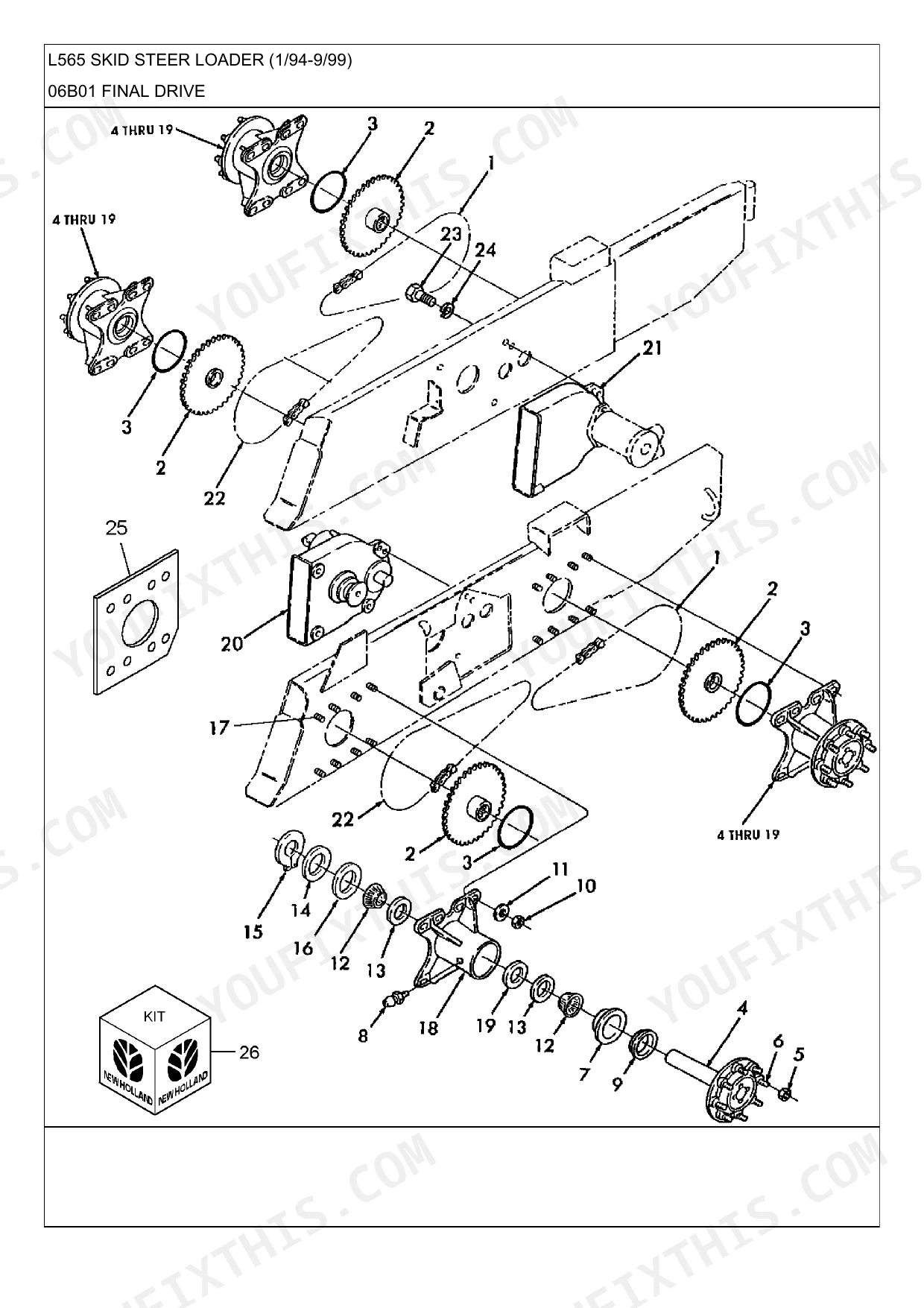

Open the drivetrain parts diagram in section 120 on page 257 and the chassis repair kit listing near page 258. The roller chain in this kit lists 66 pitches. Count links on the removed chain against this figure before ordering the replacement to confirm you have the right kit.
Manual Section: 120: Drivetrain Parts Diagram p. 257Frequently Asked Questions
What are the replacement specifications for Hydraulic O-rings and seals?
The manual lists various O-rings and seals with specific dimensions. For example, an O-Ring (part number 128825) for boom and bucket hydraulics is specified as 8-1, 90 Duro, .644" ID x .087" Thk. Another O-Ring (part number 167266) is 12-1, 90 Duro, .924 ID x .116" Thk. p. 57
What are the replacement specifications for Starter motor and solenoid?
The manual provides part numbers for the starter motor assembly and solenoid. For example, the "Motor Assy., Starting" for engines before serial number 57421 is part number SBA185086520, and the corresponding "Solenoid" is part number SBA185816320. Detailed electrical specifications are not provided. p. 246
What are the pressure settings for the main system and boom circuit relief valves?
The manual specifies pressure settings for hydraulic relief valves. The main system relief valve (part number 86507522) is set at 2500 PSI. For the boom circuit, a relief valve (part number 86529091) is rated at 3500 PSI. p. 111
What are the amperage ratings for various fuses in the electrical system?
The manual lists several fuses with different amperage ratings. Examples include a 5 Amp fuse (part number 9623775), a 7.5 Amp fuse (part number 9623776), a 15 Amp fuse (part number 9623774), and a 25 Amp fuse (part number 83932926). p. 151
What are the part numbers for the positive and negative battery cables?
The positive battery cable is identified by part number 9828791, and the negative battery cable is part number 9828790. These are listed within the chassis harness, battery cables & switches section. p. 164
How will I receive this New Holland L565 & variants Parts Catalog?
Instant PDF download. You get the full 328-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this New Holland L565 & variants Parts Catalog printable?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
