Part of the New Holland Parts Manuals.
This 640-page New Holland LS170, LS160, SL55 parts catalog PDF covers every assembly on your skid steer loader, from the engine mounts to the deluxe cab door. You get exploded views with factory part numbers for the complete driveline: cylinder head, crankshaft and piston kits, hydrostatic pumps and motors, gear pumps with seal kits, axle chains and sprockets. Cab structure, main harnesses with fuse and relay callouts, bucket hydraulics, even the dirt tooth kits and pallet forks are broken out piece by piece. Ordering a head gasket for an LS170? The catalog splits it by serial number: 1.3 mm before S/N 108981, 1.2 mm after S/N 108982. One wrong part number kills a week waiting on returns. This is the factory parts catalog — exploded views, part numbers and quantities; it is not a service manual, so you will not find repair procedures or torque values here. Bookmarked and text-searchable; type the component name, land on the exploded view, order once.
What's Inside This New Holland LS170, SL55, LS160 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine | 3-45 | Cylinder Block, High Idle Adjustment, Block Heater Kit, Cylinder Head, Valve Cover & Crankshaft Pulley, Rocker Arms, Camshaft, Crankshaft & Pistons, Intake Manifold, Exhaust Manifold, Timing Gear Case |
| Air Intake, Cooling & Charging | 46-73 | Flywheel, Starter, Alternator Mounting, Alternator, Air Cleaner, Air Cleaner Inlet, Mufflers, Radiator, Fuel Tank (If Used |
| Hydrostatic Drive & Gearbox | 74-139 | Final Drive, Gearbox, Transmission Centering, Mounting, Hydrostatic Pump & Motor, Hydrostatic Case Drain, Hydrostatics, Hand Control, Piston Pump, Hydrostatic Motor, Brakes (If Used), Brake |
| Electrical System | 140-233 | Main Electric, Electric Power Kit, Cab Electric, Cab Electrical, Electric Cab, Horn, 4-Way Flashers, Beacon Kit, Beacon Kit & Miscellaneous Parts, Rear Light Bar, Front Headlamp, Boom |
| Hydraulics | 234-366 | Bucket Hydraulics, Boom Hydraulics, Connect Under Pressure Couplers, Bucket Cylinder, Boom Cylinder, Hydraulic Gear Pump, Hydraulic Gear Pump (LS170), Control Valve Hydraulics, Control Valve, Selector Valve, Hydraulic Reservoir & Filter |
| Hood, Body & Decals | 367-428 | Rear Hood, Fenders, Slow Moving Vehicle Emblem Kit, Decals, Acoustical Equipment |
| Boom & Mounting Plate | 429-439 | Boom, Boom Lock, Mounting Plate |

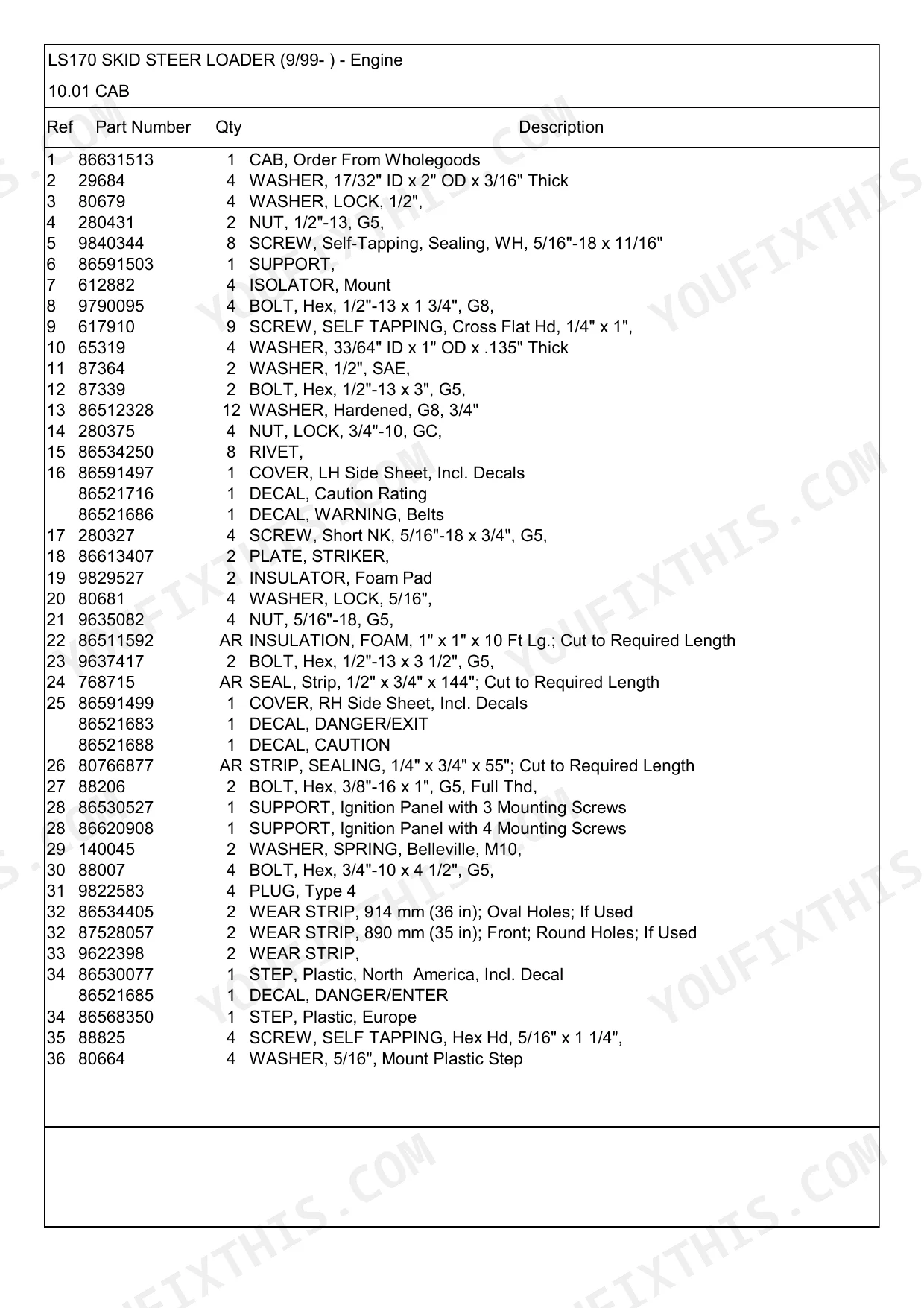

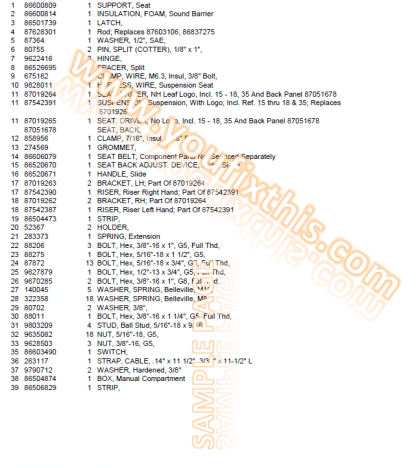

| Cab & Operator Station | 440-603 | Cab, Fire Extinguisher, Manual Compartment Lock & Fire Extinguisher, Headliner, Cab Headliner, Cab Enclosure Kit, Cab Door, Cab Door Kit, Door, Demolition Door Kit, Throttle |
| Wheels & Tires | 604-608 | - |
| Chassis & Counterweight | 609-616 | Chassis, Counterweight Kit, Counterweight |
| Service Tools & Cab Jack | 617-620 | Cab Jack Kit, Tools |
| Attachments | 621-634 | Buckets & Dirt Tooth Kit, Utility Fork & Universal Mounting Plate, Tooth Bars, Pallet Fork & 2 Piece Mounting Assembly, Pallet Fork & 1 Piece Mounting Assembly |
| Recommended Parts Stock Lists | 635-640 | Initial Parts Stock List, Fast-Moving Parts Reference |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Pressure relief valve setting | 2950-3000 psi | p. 317 |
| Cylinder Head Gasket Thickness (Before S/N 108981) | 1.3mm | p. 17 |
| Cylinder Head Gasket Thickness (After S/N 108982) | 1.2mm | p. 17 |
| Counterweight | 26 kg | p. 614 |
New Holland LS170, SL55, LS160 Common Problems This Manual Covers
New Holland LS170 cylinder head gasket comes in two thicknesses, not sure which one fits my serial number

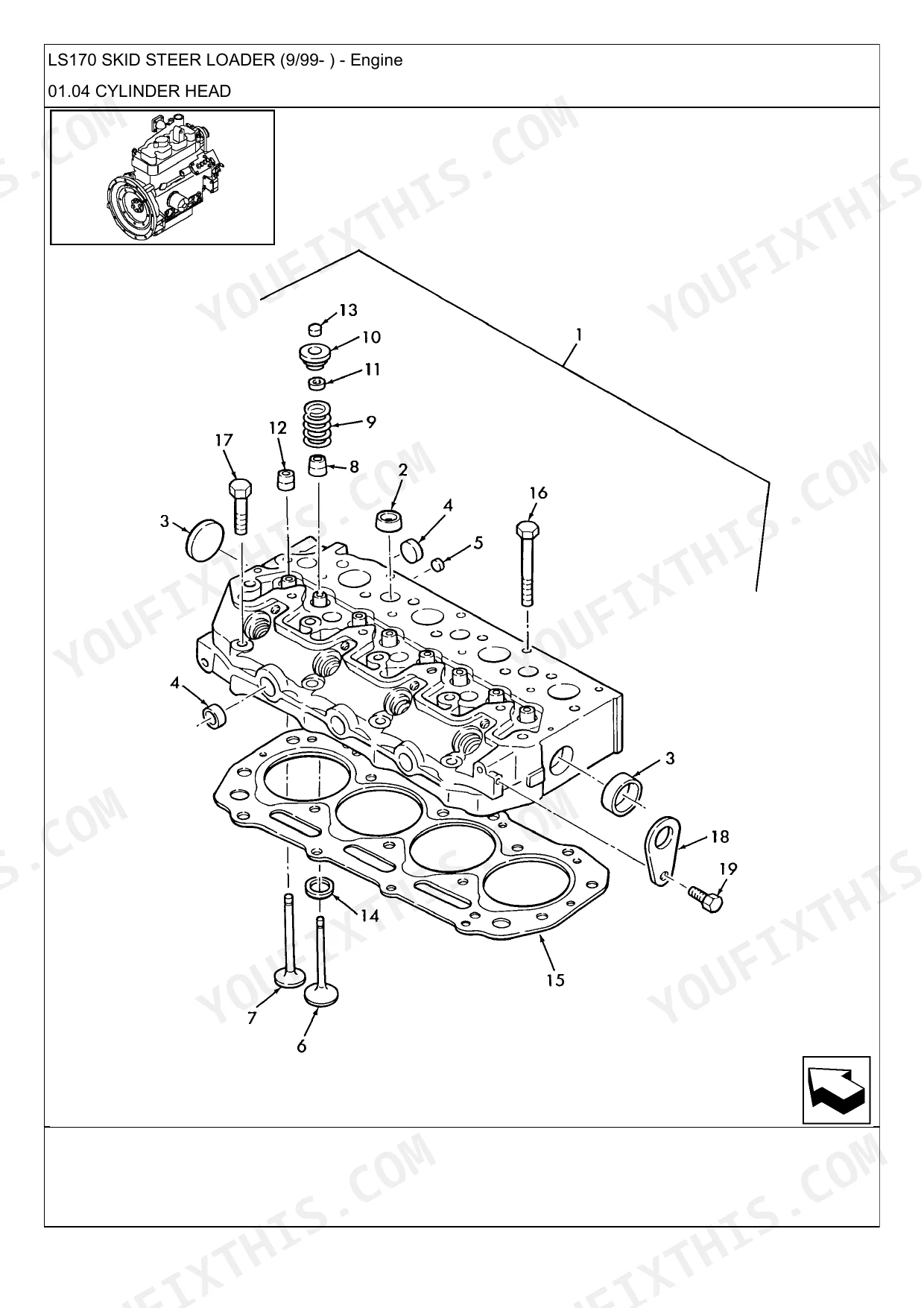

Check the cylinder head exploded view on pages 16-17 and pull your serial number off the frame plate first. Machines before S/N 108981 take the 1.3mm head gasket; S/N 108982 and later take the 1.2mm gasket, both listed on page 17. Order by serial range, not by what came off the engine.
Manual Section: Cylinder Head p. 17High flow gear pump failed, parts listing shows two different pumps and can't tell which model takes which
Verify your model before ordering anything. Check pages 262-263: the LS160 high flow gear pump appears in Fig. 07.03.02 and the LS170 pump in Fig. 07.03.01, and they carry separate part numbers. Match the 37 degree tee fittings with 9/16"-18 threads from the same parts list so the plumbing goes back together clean.
Manual Section: Pump, High Flow Gear Pump p. 262Hydrostatic drive hoses weeping at the elbows, need part numbers for hoses, fittings, and O-rings

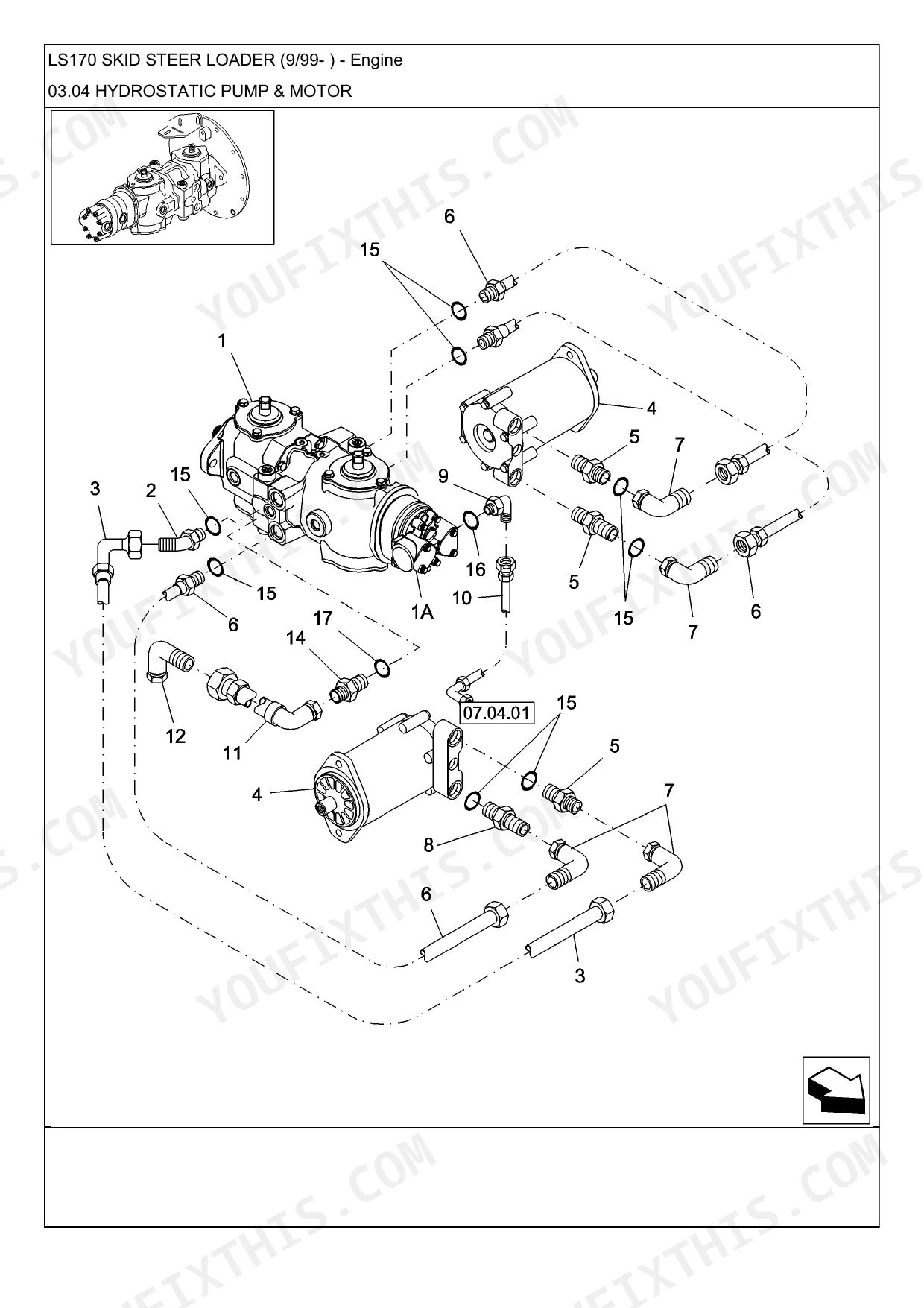

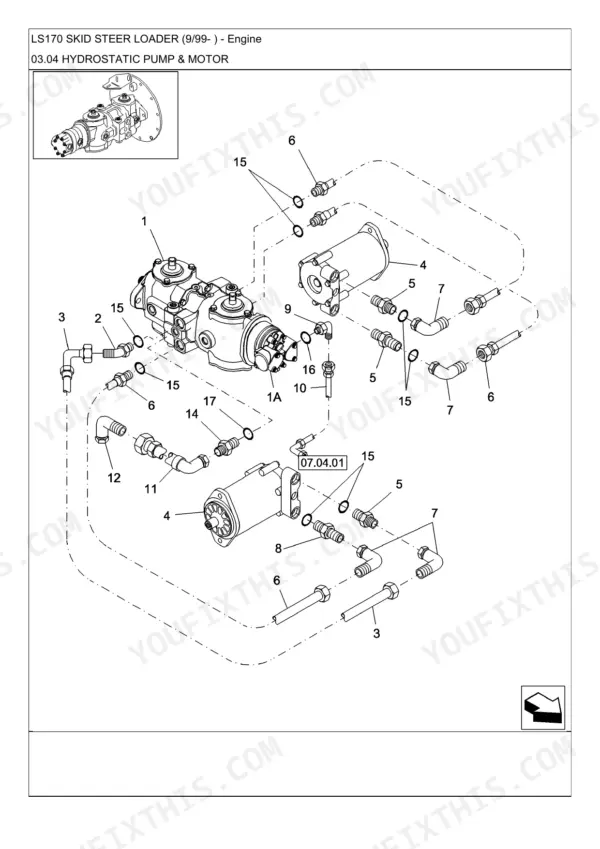

Inspect the hydraulic parts diagram on page 82; the hydrostatic pump and motor hoses, elbows, connectors, and O-rings are itemized there through page 85. Replace every O-ring on any fitting you crack open, and order hose assemblies rated above the 2950-3000 psi relief valve setting shown on page 317.
Manual Section: Hydrostatic Pump & Motor p. 82Tandem gear pump O-rings mixed up on the bench during teardown, can't match sizes for reorder
Measure what you pulled before guessing at part numbers. Check the tandem gear pump plumbing list on page 181; it calls out the 8-1 O-ring at 90 durometer.644 inch ID by .087 inch thick, plus the adjustable run tee. Order fresh O-rings with the pump instead of reusing hardened ones.
Manual Section: Pump, Tandem Gear p. 181Rear counterweight kit missing off a used machine, no idea what pieces or hardware to order
Check the chassis and counterweight kit listing on pages 24-26; the weights and their mounting hardware are cataloged there as a complete kit. Each counterweight weighs 26 kg per the spec on page 614. Count the empty mounting points on the rear frame before ordering so the whole stack arrives in one shipment.
Manual Section: Chassis, Counterweight Kit p. 24Frequently Asked Questions
What is the replacement part number for the engine oil filter on the LS170?
The replacement engine oil filter for the LS170 is part number 87415600, which replaces the previous part number 86546618. p. 8
What are the service intervals for the maintenance kits on the LS170?
The service maintenance kits are available for 250, 500, 1000, and 2000 hours of operation. p. 2
What is the part number for the engine oil pressure sender unit?
The engine oil pressure sender unit is part number SBA185246060. p. 21
What is the part number for the engine coolant temperature sender?
The water temperature sender unit is part number 9712608. p. 225
What exactly do I receive with this New Holland LS170 Parts Catalog?
This is a 640-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this New Holland LS170 Parts Catalog?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
