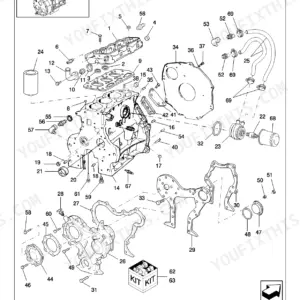

Hunting part numbers for a New Holland skid steer? This 649-page New Holland LS160 parts catalog PDF also covers the LS160E, SL45, and LS170, with factory part numbers for every assembly on the machine. You get exploded views of the hydrostatic pumps, drive motors, pilot controls, boom cylinders, and cab hardware, each paired with its parts list so you can match a diagram callout to an exact number. Page after page of engine components too: cylinder heads, injection pumps, crankshafts, water pumps, glow plugs. Real factory data sits in these tables; the catalog distinguishes the 1.3 mm cylinder head gasket before engine S/N 109132 from the 1.2 mm gasket after, and identifies the 3,250 PSI high-flow relief valve. No more squinting at rusted casting numbers with a flashlight. Text-searchable; type the component name, jump to the exploded view, and order the right part the first time.
What's Inside This New Holland LS160, LS160E, SL45, LS170 Parts Manual

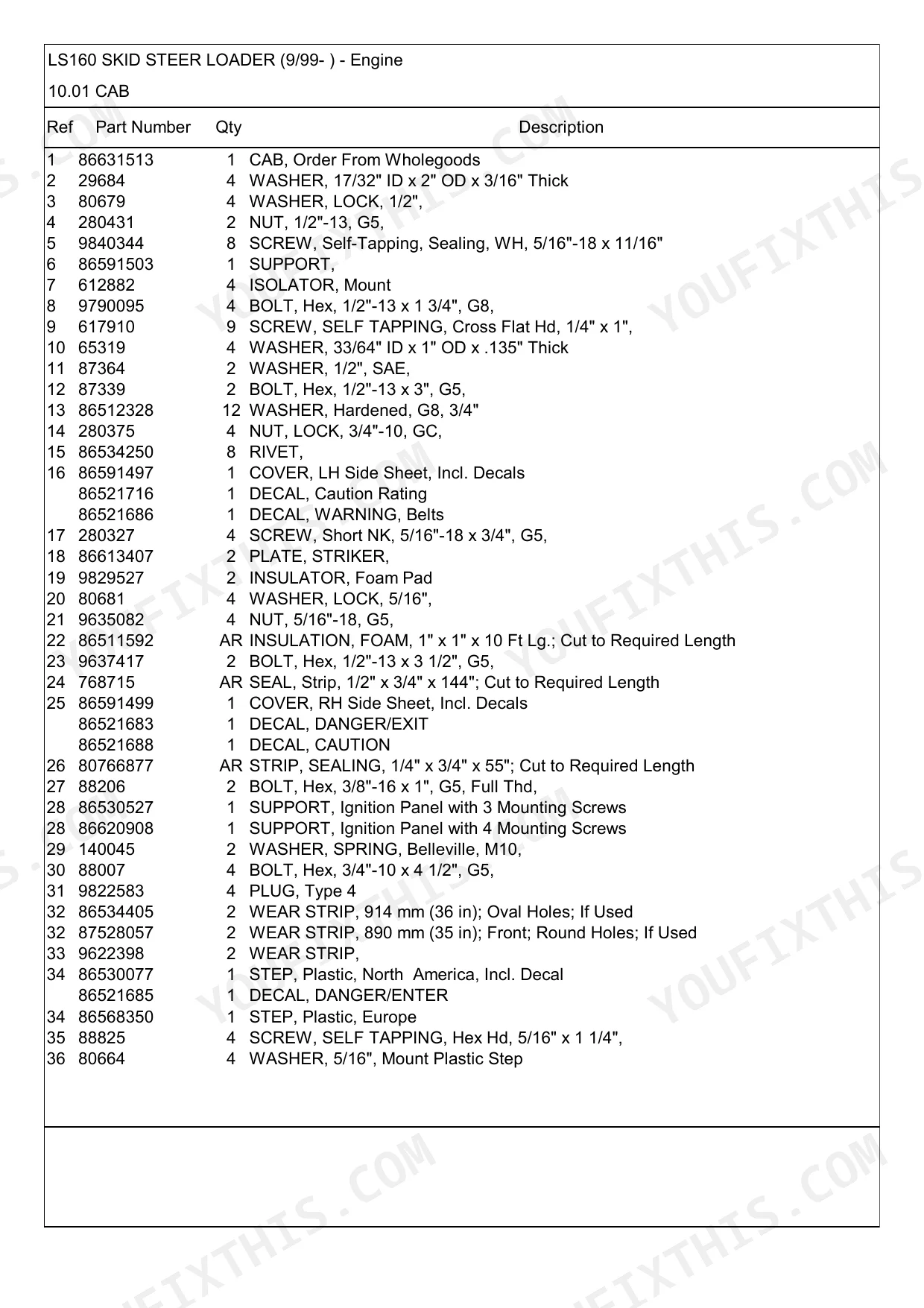

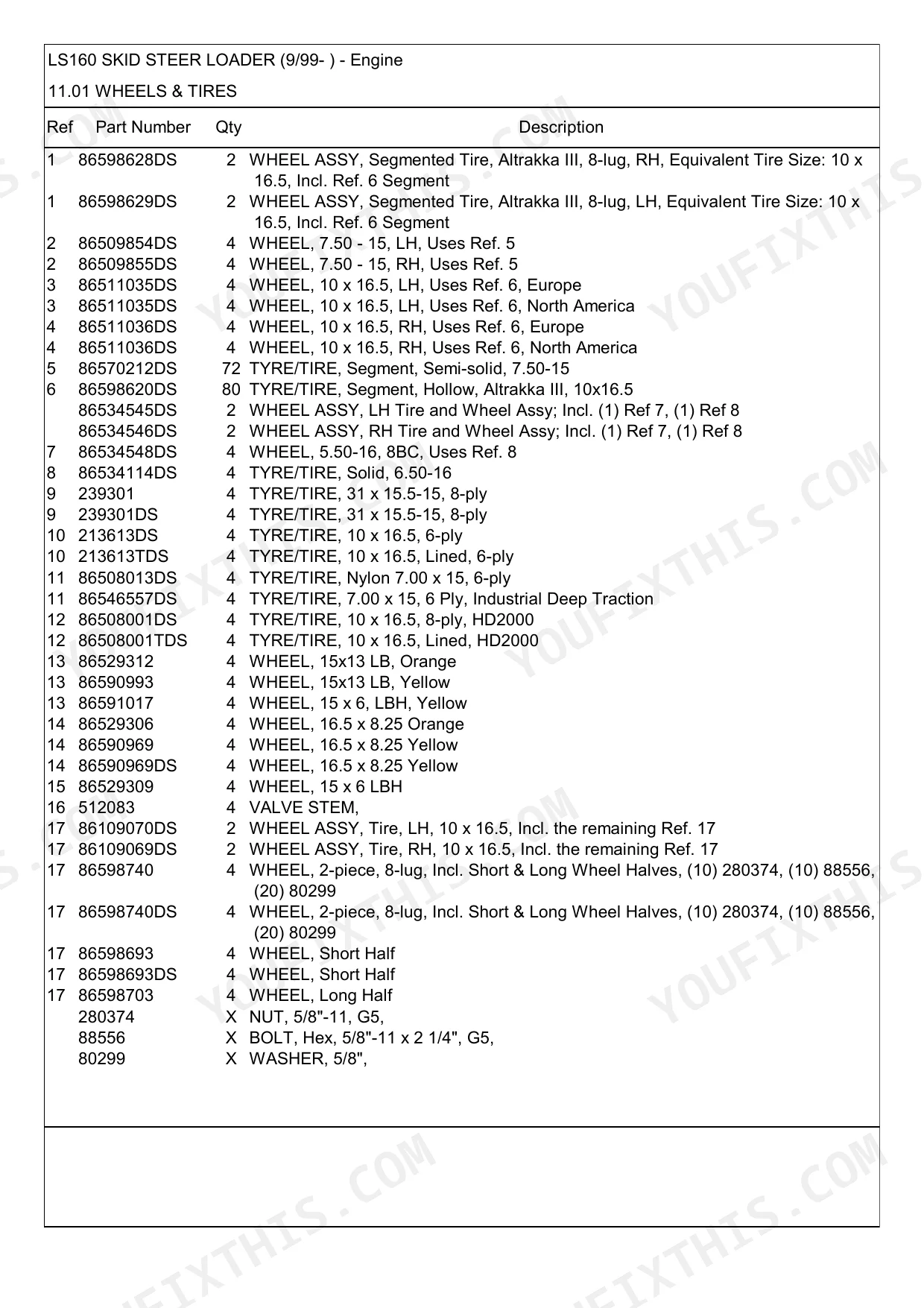

| System | Pages | Key Topics |
|---|---|---|
| Engine | 3-44 | Cylinder Block, High Idle Adjustment, Block Heater Kit, Cylinder Head, Valve Cover & Crankshaft Pulley, Rocker Arms, Camshaft, Crankshaft & Pistons, Intake Manifold, Exhaust Manifold, Timing Gear Case, Oil Pan, Oil Pump & Suction Filter, Fuel Injection System |
| Starting, Charging, Air Intake & Cooling | 46-72 | Flywheel, Starter, Alternator Mounting, Air Cleaner, Mufflers, Radiator, Fuel Tank |
| Drivetrain & Hydrostatic Drive | 74-142 | Final Drive, Gearbox, Transmission Centering, Mounting, Hydrostatic Pump & Motor, Hydrostatic Case Drain, Hand Control, Piston Pump, Hydrostatic Motor, Brakes, Rexroth Pump AA20, Pressure Relief Valve, Internal Gear Pump, Rotary Group |
| Electrical System & Lighting | 144-236 | Main Electric, Optional Advanced Instrument Cluster, Diagnostic Plug, Electric Power Kit, Cab Electric, Horn & Turn Signal, 4-Way Flashers, Beacon Kit, Rear Light Bar, Front Headlamp, Rear Light Assembly |
| Hydraulic System | 238-369 | Bucket Hydraulics, Auxiliary Hydraulics, Boom Hydraulics, Connect Under Pressure Couplers, Bucket Cylinder, Boom Cylinder, Hydraulic Gear Pump, Hand Control, Control Valve Hydraulics, High Flow Hydraulics, Selector Valve, Hydraulic Reservoir & Filter, Oil Cooler, High Flow Kit |
| Hood, Fenders & Decals | 371-433 | Rear Hood, Fenders, Slow Moving Vehicle Emblem Kit, Decals, Acoustical Equipment |
| Boom & Quick-Attach Mounting Plate | 435-444 | Boom, Boom (On-Road, Europe), Boom Lock, Mounting Plate, Boom Pins & Bushings, Handle & Grip, Dust Caps, Grommets |
| Cab & Operator Station | 446-613 | Cab, Fire Extinguisher, Manual Compartment Lock & Fire Extinguisher, Headliner, Door, Demolition Door Kit, Throttle, Forearm Rest Kit, Armrest, Seat, Seatbelts, Arm Pad & Armrest Kit, Boom & Bucket Foot Control, Boom & Bucket Hand Control |
| Wheels, Tires & Chassis | 615-624 | Wheels & Tires, Wheel Assembly, Tire Liner, Wheel Nuts & Bolts, Chassis, Counterweight Kit, Counterweight |
| Service Tools & Attachments | 626-641 | Cab Jack Kit, Threaded Insert Tools, Buckets & Dirt Tooth Kit, Utility Fork & Universal Mounting Plate, Tooth Bars, Pallet Fork (2-Piece Mounting), Pallet Fork (1-Piece Mounting), Attachments (Europe) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder Head Gasket Thickness (before engine S/N 109132) | 1.3 mm | p. 12 |
| Cylinder Head Gasket Thickness (after engine S/N 109133) | 1.2 mm | p. 12 |
| Thermostat Opening Temperature (after engine S/N 109133) | 71 C | p. 45 |
| Main Relief Valve Pressure (prior control valves 86584587 / 86578866) | 2,475 PSI | p. 300 |
| Main Relief Valve Pressure (current control valve) | 2,500-2,600 PSI | p. 301 |
| Boom Relief Valve Pressure | 3,500 PSI | p. 300 |
| Workport Relief Valve Pressure (non-adjustable, stamped on valve) | 245 Bar | p. 319 |
| High Flow Relief Valve Pressure | 3,250 PSI | p. 321 |
| Battery Cable Length, Negative | 558.8 mm | p. 217 |
| Counterweight Weight | 26 kg (59.52 lb) | p. 623 |
New Holland LS160, LS160E, SL45, LS170 Common Problems This Manual Covers
New Holland LS160 hydrostatic pump seal kit part number unknown, oil weeping at pump shaft

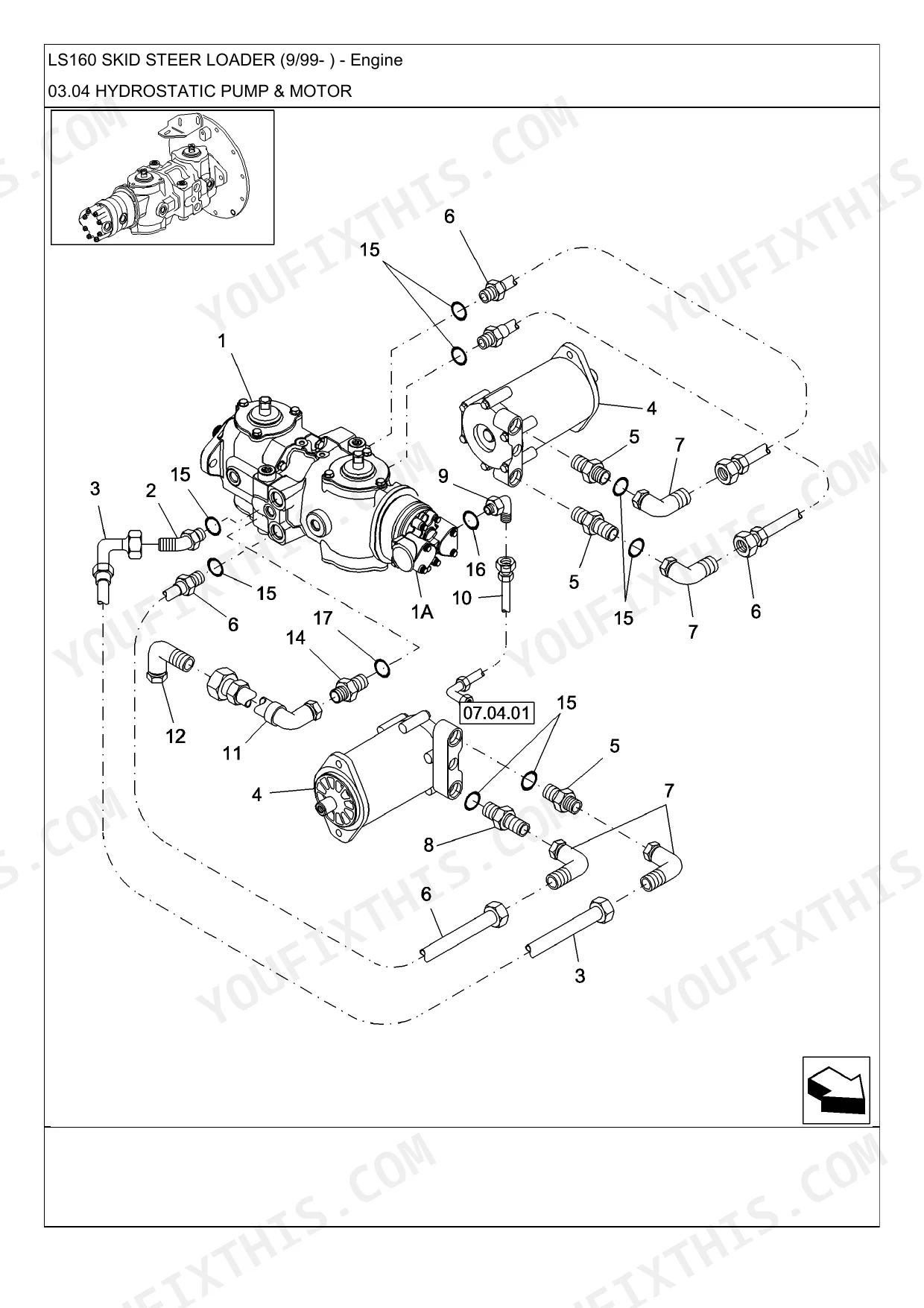

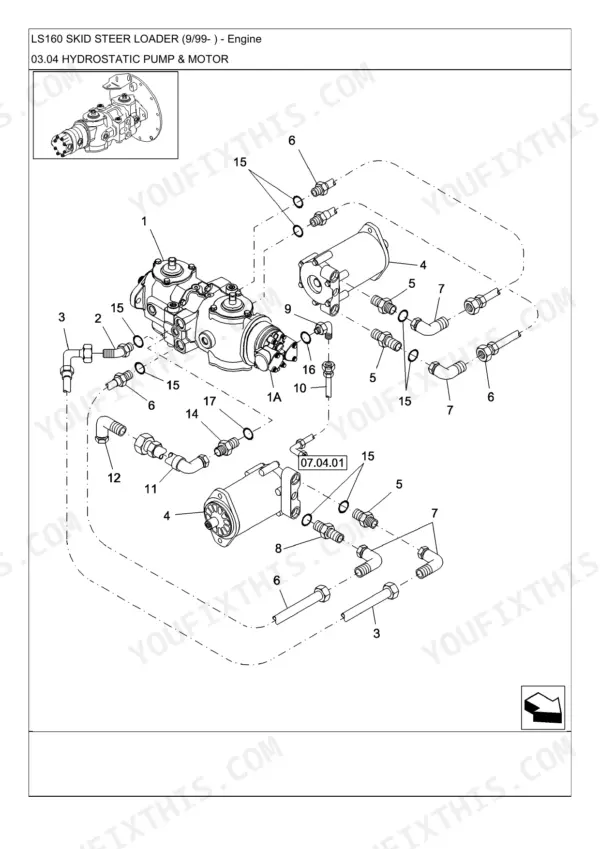

Check the hydraulic parts diagram on page 82 and match your pump housing casting to the exploded view. Order the complete seal kit listed under the hydrostatic pump breakdown, not loose O-rings; the main relief is set at 2,500-2,600 PSI on the current control valve (2,475 PSI on the prior valves 86584587 and 86578866) and worn seals fail fast. Verify your serial number range in the parts list before ordering.
Manual Section: Hydraulic System p. 82Negative battery ground cable corroded through at the frame end, unsure which replacement length to order
Measure the old cable before pulling it out. The correct negative battery cable measures 558.8mm, verified on page 217. Match the terminal end style and routing to the exploded view in the electrical parts listing, and order a new hold down strap and terminal hardware if the originals show green corrosion.
Manual Section: Electrical System p. 217Boom cylinder seal kit lookup confusing, exploded view shows several rod and piston seal options

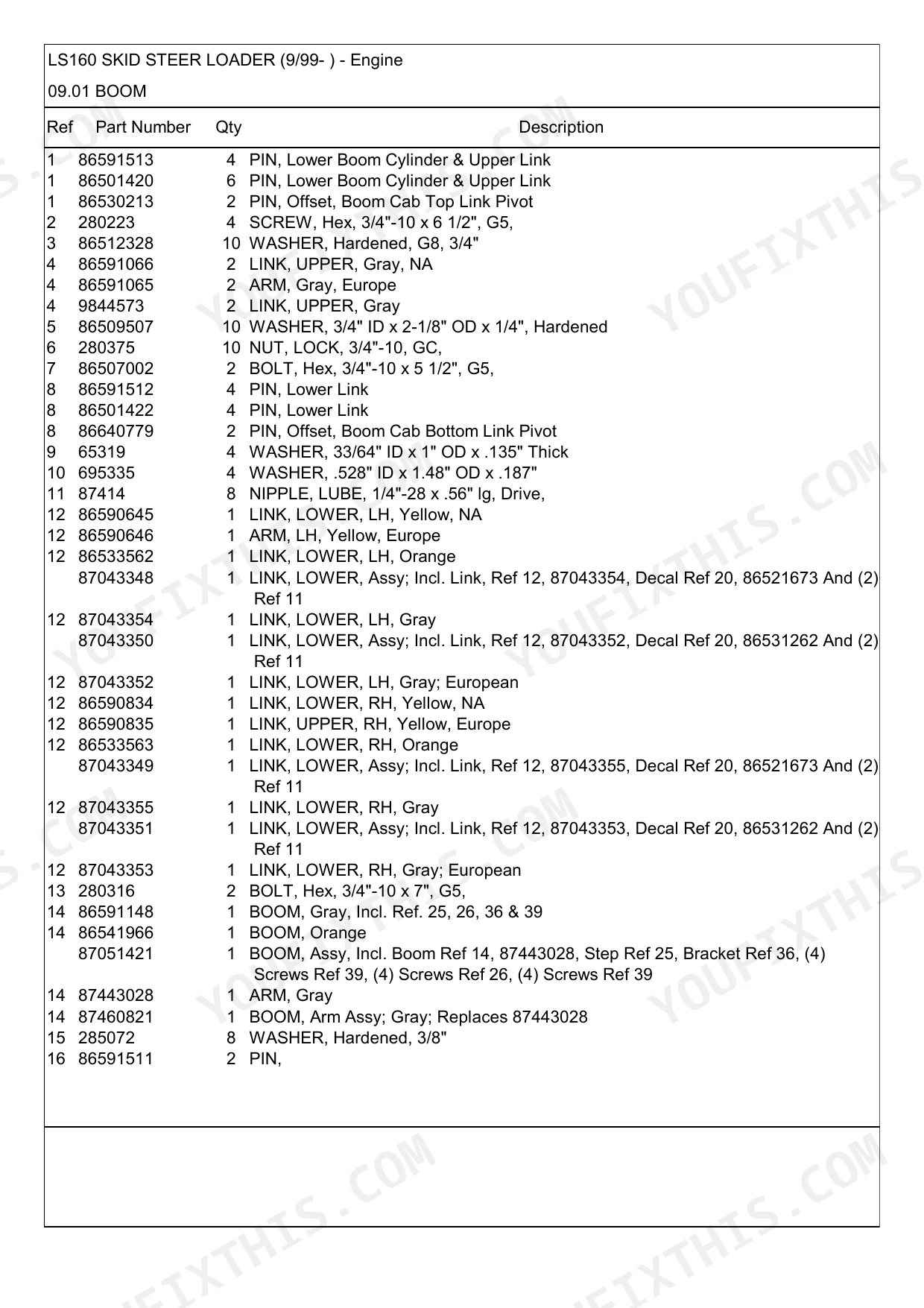

Check the boom and attachment parts diagram on page 435 and identify your cylinder from the callouts before picking seals. Order the complete seal kit shown in the cylinder breakdown rather than individual seals; the boom circuit relief is set at 3500 PSI and mismatched seals extrude quickly. Confirm your serial number range against the parts list.
Manual Section: Hydraulic System p. 435Cylinder head gasket shows two thickness options in the parts list, unsure which one fits

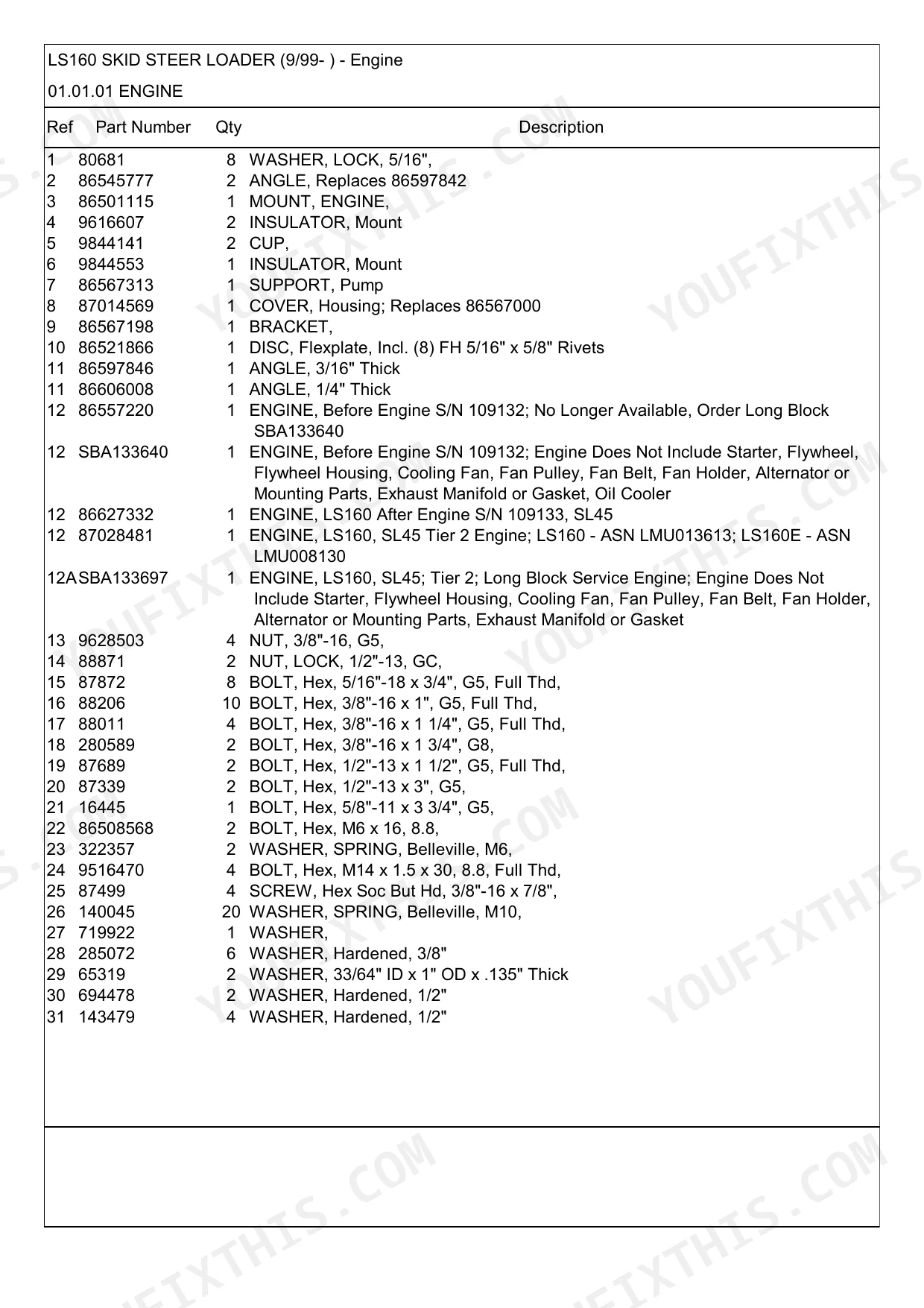

Check the engine parts diagram on page 3, then verify your engine serial number. LS160 engines before S/N 109132 take the 1.3mm gasket; engines after S/N 109133 take the 1.2mm gasket, both listed on page 12. Order by serial number, not by measuring the old crushed gasket, and order new head bolts with it.
Manual Section: Engine Troubleshooting p. 12Rear counterweight missing after previous owner stripped the machine, need part number and mounting hardware callouts
Check the chassis parts diagram on page 618 for the counterweight and mounting bolt callouts. Each counterweight weighs 26 Kg, verified on page 623, so confirm how many your machine originally carried before ordering. Inspect the mounting holes for elongation and order fresh bolts, washers, and nuts along with the weight.
Manual Section: Chassis p. 618Frequently Asked Questions
What is the replacement part number for the engine oil filter?
The replacement part number for the engine oil filter is 87415600, which replaces the previous part number 86546618. p. 6
What is the part number for the engine oil dipstick?
The part number for the engine oil dipstick is SBA198416570. p. 35
What is the part number for the engine starter motor?
The part number for the starter motor is SBA185086530. p. 47
What is the part number for the engine thermostat?
The thermostat part number is SBA145206182 for engines before S/N 109132, and SBA145206220 for engines after S/N 109133. p. 45
What do I get after purchasing this New Holland LS160 manual?
You get a 649-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this New Holland LS160 manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
