Every one of the 730 pages in this New Holland LB115 Backhoe Loader Service Manual covers the drivetrain stamped on your machine's plates: EA5 engine, Clark-Hurth-T16000 transmission, Danfoss/OSP 160LS steering, and Carraro axles. You get full wiring diagrams for chasing electrical gremlins, hydraulic schematics that trace circuit flow instead of leaving you guessing, and exploded views for the transmission control valve and clutch pack assembly. There's a dedicated error code section for fault diagnosis, plus torque tables and fluid capacity charts pulled straight from the factory data. Set your hydraulic system pressure to 175 bar, or 210 bar on open center configurations, and confirm pump output at 147 liters per minute before you chase a phantom leak. Your backhoe won't wait for a parts guy to call you back. This PDF is bookmarked by system, so you jump straight to transmission, axle, or hydraulics without scrolling through 730 pages first.
What's Inside This New Holland LB115 Manual

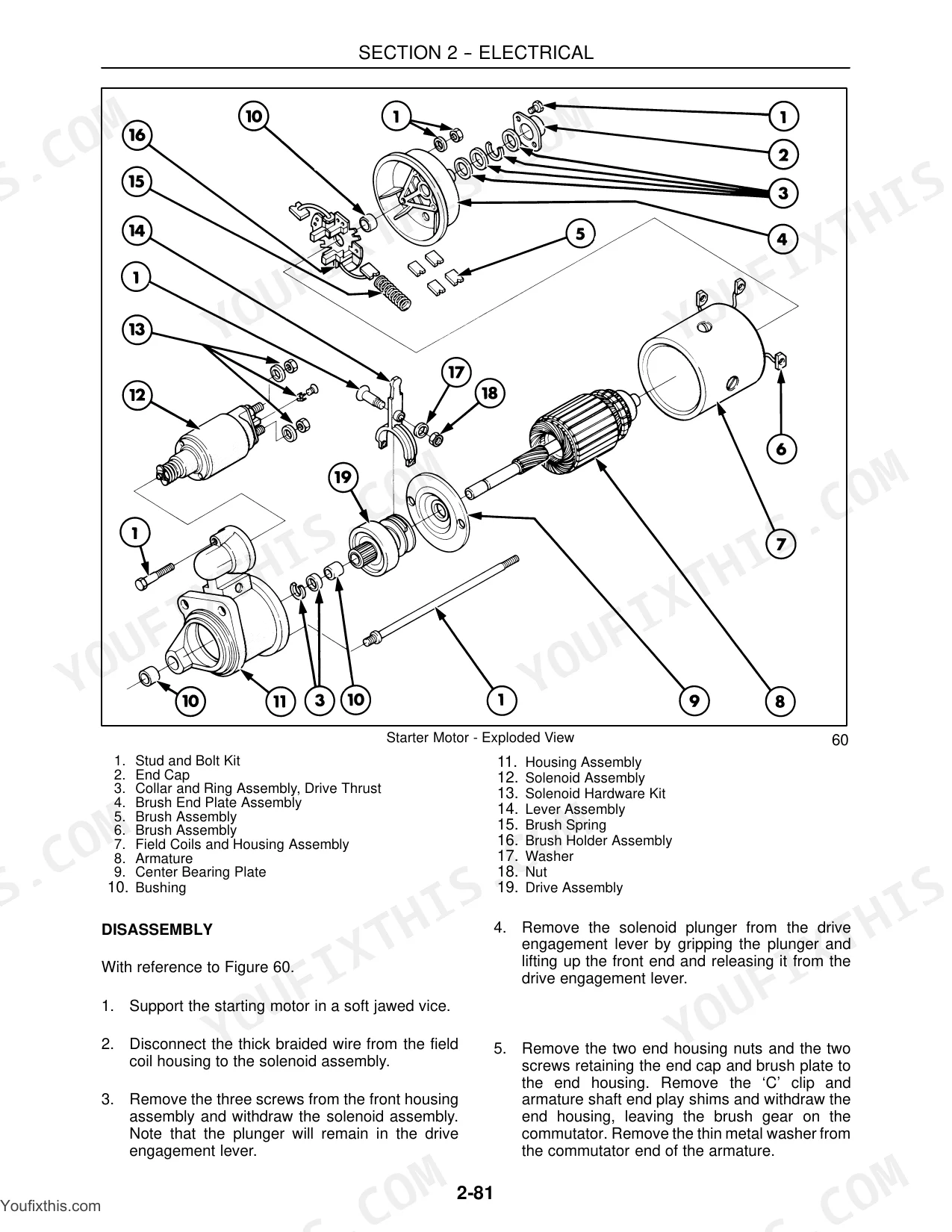

| System | Pages | Key Topics |
|---|---|---|
| Engine and Fuel System | 1-158 | Engine Data, Cooling System, Fuel System, Crankshaft, Cylinder Head, Piston Rings |
| Electrical System | 159-331 | Electrical Equipment Specifications, Fuses and Relays, Controls and Instruments, Starting System, Charging System, Battery |
| Transmission | 332-489 | Specifications, Torque Converter, Gear Ratios, Hydraulic Oil Flows, Transmission Control Valve, Clutch Pack Assembly |
| Rear Axle and Brakes | 490-514 | Rear Axle Specifications, Hub Disassembly, Crown Wheel and Differential Assembly, Pinion Disassembly, Brake Operation, Hand Brake Adjustment |
| Steering and Front Axle | 515-544 | - |
| Cab and Frame | 545-644 | - |
| Hydraulic Systems | 645-730 | - |

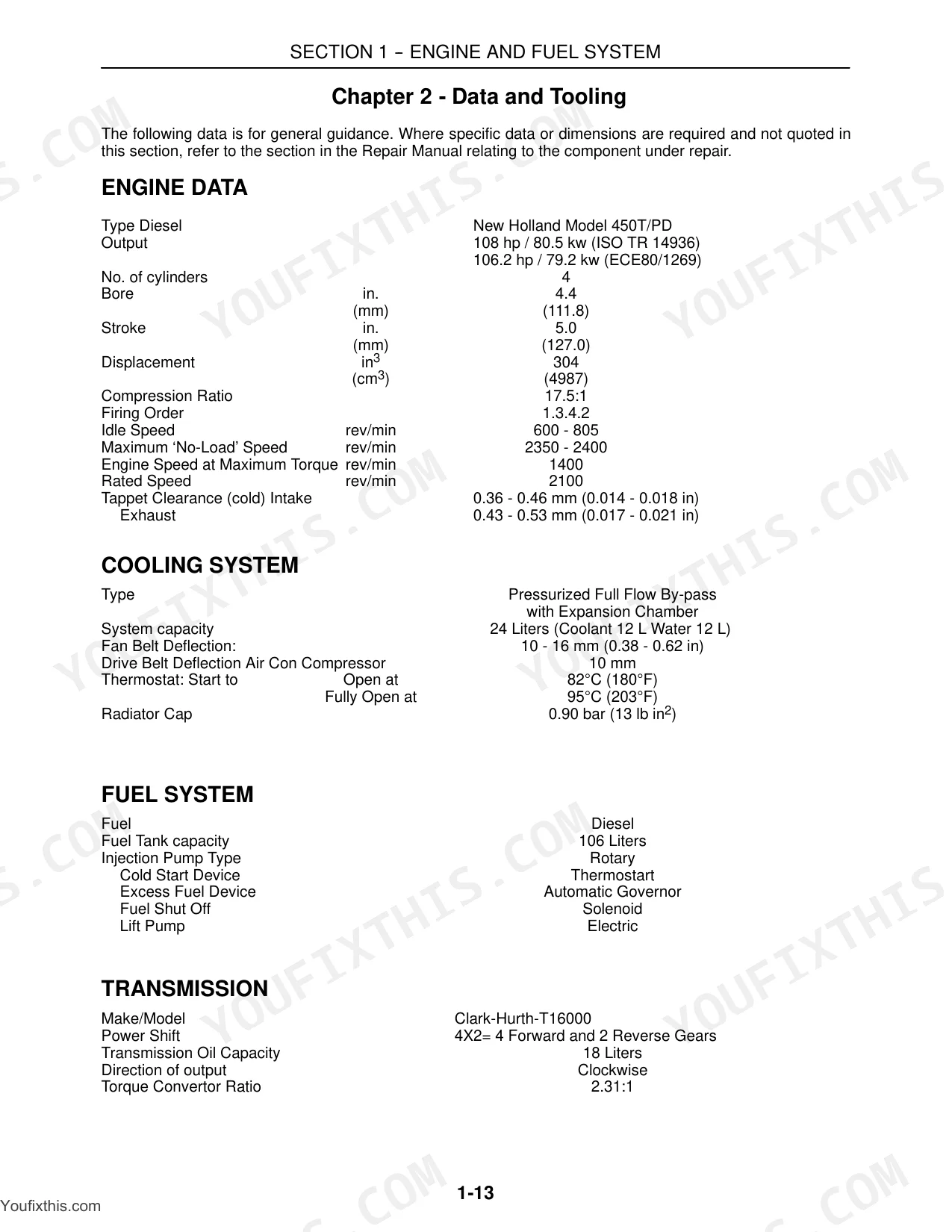

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic system pressure check | Always take system pressure readings using the appropriate gauges. | p. 5 |
| Pump Type | Gear | p. 14 |
| System Pressure | 175 bar (2537.5 lb in²) | p. 14 |
| Hydraulic Pump Capacity | 147 Liters/min | p. 14 |
| Hydraulic System Open Center Pressure | 210 bar (3049 lbs/in²) | p. 14 |
| Fan Blade to Support Body | 27 N·m (21 ft. lb., 2.8 Kgf m) | p. 36 |
| Water Pump-to-Cylinder Block | 48 N·m (35 ft. lb., 3.6 Kgf m) | p. 36 |
| Water Pump Cover-to-Pump | 27 N·m (20 ft. lb., 2.8 Kgf m) | p. 36 |
| Oil Filter Adaptor Bolts | 42 N·m (31 ft. lb., 4.2 Kgf m) | p. 36 |
| Oil Filter Mounting Bolt Insert | 34 N·m (25 ft. lb., 3.5 Kgf m) | p. 36 |
| Opening Temperature | 79 - 83°C (174 - 181°F) | p. 34 |
| Fully Open | 93 - 96°C (199 - 205°F) | p. 34 |
New Holland LB115 Common Problems This Manual Covers
New Holland LB115 backhoe arm droops and hydraulic pressure drops when lifting a load
Take system pressure readings using the appropriate gauges per page 5. Pressure test the backhoe lift circuit relief valve using the procedure on page 668, then reset the system relief valve to 210 bar (3043 PSI) as specified on page 674. Examine the lift section of the backhoe control valve assembly for wear and scoring, and reseal the piston and gland if the barrel shows leakage.

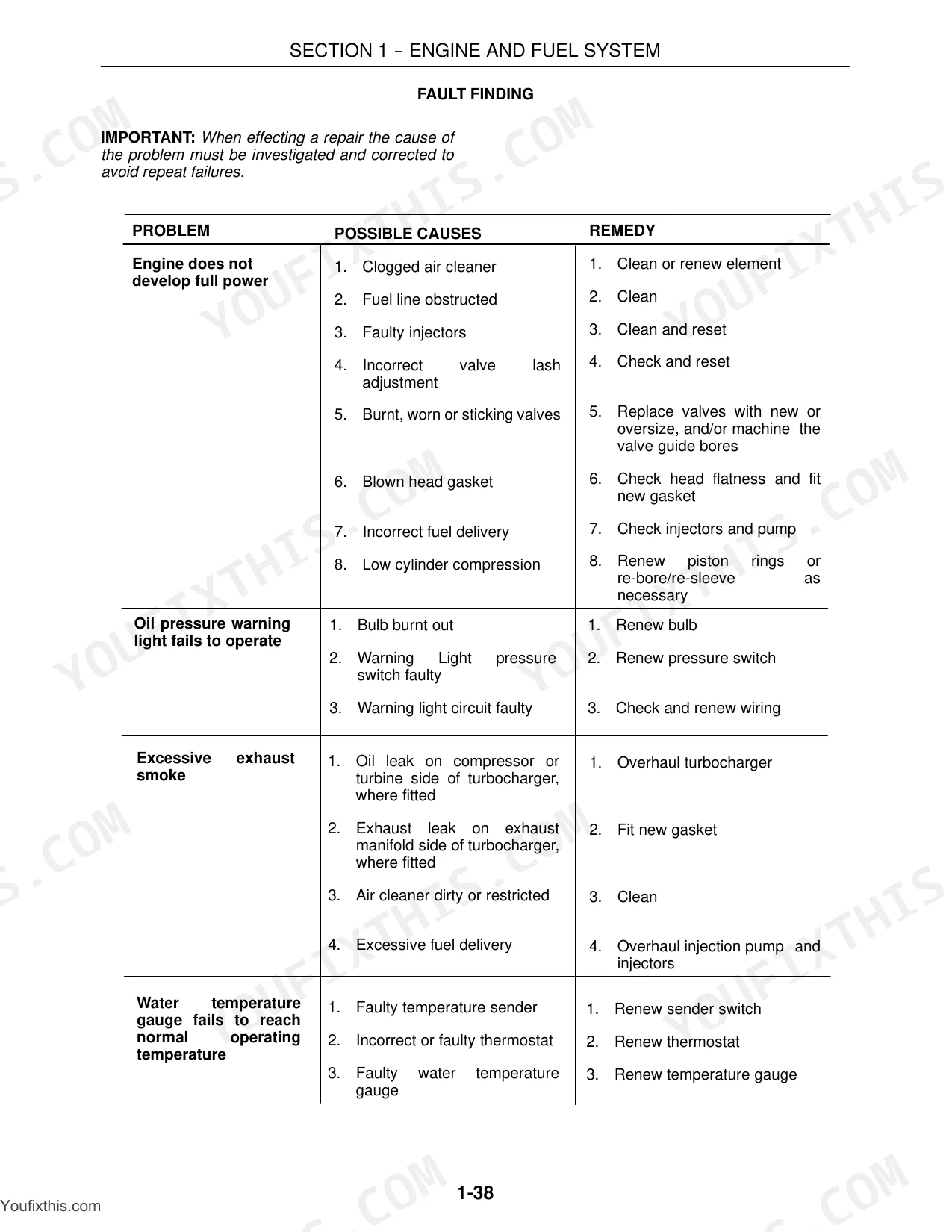

Manual Section: Backhoe Control Valve Fault Finding p. 668Engine overheats after 30 minutes of operation and won't reach normal temperature
Check the thermostat first; it should begin opening at 79-83°C (174-181°F) and be fully open by 93-96°C (199-205°F) per the spec on page 146. Inspect radiator fins for mud and debris packing, then verify water pump condition; torque the water pump-to-cylinder block bolts to 48 N·m if reinstalling. Flush and refill the 24 liter cooling system with fresh coolant.
Manual Section: Cooling System Fault Finding p. 146Steering becomes stiff or unresponsive, especially when turning sharply
Check steering pump output first: a new pump delivers 18.0 gpm (68.1 lpm) at 175 bar, while output below 14.4 gpm (54.5 lpm) means the pump is worn per page 647. Inspect the steering circuit relief valve, which should hold 176-183 bar, and torque the pump body through bolts to 35.3 N·m (26 ft. lb.) if disassembled. Cross-check symptoms against the wander/surge chart on page 521.
Manual Section: Steering System Fault Finding p. 521Loader bucket lift is slow or has lost power when curling under load
Pressure test the loader bucket relief valve at the piston end; it should hold a minimum of 160 bar (2300 psi), with up to 190 bar (2753 psi) acceptable per page 673. If pressure is low, examine the lift section of the loader control valve assembly for wear or scoring per page 667, and reseal the piston and gland if the cylinder barrel shows leakage.
Manual Section: Loader Control Valve Fault Finding p. 667Backhoe swing continues to move after the control lever is returned to neutral
Run the swing circuit relief valve test first; this circuit should hold a minimum of 205 bar (3000 psi) per page 674. If pressure checks out, examine the swing section of the backhoe control valve assembly for wear or scoring per page 669, since return-side spool leakage is the usual culprit. Replace the valve spool if scoring is visible.
Manual Section: Backhoe Control Valve Fault Finding p. 669Frequently Asked Questions
How do I reset the service indicator on a New Holland LB115?
To reset the service indicator, after the required service is completed, press the reset button for 6 seconds to reset the service hour intervals. This procedure is used for maintenance levels 1 (50 hr) and 2 (300 hr). p. 182
What are the torque specifications for engine bolts on a New Holland LB115?

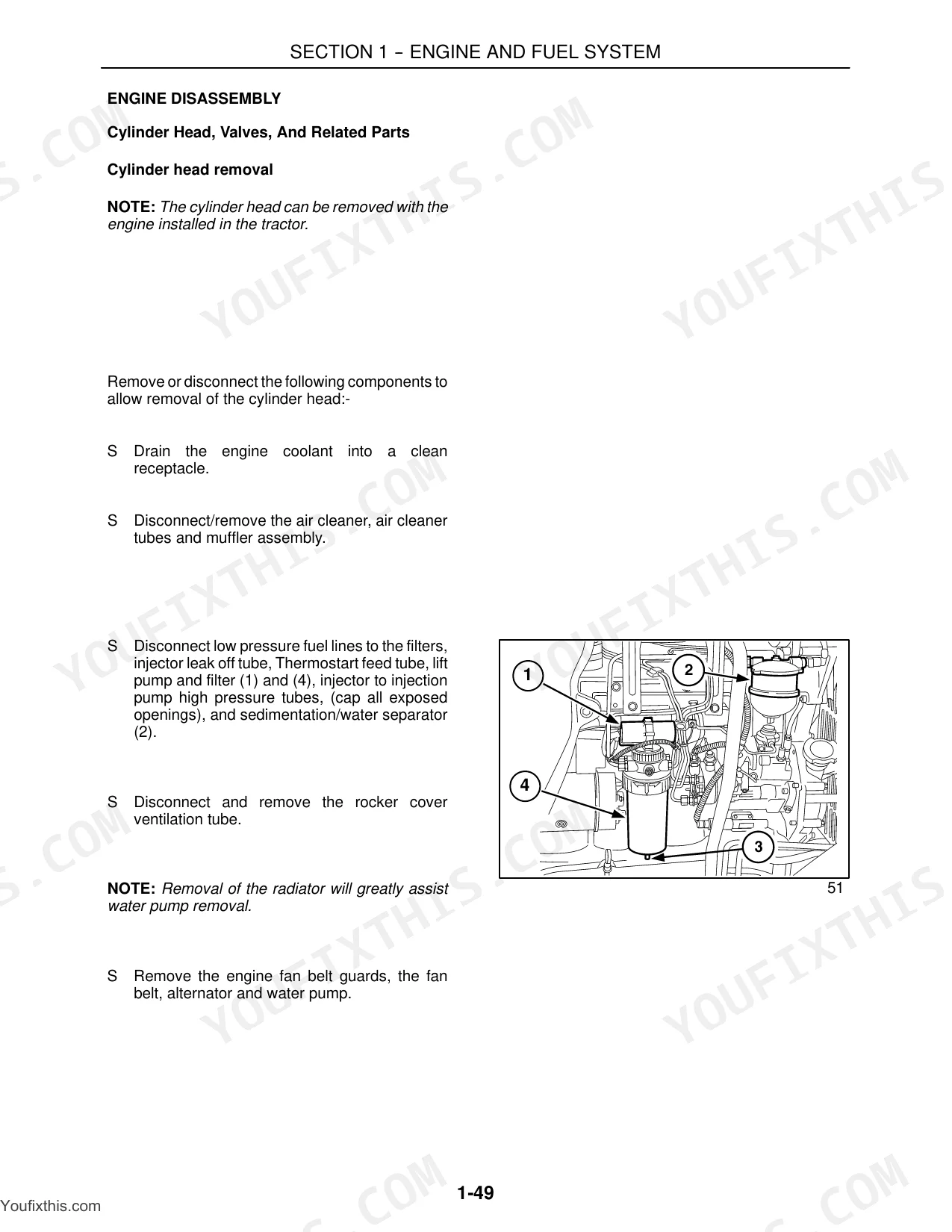

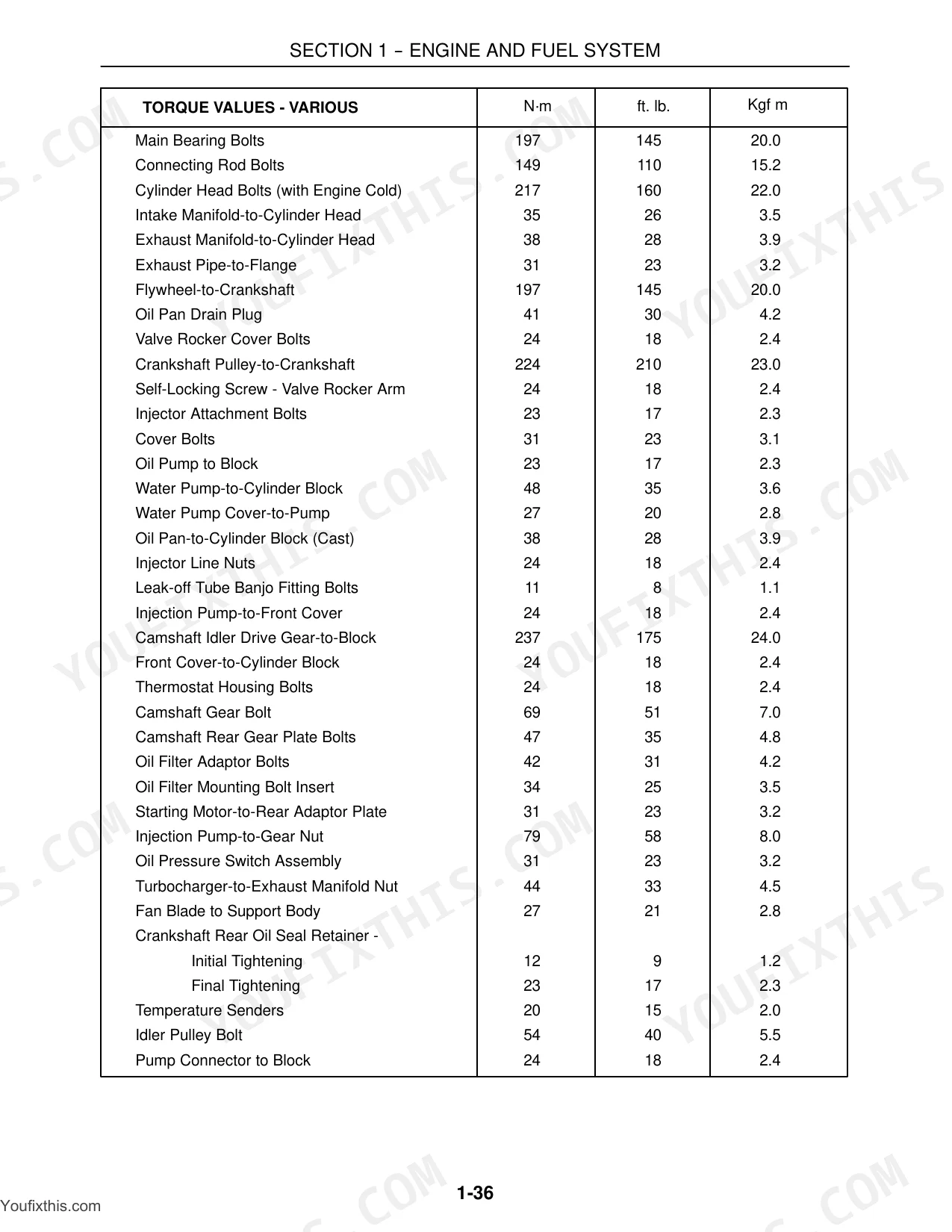

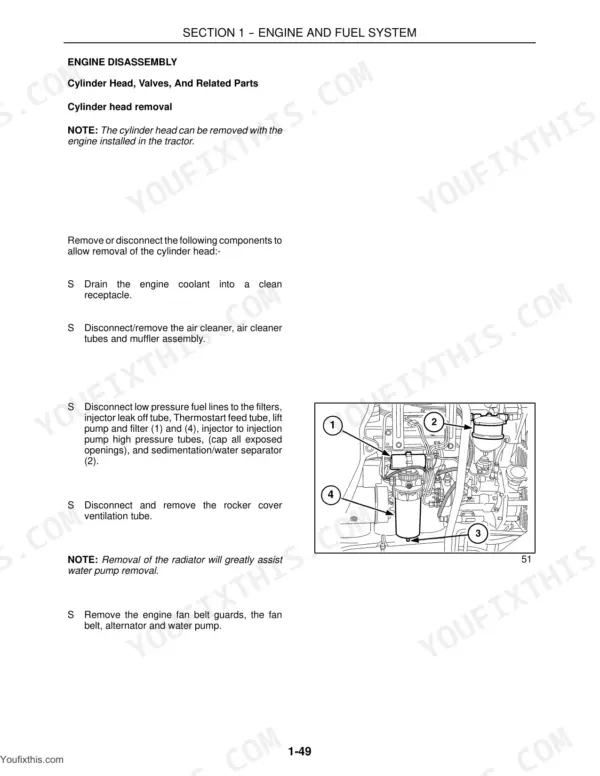

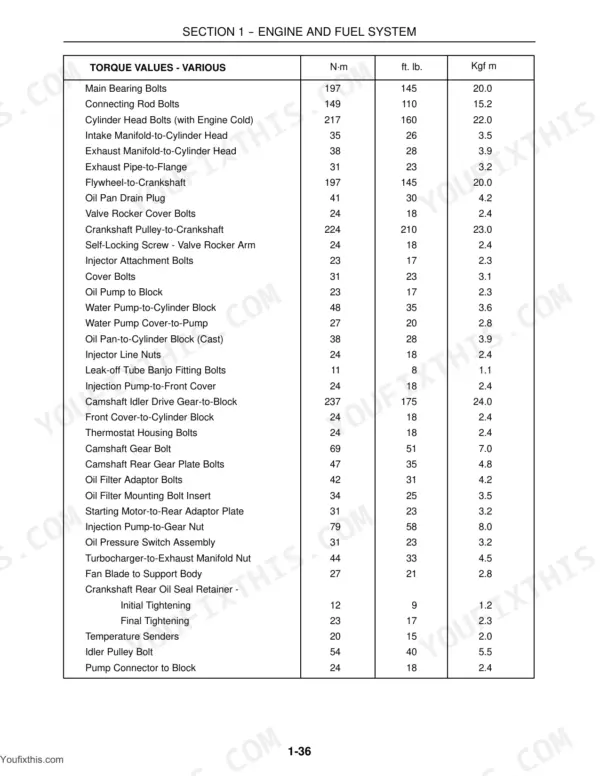

The torque specifications for various engine bolts are: Main Bearing Bolts at 197 N·m (145 ft. lb.), Connecting Rod Bolts at 149 N·m (110 ft. lb.), and Cylinder Head Bolts (with Engine Cold) at 217 N·m (160 ft. lb.). p. 36
What are the torque specifications for wheel lug nuts on a New Holland LB115?
The torque specification for Front and Rear Wheel Nuts on the New Holland LB115 is 800 N·m (590 ft. lb.). p. 15
What is the engine oil capacity for a 4-cylinder New Holland LB115, including the filter?
For a 4-cylinder New Holland LB115, the engine oil capacity including the filter is 11.4 liters (2.5 Imperial Gals or 3.0 U.S. Gals). p. 34
How quickly can I access this New Holland LB115 & variants manual after buying?
A 730-page Service Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this New Holland LB115 & variants manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

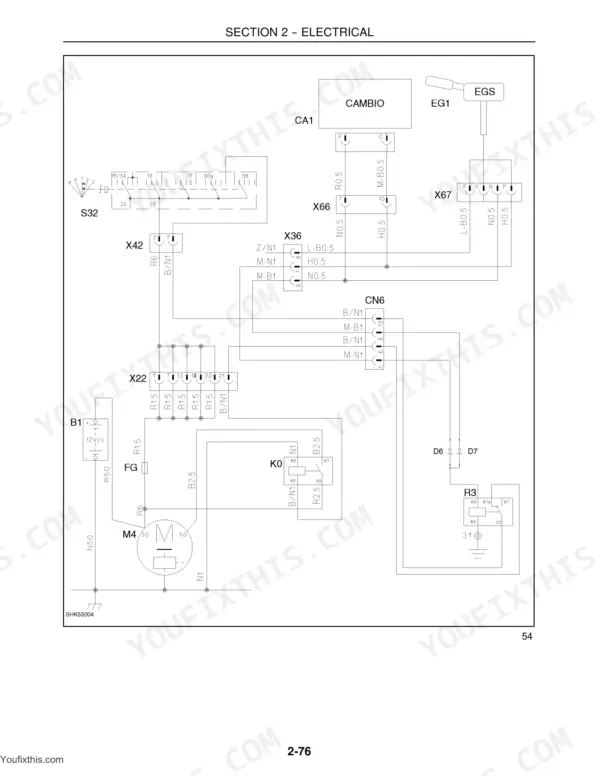

Does this New Holland LB115 & variants Service Manual have electrical diagrams?

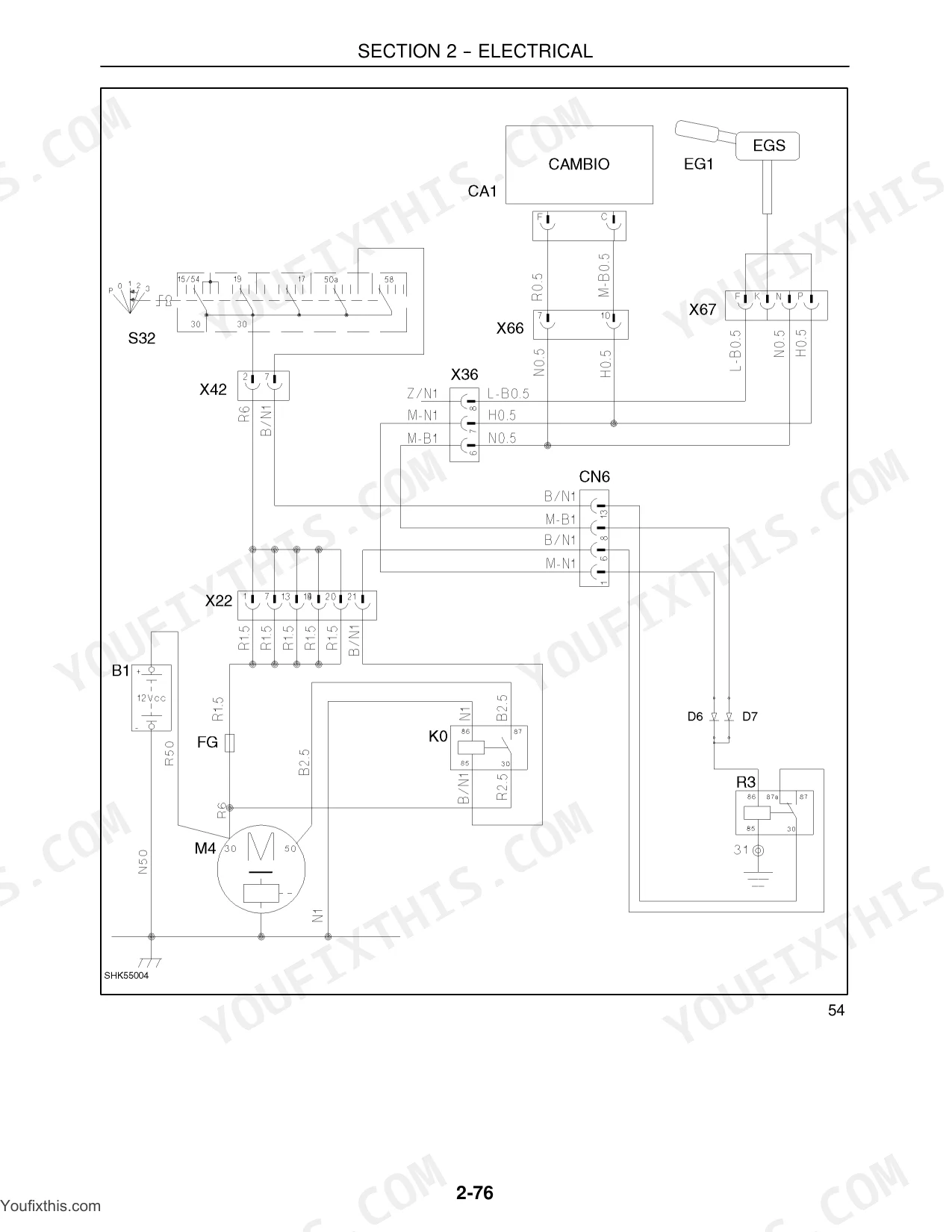

Yes. You'll find full electrical schematics with wire routing diagrams, connector identification, and circuit descriptions.
