Hunting for the right part number for your TG-series tractor? This 527-page New Holland TG285 parts catalog PDF covers the TG210, TG230, TG255, and TG285 with factory exploded views for every assembly. You get complete engine breakdowns, from the turbocharger and wastegate actuator down to pistons and gasket kits, plus full drivetrain sections: speed and range transmissions, MFD front axles with and without Super Steer, PTO assemblies, and rear planetaries. Cab, hitch, hydraulic pump, remote coupler, and electrical harness pages all carry numbered callouts tied to factory part numbers, so you can identify a component before you ever pick up the phone. Match parts exactly: the 135-amp alternator assembly, the 15 psi radiator pressure cap, even the 610 mm coolant hose. Ordering the wrong part twice kills a whole week. Bookmarked by section and text-searchable; type a part name, jump to the figure, order once.
What's Inside This New Holland TG255, TG285, TG210, TG230 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine and Cooling System | Radiator and Fan Shroud, Radiator Assembly, Deaeration System, Air Induction System, Aftercooler, Ether Start System, Exhaust System, Engine Support Housing Assembly, Water Pump System, Front Gear Cover, Manifolds, Turbocharger System | |
| Fuel System | Fuel Injection System, Pump, Fuel Transfer, Fuel Filter and Connections, Fuel Injection Pump, Fuel Injection - Nozzle, Hand Throttle, Foot Throttle, Fuel Tanks, Fuel Lines | |
| Electrical System | Harness - Engine, Power Distribution, Module, Engine Control, Harness - Chassis, Harness - Remote Hydraulic Valve, Harness - Cab, Harness - Cab Roof, Shelf and Cd Changer, Harness - Suspended Axle, Electrical Component Mounting, Electrical Component Mounting - Fuses, A-Post Cover - Instrument Cluster, Controls - Front Console | |
| Steering | Steering Wheel and Column, Steering Column Assembly, Steering System - MFD, Without Super Steer, With Super Steer, Hydraulic System - MFD Differential Lock, Hydraulic System - Suspended MFD Axle, Front Axle - Mounting, MFD, Front Axle - MFD, Tie Rods, Front Axle - Suspension, Suspended MFD, Front Axle Drive Shaft - MFD, Without Differential Lock, With Differential Lock | |

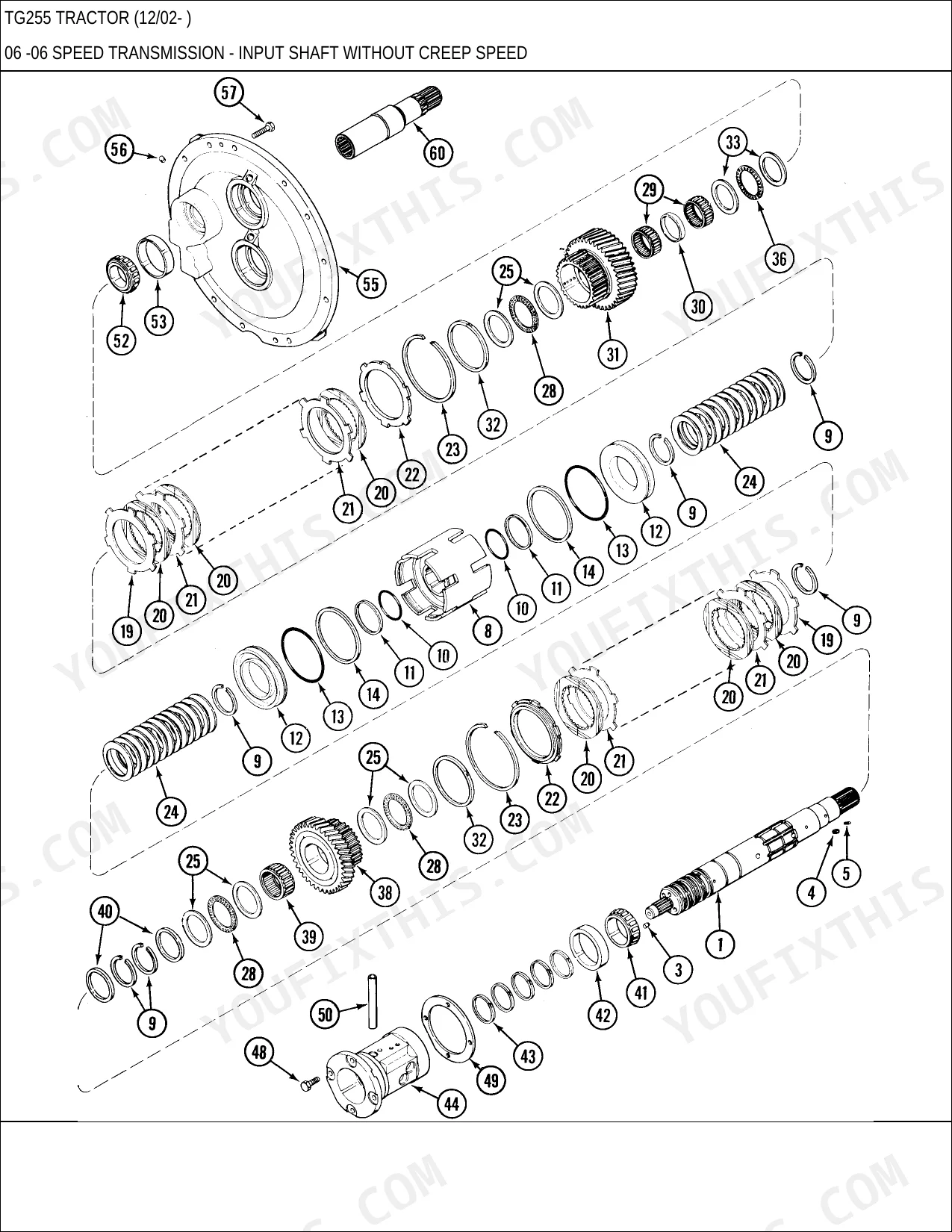

| Transmission, PTO and Rear Axle | Transmission Drive Shaft and Damper, Speed Transmission - Front Cover, Speed Transmission - Housing, Plate Assembly - Valve Mounting, Speed Transmission - Input Shaft Without Creep Speed, Speed Transmission - Input Shaft with Creep Speed, Speed Transmission - Countershaft Without Creep Speed, Speed Transmission - Countershaft with Creep Speed, Speed Transmission - Output Shaft Front Clutch, Speed Transmission - Output Shaft Rear Clutch, Range Transmission - Housing, Valve Assy - Inching | |
| Brakes | Brakes - Pedal Brake, Brakes - Hydraulic System, Without Trailer Brakes, With Hydraulic Trailer Brakes, Brakes - Control Valve, Brakes - Differential, Park Brake - Hydraulic System, Park Brake - Brake Assembly, Park Brake - Release, Trailer Brakes - Hydraulic | |
| Hydraulic System | Hydraulic System - Oil Cooler, Hydraulic System - Charge Pump, Hydraulic System - Megaflow Pump, Hydraulic System - Regulated Pressure, Hydraulic System - Creep Speed, Hydraulic System - Transmission Lube, Hydraulic System - Hitch, Hydraulic System - Pto/differential Lock Valve, Hydraulic System - Remote Couplers, Hydraulic System - Power Beyond, Hydraulic System - Motor Return, Priority and Regulator Valve Assembly | |

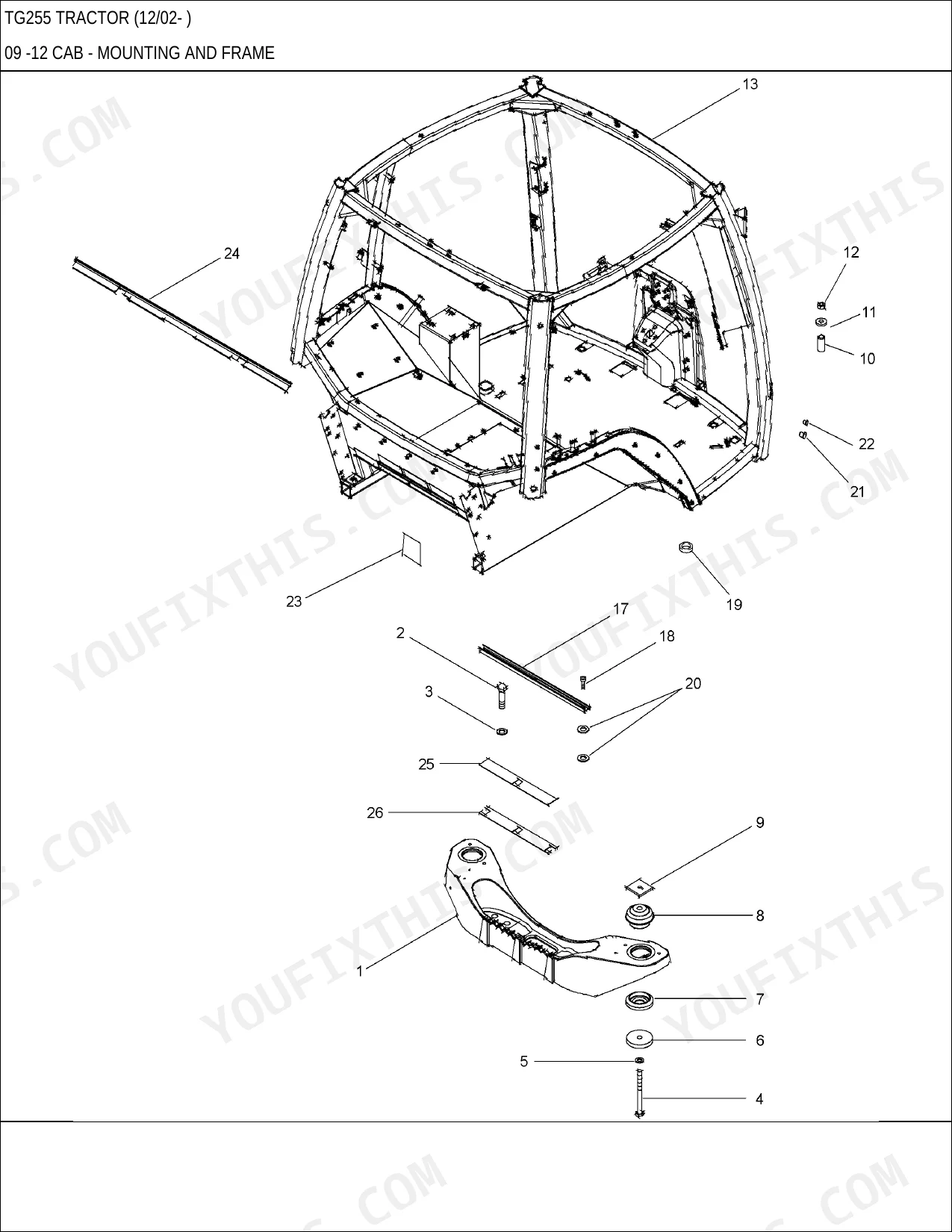

| Frame, Cab and Operator Platform | Front Frame, Front Weights, Without Supersteer, With Supersteer, Fenders - Front, Frame Mounted, Axle Mounted, Rigid, Dynamic, Fenders - Rear, Narrow, Wide, Hood - Tilting, Hood - Fixed, Hood - Support, Cab - Mounting and Frame |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Radiator cap pressure | 15 psi | p. 13 |
| Alternator Output | 135 Amp | p. 132 |
| Engine Block Heater | 1000W | p. 52 |
New Holland TG255, TG285, TG210, TG230 Common Problems This Manual Covers
New Holland TG255 upper radiator hose cracked, can't find the replacement part number in the book
Check the engine parts diagram for radiator hose callouts and part numbers. Refer to the 02-03 DEAERATION SYSTEM section for the correct radiator hoses before ordering. While the parts list is open, confirm the pressure cap is the 15 psi unit shown on page 13.

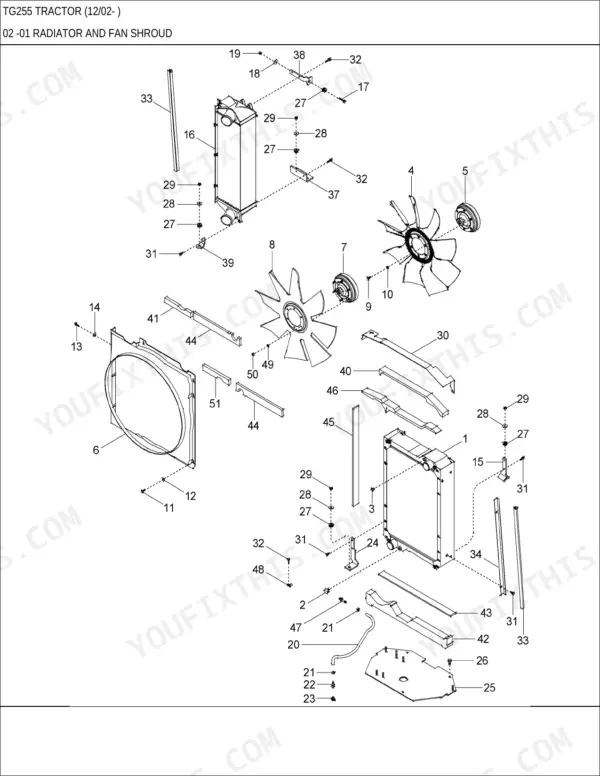

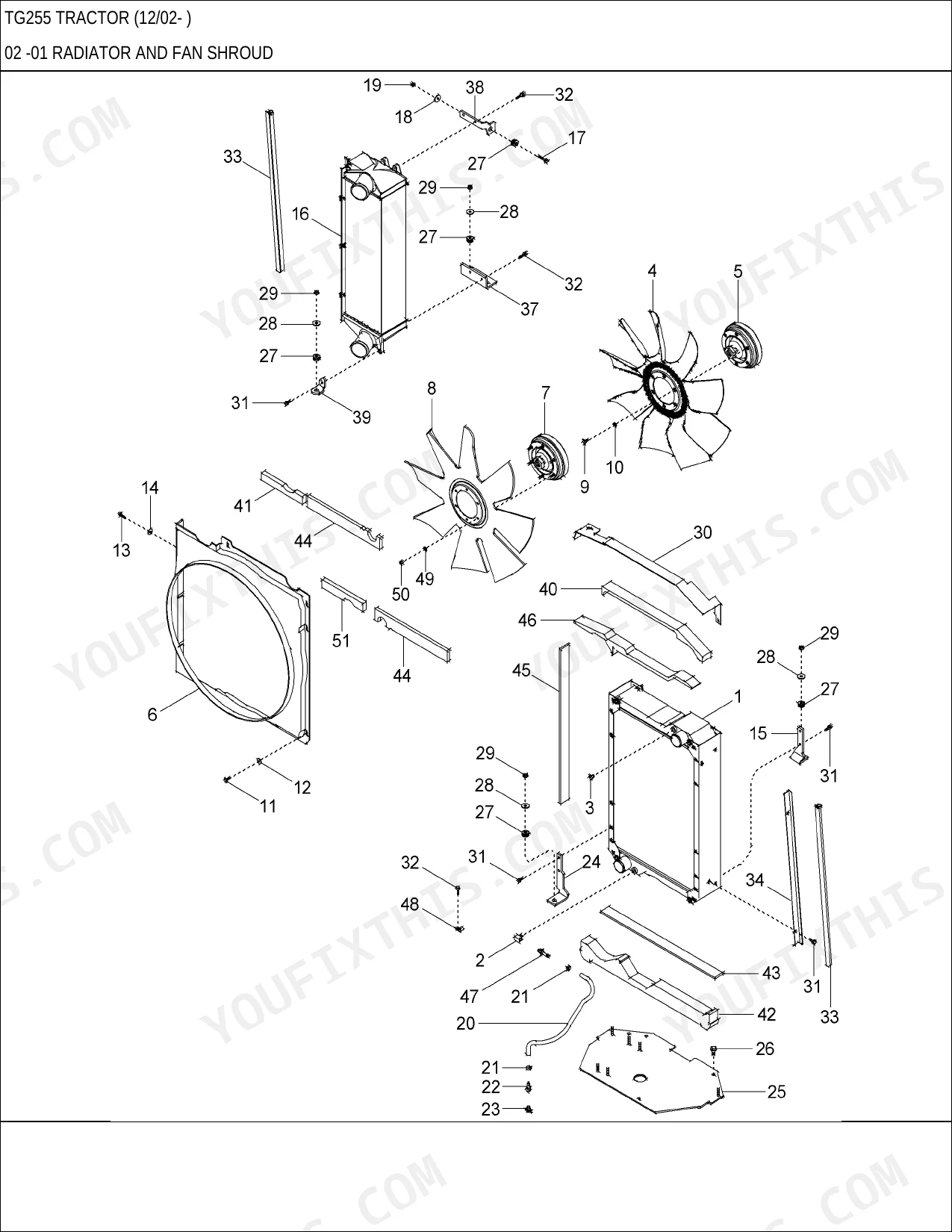

Manual Section: Radiator and Fan ShroudAlternator dead, need the correct part number and amp rating before ordering a replacement
Verify the alternator spec first: all four models run a 135 Amp unit, listed on page 132. Use the figure search feature explained on page 1 to jump to the charging system figure, read the callout part number from the exploded view, and confirm your serial number range in the parts list.
Manual Section: How to Use Figure Search p. 132Engine block heater element burned out, not sure which wattage unit fits
Verify the element matches the 1000W block heater listed on page 52 before ordering; do not substitute a different wattage. Check the engine parts diagram for the heater location and gasket callouts, then record part numbers for the element, cord, and seal before calling the parts counter.
Manual Section: Water Pump System p. 52Hydraulic piston pump and filter part numbers hard to match to serial number range
Check the hydraulic parts diagram for the piston pump, filter, and line callouts. Match each callout to its part number in the parts list, then confirm your tractor serial number falls inside the listed range. Cross-check metric fitting sizes with the conversion table on page 526 before ordering.
Manual Section: Hydraulic System - Piston Pump and FilterFrequently Asked Questions
What is the torque specification for the M16 engine support housing bolts?
The M16 bolts used for the engine support housing assembly (Ref 3) require a torque specification of 10.9 grade. There are 4 of these bolts used in this assembly. p. 23
What is the torque specification for the M12 rear axle housing bolts?
The M12 bolts used for the rear axle housing (Ref 22) require a torque specification of 10.9 grade. There are 11 of these bolts used in this assembly. p. 287
What is the torque specification for the M20 drawbar bolts?
The M20 bolts used for the drawbar assembly (Ref 31) require a torque specification of 10.9 grade. There are 2 of these bolts used in this assembly. p. 484
What is the part number for the primary air filter?
The part number for the primary air filter is 451525A1. p. 15
What is the part number for the fuel filter?
The part number for the fuel filter is 86991015. p. 73
What format is this New Holland TG210–TG285 Series manual in?
A 527-page Parts Catalog in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this New Holland TG210–TG285 Series manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
