Part of the New Holland Parts Manuals.
Tracking down parts for a 1985-1988 Ford 555B Tractor Loader Backhoe? This Ford 555B parts catalog PDF packs 525 pages of exploded views and factory part numbers for every system on the machine. You get complete parts breakdowns for the engine, hydraulics, drivetrain, cab, and backhoe boom, each paired with exploded diagrams showing exactly how components stack together. Front axles, torque converter transmissions, loader control valves, fuel injection pumps, electrical harnesses: every assembly comes apart on paper down to the last O-ring, gasket, and cotter pin, with Ford part numbers you can hand straight to your dealer. Identify the correct relief valve by its 2400 PSI rating, or confirm your machine takes the 28.5 GPM hydraulic pump before you order. No more squinting at a worn casting and hoping the number matches. Bookmarked with a full text layer; type the part number, jump to the diagram, order once.
What's Inside This Ford New Holland 555B Tractor Loader Backhoe Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Diesel, Single Fuel Filter, Dual Fuel Filter Assembly, Fuel Sedimenter & Filter Assembly, Cylinders, Cylinder, Fuel Injection Pump, Rotor, Fuel Injector Assembly, Carburetor Assembly, Holley, Air Cleaner Assembly, Throttle & Foot Accelerator Controls | |
| Cooling System | Radiators & Related Parts, Water Pump & Related Parts | |
| Engine | Hydraulic Oil Filter Assembly, Cylinder Block, Head & Related Parts, Diesel, Stepped Stud Engine Block, Crankshaft, Flywheel & Related Parts, Camshaft, Rocker Arm, Valves & Related Parts, Pistons & Connecting Rods, Oil Pump & Oil Pan, Sump, Engine Gasket Kits, 3-Cylinder, Engine Overhaul Kits, Torque Converter, Oil Distributor, Oil Pan, Engine Primer Ether System, Block Heater, Engine Hood & Grille, Engine Side Covers, Security Engine Covers & Noise Insulation, Europe | |
| Electrical System | Less Lights, Europe, LH, RH, Headlamp Assembly, ROPS, North America, Cab, Rear Lamp, Lamp Assembly, Flasher, Rear Stop & Turn Signal, Emergency Warning, Implement Lamp Assembly, Rear Side & Turn Signal, Plow Lamp Assembly, License Plate Mounting, Lamps, Battery & Related Parts, Alternator Assembly | |
| Clutch & Transmission | Transmission Shaft, Manual Reversing Transmission Case, Shift & Related Parts, Torque Converter, Clutch & Gears, 4 X 4, Syncromesh, Torque Converter Transmission Control Lever, Single Clutch Assembly, 13" | |
| Rear Axle, Differential & Brakes | Rear Wheels, Rear Wheel Weights, 24", Non-Adjustable, 28", Brakes & Brake Controls, Handbrake, Emergency Brake & Controls, Handbrake Lever, Twin Cable, Rear Axle Differential & Related Parts, Rear Axle Differential Lock Linkage, Rear Axle Center Housing & Related Parts | |
| Front Axle & Steering | Front Wheels, 2WD, 4WD, Front Axle, Power Steering & Related Parts, Power Steering Motor & Column, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly, Dual Cylinder, Single Cylinder, FWD, Ae3, Differential Box, Driveshafts, Reduction Gears, Steering Arms, Drive Shaft & Shield, Transfer Case, Transfer Case Controls | |
| Hydraulics & 3-Point Hitch | Hydraulic Reservoir & Pump Drive, Hydraulic Filter & Tubes, Unload Valve & Manifold, Control Valve Assembly, Two Spool, Three Spool, Swinging Drawbar, Hanger & Related Parts, Control Valve, Manifold & Tubes, Hydraulic Pump Assembly, Vickers, Lift Arm & Linkage, Hydraulic Lines & Hoses, Lift Cylinder Assembly, Bucket Cylinder Assemblies, Hydraulic Control Lines, Dipstick & Related Parts, Hydraulically-Extendable Dipstick, Boom Assembly & Related Parts, Hydraulically Extendable Dipstick, Crowd Cylinder Assembly | |
| Loader, Backhoe & Attachments | Loader Controls, Decal, Loader, Decals, Backhoe, Buckets, 1-1/8 Cubic Yard, Swing Post & Related Parts, Center Pivot, Sideshift, Europe, Swing Carriage Assembly, Side Shift, Boom Assembly & Related Parts, Boom Transport Lock, North America, Stabilizer Pads - 19, North America - 19 | |
| Body & Operator Station | Swivel Seat Assembly, Original, Replacement, Deluxe Suspension Seat Assembly, Bostrom-Viking, Seat Assembly, Nh-E, Fenders, Platform & Tool Box, Frame & Related Parts, North America, Tractor Cab & Related Parts, Cab Panels, Mat & Trim, Rear & Side, Cab Electrical System & Wipers, Cab Heater & Related Parts, Cab & Related Parts, Europe, Mats & Trim, Cab Air Conditioner & Heater, Cab Air Conditioner & Heater Ii, Subframe | |
| Decals & Accessories | Windshield Washer, Accessory, Europe, Identification Decals, Decals, Tractor, Shift Pattern Decals, Kit, Instruction & Safety Decals, Decal Kits, Quebec, Tool | |
| Other Components | Front End Weight, Differential Box, Bevel Gear & Pinion Set, Drive Shafts, Gearbox Assembly, Manifold & Exhaust System, Diesel, Torque Converter, Filter & Cooler Tubes, Diesel Cold Start, Electrical System, North America, LH, RH, Starting Motor & Related Parts, 4-1/2" Dia, Starting Motor Assembly, 5" Dia, Alarm Assembly, Back-Up, Dia, Instrument Panel, Cluster & Related Parts, Instrument Cluster & Related Parts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve Assy. pressure rating | 1600 PSI | p. 33 |
| Relief Valve Assy. | 1100 PSI | p. 112 |
| Pump Assy., 28.5 GPM | 28.5 GPM | p. 222 |
| Valve Assy., Relief | 2400 PSI | p. 500 |
| Front End Weight | 325 lbs | p. 7 |
| Hydraulic Pump Pressure | 1600 PSI | p. 33 |
| Alternator Output | 32 Amp | p. 277 |
| Battery Capacity | 138 Amp | p. 237 |
Ford New Holland 555B Tractor Loader Backhoe Common Problems This Manual Covers
Ford 555B transmission slipping, no forward or reverse, need clutch pack and suction screen part numbers
Check the drivetrain exploded view on page 150 to identify the forward and reverse clutch packs and the suction screen by callout number. Match each callout to the parts list for your serial number range before ordering. If the charge pump is suspect, verify the 28.5 GPM pump assembly listing on page 222.
Manual Section: Drivetrain Parts Diagram p. 150Hydraulics weak and erratic, need unload valve and relief valve part numbers before teardown
Check the unload valve and manifold exploded view starting on page 105. Identify each valve by its callout before you split the manifold; the relief valve assembly rated 1100 PSI is listed separately on page 112. Order the O-rings and seals in the same pass so the manifold only comes apart once.
Manual Section: Unload Valve & Manifold p. 105Steering hard both directions, can't tell power steering pump from main hydraulic pump when ordering
Check the power steering pump and reservoir breakdown on pages 32 to 34. The steering pump is its own 1600 PSI unit, listed on page 33, separate from the main hydraulic pump. Compare the reservoir and valve callouts against the parts on your machine before ordering the pump assembly or seal kit.
Manual Section: Power Steering Pump & Reservoir p. 32Engine cranks slowly when warm, need starting motor drive and solenoid part numbers before pulling the starter
Check the starting motor breakdown on pages 269 to 275 for the drive and solenoid callouts, then match them to the parts list for your engine. Rule out the battery first; the manual lists a 138 Amp battery on page 237. If the motor tests bad, order the drive, solenoid, and mounting hardware together.
Manual Section: Starting Motor & Related Parts p. 269Battery goes dead overnight, which alternator assembly and regulator fit this machine
Check the alternator breakdown on pages 276 to 280 before ordering anything. The manual lists 32, 51, and 72 Amp units on page 277 and a 46 Amp unit on page 280, so read the amperage off your alternator tag first, then pick the matching regulator and housing from that parts list.
Manual Section: Alternator Assembly p. 276Frequently Asked Questions
What is the torque specification for the front wheel nuts on a 2WD Ford 555B?

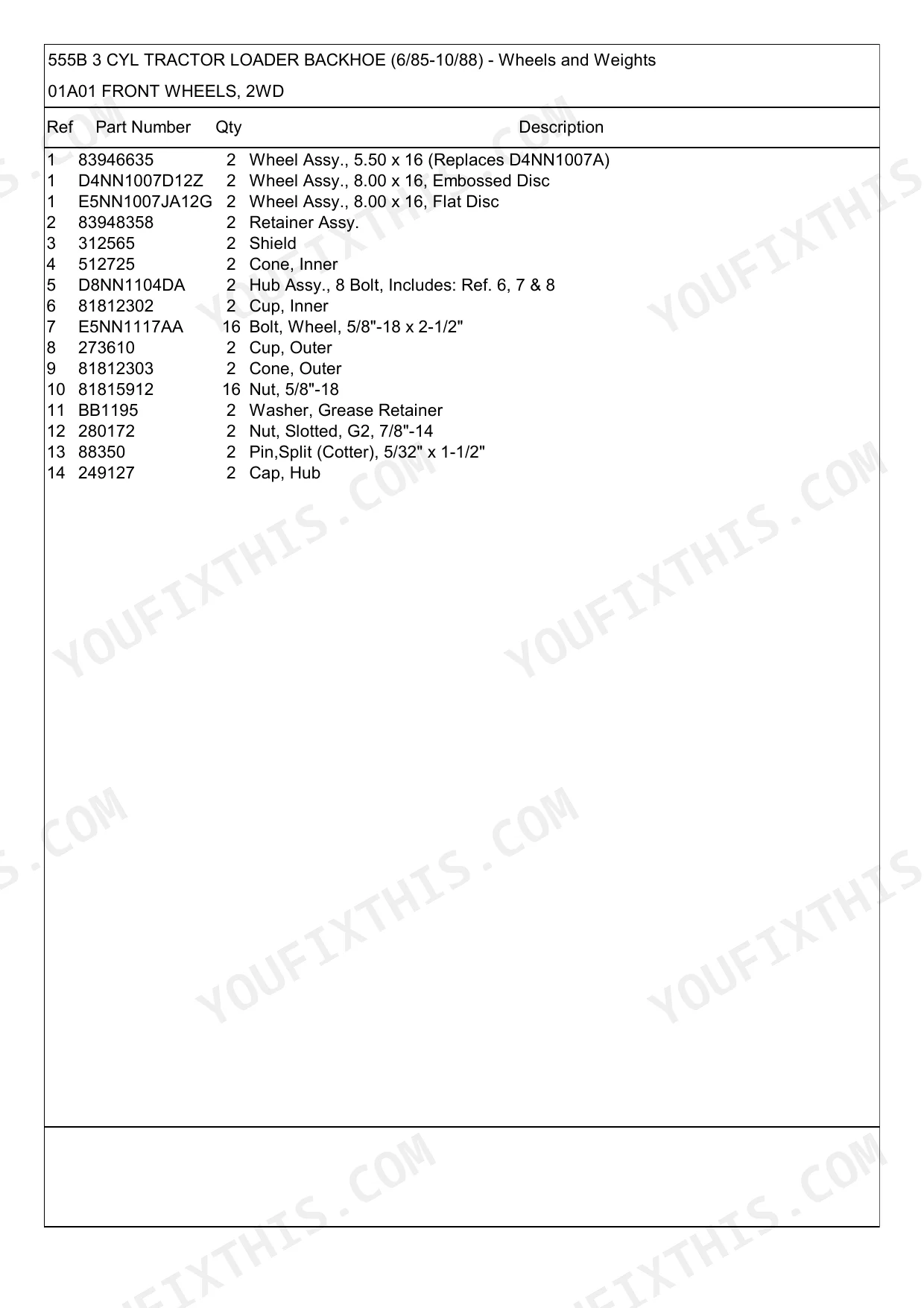

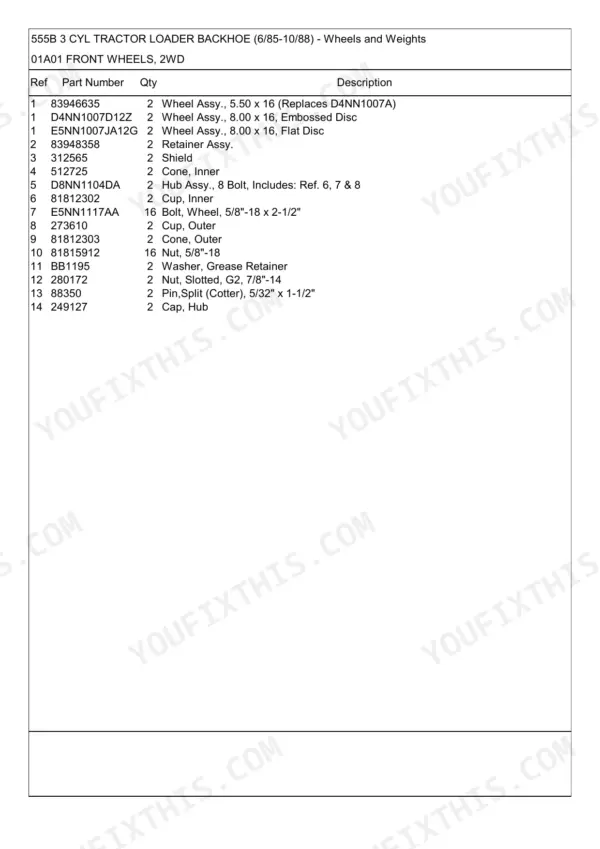

The nut for the front wheels on a 2WD Ford 555B is part number 81815912, which is a 5/8"-18 nut. While the manual provides the part number, it does not explicitly list a specific torque value for these wheel nuts. p. 2
What is the torque specification for the rear wheel nuts on a 555B?
The rear wheel nuts for the 555B are part number D3NN1120B (Nut, Hex, 3/4"-16) or 143517 (Nut, Wheel, 3/4"-16). The manual does not provide a specific torque value for these nuts. p. 6
What is the torque specification for the cylinder head bolts on a 555B diesel engine?

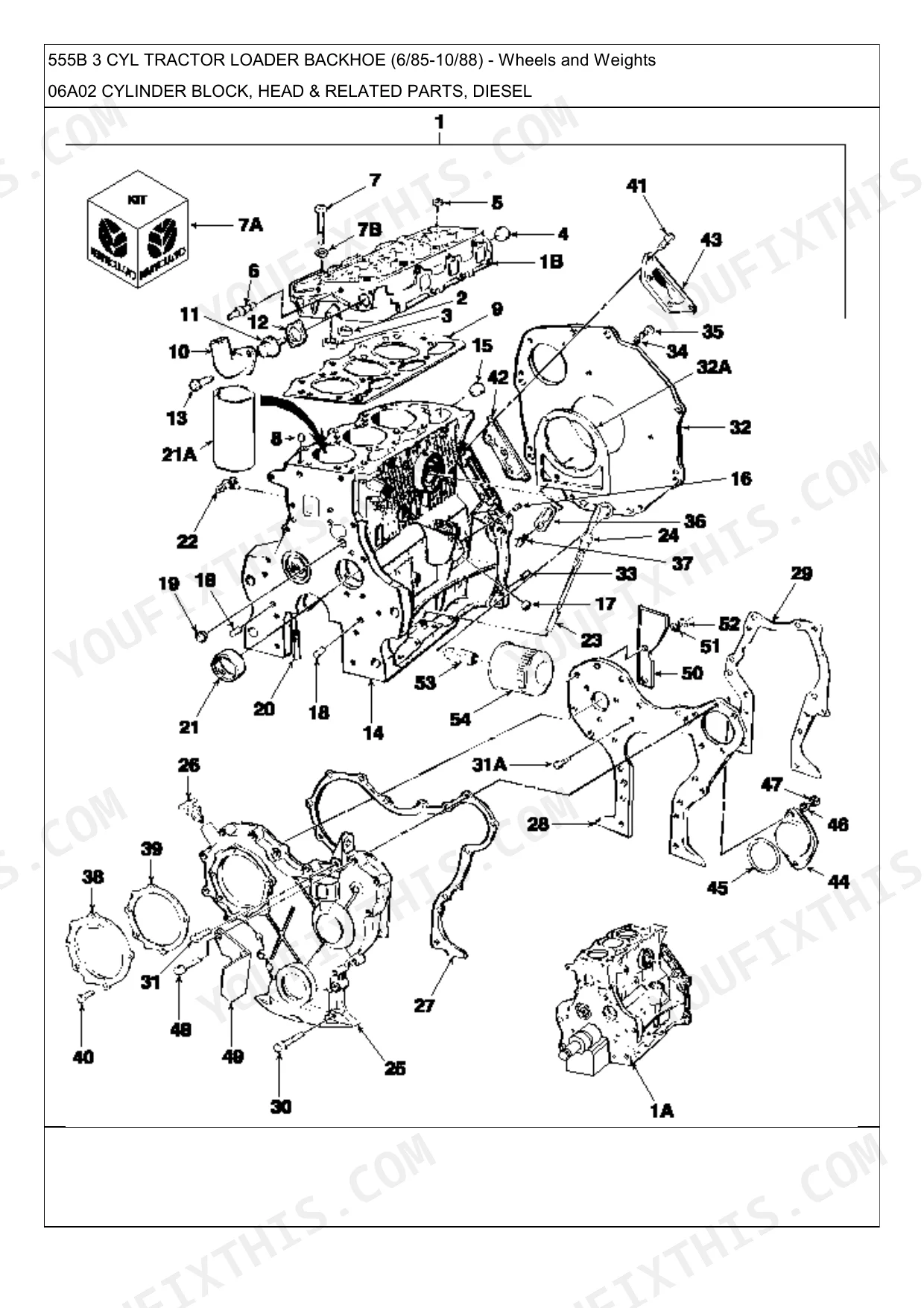

The cylinder head bolts for the 555B diesel engine are part number E1NN6065AA (1/2"-13 x 4-3/4") or 87802206 (9/16"-12 x 5-1/32"). The manual does not provide a specific torque value for these bolts. p. 124
What is the pressure setting for the hydraulic pump valve on a 555B?
The hydraulic pump valve assembly (part number D2NN3B604B) is set to a pressure of 1600 PSI. p. 33
What is the correct replacement filter for the engine oil on a 555B?
The replacement engine oil filter for the 555B is part number 86546614. For European models, the part number is 87800068. p. 126
What format is this Ford 555B manual in?
Instant PDF download. You get the full 525-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this Ford 555B manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
