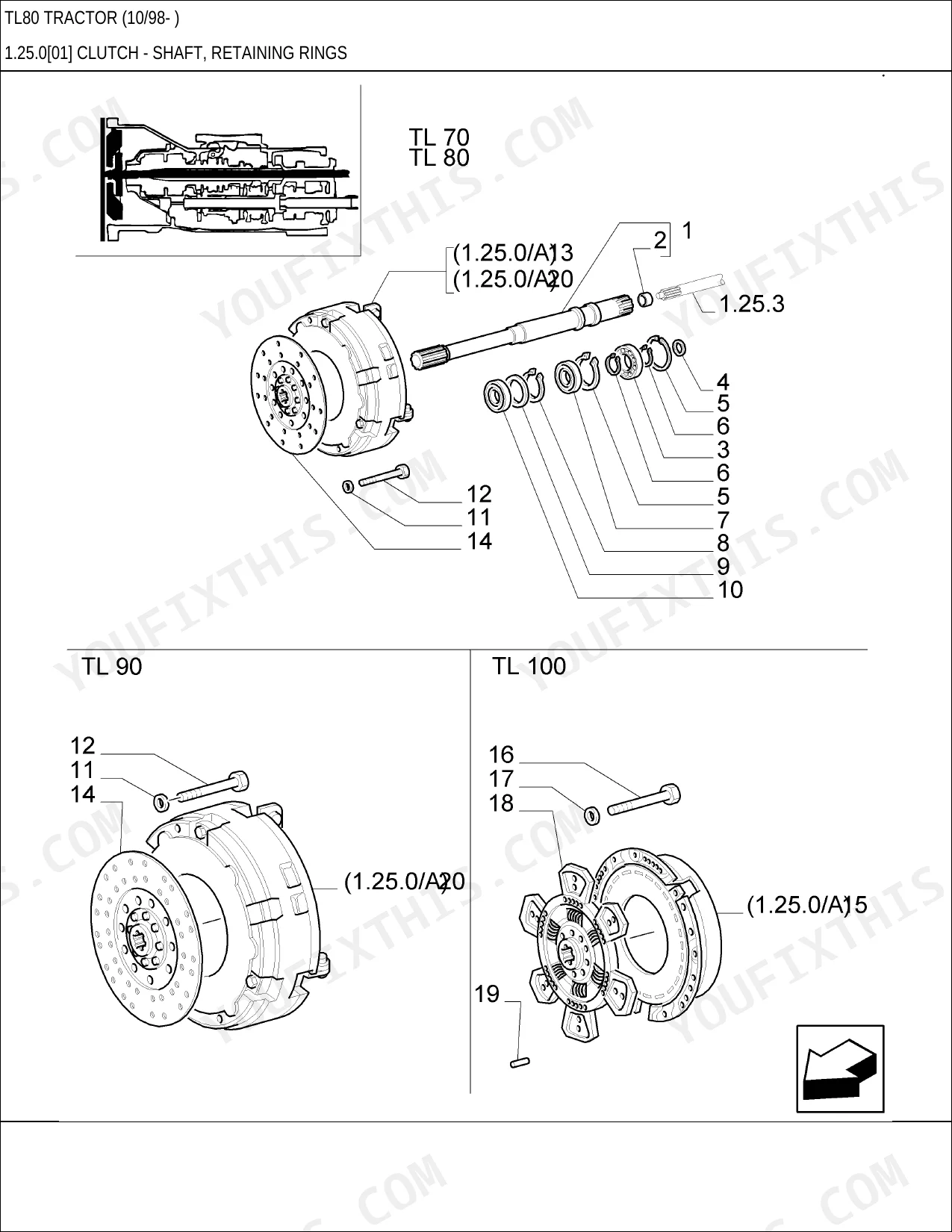

This is the factory illustrated parts catalogue for the New Holland TL80, 2319 pages of it. Every assembly on the machine is drawn exploded, each part on the drawing carries a reference number, and the facing page lists that reference against its New Holland part number, the quantity fitted and the description. That is what you order from.The TL80 was built in many configurations, so most of the 11 main sections carry variant figures alongside the standard ones: cab and platform versions, 2WD and 4WD front ends, the transmission options, market-specific lighting and decals. The catalogue draws each variant separately and labels it with its variant code, so you match the drawing to the machine in front of you rather than guessing.The book also carries 9 complete loader catalogues behind the tractor: 32LA Farm Loader, 33LA Farm Loader, 46LB Ag Loader, 52LA Farm Loader, 7210-Series Quick Attach Farm Loaders, 7310 Quick Attach Farm Loader, 7312 Quick Attach Farm Loader, 7314 Quick Attach Farm Loader and 7511 Farm Loader. If your TL80 came with a loader, its parts are here too.It is a parts book, not a repair manual. There are no torque figures, no clearances and no wiring schematics in it. What it does, it does exactly: it tells you which part number fits your machine, and what else comes apart to reach it.
What's Inside This New Holland TL80 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

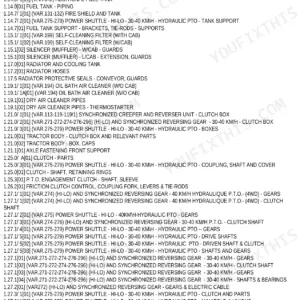

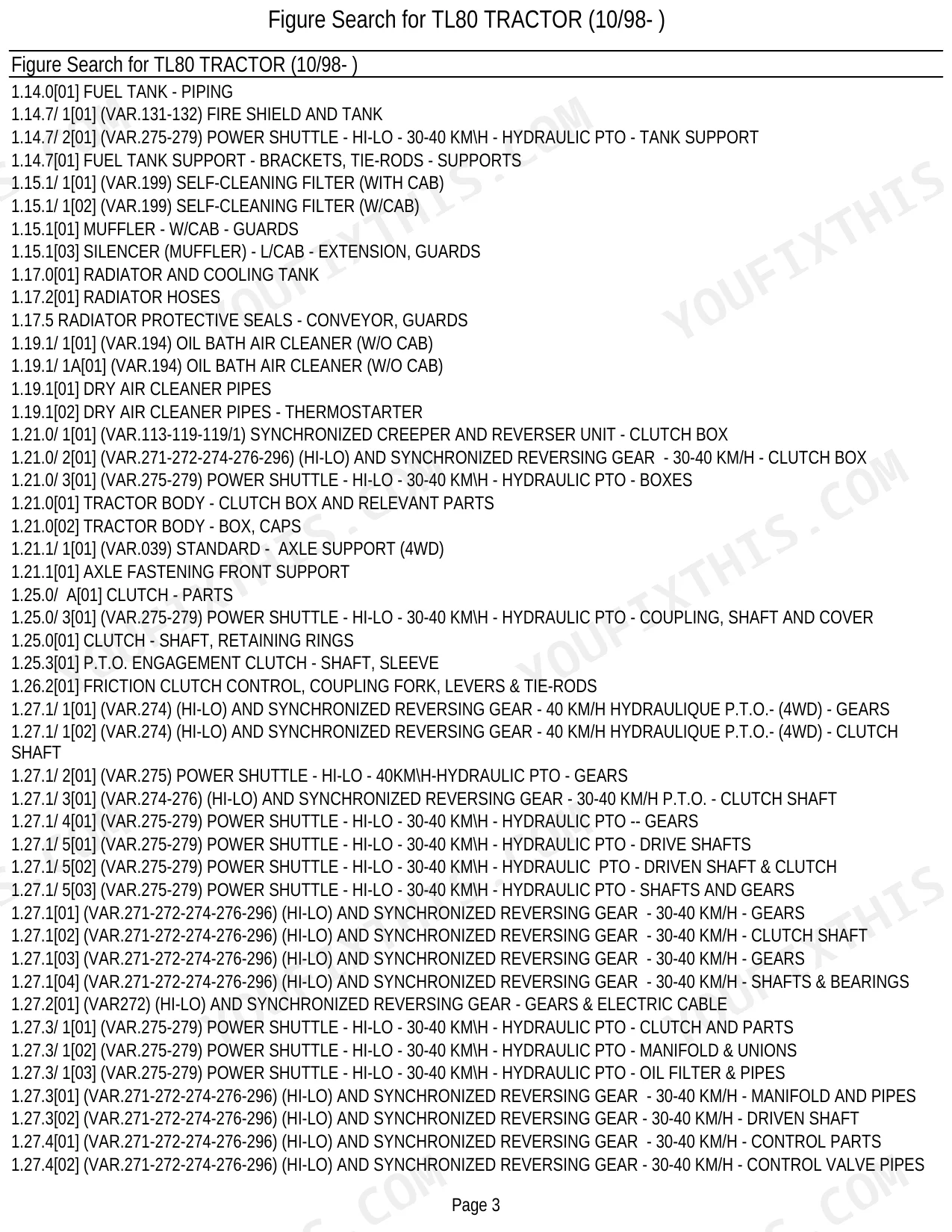

| Master Figure Index | 1-25 | Alphanumeric Figure Index, Figure Code Lookup, Section Map |
| Section Overview Drawings | 26-59 | Exploded Section Overview Drawings, Figure Code Callouts per Section |
| Engine | 60-97, 104-163, 170-205 | Motors Conform to Emission Rules, Standard - Emissionized Engine, Emissionized Engine, Emissionized Engine - Power Shuttle Version, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Motors and Flywheel, Synchro Mesh Geared Power Take -Off 540 RPM - Clutch and P.T.O. Shafts, Synchro Mesh Geared Power Take -Off 540 - 750 - 1000 RPM - Shaft Clutch and P.T.O., Crankcase and Cylinders, Oil Sump, Engine Covers & Gaskets, Emissionized Engine - Cylinder Head and Rotating Weights |
| Electrical | 98-103, 704-713, 1367-1387 | Low Temperature Starting Aids, Intake Manifold, Exhaust Manifold, Battery Mounting - Battery, Battery Fastening, Standard - Battery Fastening, Version for Oversized Battery - Supports - Box and Ladder, Chock, Escape Hatch - Scandinavia (with Cab) - Number Plate Support, Standard - Retroreflector Support, Retroreflector Support, Drive Wheel Rim (2WD) |
| Engine Equipment | 164-169, 206-241 | Fuel Filter, Fuel Filter - Fuel Pump, Fuel Lines, Throttle Control Linkage - (Without Cab) - Lever / Pedal / Cable, Throttle Control Linkage - (Without Cab) - Flexible Cable / Lever, Throttle Control Linkage - (Without Cab) - Lever Supports / Lever, Fuel Tank - Piping, Fire Shield and Tank, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Tank Support, Fuel Tank Support - Brackets / Tie-Rods - Supports, Self-Cleaning Filter (with Cab) |
| Transmission | 242-265, 316-399 | Synchronized Creeper and Reverser Unit - Clutch Box, (Hi-Lo) and Synchronized Reversing Gear - 30-40 km/h - Clutch Box, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Boxes, Tractor Body - Clutch Box and Relevant Parts, Tractor Body - Box / Caps, Standard - Axle Support (4WD), Axle Fastening Front Support, Clutch - Parts, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Coupling / Shaft and Cover, Clutch - Shaft / Retaining Rings, P.T.O. Engagement Clutch - Shaft / Sleeve, Friction Clutch Control / Coupling Fork / Levers & Tie-Rods |
| Optional and Variant Equipment (1.2x) | 266-315 | (Hi-Lo) and Synchronized Reversing Gear - 40 km/h Hydraulique P.T.O.- (4WD) - Gears, (Hi-Lo) and Synchronized Reversing Gear - 40 km/h Hydraulique P.T.O.- (4WD) - Clutch Shaft, Power Shuttle - Hi-Lo - 40km/h-Hydraulic PTO - Gears, (Hi-Lo) and Synchronized Reversing Gear - 30-40 km/h P.T.O. - Clutch Shaft, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO -- Gears, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Drive Shafts, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Driven Shaft & Clutch, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Shafts and Gears, (Hi-Lo) and Synchronized Reversing Gear - 30-40 km/h - Gears, (Hi-Lo) and Synchronized Reversing Gear - 30-40 km/h - Clutch Shaft, (Hi-Lo) and Synchronized Reversing Gear - 30-40 km/h - Shafts & Bearings, (Var272) (Hi-Lo) and Synchronized Reversing Gear - Gears & Electric Cable |
| Front Axle | 400-631 | Idler Case & Covers - 4WD, Idler Gears - 4WD - Gears, Idler Gears - 4WD - PTO Shaft, Power Takeoff - Solenoid Valves & Support, (Hi-Lo) and Synchron. Reversing Gear - 30-40 km/h - Control Valve, (Hi-Lo) and Synchronized Revers. Gear - 40 km/h Hydraulic P.T.O.- (4WD) - Solenoid Valve Supp, (Hi-Lo) and Synchron. Reversing Gear - 30-40 km/h P.T.O. - Solenoid Valve Supp, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Pipes & Valve Support, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Valve Support, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Front Differential Lock Pipes, (Hi-Lo) and Synchronized Revers. Gear - 30 km/h with Differ. HydraulicLocki - Solenoid Valve, Front Axle Cl. 2 Hydraulic Locking 30-40 km/h Hydraulic Rear Drive - Pipes |
| Sheet Metal | 632-645, 1037-1052 | Electrohydraulic Front Diffential Lock / Brakes and Mudguards, Front Axle Cl. 2/Brake / Front Mudgard Hydraulic Differential Lock. Hydraulic Transm. - Mudguard, Front Mudguards- 4WD - Supports - Arms, Front Mudguards - 2WD, Front Fenders - 2WD, Electrohydraulic Front Diffential Lock 40 km/h / Brakes and Mudguards - Mudguards, Front Support and Ballast, Hoods - Parts, Hoods - Lock and Supports, Instrumental Panel (Without Cab), Platform & Rear Fenders (Mudguards) - (Without Cab), Ladder (Without Cab) |
| Traction | 646-669 | Box - Side Reduction Gear Spacers, Front Axle Cl. 2 Hydraulic Locking 30-40 km/h Hydraulic Rear Drive - Gear Box, Front Axle Cl. 2 Hydraulic Locking 30-40 km/h Hydraulic Rear Drive - Wheel Axle, Front Axle Cl. 2/Brake / Front Mudgard Hydraulic Differential Lock. / Hydraulic Transm, Front Axle Cl. 2/Brake / Front Mudgard Hydraulic Differential Lock. Hydraulic Transm. - Adjusting Shims, Version for Japan - FWD Shaft - Side Reduction Gear Box / Shaft, Paddy Field Version - Side Reduction Gear Box / Shaft, Stiffened Side Reduction Units - Reduction Gear Half Shaft, Stiffened Side Reduction Units - Box and Fork, Final Drive / Gears and Shafts, Rear Ballast |
| Rear Axle | 670-703 | Transmission Brake - Parts, Parking Brake - 4WD, Parking Brake - 2WD, Handbrake Control, Brake Piping, Brake Pipes, (Hi-Lo) and Synchr. Rev. Gear - 30 km/h with Differential HydraulicLocking - Brake Pipes, Electrohydraulic Front Diffential Lock 40 km/h / Brakes and Mudguards - Brake Pipes, Electrohydraulic Front Diffential Lock / Brakes and Mudguards - Brake Pipes, Front Axle Cl. 2/Brake / Front Mudgard Hydraulic Differential Lock. Hydraulic Transm. - Brackets / Pipes, Front Axle Cl. 2/Brake / Front Mudgard Hydraulic Differential Lock. Hydraulic Transm. - Valve / Pipes, Synchro Mesh Geared Power Take -Off 540 RPM - Brakes Pipes |
| Driver's Compartment | 714-758, 831-1036, 1139-1366 | Electric Parts, Synchro Mesh Geared Power Take -Off 540 RPM - Electric Components, Synchro Mesh Geared Power Take -Off 540 - 750 - 1000 RPM - Electric Parts, Digital Instrument Cluster (with Cab) - Electric Cables - Sensors, Digital Unit for Hydraulic P.T.O. (Power-Shuttle), PTO Electric Controls - Light Switch, Rear Electric Parts, Standard - Electric System Controls, Radar, Outlet / Control Panel and Steering Column Cover, Horn & Auxiliary Power Sockets, Battery Cables |

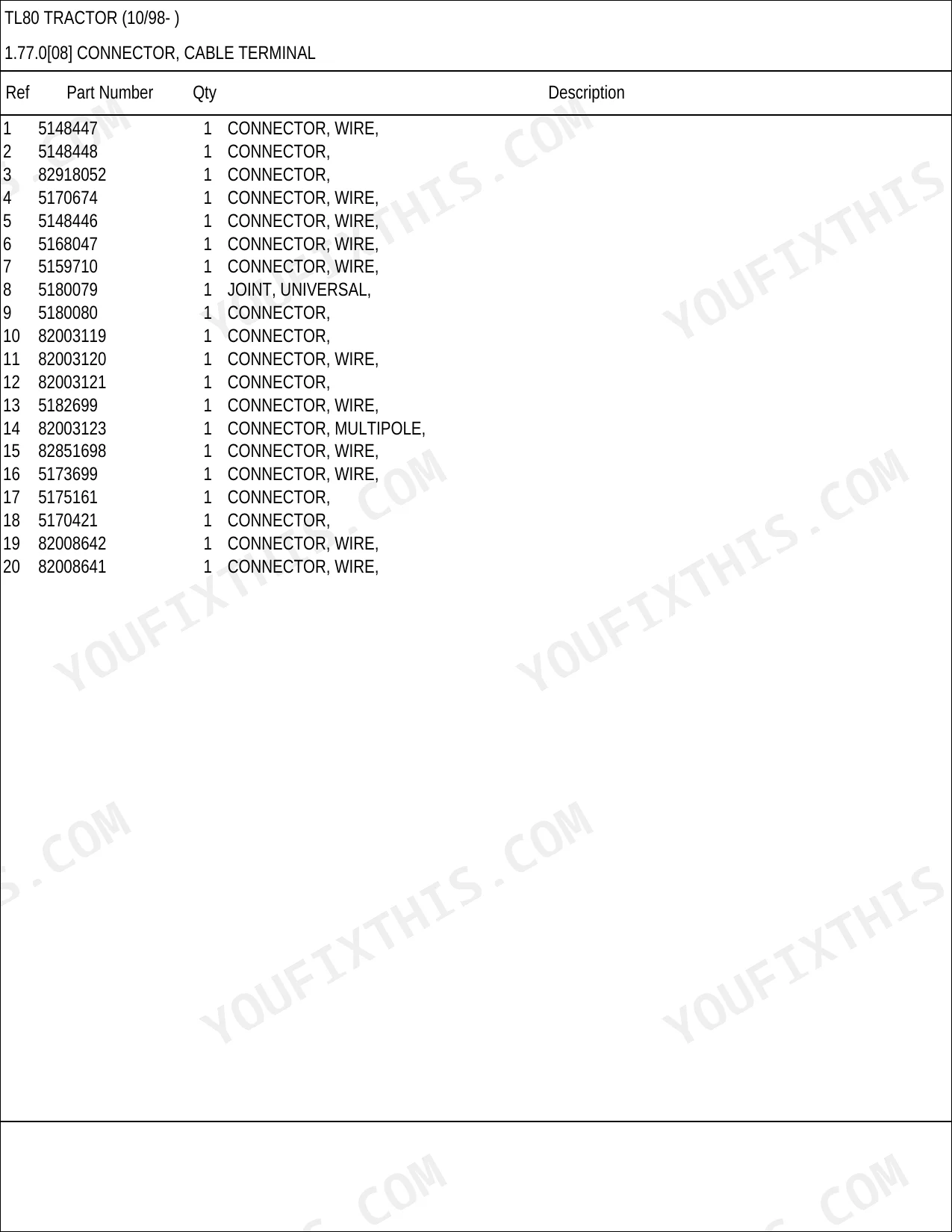

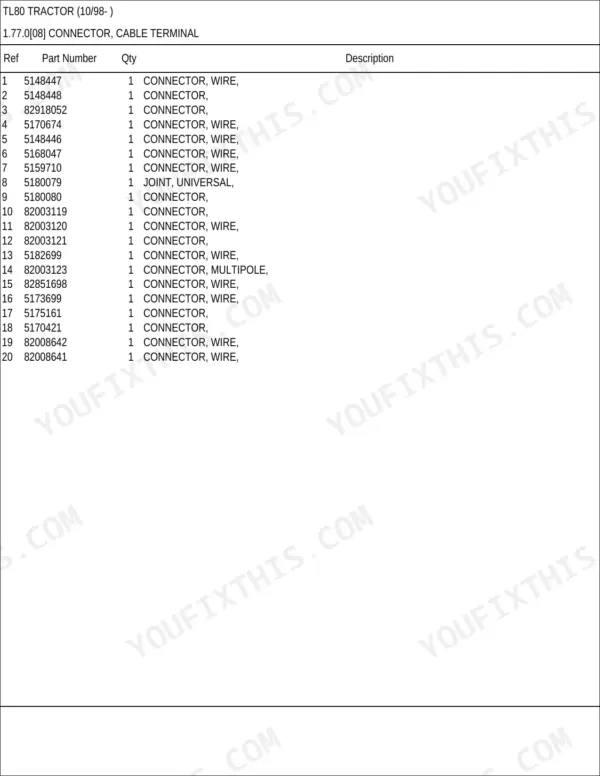

| Optional and Variant Equipment (1.7x) | 759-778 | Connector / Cable Terminal |
| Hydraulics | 779-830 | Power Takeoff - Cover & Guard, Power Takeoff / Shafts and Gears, Standard - P.T.O. Shaft Connecting Sleeve, Power Shuttle - Hi-Lo - 30-40 km/h - Hydraulic PTO - Manifold & Unions, Synchro Mesh Geared Power Take -Off 540 RPM - Box and Cover, Synchro Mesh Geared Power Take -Off 540 RPM - Shafts, Synchro Mesh Geared Power Take-Off 540 RPM - 1000 RPM (Naso) - Shafts and Gears, Synchro Mesh Geared Power Take -Off 540 RPM - 1000 RPM (Naso) - Rod and Fork, Synchro Mesh Geared Power Take -Off 540 - 750 - 1000 RPM - Box and Cover, Synchro Mesh Geared Power Take -Off 540- 750 - 1000 RPM - Gear Shafts, PTO with 6 and 21 Grooves, PTO Guard |
| Linkage | 1053-1138 | Drawbar and Support / with Possibility to Mount Town Hook / Cat. C, Tow Hook and Support - Category C, Pull Hook, Hook for Semi-Trailer, Support for Trailer Brake Control Lever, Tow Hook and Support (Sauermann), Sway-Bar, Support and Drawbar Category "C" Tow Hook, Drawbar for Sliding Support, Sway-Bar (Europe) - Parts, Swinging Tow Bar Without Guard - Parts, Drawbar for Italy - Components |
| La Farm Loader | 1388, 1389-1410, 1411-1443 | Cylinder / Bucket / Sml50339 ( Ne ) 2.50 / 8/2002, Upgrade Kit - 86583641 (Quick Attach) 8/2002, Upgrade Kit - 86583641 (Pin on) 8/2002, Valve / Diverter |
| La Farm Loader | 1444, 1445-1458, 1459-1501 | Plumbing Kit - 86582434, Hydraulics / Msl - 716604046, Cylinder / Bucket / Sml50339 ( Ne ) 2.50 / 8/2002, Upgrade Kit - 86583641 (Quick Attach) 8/2002, Upgrade Kit - 86583641 (Pin on) 8/2002, Third Function Solenoid Kit - 716805006, Valve / Diverter |
| Lb Ag Loader | 1502, 1503-1545 | |
| La Farm Loader | 1546, 1547-1604 | Grapple Fork Assembly., Grapple Fork Tubes, Spill Guard Assembly., Third Function Solenoid Kit - 716805006, Valve / Diverter |
| 7210-Series Quick Attach Farm Loaders | 1605-1606, 1607-1612, 1613-1770 | Walvoil Valve, Mounting Kit / 86562457 for Ts90, Ts100 & Ts110 with - or L/Cab / Series 7210, Walvoil Valve Breakdown, Valve & Plumbing Kit, Quick Attach Device for Skid Steer Compatible Attachment - 716653016 |
| 7310 Quick Attach Farm Loader | 1771, 1772-1775, 1776-1865 | Loader Plumbing Kit - 715743036 for Tn Series with Rear Remotes, Hose Kit - 715841006 for Model Tnd Tractors with Cab & Mid Mount Valve, Hose Kit- 715814006 for Tl & 35 Series with Mid-Mounted Remote Valves, Hose Kit - 9863745 for Tl & 35 Series with Rear Remote Valves, Mounting Kit - 716330001 / 716373006 & 716373016 for 35 Series / Tl90 / Tl100 Tractors, Mount Kit / 715795006 & 715795016 for Tn & Tnd Tractors, Valve Assembly, Walvoil Valve, Walvoil Valve Breakdown, Single Lever Control Valve / L/Cab-9862811, Valve & Plumbing Kit-9862811, Valve & Plumbing Kit |
| 7312 Quick Attach Farm Loader | 1866-1867, 1868-1918, 1919-2036 | Joystick Control Assembly - Sml40635, Mountiing Kit - 715792006 / 7312 on Ts Tractors with 4WD, 7312 Bucket Cylinder / 49588 (Mx) Rollback Improvement |
| 7314 Quick Attach Farm Loader | 2037-2038, 2039-2090, 2091-2185 | Joystick Control Assembly - Sml40635 |
| 7511 Farm Loader | 2186-2187, 2188-2319 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TL80 catalogue | ||
| Total pages | 2319 | |
| TL80 | ||
| Main sections | 11 (Engine through Linkage) | |
| Production coverage | 1998-2004 | |
| TL80 loader-equipped | ||
| Loader catalogs included | 32LA Farm Loader, 33LA Farm Loader, 46LB Ag Loader, 52LA Farm Loader, 7210-Series Quick Attach Farm Loaders, 7310 Quick Attach Farm Loader, 7312 Quick Attach Farm Loader, 7314 Quick Attach Farm Loader, 7511 Farm Loader | |
| All figures | ||

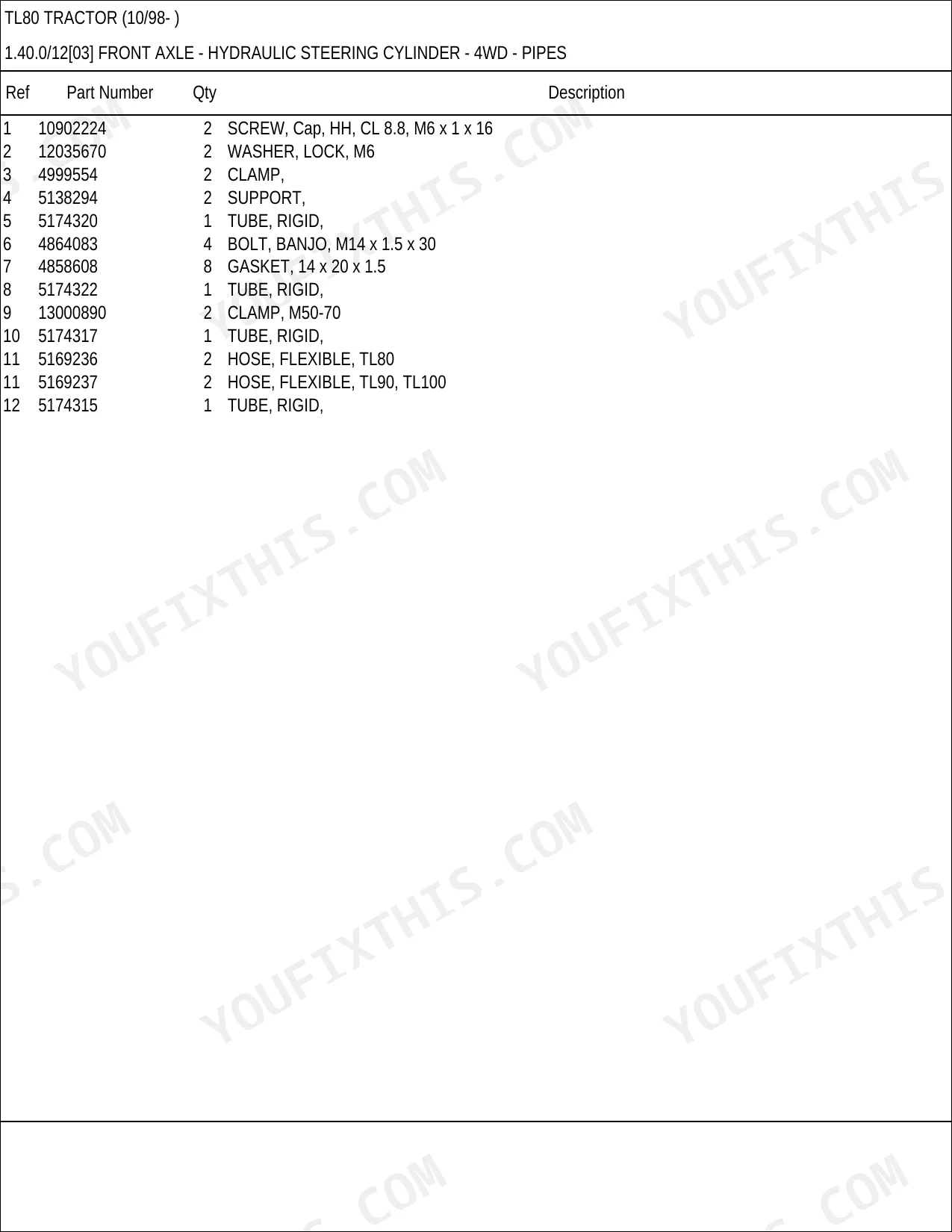

| Part numbers | Yes, Ref / Part Number / Qty / Description table facing every figure | |
| Whole document | ||
| Searchable text | Yes | |
| Torque specs | None, this is a parts catalog and not a repair manual | |
New Holland TL80 Common Problems This Manual Covers
Tractor has no hydraulics after filter change
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The hydraulics section gives you the pump, the lifter housing and covers and the power take-off drive that turns the pump, each with part numbers. On a TL80 the parts most often replaced here are Hydraulic filter, Fuel water filter. The standard and high-flow machines take different pumps and valve bodies, so match the figure before ordering.
Manual Section: Hydraulics (pp. 779-830)Fuel line cracking under load
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The engine section gives you the cylinder block, the sump, the head and the rotating parts, with the emissionized and standard engines drawn separately. On a TL80 the parts most often replaced here are Hydraulic filter, Fuel water filter. The emissionized engine is drawn apart from the standard one; the block looks the same and the parts are not.
Manual Section: Engine (pp. 60-97, 104-163, 170-205)No starting or intermittent starting
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The electrical section gives you the battery mounting, the harness runs, the fuse box and every connector body with its part number, which is what you order rather than splice. On a TL80 the parts most often replaced here are Hydraulic filter, Fuel water filter. Order against the figure that matches your machine's lighting and starting-aid variant, since those change the connector and the solenoid.
Manual Section: Electrical (pp. 98-103, 704-713, 1367-1387)Optional equipment appears to be missing from the catalog
It is not missing, it is drawn separately. Creepers, front lifts, extra remote valves, cab suspension and market-specific kit are printed in the variant bands behind the main sections rather than inside them, each figure labelled with its variant code. Find the code that matches your machine's build and work from that drawing. This is the single most common reason a TL80 owner concludes the catalog is incomplete.
Manual Section: Optional and Variant Equipment (1.2x) (pp. 266-315)Frequently Asked Questions
Does this catalog include torque specs or wiring diagrams?
No. This is the factory parts catalog: exploded drawings and part numbers. It contains no wiring schematics and no torque figures; those live in the TL80 repair manual, which is a separate book. If you need to know which bolt to order, this is the right document. If you need to know how tight to do it up, it is not.
Which loaders are covered?
9 loader catalogs sit behind the tractor sections: 32LA Farm Loader, 33LA Farm Loader, 46LB Ag Loader, 52LA Farm Loader, 7210-Series Quick Attach Farm Loaders, 7310 Quick Attach Farm Loader, 7312 Quick Attach Farm Loader, 7314 Quick Attach Farm Loader, 7511 Farm Loader. Each is a complete parts book with its own figure index, so a loader-equipped TL80 is covered end to end.
Can I search it by part number?
Yes. The PDF has a real text layer, so a part number typed into your reader's search box finds every figure that uses it. The master figure index at the front lists every figure by code and name, which is the faster route when you know the assembly but not the number.
Will it cover my serial number?
The book is the 1998-2004 edition of the TL80 catalog and it handles build differences with variant figures rather than serial breaks. Where two parts were fitted across the run, both figures are printed and each carries its variant code, so you match the drawing to your machine.
Why is a parts catalog 2319 pages?
Because the TL80 was sold in many configurations and the catalog draws each one. Alongside the standard figures you get the transmission options, 2WD and 4WD front ends, cab and platform variants, and market-specific lighting and decals. The 9 loader catalogs at the back add several hundred pages on their own.
How quickly can I access this New Holland TL80 manual after buying?
Immediate download of the complete 2319-page searchable Parts Catalog (33 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Is this New Holland TL80 Parts Catalog printable?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
