Hunting a Ford 445C parts catalog PDF that shows the whole machine, not just one model? All 354 pages of this factory parts catalog cover the 1988-1992 Ford Tractor Loaders 345C, 345D, 445C, 445D, 545C, and 545D in one book. You get exploded views with factory part numbers for every assembly: rear axle and differential, transmission gears and PTO, power steering motor, hydraulic lift cover, loader subframe, bucket cylinders, right down to seat suspension, rollbar kits, and decals. Cross-check components against factory ratings before you order; the hydraulic pump runs 1600 PSI and moves 2.74 U.S. gallons at 1000 RPM, and the thermostat opens at 168 degrees. No more squinting at a worn casting trying to read a number. Bookmarked with a full text layer: type the part name, jump to the diagram, order once.
What's Inside This Ford New Holland 345C–545D Series Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Fuel Sedimenter & Filter Assembly, Non-Emmissionized, Fuel Injector Assembly, Fuel Injection Pump, Dpa Rotary, Upper Half, Lower Half, Air Cleaner Assembly for Non-Emissionized Engine | |
| Cooling System | Radiator & Fan, Water Pump | |

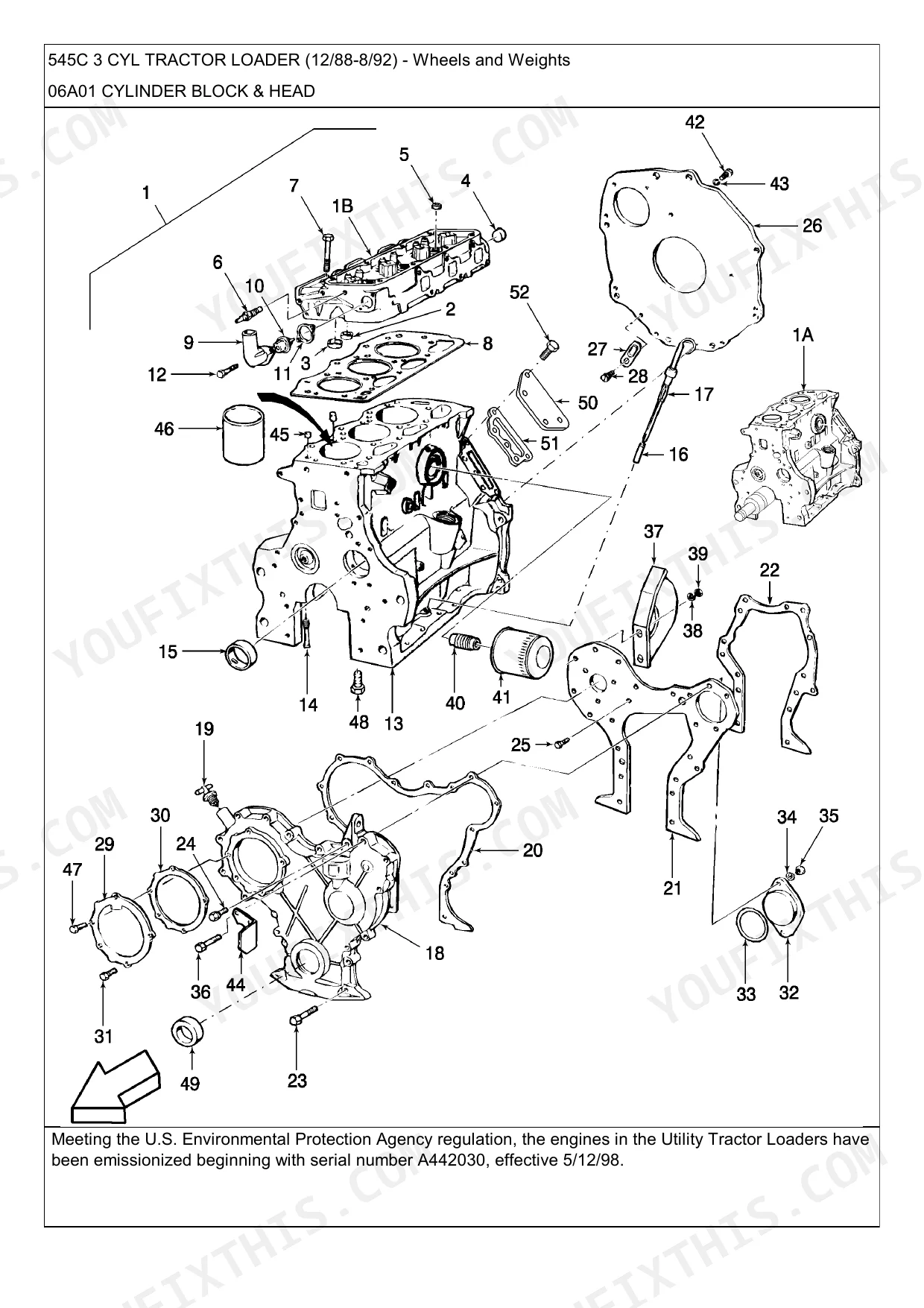

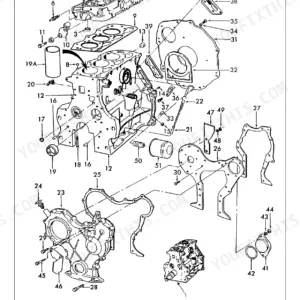

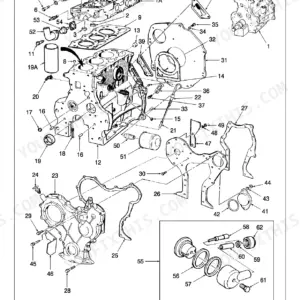

| Engine | Hydraulic Reservoir & Pump Drive, Non-Emissionized Engine, Cylinder Block & Head, Crankshaft & Flywheel, Camshaft, Rocker Arm & Valves, Pistons & Connecting Rods, Oil Pump & Pan, Transmission Oil Cooler, Battery & Support, Engine Hood, Engine Grille, Non-Emissionized Engines, Lubricants - Lubrication Equipment, Engine Coolant Heater Kit, Accessory, Loader Hydraulics, Non-Emmisionized Engines | |
| Electrical System | Switch, Transmission Control Valve Pedal & Rel, Headlamp Assembly, Front Mounted L/Cab - N.a. Only, Flat Top Fender L/Cab - N.a. Only, Rear Lamps L/Cab - N.a. Only, Lamp Assembly, Emergency Warning L/Cab - N.a. Only, Flasher Warning L/Cab - N.a. Only, Implement Lamp Assembly L/Cab - N.a. Only, Implement Lamp, L/Cab, Na Only, Alternator Assembly, Horn Accessory Kit, D.i.a., Stop & Tail Lights, Stop & Tail Lamp, W/four Post ROPS, Lamp Assembly - License Plate | |

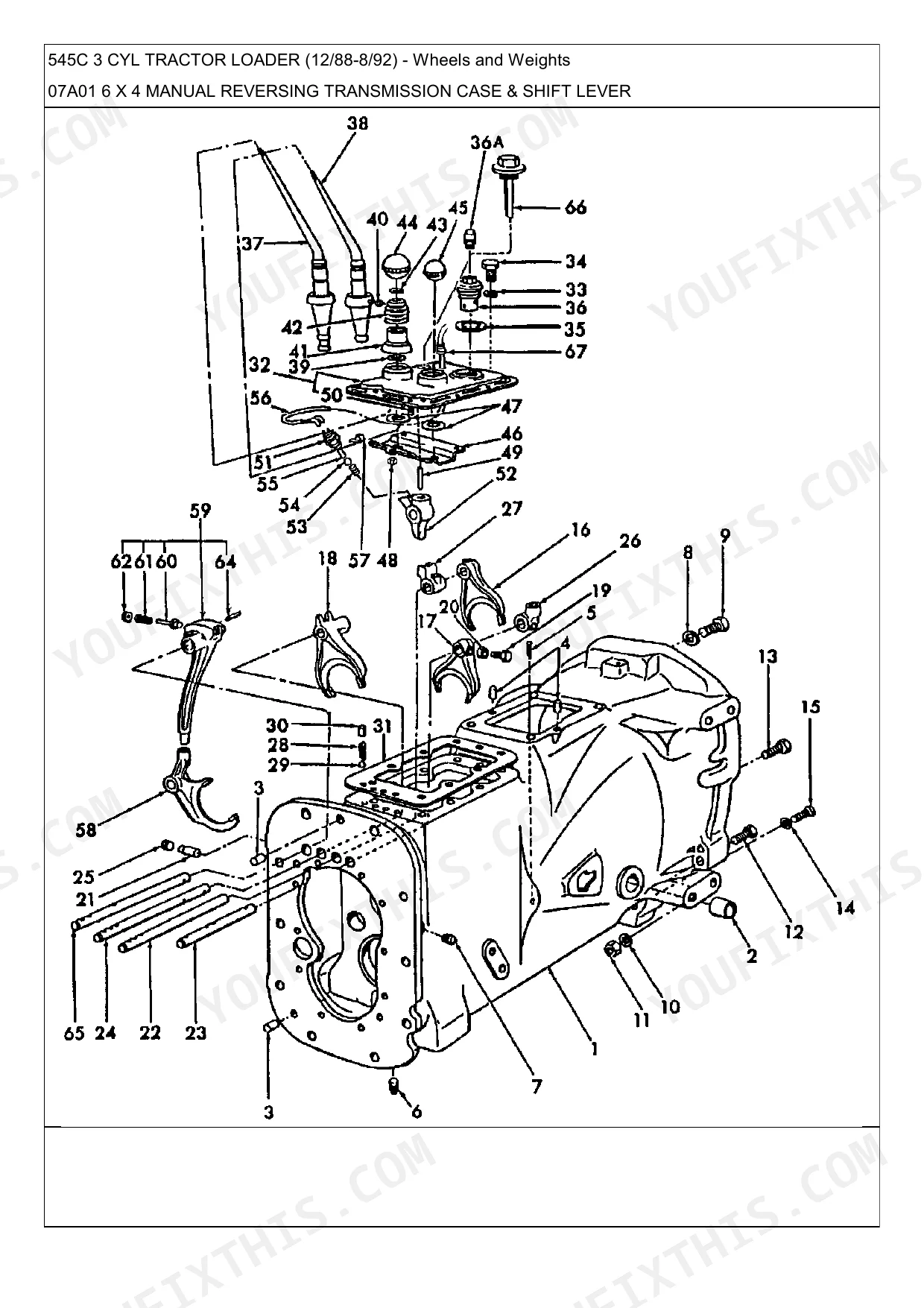

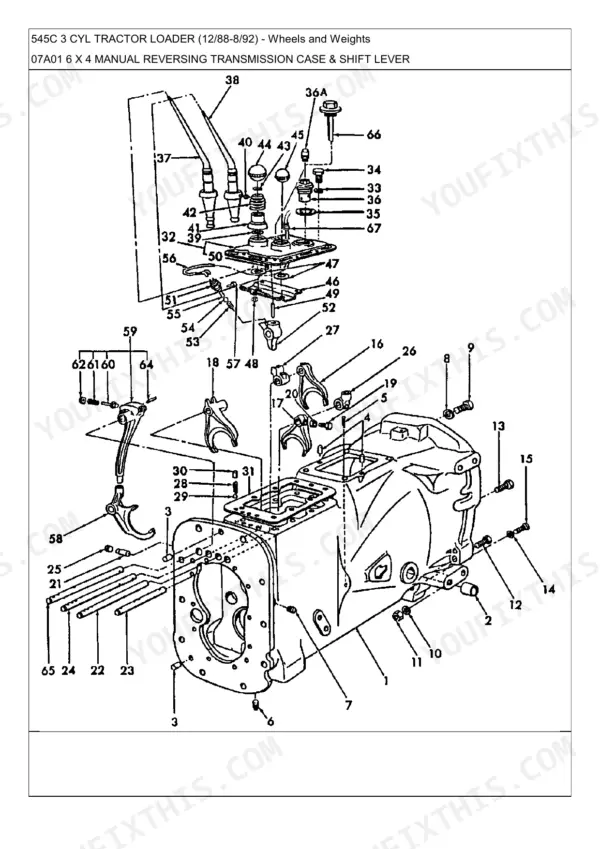

| Clutch & Transmission | Brake Controls - L/8x8 Transmission, Brake Controls - W/8x8 Transmission, Clutch Controls, Single Clutch Assembly, 13", Transmission Valve, Tubes & Fittings, 4 X 4 & 8 X 8, Transmission Case, 4 X 4, Transmission Rear Cover, Transmission Front Cover, Transmission Valve & Housing, Transmission Clutch & Input Shaft, Transmission Countershaft & Gears - 4 X 4, Transmission Output Shaft & Gears, Shift Fork & Rail, 1 & 2, W / 4 X 4, 3 & 4, W/4 X 4, Transmission Shift Lever & Dipstick, 8 X 8 | |
| PTO | Differential Lock & PTO Control, W/Cab, Independent PTO Assembly, FWD Related Parts L/pto, PTO Guard, PTO Shaft & Gears, 8 X 8 | |
| Rear Axle, Differential & Brakes | Standard Rear Wheels, Handbrake Lever W/twin Cable, Rear Axle, Differential, W/4wd, Differential Lock Linkage, Manifold Assembly, Rear Axle Hydraulic | |
| Front Axle & Steering | Front Axle, Steering, 2WD, 4WD, Steering Column & Motor, 12/88-4/98, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly - Trw, Power Steering Cylinder Assembly - "Cascade" | |

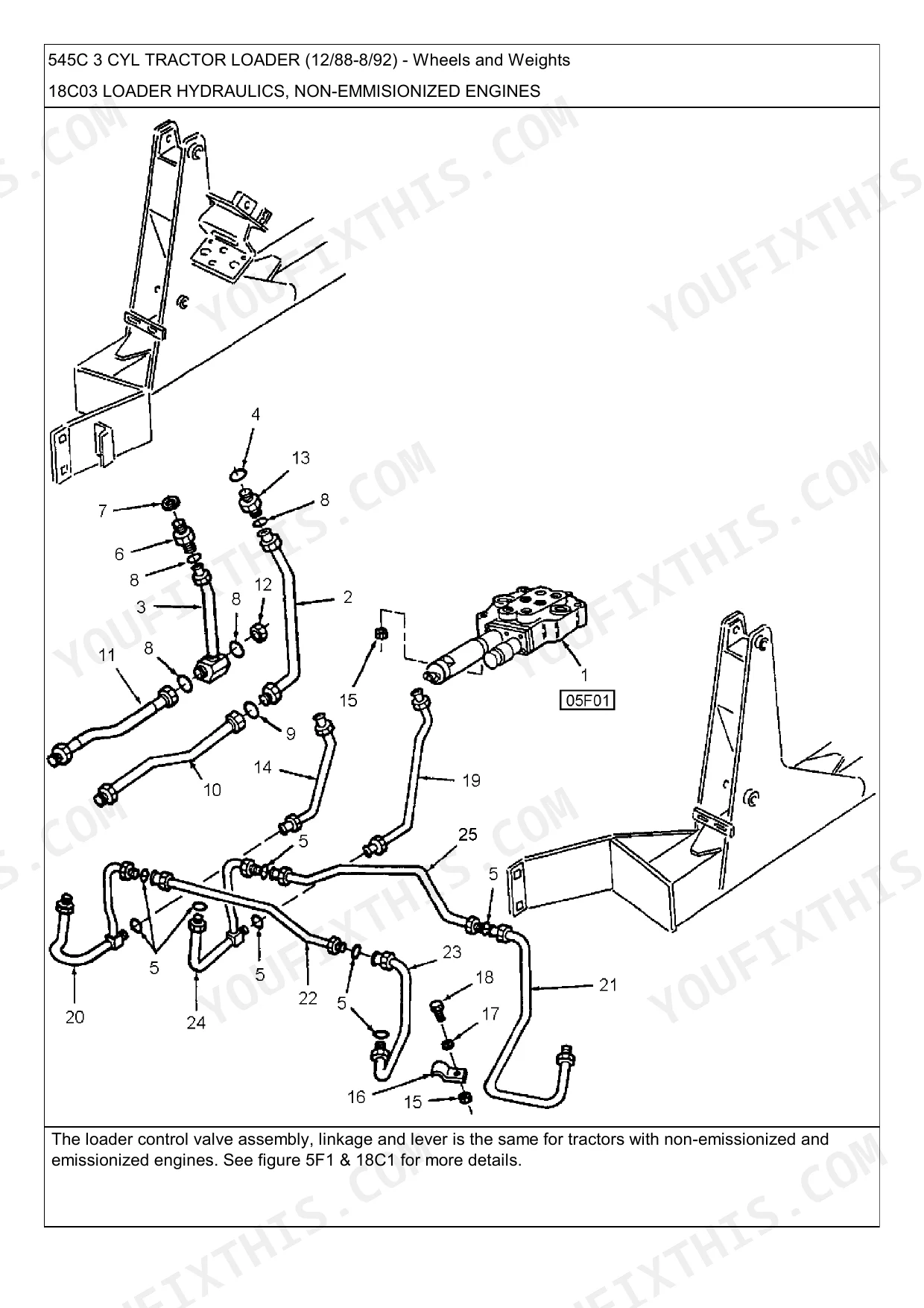

| Hydraulics & 3-Point Hitch | Hydraulic Lift Cover, Hydraulic Lift Shaft & Related Parts, Hydraulic Lift Cylinder, Flow Control Valve Piping, Flow Control Valve, Hydraulic Lift Linkage, Swinging Drawbar Assembly, Valve Assembly, Loader Control, Lift & Draft Control - W/Cab, Hydraulic Lift Control, Remote Controls, W/Cab, Remote Control Valve & Coupler, Coupling Assembly - Remote Control, Unload Valve, Hydraulic Pump Assembly, Gear Type, Mounted in Center Housing | |
| Loader, Backhoe & Attachments | Stabilizer Kit - W/loader, Decals - Loader, Bucket Assemblies | |

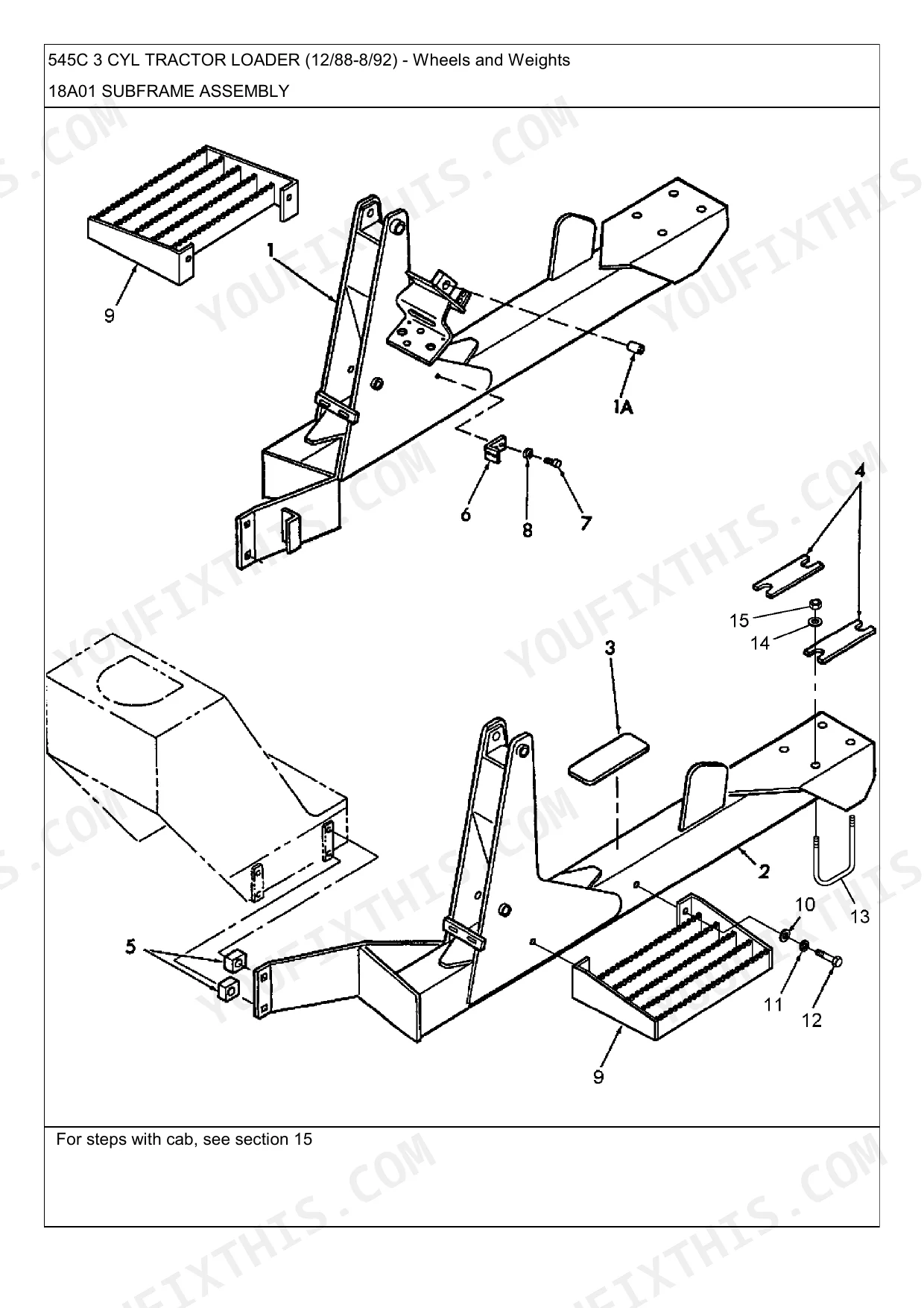

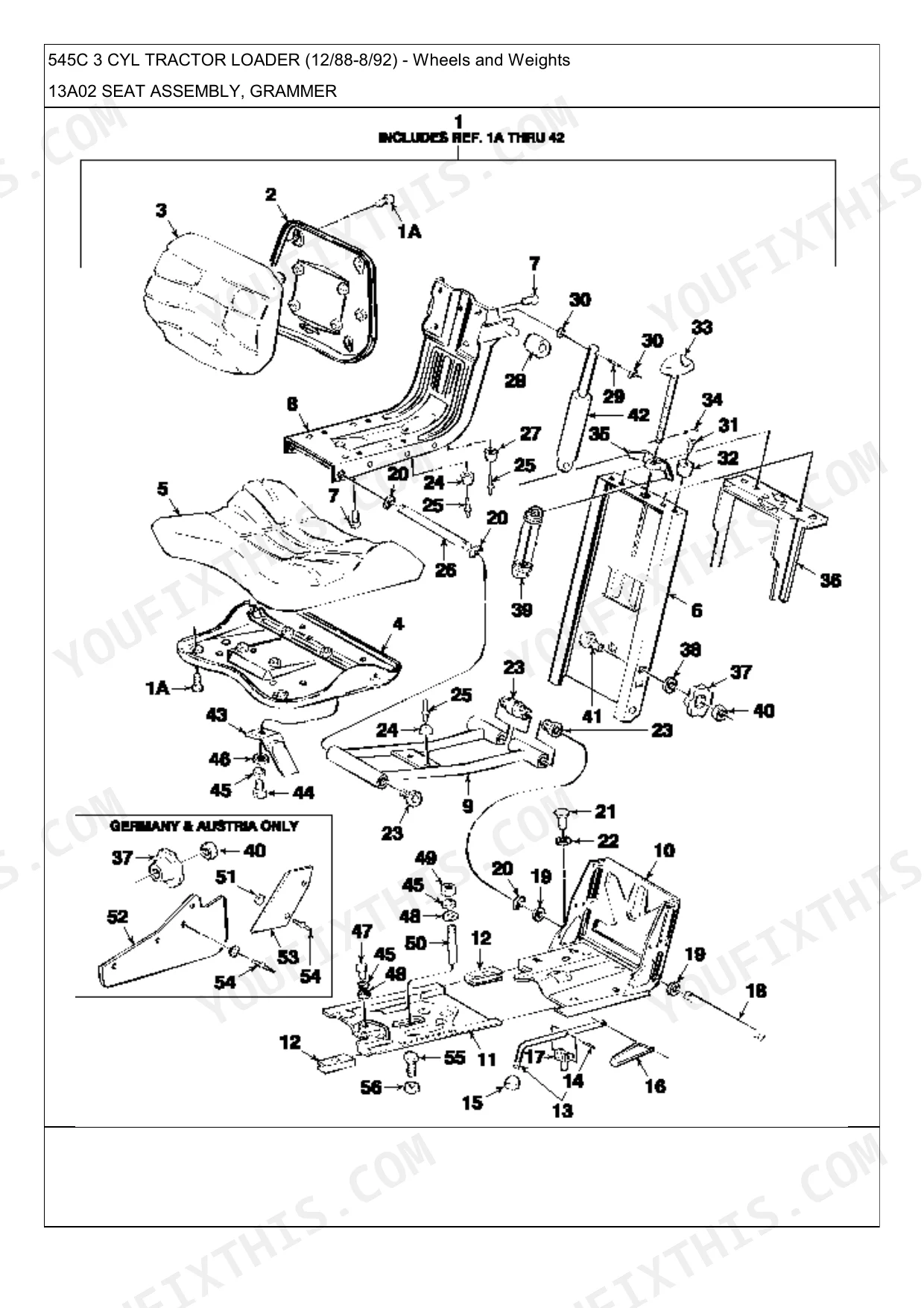

| Body & Operator Station | Throttle Controls, L/Cab, W/Cab, Kit, Turn Signal, Dia, Na Only, Seat Assembly, Michigan Seat, Grammer, Fenders, Mirror Assembly - Rear View - L/Cab - D.i.a., Subframe Assembly | |
| Decals & Accessories | Decals, Identificaton, Instructions, Warning & Caution, Shift Pattern Decals | |
| Other Components | Front End Weights, Center Housing, Box Assembly - Lift Leveling, Plugs - Block, Manifold & Exhaust System, Non-Emissionized, Reverse Idler Shaft & Gear, 4 X 4 & 8 X 8, Water Filter, Diesel Cold Start, Starting Motor Assembly, D.i.a., Back-Up Alarm, Instrument Cluster, Platform, Reflectors, Roof, Rollbar Kits, Safety, Paints |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Pump & Reservoir Assy. Pressure | 1600 PSI | p. 27 |
| Pump & Reservoir Assy. Capacity | 2.74 U.S. Gal. at 1000 RPM | p. 27 |
| Valve Assy. Pressure | 1600 PSI | p. 27 |
| Hydraulic Pump Pressure | 1600 PSI | p. 27 |
| Thermostat Temperature | 168° | p. 121 |
| Alternator Output | 51 Amp | p. 272 |
| Fuel Tank Capacity | 16 Gallon | p. 303 |
Ford New Holland 345C–545D Series Common Problems This Manual Covers
Ford 545C loader lift cylinder seal kit part number lookup, lift arms drop under load
Check the Hydraulic Parts Diagram on page 345 for the lift cylinder exploded view, then cross-check the cylinder, seal, and plunger callouts in the Hydraulic Lift Cover listing on page 68 against your serial number range. Confirm the circuit runs 1600 PSI, shown on page 27, and order seals rated for that pressure.
Manual Section: Hydraulic Lift Cover p. 68Hydraulic pump worn, need correct replacement pump and drive part numbers, loader lift slow and weak
Check the Hydraulic Reservoir and Pump Drive exploded view starting on page 77 for the pump, drive, and filter callouts. Verify the replacement matches the 2.74 U.S. Gal. at 1000 RPM rating listed on page 27 before ordering, and add fresh O-rings for the pressure tube while the parts list is open.
Manual Section: Hydraulic Reservoir and Pump Drive p. 77Need flow control valve spool and manifold part numbers, loader functions erratic and slow
Check the Flow Control Valve section on page 80 for the valve assembly, manifold, and piping exploded views. Match the spool part number to your serial number range, and verify the valve carries the 1600 PSI rating shown on page 27; a sticking spool usually puts the whole valve assembly on the order.
Manual Section: Flow Control Valve p. 80Fuel sedimenter and filter assembly part numbers unclear in parts list, engine starving for fuel
Check the Fuel System parts listing on page 220 for the sedimenter and filter assembly callouts, then trace the line fittings back from the 16 Gallon tank shown on page 303. Match every washer and fitting number in the exploded view; fuel starvation after a filter swap often traces to one wrong sealing washer.
Manual Section: Fuel System p. 220Cannot tell 51 amp from 70 amp alternator parts, battery goes dead overnight
Verify which alternator your machine carries before ordering anything: the 51 Amp unit is listed on page 272 and the 70 Amp unit on page 275, each with different regulator and rectifier part numbers. Match the tag on the alternator body to the exploded view in the Alternator Assembly section starting on page 271.
Manual Section: Alternator Assembly p. 271Frequently Asked Questions
What are the replacement specifications for hydraulic hoses?
The manual specifies various hydraulic hoses for different systems. For example, the boom cylinder hose (part number 86575689) is used on emissionized engines starting 05/12/1998, while E7NNB105AA is used for non-emissionized engines. For detailed routing and connection specifications, refer to the hydraulic tubes and hoses section on page 342. p. 342
What is the torque specification for the cylinder head bolts?
The cylinder head bolts (part number 87802206) are 9/16"-12 x 5 1/32" bolts. There are 10 of these bolts used on the cylinder block and head assembly. p. 121
What is the correct belt size for the radiator fan?
The radiator fan belt (part number 9604339) is 55.26 inches in length. p. 215
What is the oil capacity of the hydraulic reservoir?
The hydraulic pump and reservoir assembly (part number E7NN3K514CA) has a capacity of 2.74 U.S. gallons at 1000 RPM. p. 27
What is the specified pressure for the power steering pump?
The power steering pump and reservoir assembly (part number E7NN3K514CA) is rated for 1600 PSI. p. 27
How quickly can I access this Ford 545C & variants manual after buying?
You get a 354-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this Ford 545C & variants manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
