![New Holland TM135 Parts Manual Illustrated [Tractor]](https://youfixthis.com/wp-content/uploads/2014/01/2014-10-08_20-19-02-300x300.jpg)
Part of the New Holland Parts Manuals.
This is the factory illustrated parts catalogue for the New Holland TM130, 1460 pages of it. Every assembly on the machine is drawn exploded, each part on the drawing carries a reference number, and the facing page lists that reference against its New Holland part number, the quantity fitted and the description. That is what you order from.The TM130 was built in many configurations, so most of the 9 main sections carry variant figures alongside the standard ones: cab and platform versions, 2WD and 4WD front ends, the transmission options, market-specific lighting and decals. The catalogue draws each variant separately and labels it with its variant code, so you match the drawing to the machine in front of you rather than guessing.The book also carries 1 complete loader catalogue behind the tractor: 72LA Farm Loader. If your TM130 came with a loader, its parts are here too.It is a parts book, not a repair manual. There are no torque figures, no clearances and no wiring schematics in it. What it does, it does exactly: it tells you which part number fits your machine, and what else comes apart to reach it.
What's Inside This New Holland TM130 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

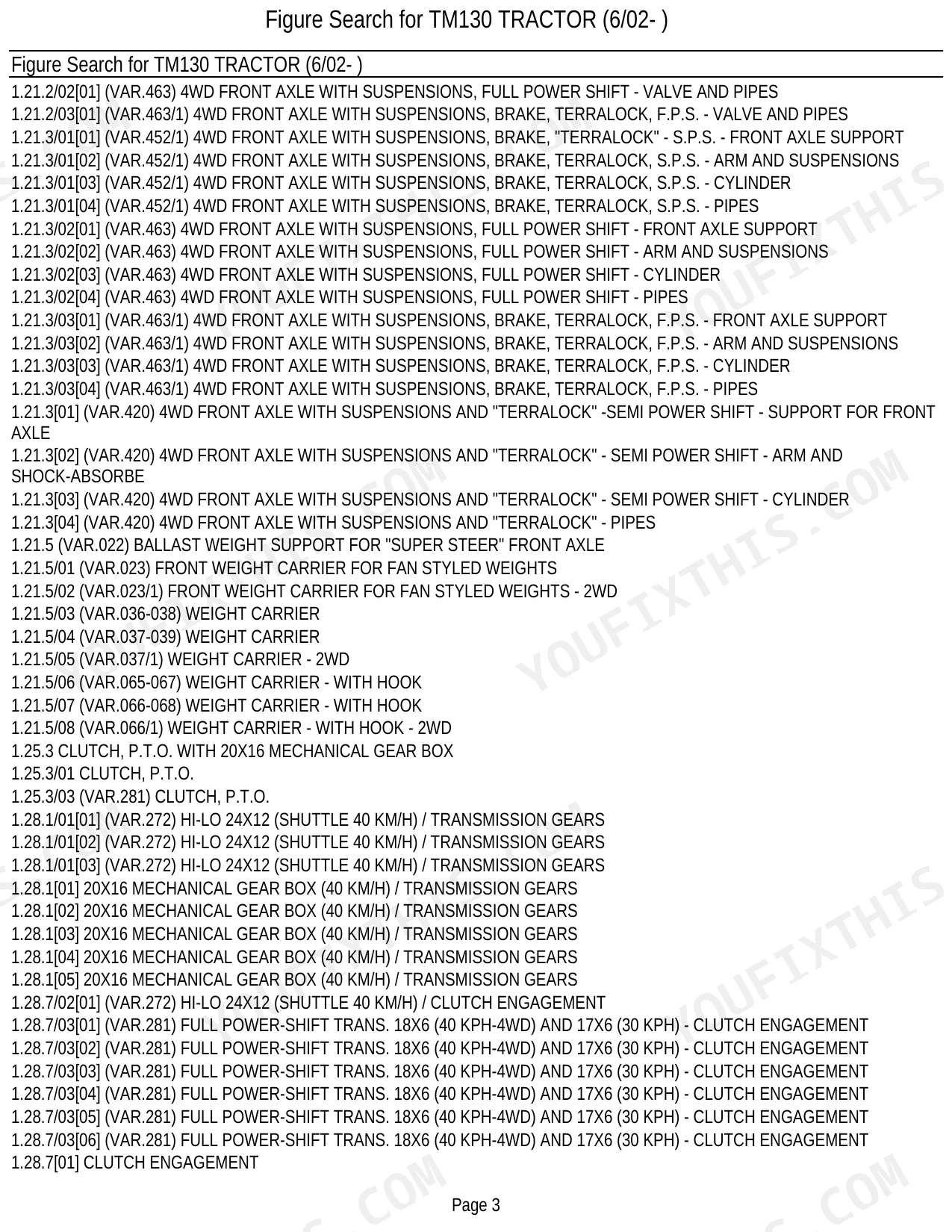

| Master Figure Index | 1-18 | Alphanumeric Figure Index, Figure Code Lookup, Section Map |
| Section Overview Drawings | 19-64 | Exploded Section Overview Drawings, Figure Code Callouts per Section |
| Engine | 65-126 | Cylinder Block & Related Parts, Cylinder Head & Related Parts, Cylinder Head / Rocker Arm / Valves & Related Parts, Crankshaft & Related Parts, Piston & Connecting Rod, Fuel System, Starter Motor - Parts |
| Engine Equipment | 127-166 | Fuel Tank Support, Pipes for Air Conditioning, Aircleaner with Precleaner, Dry Air Filter-Pipes, Heat Exchanger - Air-Air |

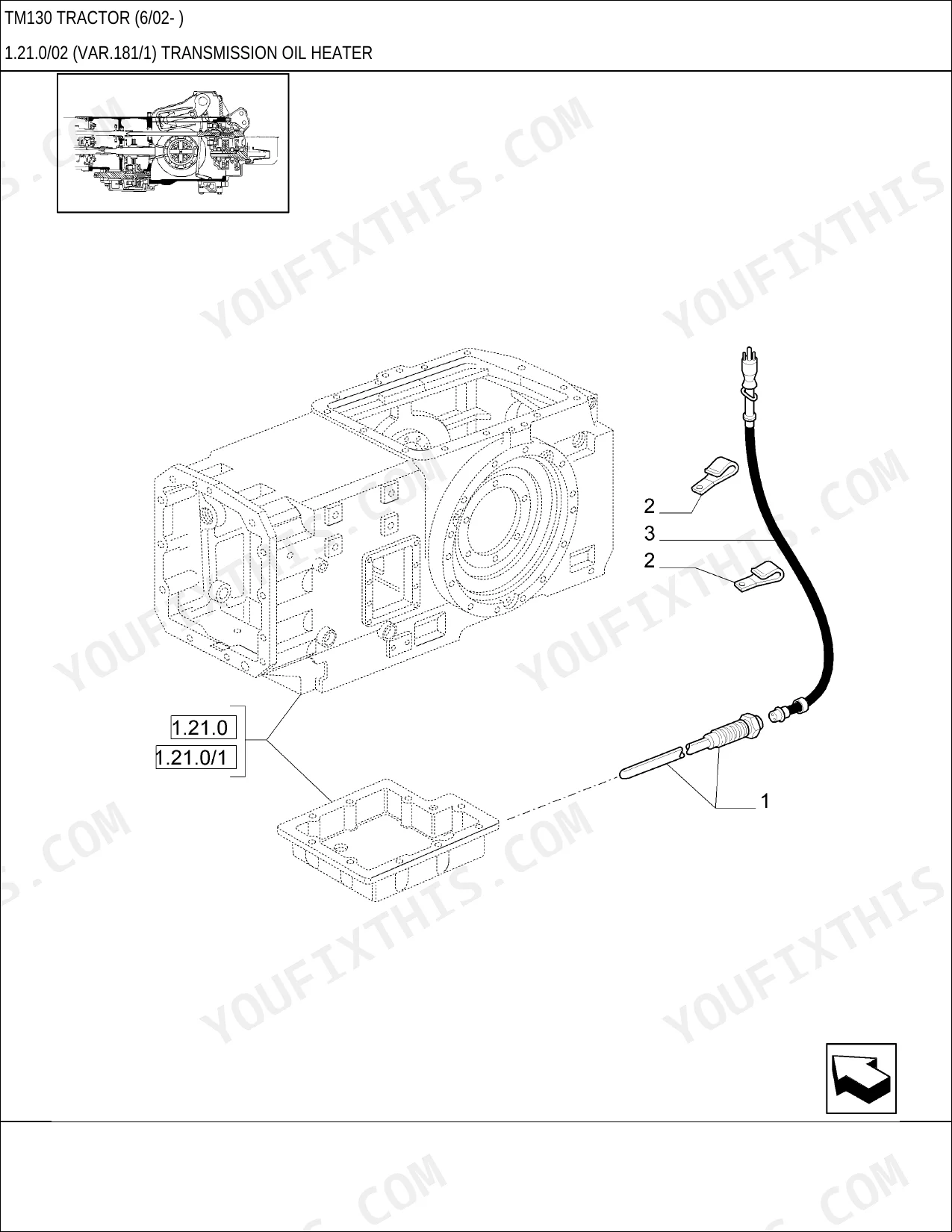

| Transmission | 167-462 | Hi-Lo 24X12 (Shuttle 40 km/h) / Transmission Housing, Hi-Lo 24X12 (Shuttle 40 km/h) / Housing / Rear, Full Power-Shift Transmission 18X6 (40 Kph-4Wd) and 17X6 (30 Kph) - Housing / Gears, Housing / Gears, Support for 4WD Front Axle, Support for 4WD Supersteer Front Axle, 4WD Front Axle with Suspensions / Full Power Shift - Valve and Pipes, 4WD Front Axle with Suspensions / Brake / Terralock / F.P.S. - Valve and Pipes, 4WD Front Axle with Suspensions / Brake / "Terralock" - S.P.S. - Front Axle Support, 4WD Front Axle with Suspensions / Brake / Terralock / S.P.S. - Arm and Suspensions, 4WD Front Axle with Suspensions / Brake / Terralock / S.P.S. - Cylinder, 4WD Front Axle with Suspensions / Brake / Terralock / S.P.S. - Pipes |

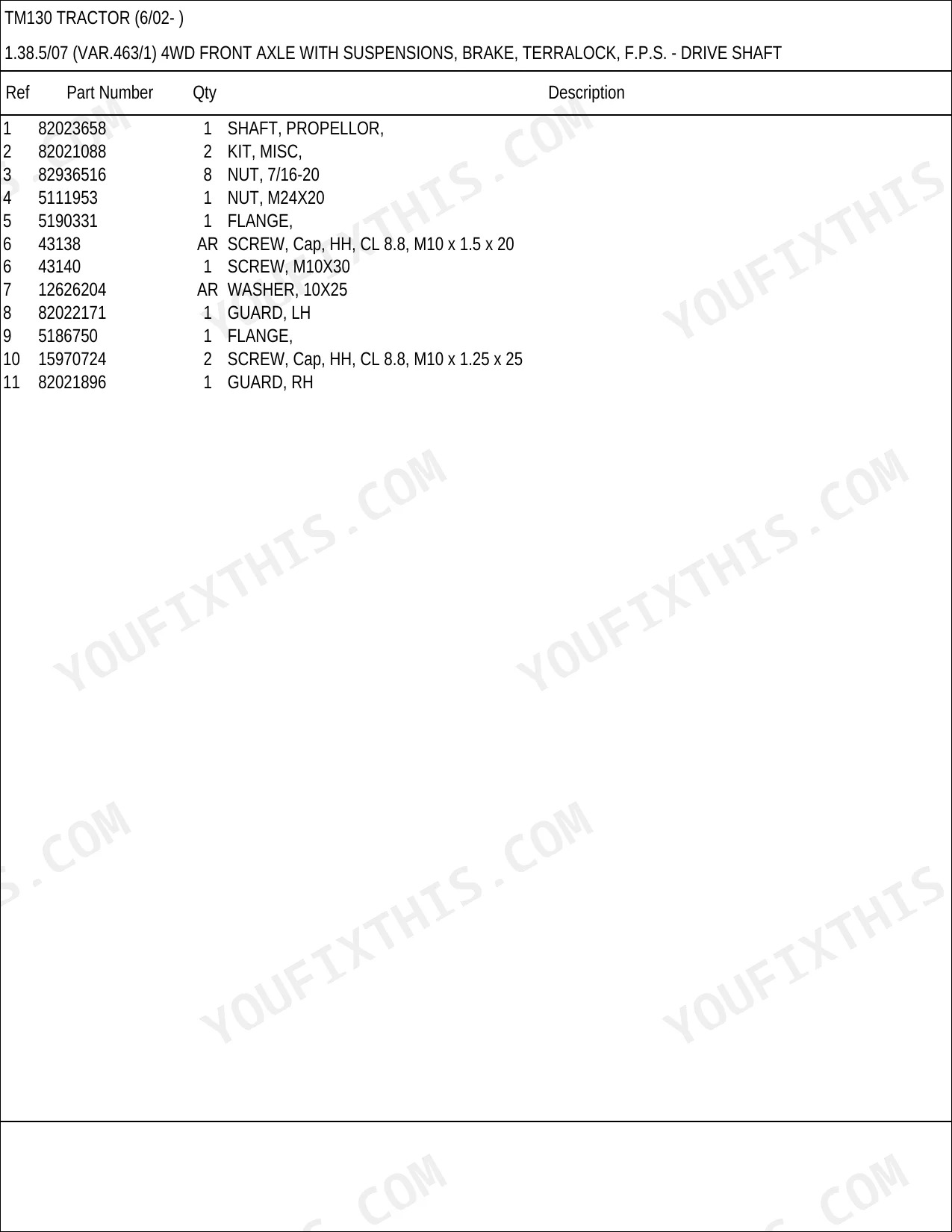

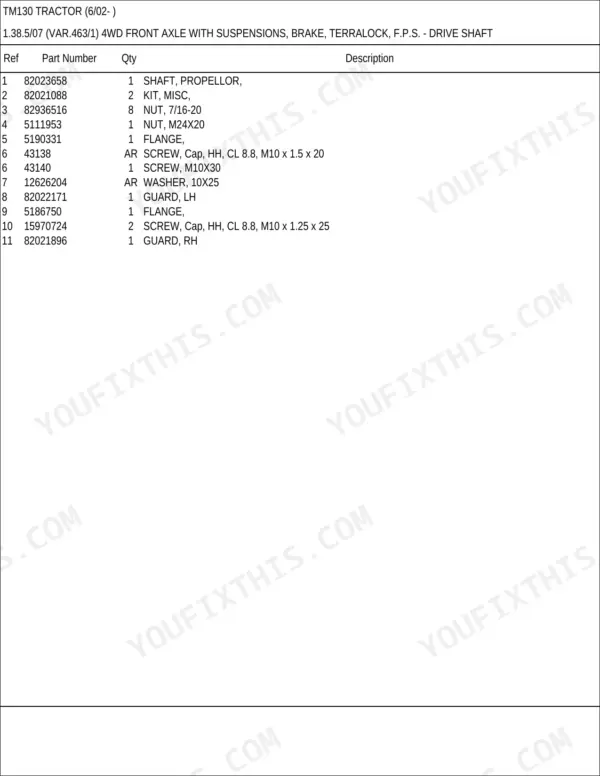

| Front Axle | 463-678 | Start Hydraulic Clutch (4WD), Paddy Field Version - Front Axle Propeller Shaft (4WD), Front Axle Propeller Shaft (4WD), 4WD Front Axle - Box, 4WD Front Axle - Steering Axles - Hubs, 4WD Front Axle - Support, 4WD Front Axle - Bevel Gear Pair, 4WD Front Axle - Differential Locking, 4WD Front Axle - Differential Gears and Differential Shaft, 4WD Front Axle - Hydraulic Cylinder, Class 3 Front Axle with Brake - Brake, Class 3 Front Axle with Brake - Differential Gears and Differential Shaft |
| Rear Axle | 679-804 | Final Drive / Gears and Shafts, Brakes Parking, 4WD Front Axle with Brakes for Terralock - Brake Pipes, 4WD Front Axle with Suspensions / Brake / Terralock / S.P.S. - Brake Pipes, 4WD Front Axle with Suspensions / Brake / Terralock / F.P.S. - Brake Pipes, Class 3 Front Axle with Brake - Brake Piping, Trailer Air Brake Germany - Bracket for Air Compressor, Trailer Air Brake Germany - Transmission Brake Pulley, Trailer Air Brake Germany - Pipes, Trailer Air Brake Germany - Pressure Adjustment Valve, Trailer Air Brake Germany - Air Brake Cable, Trailer Air Brake Germany - Air Tank and Pipes |
| Hydraulics | 805-854, 865-980 | P.T.O. 540/1000 RPM - Shafts and Relevant Parts, P.T.O. 540/1000 RPM - Support and Fork, Power Take-Off, Front Hydraulic Lift for "Ccls" - Front Lift Box, Front Hydraulic Lift for "Ccls" - Valve and Pipes, Front Hydraulic Lift for "Ccls" - Accumulator and Pipes, Lift and Front P.T.O. (6 -21 Splines) "Ccls" -Power Take Off Box, Lift and Front P.T.O. (with 6 -21 Splines) "Ccls" - Power Take Off Shaft, Lift and Front P.T.O. (6 -21 Splines) "Ccls" - Clutch Cover Plate and Relevant Parts, Lift and Front P.T.O. (with 6 -21 Splines) "Ccls" - Drive Shaft and Relevant Parts, Lift and Front P.T.O. (6 - 21 Splines) "Ccls" - Transmission Shaft and Power Take Off, Lift and Front P.T.O. (6 - 21 Splines) "Ccls" - Valve and Pipes |
| Optional and Variant Equipment (1.8x) | 855-864, 989-1018 | Front Hydraulic Lift for "Supersteer" - Lift Cylinders and Supports, Front Hydraulic Lift for "Supersteer" - Lift Cylinder Pipes, Front Hydraulic Lift for "Supersteer" - Pipes, Dynamic Front Fenders (4WD) for Supersteer or Suspension Front Axle, Dynamic Front Fenders (4WD) for Supersteer or SuspensionFront Axle, Dynamic Front Fenders (4WD) |
| Sheet Metal | 981-988 | |

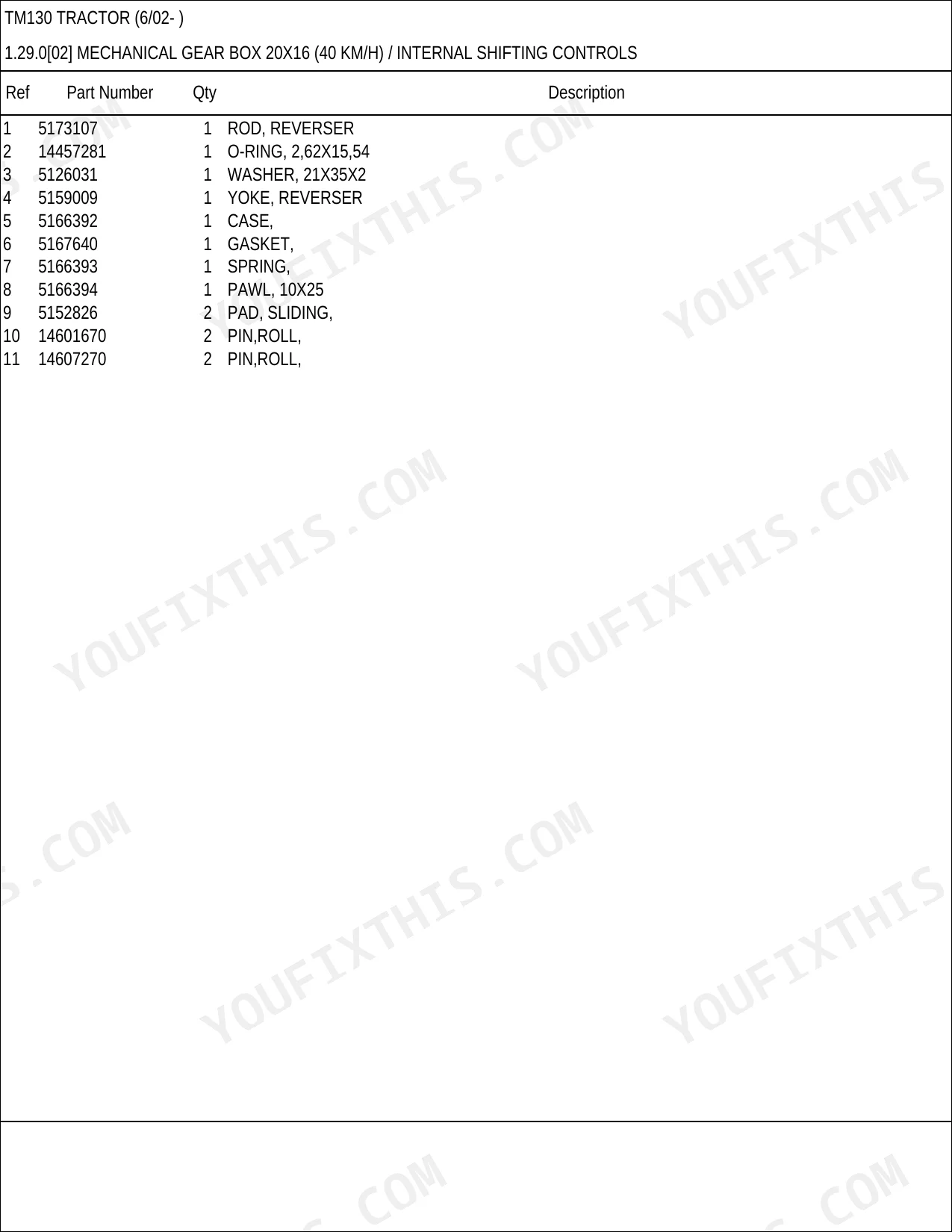

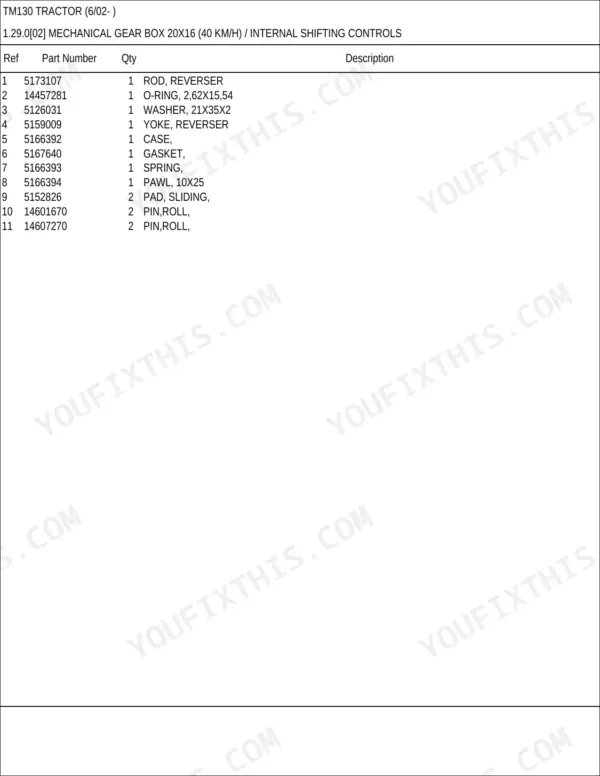

| Linkage | 1019-1084 | Automatic Hitch (with 1 Additional Jack), Mechanical Gear Box 20X16 (40 km/h) /Mechanically Controlled Hydraulic Lift (Open Centre), Implement Carrier (Telescopic Arms) 2/3 Cat. and Anti-Shacke Plates, Lift and Front P.T.O. (with 6 - 21 Splines) "Ccls" - Lift Booms and Cylinders, Lift and Front P.T.O. (with 6 - 21 Splines) "Ccls" - Sprag, Front Hydraulic Lift for "Supersteer" - Lift Booms and Sprag, Front Hydraulic Lift for "Supersteer" - Implement Attachment Hook and Sprag, Hydraulic Adjustment of Right Tie-Rod for Closed "Ccls" Centre - Tie-Rod and Cylinder, Front Hydraulic Lift for "Ccls" - Lift Booms and Cylinders, Front Hydraulic Lift for "Ccls" - Sprag, Tooling Connection Unit |
| Optional and Variant Equipment (1.9x) | 1085-1312 | Driver'S Compartment, 20X16 Mechanical Gear Box (40 km/h) Version with Analogic Instrument, Instrument Cluster- Analogue/Digital, Outer P.T.O. Control Mounted on Mudguards, Worklamps, Application of Work Spot-Lights on Exterior Cab Handle, Cables and Fuse Box, Front Windshield Wiper, Rear Windshield Wiper, Hinged Windshield, Cab Glass and Relevant Parts |
| Decals | 1313-1381 | Traction, 2WD Front Wheels, 4WD Driving Wheels, Drive Wheels |
| La Farm Loader | 1382, 1383-1387, 1388-1460 | Mount Kit / Super Steer Axle - 716373036 & 716373046, Bucket Cylinder, 2 - Function Mid-Mount Plumbing Kit(Quick Disconnect) / 715842006, 4Th Function Mid-Valve Kit for Series Tm Tractors - 718466014, Grapple Fork - 715765006, Grapple Fork Cyl. - 715765006, Grapple Fork Hydraulic System - 715765006 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TM130 catalogue | ||
| Total pages | 1460 | |
| TM130 | ||
| Main sections | 9 (Engine through Decals) | |
| Production coverage | 1999-2002 | |
| TM130 loader-equipped | ||
| Loader catalogs included | 72LA Farm Loader | |
| All figures | ||
| Part numbers | Yes, Ref / Part Number / Qty / Description table facing every figure | |
| Whole document | ||
| Searchable text | Yes | |
| Torque specs | None, this is a parts catalog and not a repair manual | |
New Holland TM130 Common Problems This Manual Covers
Transmission pressure warning switch failure causing false low-pressure alerts or shutdown
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The transmission section gives you the housing, the gears and each clutch pack drawn exploded, so a rebuild kit can be ordered against the box actually fitted. On a TM130 the parts most often replaced here are Transmission pressure warning switch, Coolant temperature sensor. Check the variant code on the figure first: the mechanical box and the semi power shift share a housing drawing but not their internals.
Manual Section: Transmission (pp. 167-462)Engine overheating under load
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The engine section gives you the cylinder block, the sump, the head and the rotating parts, with the emissionized and standard engines drawn separately. On a TM130 the parts most often replaced here are Transmission pressure warning switch, Coolant temperature sensor. The emissionized engine is drawn apart from the standard one; the block looks the same and the parts are not.
Manual Section: Engine (pp. 65-126)Hydraulic system inability to lift loads or jerky movement
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The hydraulics section gives you the pump, the lifter housing and covers and the power take-off drive that turns the pump, each with part numbers. On a TM130 the parts most often replaced here are Transmission pressure warning switch, Coolant temperature sensor. The standard and high-flow machines take different pumps and valve bodies, so match the figure before ordering.
Manual Section: Hydraulics (pp. 805-854, 865-980)Optional equipment appears to be missing from the catalog
It is not missing, it is drawn separately. Creepers, front lifts, extra remote valves, cab suspension and market-specific kit are printed in the variant bands behind the main sections rather than inside them, each figure labelled with its variant code. Find the code that matches your machine's build and work from that drawing. This is the single most common reason a TM130 owner concludes the catalog is incomplete.
Manual Section: Optional and Variant Equipment (1.8x) (pp. 855-864, 989-1018)Frequently Asked Questions
Does this catalog include torque specs or wiring diagrams?
No. This is the factory parts catalog: exploded drawings and part numbers. It contains no wiring schematics and no torque figures; those live in the TM130 repair manual, which is a separate book. If you need to know which bolt to order, this is the right document. If you need to know how tight to do it up, it is not.
Which loaders are covered?
1 loader catalogs sit behind the tractor sections: 72LA Farm Loader. Each is a complete parts book with its own figure index, so a loader-equipped TM130 is covered end to end.
Can I search it by part number?
Yes. The PDF has a real text layer, so a part number typed into your reader's search box finds every figure that uses it. The master figure index at the front lists every figure by code and name, which is the faster route when you know the assembly but not the number.
Will it cover my serial number?
The book is the 1999-2002 edition of the TM130 catalog and it handles build differences with variant figures rather than serial breaks. Where two parts were fitted across the run, both figures are printed and each carries its variant code, so you match the drawing to your machine.
Why is a parts catalog 1460 pages?
Because the TM130 was sold in many configurations and the catalog draws each one. Alongside the standard figures you get the transmission options, 2WD and 4WD front ends, cab and platform variants, and market-specific lighting and decals. The 1 loader catalogs at the back add several hundred pages on their own.
What do I get after purchasing this New Holland TM130 manual?
You get a 1460-page searchable PDF (22 MB) that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this New Holland TM130 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
