Part of the New Holland Parts Manuals.
This is the factory illustrated parts catalogue for the New Holland TM140, 1462 pages of it. Every assembly on the machine is drawn exploded, each part on the drawing carries a reference number, and the facing page lists that reference against its New Holland part number, the quantity fitted and the description. That is what you order from.
The TM140 was built in many configurations, so most of the 9 main sections carry variant figures alongside the standard ones: cab and platform versions, 2WD and 4WD front ends, the transmission options, market-specific lighting and decals. The catalogue draws each variant separately and labels it with its variant code, so you match the drawing to the machine in front of you rather than guessing.
The book also carries 1 complete loader catalogue behind the tractor: 72LA Farm Loader. If your TM140 came with a loader, its parts are here too.
It is a parts book, not a repair manual. There are no torque figures, no clearances and no wiring schematics in it. What it does, it does exactly: it tells you which part number fits your machine, and what else comes apart to reach it.
What's Inside This New Holland TM140 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Master Figure Index | 1-18 | Alphanumeric Figure Index, Figure Code Lookup, Section Map |
| Section Overview Drawings | 19-64 | Exploded Section Overview Drawings, Figure Code Callouts per Section |
| Engine | 65-128 | Cylinder Block & Related Parts, Cylinder Head & Related Parts, Cylinder Head / Rocker Arm / Valves & Related Parts, Crankshaft & Related Parts, Piston & Connecting Rod, Fuel System, Starter Motor - Parts |
| Engine Equipment | 129-166 | Fuel Tank Support, Pipes for Air Conditioning, Aircleaner with Precleaner, Dry Air Filter-Pipes, Heat Exchanger - Air-Air |

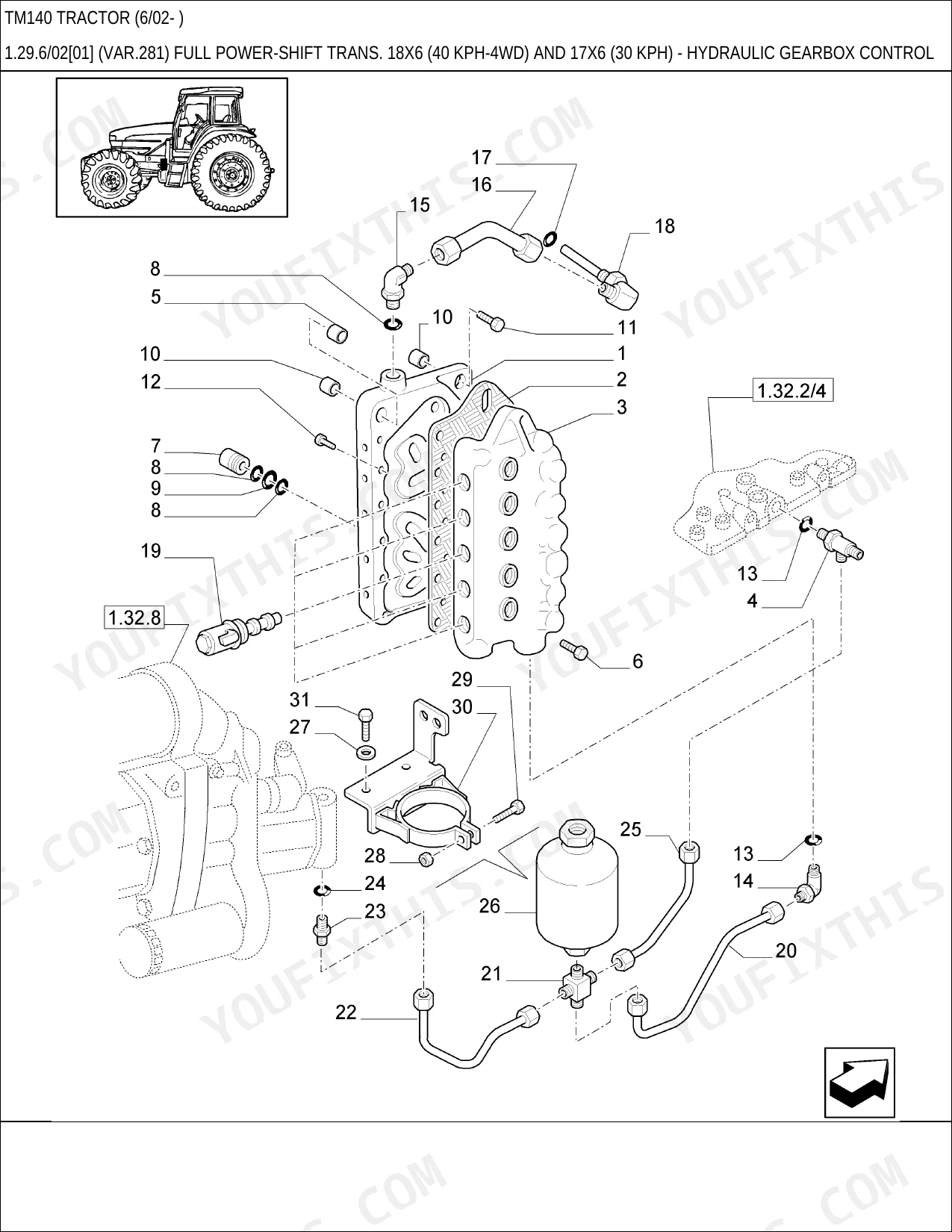

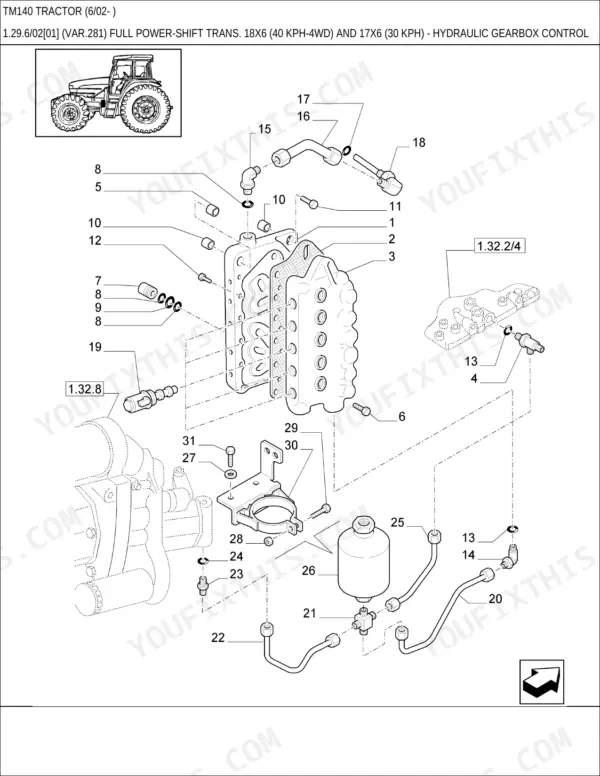

| Transmission | 167-462 | Hi-Lo 24X12 (Shuttle 40 km/h) / Transmission Housing, Hi-Lo 24X12 (Shuttle 40 km/h) / Housing / Rear, Full Power-Shift Transmission 18X6 (40 Kph-4Wd) and 17X6 (30 Kph) - Housing / Gears, Housing / Gears, Support for 4WD Front Axle, Support for 4WD Supersteer Front Axle, 4WD Front Axle with Suspensions / Full Power Shift - Valve and Pipes, 4WD Front Axle with Suspensions / Brake / Terralock / F.P.S. - Valve and Pipes, 4WD Front Axle with Suspensions / Brake / "Terralock" - S.P.S. - Front Axle Support, 4WD Front Axle with Suspensions / Brake / Terralock / S.P.S. - Arm and Suspensions, 4WD Front Axle with Suspensions / Brake / Terralock / S.P.S. - Cylinder, 4WD Front Axle with Suspensions / Brake / Terralock / S.P.S. - Pipes |

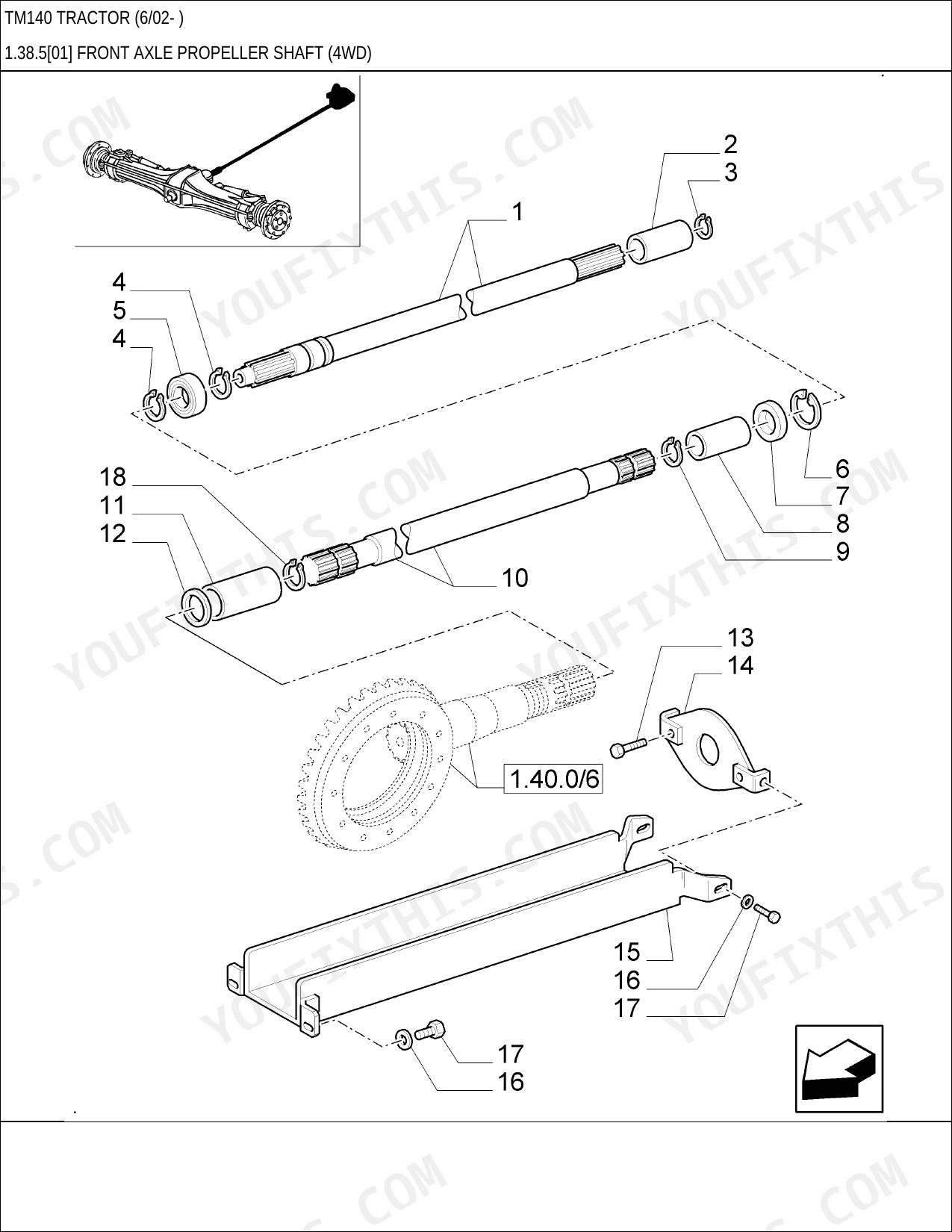

| Front Axle | 463-678 | Start Hydraulic Clutch (4WD), Paddy Field Version - Front Axle Propeller Shaft (4WD), Front Axle Propeller Shaft (4WD), 4WD Front Axle - Box, 4WD Front Axle - Steering Axles - Hubs, 4WD Front Axle - Support, 4WD Front Axle - Bevel Gear Pair, 4WD Front Axle - Differential Locking, 4WD Front Axle - Differential Gears and Differential Shaft, 4WD Front Axle - Hydraulic Cylinder, Class 3 Front Axle with Brake - Brake, Class 3 Front Axle with Brake - Differential Gears and Differential Shaft |
| Rear Axle | 679-804 | Final Drive / Gears and Shafts, Brakes Parking, 4WD Front Axle with Brakes for Terralock - Brake Pipes, 4WD Front Axle with Suspensions / Brake / Terralock / S.P.S. - Brake Pipes, 4WD Front Axle with Suspensions / Brake / Terralock / F.P.S. - Brake Pipes, Class 3 Front Axle with Brake - Brake Piping, Trailer Air Brake Germany - Bracket for Air Compressor, Trailer Air Brake Germany - Transmission Brake Pulley, Trailer Air Brake Germany - Pipes, Trailer Air Brake Germany - Pressure Adjustment Valve, Trailer Air Brake Germany - Air Brake Cable, Trailer Air Brake Germany - Air Tank and Pipes |
| Hydraulics | 805-856, 867-982 | P.T.O. 540/1000 RPM - Shafts and Relevant Parts, P.T.O. 540/1000 RPM - Support and Fork, Power Take-Off, Front Hydraulic Lift for "Ccls" - Front Lift Box, Front Hydraulic Lift for "Ccls" - Valve and Pipes, Front Hydraulic Lift for "Ccls" - Accumulator and Pipes, Lift and Front P.T.O. (6 -21 Splines) "Ccls" -Power Take Off Box, Lift and Front P.T.O. (with 6 -21 Splines) "Ccls" - Power Take Off Shaft, Lift and Front P.T.O. (6 -21 Splines) "Ccls" - Clutch Cover Plate and Relevant Parts, Lift and Front P.T.O. (with 6 -21 Splines) "Ccls" - Drive Shaft and Relevant Parts, Lift and Front P.T.O. (6 - 21 Splines) "Ccls" - Transmission Shaft and Power Take Off, Lift and Front P.T.O. (6 - 21 Splines) "Ccls" - Valve and Pipes |
| Optional and Variant Equipment (1.8x) | 857-866, 991-1020 | Front Hydraulic Lift for "Supersteer" - Lift Cylinders and Supports, Front Hydraulic Lift for "Supersteer" - Lift Cylinder Pipes, Front Hydraulic Lift for "Supersteer" - Pipes, Dynamic Front Fenders (4WD) for Supersteer or Suspension Front Axle, Dynamic Front Fenders (4WD) for Supersteer or SuspensionFront Axle, Dynamic Front Fenders (4WD) |
| Sheet Metal | 983-990 | |
| Linkage | 1021-1076 | Automatic Hitch (with 1 Additional Jack), Mechanical Gear Box 20X16 (40 km/h) /Mechanically Controlled Hydraulic Lift (Open Centre), Implement Carrier (Telescopic Arms) 2/3 Cat. and Anti-Shacke Plates, Lift and Front P.T.O. (with 6 - 21 Splines) "Ccls" - Lift Booms and Cylinders, Lift and Front P.T.O. (with 6 - 21 Splines) "Ccls" - Sprag, Front Hydraulic Lift for "Supersteer" - Lift Booms and Sprag, Front Hydraulic Lift for "Supersteer" - Implement Attachment Hook and Sprag, Hydraulic Adjustment of Right Tie-Rod for Closed "Ccls" Centre - Tie-Rod and Cylinder, Front Hydraulic Lift for "Ccls" - Lift Booms and Cylinders, Front Hydraulic Lift for "Ccls" - Sprag, Tooling Connection Unit |
| Optional and Variant Equipment (1.9x) | 1077-1306 | Driver'S Compartment, 20X16 Mechanical Gear Box (40 km/h) Version with Analogic Instrument, Instrument Cluster- Analogue/Digital, Outer P.T.O. Control Mounted on Mudguards, Worklamps, Application of Work Spot-Lights on Exterior Cab Handle, Cables and Fuse Box, Front Windshield Wiper, Rear Windshield Wiper, Hinged Windshield, Cab Glass and Relevant Parts |
| Decals | 1307-1383 | Traction, 2WD Front Wheels, 4WD Driving Wheels, Drive Wheels |
| La Farm Loader | 1384, 1385-1389, 1390-1462 | Mount Kit / Super Steer Axle - 716373036 & 716373046, Bucket Cylinder, 2 - Function Mid-Mount Plumbing Kit(Quick Disconnect) / 715842006, 4Th Function Mid-Valve Kit for Series Tm Tractors - 718466014, Grapple Fork - 715765006, Grapple Fork Cyl. - 715765006, Grapple Fork Hydraulic System - 715765006 |
Documents This Manual Refers To
The manufacturer cites these publications by number. We carry them:
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TM140 catalogue | ||
| Total pages | 1462 | |
| TM140 | ||
| Main sections | 9 (Engine through Decals) | |
| Production coverage | 1999-2002 | |
| TM140 loader-equipped | ||
| Loader catalogs included | 72LA Farm Loader | |
| All figures | ||
| Part numbers | Yes, Ref / Part Number / Qty / Description table facing every figure | |
| Whole document | ||
| Searchable text | Yes | |
| Torque specs | None, this is a parts catalog and not a repair manual | |
