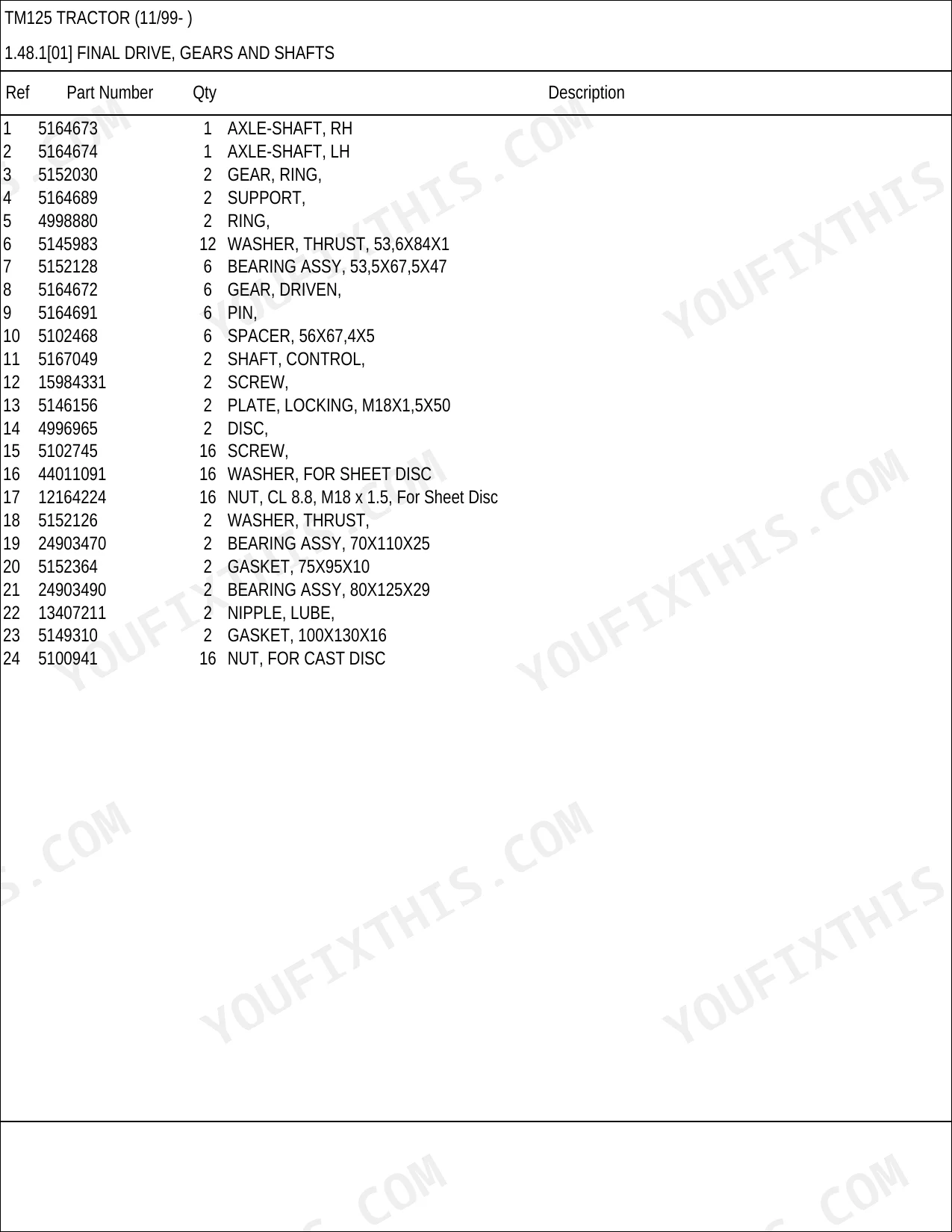

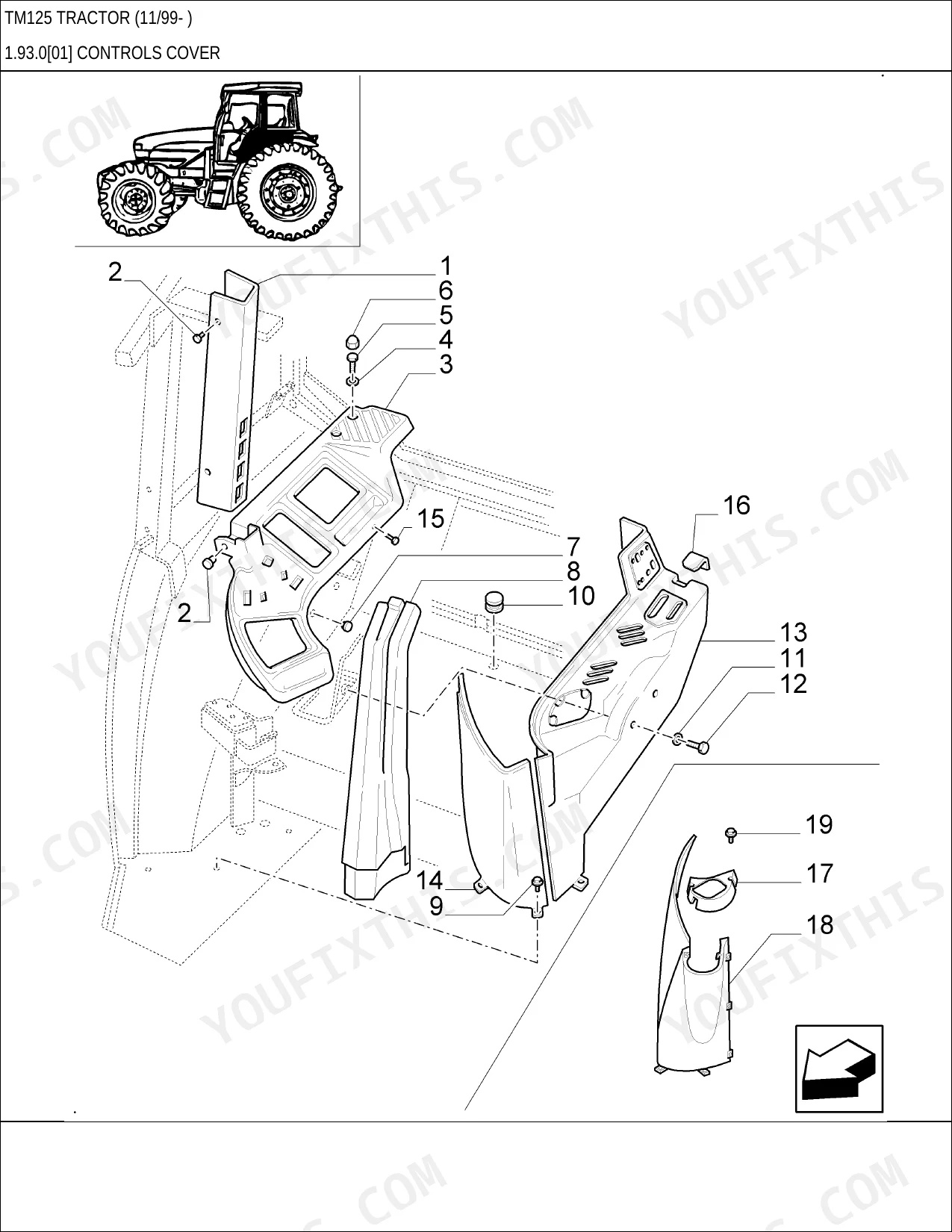

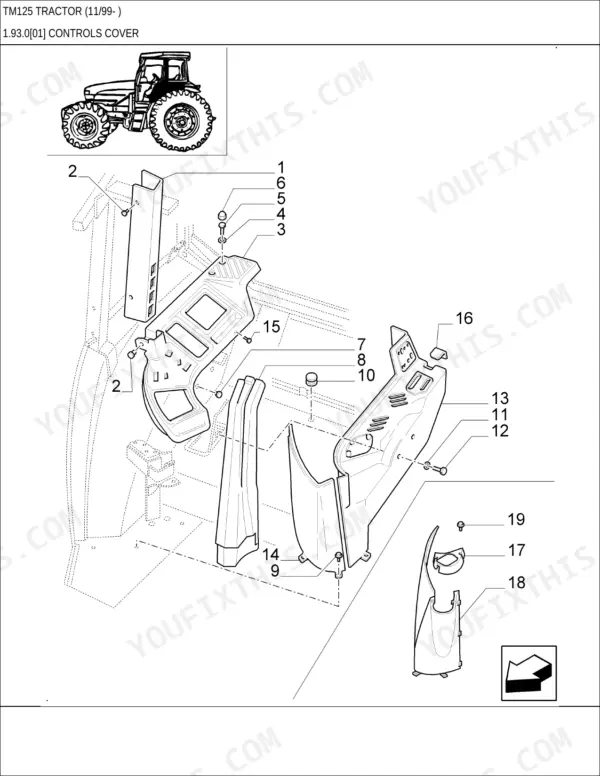

This is the factory illustrated parts catalogue for the New Holland TM125, 1330 pages of it. Every assembly on the machine is drawn exploded, each part on the drawing carries a reference number, and the facing page lists that reference against its New Holland part number, the quantity fitted and the description. That is what you order from.The TM125 was built in many configurations, so most of the 11 main sections carry variant figures alongside the standard ones: cab and platform versions, 2WD and 4WD front ends, the transmission options, market-specific lighting and decals. The catalogue draws each variant separately and labels it with its variant code, so you match the drawing to the machine in front of you rather than guessing.The book also carries 1 complete loader catalogue behind the tractor: 72La Farm Loader. If your TM125 came with a loader, its parts are here too.It is a parts book, not a repair manual. There are no torque figures, no clearances and no wiring schematics in it. What it does, it does exactly: it tells you which part number fits your machine, and what else comes apart to reach it.
What's Inside This New Holland TM125 Parts Manual
| System | Pages |
|---|---|
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TM125 catalogue | ||
| Total pages | 1330 | |
| TM125 | ||
| Main sections | 11 (Engine through Traction) | |
| Production coverage | 1999-2002 | |
| TM125 loader-equipped | ||
| Loader catalogs included | 72La Farm Loader | |
| All figures | ||
| Part numbers | Yes, Ref / Part Number / Qty / Description table facing every figure | |
| Whole document | ||
| Searchable text | Yes | |
| Torque specs | None, this is a parts catalog and not a repair manual | |
New Holland TM125 Common Problems This Manual Covers
Tractor will not move or a range shift refuses to engage

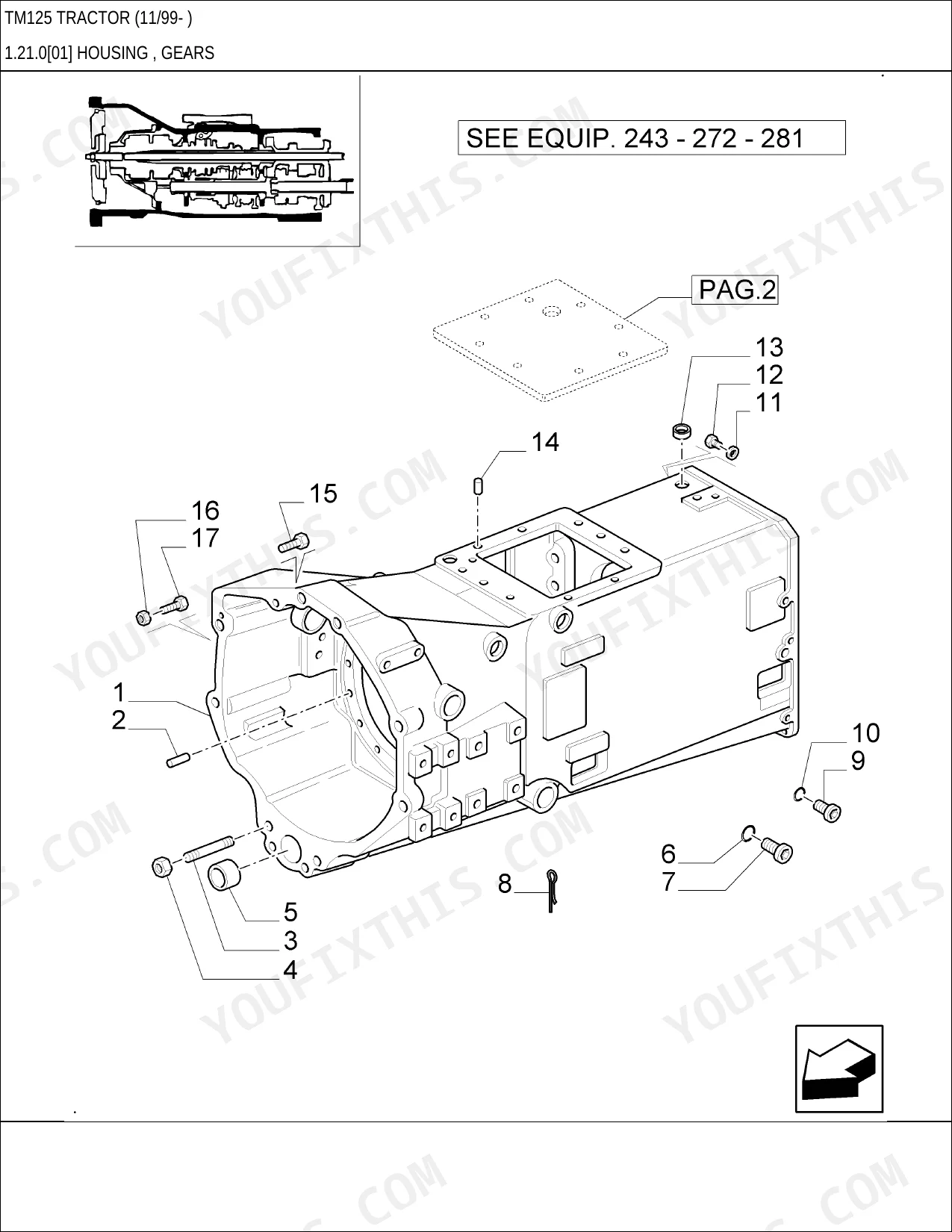

On a TM the range clutches are hydraulically engaged, and a pack that has burned out takes its friction plates, steels and seals with it. The transmission section draws the housing, the gears and each clutch pack exploded, so the rebuild kit can be ordered against the box actually fitted. Check the variant code on the figure first, because the semi power shift and the mechanical gearbox share a housing drawing but not their internals.
Manual Section: Transmission (pp. 151-238)Engine cranks slowly or the starter clicks and stops
A tired starter solenoid and a degraded battery are the two parts most often replaced on this tractor, and both are drawn in the electrical section along with the battery mounting, the cables and the fuse box. Order the solenoid against the starter figure rather than the parts-store cross-reference, since the low-temperature starting-aid variant uses a different unit.
Manual Section: Electrical (pp. 303-318)Hydraulic pump gets noisy and the lift slows down
Pump noise with falling lift speed usually means the pump is passing internally rather than that the lifter is at fault. The hydraulics section draws the pump, the lifter housing and covers, and the power take-off drive that turns the pump, each with part numbers. Order the pump by the figure that matches your hydraulic variant, since the standard and high-flow machines take different units.
Manual Section: Hydraulics (pp. 319-366)Creeper transmission parts do not match the standard gearbox drawings
The creeper and the semi power shift creeper are drawn in the variant figures, not in the main transmission section, which is why their parts appear to be missing. Turn to the 1xx variant band and find the figure whose code matches the machine. This is the single most common reason a TM owner concludes the catalog is incomplete.
Manual Section: Optional and Variant Equipment (1xx), pp. 535-556Frequently Asked Questions
Does this catalog include torque specs or wiring diagrams?
No. This is the factory parts catalog: exploded drawings and part numbers. It contains no wiring schematics and no torque figures; those live in the TM125 repair manual, which is a separate book. If you need to know which bolt to order, this is the right document. If you need to know how tight to do it up, it is not.
Which loaders are covered?
1 loader catalogs sit behind the tractor sections: 72La Farm Loader. Each is a complete parts book with its own figure index, so a loader-equipped TM125 is covered end to end.
Can I search it by part number?

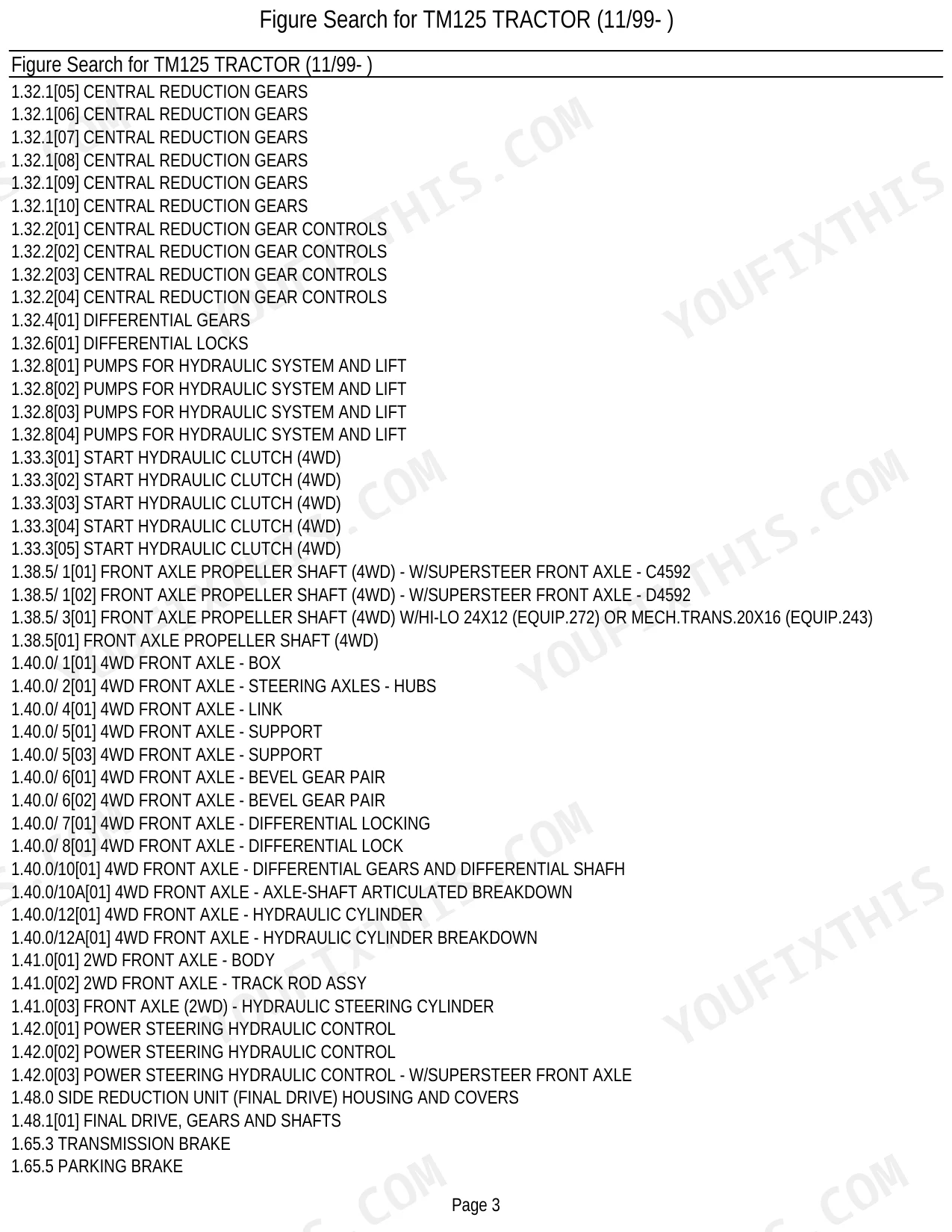

Yes. The PDF has a real text layer, so a part number typed into your reader's search box finds every figure that uses it. The master figure index at the front lists every figure by code and name, which is the faster route when you know the assembly but not the number.
Will it cover my serial number?
The book is the 1999-2002 edition of the TM125 catalog and it handles build differences with variant figures rather than serial breaks. Where two parts were fitted across the run, both figures are printed and each carries its variant code, so you match the drawing to your machine.
Why is a parts catalog 1330 pages?
Because the TM125 was sold in many configurations and the catalog draws each one. Alongside the standard figures you get the transmission options, 2WD and 4WD front ends, cab and platform variants, and market-specific lighting and decals. The 1 loader catalogs at the back add several hundred pages on their own.
How will I receive this New Holland TM125 Parts Catalog?
You get a 1330-page searchable PDF (23 MB) that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I able to print pages from this New Holland TM125 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
