Tracking down parts for a 1984-1985 Ford 555A Tractor Loader Backhoe? This 477-page Ford 555A parts catalog PDF maps every assembly on the machine, from the front axle to the backhoe boom. You get exploded views keyed to factory part numbers for the engine, transmission, torque converter, hydraulic control valves, loader, and backhoe, so you can identify the exact seal, bearing, or spool before you call the parts counter. Power steering, brakes, FWD front axle, cooling system, fuel tank, even wheel weights: every system is broken out piece by piece. Cross-check what's bolted to your machine against real factory data, like the 28.5 GPM hydraulic pump assembly and the 2400 PSI relief valve. Ordering the wrong seal kit twice gets old fast. This bookmarked PDF has a live text layer; punch in a part number, jump to the diagram, and place the order.
What's Inside This Ford New Holland 555A Tractor Loader Backhoe Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Fuel System | Diesel, Single Fuel Filter, Dual Fuel Filter Assembly, Fuel Injection Pump, Rotor, Fuel Injector Assembly, Carburetor Assembly, Holley, Air Cleaner Assembly, Throttle & Foot Accelerator Controls | |
| Cooling System | Radiators & Related Parts, Water Pump & Related Parts | |
| Engine | Hydraulic Oil Filter Assembly, Cylinder Block, Head & Related Parts, Diesel, Crankshaft, Flywheel & Related Parts, Camshaft, Rocker Arm, Valves & Related Parts, Pistons & Connecting Rods, Oil Pump & Oil Pan, Sump, Engine Gasket Kits, 3-Cylinder, Engine Overhaul Kits, Torque Converter, Oil Distributor, Oil Pan, Engine Primer Ether System, Block Heater, Engine Hood & Grille, Engine Side Covers, Security Engine Covers & Noise Insulation, Europe | |
| Electrical System | Less Lights, Europe, LH, RH, Headlamp Assembly, ROPS, North America, Rear Lamp, Lamp Assembly, Flasher, Rear Stop & Turn Signal, Emergency Warning, Implement Lamp Assembly, Rear Side & Turn Signal, Plow Lamp Assembly, License Plate Mounting, Lamps, Cab, Battery & Related Parts, Alternator Assembly, 46 Amp | |

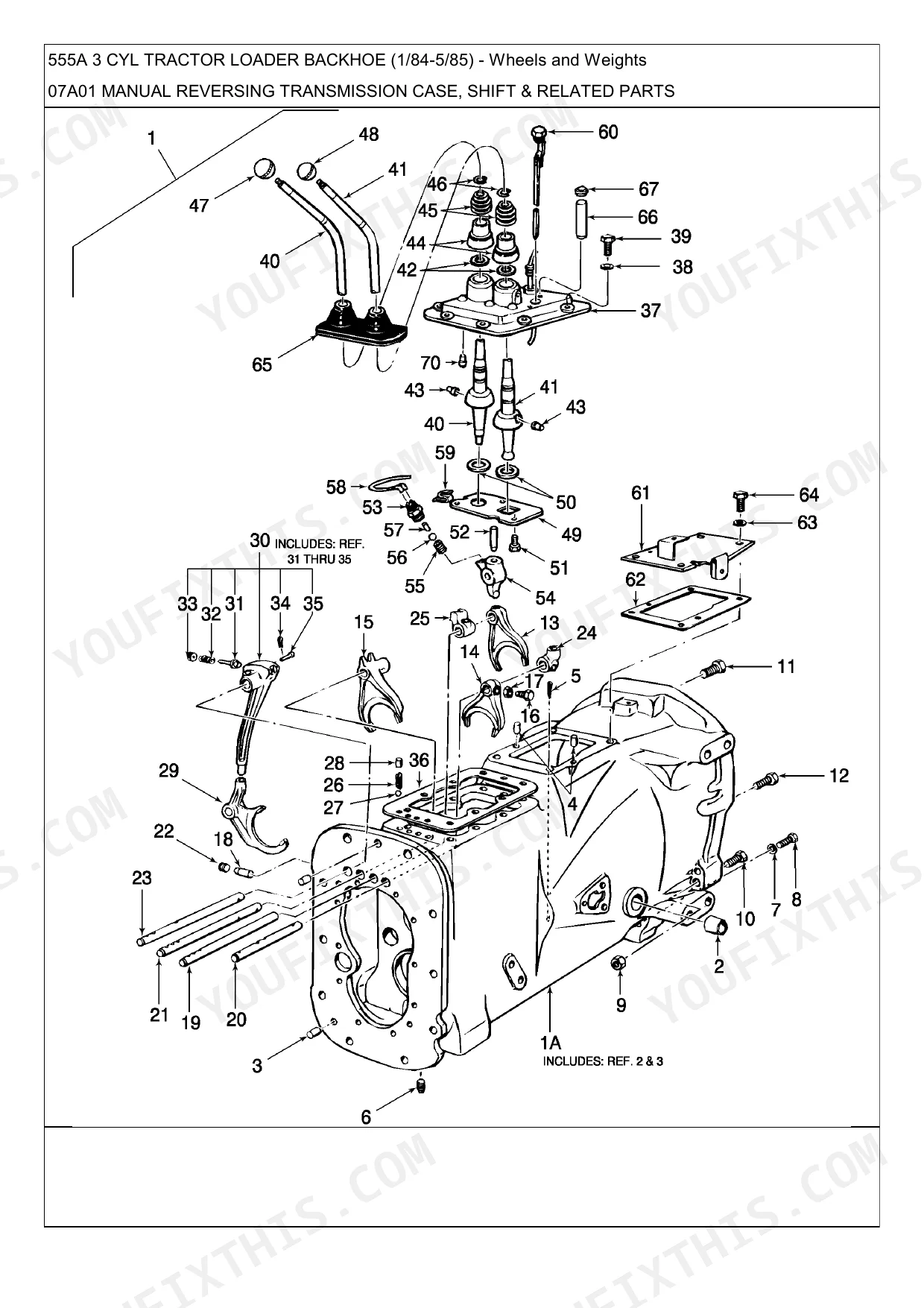

| Clutch & Transmission | Manual Reversing Transmission Case, Shift & Related Parts, Torque Converter, Clutch & Gears, 4 X 4, Syncromesh, Torque Converter Transmission Control Lever, Single Clutch Assembly, 13" | |
| Rear Axle, Differential & Brakes | Rear Wheels, Rear Wheel Weights, 24", Non-Adjustable, 28", Brakes & Brake Controls, Handbrake, Emergency Brake & Controls, Handbrake Lever, Twin Cable, Rear Axle Differential & Related Parts, Rear Axle Differential Lock Linkage, Rear Axle Center Housing & Related Parts | |
| Front Axle & Steering | Front Wheels, 2WD, 4WD, Front Axle, Power Steering & Related Parts, Power Steering Motor & Column, Power Steering Pump & Reservoir, Power Steering Cylinder Assembly, Dual Cylinder, FWD, Ae3, Differential Box, Driveshafts, Reduction Gears, Steering Arms, Drive Shaft & Shield, Transfer Case, Transfer Case Controls, Internal Parts of Center Housing | |

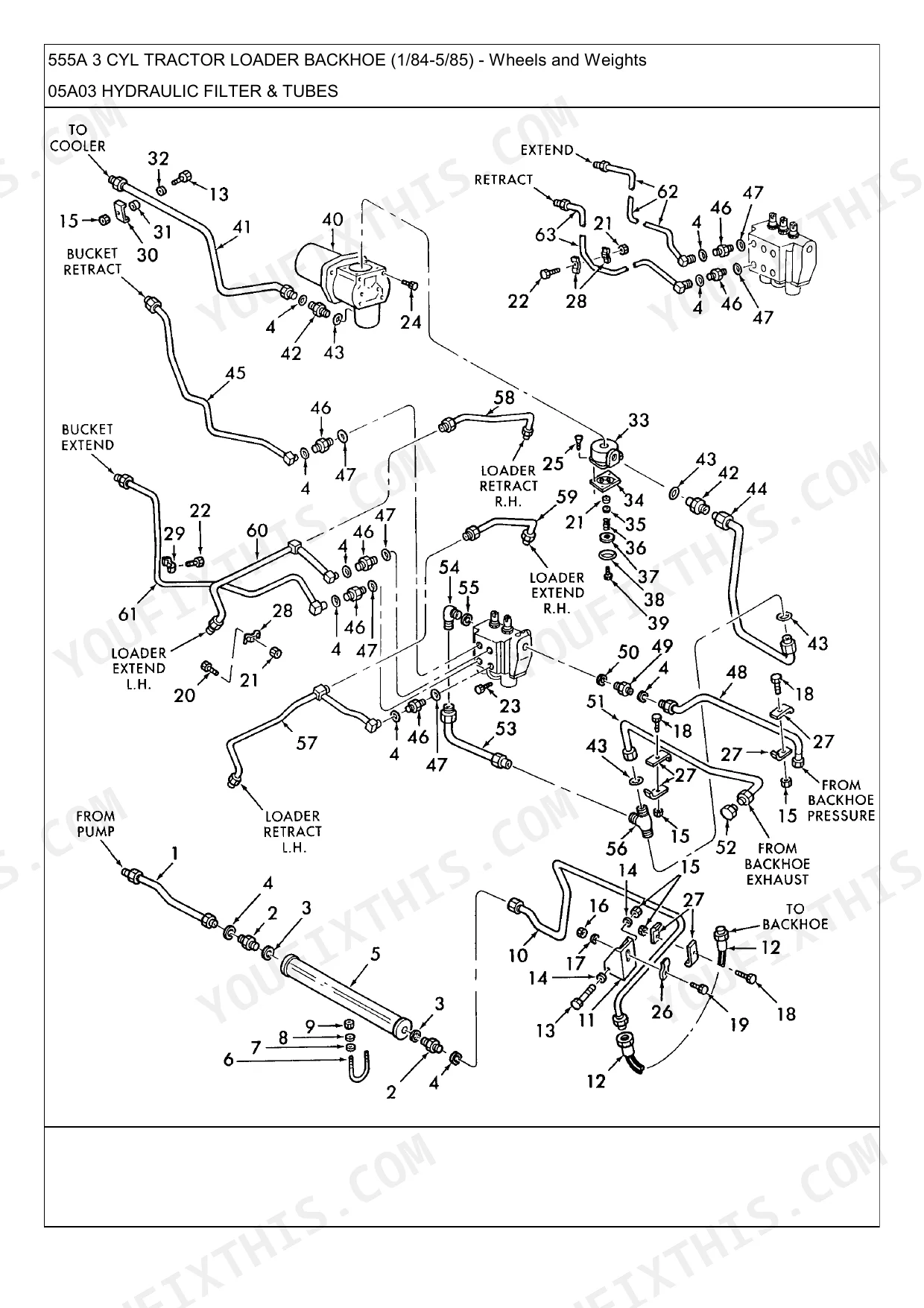

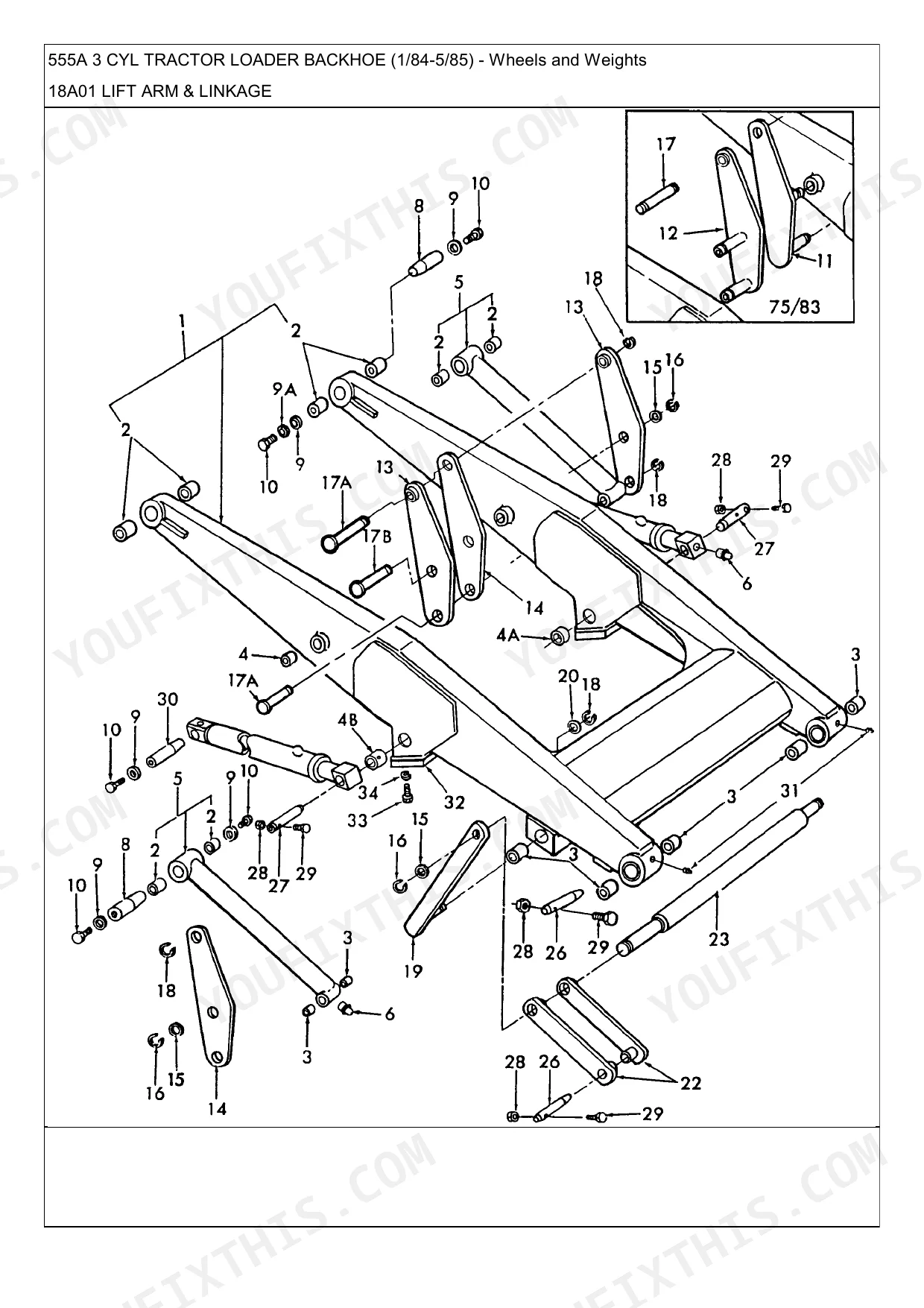

| Hydraulics & 3-Point Hitch | Hydraulic Reservoir & Pump Drive, Hydraulic Filter & Tubes, Unload Valve & Manifold, Control Valve Assembly, Two Spool, Three Spool, Swinging Drawbar, Hanger & Related Parts, Control Valve, Manifold & Tubes, Hydraulic Pump Assembly, Vickers, Lift Arm & Linkage, Hydraulic Lines & Hoses, Lift Cylinder Assembly, Bucket Cylinder Assemblies, Hydraulic Control Lines, Dipstick & Related Parts, Hydraulically-Extendable Dipstick, Boom Assembly & Related Parts, Hydraulically Extendable Dipstick, Crowd Cylinder Assembly | |
| Loader, Backhoe & Attachments | Loader Controls, Decal, Loader, Decals, Backhoe, Buckets, 1-1/8 Cubic Yard, Swing Post & Related Parts, Center Pivot, Sideshift, Europe, Swing Carriage Assembly, Side Shift, Boom Assembly & Related Parts, Boom Transport Lock, North America, Stabilizer Pads - 19, North America - 19 | |

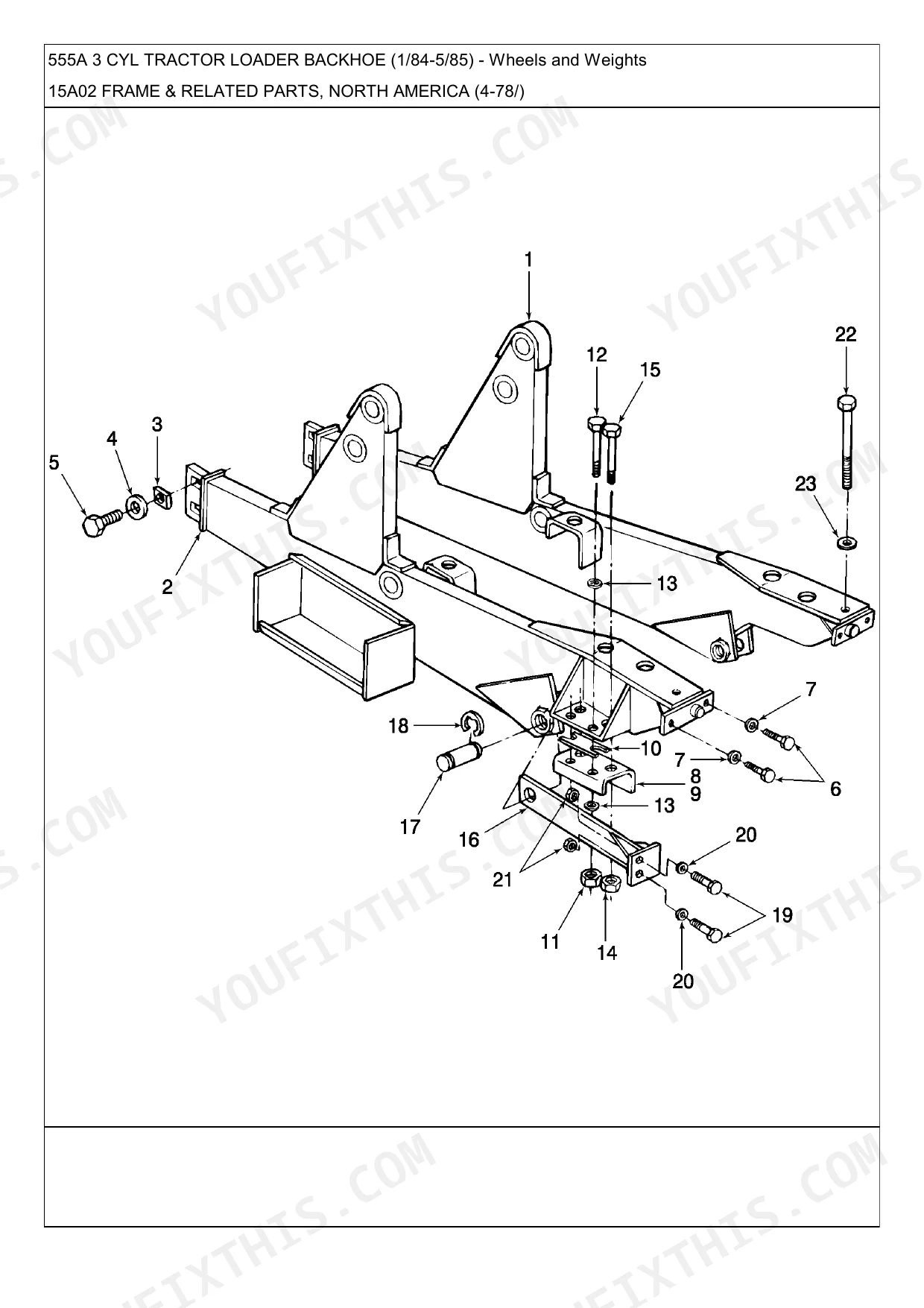

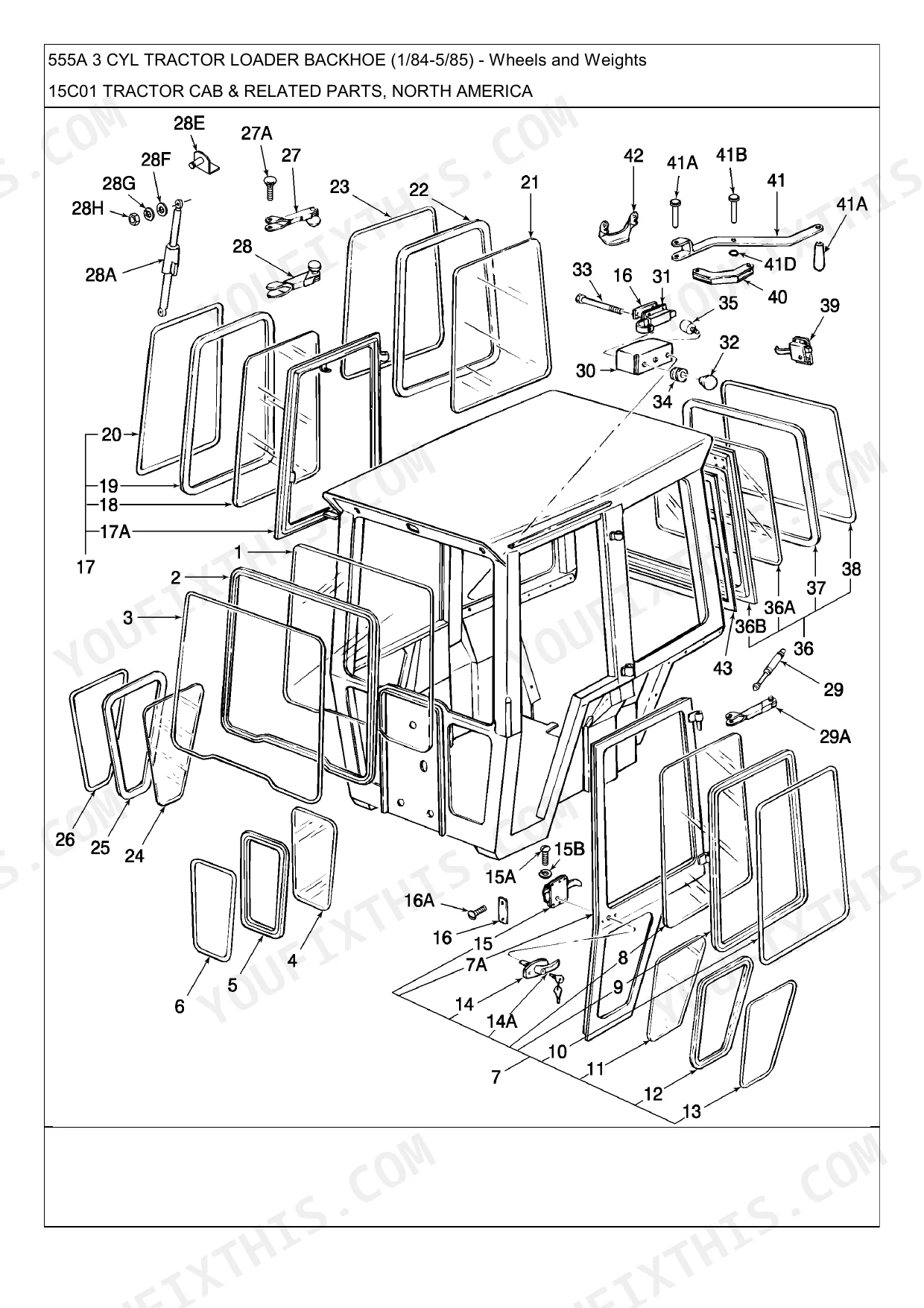

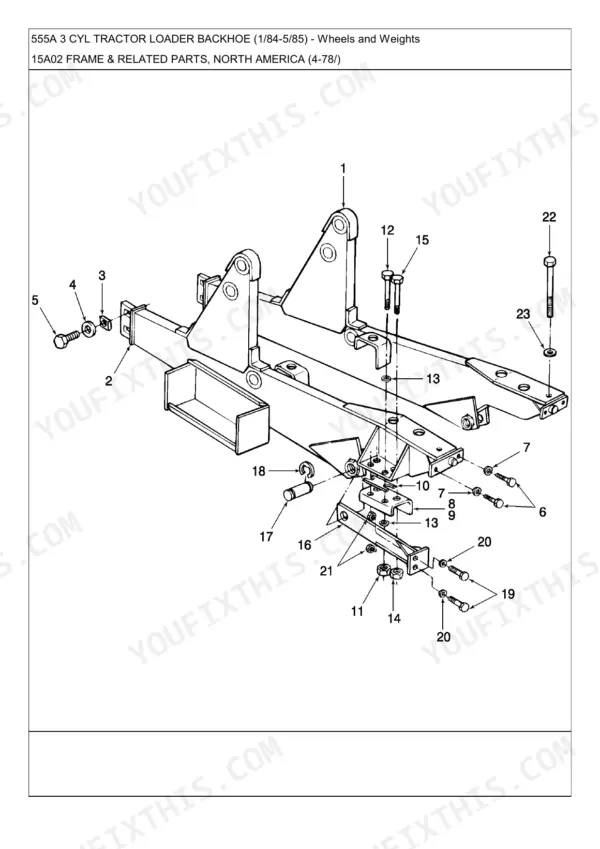

| Body & Operator Station | Swivel Seat Assembly, Original, Replacement, Deluxe Suspension Seat Assembly, Bostrom-Viking, Seat Assembly, Nh-E, Fenders, Platform & Tool Box, Frame & Related Parts, North America, Tractor Cab & Related Parts, Cab Panels, Mat & Trim, Rear & Side, Cab Electrical System & Wipers, Cab Heater & Related Parts, Cab & Related Parts, Europe, Mats & Trim, Cab Air Conditioner & Heater, Cab Air Conditioner & Heater Ii, Main Frame & Related Parts, Center Pivot | |
| Decals & Accessories | Windshield Washer, Accessory, Europe, Identification Decals, Decals, Tractor, Shift Pattern Decals, Kit, Instruction & Safety Decals, Decal Kits, Quebec, Tool | |
| Other Components | Front End Weight, Manifold & Exhaust System, Diesel, Torque Converter, Filter & Cooler Tubes, Diesel Cold Start, Electrical System, North America, LH, RH, Starting Motor & Related Parts, 4-1/2" Dia, Starting Motor Assembly, 5" Dia, Instrument Panel, Cluster & Related Parts, Reflectors, Nhna, Wiper Motor, Compressor & Related Parts, Air Conditioning, Paints, Lubricant Equipment, Radio |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Valve Assy. pressure rating | 1600 PSI | p. 33 |
| Pump Assy., 28.5 GPM | 28.5 GPM | p. 201 |
| Valve Assy., Relief | 2400 PSI | p. 452 |
| Front End Weight | 325 lbs | p. 7 |
| Power Steering Pump Valve Pressure | 1600 PSI | p. 33 |
| Starting Motor Solenoid Relief Pressure | 1100 PSI | p. 91 |
| Control Valve Relief Pressure | 2400 PSI | p. 452 |
Ford New Holland 555A Tractor Loader Backhoe Common Problems This Manual Covers
Ford 555A transmission has no drive, need suction screen and hydraulic pump part numbers
Check the hydraulic reservoir and pump drive exploded view on page 140. The suction hose, return tube, and filter assembly are itemized with part numbers there. If the pump is suspect, the 28.5 GPM pump assembly is listed on page 201. Confirm your serial number range in the parts index before ordering.
Manual Section: Hydraulic Reservoir, Pump Drive, Suction Hose, Return Tube, Filter Assembly p. 140Metal in the pan, need torque converter gasket, bearing, and spacer part numbers
Check the torque converter breakdown on page 159. The support, spacer, gasket, bearing, and mounting bolts are all itemized with part numbers there. Inspect the flywheel parts listing on page 282 if the flex plate cracked. Debris from a failed converter usually reaches the 28.5 GPM main pump, listed on page 201.
Manual Section: Torque Converter Support, Torque Converter Spacer, Torque Converter Gasket, Torque Converter Bearing, Torque Converter Bolt p. 159Hydraulics slow under load, can't identify control valve seal kit and relief valve part numbers
Check the hydraulic control valve section starting on page 451. Spool valves, relief valve assemblies, seals, and springs are itemized there by valve section. Verify you order the relief assembly matching the 2400 PSI rating shown on page 452, and count your valve sections before buying seal kits so nothing comes up short.
Manual Section: Hydraulic Control Valve p. 451Steering hard and jerky, need power steering pump, reservoir, and valve assembly part numbers
Check the power steering pump and reservoir breakdown on page 32. The pump assembly, reservoir, and valve assembly carry separate part numbers. Match the valve rated at 1600 PSI shown on page 33 to your pump before ordering, and grab the reservoir seals while you're in there; they rarely survive disassembly.
Manual Section: Power Steering Pump & Reservoir p. 32Frequently Asked Questions
How do I adjust the clutch or brakes on a Ford 555A?
The brake system on the Ford 555A uses friction discs and intermediate discs. The actuating disc assembly includes links, pins, and nuts. For detailed service procedures, refer to page 16, which lists components like the friction disc (83983209) and intermediate disc (81802536). p. 16
What are the replacement specifications for the hydraulic pump?
The hydraulic pump assembly for the 555A is a Vickers unit. The pump assembly (E7NN600BA) provides 28.5 GPM. For seal replacement, use kit ECPN600A, which includes 4 retainers and 1 shaft seal. p. 201
What is the torque specification for the cylinder head bolts on the Ford 555A diesel engine?

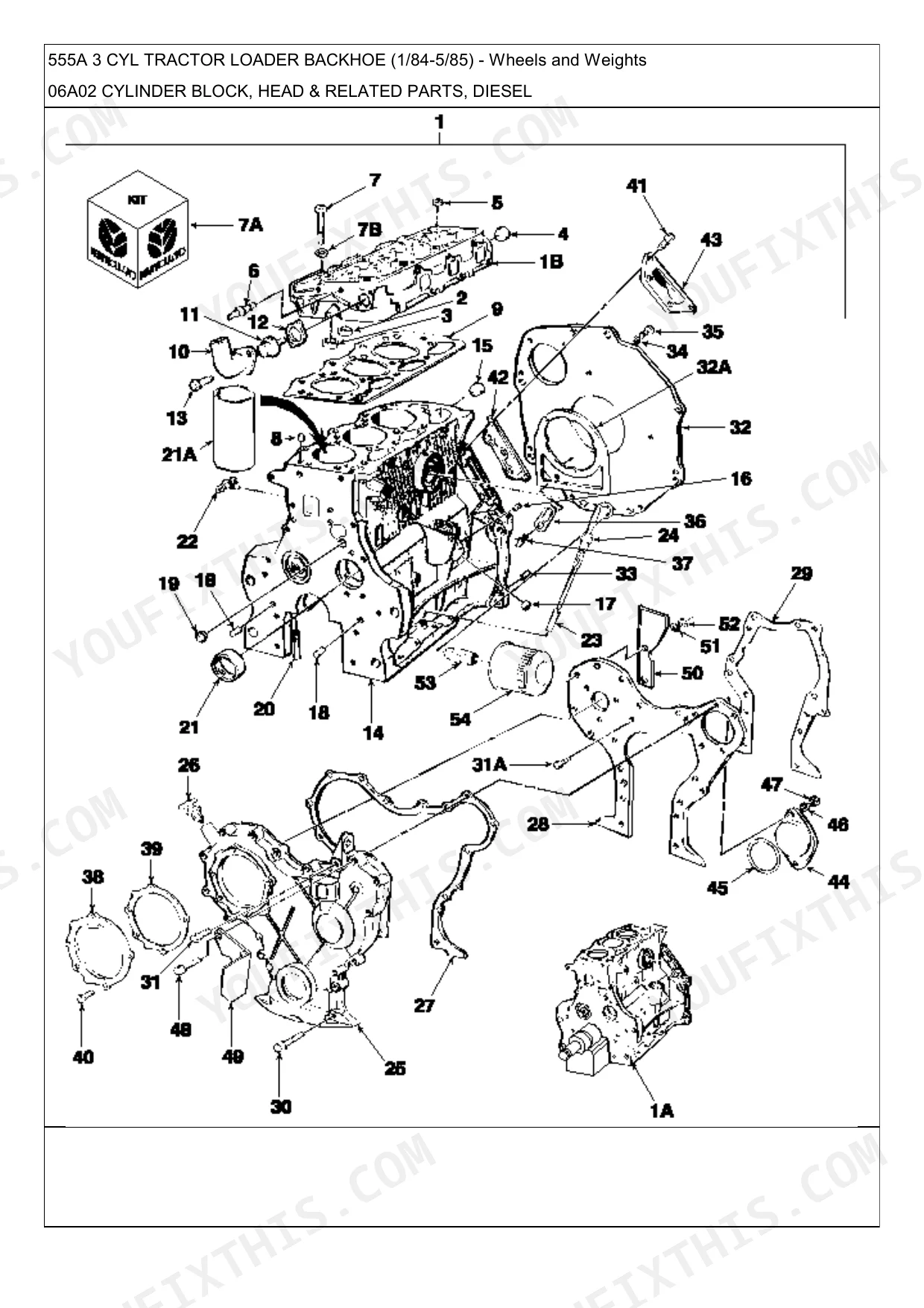

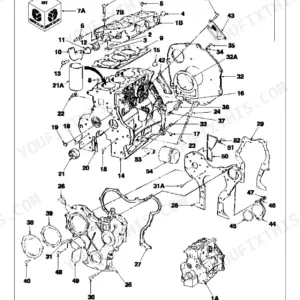

The cylinder head bolts for the 555A diesel engine are specified as 1/2"-13 x 4-3/4" (E1NN6065BA) for older blocks or 9/16"-12 x 5-1/32" (87802206) for newer blocks. Please refer to the service manual for the specific torque values required for these fasteners. p. 103
What is the correct thermostat temperature for the Ford 555A diesel engine?
The Ford 555A diesel engine uses thermostats rated at 168°F (D8NN8575AA), 172°F (D8NN8575CA), or 188°F (D8NN8575BA), depending on the application and climate requirements. p. 165
What is the capacity of the fuel tank for the Ford 555A?
The fuel tank for the Ford 555A has a capacity of 24 gallons. p. 170
What format is this Ford 555A manual in?
Immediate download of the complete 477-page searchable Parts Catalog. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this Ford 555A manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
