Part of the New Holland Parts Manuals.

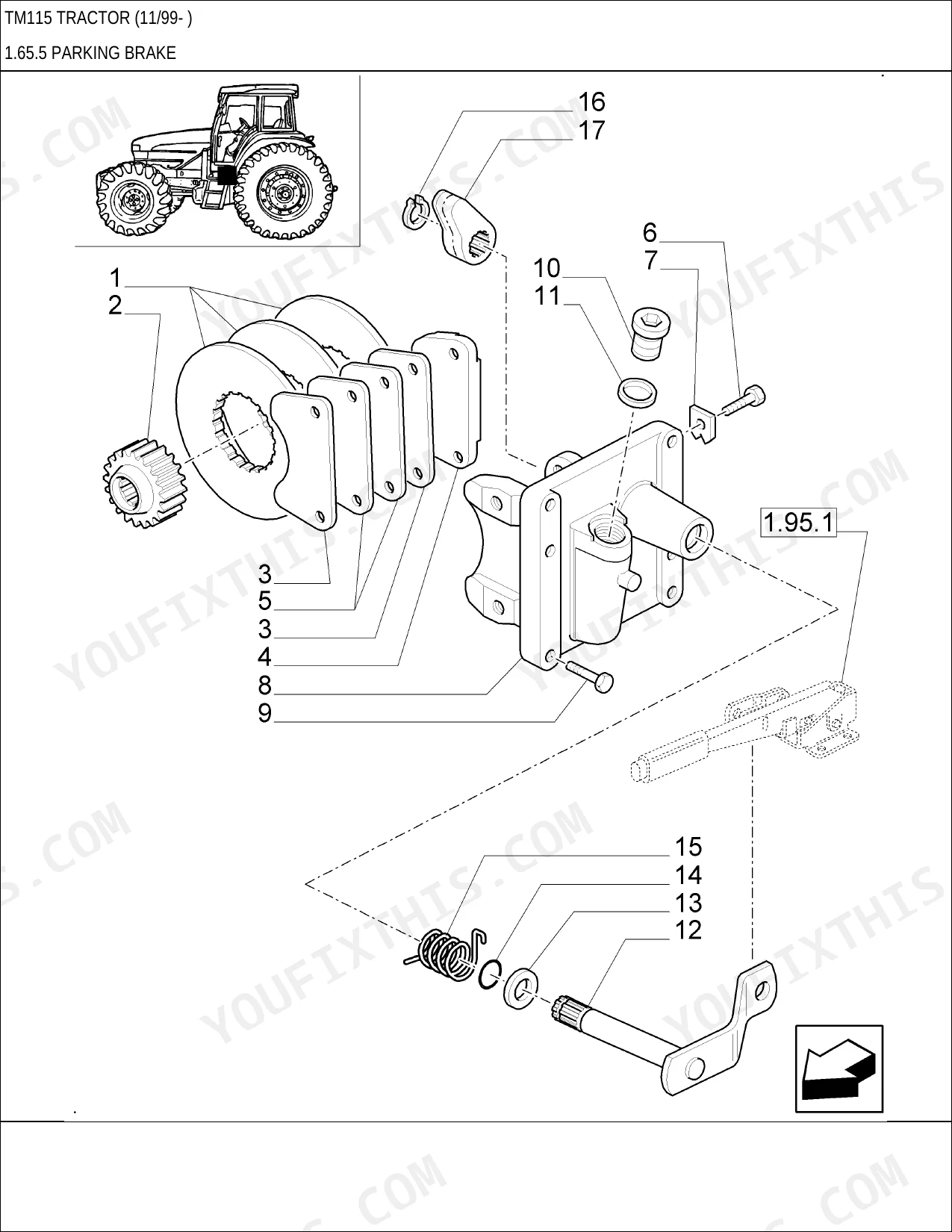

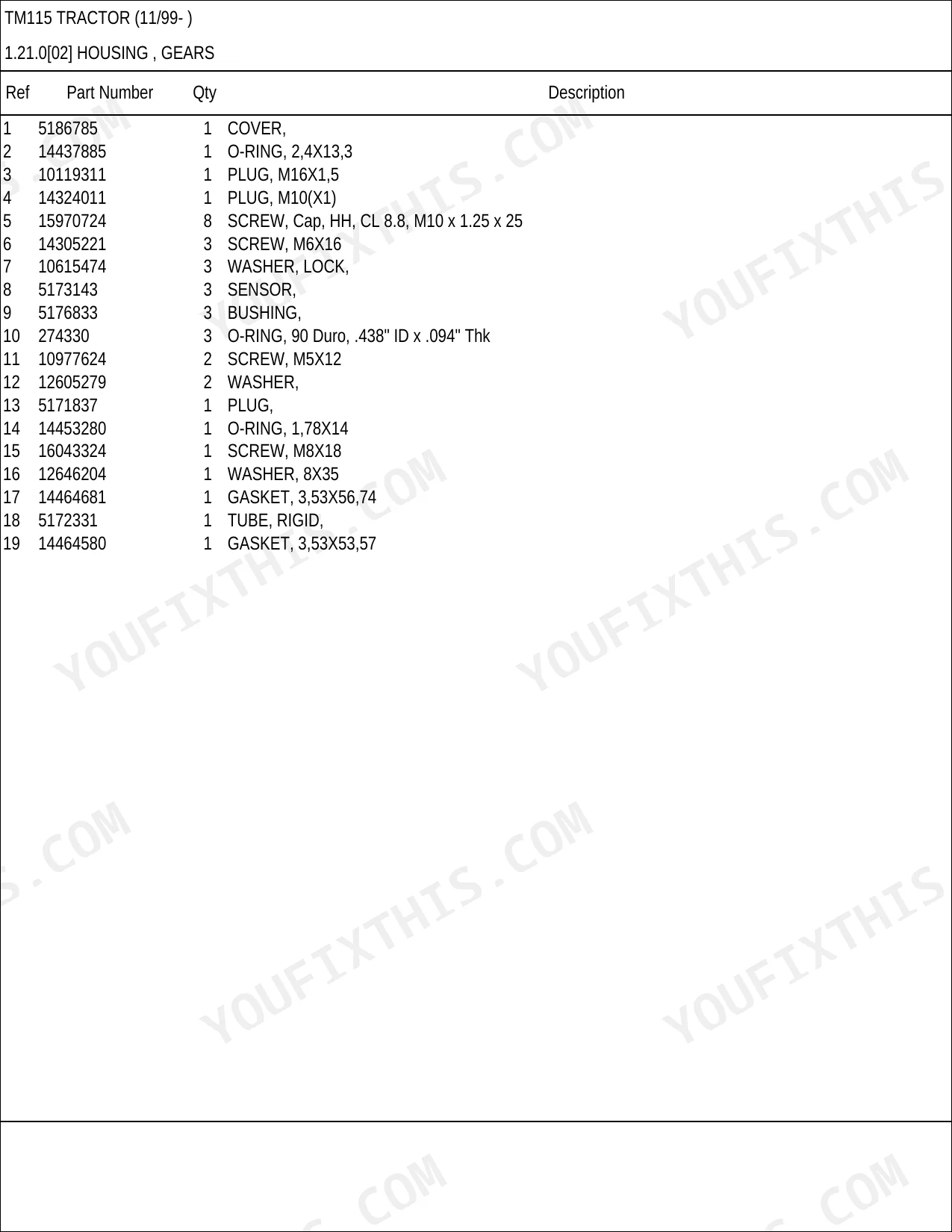

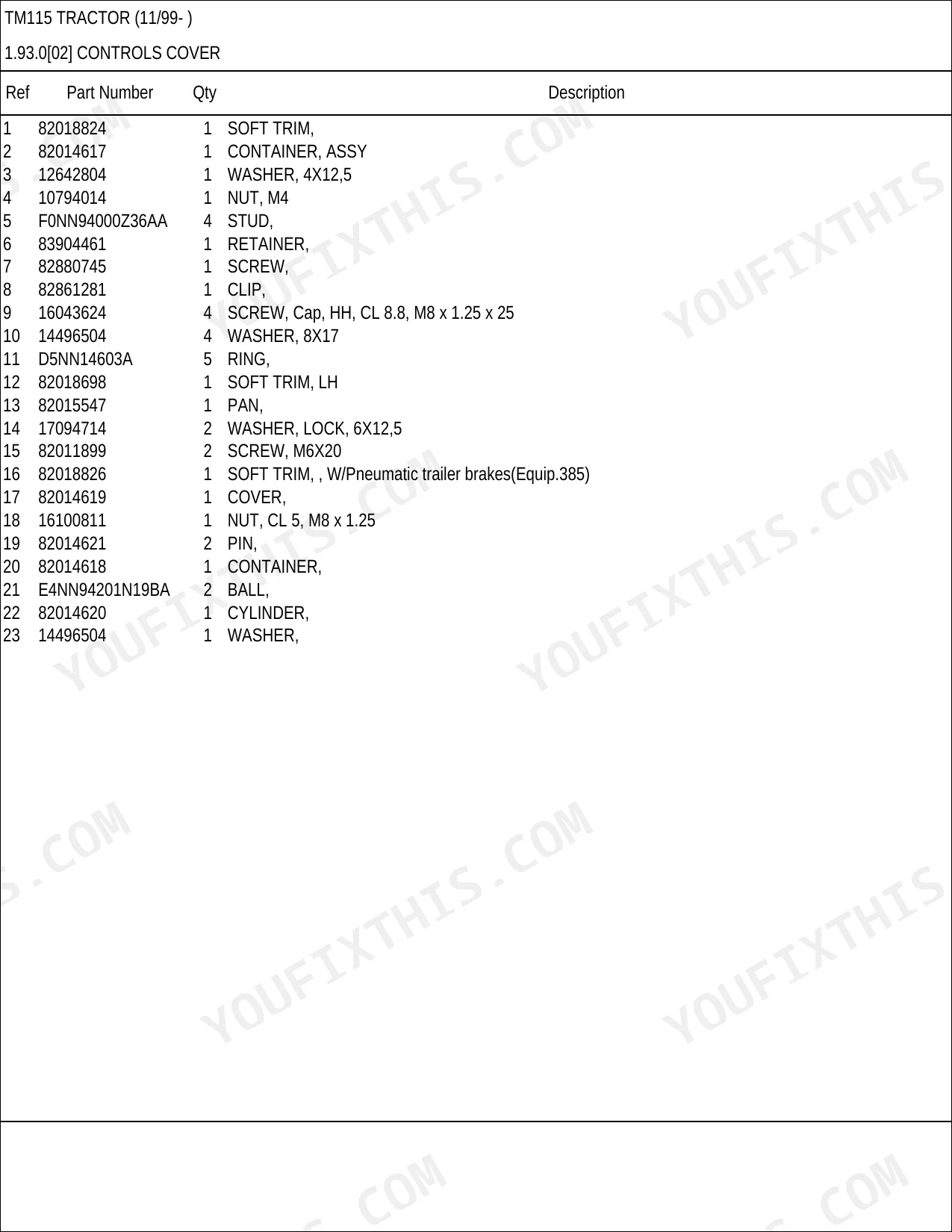

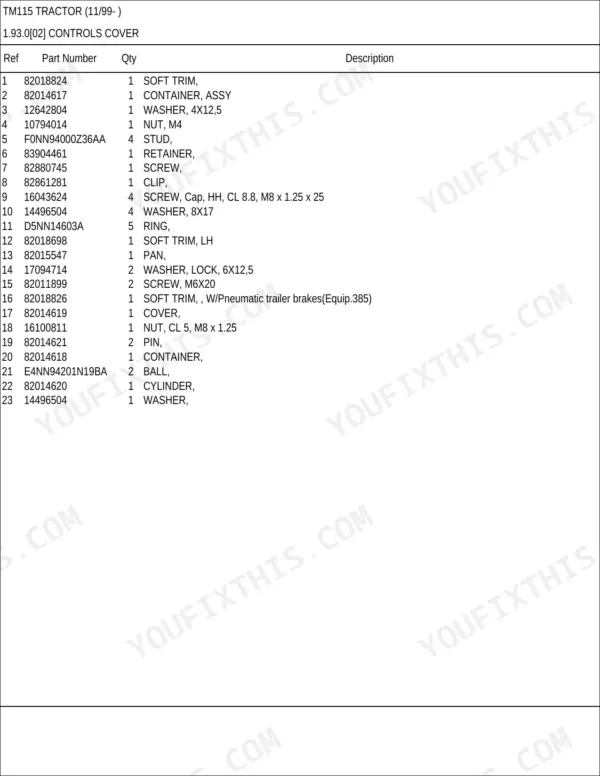

This is the factory illustrated parts catalogue for the New Holland TM115, 1328 pages of it. Every assembly on the machine is drawn exploded, each part on the drawing carries a reference number, and the facing page lists that reference against its New Holland part number, the quantity fitted and the description. That is what you order from.The TM115 was built in many configurations, so most of the 10 main sections carry variant figures alongside the standard ones: cab and platform versions, 2WD and 4WD front ends, the transmission options, market-specific lighting and decals. The catalogue draws each variant separately and labels it with its variant code, so you match the drawing to the machine in front of you rather than guessing.The book also carries 1 complete loader catalogue behind the tractor: 72LA Farm Loader. If your TM115 came with a loader, its parts are here too.It is a parts book, not a repair manual. There are no torque figures, no clearances and no wiring schematics in it. What it does, it does exactly: it tells you which part number fits your machine, and what else comes apart to reach it.
What's Inside This New Holland TM115 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

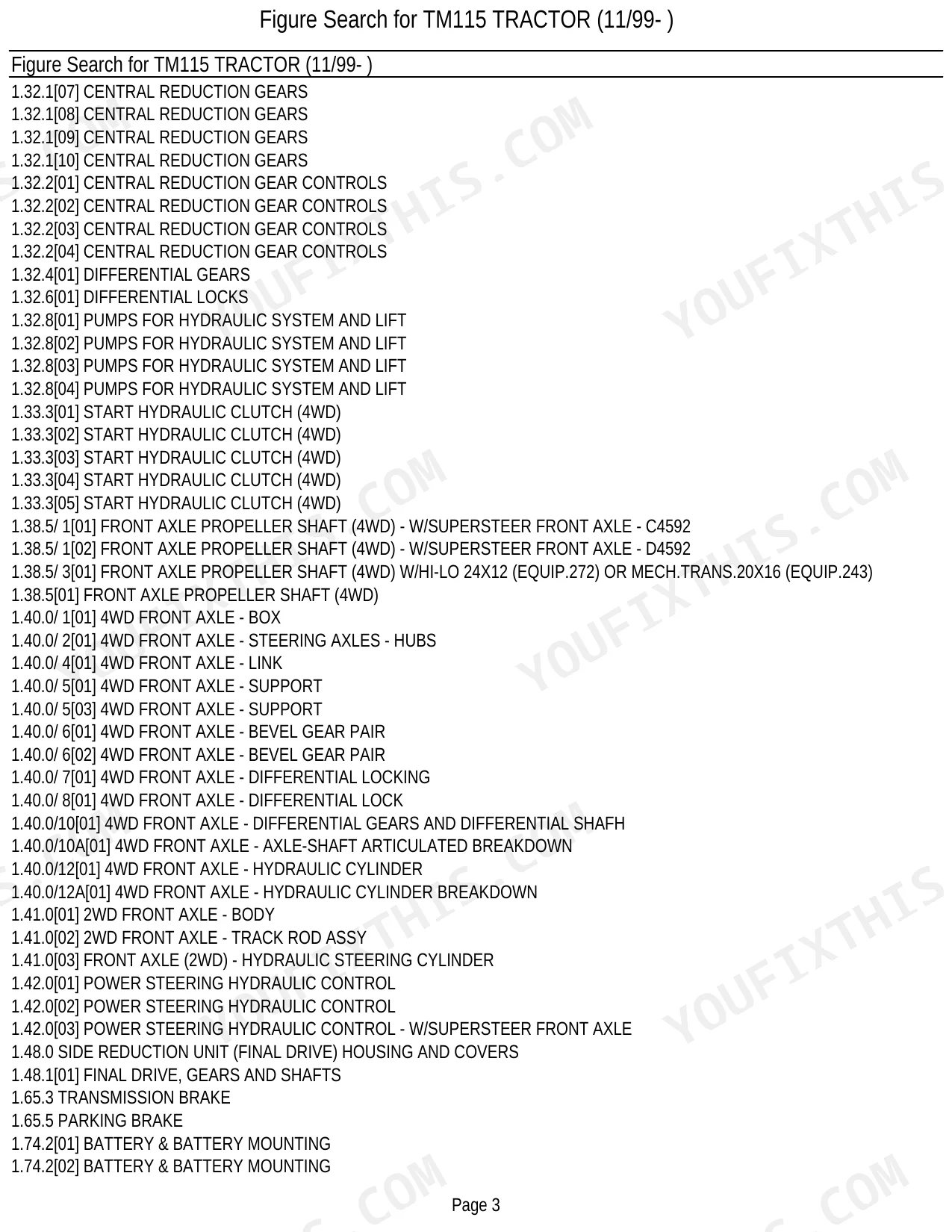

| Master Figure Index | 1-18 | Alphanumeric Figure Index, Figure Code Lookup, Section Map |
| Section Overview Drawings | 19-46 | Exploded Section Overview Drawings, Figure Code Callouts per Section |
| Engine | 47-104 | Cylinder Block & Related Parts, Oil Sump & Related Parts, Engine Covers & Gaskets, Cylinder Head & Related Parts, Cylinder Head / Rocker Arm / Valves & Related Parts, Suction and Exhaust Duct, Crankshaft & Related Parts, Piston & Connecting Rod, Damper and Flywheel, Drive-Gearing Tappets and Pushrods, Injector Breakdown, Fuel Filter Breakdown |
| Optional and Variant Equipment (0xx) | 105-118 | France Version - License Plate & Lamp, Decals - German Version, North America Version - Naso - Work Lights, Decals- North America Version, Warning Decals- North America Version, Austria Version - Decals, Additional Fuel Tank |
| Engine Equipment | 119-146 | Fuel Tank, Fuel / Lines, Fuel Tank Support, Silencer (Muffler), Pipes for Air Conditioning, Condenser and Dehydrating Filter for Air Conditioning, Compressor / Air Conditioning, Compressor Breakdown / Air Conditioning, Radiator & Related Parts, Cooling / Expansion Tank / Temperature Control, Heat Exchanger, Dry Air Filter-Pipes |
| Transmission | 147-234 | Housing / Gears, Support for 4WD Front Axle, Support for 4WD Supersteer Front Axle, Support for 2WD Front Axle, Clutch / P.T.O., Clutch Engagement, Hydraulic Gearbox Control, Gearbox Lubrication Piping, Transmission / Covers and Supports, Central Reduction Gears, Central Reduction Gear Controls, Differential Gears |
| Front Axle | 235-292 | Start Hydraulic Clutch (4WD), Front Axle Propeller Shaft (4WD) - with Supersteer Front Axle - C4592, Front Axle Propeller Shaft (4WD) - with Supersteer Front Axle - D4592, Front Axle Propeller Shaft (4WD) with Hi-Lo 24X12 (Equip.272) or Mech.Transmission20X16 (Equip.243), Front Axle Propeller Shaft (4WD), 4WD Front Axle - Box, 4WD Front Axle - Steering Axles - Hubs, 4WD Front Axle - Link, 4WD Front Axle - Support, 4WD Front Axle - Bevel Gear Pair, 4WD Front Axle - Differential Locking, 4WD Front Axle - Differential Lock |
| Rear Axle | 293-298 | Final Drive / Gears and Shafts |
| Electrical | 299-314 | Battery & Battery Mounting, Electric System / Horn & Horn Mounting, Battery / Cables, Battery Cables, Electrical System Cables, Headlamp, Headlamp - Reflector |
| Hydraulics | 315-362 | Power Take-Off, PTO / Clutch, Lifter / Housing and Covers, Lifter / Lines, Lifter / Piston and Cylinder, Central Housing Breakdown (Remote Valve) - C4660, Remote Control Valve Breakdown (Edc Valve) - C4660, Remote Control Valve Breakdown - C4660, Extra External Control Valves and Pipes - D4660, Central Housing Breakdown (Remote Valve) - D4660, Remote Control Valve Breakdown (Edc Valve) - D4660, Remote Control Valve Breakdown - D4660 |
| Sheet Metal | 363-372 | Tool Box - Engine Guard |
| Linkage | 373-394 | Tooling Connection Unit Breakdown (P/N 5176738 & 5189332), Tooling Connection Unit Breakdown (P/N 5172389), Tooling Connection Unit Breakdown (P/N 5174406), Tooling Connection Unit Breakdown (P/N 5190092), Tooling Connection Unit Breakdown (P/N 5174532 & 5174401), Tooling Connection Unit, Lateral Stabilizers |
| Driver's Compartment | 395-530 | Cables and Fuse Box, Front Windshield Wiper, Cab Glass and Relevant Parts, Rear Fenders, Mudguards Side Shield (Var. 869), Cab Supports, Cab Supports (Var.635), Controls Cover, Standard Pneumatic Seat Without Safety Belts - Breakdown, Deluxe Pneumatic Seat Without Safety Belts (Var.852) - Breakdown, Roof with Emergency Trapdoor (Var.627) |
| Optional and Variant Equipment (1xx) | 531-552 | Creeper Transmission, Creeper Transmission for Semi Power Shift, Fire Shield, Auxiliary Lights Kit (Left-Hand Drive), Auxiliary Lights Kit (Right-Hand Drive), Transmission Oil Heater, Aircleaner with Precleaner |
| Optional and Variant Equipment (2xx) | 553-720 | Engine Coolant Heater, Front Weight Carrier for Fan Styled Weights, Ballast Weight Support for "Super Steer" Front Axle, Pump Breakdown for Hydraulic System and Lift, Lifter / Distributor and Valves Breakdown, Simple/Double-Acting External Control Valve Breakdown, Double-Acting External Control Valve with Float and Automatic Cutout Breakdown, 20X16 Mechanical Gear Box (40 km/h) / Clutch, 20X16 Mechanical Gear Box (40 km/h) / Transmission Gears, 20X16 Mechanical Gear Box (40 Kmh) / Central Reduction Gears, Mechanical Gear Box 20X16 (40 km/h) / Internal Shifting Controls, Mechanical Gear Box 20X16 (40 km/h) / Nternal Shifting Controls |
| Optional and Variant Equipment (3xx) | 721-784 | Class 3 Front Axle with Brake, Conversion From 4-Positions to 3-Positions and Without Kick Out, Conversion From 4-Positions with Kick Out to 4-Positions Without Kick Out, With Detent Only in Float, Trailer Brake Valve for Open Centre, Trailer Brake Valve for Open Centre (Italy), Pneumatic Trailer Brakes, Pneumatic Trailer Brakes (Universal), Pneumatic Trailer Brakes (Italy), Pneumatic Trailer Brakes (Germany), Pneumatic Trailer Brakes (Universal & Italy) |
| Optional and Variant Equipment (4xx) | 785-954 | Flow-Rate Regulator Breakdown / Open Centre, 3Rd & 4Th Remote Valve / Open Centre, Trailer Brake Breakdown Valve for Load Sensing Closed Centre (Ccls), Trailer Brake Valve for Load Sensing Closed Centre (Ccls), Supersteer Front Axle 4WD, Trailer Brake Valve for Load Sensing Closed Centre (Ccls) - Italy, Trailer Brake Valve for Load Sensing Closed Centre (Ccls)-Italy, 4WD Front Axle with Suspensions and "Terralock" - Semi Power Shift, 4-Control Valve Unit with Lever Control for Ccls - C4660, 4-Control Valve Unit with Lever Control for Ccls - D4660, 4-Control Valve Unit with Lever Control for Ccls, Valve Control Unit with Joystick for Loader with Hi-Lo |
| Optional and Variant Equipment (5xx) | 955-968 | Automatic Hitch (with 1 Additional Jack), 3Rd Remote Valve for Ccls, 4Th Remote Valve for Ccls |
| Optional and Variant Equipment (6xx) | 969-980 | Rear Auxiliary "Sae" Power Socket Adaptor, Hinged Windshield |
| Optional and Variant Equipment (7xx) | 981-1098 | Valve Control Unit with Joystick for Front Lift with Cab Suspension, Valve Control Unit with Joystick for Front Lift with Hi-Lo, Simple/Double-Acting Control Valve Breakdown with Float Commutation, Distributor with 3 Valves, 4-Control Valve Unit with Joystick Control for Ccls, Terralock with Hi-Lo, Terralock, Auto Linkage Stabilizers for Suspension Cab, Radar Unit - Nha, Radar Unit - Japan, Radar Unit - Uk, Radar for All Countries Except Uk/America/Japan |
| Optional and Variant Equipment (8xx) | 1099-1190 | Power Take-Off 540/1000 RPM with Spring - C4730, Power Take-Off 540/1000 RPM with Spring - D4730, 2WD Front Wheels, Front Hpl for for Open Centre - Conversion Kit, Synchro Mesh Geared Power Take-Off, Power Take-Off 540/750/1000 RPM, 4WD Driving Wheels, Drive Wheels, Outer P.T.O. Control Mounted on Mudguards, Implement Carrier (2/3 Cat.) for Electronic Lift, Implement Carrier (Telescopic Arms) 2/3 Cat. and Anti-Shacke Plates, Hydraulic Adjustment for Top Link and Righthand Lift-Rod for Open Centre |
| Optional and Variant Equipment (9xx) | 1191-1249 | Hydraulic Adjustment for Top Link and Righthand Lift-Rod for Ccls, Hydraulic Adjustment for Top Link and Righthand Lift-Rod for Ccls - C4660, Hydraulic Adjustment for Top Link and Righthand Lift-Rod for Ccls - D4660, Drawbar for Sliding Support, Tow-Bar with Rollers, Implement Carrier (Telescopic Arms) / Anti-Schake Plates, Sway-Bar (Europe), Drawbar (29Mm) for Italy, Sway-Bar (Naso), Sliding Hitch Without Drawbar, Tow-Bar / Category "D2" (Italy) for Sliding Support, Auto Linkage Stabilizers |
| La Farm Loader | 1250, 1251-1255, 1256-1328 | Mount Kit / Super Steer Axle - 716373036 & 716373046, Bucket Cylinder, 2 - Function Mid-Mount Plumbing Kit(Quick Disconnect) / 715842006, 4Th Function Mid-Valve Kit for Series Tm Tractors - 718466014, Grapple Fork - 715765006, Grapple Fork Cyl. - 715765006, Grapple Fork Hydraulic System - 715765006 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TM115 catalogue | ||
| Total pages | 1328 | |
| TM115 | ||
| Main sections | 10 (Engine through Driver's Compartment) | |
| Production coverage | 1999-2002 | |
| TM115 loader-equipped | ||
| Loader catalogs included | 72LA Farm Loader | |
| All figures | ||
| Part numbers | Yes, Ref / Part Number / Qty / Description table facing every figure | |
| Whole document | ||
| Searchable text | Yes | |
| Torque specs | None, this is a parts catalog and not a repair manual | |
New Holland TM115 Common Problems This Manual Covers
Optional equipment appears to be missing from the catalog
It is not missing, it is drawn separately. Creepers, front lifts, extra remote valves, cab suspension and market-specific kit are printed in the variant bands behind the main sections rather than inside them, each figure labelled with its variant code. Find the code that matches your machine's build and work from that drawing. This is the single most common reason a TM115 owner concludes the catalog is incomplete.
Manual Section: Optional and Variant Equipment (0xx) (pp. 105-118)Frequently Asked Questions
Does this catalog include torque specs or wiring diagrams?
No. This is the factory parts catalog: exploded drawings and part numbers. It contains no wiring schematics and no torque figures; those live in the TM115 repair manual, which is a separate book. If you need to know which bolt to order, this is the right document. If you need to know how tight to do it up, it is not.
Which loaders are covered?
1 loader catalogs sit behind the tractor sections: 72LA Farm Loader. Each is a complete parts book with its own figure index, so a loader-equipped TM115 is covered end to end.
Can I search it by part number?
Yes. The PDF has a real text layer, so a part number typed into your reader's search box finds every figure that uses it. The master figure index at the front lists every figure by code and name, which is the faster route when you know the assembly but not the number.
Will it cover my serial number?
The book is the 1999-2002 edition of the TM115 catalog and it handles build differences with variant figures rather than serial breaks. Where two parts were fitted across the run, both figures are printed and each carries its variant code, so you match the drawing to your machine.
Why is a parts catalog 1328 pages?
Because the TM115 was sold in many configurations and the catalog draws each one. Alongside the standard figures you get the transmission options, 2WD and 4WD front ends, cab and platform variants, and market-specific lighting and decals. The 1 loader catalogs at the back add several hundred pages on their own.
Is this New Holland TM115 Parts Catalog a digital download?
Instant PDF download (23 MB). You get the full 1328-page searchable Parts Catalog immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this New Holland TM115 Parts Catalog?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
