Part of the New Holland Parts Manuals.
This is the factory illustrated parts catalogue for the New Holland LB90.B, 1251 pages of it. Every assembly on the machine is drawn exploded, each part on the drawing carries a reference number, and the facing page lists that reference against its New Holland part number, the quantity fitted and the description. That is what you order from.The LB90.B was built in many configurations, so most of the 15 main sections carry variant figures alongside the standard ones: cab and platform versions, 2WD and 4WD front ends, the transmission options, market-specific lighting and decals. The catalogue draws each variant separately and labels it with its variant code, so you match the drawing to the machine in front of you rather than guessing.It is a parts book, not a repair manual. There are no torque figures, no clearances and no wiring schematics in it. What it does, it does exactly: it tells you which part number fits your machine, and what else comes apart to reach it.
What's Inside This New Holland LB90.B Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Master Figure Index | 1-38 | Alphanumeric Figure Index, Figure Code Lookup, Section Map |

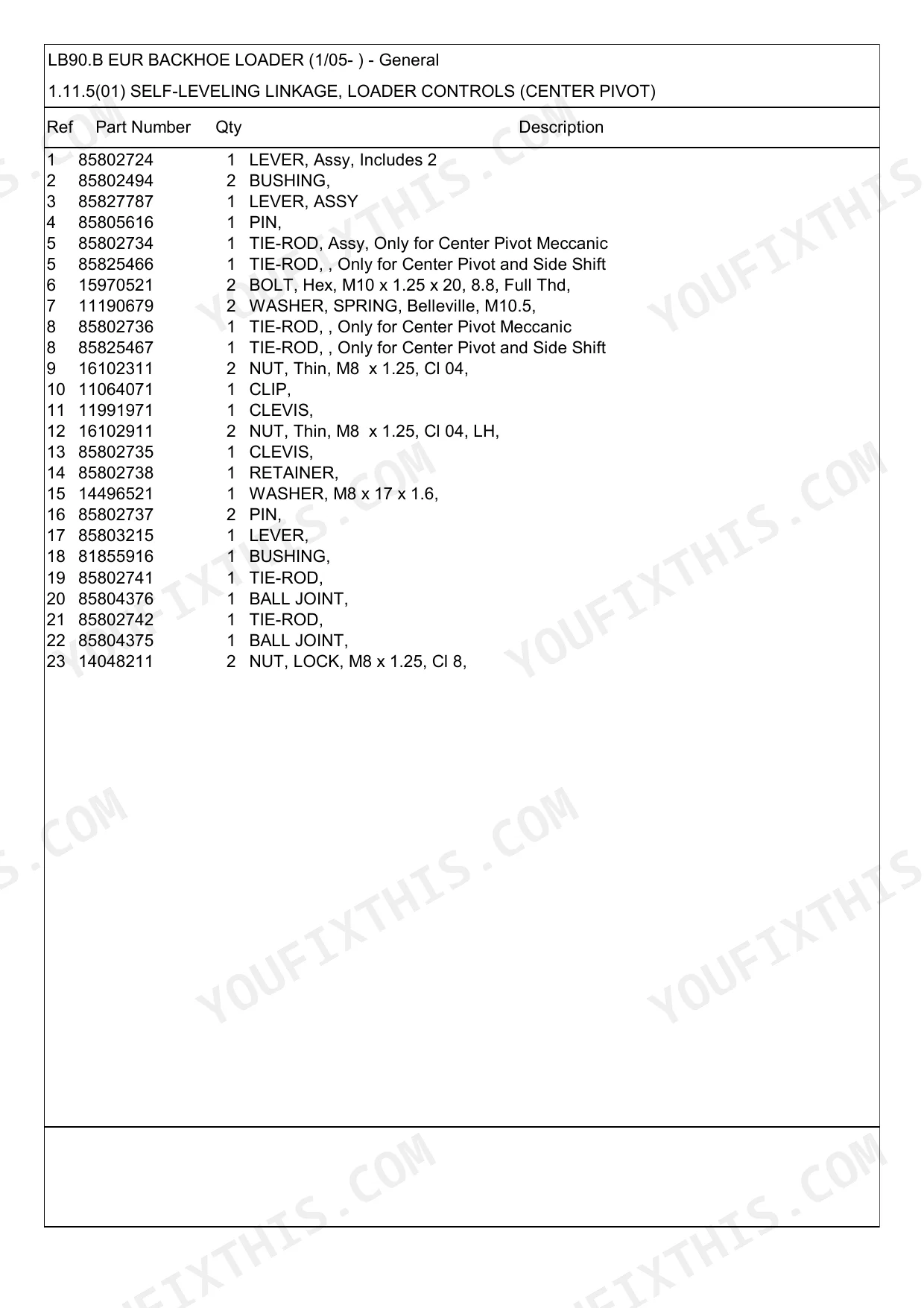

| Fuel Tank, Exhaust and Radiator | 141-154 | Self-Leveling Linkage / Loader Controls (Center Pivot), Self-Leveling Linkage / Loader Arm (Center Pivot), Fuel Tank & Related Parts, Muffler & Extensions, Expansion Tank, Air Cleaner & Hoses |
| Chassis, Stabilizers and Transmission | 155-198 | Rear Support (Side Shift), Frame (Side Shift), Gearing Speed Gear, Transmissiongearing Speed Gear (2WD Power-Shuttle), Transmissiongearing Speed Gear (4WD Power-Shuttle), Gear Filter Pipes (Power-Shuttle), Transmission Esternalshifting Controls (Power-Shuttle), Front & Rear Driveshaft (Power-Shuttle), Transmission Oil Cooling Pipes (Power-Shuttle) |
| Front Axle and Steering | 199-222 | Front Axle (2WD), Power Steering Hydraulic System |
| Battery and Cables | 223-230 | Chassis Harness & Ground Wire (Power Shuttle), Battery Lock-Out Switch & Ground Wire (Power Shuttle), Engine Harness (Power Shuttle) |

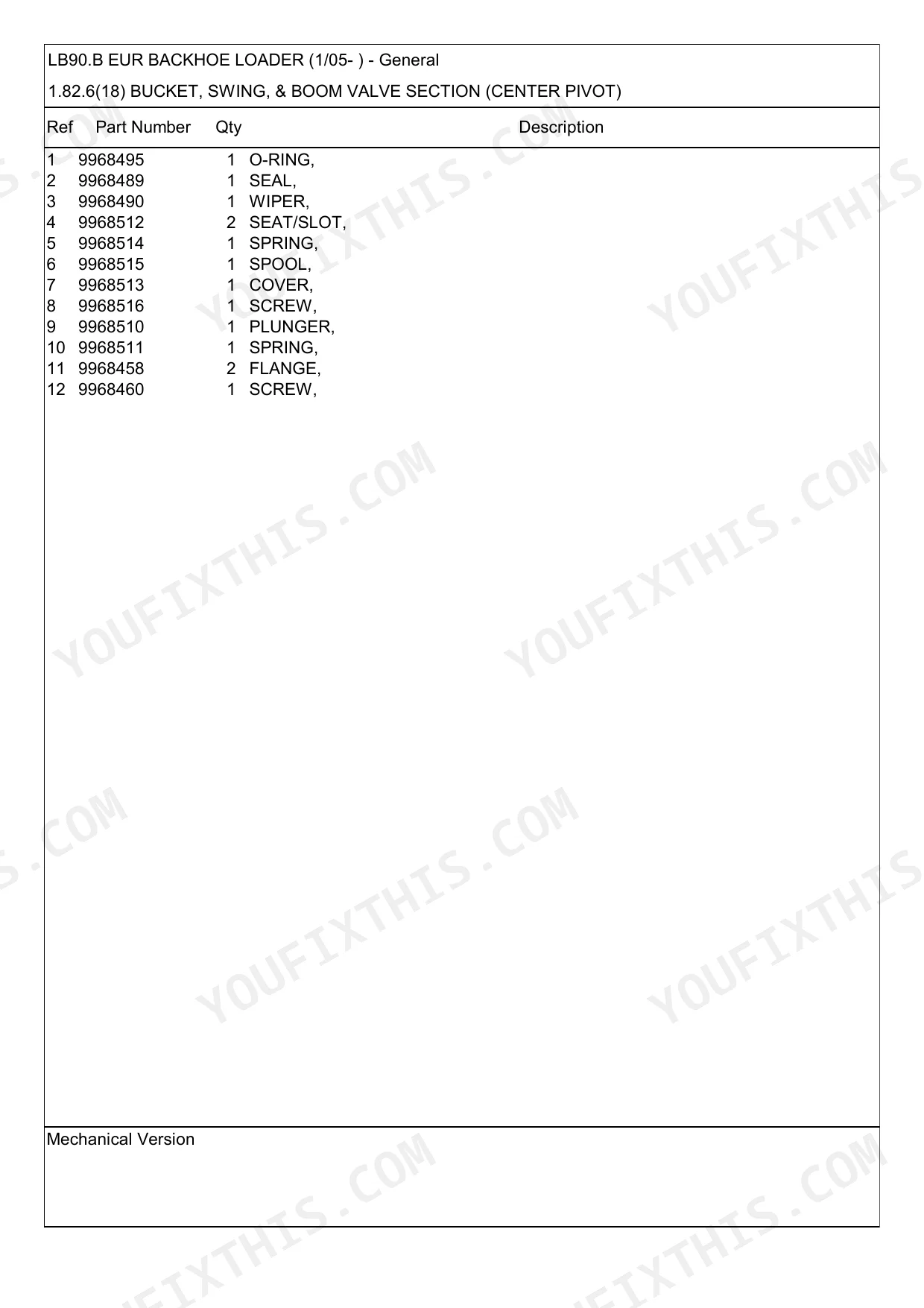

| Hydraulic Reservoir and Pumps | 231-326 | Swing Post Assembly / Bushings & Pins, Swing Post Pins & Transport Lock Hook, Hydraulic Oil Reservoir, Hydraulic Pump (35+35-154L/Mm), Hydraulic System Piping, Hydraulic System Piping(Center Pivot), Hydraulic System Piping(Side Shift), Backhoe Control Valve(Center Pivot), Dipper Valve Section (Center Pivot), Bucket / Swing / & Boom Valve Section (Center Pivot), Hood / Grille & Related Parts, Cab Screen |
| Cab, ROPS and Controls | 327-519 | Cab / Ceiling Light, Safety Frame- Instruments and Gauges, Back-Up Alarm, Igniton Switch / Power Point / Fuse Panel & Side Console Harness (ROPS Cp Power Sh, Igniton Switch / Power Point / Fuse Panel & Side Console Harness (ROPS Ss Power, RH Side Console Trim / Instrument Cluster & Switches (ROPS Ss Power Shuttle), Igniton Switch / Power Point / Fuse Panel & Side Console Harness (Cab Cp Power S, Igniton Switch / Power Point / Fuse Panel & Side Console Harness (Cab Ss Power S, Front and Rear Windscreen Wipers, Windscreen Wipers Reservoir & Nozzles, Radio Antenna & Speaker Cover, Lamps & Lights - Cab (Europe) |
| Market Kits: Mirrors, Chocks and Spark Arrester | 520-585 | Silent Hammer Cb65S, Hammer Cb65B, Approval for Italy, Approval for Germany, Approval for Europe, Single Battery, Uk Version, Approval for Uk-Europe, Approval for France-Europe, Approval for France, Air Intake Cap & Pre-Cleaner, Right Front Spare Wheel |
| Counterweights and 4WD Driveshaft | 586-593 | Shovel and Rear Lifting Hooks, Front Weights, Right Front Spare Wheel |
| Backhoe Control Valves | 594-805 | Backhoe Control Valve / 6 Sections (Side Shift), Backhoe Control Valve / Stabilizer Section (Side Shift), Backhoe Control Valve / Oulet Section (Side Shift), Two-Section Control Valve for Loader, Stabilizer Cylinder - Lock Valve (Side Shift), Double Battery, Hydraulic System Piping(Side Shift), Section Pilot Control Valve Support / Complete, Pilot Control Valve Support / Complete, Section Pilot Control Valve Support / Complete (Center Pivot), Valve / Joystick Pilot Controls (Left Hand) |
| Rear Axle Brakes and 4WD Front Axle | 806-877 | 4WD Front Axle / Housing / Bushings & Supports, 4WD Front Axle / Swivel Housing & Steering Cylinder, 4WD Front Axle / Hubs, 4WD Front Axle / Ring Gear & Pinion Assembly, 4WD Front Axle / Differential, 4WD Front Axle / Drive Shaft, Front Axle - (4WD) with Gear, Bevel, Glide Ride Valve, Hydraulic System for Machine Frame Levelling & On/Off Switch, Hydraulic System for Machine Frame Levelling, Hydraulic Cylinder (Bucket 4X1-6X1), Bucket 4X1 (1 M3) with Blade |
| Backhoe Boom and Dipperstick | 878-973 | Boom - Dipper Short, Short Dipper, Short Dipper - Bucket Motion, Short Dipper - Hydraulic System, Hydraulic Bucket Cylinder, Hydraulic Ditching Cylinder, Hydraulic Lifting Cylinder, 12" (305Mm) Backhoe Bucket with Pin Teeth, 12" (305Mm) Backhoe Bucket with Bolt-On Teeth, 18" (457Mm) Backhoe Bucket with Pin Teeth, 18" (457Mm) Backhoe Bucket with Bolt-On Teeth, 24" (610Mm) Backhoe Bucket with Pin Teeth |
| Cab Heating, Air Conditioning and Steering Lock | 974-1065 | Stabilizer Foot / Ground (Side Shift), Internal Fan, Scrab Grab, 4WD Steering Lock, Radiator, A/C Housing & Filters, A/C Blower & Coils, Heater Coil Hoses, A/C & Heater Control Panel, A/C & Heater Console Ducts, A/C & Heater Conveyor, A/C Housing Side Panels |
| Auxiliary Hydraulics: Hammer and 4x1 Bucket Lines | 1066-1147 | 4X1 & 6X1 Bucket Hydraulic Lines (P. Shuttle), Pedal-Operated Telescopic Dipper Hydraulic System (Side Shift), Seat Belts / 2" & 3", Three-Section Control Valve for Loader, Kit of Conversion From 2 to 3 Spools, Hed Telescopic Contorl Valve / Section Hoses(Center Pivot), Hed Cylinder Piston End Hydraulic Lines(Center Pivot), Hed Cylinder Rod End Hydraulic Lines(Center Pivot), Hed Foot Pedal / Cable & Decals(Center Pivot), Hydraulic System for Hammer (Center Pivot), Rear Hammer Control Valve, Hydraulic System for Hammer (Side Shift) |
| Fenders, Wheels and Tyres | 1148-1231 | Fenders / Front, Front Wheels (2WD), Front Wheels (4WD), Rear Wheels, Rear Wheels (Side Shift), Front Wheels (2Wd/4Wd), Battery Connection, Cloth Seat & Attaching Hardware (Cab), Cloth Seat Cushions / Armrests & Related Parts, Cloth Seat Mounting Plate / Adjusting Rails & Seat Belt, Cloth Seat Upper Suspension Parts, Cloth Seat Lower Suspension Parts |
| Boom Lift and Crowd Cylinders | 1232-1251 | Long/Short Dipper - Bucket Motion, Telescopic Dipper Short - Hydraulic System, Telescopic Dipper Short, Telescopic Dipper Short - Hydraulic Systemm, Plate Support, Tool Kit, Cold Start |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| LB90.B catalogue | ||
| Total pages | 1251 | |
| LB90.B | ||
| Main sections | 15 (Fuel Tank, Exhaust and Radiator through Boom Lift and Crowd Cylinders) | |
| Production coverage | 2003-2007 | |
| All figures | ||
| Part numbers | Yes, Ref / Part Number / Qty / Description table facing every figure | |
| Whole document | ||
| Searchable text | Yes | |
| Torque specs | None, this is a parts catalog and not a repair manual | |
New Holland LB90.B Common Problems This Manual Covers
Hydraulic system inability to lift heavy loads or jerky movements
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The hydraulics section gives you the pump, the lifter housing and covers and the power take-off drive that turns the pump, each with part numbers. On a LB90.B the parts most often replaced here are Hydraulic cylinder seals, Electrical grounding points and connectors. The standard and high-flow machines take different pumps and valve bodies, so match the figure before ordering.
Manual Section: Hydraulic Reservoir and Pumps (pp. 231-326)Transmission slippage or jerky movement with loss of drive
This catalog will not tell you how to fix it, but it will tell you exactly what to order. The transmission section gives you the housing, the gears and each clutch pack drawn exploded, so a rebuild kit can be ordered against the box actually fitted. On a LB90.B the parts most often replaced here are Hydraulic cylinder seals, Electrical grounding points and connectors. Check the variant code on the figure first: the mechanical box and the semi power shift share a housing drawing but not their internals.
Manual Section: Chassis, Stabilizers and Transmission (pp. 155-198)Frequently Asked Questions
Does this catalog include torque specs or wiring diagrams?
No. This is the factory parts catalog: exploded drawings and part numbers. It contains no wiring schematics and no torque figures; those live in the LB90.B repair manual, which is a separate book. If you need to know which bolt to order, this is the right document. If you need to know how tight to do it up, it is not.
Can I search it by part number?
Yes. The PDF has a real text layer, so a part number typed into your reader's search box finds every figure that uses it. The master figure index at the front lists every figure by code and name, which is the faster route when you know the assembly but not the number.
Will it cover my serial number?
The book is the 2003-2007 edition of the LB90.B catalog and it handles build differences with variant figures rather than serial breaks. Where two parts were fitted across the run, both figures are printed and each carries its variant code, so you match the drawing to your machine.
Why is a parts catalog 1251 pages?
Because the LB90.B was sold in many configurations and the catalog draws each one. Alongside the standard figures you get the transmission options, 2WD and 4WD front ends, cab and platform variants, and market-specific lighting and decals.
What format is this New Holland LB90.B manual in?
A 1251-page Parts Catalog in searchable PDF format (56 MB), available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this New Holland LB90.B Parts Catalog?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
