New Holland TG285 Tractor Parts Catalog

$29.99

Model: TG285
Type: Tractor
Years: 2002
533 Pages·7.1 MB·Searchable PDF·English·Print-Ready
  • ✓ Torque Specs
  • ✓ Bookmarks
Preview Sample Pages (PDF)
Add to Cart
New Holland TG285 exploded view diagram of the radiator, cooling fan, and fan shroud assembly components.
New Holland TG285 Tractor Parts Catalog
$29.99

Instant Download 24/7

  • Works on PC, Mac, tablet, and phone.
  • Download once, keep forever



Guaranteed Safe Checkout
Visa Mastercard PayPal Apple Pay Google Pay

Need the right part number for your 2002 New Holland TG285? This 533-page New Holland TG285 parts catalog PDF covers the entire tractor, from radiator and fan shroud to cab and chassis. You get exploded views with numbered callouts for every assembly: engine, drivetrain, hydraulics, MFD front axle, and operator cab, plus a figure-search index and a metric-to-inches conversion table. Each diagram ties directly to factory part numbers, so cross-referencing at the dealer counter takes seconds instead of a phone marathon. Ordering the MFD axle housing with the standard 12-bolt hub? The catalog shows exactly which variant fits the TG285 built from 12/02 on, with and without differential lock. No more eyeballing a worn casting and hoping the counter guy guesses right. Bookmarked by system and keyword-searchable; find the figure, read the number, order once.

Complete the set for your TG285

What's Inside This New Holland TG285 Parts Manual

SystemPagesKey Topics

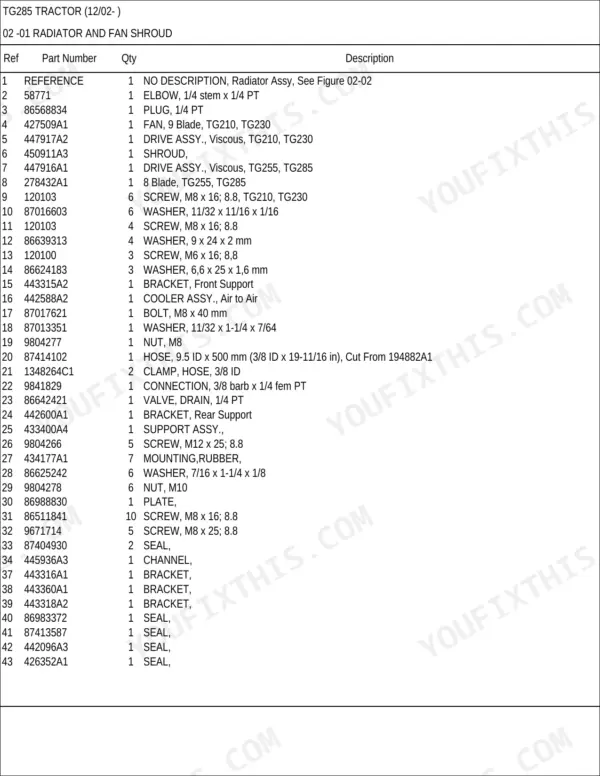

Engine7-67Radiator and Fan Shroud, Radiator Assembly, Deaeration System, Air Induction System, Ether Start System, Exhaust System, Engine Support Housing Assembly, Water Pump System
Fuel System68-97Fuel Injection System, Fuel Filter and Connections, Fuel Injection Pump, Fuel Injection - Nozzle, Hand Throttle, Foot Throttle, Fuel Tanks, Fuel Lines
Electrical98-169Harness - Engine, Power Distribution, Harness - Chassis, Harness - Remote Hydraulic Valve, Harness - Cab, Harness - Cab Roof, Harness - Suspended Axle, Electrical Component Mounting
Steering and Front Axle170-230Steering Wheel and Column, Steering Column Assembly, Steering System - MFD, Hydraulic System - MFD Differential Lock, Hydraulic System - Suspended MFD Axle, Front Axle - Mounting, Front Axle - MFD, Front Axle - Suspension
Power Train231-324Transmission Drive Shaft and Damper, Speed Transmission - Front Cover, Speed Transmission - Housing, Plate Assembly - Valve Mounting, Speed Transmission - Output Shaft Rear Clutch, Range Transmission - Housing, Valve Assy - Inching, Range Transmission - Input Shaft
Brakes325-344Brakes - Pedal Brake, Brakes - Hydraulic System, Brakes - Control Valve, Brakes - Differential, Park Brake - Hydraulic System, Park Brake - Brake Assembly, Park Brake - Release, Trailer Brakes - Hydraulic

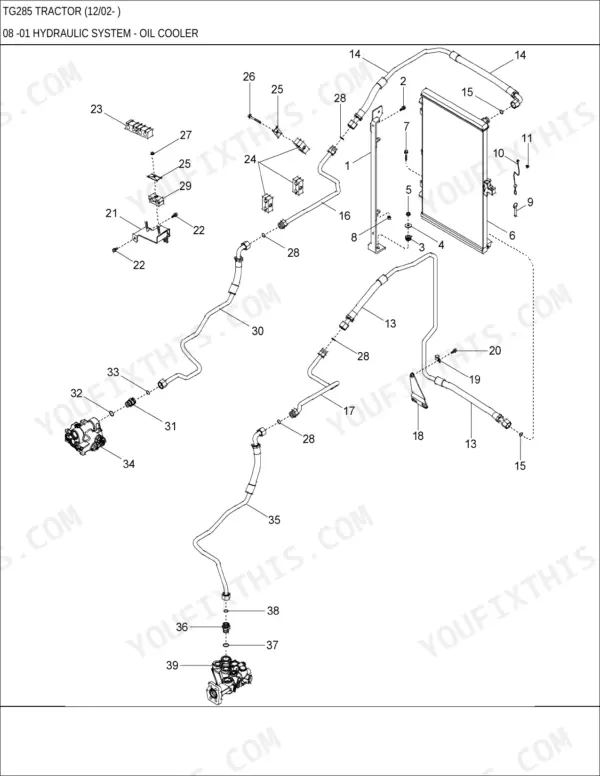

Hydraulic System345-395Hydraulic System - Oil Cooler, Hydraulic System - Charge Pump, Hydraulic System - Piston Pump and Filter, Hydraulic System - Megaflow Pump, Hydraulic System - Regulated Pressure, Hydraulic System - Creep Speed, Hydraulic System - Transmission Lube, Hydraulic System - Hitch

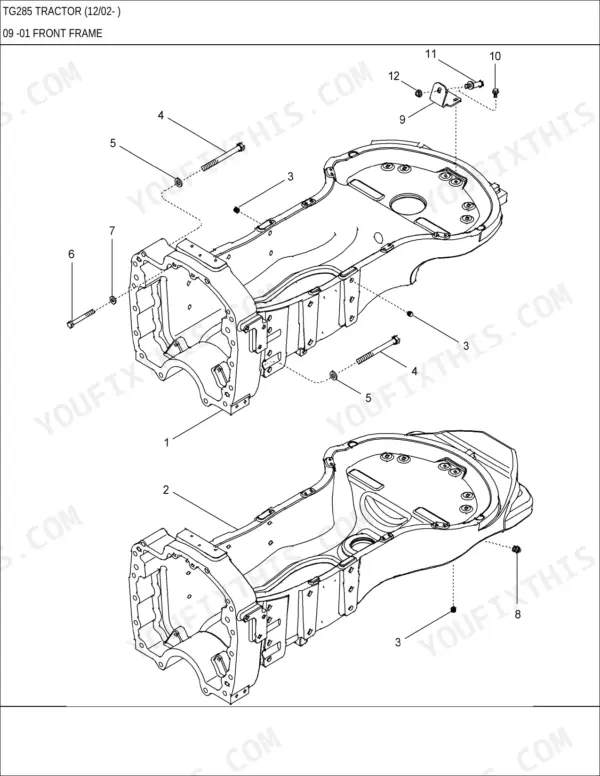

Frame, Cab and Hitch396-517Front Frame, Front Weights, Fenders - Front, Fenders - Rear, Hood - Tilting, Hood - Fixed, Hood - Support, Cab - Mounting and Frame
General Information - Abbreviations518-531
General Information - Metric to Inches532-533

Quick Reference Specifications

SpecificationValuePage
Cap, Radiator15 psip. 13
Fuel Tank, Right Hand275 L (73 gal)p. 94
Fuel Tank, Left Hand235 L (62 gal)p. 94
Fuel Tank, Left Hand (High Capacity)325 L (86 gal)p. 94
BrandNew Holland
ModelTG285
Machine TypeTractor
Manual TypeParts Manual
LanguageEnglish
FormatSearchable PDF (Digital Download)
Pages533
File Size7.1 MB
Year Range2002
Wiring DiagramsNo
Hydraulic SchematicsNo
Torque SpecificationsYes
Bookmarked / IndexedYes
