Covering all four tractors in the TG series, the New Holland TG285 operator manual PDF applies equally to the TG210 and both mid-range models, across 483 pages under OEM number 87059621. Field work fills well over a third of the book: PTO engagement, three-point hitch operation, drawbar preparation, remote hydraulics and loader hookup, then ballasting, wheel slip, power hop and tire pairings for FWD. Early and later instrument clusters each get their own chapter, so you can program the display monitor, calibrate the radar sensor and decode warning displays on either version. At a filter change, refill the engine with 21 L of oil; the hydraulic system tops out at 2930 PSI (20 200 kPa). A wrong filter gets bought twice, and the field waits. Search the text or jump by bookmark to system capacities, then order the right fluids and filters for your tractor the first time, while the weather still holds.
What's Inside This New Holland TG210, TG230, TG255, TG285 Operator Manual

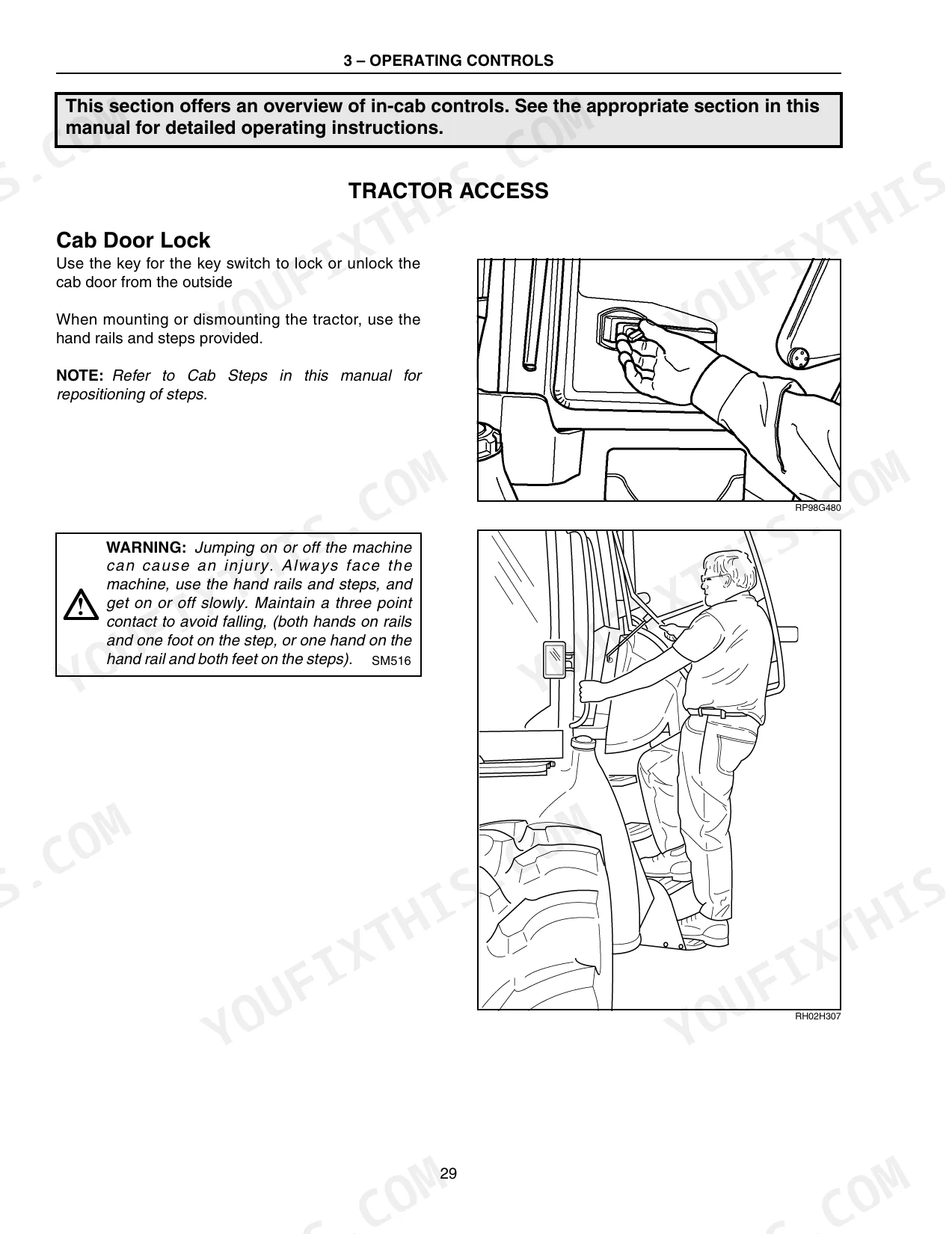

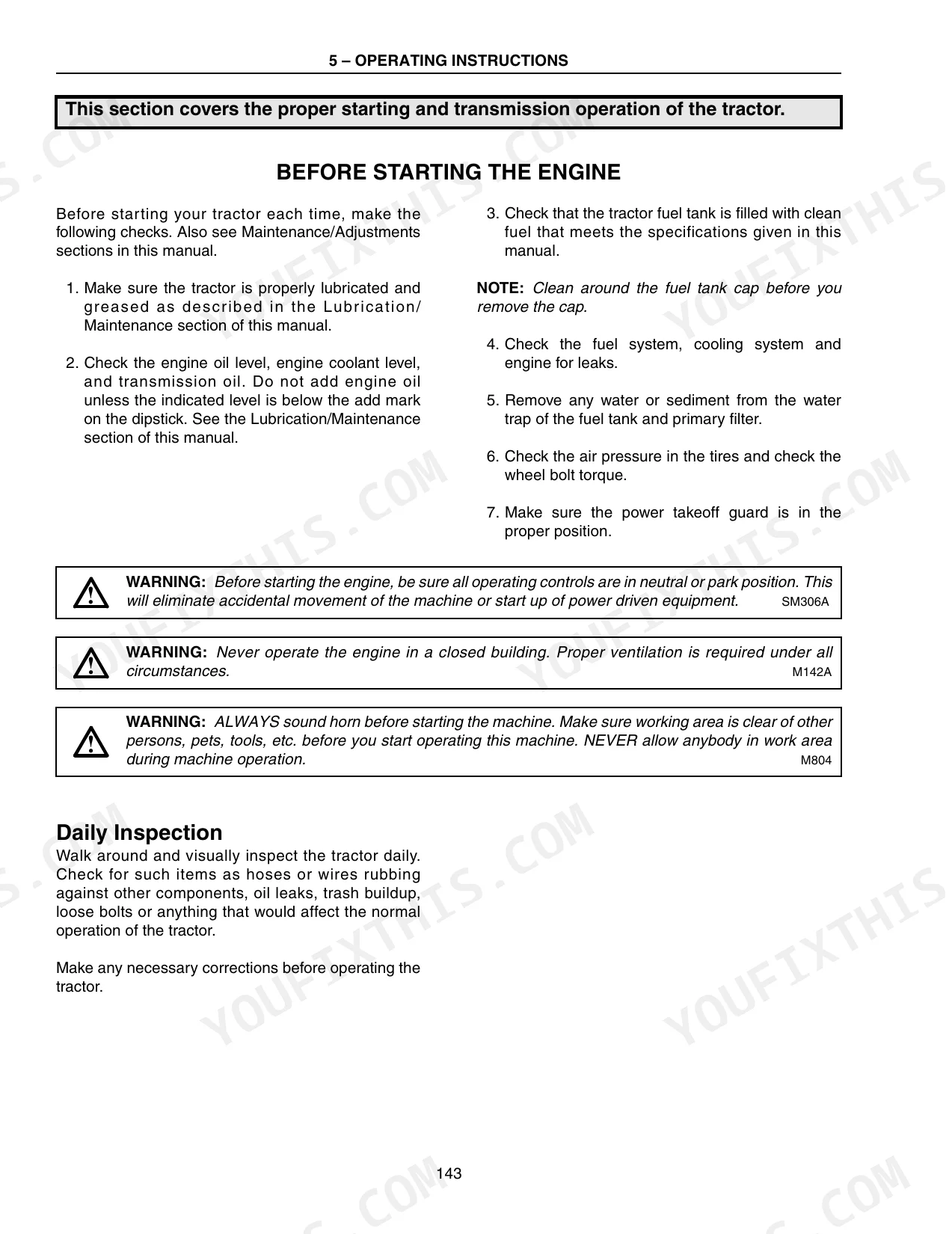

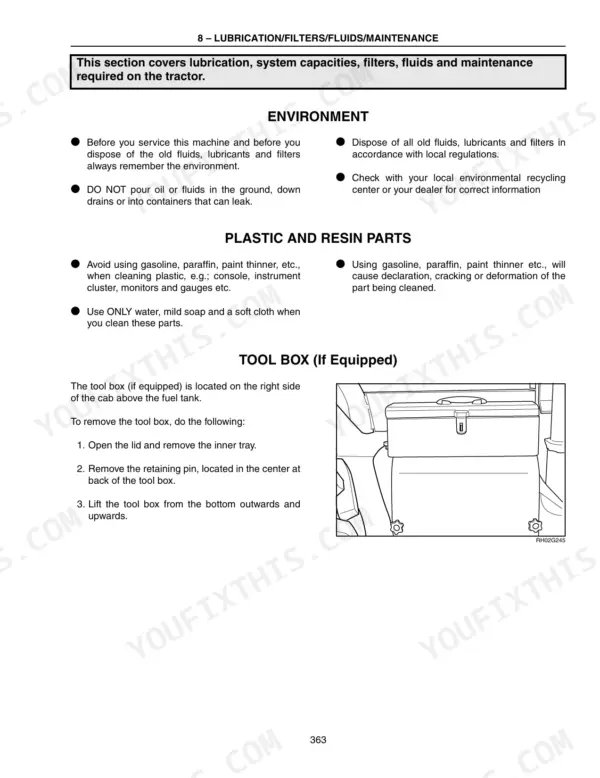

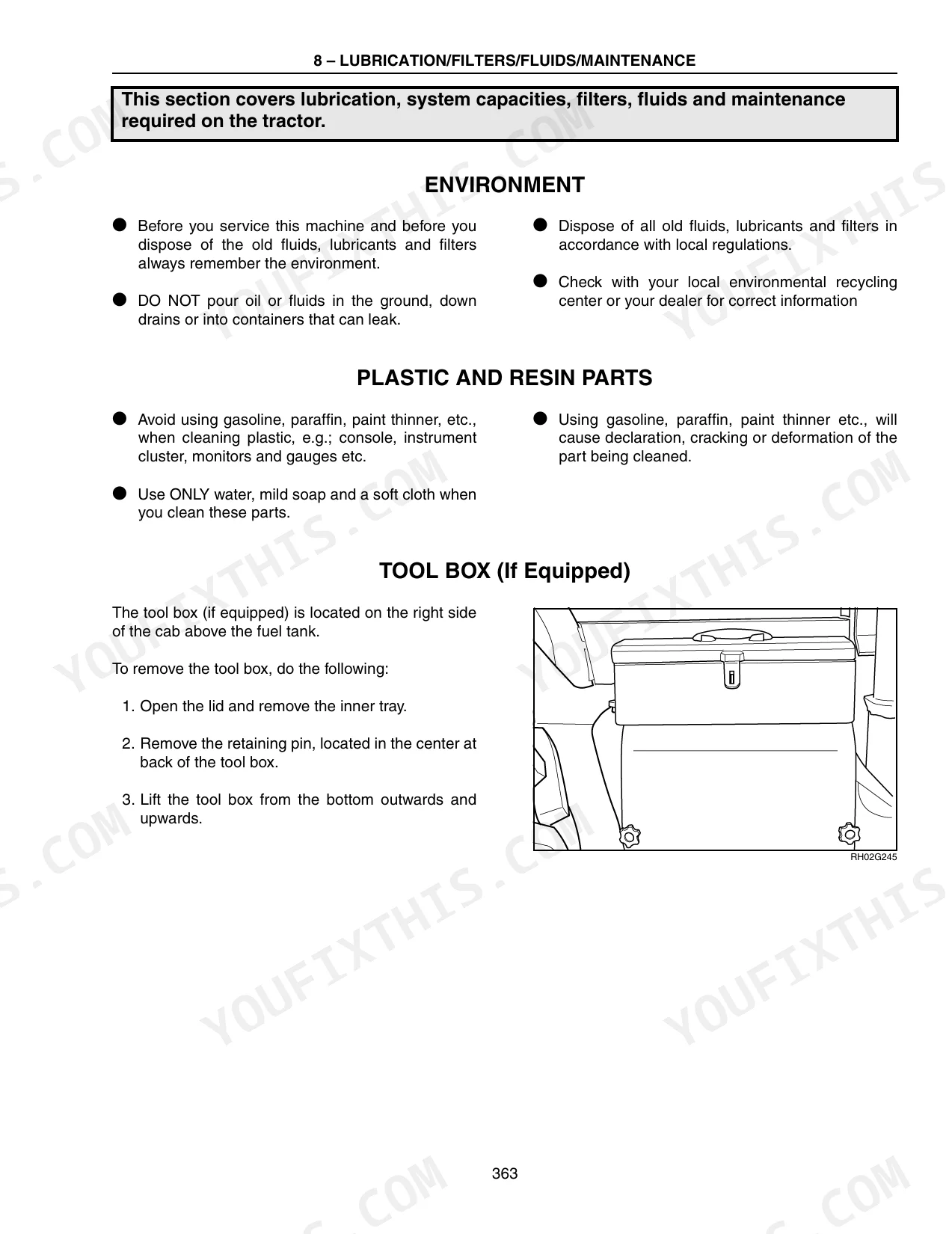

| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 8-15 | Statement of Tractor Intended Use, Operator Manual Storage Compartment, Product Identification and Serial Numbers, Machine Components, Business Band Radios |
| Safety/Decals | 16-35 | Safety Rules, Personal Safety, Instructional Seat Safety, Maintenance Safety, Fire Safety, Battery Safety, Machine Operation and Roll-Over Safety, Hazardous Chemicals |
| Operating Controls | 36-75 | Tractor Access, Operator Seats with Air Suspension, Instructional Seat, Cd Player – 6-Disc, Steering Column Controls, Foot Pedals, Center Console Controls |
| Instrumentation | 76-118 | Tractor Instrumentation, Instrument Cluster, Functional Data and Programmable Display, Programming the Display Monitor, Warning Displays, Performance Monitor |
| Instrumentation (Later Version) | 119-149 | Instrument Cluster, Programming the Display Monitor, Changing Tire Radius, Tire Average Rolling Radius Chart, Radar Sensor Calibration, Radar Calibration Procedure, Old Hours |
| Operating Instructions | 150-181 | Before Starting the Engine, Service Indicator Lamps and Bar Graph Displays, Seat Belts, Normal Engine Starting Procedure, Stopping the Engine, Cold Temperature Operation |
| Field Operation | 182-271 | Power Takeoff, Three Point Hitch, Hitch Operation, Drawbar Preparation, Zuidberg Front Hitch, Remote Hydraulics, Loader Operation, Chemical Tank Mounting |
| In-Field Performance | 272-369 | Differential Lock, FWD Operation, Ballasting Your Tractor for Optimum Performance, Wheel Slip, Power Hop, Tire Combinations for FWD Tractors, Steering and Oscillation Stops |
| Lubrication/Filters/Fluids/Maintenance | 370-433 | Environment, Plastic and Resin Parts, Tool Box, System Capacities, Hood Access, Lubrication/Maintenance Chart |
| Electrical System | 434-457 | Radio Regional Programming, Battery System Servicing, Bulb and Lamp Replacement |

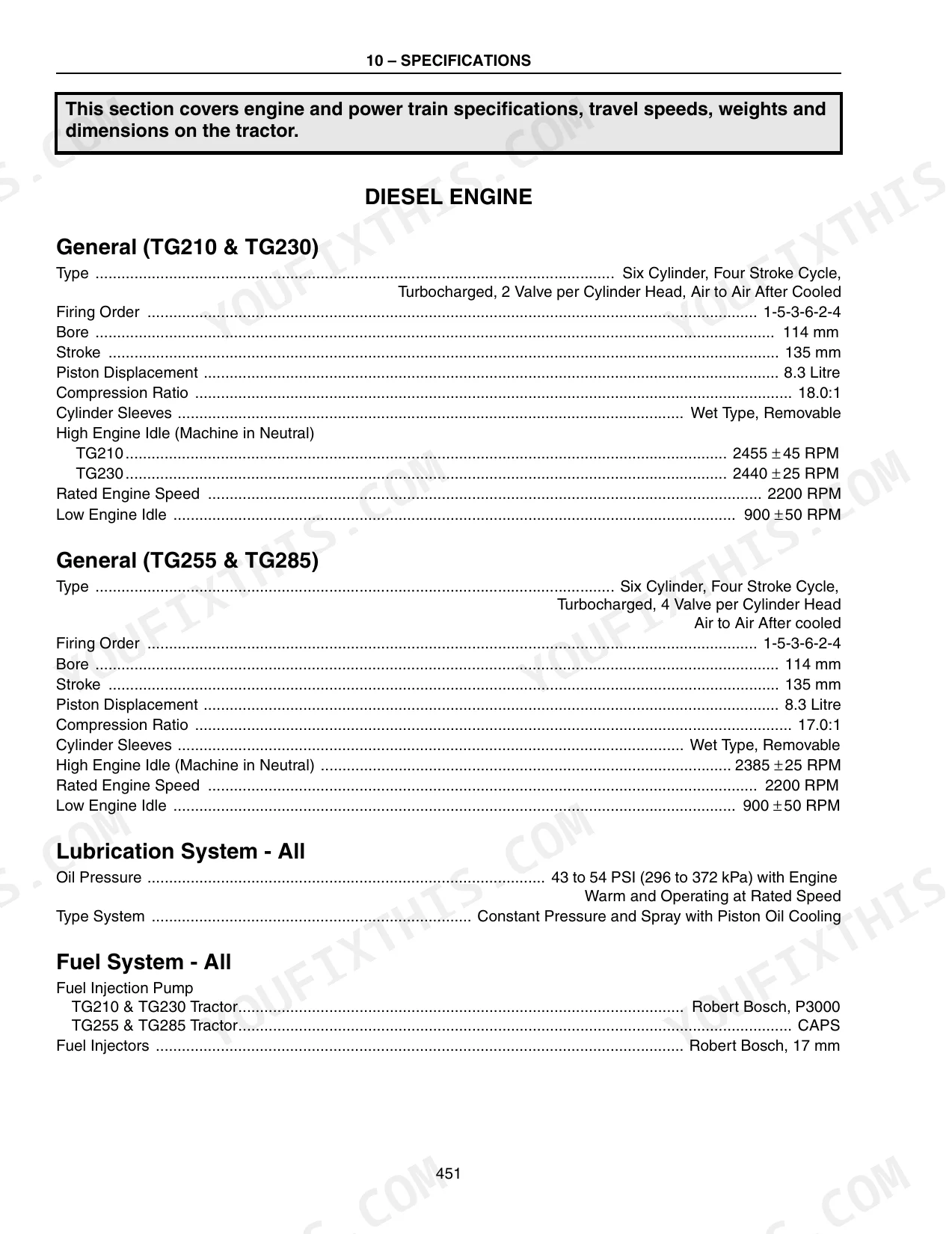

| Specifications | 458-469 | Diesel Engine, Power Train, Travel Speeds, Maximum Recommended Operating Weights |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rear Bolt Torque | 247-320 Nm (185-235 lb ft) | p. 295 |
| Side Bolt Torque | 174-220 Nm (132-161 lb ft) | p. 295 |
| Maximum System Pressure | 2930 PSI (20 200 kPa) | p. 460 |
| Engine Oil Capacity (With Filter Change) | 21L | p. 371 |
| Transmission/Hydraulic System Capacity | 172 L | p. 371 |
| Rear Axle Torque (6 Bushing Bolts) | 300-350 Nm | p. 351 |
| Rear Axle Torque (10 Hub Bolts) | 530-570 Nm | p. 351 |
| Transmission Oil Pressure (at 1650 RPM) | 340 ± 15 PSI | p. 402 |
| Front Wheel Mounting Torque (Disc to Front Axle Hub Nuts) | 385 TO 425 Nm | p. 318 |
| Front Wheel Mounting Torque (Disc to Rim Nuts) | 310 Nm | p. 318 |
| TG210, TG230 | ||
| Cooling System Capacity (TG210 & TG230) | 22.7 L | p. 371 |
| TG255, TG285 | ||
| Cooling System Capacity (TG255 & TG285) | 24.6 L | p. 371 |
New Holland TG210, TG230, TG255, TG285 Common Problems This Manual Covers
New Holland TG210 to TG285 programmable display showing engine oil pressure critical warning after startup
Check engine oil level right away with the engine shut down and the tractor on level ground. Refill to the full mark; a change with a new filter takes 21L, per page 371. Verify the oil has not gone past the 300 hours change interval on page 378 before you run it back to the field.
Manual Section: Critical Warning Displays (Programmable Display)Engine coolant temperature critical warning lighting up on the programmable display during heavy field work
Check coolant level only after the engine cools down. If the level is low, fill the reservoir to the top mark of the normal cold range. Total system capacity is on page 371 for your model, since the TG210 and TG230 hold less than the TG255 and TG285. Verify the warning clears at idle before you put the tractor back under load.
Manual Section: Critical Warning Displays (Programmable Display)Transmission disengages on its own with the neutral icon box flashing on the display
Check the causes listed in the Transmission Disengages troubleshooting chart before swapping any parts. Verify transmission oil level, since the shared transmission/hydraulic system holds 172 L per page 371. Check the oil change record against the 1500 hours interval on page 378. Restart in neutral, depress the inching pedal before engaging FORWARD or REVERSE, and confirm the icon stops flashing before heading back out.
Manual Section: Transmission Disengages TroubleshootingHydraulic filter or transmission oil filter informational warning showing on the instrument display
Check which filter the informational warning names, hydraulic or transmission oil, and replace that filter element; if the service monitor shows transmission filter restriction, replace both filters. Over-tightening the transmission filter, for example with a filter wrench, can damage the gasket and filter. Verify oil level in the shared transmission/hydraulic system, which holds 172 L per page 371. Check your hour meter against the 1500 hours transmission oil change interval on page 378 so the filter and oil get done together.
Manual Section: Informational Warning DisplaysAlternator voltage or battery voltage informational warning appearing on the display while running
Check battery terminals and cable connections for corrosion and looseness, following the Battery System Servicing steps on page 439. Keep sparks, flame, cigars and cigarettes away from the batteries and ventilate when charging. Clean and tighten them, then verify the warning clears with the engine running. Test again at the next start if it returns, because a dead battery in the middle of planting costs more than a morning in the shop.
Manual Section: Electrical System p. 439Automatic temperature control showing fault code 01, 02, 04 or 05 in the cab
Check the displayed code against the Automatic Temperature Control System troubleshooting chart in the Operating Controls section, which lists codes 01, 02, 04, 05, 08, 10 and 11. Verify the code before replacing anything in the cab, then recheck after restarting the tractor to see whether the fault comes back.
Manual Section: Automatic Temperature Control System Troubleshooting p. 71Frequently Asked Questions
How do I clear hydraulic pressure, transmission, or calibration warnings on a New Holland TG tractor?
To clear non-critical warning faults on the programmable display, press the RESET key. This will clear the faults for 10 minutes, after which the fault will display again if the underlying cause has not been corrected. Critical warnings cannot be shut off by pushing the RESET key; stop the engine and check the cause (page 99). Calibration/setup faults also do not clear with RESET; contact your dealer. p. 100
What is the engine oil capacity for a New Holland TG series tractor when changing the filter?
When performing an engine oil change with a filter change, the engine oil capacity is 21 liters (5-1/2 gallons). p. 371
What is the torque for the 10-bolt front wheel disc to front axle hub nuts on a FWD New Holland TG210–TG285?
The torque specification for the 10-bolt front wheel disc to front axle hub nuts (A) is 385 to 425 Nm (285 to 315 lb ft). Ensure the hardware is lubricated before installation to obtain the proper torque. p. 318
What is the recommended service interval for changing the transmission oil and filter on the New Holland TG210–TG285?
The transmission oil, filter(s), and breather should be changed every 1500 hours of operation. p. 378
What is the expected transmission oil pressure for a New Holland TG series tractor?
The expected transmission oil pressure is 340 PSI ± 15 PSI (2345 kPa ± 103 kPa) when the transmission sump temperature is greater than 120° F (48.9° C) and the engine is operating at 1650 RPM. p. 402
Is this New Holland TG210–TG285 Series Operator Manual a digital download?
This is a 483-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is printing allowed for this New Holland TG210–TG285 Series Operator Manual?
You can. Print the sections you want for your own use and keep the file as your backup.
