A safety interlock that kills the engine mid-mow is the hardest fault on a GT22 to chase blind, and this New Holland GT22 operator manual PDF (OEM 86602568, 60 pages) walks you through that system along with every control, gauge, and service job on the garden tractor. The factory wiring diagram traces the circuit through each interlock switch, while troubleshooting charts run from a starter that will not crank to a hydrostatic drive that will not pull. Maintenance fills roughly a third of the book: the service interval chart, transaxle fluid, greasing points, brake checks, and battery care. Air all four tires to 20 psi. Charge the battery at 4 amperes or less, never faster. Guess a spark plug torque instead of using the printed 18-22 ft-lb and you crack porcelain or strip aluminum threads. Bookmarks and a live text layer land you on the transaxle fluid page in seconds, in time for this weekend's mowing.
What's Inside This New Holland GT22 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 2-7 | Safe Operating Practices, New Holland Riding Mower Safety, Slope Chart, Safety and Instruction Decals |
| Check Before Operating | 8-13 | Opening the Hood, Closing the Hood, Removing the Side Panels, Adding Fuel, Check the Engine Oil Level, Check for Debris, Check the Safety Interlock System, Check the Brake |

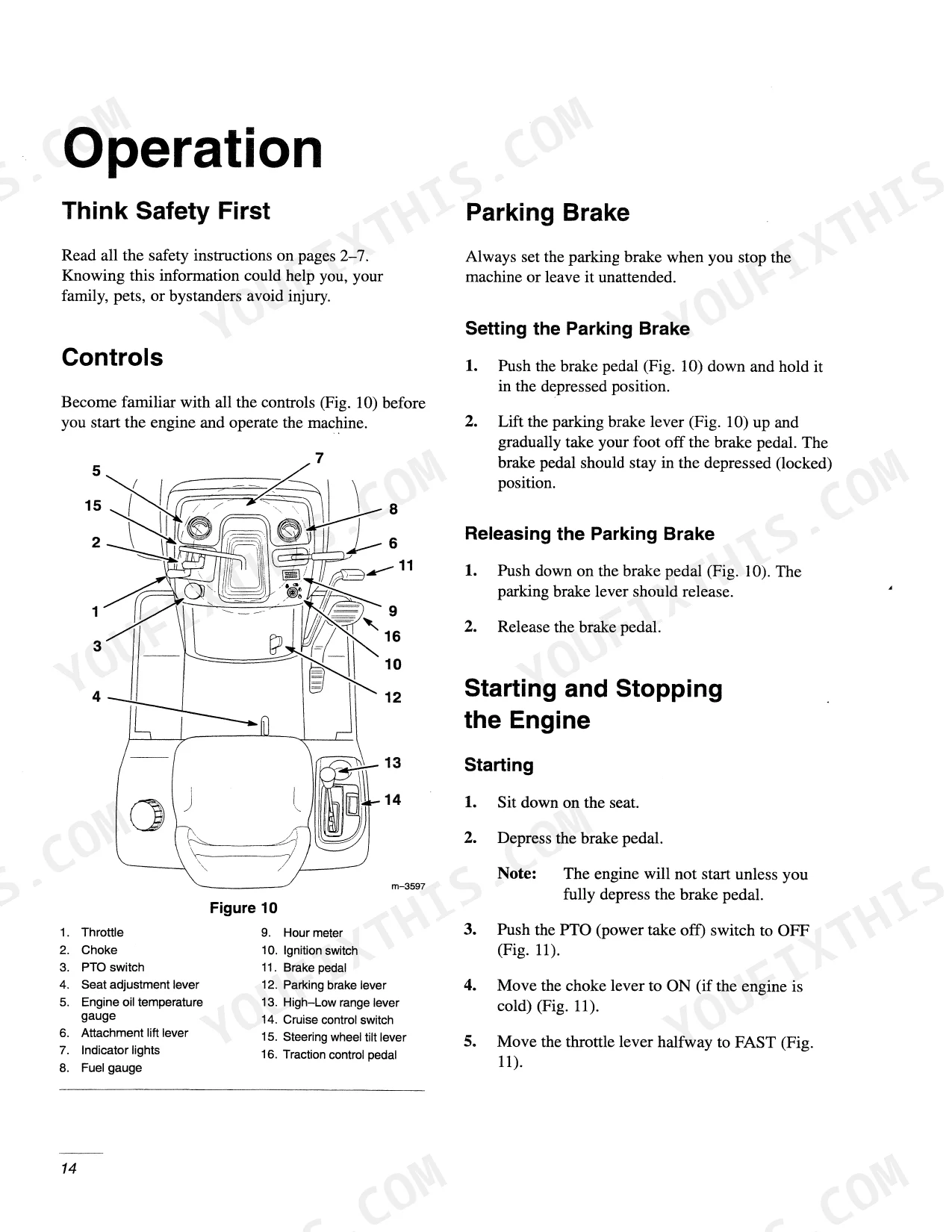

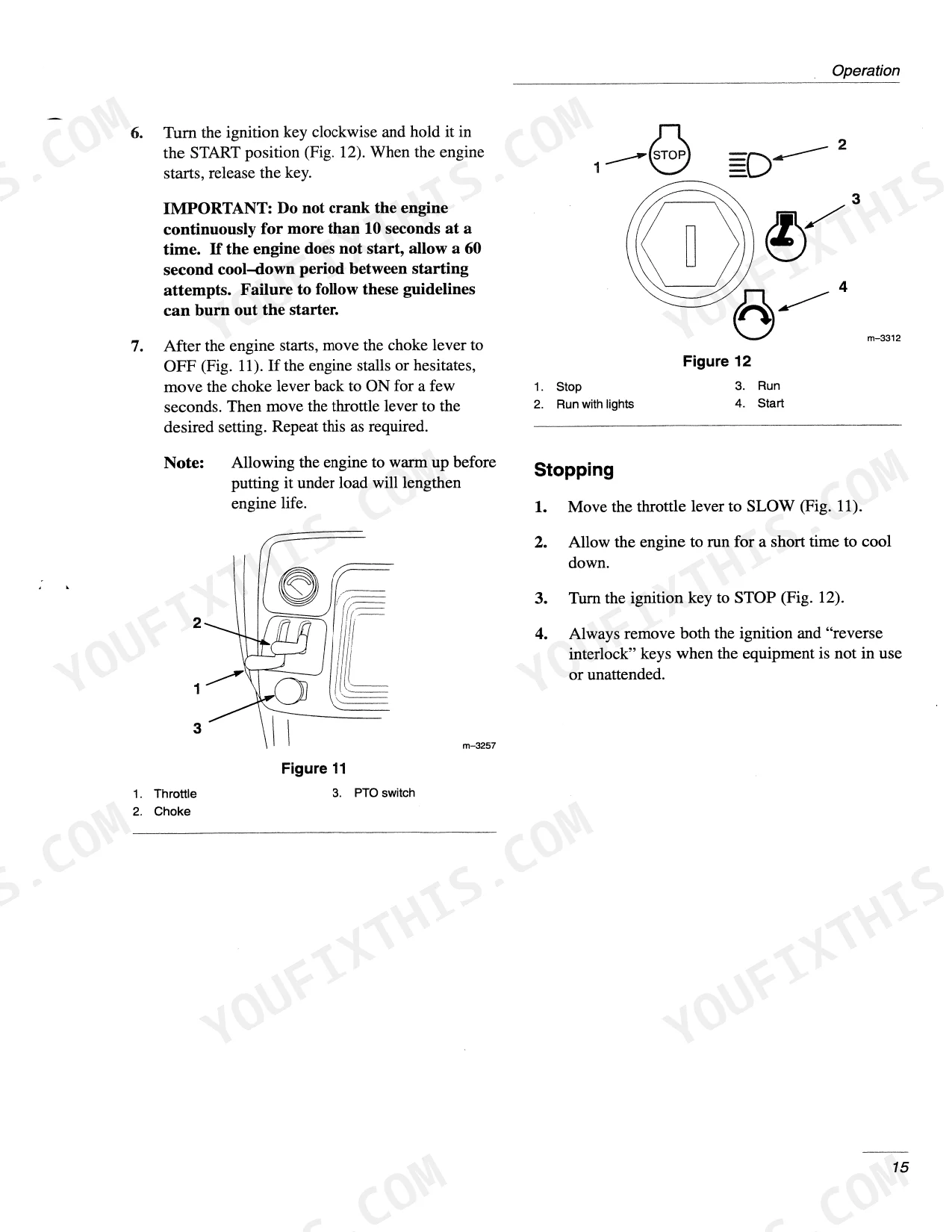

| Operation | 14-23 | Think Safety First, Controls, Parking Brake, Starting and Stopping the Engine, Operating the Power Take Off, Safety Interlock System, Gauges and Indicator Lights |

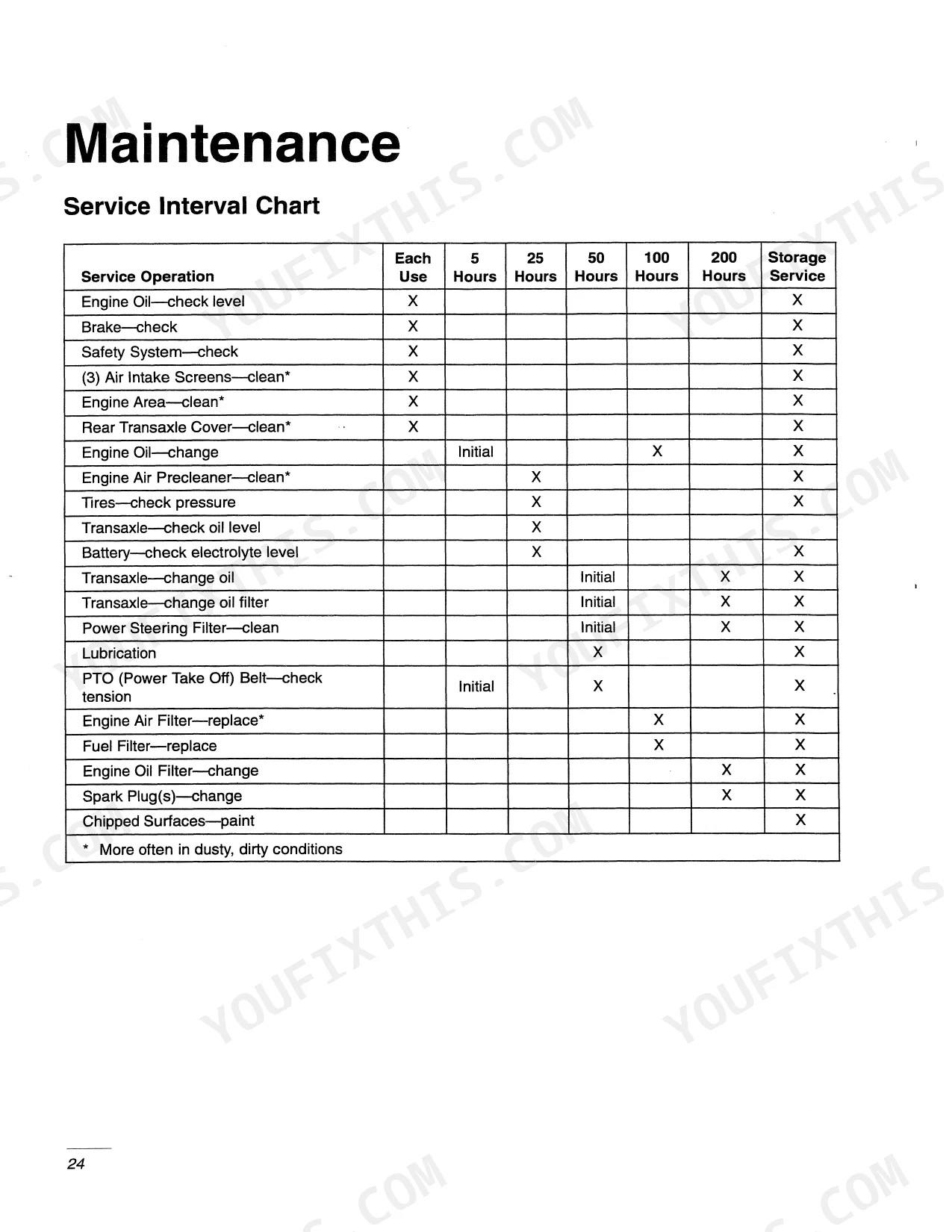

| Maintenance | 24-42 | Service Interval Chart, Air Cleaner, Engine Oil, Spark Plugs, Greasing and Lubrication, Tire Pressure, Brake, Fuel Tank |
| Troubleshooting | 43-60 | Engine Starting System, Engine Performance, Transmission Drive System, Steering System, PTO Attachment System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Steering wheel retaining nut torque | 45-50 ft-lbs | p. 4 |
| Front and rear tire pressure | 20 psi | p. 5 |
| Battery charging rate | 4 amperes or less | p. 6 |
| Spark plug tightening torque | 18-22 ft-lb | p. 39 |
| Front wheel toe-in | 1/8-1/4 inch | p. 43 |
New Holland GT22 Common Problems This Manual Covers
New Holland GT22 engine fires up, runs a few seconds, then dies and will not restart
Check the engine performance table on page 54 for the starts but will not keep running condition. Drain old fuel, inspect the tank outlet for debris, and listen for the fuel shutoff solenoid clicking when you key on. Pull the spark plugs, clean or replace fouled ones, and torque them to 18 to 22 ft-lb per page 39.
Manual Section: Engine Performance Issues p. 54Starter only clicks or engine cranks too slowly to fire, even after sitting overnight

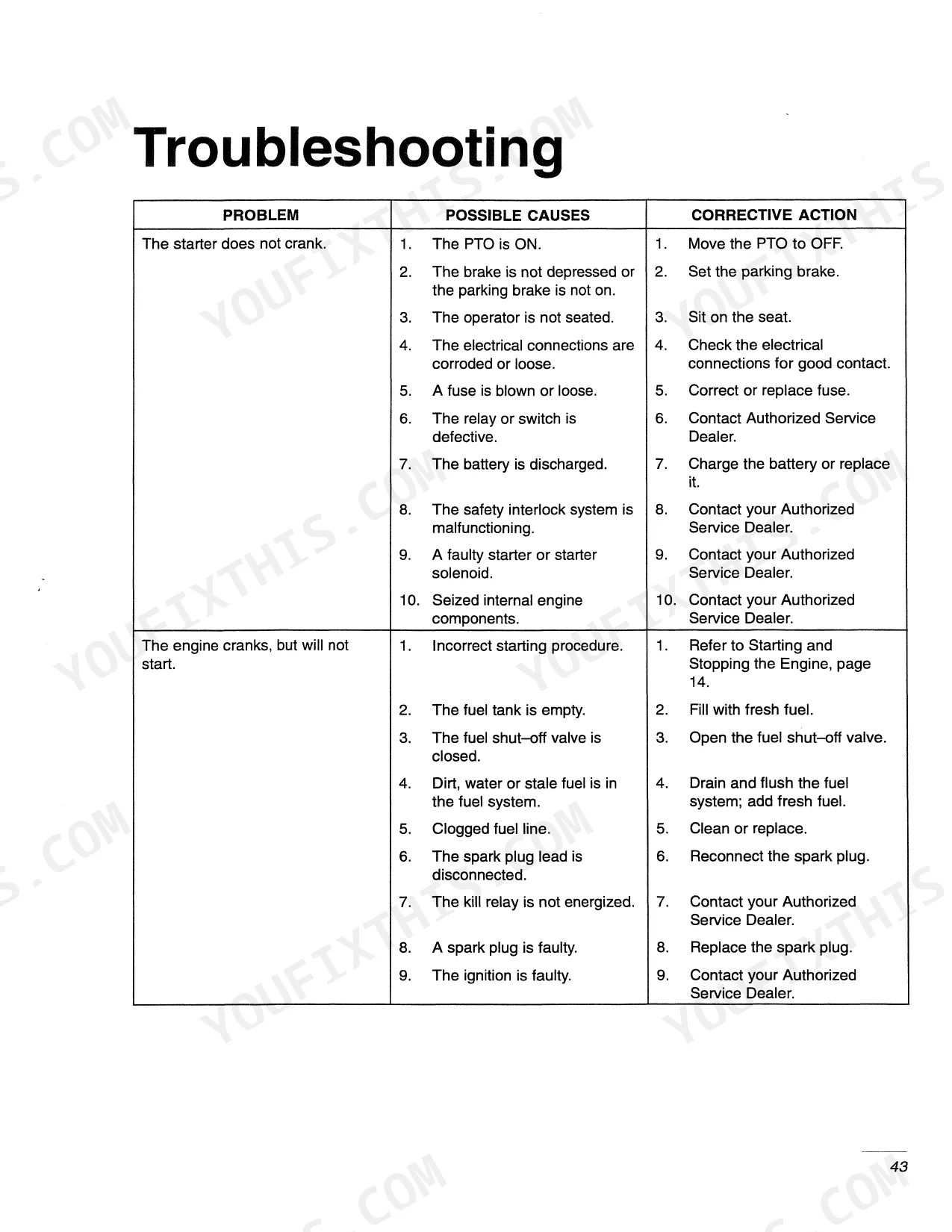

Test the battery first; charge it at 4 amperes or less as directed on page 6, and never fast charge it. Clean and tighten both battery cable connections, then work through the starter chart on page 53. Confirm the PTO switch is off and the brake pedal is fully depressed so the safety interlock allows cranking.
Manual Section: Starter Troubleshooting p. 53PTO switch pulled on but the mower deck blades never spin up

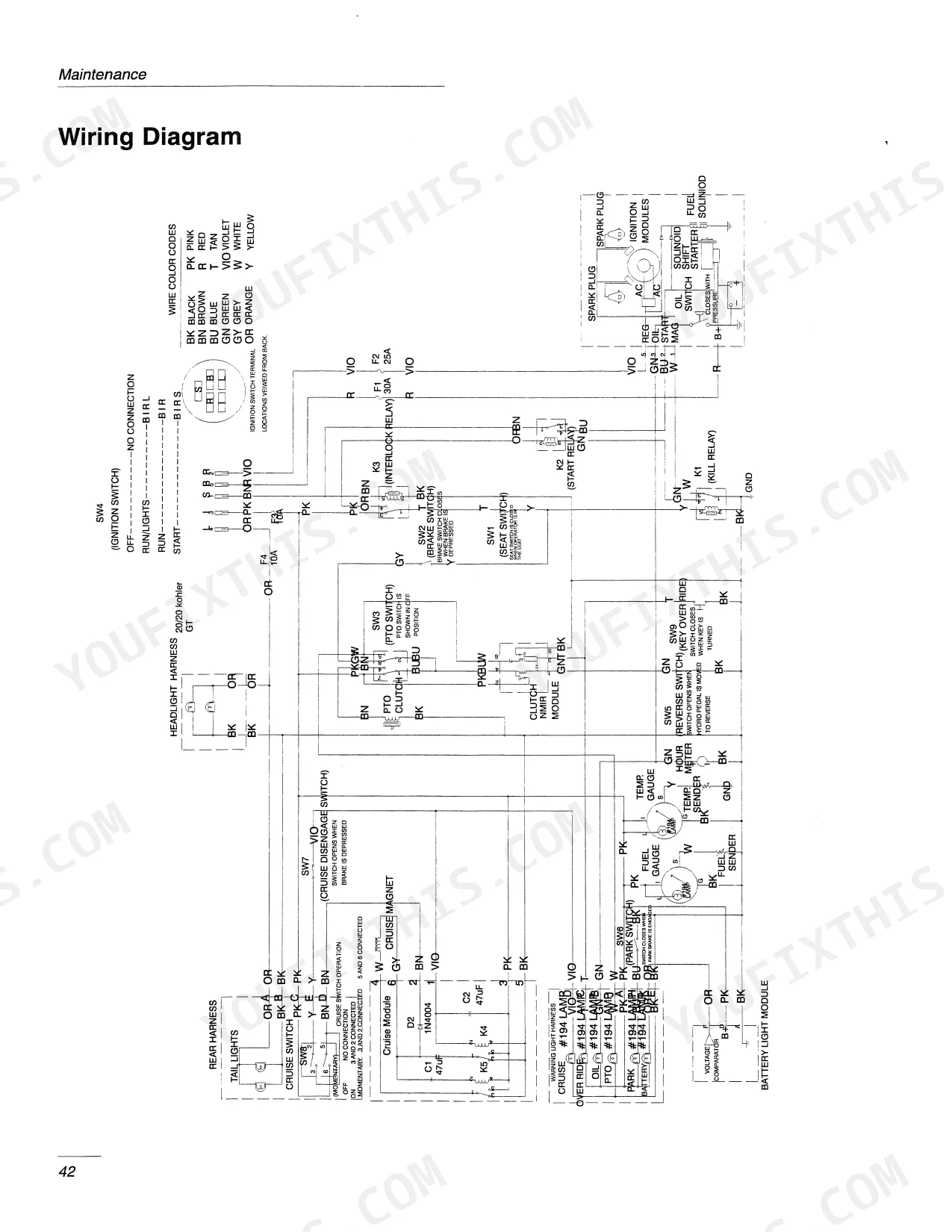

Work through the PTO chart on page 57: check that belt tension is correct, the belt is not worn or damaged, and the belt guide is tight and properly adjusted, and always run powered attachments at full throttle. Verify the operator is seated so the interlock allows PTO engagement, then trace the PTO circuit on the wiring diagram on page 52.
Manual Section: Troubleshooting p. 52Hydrostatic drive creeps forward or barely pulls the tractor up a mild grade
Check the drive belt for glazing and cracks; a worn belt slips before the hydro ever sees full input speed. Work through the transmission chart on page 55, confirm the transaxle cooling fan is unbroken and clear of clippings, and set all four tires to 20 psi so the tractor is not fighting a soft tire.
Manual Section: Transmission and Steering Issues p. 55Steering wheel feels loose and the front end wanders on flat ground
Measure front wheel toe-in and set it between 1/8 and 1/4 inch as covered on page 44. Tighten the steering wheel retaining nut to 45 to 50 ft-lbs, per page 4, if the wheel itself has play. Finish by airing all tires to 20 psi; uneven pressure makes any garden tractor wander.
Manual Section: Transmission and Steering Issues p. 44Frequently Asked Questions
What does a New Holland GT22 no-start or fuel shutoff problem mean?
If the engine cranks but will not start, the fuel shut-off valve may be closed. You should open the fuel shut-off valve as a corrective action. If the problem persists, check for clogged fuel lines or stale fuel in the system. p. 53
What is the correct tire pressure for the New Holland GT22?
The correct front and rear tire pressure for the GT22 is 20 psi (138 kPa). You should check the pressure at the valve stem after every 25 operating hours or monthly, whichever occurs first. p. 41
What is the crankcase oil capacity for the New Holland GT22 engine?
The crankcase capacity for the engine, including the filter, is 2.1 quarts (2.0 liters). Use detergent oil with an API service rating of SG or SH. p. 36
What is the required spark plug gap for the New Holland GT22?
The spark plug air gap for the Champion RC-12YC (or equivalent) spark plugs is 0.030 inches (0.76 mm). You should use a gapping tool or feeler gauge to check and adjust this gap. p. 38
How often should the transaxle oil be changed on the New Holland GT22?
The transaxle fluid should be changed initially at 50 hours, and then every 200 hours thereafter. The fluid type required is SAE 10W-30 detergent oil (API service SG, SH or above). p. 45
Is this New Holland GT22 manual a download or a disc?
Instant PDF download. You get the full 60-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print just the pages I need from this New Holland GT22 manual?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
