Part of the New Holland Operator Manuals.
Blade service, deck leveling and mower belt replacement are all laid out step by step in this book.
That is the New Holland operator manual for the MZ19H zero turn riding mower, publication 87369219, 43 pages as a PDF. It walks the controls and starting procedure, the safety interlock system, the recommended maintenance schedule, greasing points, engine oil and air cleaner service, fuel filter and spark plug work, tire pressures, blade service and deck leveling, mower belt inspection and replacement, off season storage, a troubleshooting chart, and an electrical schematic showing the ignition, PTO, brake, neutral and seat switches plus the kill relay and solenoid.
Page 3 shows where the model and product identification numbers are stamped, so when you order a belt or a set of blades you quote the right numbers and get the right part the first time.
What's Inside This New Holland MZ19H Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | Model Identification, Product Identification Numbers, Safety Alert Symbol, Mechanical Information, Note Information |
| Safety | 4-10 | Safe Operating Practices, New Holland Riding Mower Safety, Slope Chart, Safety and Instructional Decals |
| Product Overview | 11 | Controls |

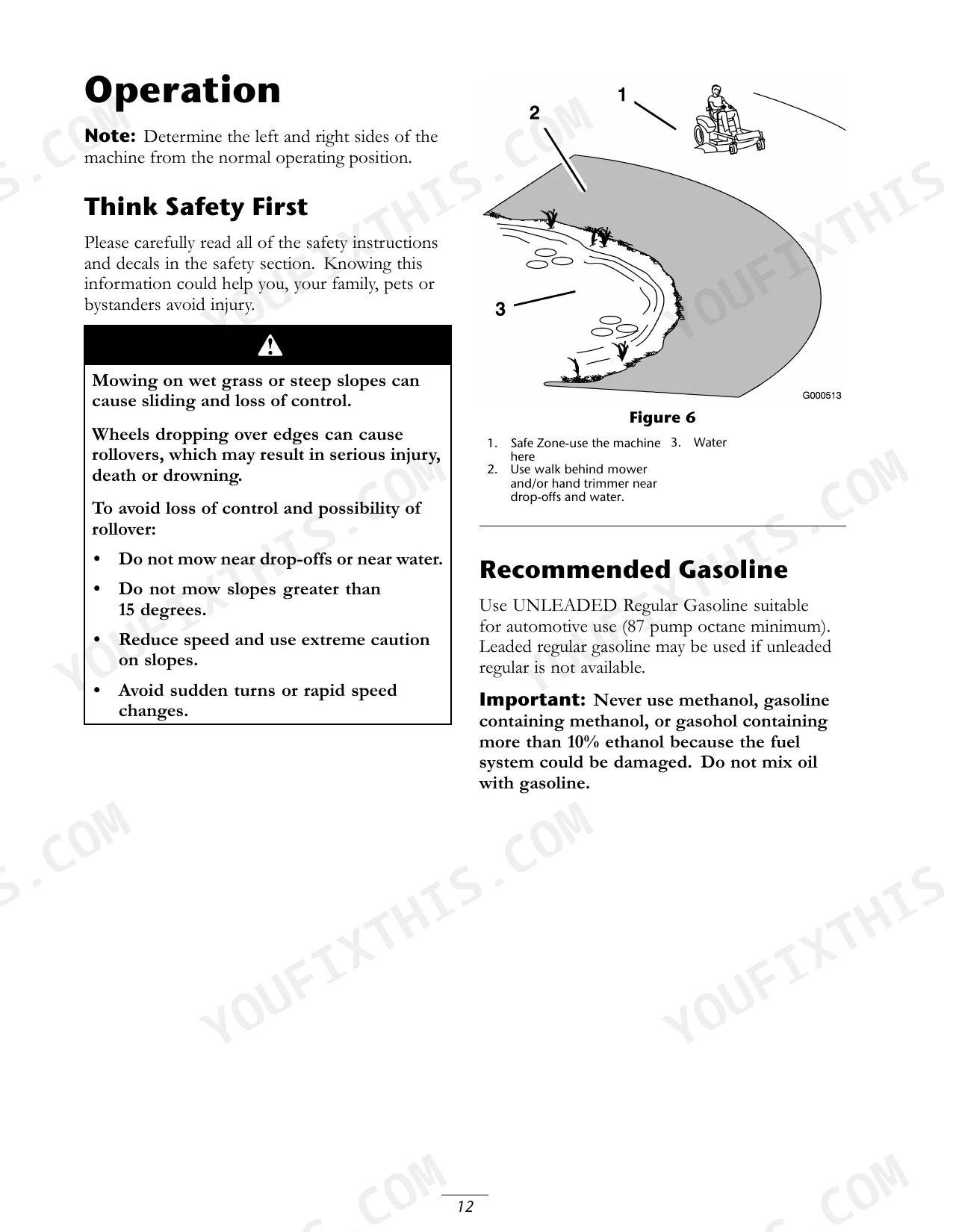

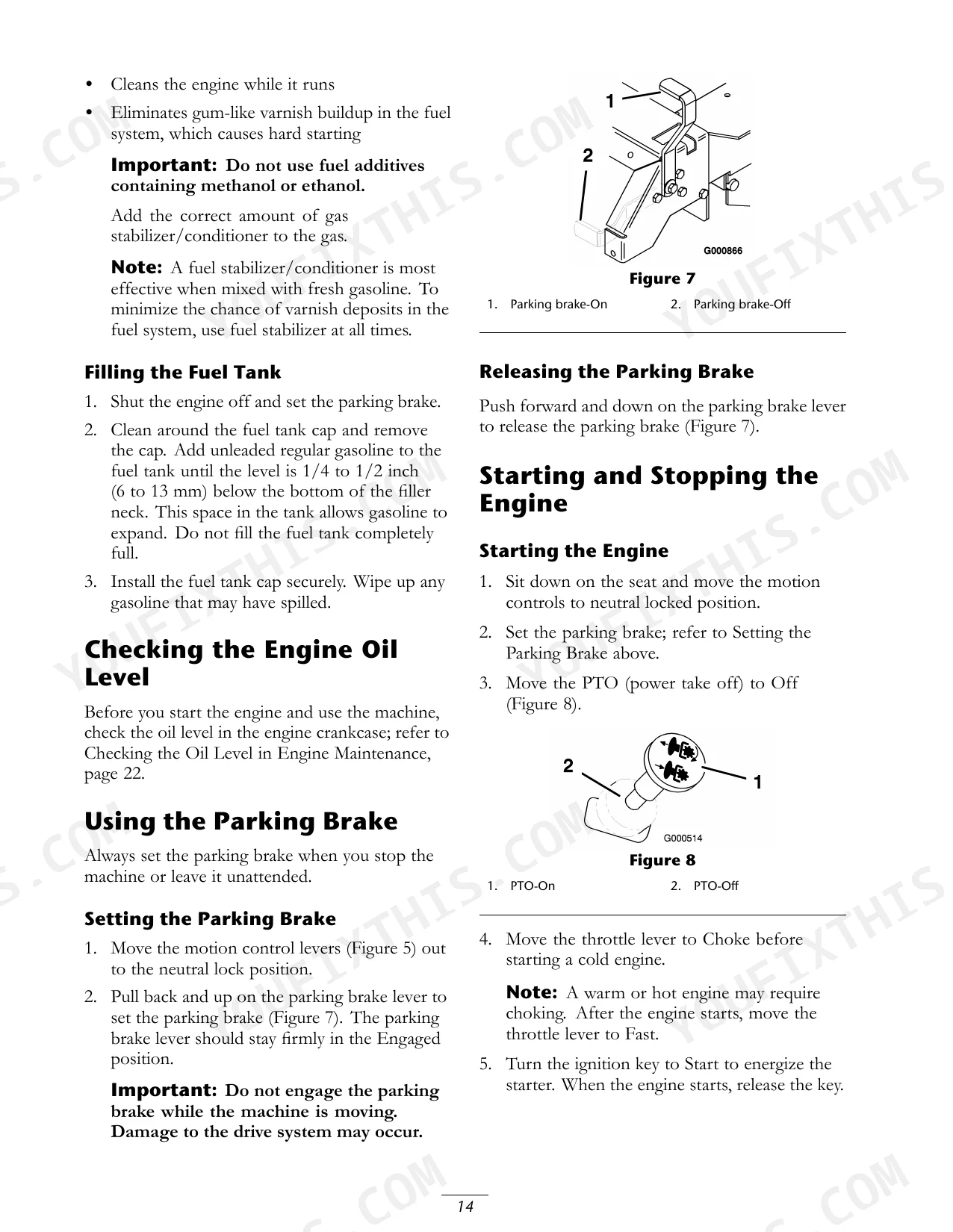

| Operation | 12-20 | Think Safety First, Recommended Gasoline, Checking the Engine Oil Level, Using the Parking Brake, Starting and Stopping the Engine, Operating the Power Take Off |

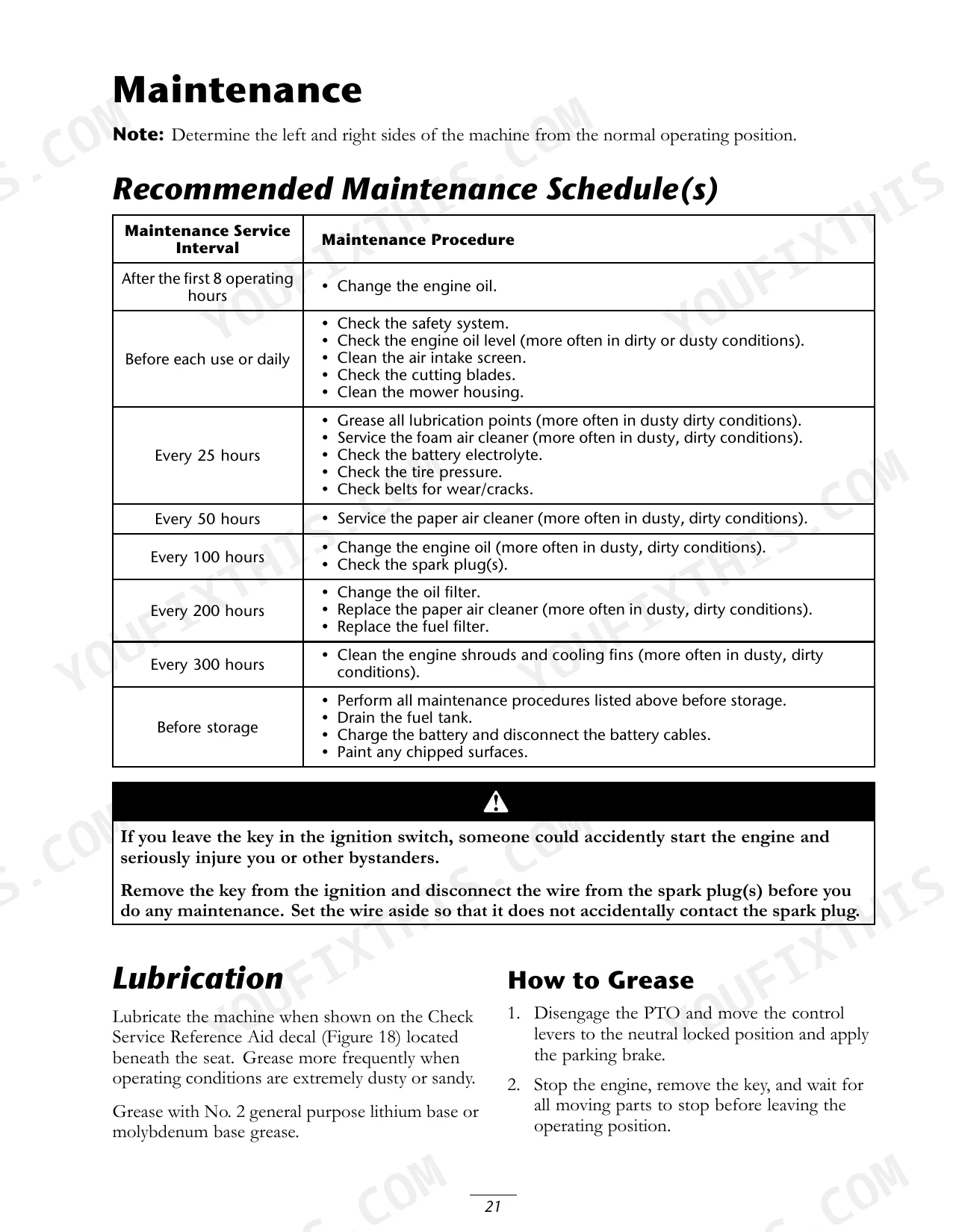

| Maintenance | 21-36 | Recommended Maintenance Schedule, Lubrication (How to Grease, Where to Add Grease) |
| Storage | 37 | Cleaning and Storage |
| Troubleshooting | 38-40 | Engine Overheating, Starter Failure, Engine Starting Issues, Engine Power Loss, Machine Drive Failure, Abnormal Vibration, Uneven Cutting Height, Blade Rotation Failure |
| Schematics | 41-43 | Wire Color Codes, Ignition Switch, PTO Switch, Brake Switch, Neutral Switch, Seat Switch, Kill Relay, Solenoid |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Blade bolt torque | 35-65 ft-lb (47-88 N·m) | p. 32 |

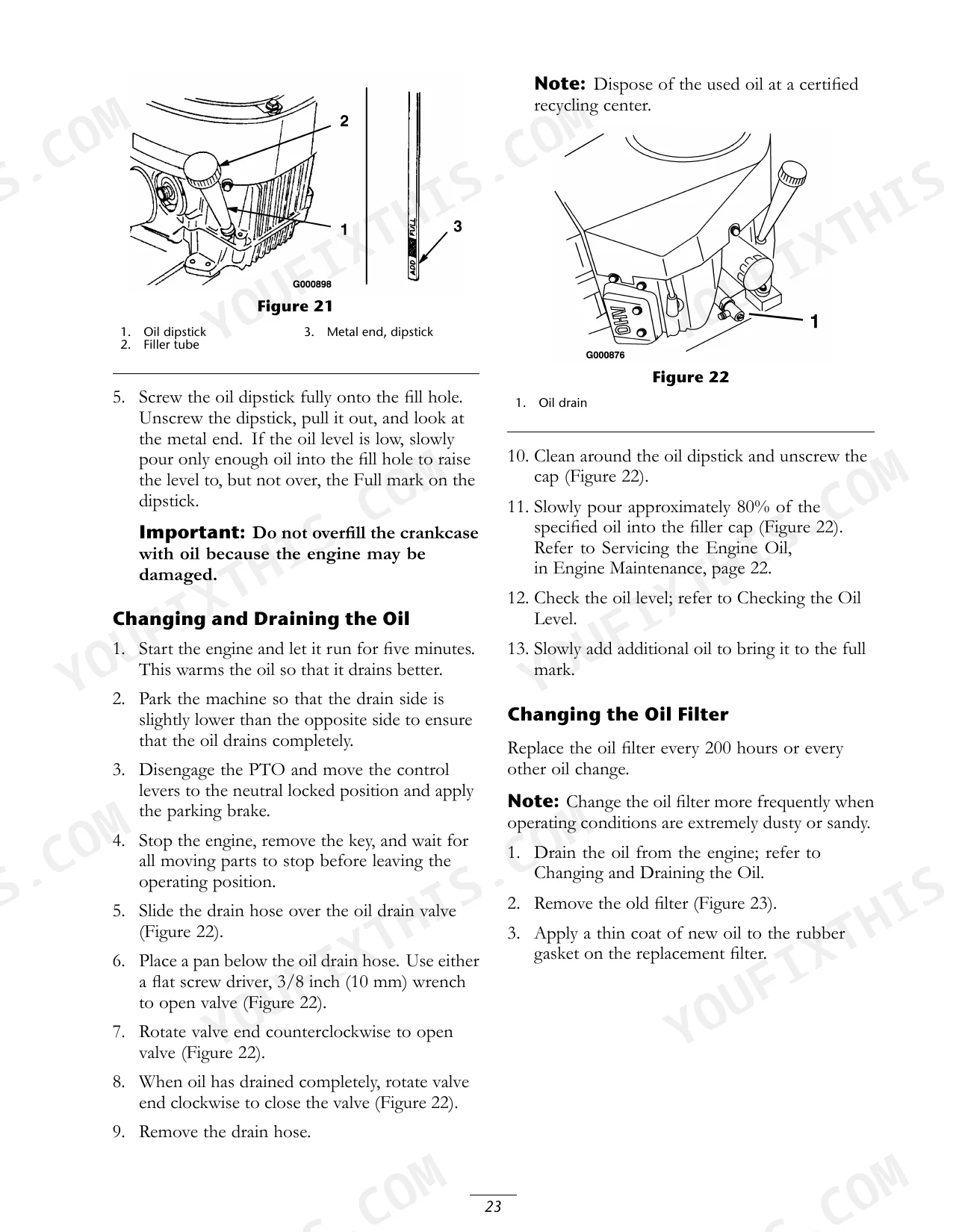

| Crankcase Oil Capacity (with filter) | 51 ounce (1.5 l) | p. 22 |
| Spark Plug Air Gap | 0.030 inch (0.76 mm) | p. 26 |
| Battery Voltage | 12 v | p. 27 |
| Rear Tire Pressure | 13 psi (90 kPa) | p. 30 |
| Front Tire Pressure (castor wheels) | 35 psi | p. 30 |
| Rear Trunion Rod Length | 11-1/2 inch (29.2 cm) | p. 32 |
| Spring Eye Bolt Exposed Thread Length | 1/8 in. (3 mm) | p. 35 |
New Holland MZ19H Common Problems This Manual Covers
Cut height steps down on one side
A stripe that sits lower on one side usually means the deck has drifted out of level rather than a bad blade. The side to side leveling procedure squares the deck again, and the front to rear slope check on the same pages calls for a rear trunion rod length of 11-1/2 inch (29.2 cm).
Manual Section: Leveling the Mower from Side-to-Side p. 32Engine cranks but will not start
For an engine that will not start, starts hard or fails to keep running, the troubleshooting table lists an empty fuel tank, a fuel valve turned off, the choke not on, a dirty air cleaner, a loose or disconnected spark plug wire, a pitted, fouled or incorrectly gapped spark plug, dirt in the fuel filter, dirt, water or stale fuel (contact an authorized service dealer), incorrect fuel in the tank and low crankcase oil (page 39).
Manual Section: The Safety Interlock System p. 39Blades do not rotate with the PTO engaged
For blades that do not rotate, the troubleshooting table lists a worn, loose or broken drive belt (install a new belt), a drive belt that is off the pulley (install it and check the adjusting shafts and belt guides) and a worn, loose or broken mower belt (install a new mower belt) (page 40). The electrical schematic shows the PTO switch, seat switch and kill relay circuits (page 41).
Manual Section: Schematics p. 40Deck shakes after hitting something
For abnormal vibration the troubleshooting table lists bent or unbalanced cutting blades (install new blades), a loose blade mounting bolt (tighten it), a bent blade spindle (contact your dealer), loose engine mounting bolts and a loose or damaged pulley (page 40). Inspect the cutting edges and the curved area of each blade, and install a new blade if you see damage, wear or a slot forming (page 30); torque the blade bolt to 35-65 ft-lb (47-88 N·m) (page 32).
Manual Section: Servicing the Cutting Blades p. 40Runs hot and bogs in thick grass

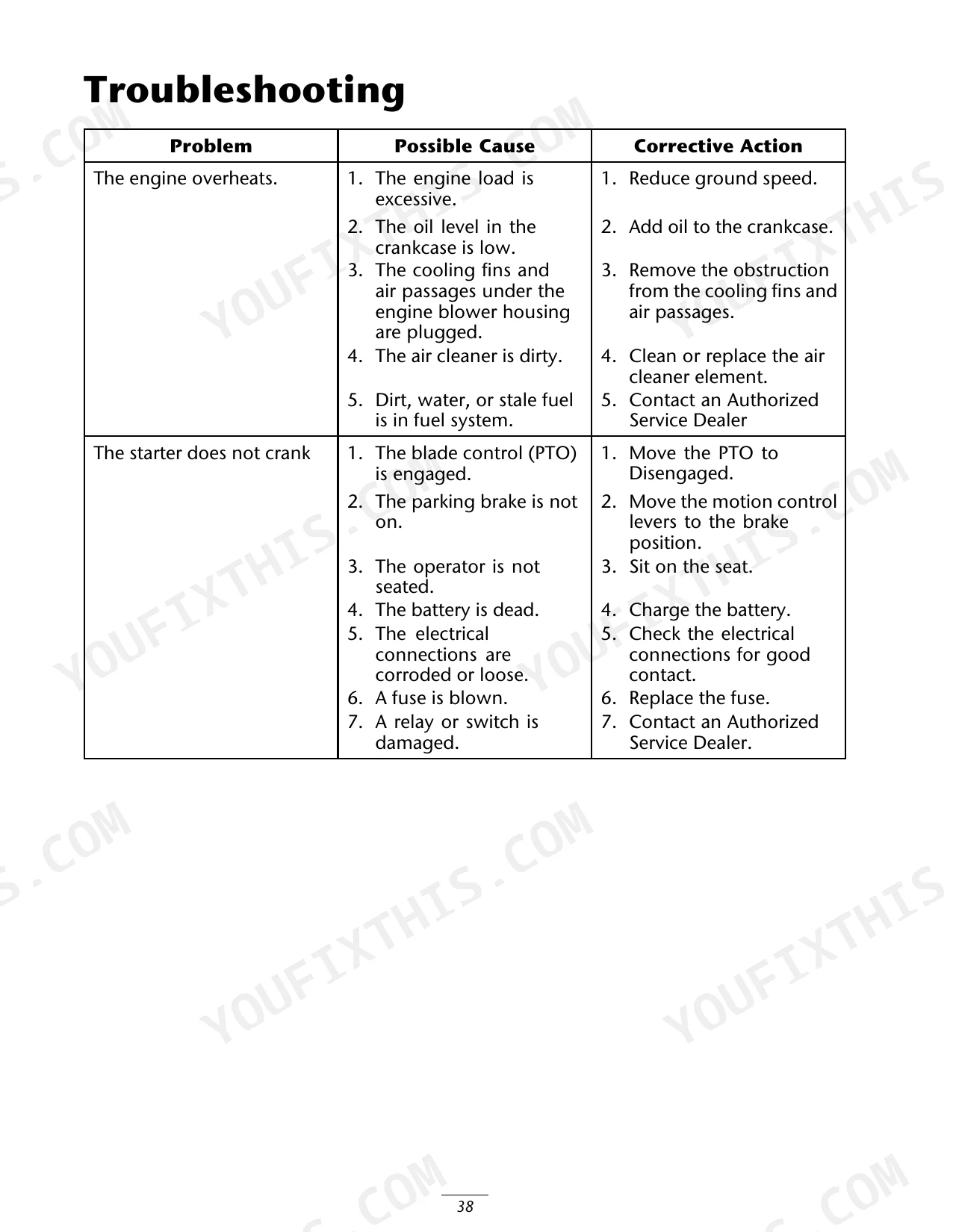

For an engine that overheats, the troubleshooting table lists excessive engine load (reduce ground speed), low crankcase oil (add oil), cooling fins and air passages under the engine blower housing that are plugged (remove the obstruction), a dirty air cleaner and dirt, water or stale fuel in the fuel system (page 38).
Manual Section: Cleaning the Cooling System p. 38Mower belt squeals or throws off
Check the belts for cracks, frayed edges and burn damage, and replace a damaged belt following the routing shown in the replacement steps (page 34). When installing the mower belt, check that the exposed thread on the spring eye bolt is 1/8 in. (3 mm) (page 35).
Manual Section: Inspecting the Belts p. 34Dead after sitting all winter
Fuel left in the tank over the off season varnishes the carburetor and clogs the fuel filter. The draining procedure and the storage section together cover what to do before it sits.
Manual Section: Draining the Fuel Tank p. 26Frequently Asked Questions
Is this the right manual for my mower?
It is for the New Holland MZ19H zero turn riding mower. This is New Holland publication 87369219, 43 pages, in English. Page 3 shows where the model and product identification numbers are stamped so you can match your machine. p. 3
Is this an operator manual or a full service manual?
It is the operator manual. That means controls, safe operating practices, starting and driving, the maintenance schedule, lubrication, engine, fuel, electrical, drive and deck service, storage, a troubleshooting chart and wiring schematics. It does not include engine teardown procedures or a full parts breakdown.
What is the blade bolt torque on the New Holland MZ19H?
Torque the blade bolt to 35-65 ft-lb (47-88 N·m), with the curved washer installed cupped side toward the blade (page 32). p. 32
Does it include a wiring diagram for no-start problems?
Yes. Page 41 carries the electrical schematic with wire color codes and the ignition switch, PTO switch, brake switch, neutral switch, seat switch, kill relay and solenoid, which is what you need when the interlock circuit keeps the starter from turning. p. 41
How is this New Holland MZ19H Operator Manual delivered?
Instant PDF download. You get the full 43-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print specific sections of this New Holland MZ19H Operator Manual?
Yes, printing is unrestricted: a single page, a chapter, or the lot, on letter or A4.
