Gasoline and oil come first, then the controls and the safety interlock, then every service interval, then a troubleshooting chart that runs to the last page. That is the shape of this New Holland MY16 operator manual, 36 pages covering yard tractors from serial number T04MA0001 and up, New Holland publication 87040089.

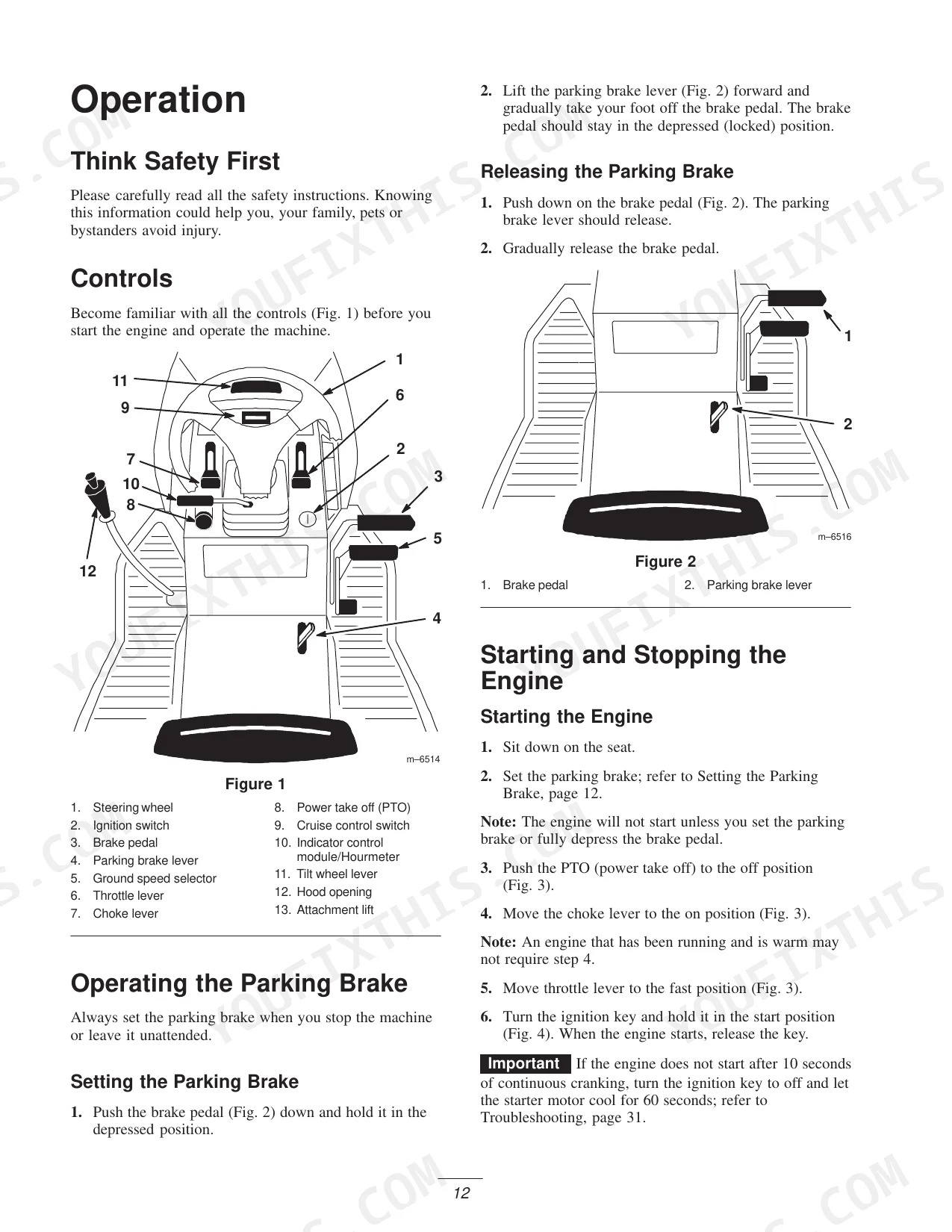

The Operation section walks the parking brake, starting and stopping the engine, the PTO, the attachment lift lever, and the indicator control module. Maintenance carries the numbers you stop and look up: crankcase capacity, spark plug gap and torque, tire pressure, brake clearance, front wheel toe-in, fuse ratings, and a wiring diagram.

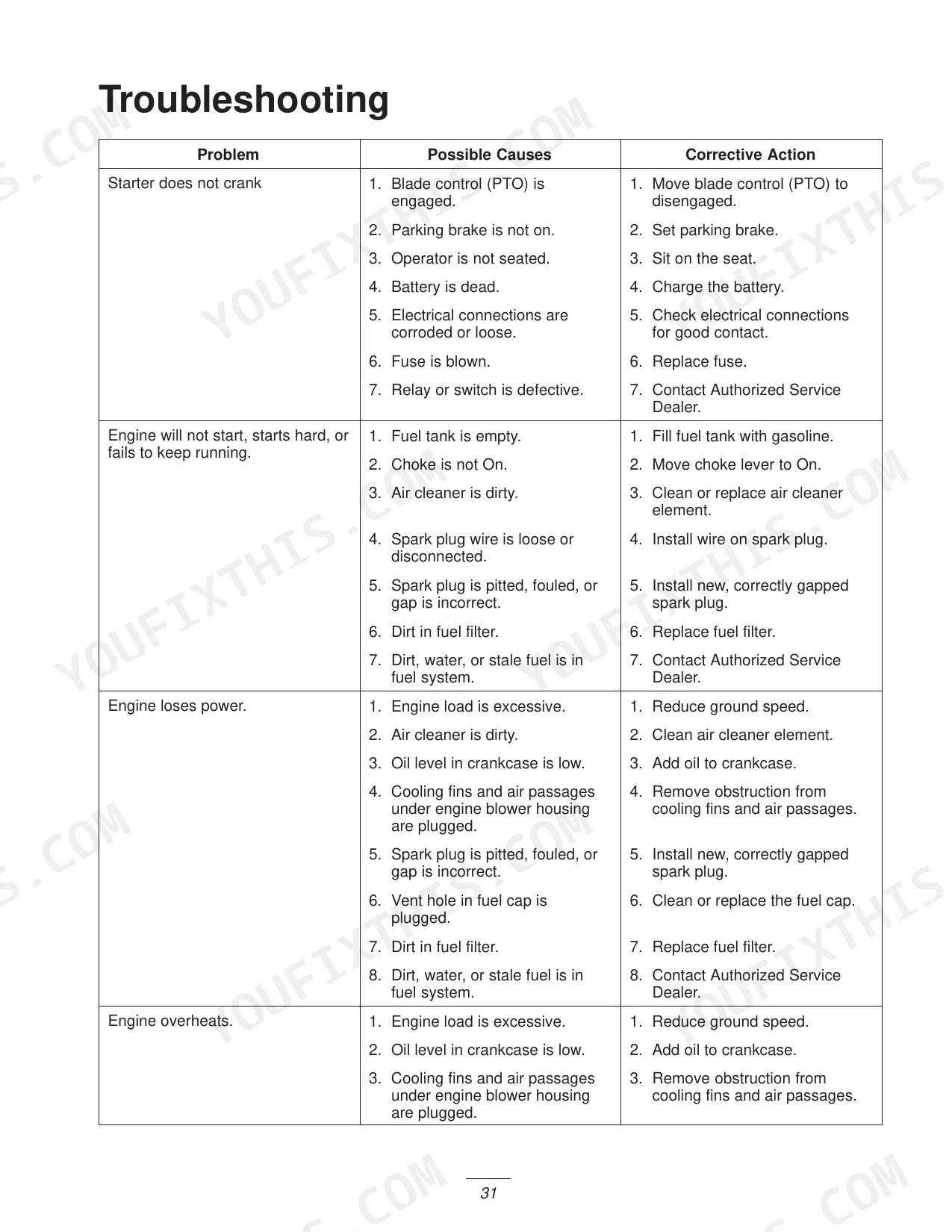

Troubleshooting starts at page 31 with starter, engine, power loss, overheating, vibration, and drive system.
What's Inside This New Holland MY16 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2-10 | Model Number, Serial Number, Product Identification, Service Dealer Contact, Safe Operating Practices, New Holland Riding Mower Safety, Slope Chart, Safety and Instruction Decals |
| Gasoline and Oil | 11-17 | Recommended Gasoline, Using Stabilizer/Conditioner, Filling the Fuel Tank, Check Engine Oil Level, Think Safety First, Controls, Operating the Parking Brake, Starting and Stopping the Engine, Operating the Power Take Off, Safety Interlock System, Indicator Control Module |
| Maintenance | 18-30 | Recommended Maintenance Schedule, Servicing the Engine Oil, Servicing the Air Cleaner, Servicing the Spark Plug, Greasing and Lubrication, Checking the Tire Pressure |
| Troubleshooting | 31-36 | Starter, Engine, Power Loss, Overheating, Vibration, Drive System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery Voltage | 12 v | p. 26 |
| Crankcase Capacity (with filter) | 64 oz. | p. 19 |
| Spark Plug Gap | 0.030 inch | p. 22 |
| Spark Plug Torque | 30 ft-lb | p. 22 |
| Tire Pressure (front and rear) | 20 psi | p. 23 |
| Brake Feeler Gauge Clearance | 0.015 inch | p. 23 |
| Front Wheel Toe-in | 1/8-1/4 inch | p. 25 |
| Main/Starter Fuse | 30 amp | p. 25 |
| Alternator Fuse | 25 amp | p. 25 |
| Dash/Hour meter Fuse | 10 amp | p. 25 |
| Head lights Fuse | 10 amp | p. 25 |
New Holland MY16 Common Problems This Manual Covers
Engine dies when you leave the seat

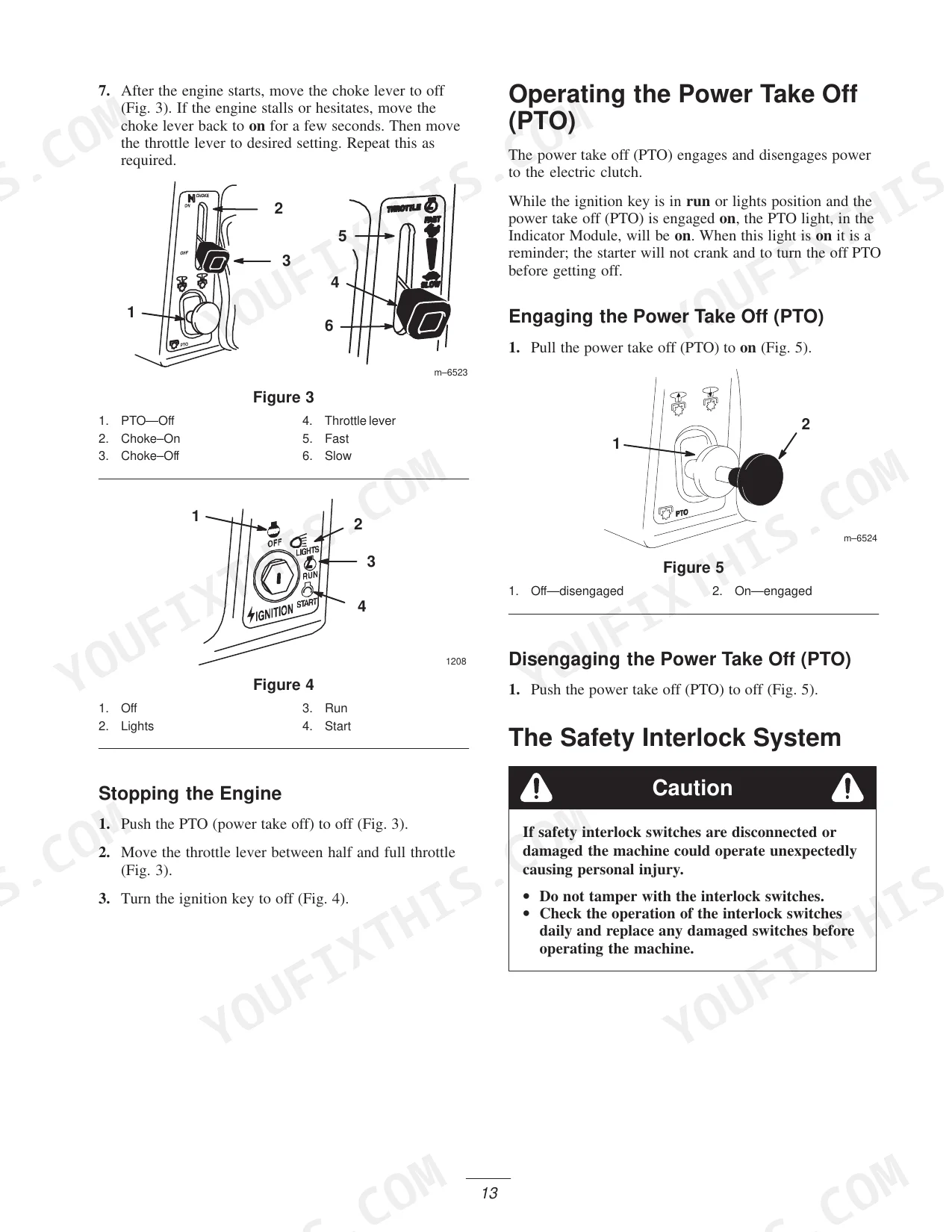

The MY16 will shut down or refuse to crank if an interlock switch, the brake, or the PTO lever is out of position. This section lists what each interlock watches and how to test the system in order instead of guessing.
Manual Section: The Safety Interlock System p. 13Hard starting after winter storage
Gasoline left in the tank over the off season gums the carburetor and leaves the machine cranking without firing come spring. The manual gives the recommended fuel, when to add stabilizer or conditioner, and the fill procedure so the tractor is ready the week you need it.
Manual Section: Gasoline and Oil p. 11Fouled or misgapped spark plug
Rough running, surging under load, and a no start on a warm engine often trace back to a carboned plug or one set at the wrong gap. The gap specification and tightening torque are both printed here, along with the removal and inspection steps.
Manual Section: Servicing the Spark Plug p. 22Tractor pulls or cuts unevenly
Uneven tire pressure front to rear tilts the machine and shows up as a wandering steer and a stepped cut. The manual states the pressure for front and rear tires and where to check it, which takes a gauge and five minutes.
Manual Section: Checking the Tire Pressure p. 23Parking brake will not hold
A brake that creeps on a slope is a safety problem before it is a service problem, especially with an attachment hung on the front. This section covers the adjustment using a feeler gauge clearance figure so you set it to specification rather than by feel.
Manual Section: Servicing the Brake p. 23PTO will not engage the deck
When the blades refuse to spin, the cause is usually the PTO switch, its interlock condition, or the electrical circuit feeding it rather than the deck itself. The manual explains the correct engagement sequence and the conditions that must be met first.
Manual Section: Operating the Power Take Off (PTO) p. 13Dead headlights or blank hour meter
A single blown fuse takes out the dash, the hour meter, or the lights while the engine still runs fine, which sends people chasing wiring for no reason. The manual lists each fuse and its amperage so you replace like with like.
Manual Section: Servicing the Fuses p. 25Frequently Asked Questions
Which machine does this manual cover?
It is the New Holland operator manual for the MY16 yard tractor, publication number 87040089, covering units with serial number T04MA0001 and up. Check the serial plate on your machine against that prefix before buying. p. 1
Where do I find my model and serial number?
The Introduction section shows the model number, serial number, and product identification locations, plus where to record them for your service dealer. Have those numbers written down before ordering parts. p. 2
Does it give spark plug specifications?
Yes. Servicing the Spark Plug gives the gap setting and the tightening torque along with the removal and inspection steps, so you can set a new plug correctly instead of running it down by hand. p. 22
Is there a maintenance schedule with intervals?
The Maintenance section opens with the recommended maintenance schedule, then walks engine oil, air cleaner, spark plug, greasing and lubrication, tire pressure, brake, fuel tank and filter, toe-in, transaxle fluid, fuses, headlights, battery, storage, and a wiring diagram. p. 18
Will this New Holland MY16 Operator Manual download right away?
A 36-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this New Holland MY16 manual print-friendly?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
