This 657-page Same Titan 160, 190 Workshop Manual puts every engine, gearbox, and axle procedure for your Tractor in one place. Open it up and you get full wiring diagrams for the electrical system, hydraulic schematics covering the rear and front power-lift circuits, plus a dedicated self-diagnosis section with error codes for the Electronic Power Shift. Set fuel system specs against the engine specifications block, then check lubrication points before you fill anything. Fuel injection timing wrong, and you're chasing a no-start with a test light instead of the actual spec. This one's bookmarked by system, engine, gearbox, axles, controls, so you jump straight to the page you need instead of scrolling 657 pages on your phone in the shop.
What's Inside This Same Titan 160 & 190 Manual

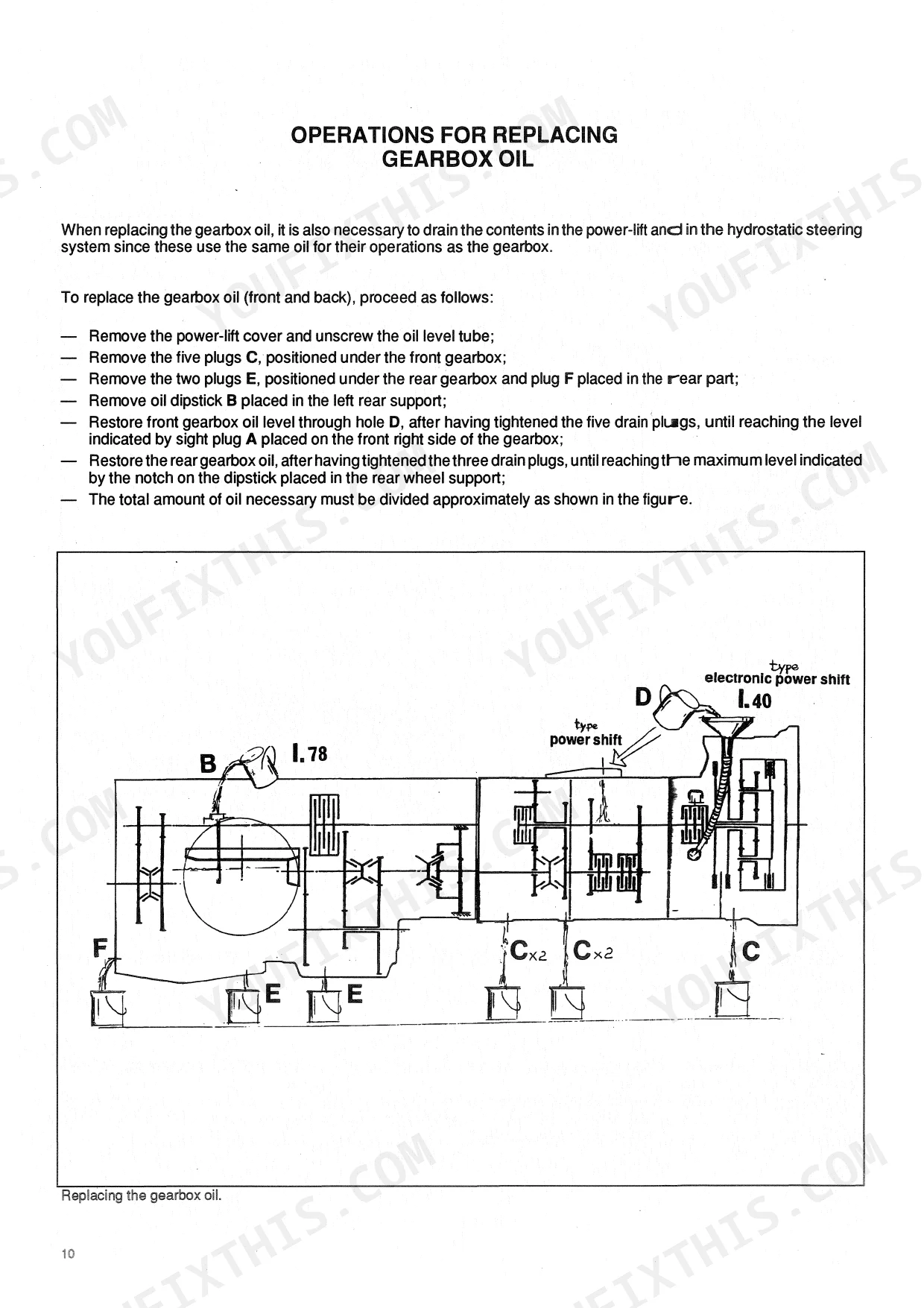

| System | Pages | Key Topics |
|---|---|---|
| General Information | 4-5 | Dimensions and Weights, Conversion Table, Engine Running-In, Maintenance Operations, Filling Operations, Measuring Engine Power |

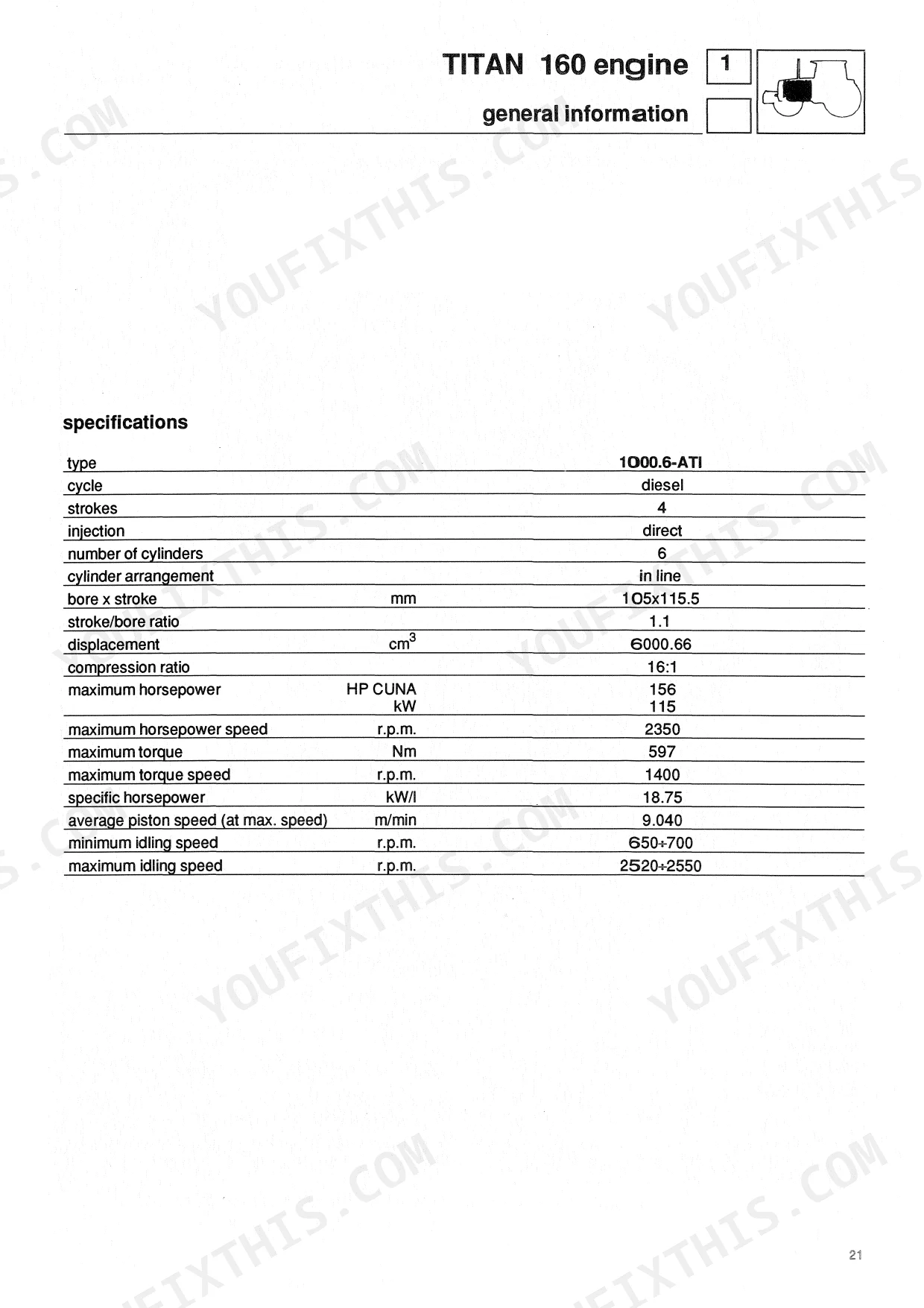

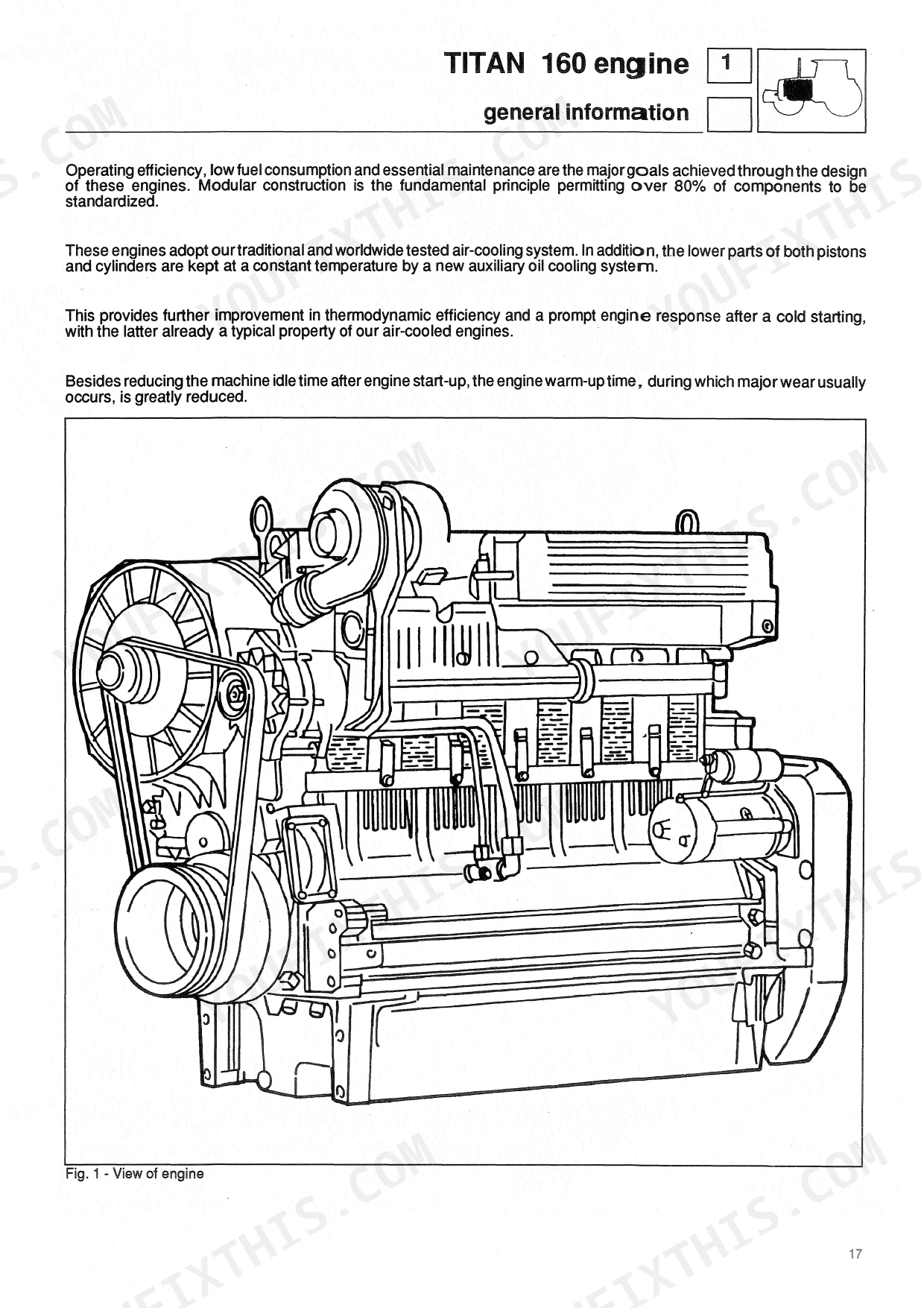

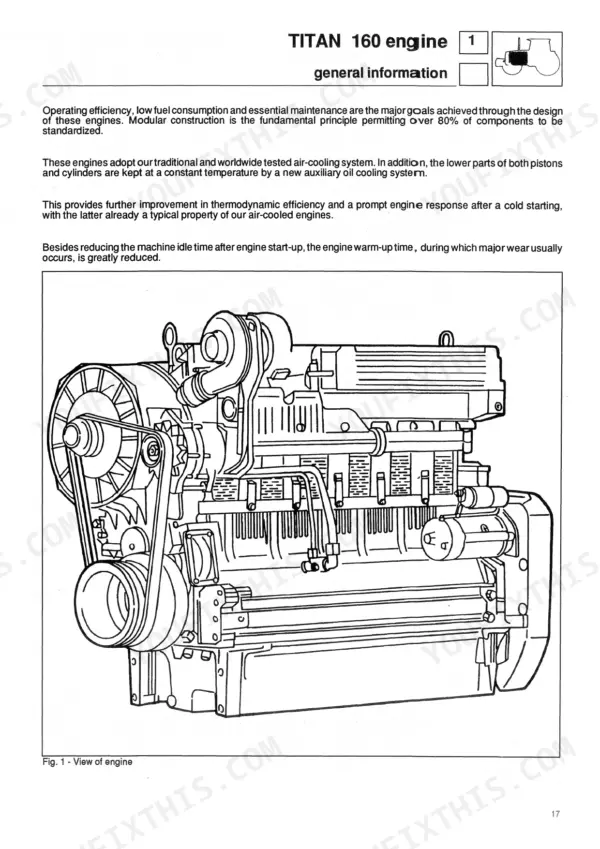

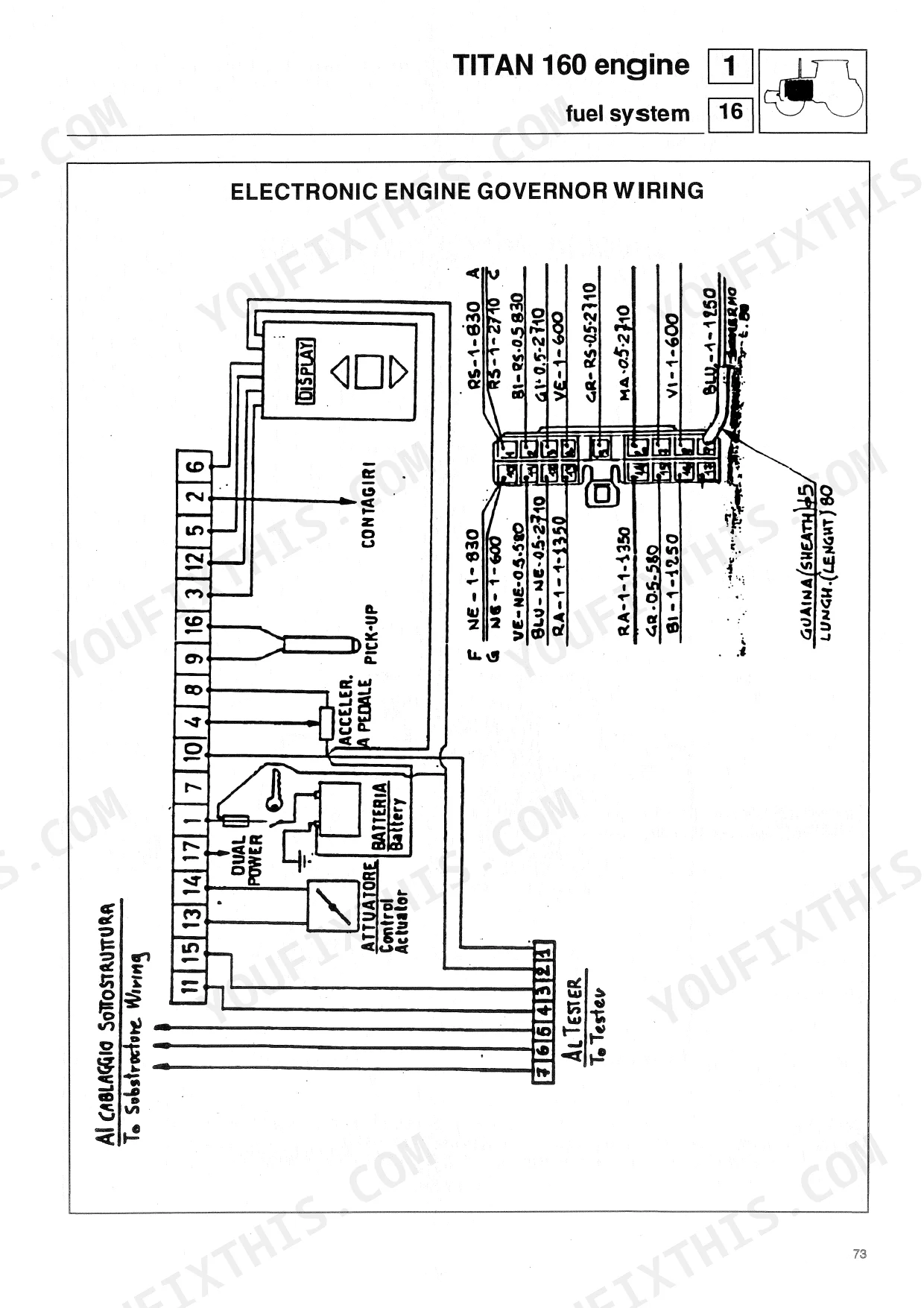

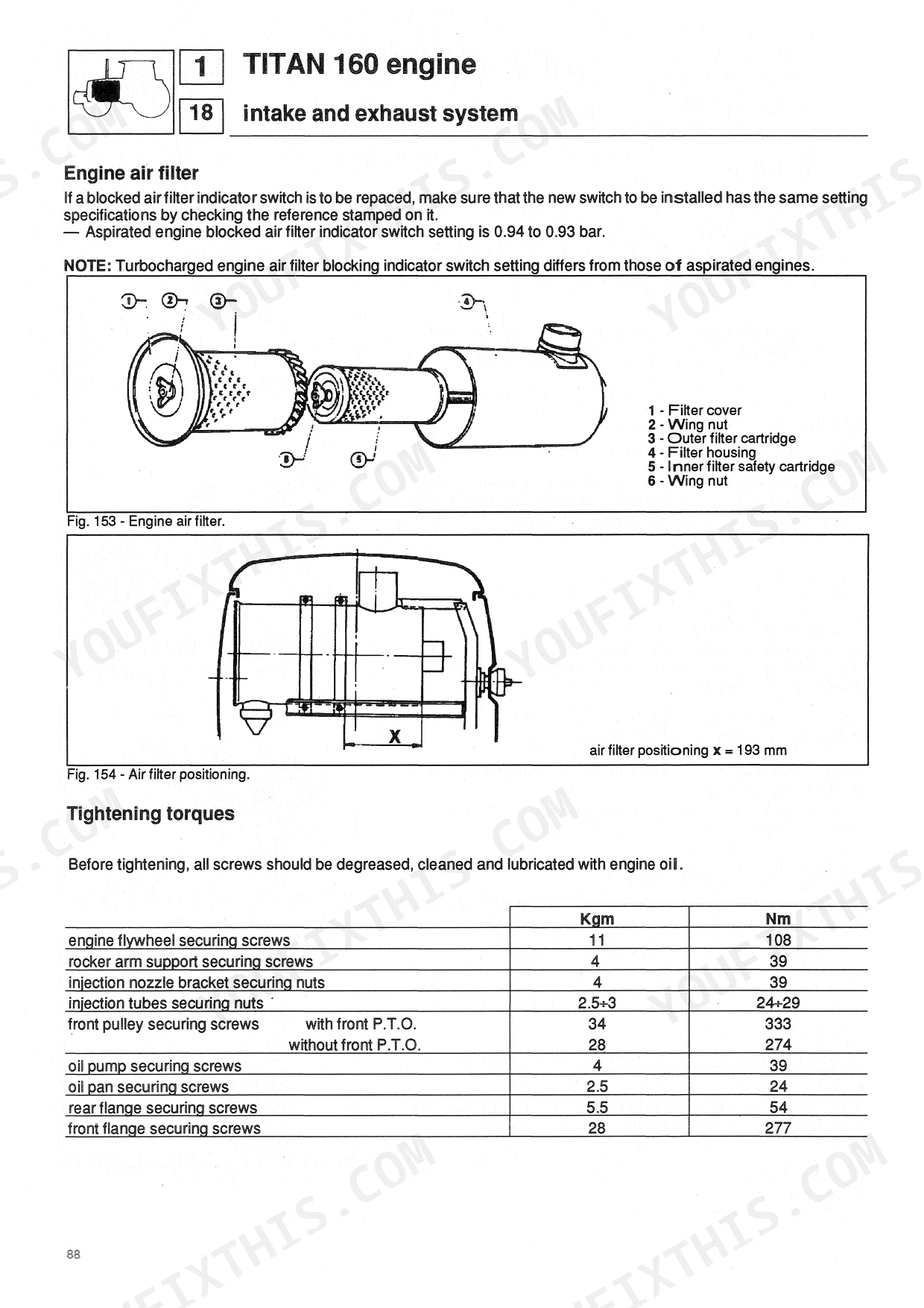

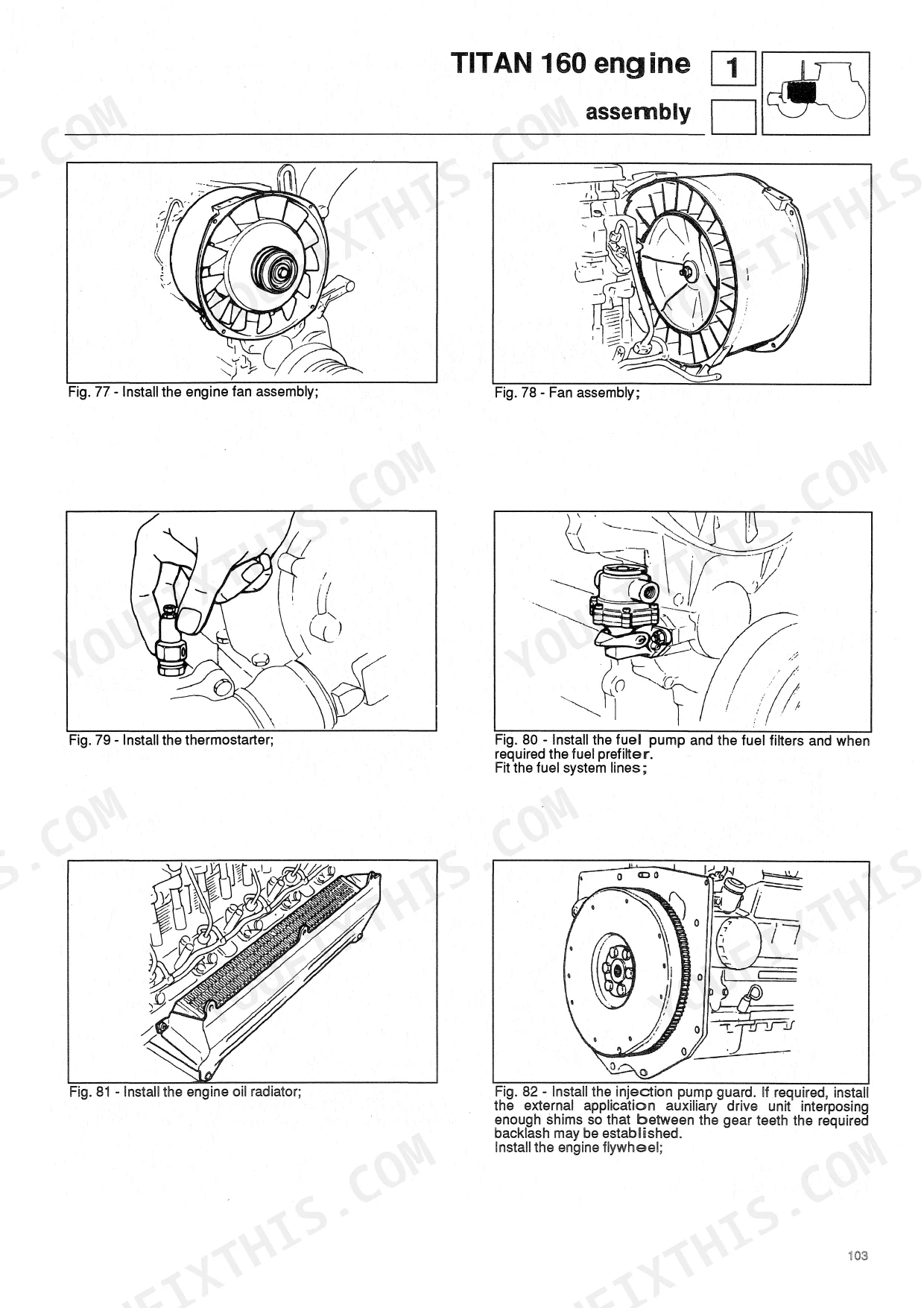

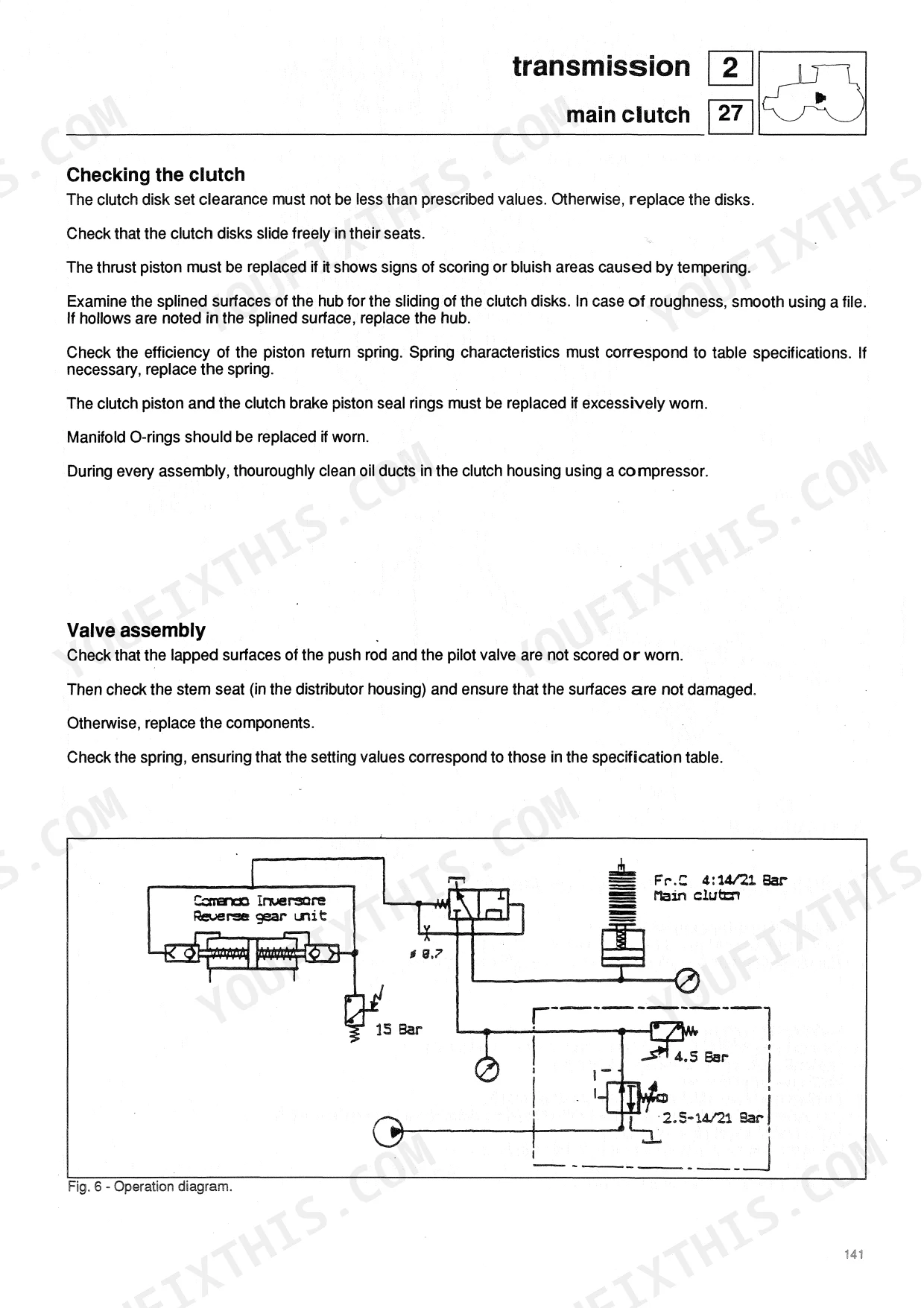

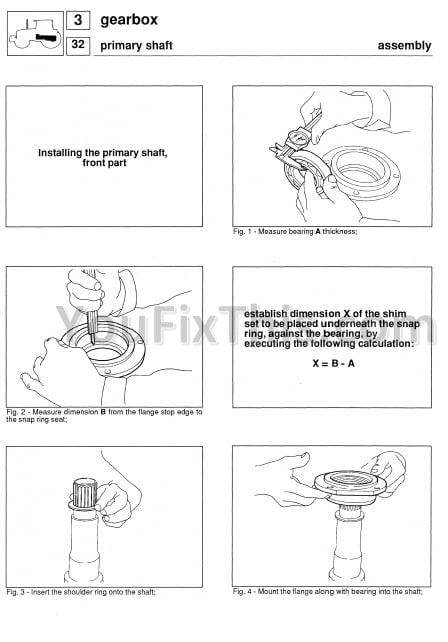

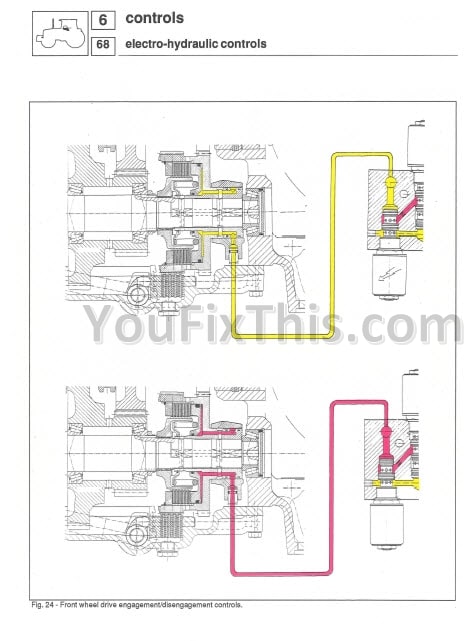

| Titan 160 Engine | 20-111 | Engine Sections, Specifications, Timing System, Lubrication System, Fuel System, Turbocharging, Cooling System, Engine Block |
| Titan 190 Engine | 112-202 | Engine, Timing Case, Crankshaft, Pistons, Gudgeon Pins, Piston Rings |
| Transmission | 203-243 | Power Shift, Assembly, Main Clutch |
| Gearbox | 244-362 | Power Shift, Electronic Power Shift, Secondary Shaft, Reversing Gear Unit, Primary Shaft, Front Gearbox Assembly Procedure, Rear Gearbox, Rear Differential |
| Drive Axles - Axles | 363-392 | Front Drive Axle Specifications, Differential Lock Clutch, Bevel Pinion Adjustment, Sba System Operation, Rear Axle Shaft Installation, Epicyclic Reduction Gear |
| Vehicle | 393-454 | Brakes, 3-Point Hitch, Rear Hydraulic Power-Lift, Front Hydraulic Power-Lift, Front Power Take-Off |
| Controls | 455-502 | Hydrostatic Steering, Mechanical Controls, Electro-Hydraulic Controls |
| Body | 503-523 | Cab, Performance Monitor |
| Systems | 524-589 | Hydraulic System, Electrical System, Cab Environment Control, Auxiliary Hydraulic Systems, Trailer Braking System |
| Appendix | 590-657 | "Electronic Power Shift" Self-Diagnosis, All Round Tester |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine sections | 18 | p. 6 |
| Fuel system | 57 | p. 6 |
| Lubrication system (specifications) | 23 | p. 6 |
| Brakes | 299 | p. 6 |
| Lubricating operations | 11 | p. 6 |
| Diagnosing malfunctions | 106 | p. 6 |
| Hydraulic system | 428 | p. 6 |
| multigrade engine oil | SHPDO S+L+H OM-1991 API CE MIL-L-2104 E level CCMC D5 SAE 15W 40 | p. 11 |
| oil filter with replaceable cartridge type | 2 | p. 26 |
| fuel filter ref. code | 2.4319.180.0 | p. 27 |
| fuel filter filtering capacity | 1.5+2 μ | p. 27 |
| minimum lubricating oil pressure (hot oil) at minimum idling speed | ≥ 0.5 bar | p. 26 |
Same Titan 160 & 190 Common Problems This Manual Covers
Same Titan 160, 190 engine overheating or loss of power under heavy load
Inspect the radiator fins for clogs and clean them thoroughly. Check the thermostat on page 121 to ensure initial opening occurs at 85±2 °C. Drain the cooling system and refill it to the specified 16 capacity to restore proper operating temperatures.
Manual Section: Engine Malfunctions (General)Front hydraulic power-lift operates slowly, chatters, or exhibits weak lifting capacity during field operation
Test the system pressure at the main test port. Verify the front hydraulic power-lift maximum pressure reaches 180 bar as specified on page 441. If pressure is low, inspect the hydraulic tubing for efficiency loss and replace any contaminated fluid.
Manual Section: Hydraulic Power-Lift Malfunctions p. 441Tractor experiences brake slippage, noisy braking, or inability to hold position on steep inclines
Measure the brake pedal free travel and adjust the linkage to strictly maintain 40 mm. Remove the brake housing using the procedures on page 393 to inspect the internal disks. Verify the brake disk outside diameter is 223.4 mm and check the fluid level to prevent slippage.
Manual Section: Brake System Malfunctions p. 393Engine exhibits rough idle, produces dark exhaust smoke, or fails to start in cold weather
Check the fuel system and replace the fuel filter if necessary. Adjust the valve clearance on a cold engine to 0.30 mm for the 190 model as detailed on page 117. Verify the multigrade engine oil meets the SAE 15W 40 specification on page 11.
Manual Section: Engine Malfunctions (General)Frequently Asked Questions
What are the recommended service intervals?
Recommended service intervals include changing engine oil every 150 hours (checking the level frequently) and replacing the engine oil filter (every 2 engine oil changes) and fuel filter every 300 hours. It is important to record the tractor operation time when these replacements are made. p. 10
What fluids and capacities does this machine require?
The machine requires 15 liters of engine oil (AKROS TURBO 15 W 40), 118 liters for the gearbox and hydraulic systems (AKROS MULTI SAE 20W 30), and 230 liters for the fuel tank. The front PTO requires 2.5 liters of AKROS MULTI SAE 20W 30, and the engine radiator (for 190 HP only) requires 16 liters of AKROS FLUID. p. 14
How to troubleshoot engine won't start?
If the engine will not run when started, check the battery charge and recharge if discharged, or clean and tighten oxidized battery terminals. For starter failure, consult a motor vehicle electrician to replace defective parts. p. 109
What are the valve clearance specifications?
For a cold engine, the clearance between valves and rockers should be 0.20 mm. This value applies to timing adjustment only after correcting the clearance between valves and rocker arms to 0.25 mm. p. 25
Is this Same Titan 160, 190 workshop manual a digital download?
Instant PDF download. You get the full 657-page searchable workshop manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this Same Titan 160, 190 manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Same Titan 160, 190 workshop manual have electrical diagrams?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
